SPECIFICATIONS

Brand Name: APWIKOGER

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: Relay Module

Origin: Mainland China

Theory: Time Relay

semi_Choice: yes

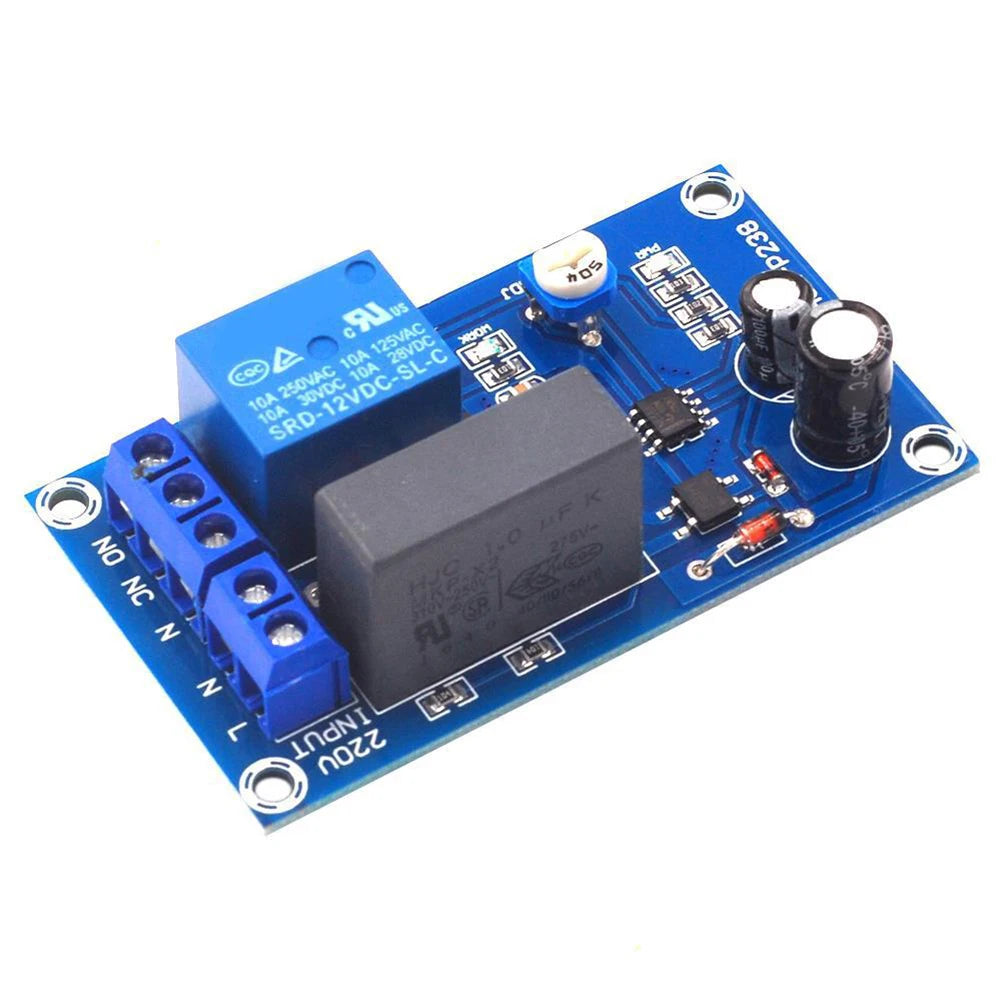

220V Circuit Board Adjustable Time Delay Relay Module Input Output Dropping Resistor Accessories for Corridor Staircase Light
Feature:

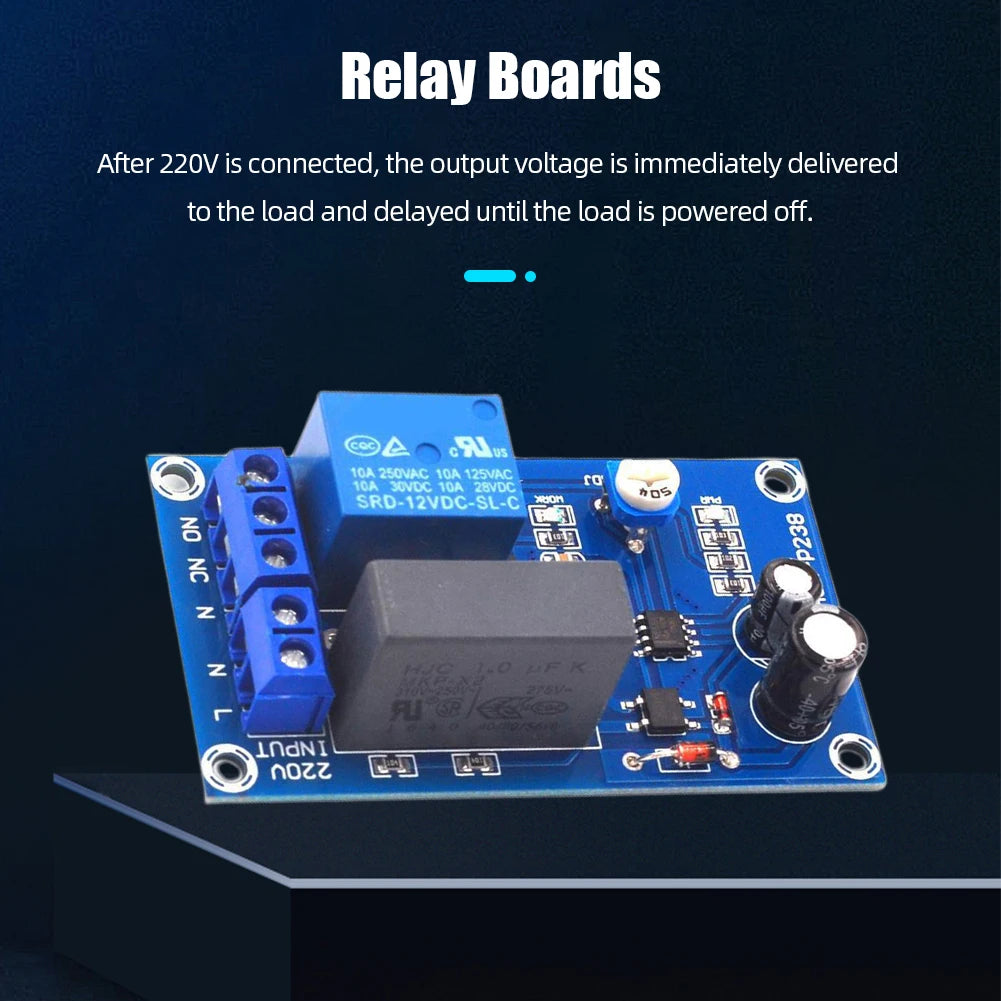

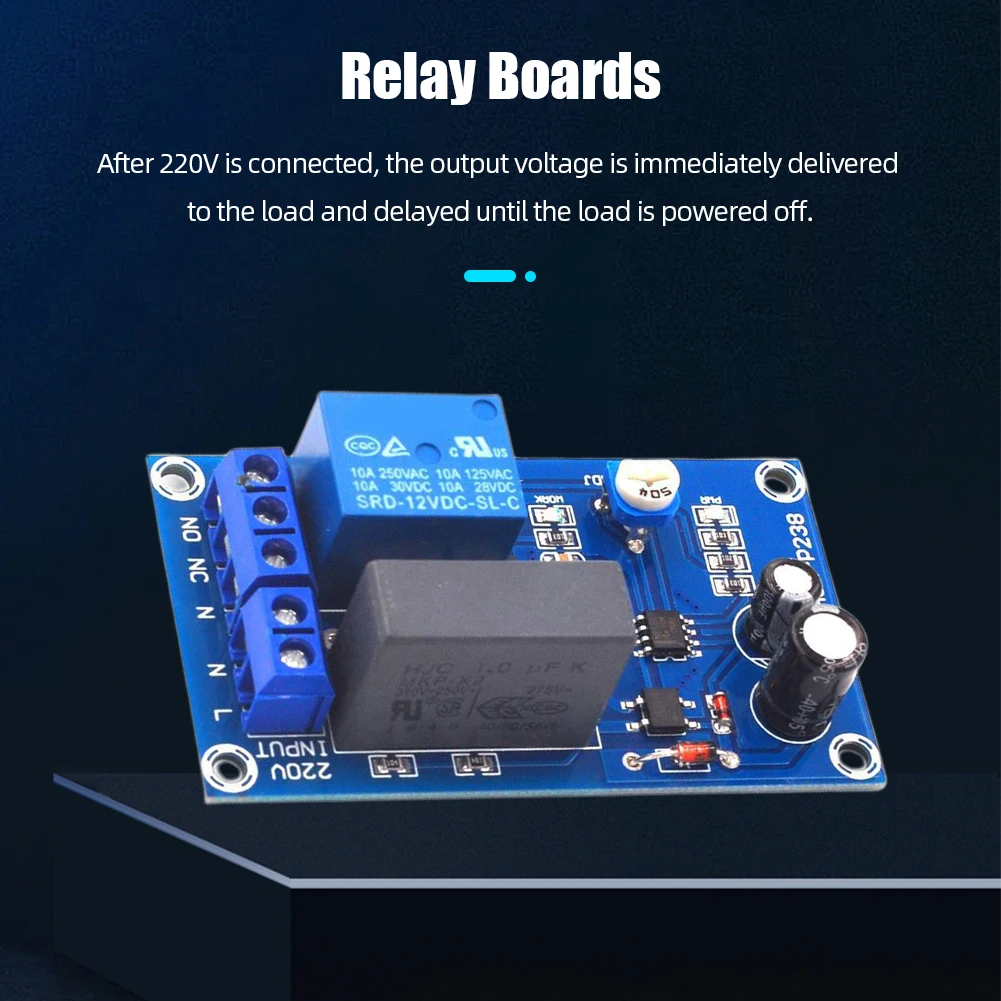

1. Efficient Delayed Shutdown: The relay board has delayed shutdown functionality, which means that upon power-up, it immediately transmits output voltage to the load, which is then cut off after a specific duration.

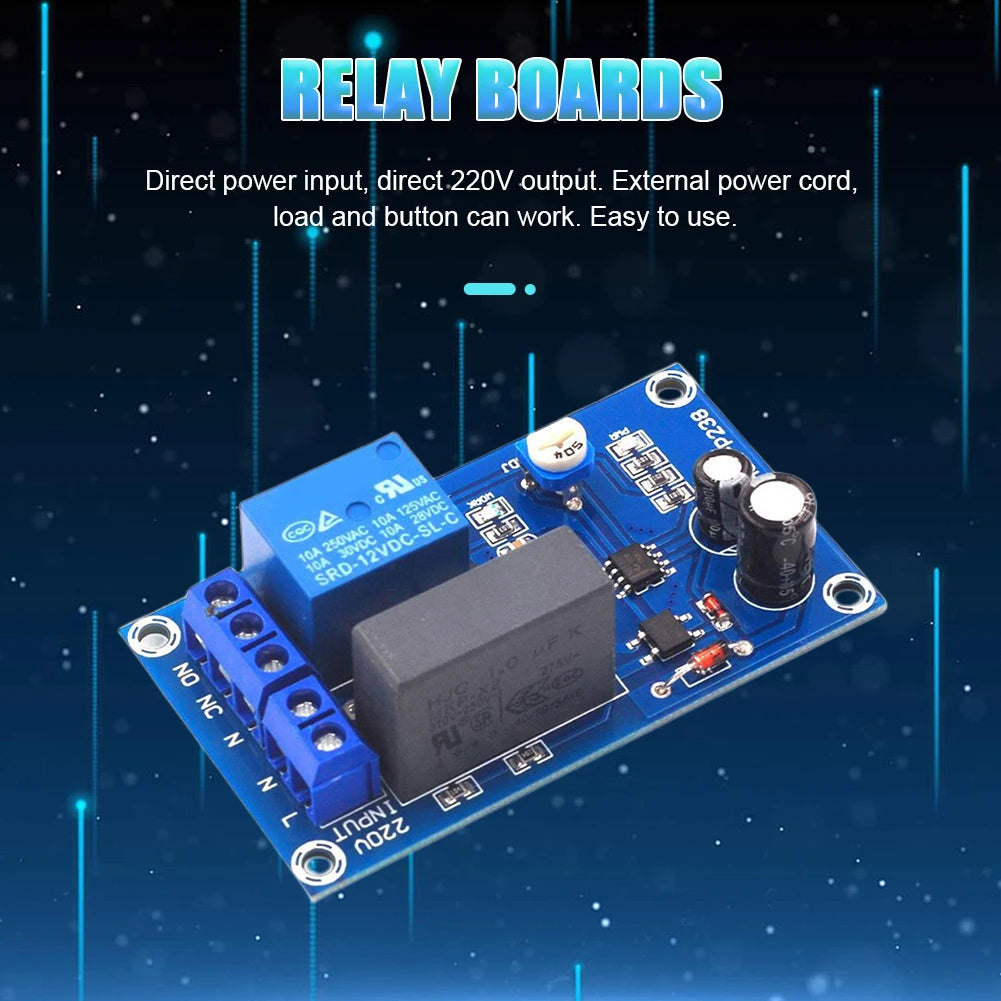

2. Wide-Ranging Compatibility: With direct power input and output at 220V, the relay board can support external power lines, loads, and buttons, making it simple to use.

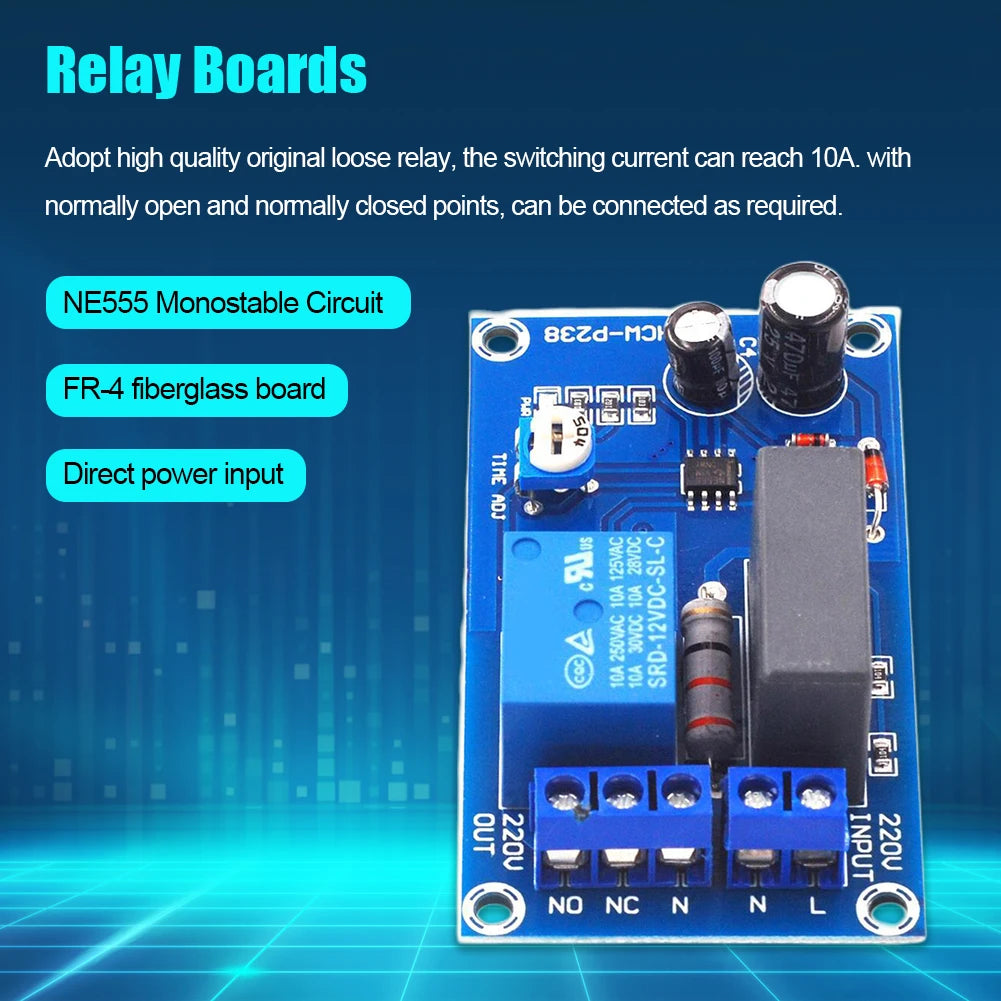

3. High-Quality Components: The relay board employs -grade loose relays capable of switching currents up to 10A. Both normally open and normally closed connections are available, depending on your requirements.
4. Adjustable Time Settings: This module has a continuous time adjustment feature that allows you to set durations between one and sixty seconds.

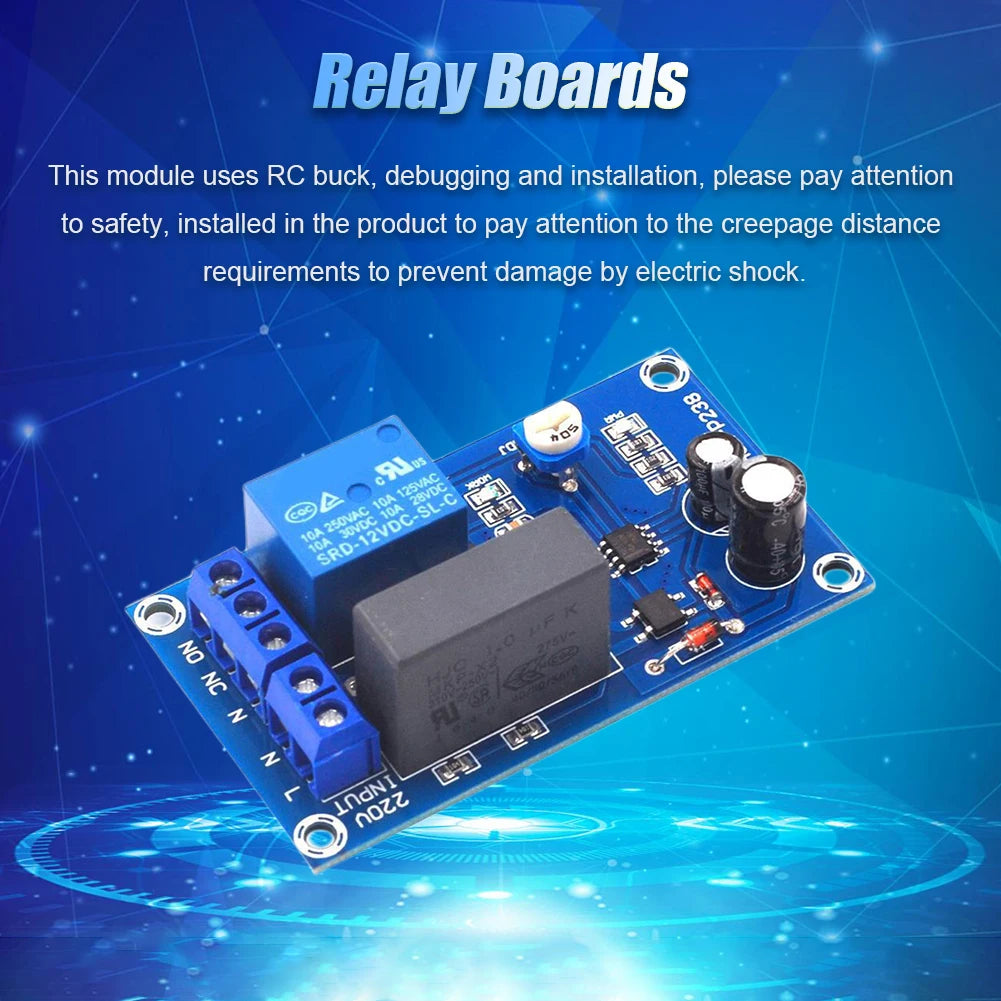

5. Safe and Reliable Design: The relay board uses an NE555 monostable circuit for accurate timing. The power control section incorporates RC voltage reduction, X2 capacitors, 3W high-power resistors, and a 470uF filter capacitor to ensure stable and dependable power delivery. Additionally, the FR-4 fiberglass board prevents electrical arcing and is suitable for various temperatures and conditions.

Specification:
Origin: Mainland China
Color: Green
Material: Metal
Input: 220V
Output: 220V apex current 10A (maximum 2200W)

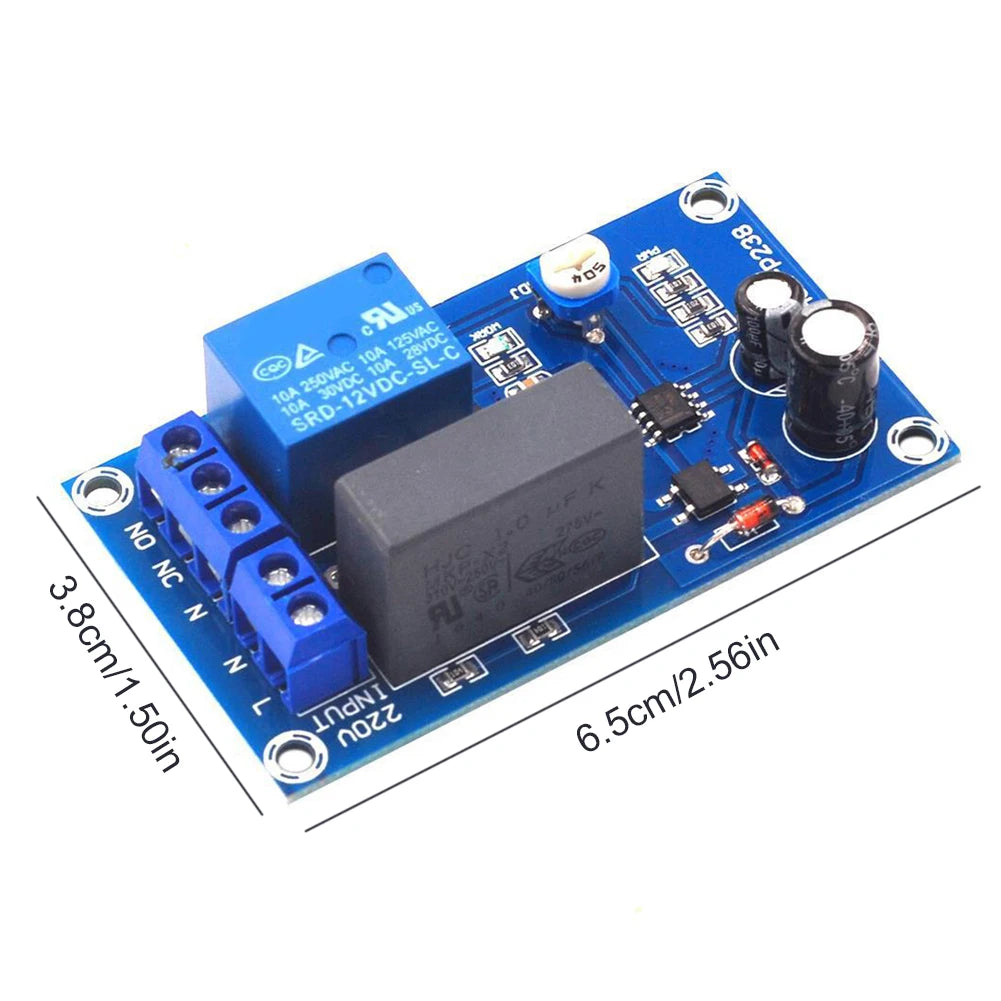

Circuit board size: About 65x38mm/2.55x2.67inch
Product weight: 30g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
