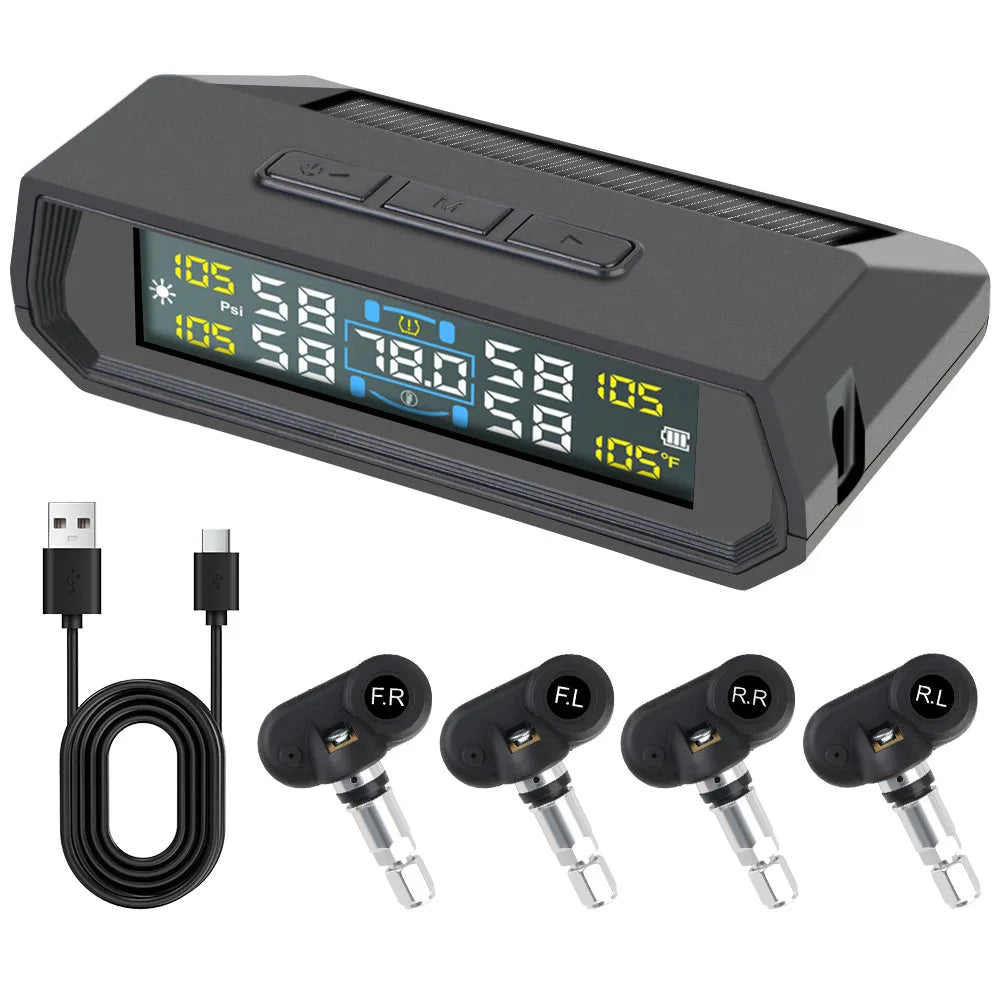

SPECIFICATIONS

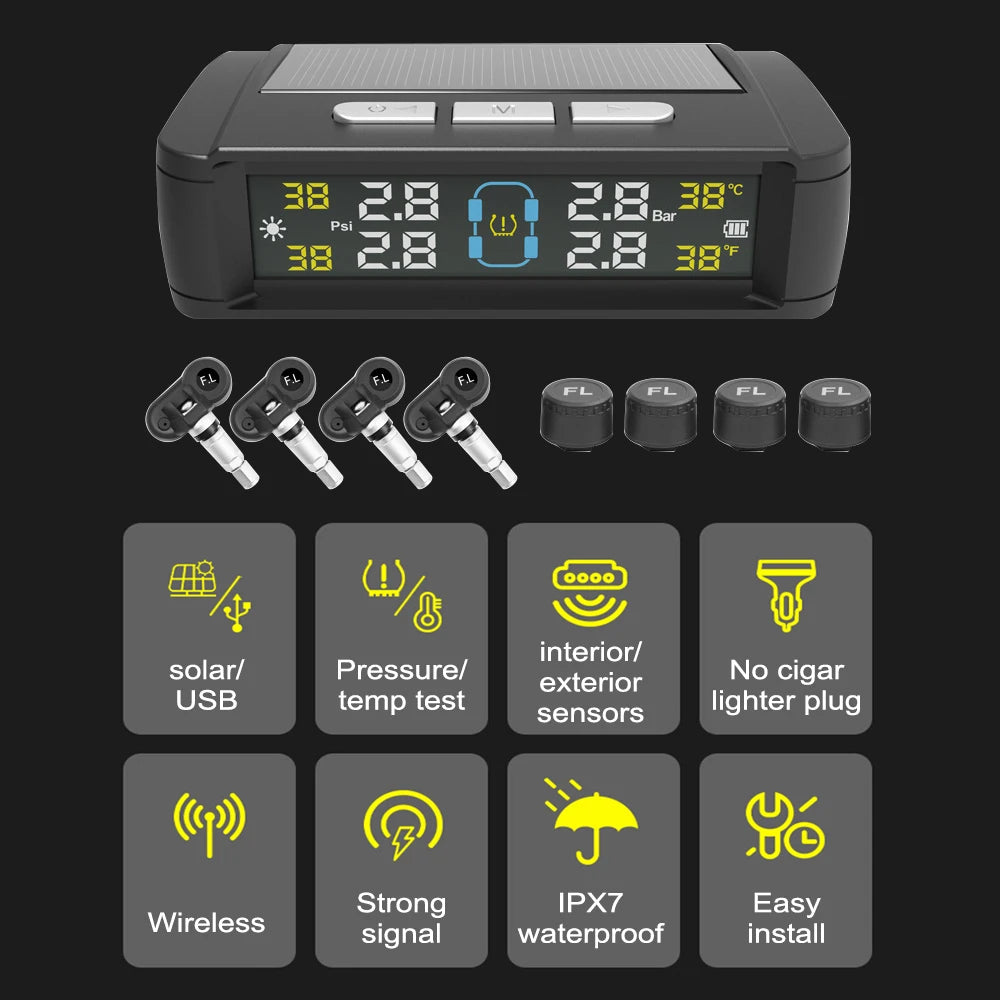

Features:

• 100% brand new and high quality.

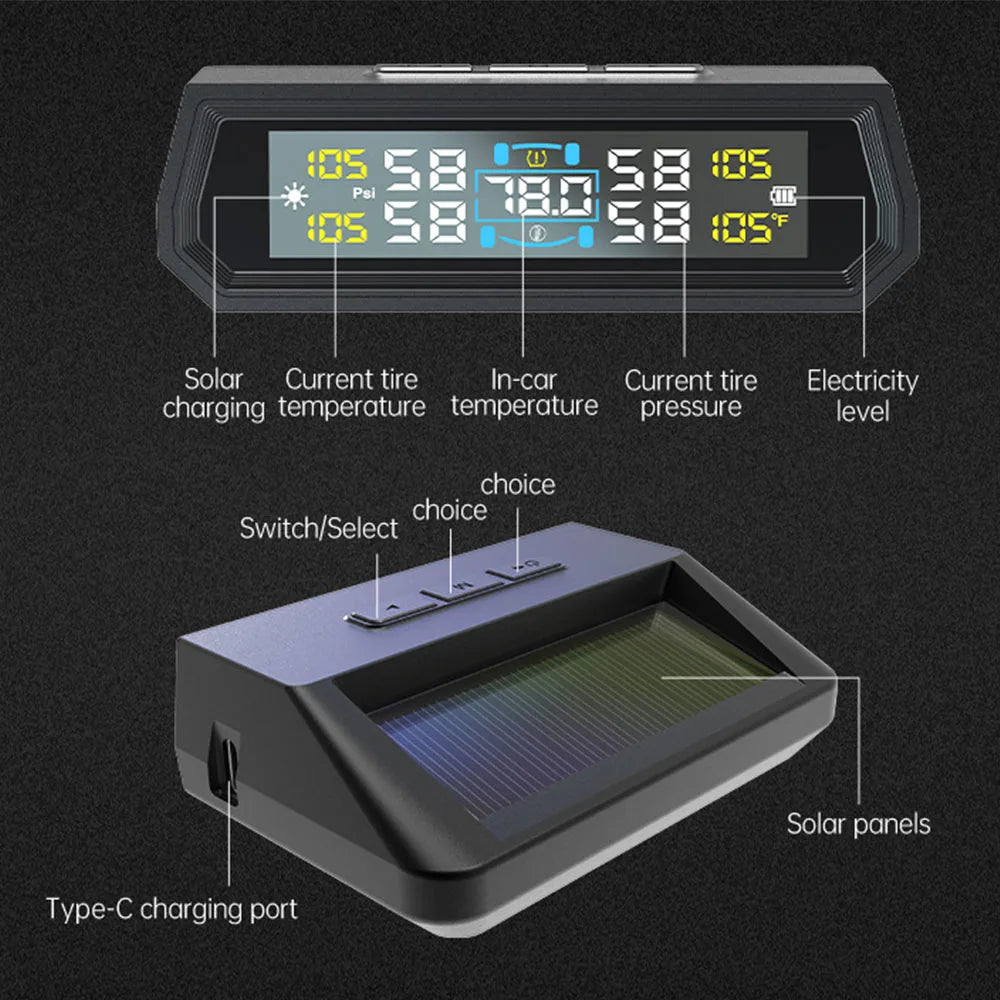

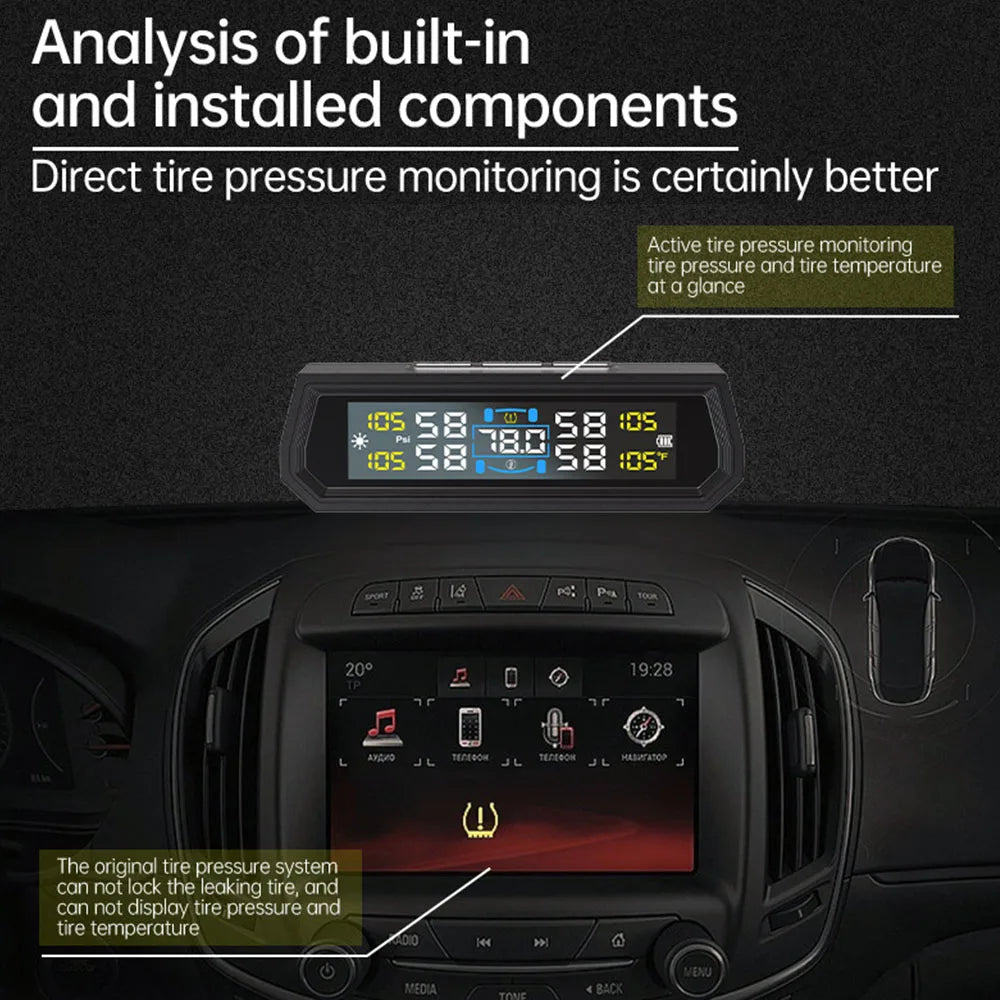

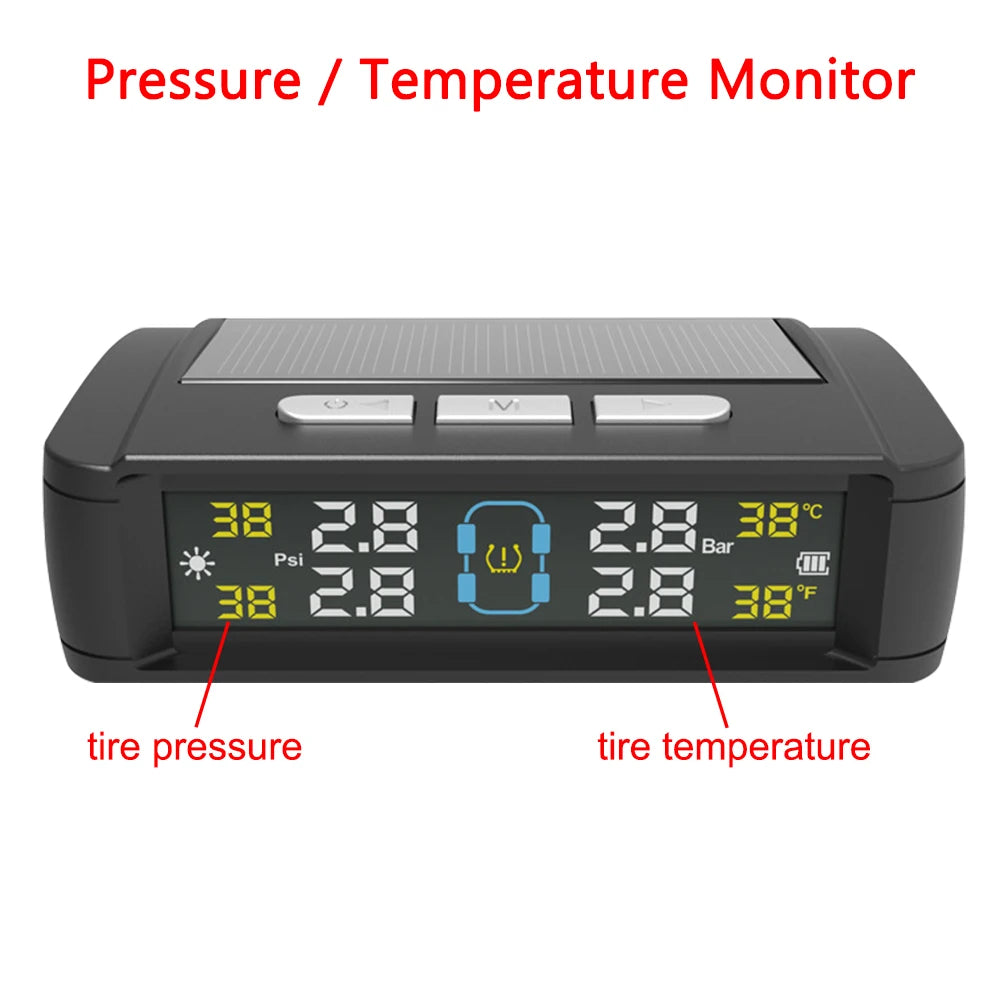

• LCD digital displaying, clear to show tire information

• Wireless connect by interior/external sensors, easy install

• Real-time automatic monitoring and warning of information, such as low tire pressure, high tire pressure, rapid air leak, high tire temperature and low battery voltage.

• Accurately receive the signal, and reflect the tire pressure condition truthfully and intuitively.

• Note: The host must be turned on before installing the sensor. Press and hold the left button for 3 seconds

Function:

• Rear-time monitoring pressure & temperature of 4 tires

• Low air pressure / High tire pressure alarm


• High temperature / Leakage / Low Battery Alarm

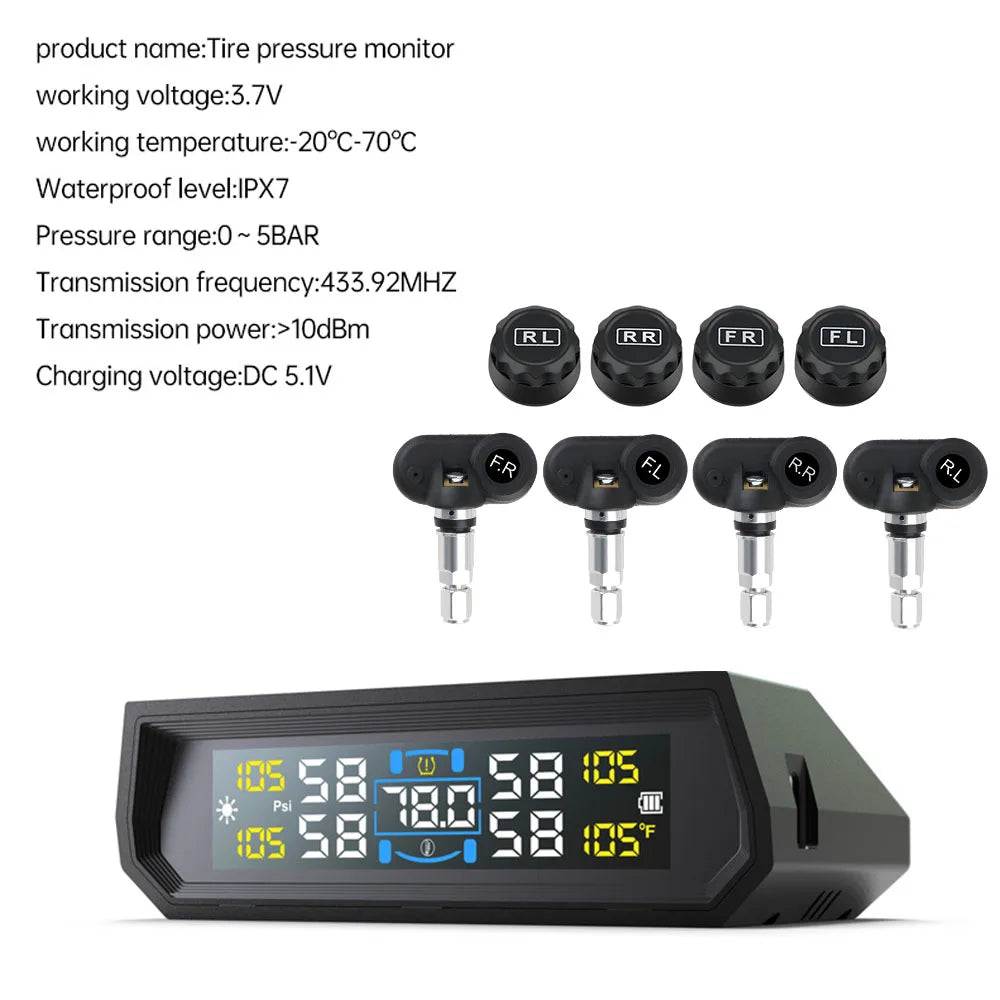

Specifications:

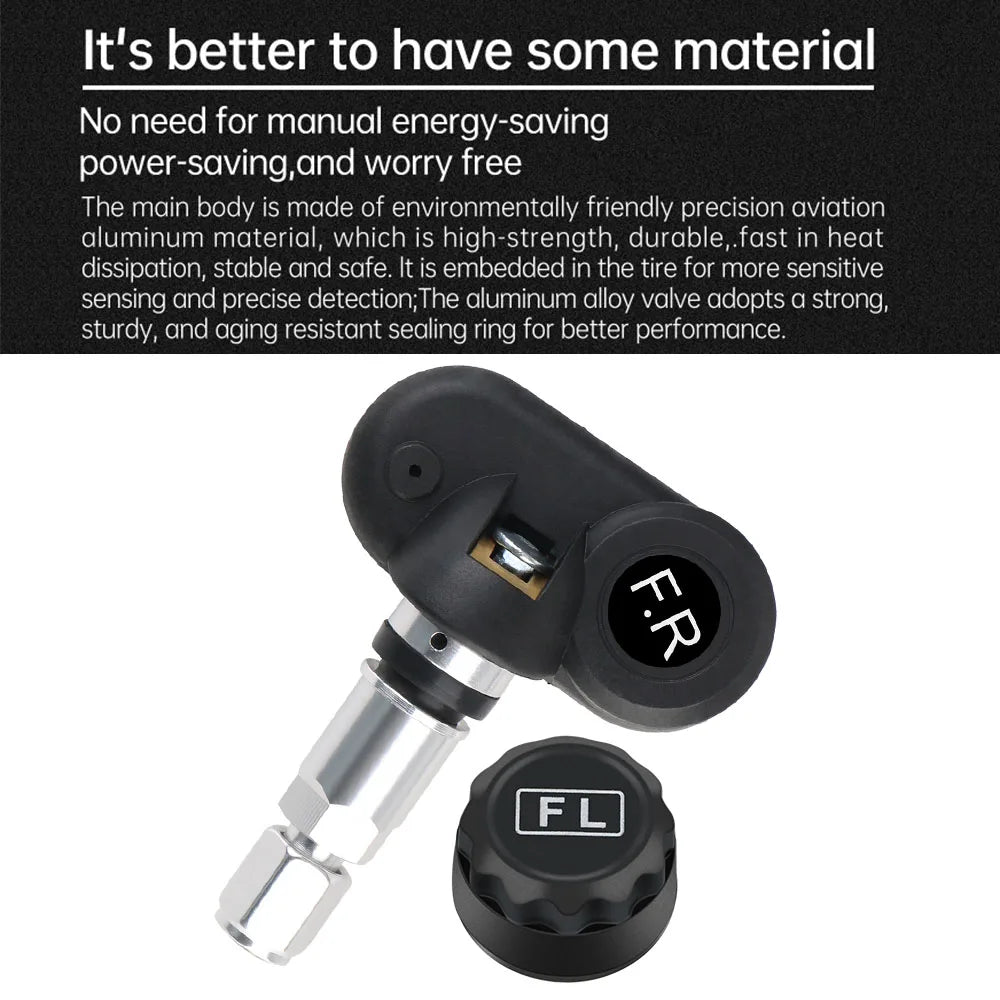

• Material: ABS + aluminum

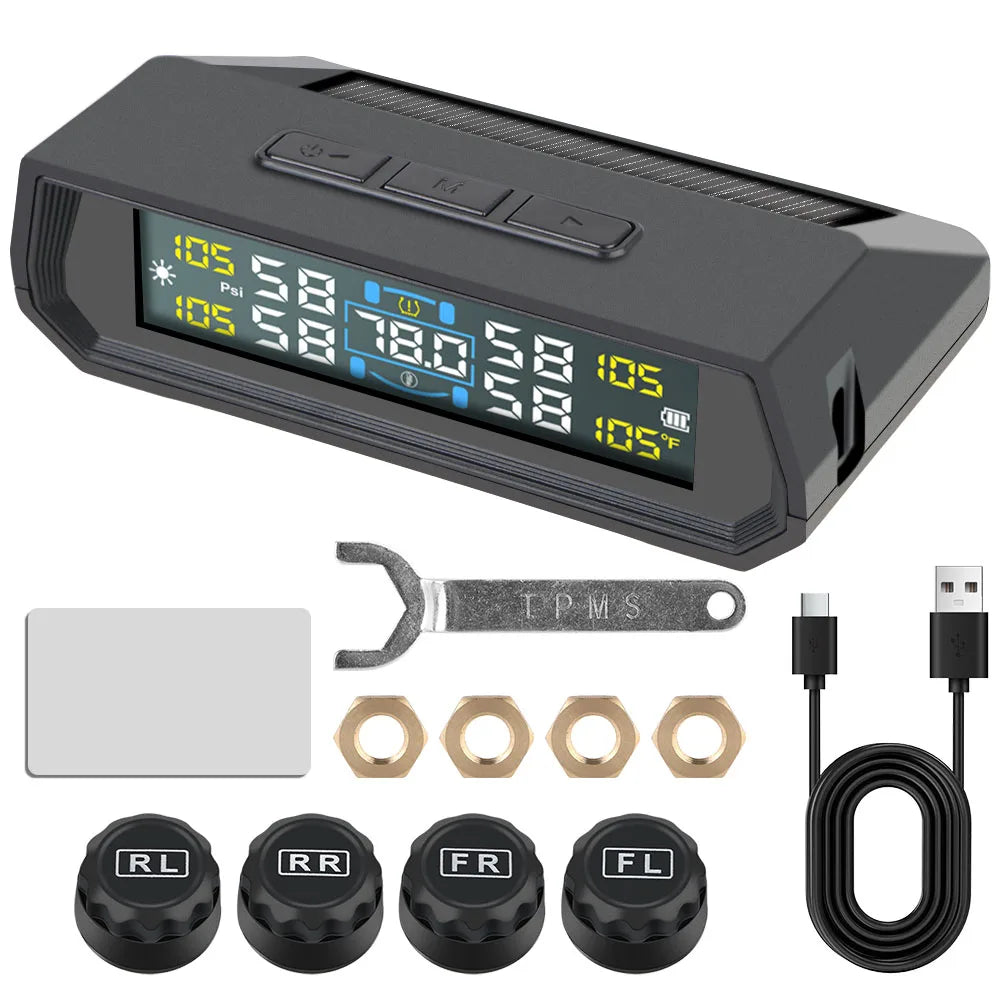

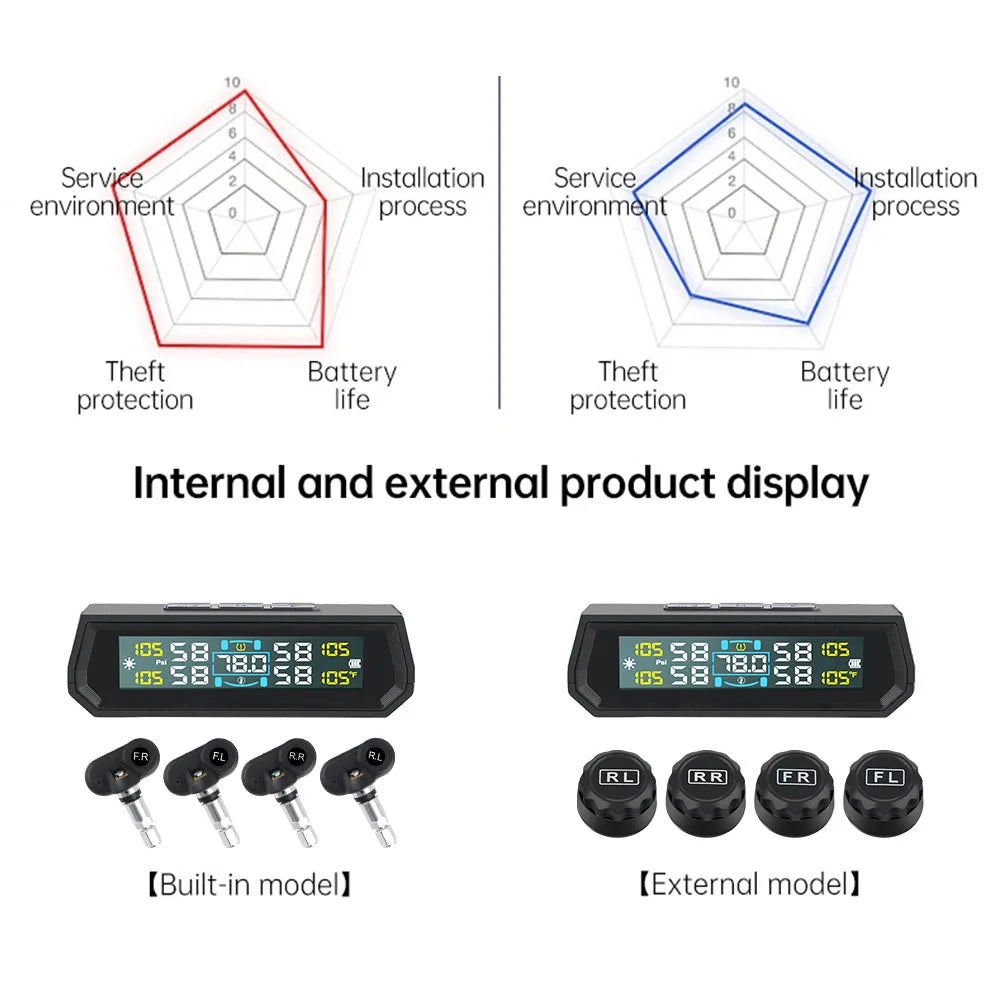

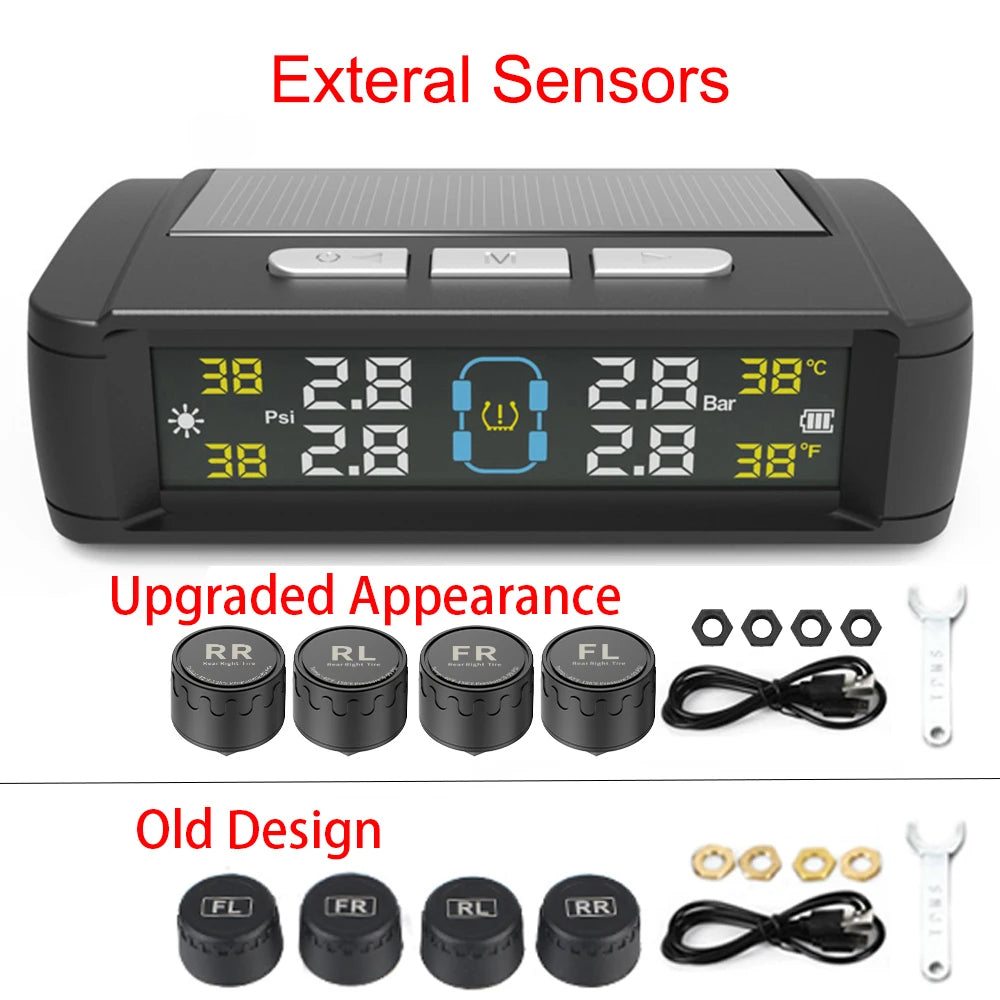

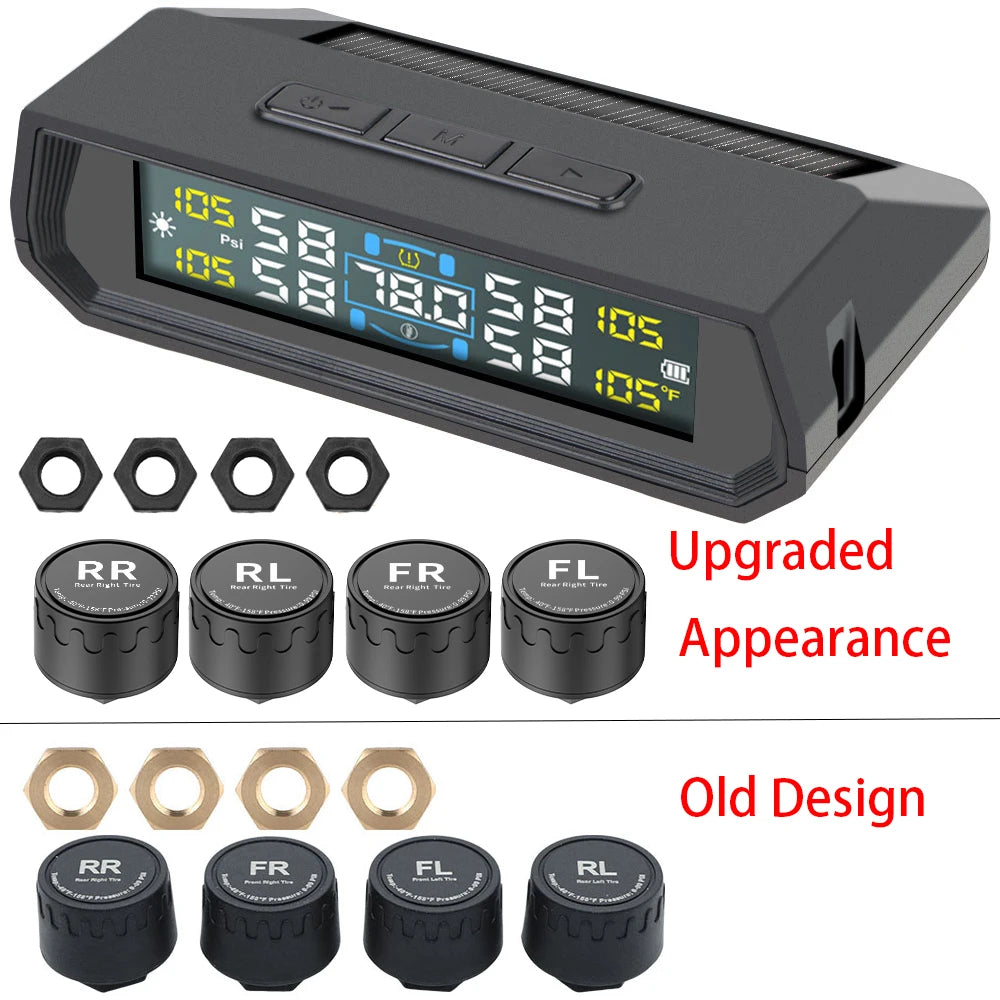

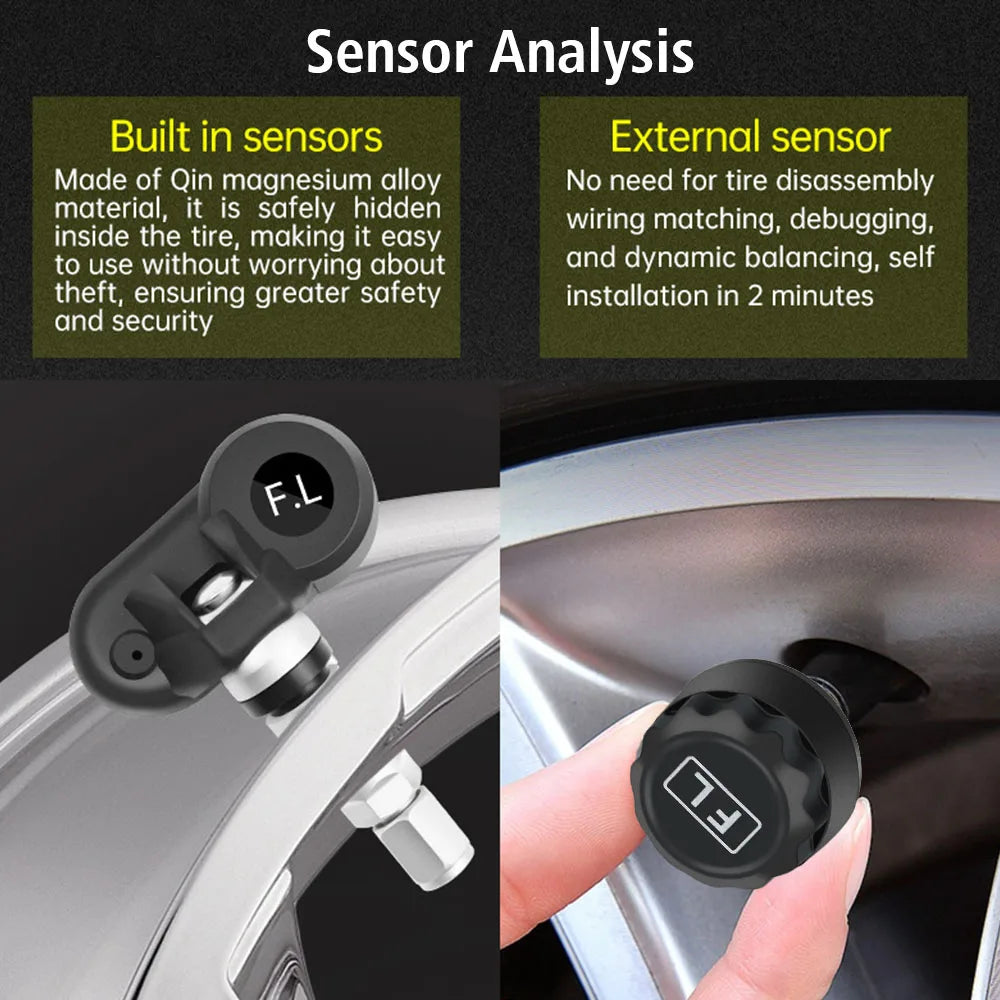

• Types: Interior sensors,exteral sensors

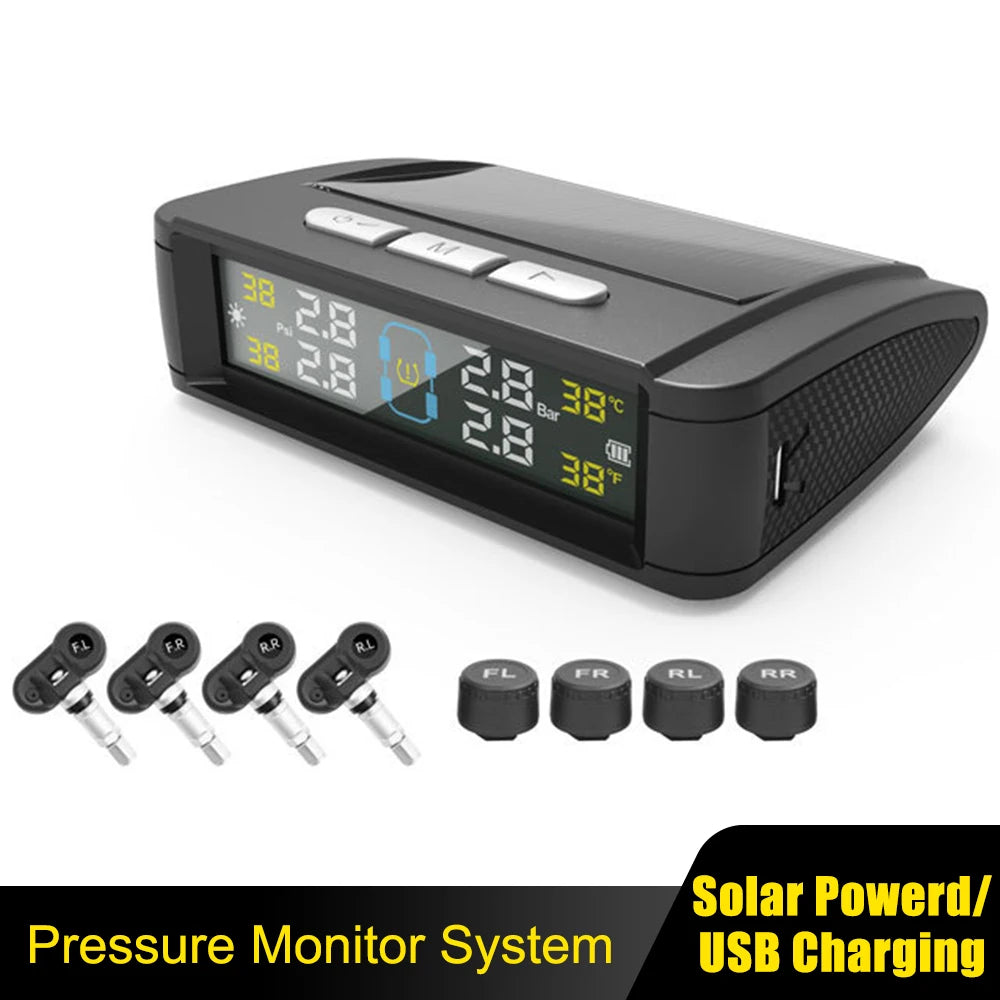

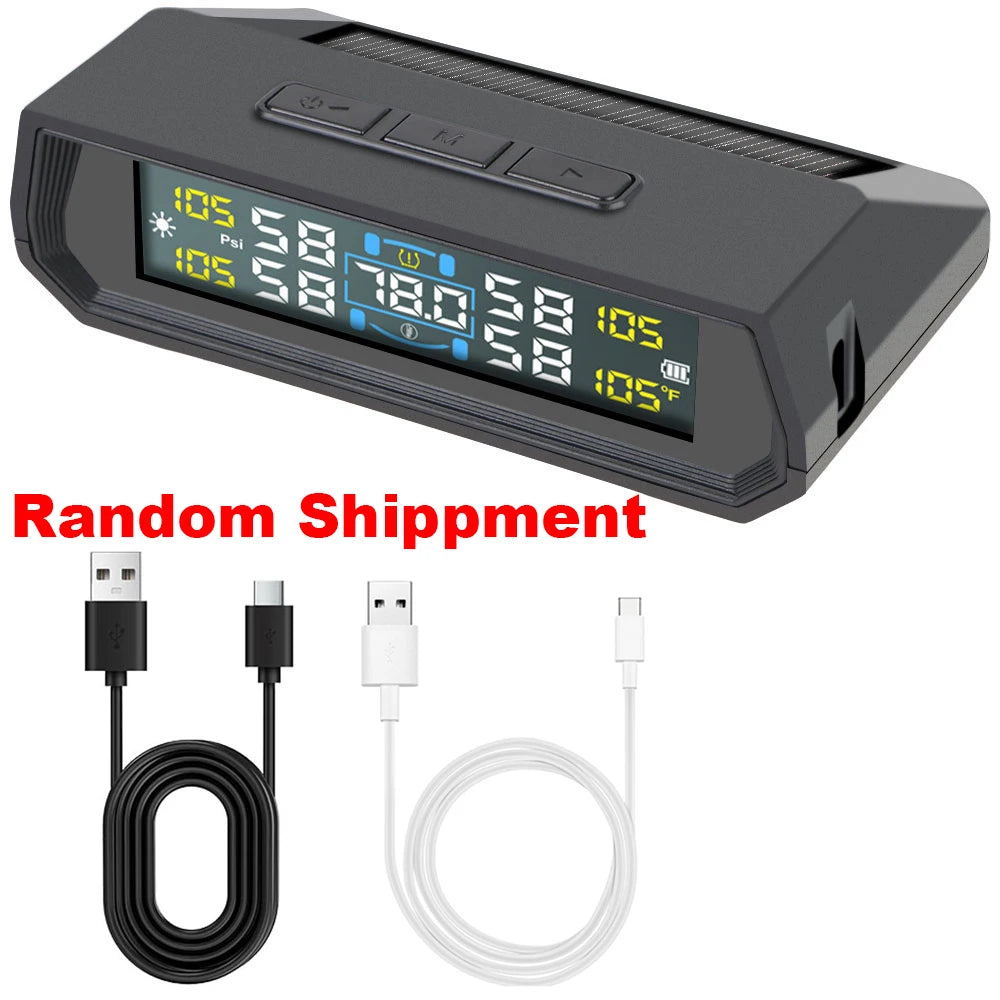

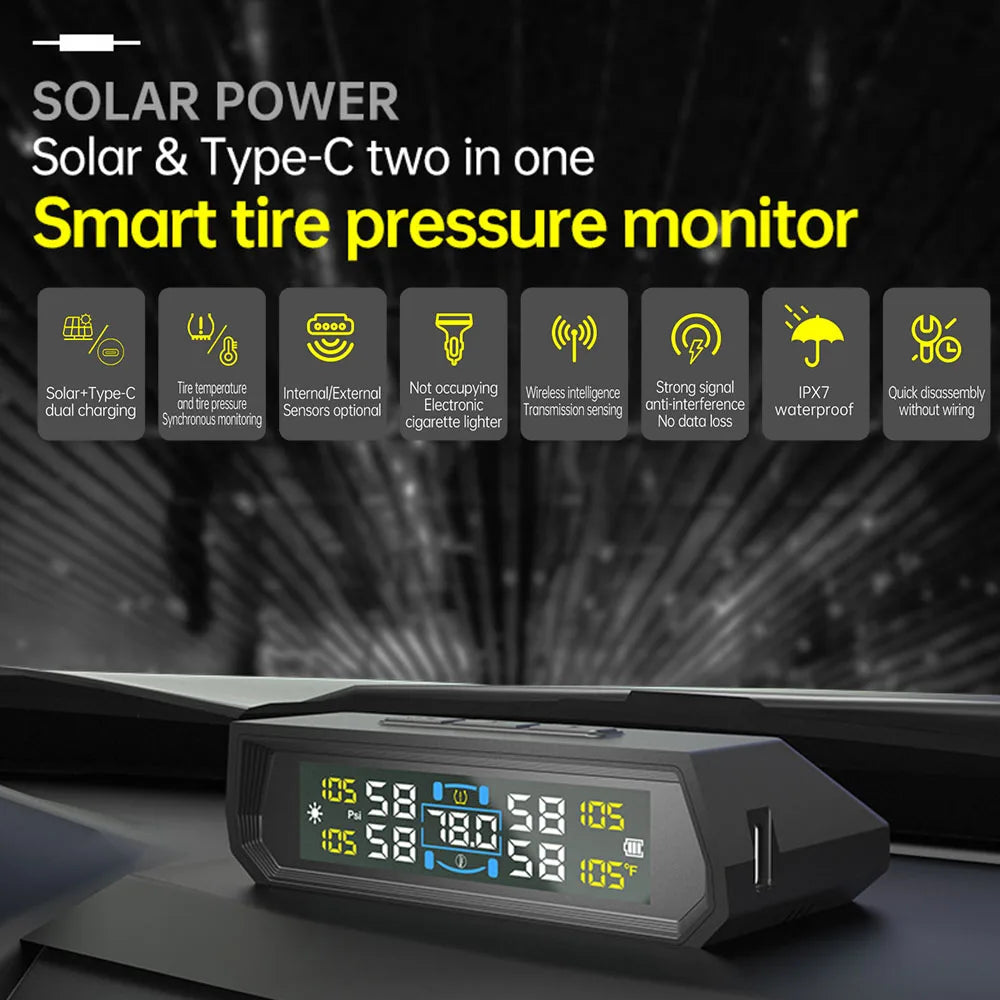

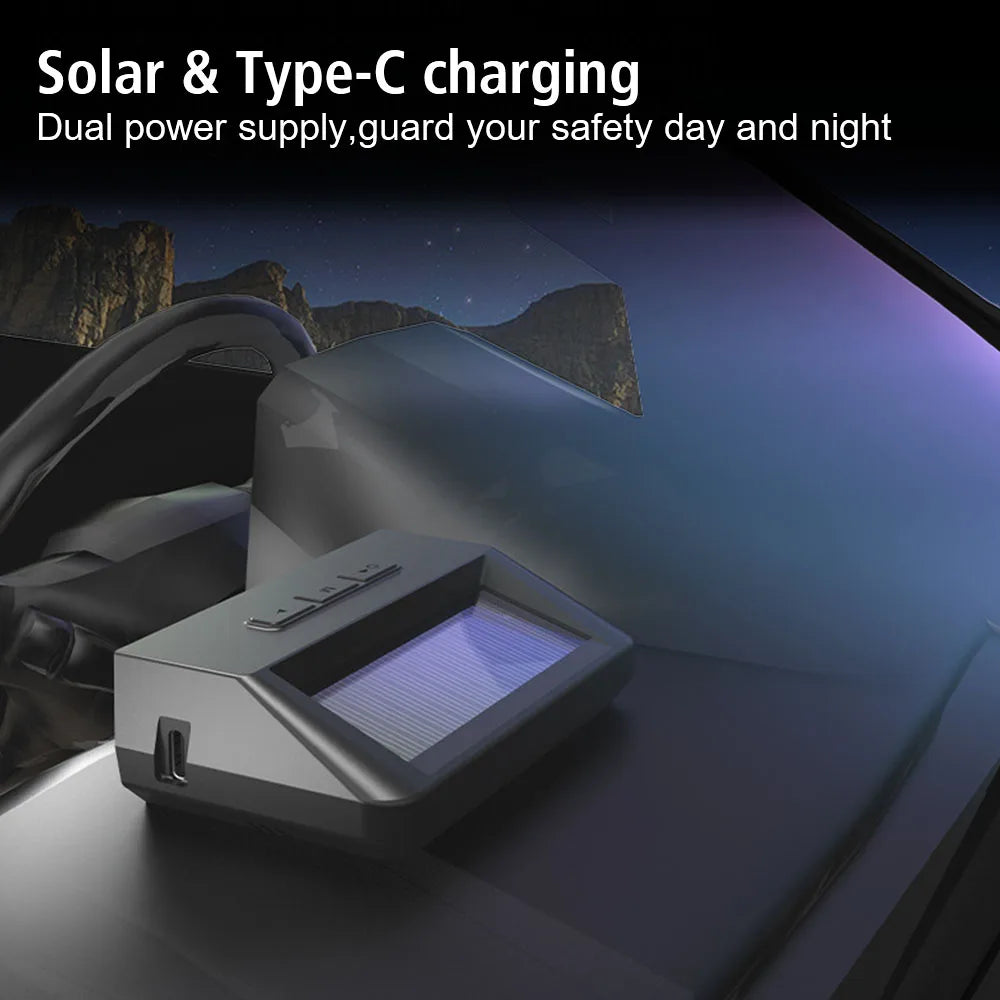

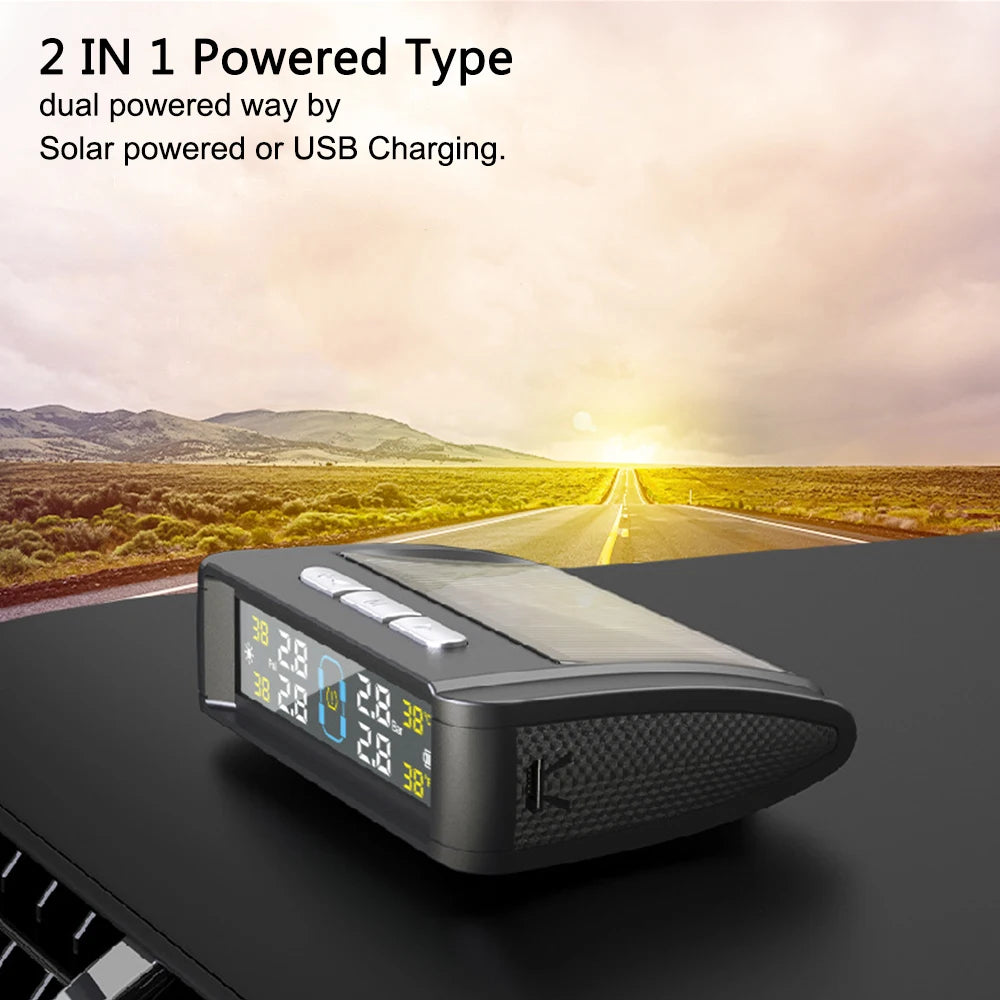

• Display Powered: solar powered, USB cable powered.

• Working Frequency: 433.9200MHz±0.1Mhz

• Temperature Monitoring Range: -40℃~ +120℃

• Pressure Monitoring Range: 0-5bar

• Precision: temp ±2℃ ; pressure ±0.1bar

Note:

• 1, the sensor and receiver have been paired at the factory, change the sensor or receiver only need to be re-paired!

• 2, the display automatically turns on when detecting vibration signals in hibernation state, displays tire pressure and temperature data, and automatically sleeps after parking for more than 10 minutes.

• 3, press the "-" button for 3 seconds to turn on/off

• 4, tire running speed of more than 20 km, sensor pressure, temperature automatic update data.

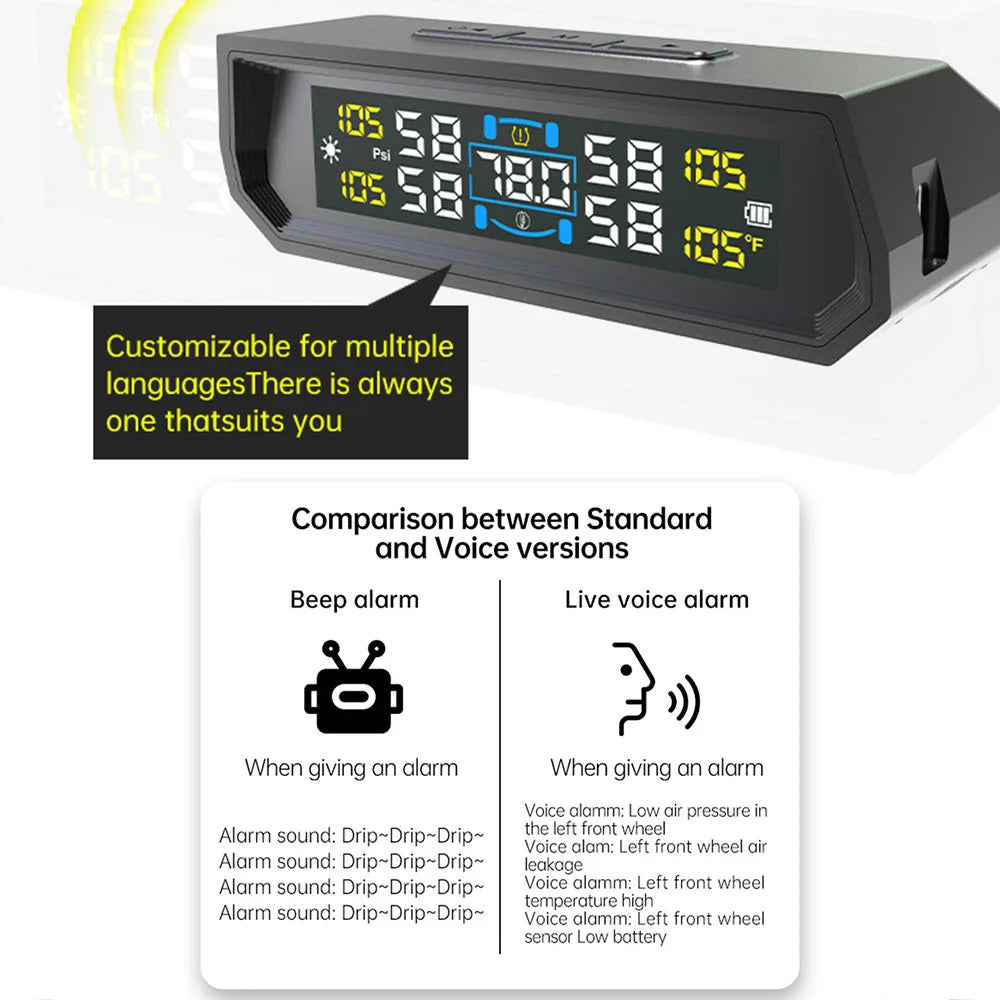

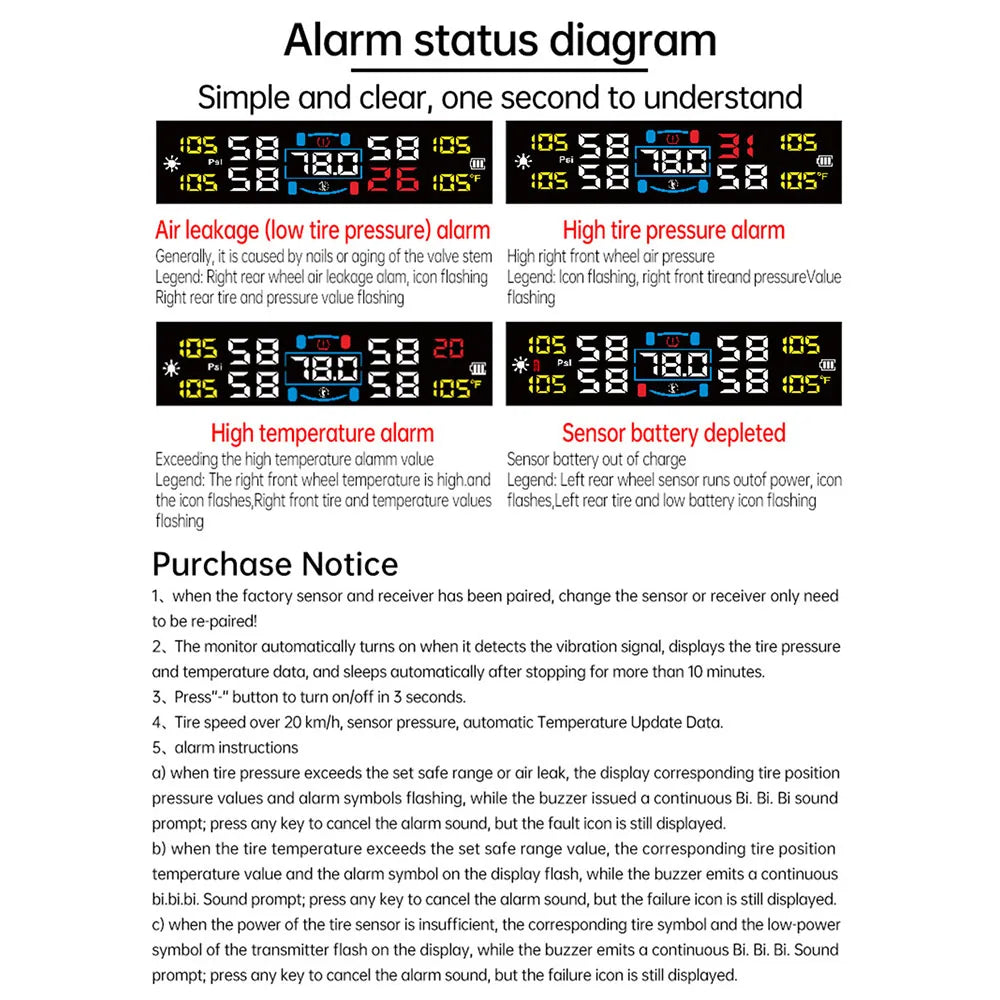

• 5, alarm description

• a) When the tire pressure exceeds the set safety range value or leakage, the corresponding tire position pressure value and alarm symbol flash on the display, while the buzzer sends a continuous bi.bi.bi sound prompt; Press any key to cancel the alarm tone, but the fault icon is still displayed.

• b) When the tire temperature exceeds the set safety range value, the corresponding tire position temperature value and alarm symbol on the display flash, and the buzzer emits a continuous bi.bi.bi. Acoustic cue; Press any key to cancel the alarm tone, but the fault icon is still displayed.

• c) When the tire sensor power is insufficient, the corresponding tire symbol on the display and the low electric symbol of the transmitter flash, while the buzzer emits a continuous bi.bi.bi. Acoustic cue; Press any key to cancel the alarm tone, but the fault icon is still displayed.

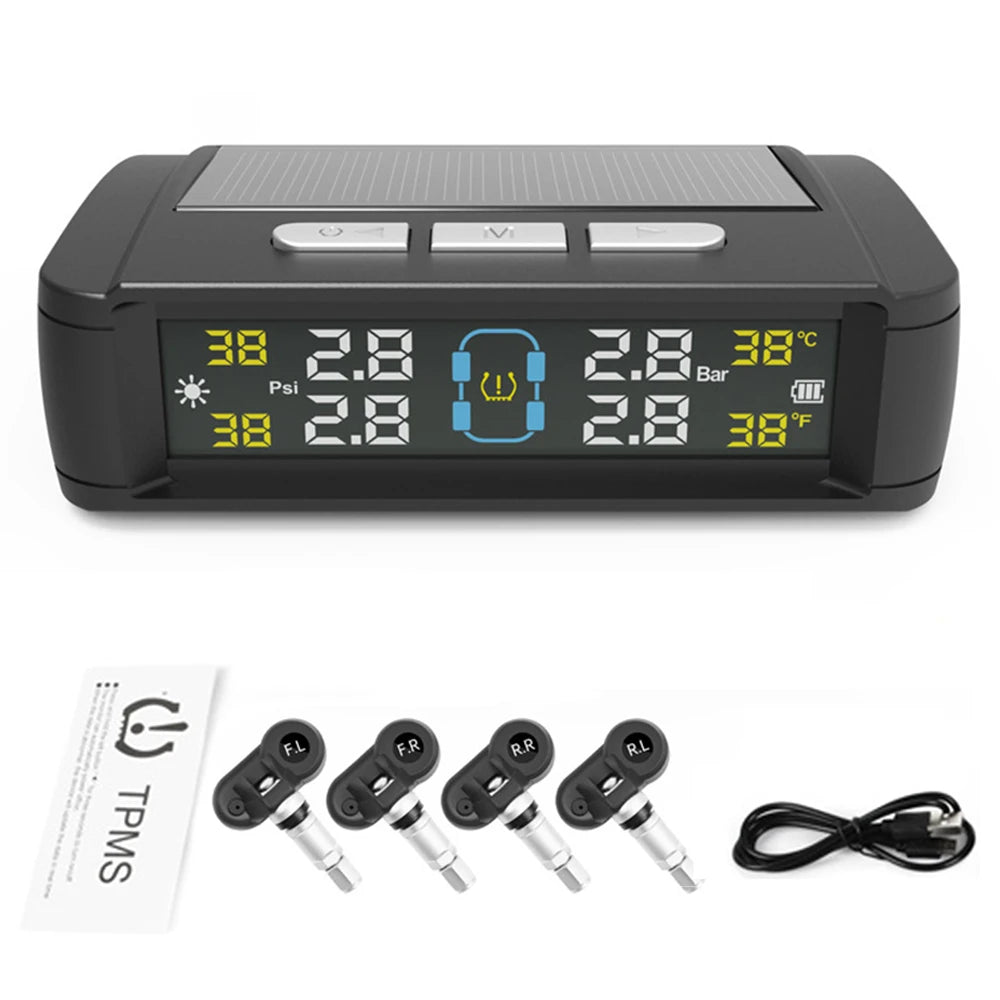

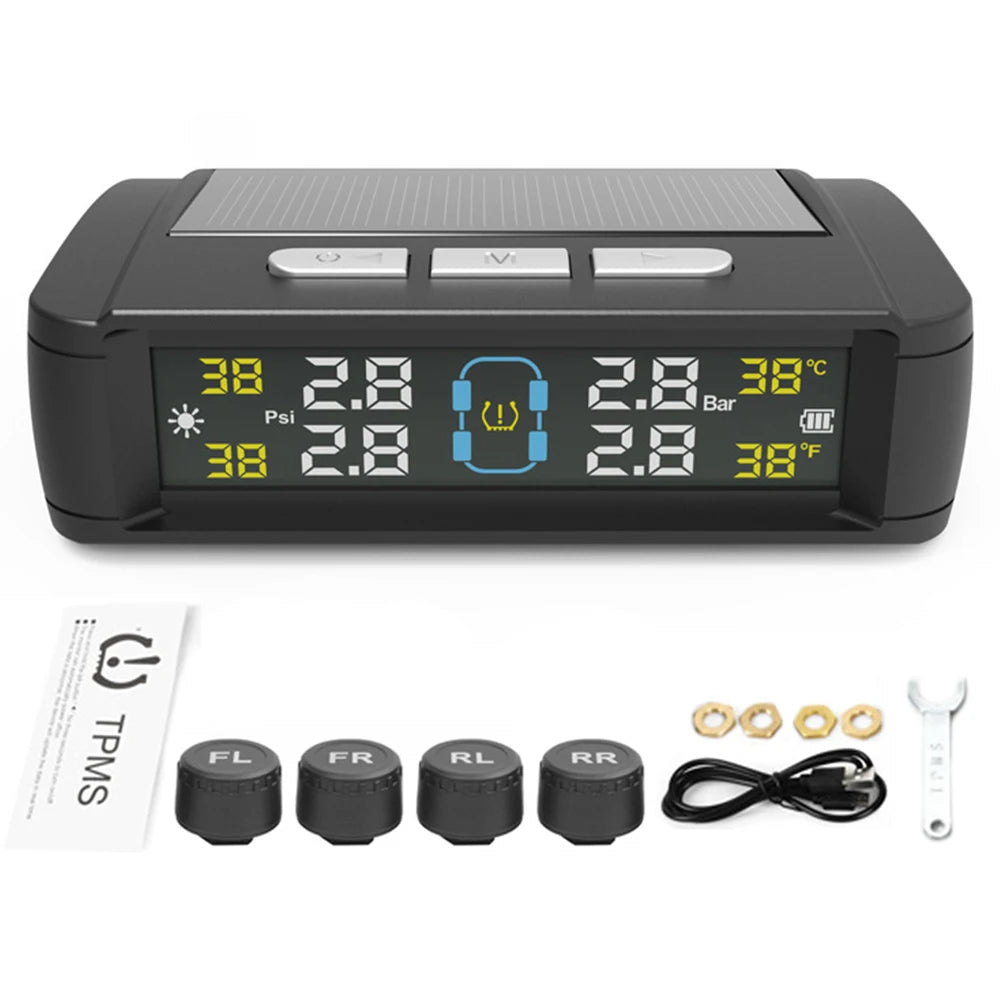

Package included:

• 1 set Car Tyre Pressure Monitoring System
