TLV9062 Dual Op Amp Module, 10MHz Bandwidth, Adjustable Gain, Single Supply 2.5V-5V, Operational Amplifier Board

Product Introduction:

This is a versatile, general-purpose dual-channel op-amp module based on the TLV9062 chip in an SOIC-8 package. Designed for simplicity and performance, it operates on a single 2.5V to 5V DC power supply, making it ideal for low-voltage and portable applications. Exceeding 5.5V may permanently damage the module.

Key Features & Performance:

Wide Power Supply Range: Single DC 2.5V to 5V operation with built-in reverse polarity protection.

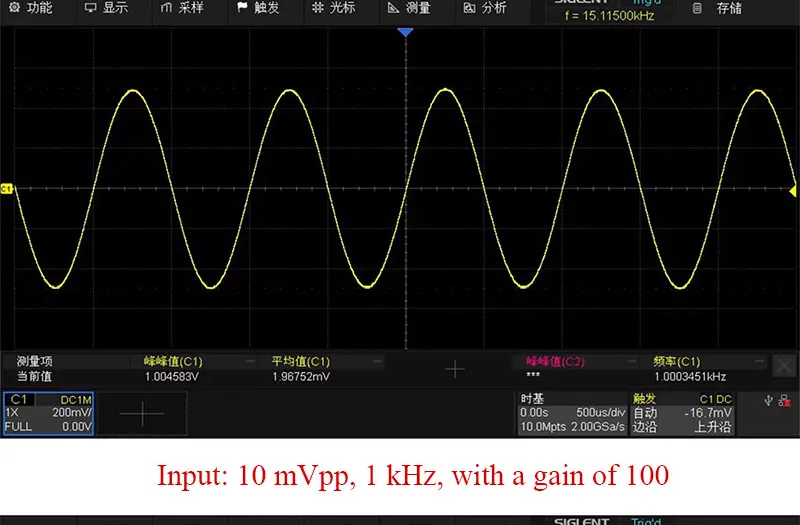

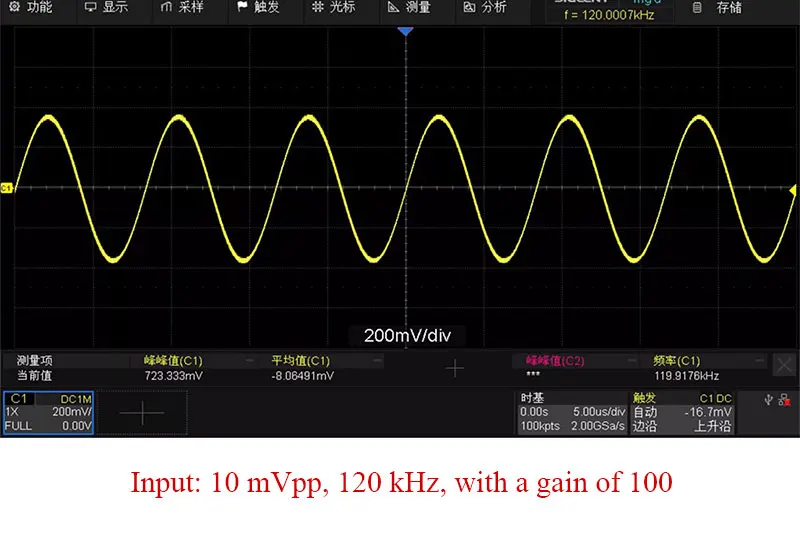

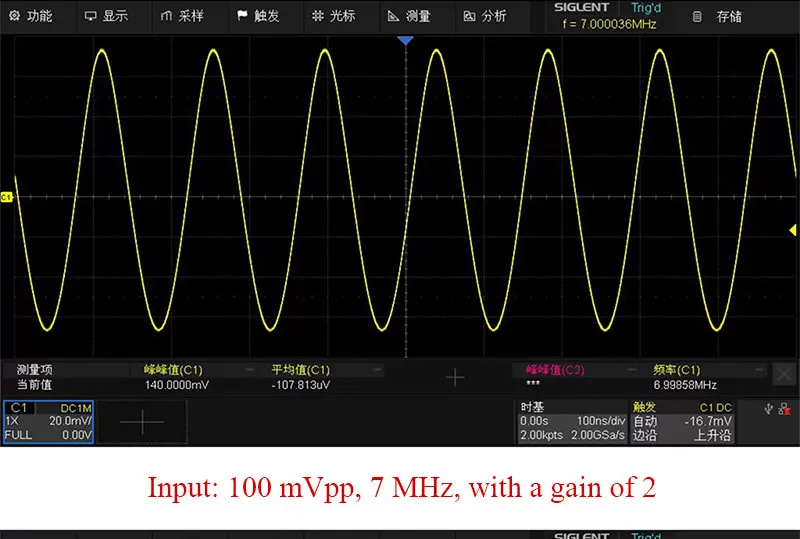

High Bandwidth: Offers a 10MHz Gain Bandwidth Product (at G=1), suitable for amplifying medium-frequency signals. Note that bandwidth decreases as gain increases.
Adjustable Gain: The amplification factor (gain) is flexibly configurable from 2x to 100x. Modules default to adjustable gain but can be customized for a fixed value.
Large Output Swing: Capable of a maximum output voltage swing up to 4.8Vpp when supplied with 5V.
AC-Coupled Input: The input is optimized for AC signals and will block DC components. The maximum allowable input voltage (up to 2.4Vpp at G=2) depends on both the gain setting and supply voltage.
High-Pass Filtering: Features an inherent high-pass filter with a cutoff around 200Hz. Signals below this frequency will experience attenuation.
Dual Channel Configuration: Both channels are configured as non-inverting amplifiers by default. Custom configurations for inverting amplification or full rail-to-rail output are available upon request.
Offset Adjustment: Includes an offset voltage adjustment range from 0V to 4.5V.
Low Quiescent Current: Consumes nearly zero current under no-signal, no-load conditions with a 5V supply.

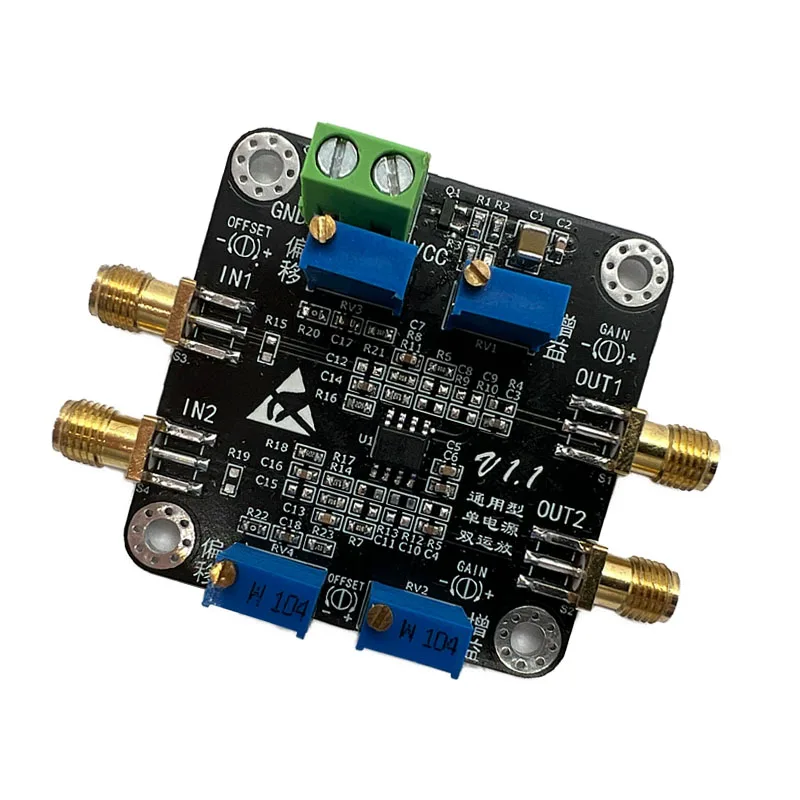

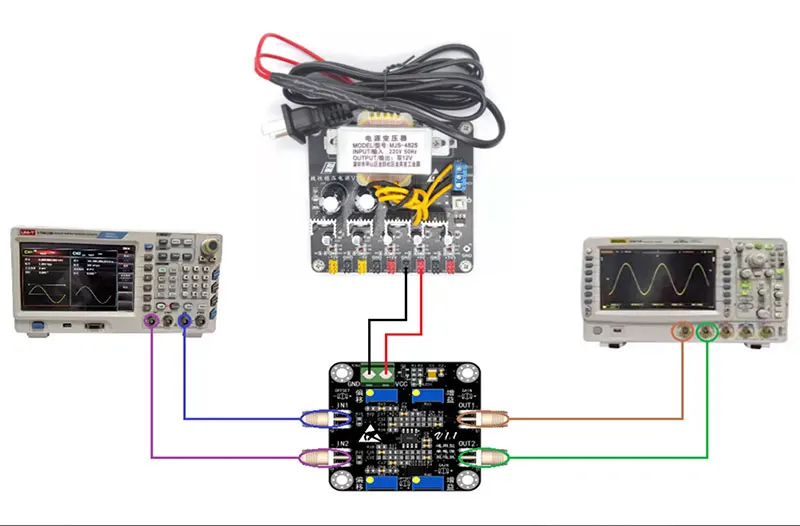

Professional Connectors: Features robust SMA interfaces for secure input and output connections.

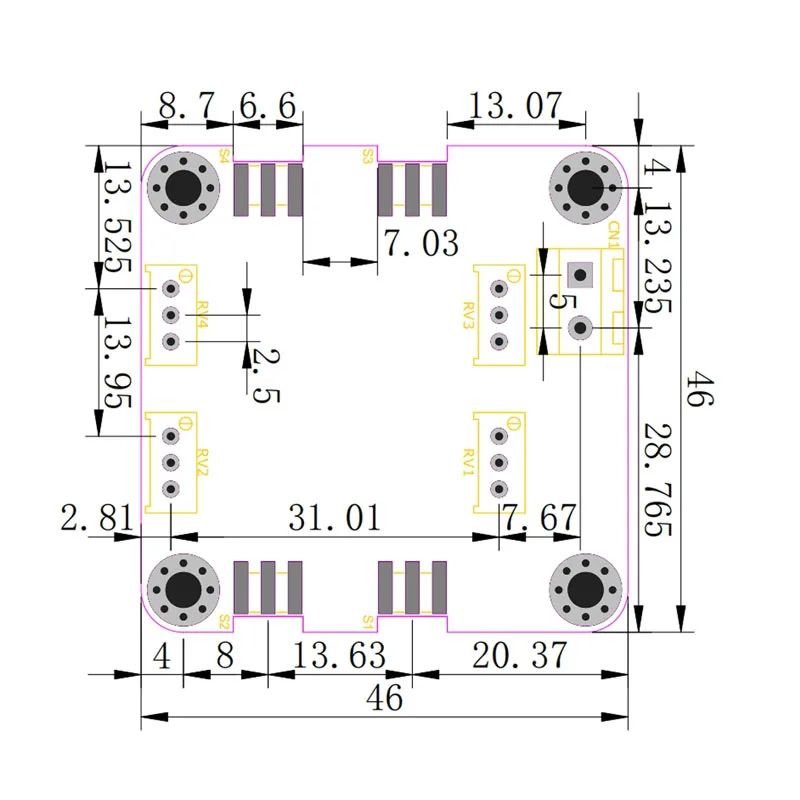

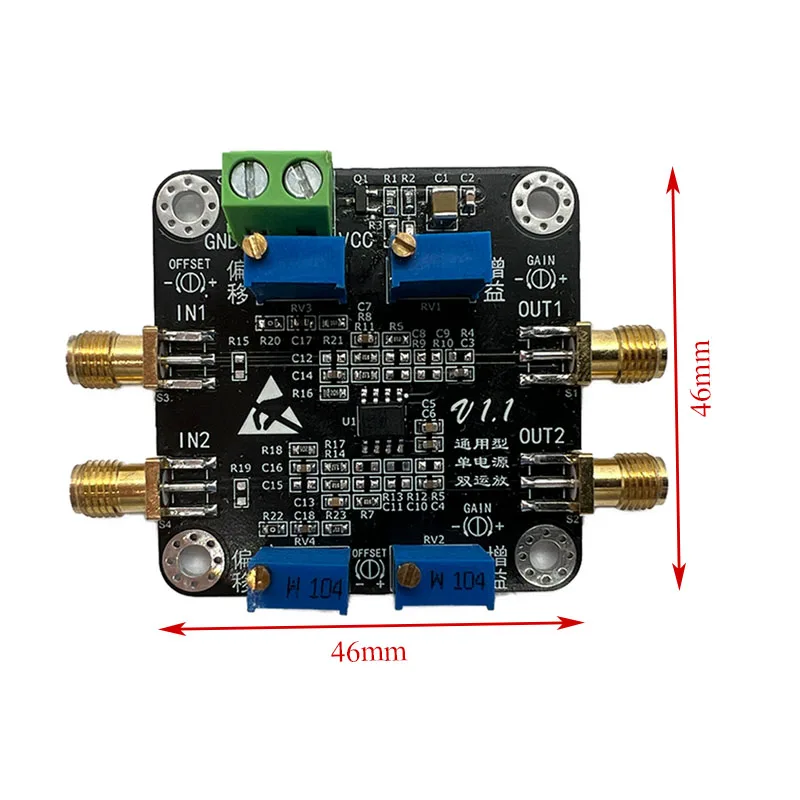

Compact Size: Measures just 46mm x 46mm x 13.5mm (LWH).

Applications:
Ideal for various applications requiring AC small-signal amplification, such as in sensor signal conditioning, audio pre-amplification, active filtering, and test equipment prototypes.

Note: Actual output signal frequency response can be influenced by the connected load, which forms a high-pass filter with the output capacitor.
