Description

SPECIFICATIONS

Brand Name: Stlxy

Certification: NONE

Current Type: DC

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: TM1637

Origin: Mainland China

Phase: Single-phase

is_customized: Yes

The module is a 12-foot clock with 4 points of positive digital (0.36 inches) display module driver IC TM1637,only two signal lines can make SCM four 8-segment LED.
Module features are as follows:
Display of male red for the four digital tube
Adjustable digital tube 8 gray
Level control interface for 5V or 3.3V
4 M2 screws positioning holes for easy installation

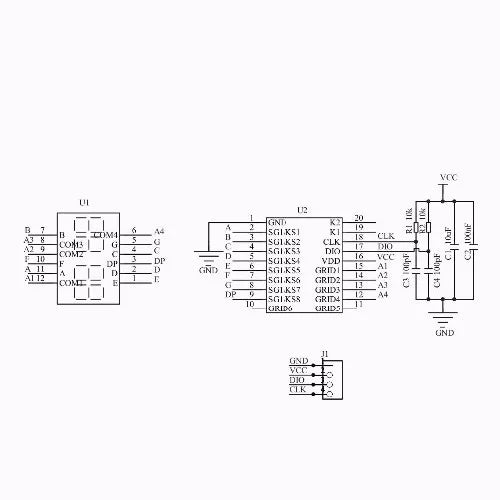

4 digital display interface module as shown below:

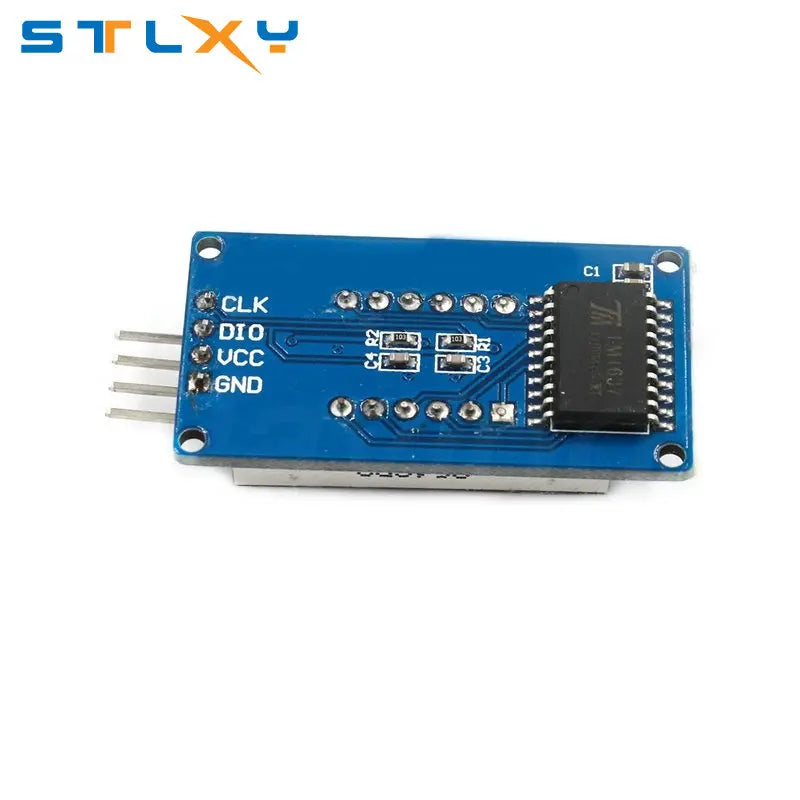

Control Interface: A total of four pins (GND,VCC,DIO,CLK),GND to ground,VCC is the power supply,DIO of data input and output pin,CLK is the clock signal pin;

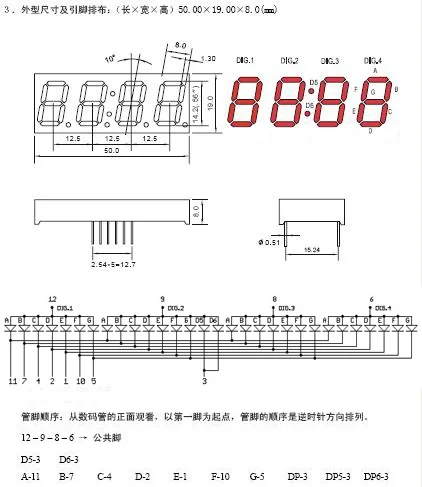

Digital tube: 4 common anode score points with 0.36 inches LED,red highlights;
Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm,the positioning of the module is easy to install,to achieve inter-module combination;
