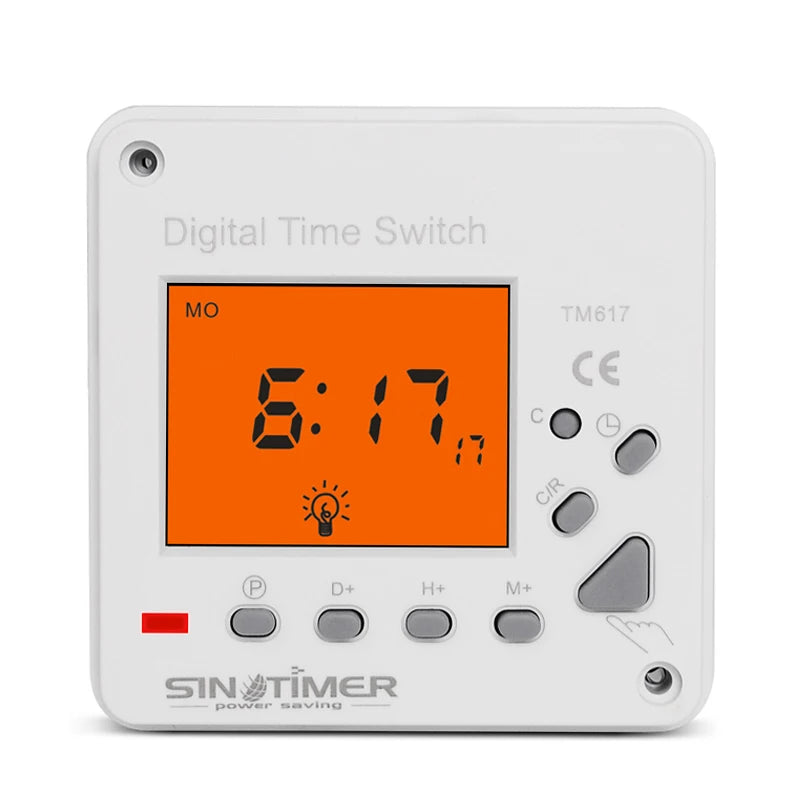

TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight

TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight

220V
$47.66
$47.66 $0.00
Skip to product information
TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
  • TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight
$47.66
$47.66 $0.00
Color
Description

SPECIFICATIONS

Battery Included: Yes

Brand Name: SINOTIMER

CERTIFICATES: CE ROHS EMC LVD

Certification: CE

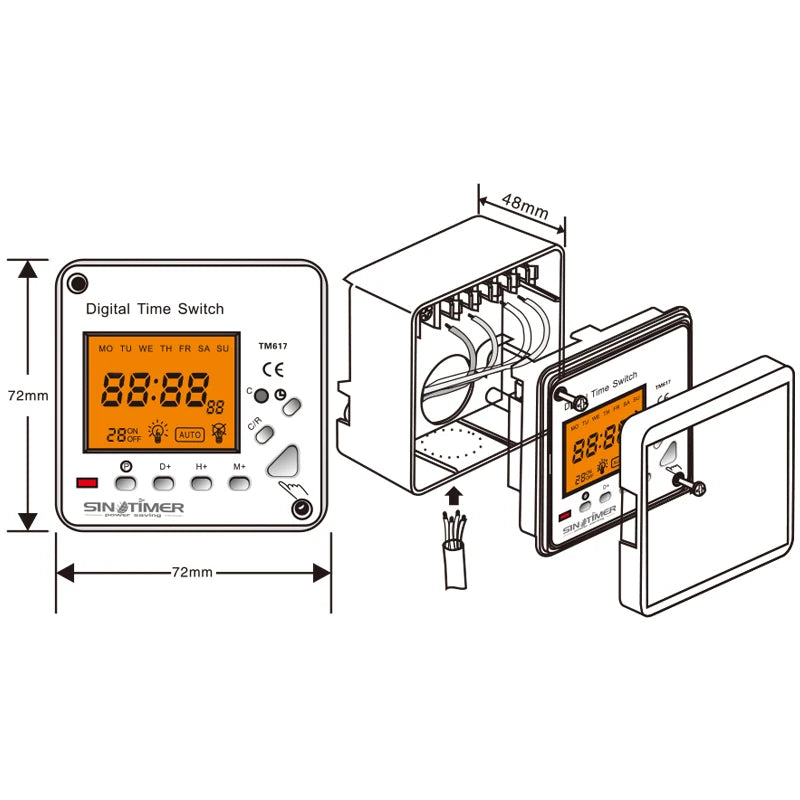

DIMENSION: 72*72*48mm

High-concerned chemical: none

Max interval: 7 days

Max. Current of Output Load: 16A

Mini interval: 1 minute

Model Number: TM617

OUTPUT: 1 NO + 1 NC

Origin: Mainland China

POWER SUPPLY: 220~240VAC

Programs: 28 ON/OFF

Semi-finishedproduct: No

Sinotimer Model: TM617

Theory: Electronic

Type: Mini

Use: Timer Switch

TM617 220V 230V 110V AC Electronic Digital 7 Day Weekly Electronic Programmable Timer Switch Time Relay Clock Control Blacklight


Usage:

The TM617 timer MODULE can open or close kinds of electrical apparatus and power automatically, according to the preset time,the items can be streetlight, neon light (sign), billboard, electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.


Characteristics:

* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer

* 28 ON/OFF programs per day, 15 combinations to a week.

* 24 hours / 7 days a week programmable.

* Built-in rechargeable battery for backup the memory (save the programs you set) when power failure

* Auto time error correction +/- 30 sec, weekly

* Repeat programs with 28 on/off settings, and setting on/off manually,

* Easy to read LCD display, LED indicators

* Blacklight in orange color



Techanical Data:

Model

TM617

Temp.range: -20°C+50°C

Power Supply:220VAC or 110VAC

Power consumption 4.5 VA (MAX)

Display: LCD

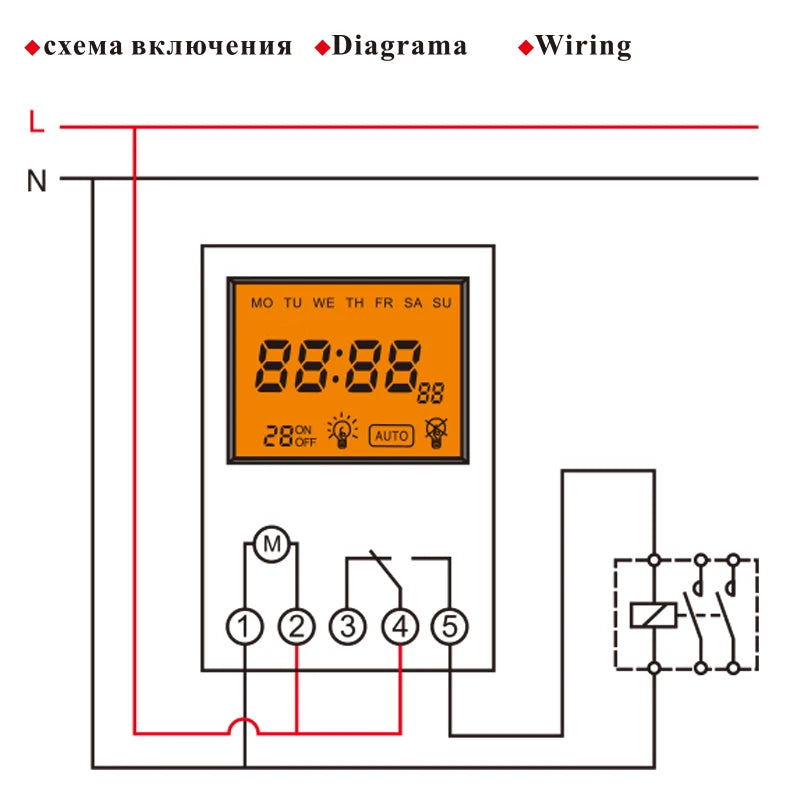

Switching contact: 1 changeover switch

Programs:28 on/off each day or week

Hysteresis 2 sec/day (25°C)

Minimum interval: 1 minute

Capacity: 16(8)A 250V AC

Black-out: 60 days

Timer range: 1min~168hr

Recharge battery: 1.2V 40Ma

Average error: 1s/24h, 25°C

Weight: 0.17kg




Note: The Instructions Manual is in Russian, Portuguese and English language.
