TMC2208 V2.0 Stepper Motor Driver Stepstick Mute Driver MKS 3D Printer Parts SKR V1.3 Ramps 1.4 1.6 Control Board

TMC2208 V2.0 Stepper Motor Driver Stepstick Mute Driver MKS 3D Printer Parts SKR V1.3 Ramps 1.4 1.6 Control Board

$18.08

$18.08 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: STJF

Choice: yes

Condition: New

Dissipation Power: 1

Functions: Electronic Module

High-concerned chemical: none

Origin: Mainland China

Package: DIP

Range of application: Switch And Sensor For Arduino STM

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

Product description: Compared with TMC2100 stepper motor drive module, TMC2208 drive module has less heat, TMC2208 in about 0.8A heat effect and 2100 in 0.5A heat effect is similar, can be used interchangeably with TMC2100.

Compared with the TMC2100 stepper motor drive module, the TMC2208 drive module is less heated,

and the heating effect of TMC2208 in about 0.8A is equivalent to that of 2100 in 0.5A,

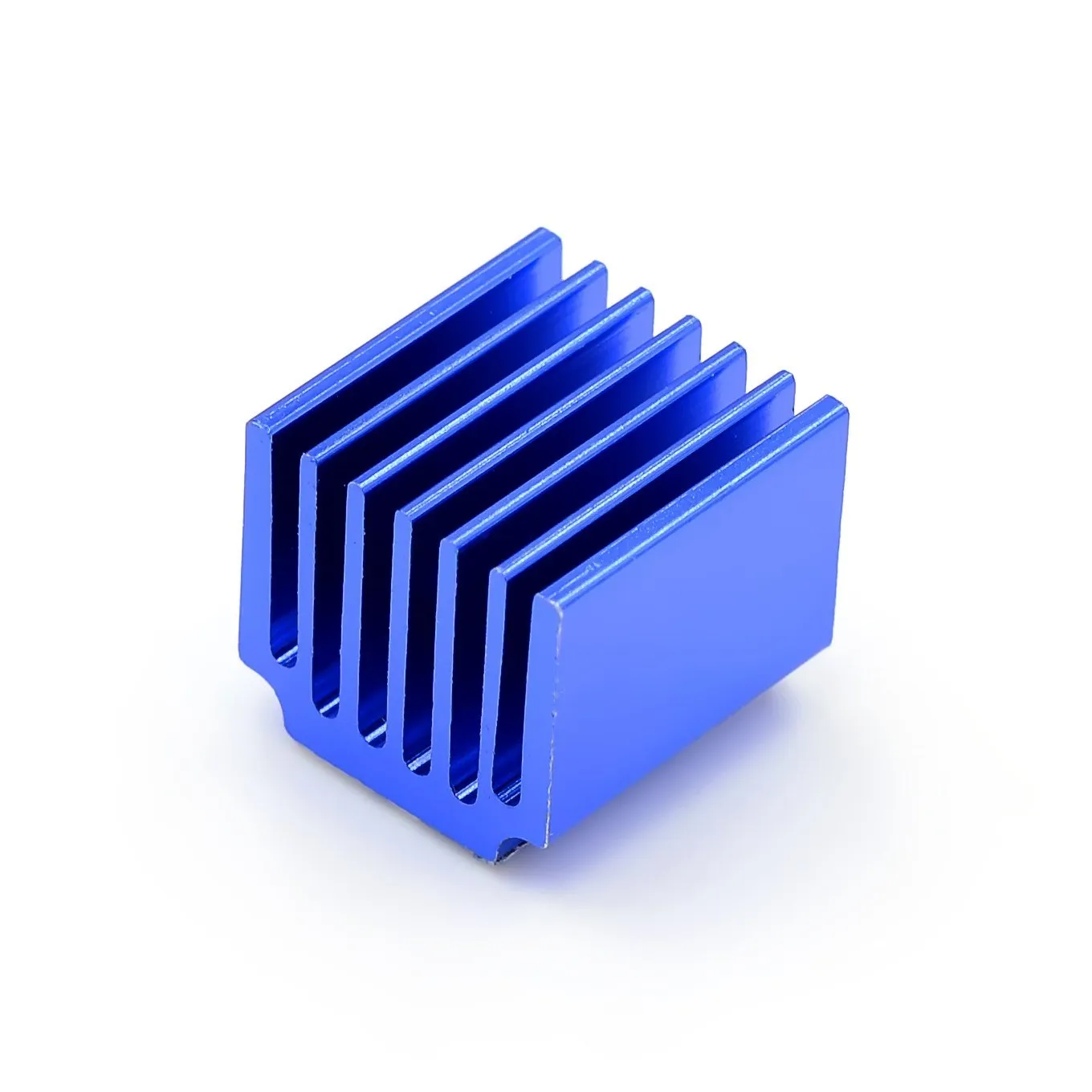

and can be used interchangeably with TMC2100. Send the new design of large heat sink TMC2208V2.0 upgrade black quality process optimization upgrade, better use.

Drive current algorithm and regulation
1. Vref measures Gnd and voltage at the middle end of potentiometer.
2, when measuring the voltage, be sure not to connect the motor, otherwise it is easy to burn the drive.
3, the voltage should be connected to the power supply, do not just connect the USB power supply.
Please pay special attention to the direction,
Do not insert backwards!
