SPECIFICATIONS

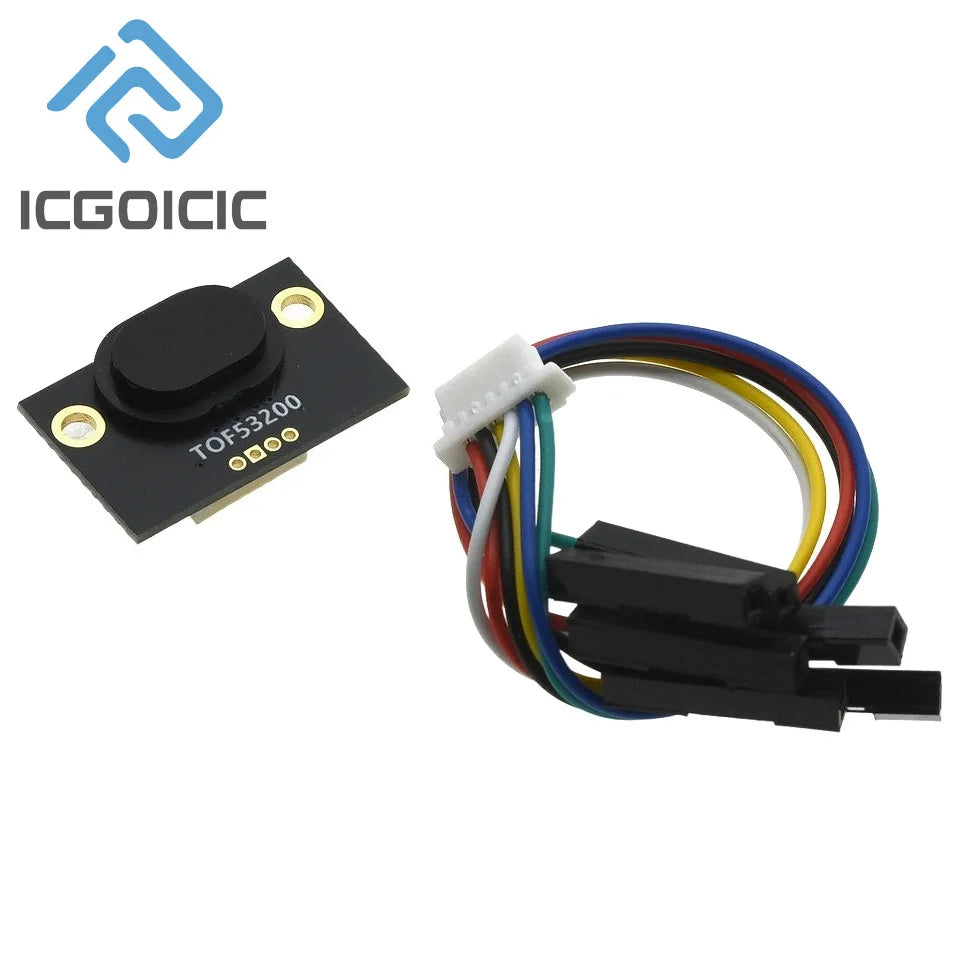

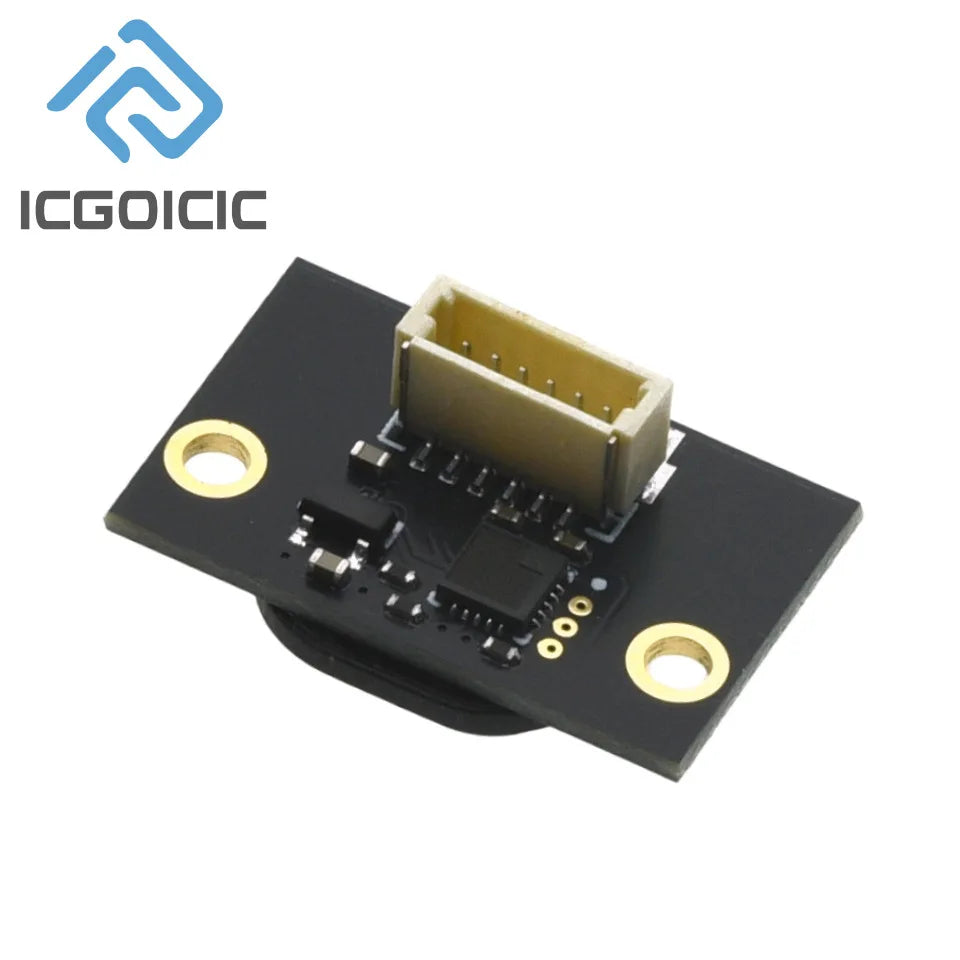

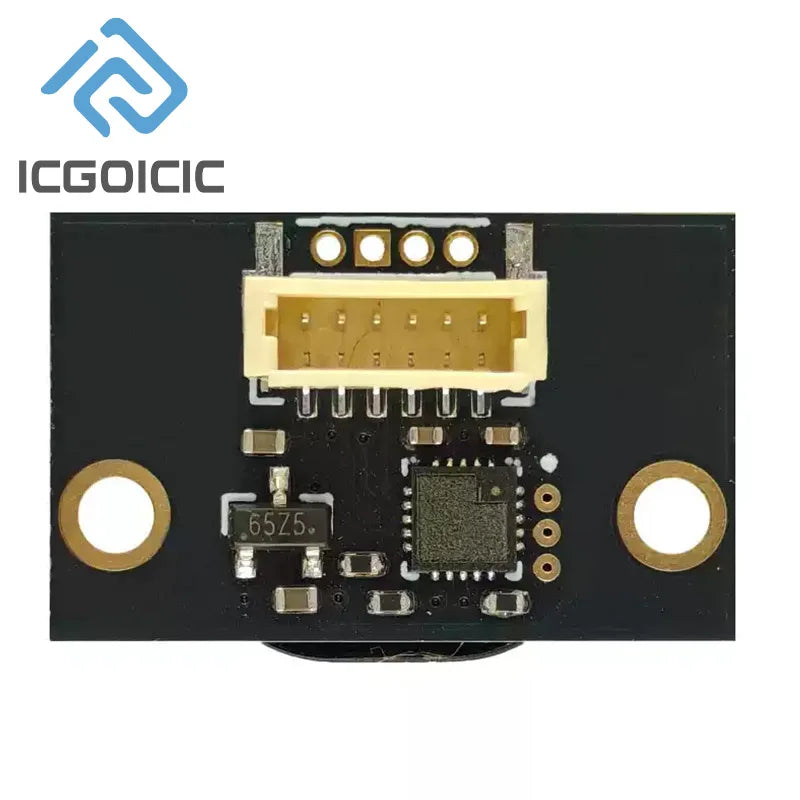

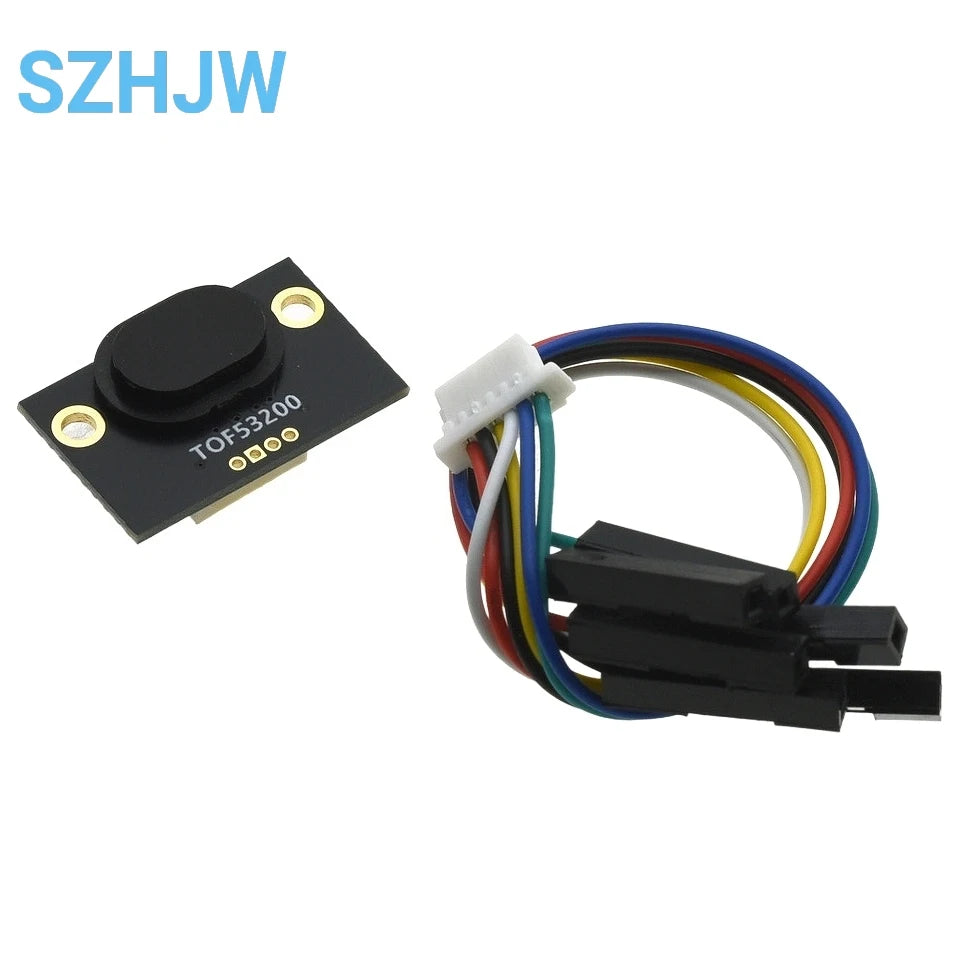

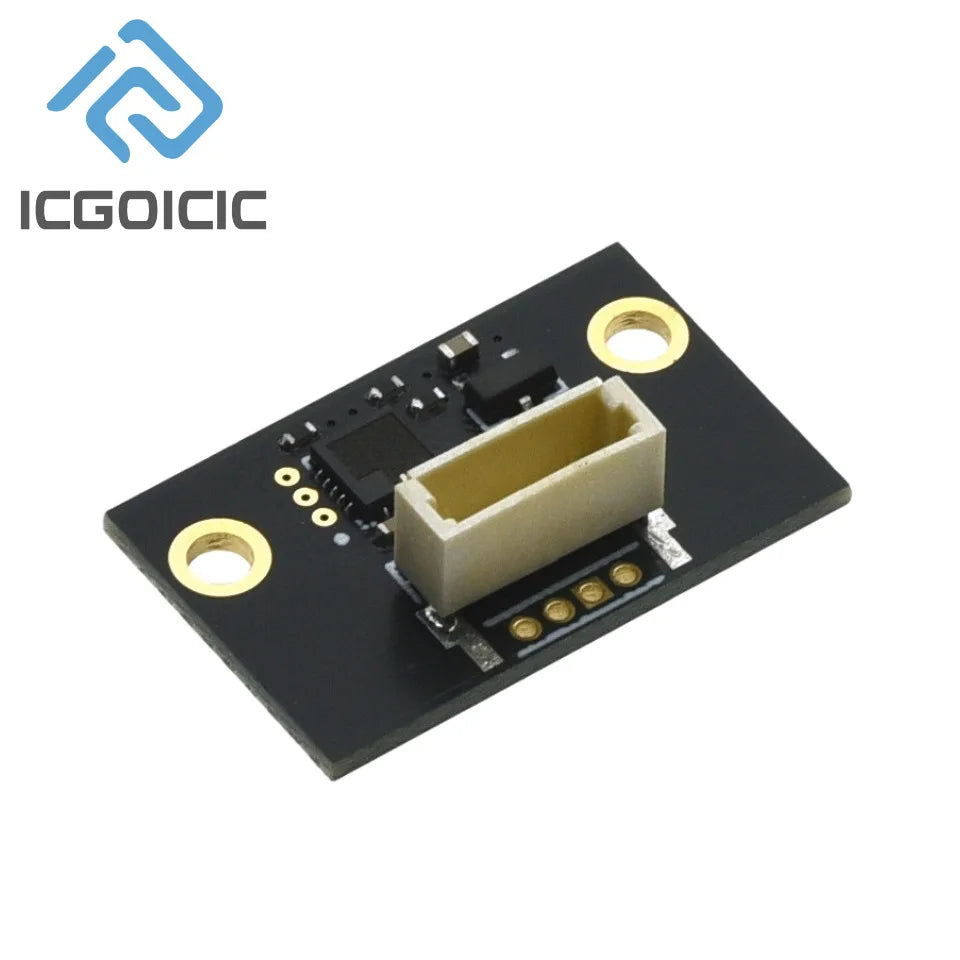

TOF53200 Ranging Sensor module introduction:

Characteristics

● The 940nm laser conforms to Class 1 operating conditions stipulated by lEC60825-1:2014 edition 3

● Sensor size (20×12.5×7.55mm)

● The maximum measurement distance can reach 2 meters indoor accuracy within 5%

● The measured range is independent of the reflectance of the target object

● Can work in high infrared light environment

● High optical crosstalk compensation

● The measurement time is less than 30ms

● No additional optical components are required

● Single power supply

● Supports serial port mode and IIC mode

Applications

● High-speed autofocus

● Continuous video auto-focus

● User detection of devices such as computers

● Obstacle detection

● Automatic gesture recognition for white goods (such as faucets, refrigerators, etc.)

Description

The TOF53200 ranging sensor is a laser ranging module designed and manufactured based on ST's VL53L0X, which can provide precise and repeatable long-distance measurement functions. Thanks to its internal integration of the leading SPAD array (single photon avalanche diode) and ST's second-generation FlightSense technology, it can achieve higher ranging distance, more accurate measurement results and better environmental light resistance.

The TOF53200 simultaneously supports serial port Modbus-RTU mode and IIC mode, which can well adapt to various different application scenarios.

The TOF53200 has a maximum ranging of 2 meters. You can choose between high-precision or long-distance testing modes according to your needs, making it more flexible.

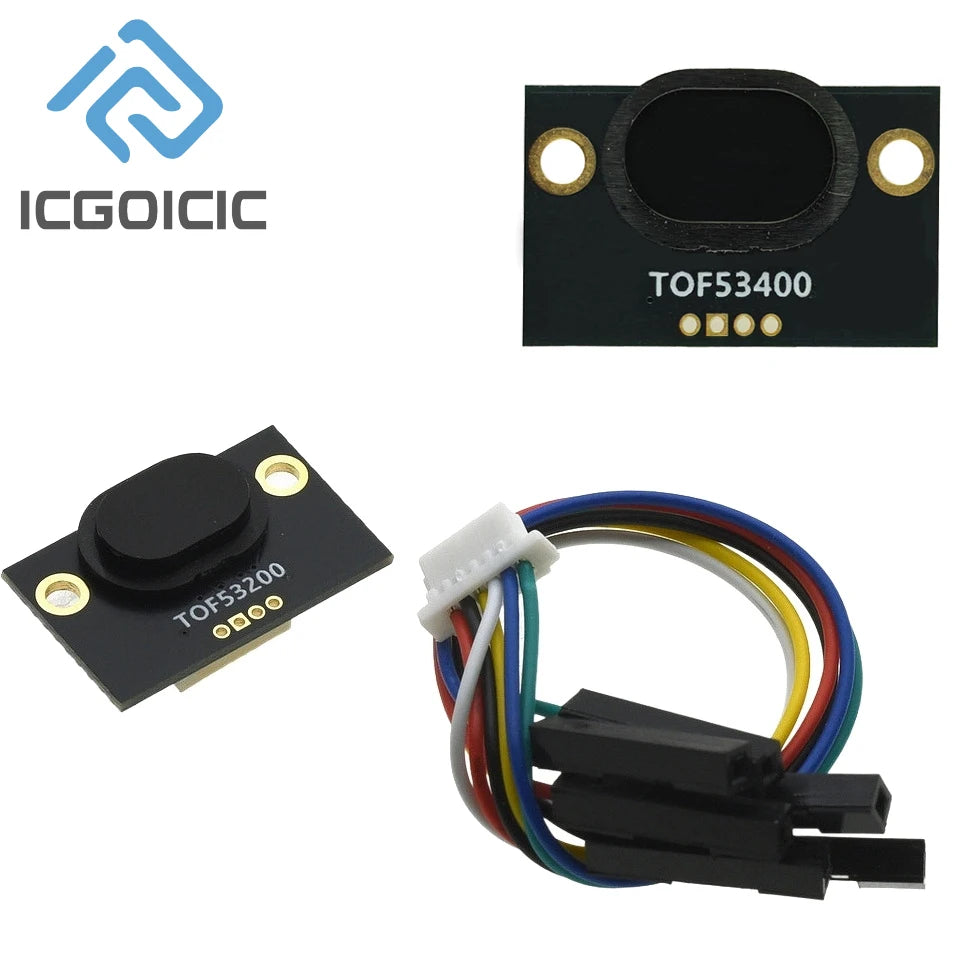

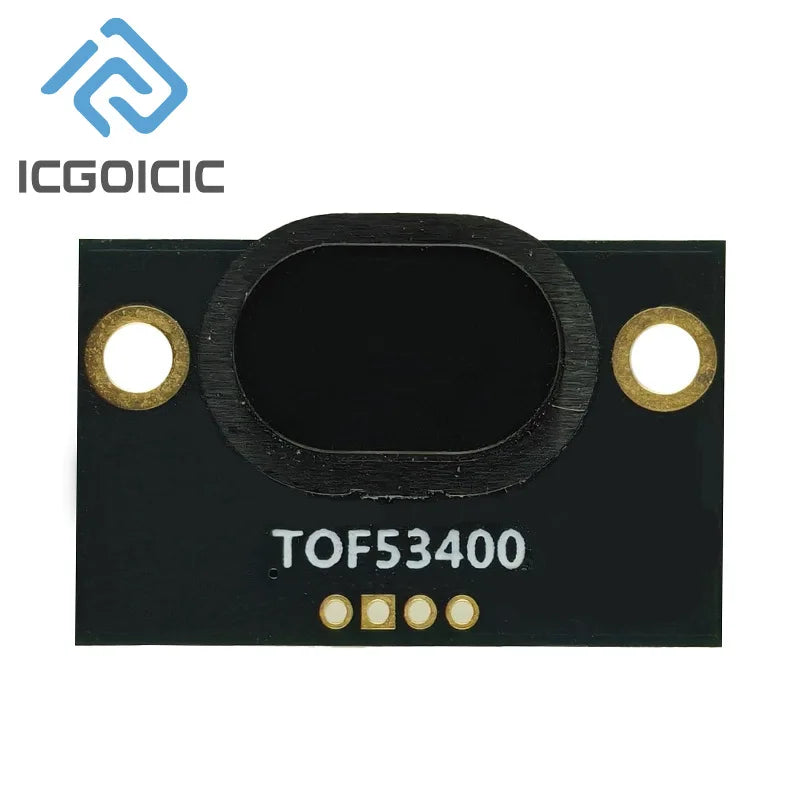

TOF53400 Ranging Sensor module introduction:

Characteristics

● The 940nm laser conforms to Class 1 operating conditions stipulated by lEC60825-1:2014 edition 3

● Sensor size (20×12.5×7.55mm)

● The maximum measurement distance can reach 2 meters indoor accuracy within 5%

● The measured range is independent of the reflectance of the target object

● Can work in high infrared light environment

● High optical crosstalk compensation

● The measurement time is less than 30ms

● No additional optical components are required

● Single power supply

● Supports serial port mode and IIC mode

Applications

● High-speed autofocus

● Continuous video auto-focus

● User detection of devices such as computers

● Obstacle detection

● Automatic gesture recognition for white goods (such as faucets, refrigerators, etc.)

Description

The TOF53400 ranging sensor is a laser ranging module designed and manufactured based on ST's VL53L0X, which can provide precise and repeatable long-distance measurement functions. Thanks to its internal integration of the leading SPAD array (single photon avalanche diode) and ST's second-generation FlightSense technology, it can achieve higher ranging distance, more accurate measurement results and better environmental light resistance.

The TOF53400 simultaneously supports serial port Modbus-RTU mode and IIC mode, which can well adapt to various different application scenarios.

The TOF53400 has a maximum ranging of 4 meters. You can choose between high-precision or long-distance testing modes according to your needs, making it more flexible.
