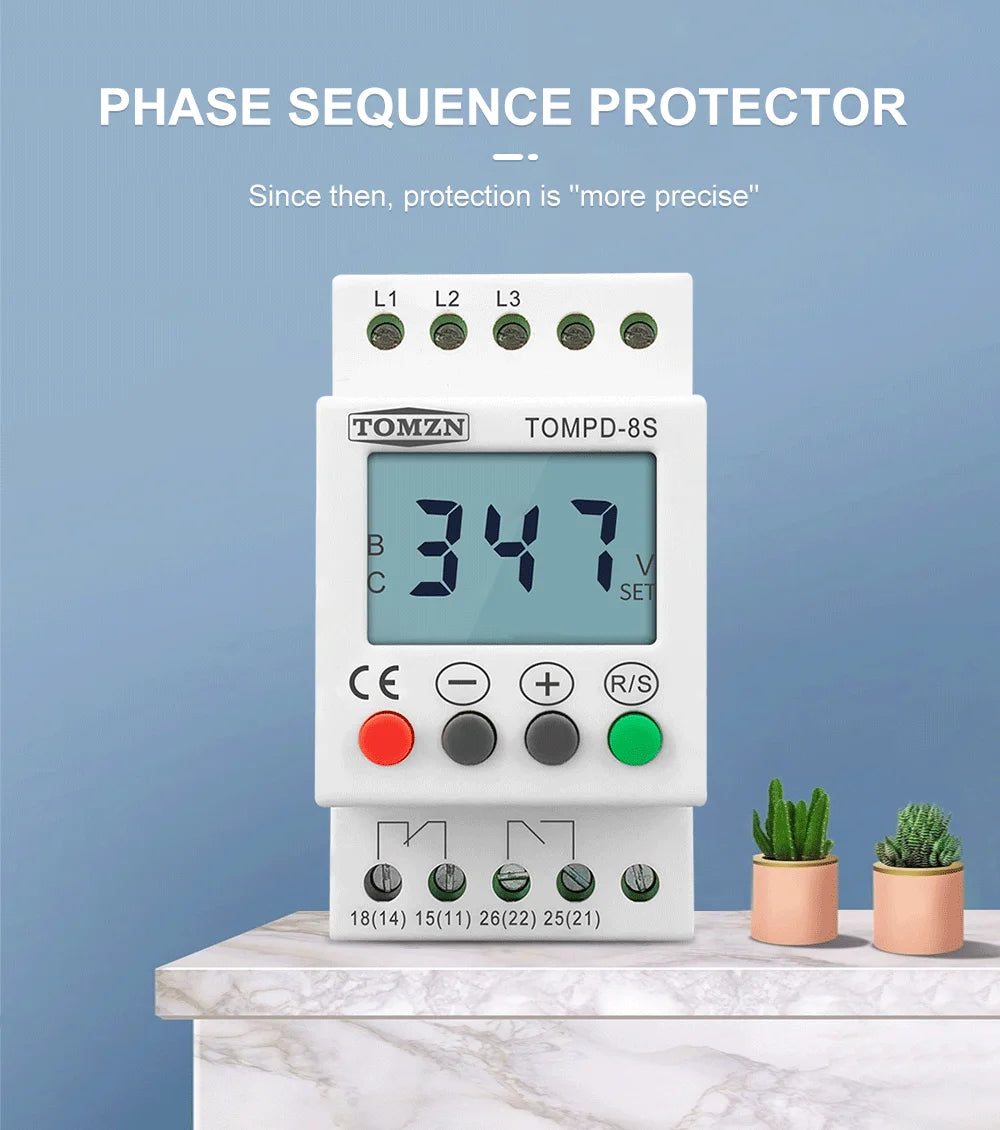

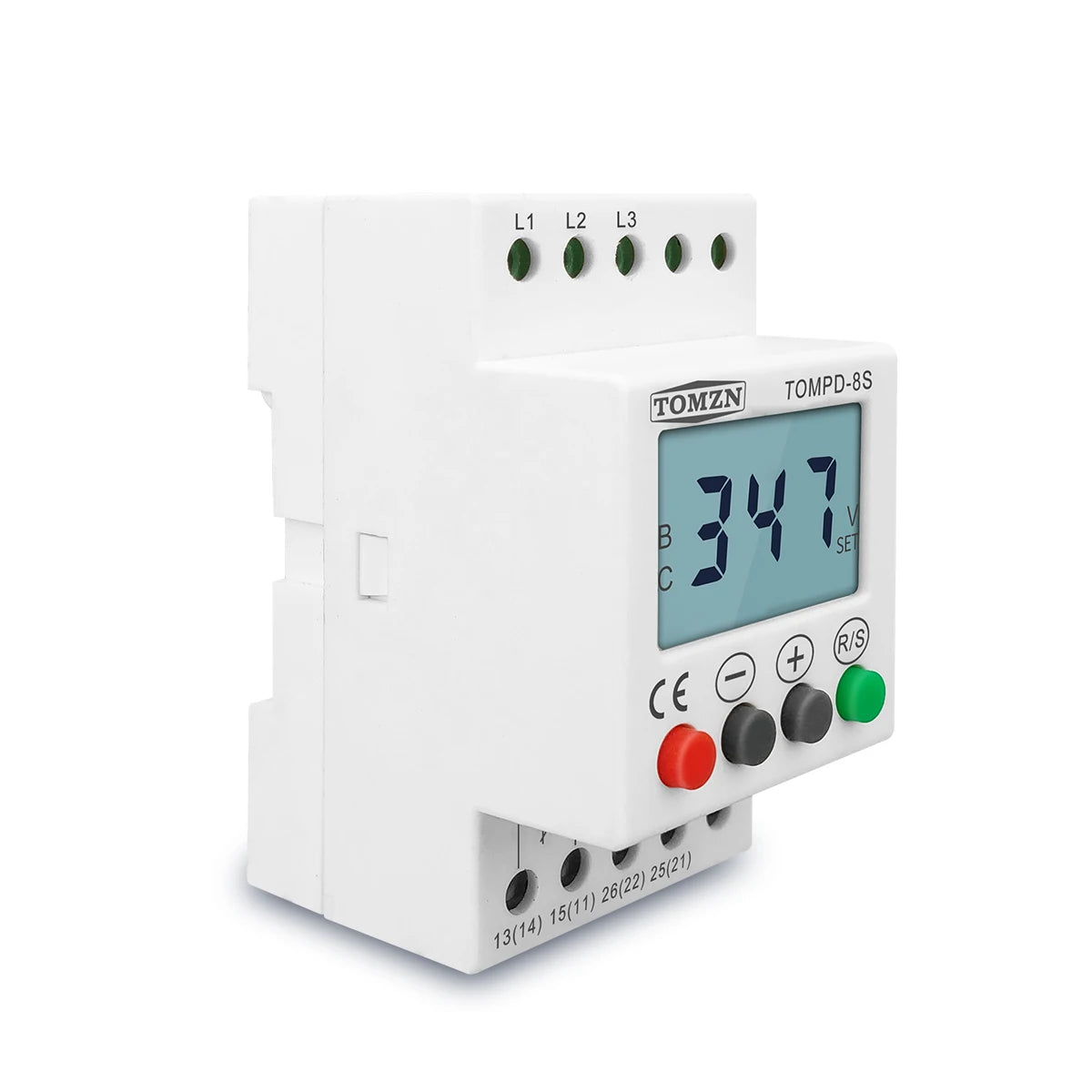

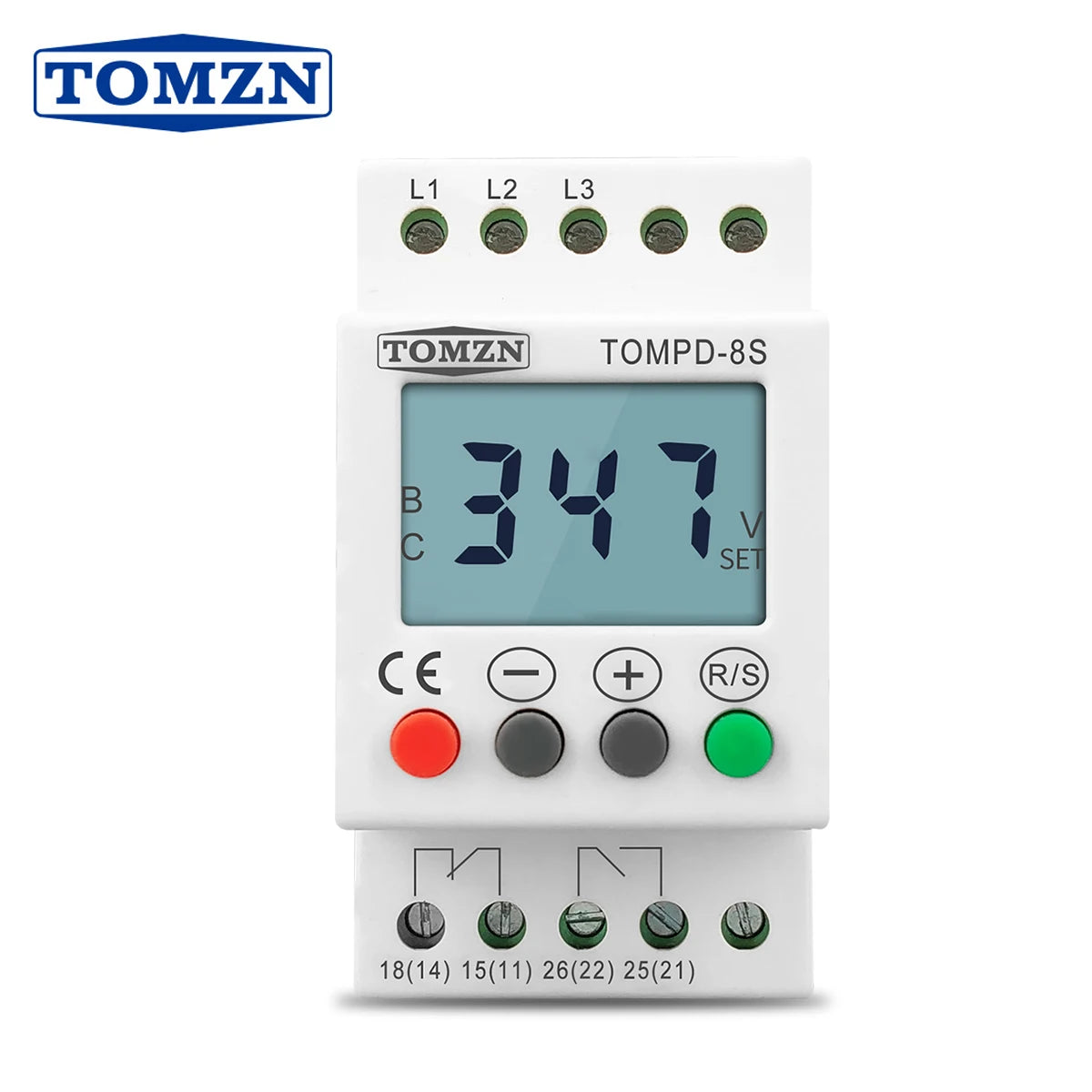

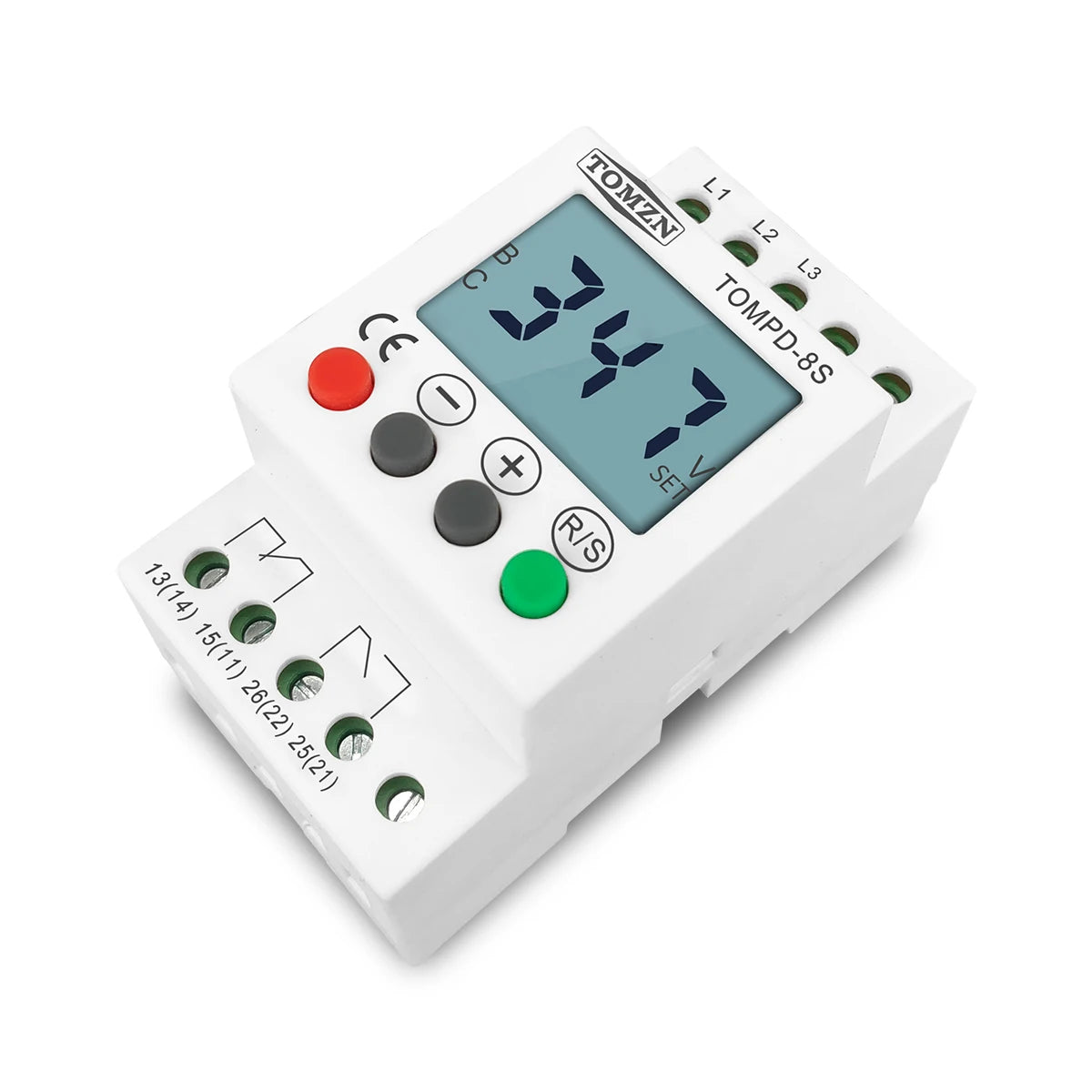

TOMZN 3 Phase Din Rail Adjustable Under Over Voltage Protector Voltage Monitoring Sequence Protection Relay
$97.34
Sale price
$97.34
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: TOMZN
Certification: CE
Choice: yes
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: TOMPD-8S
Origin: Mainland China
Power Source: Ac

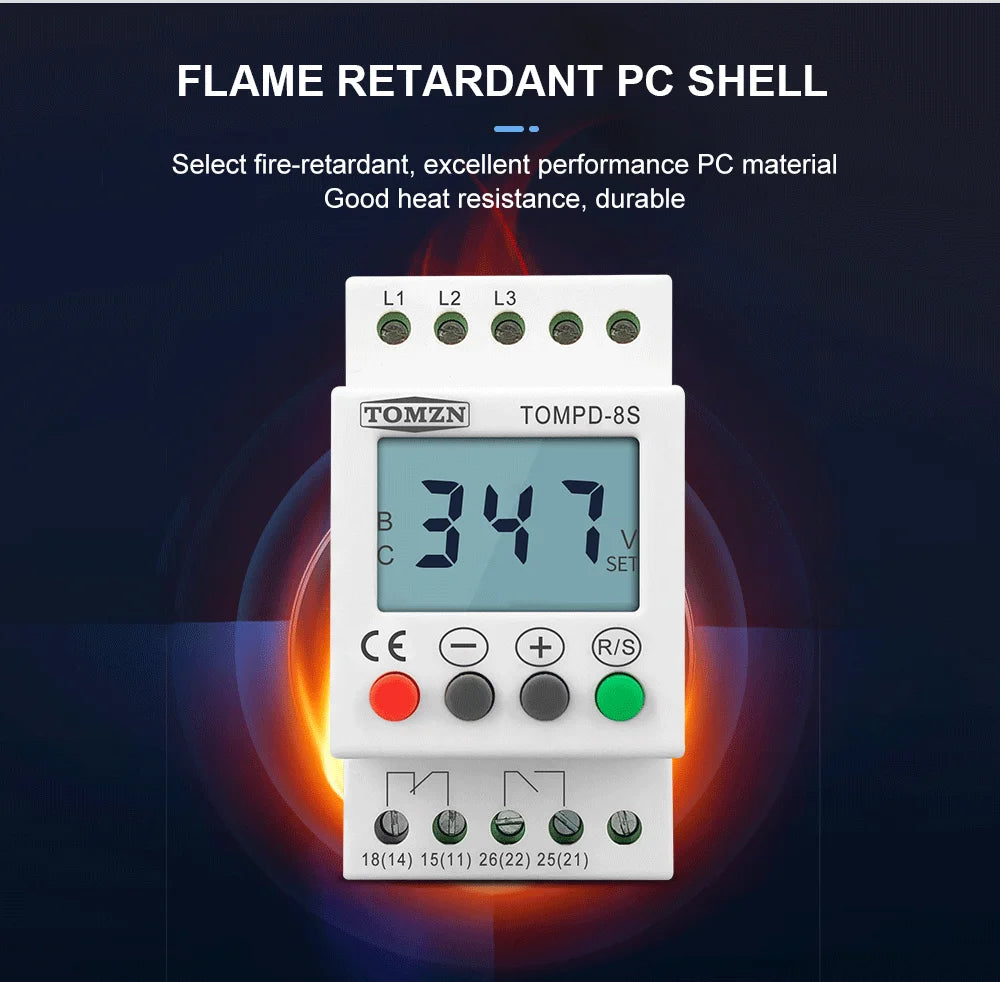

Protect Feature: Sealed
Theory: Voltage relay
Use: General Purpose
Voltage: 380V
is_customized: Yes
semi_Choice: yes
Features

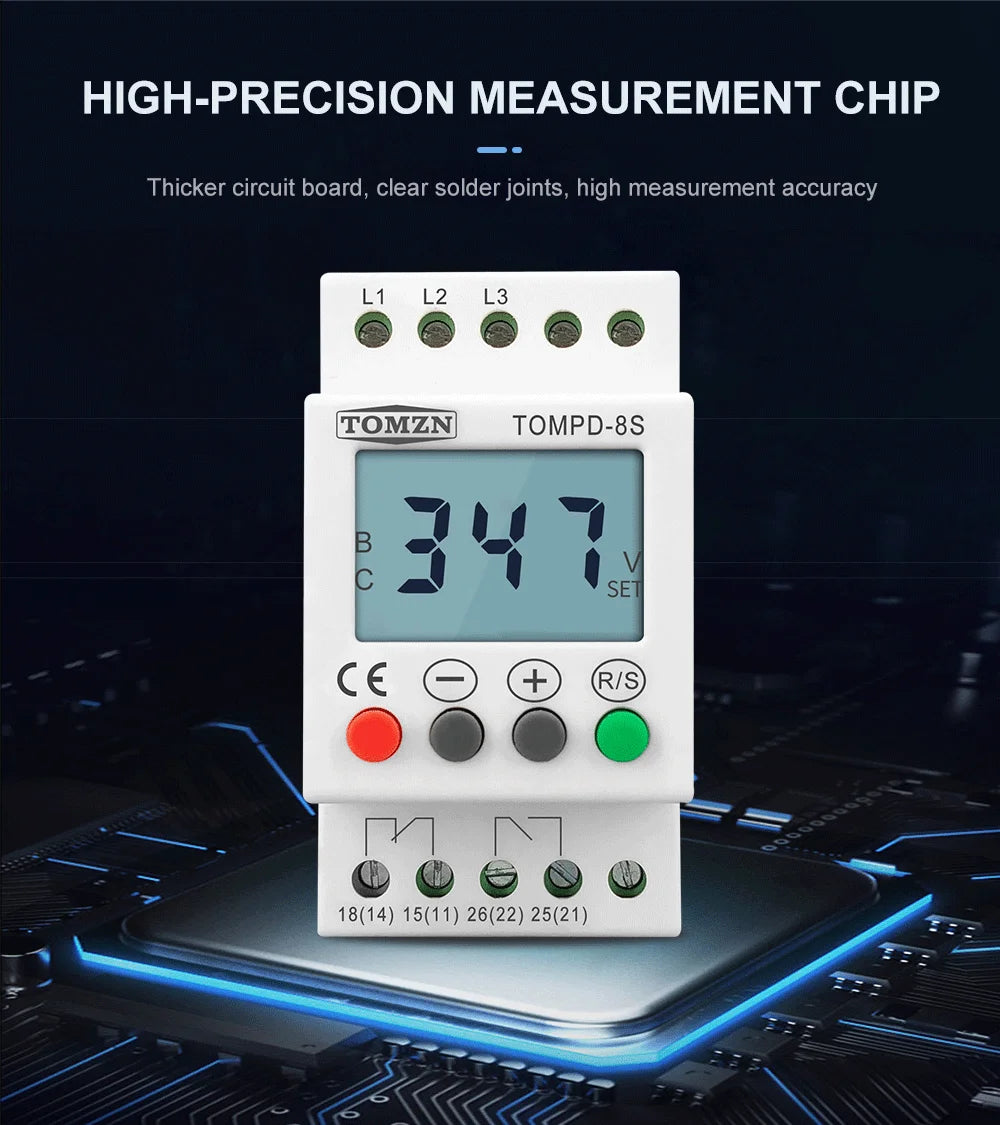

●Microprocessor technology provideshighly accurate and repeatable protection

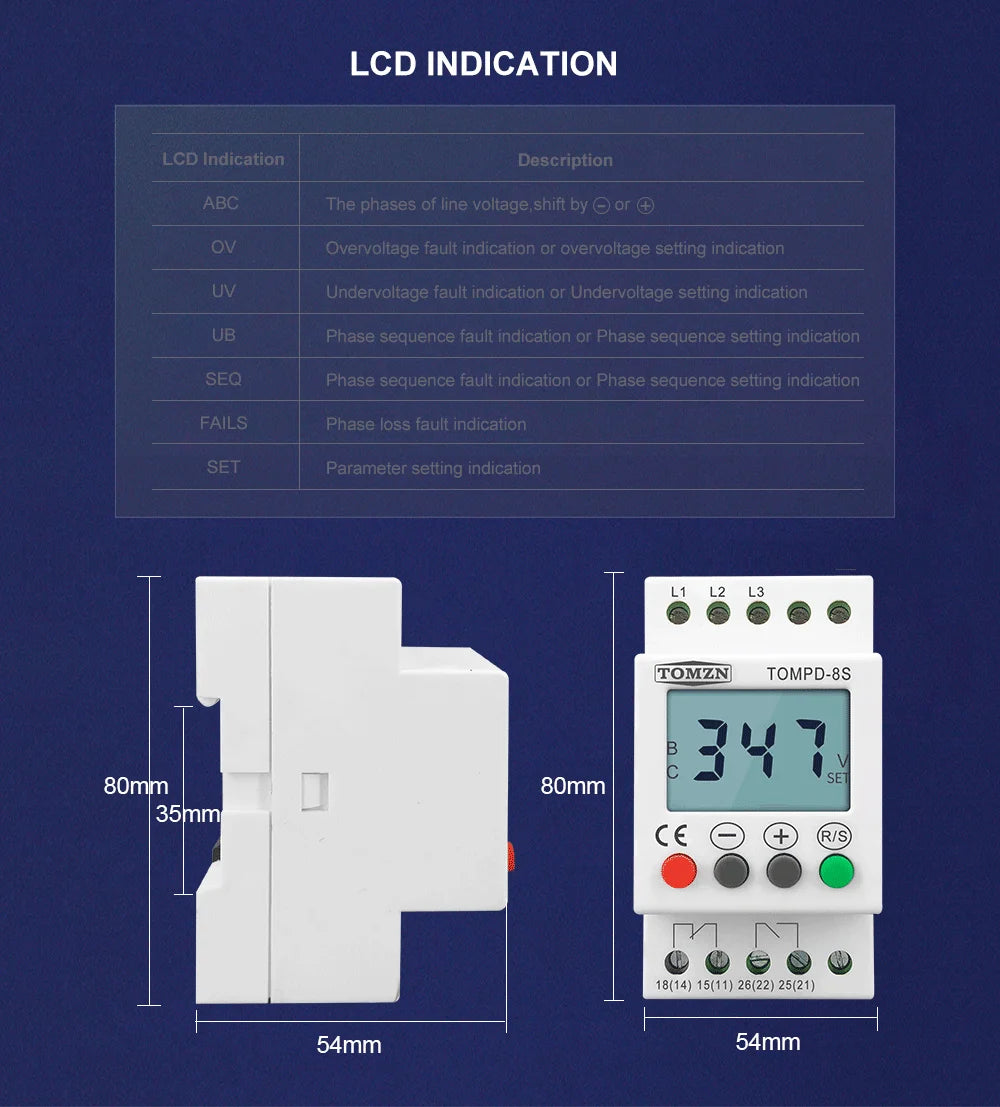

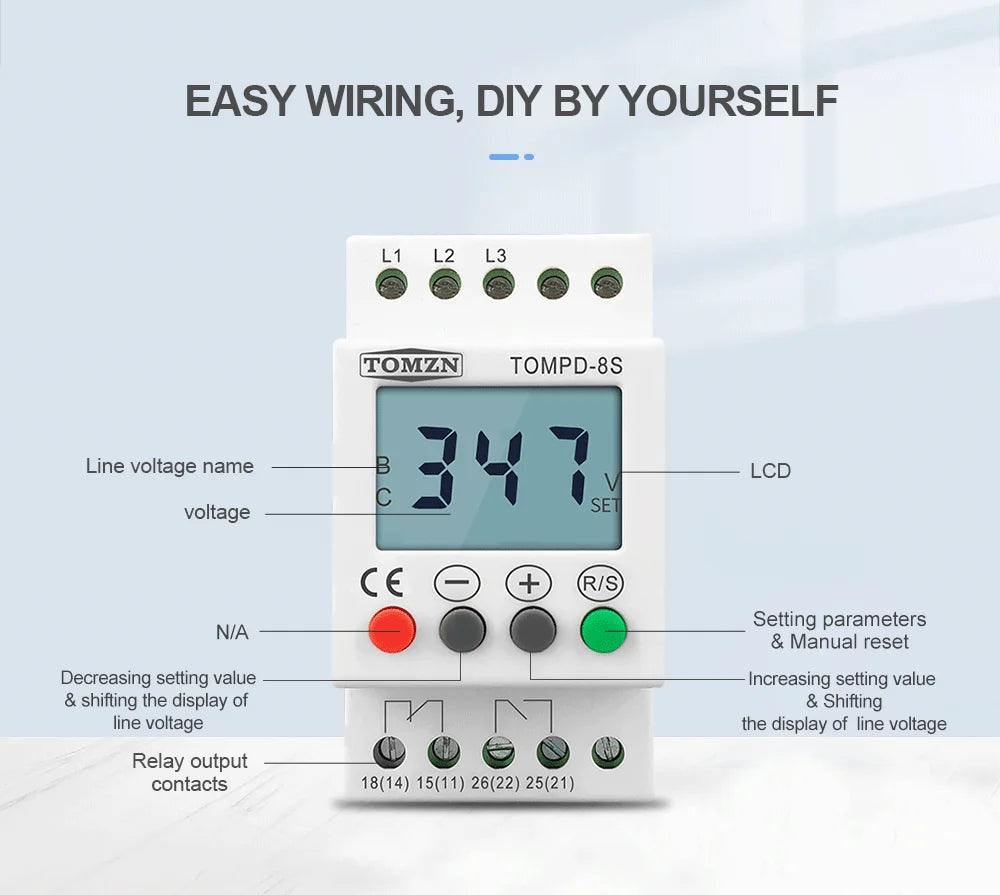

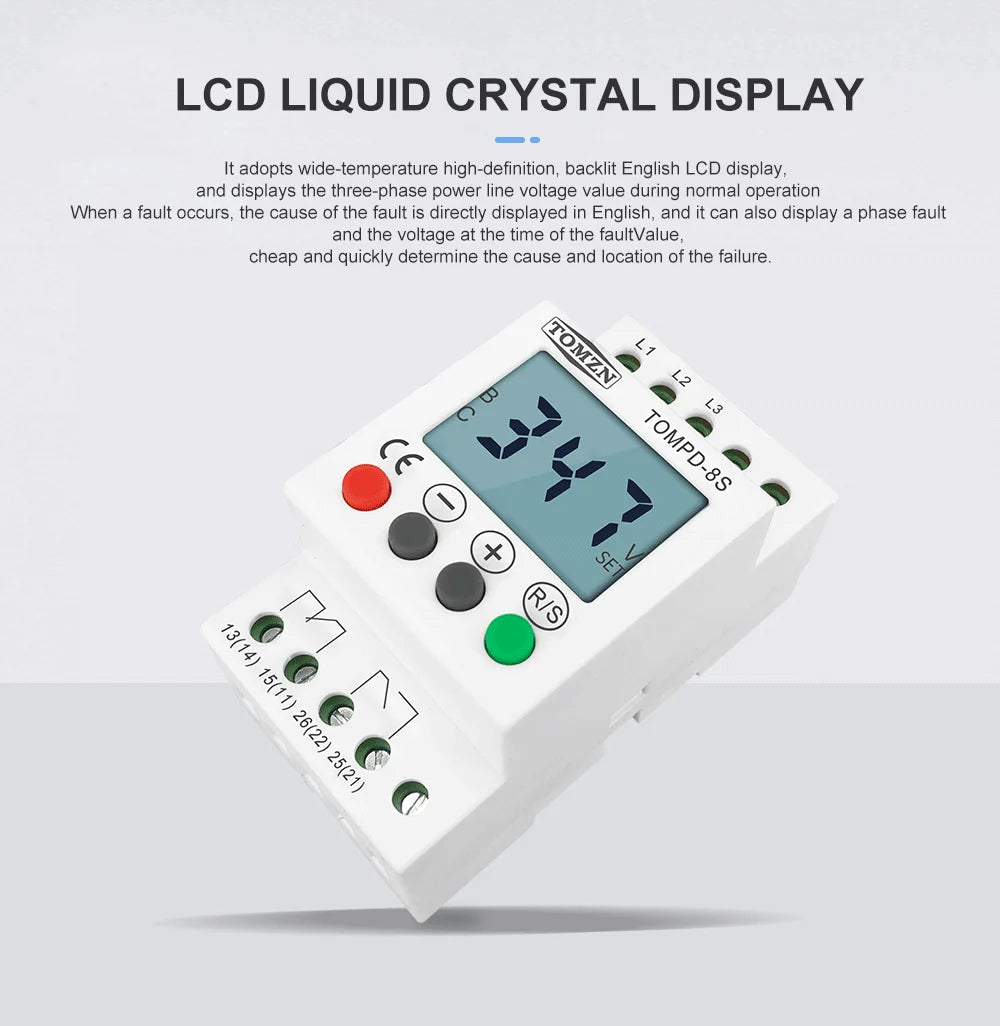

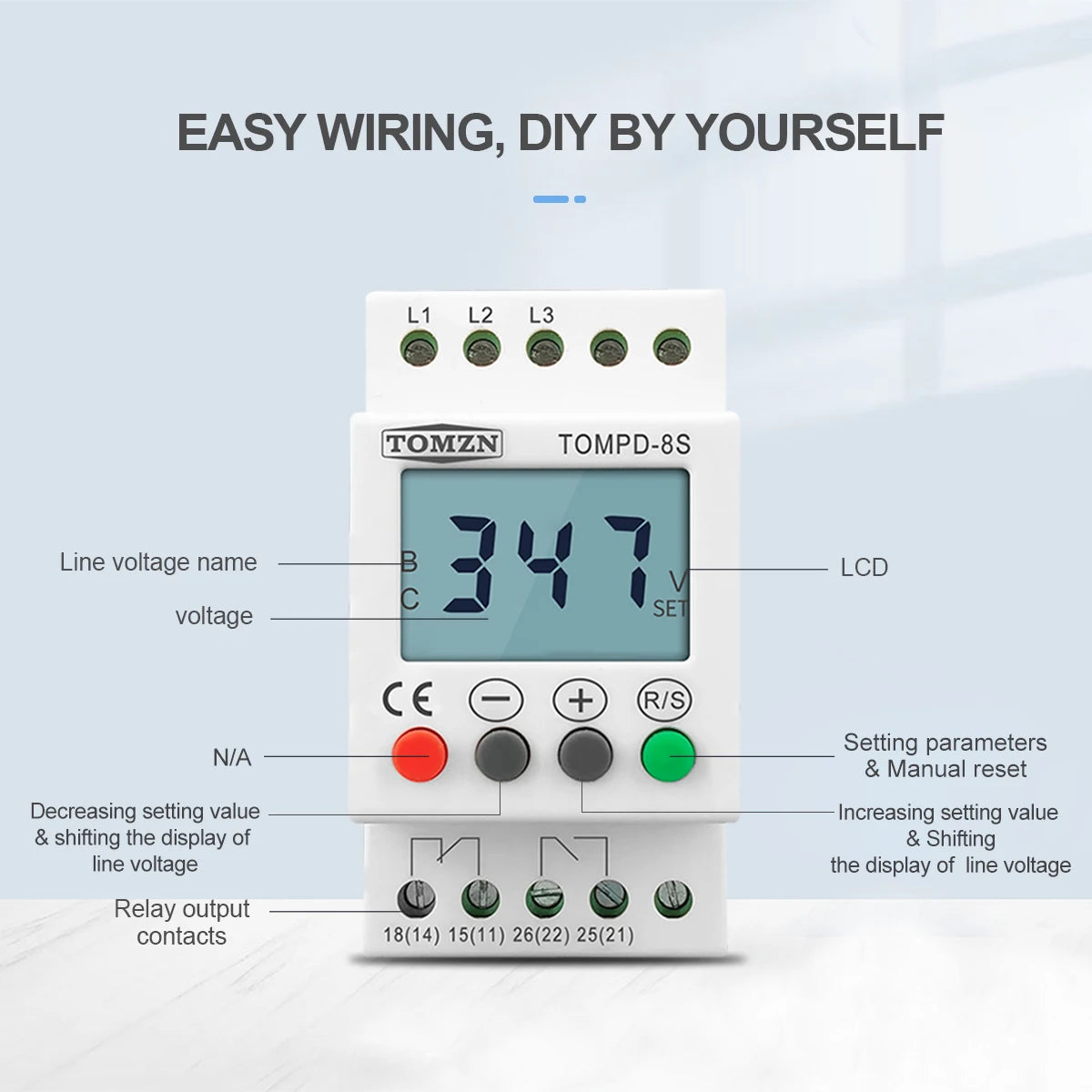

●Built-in LCD and keypad afford a precisediqital setting

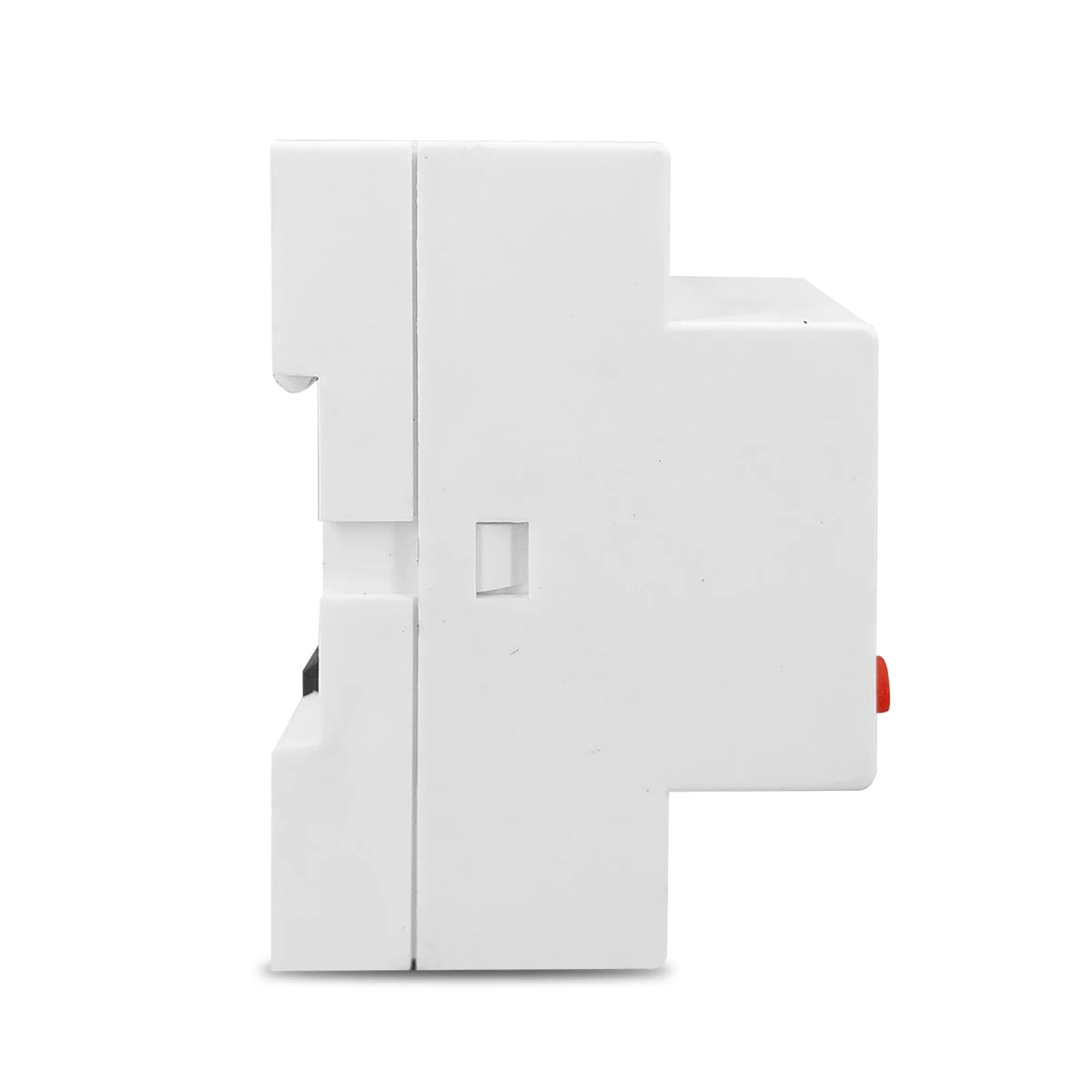

●Compact modular 43mm housing

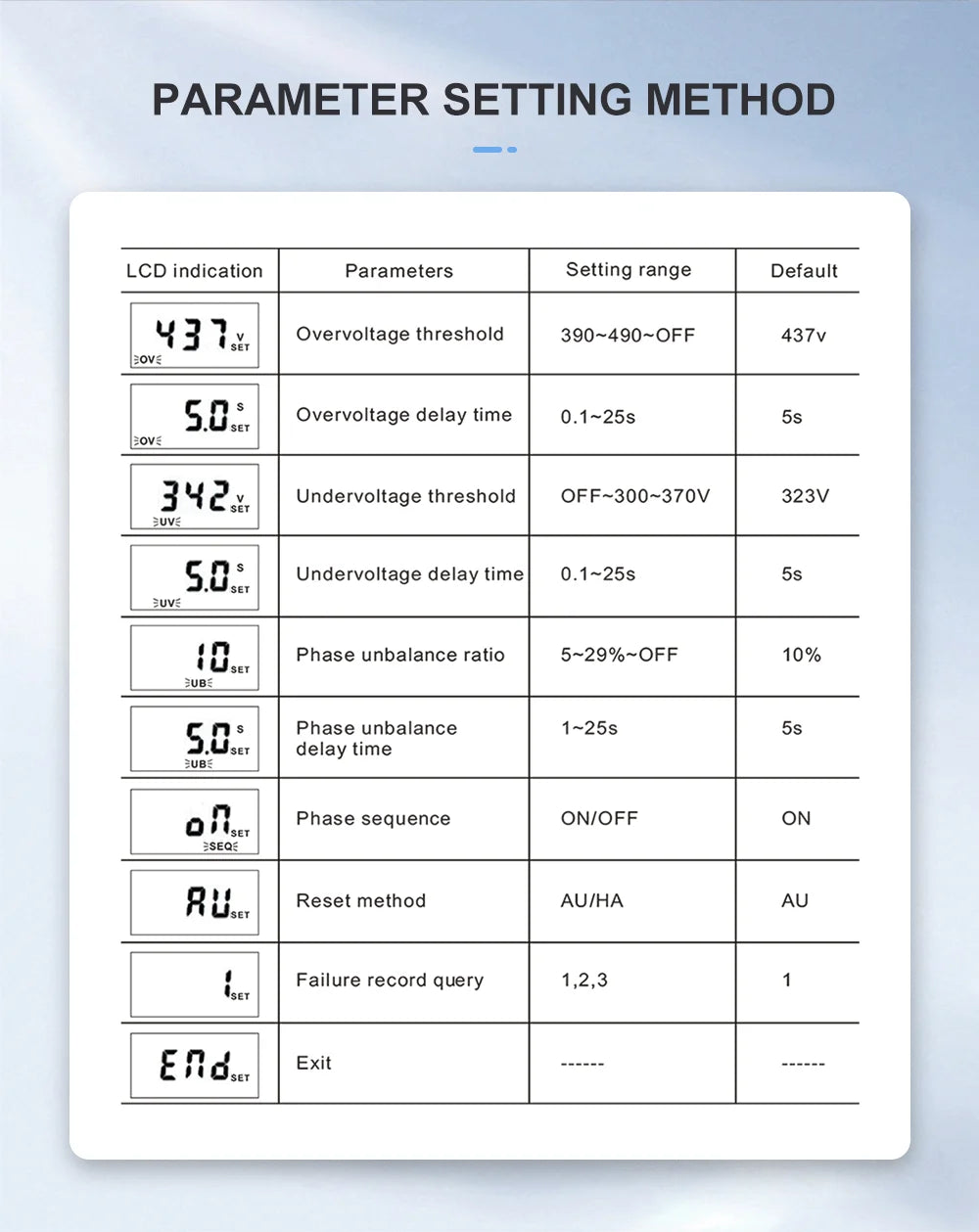

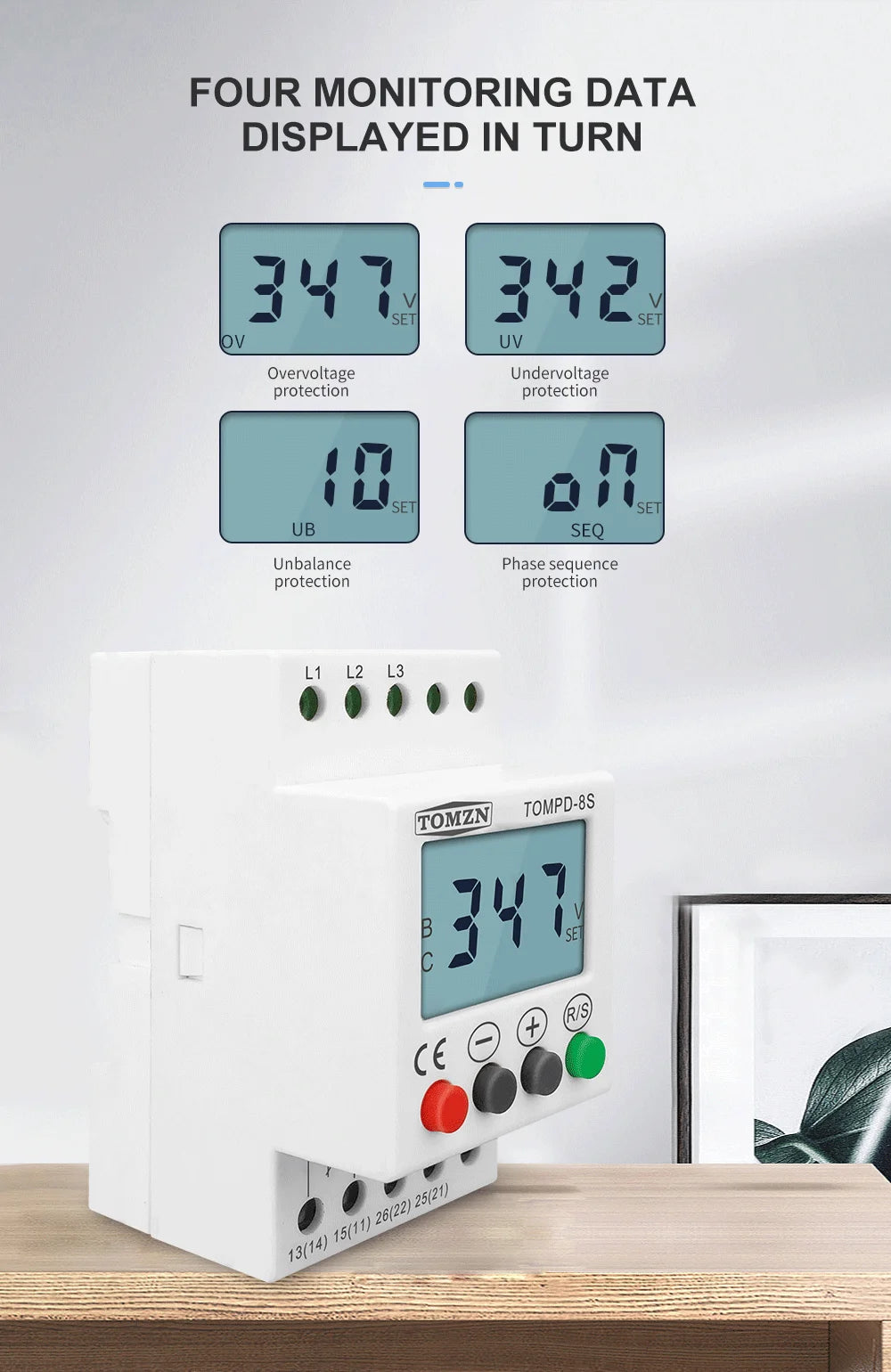

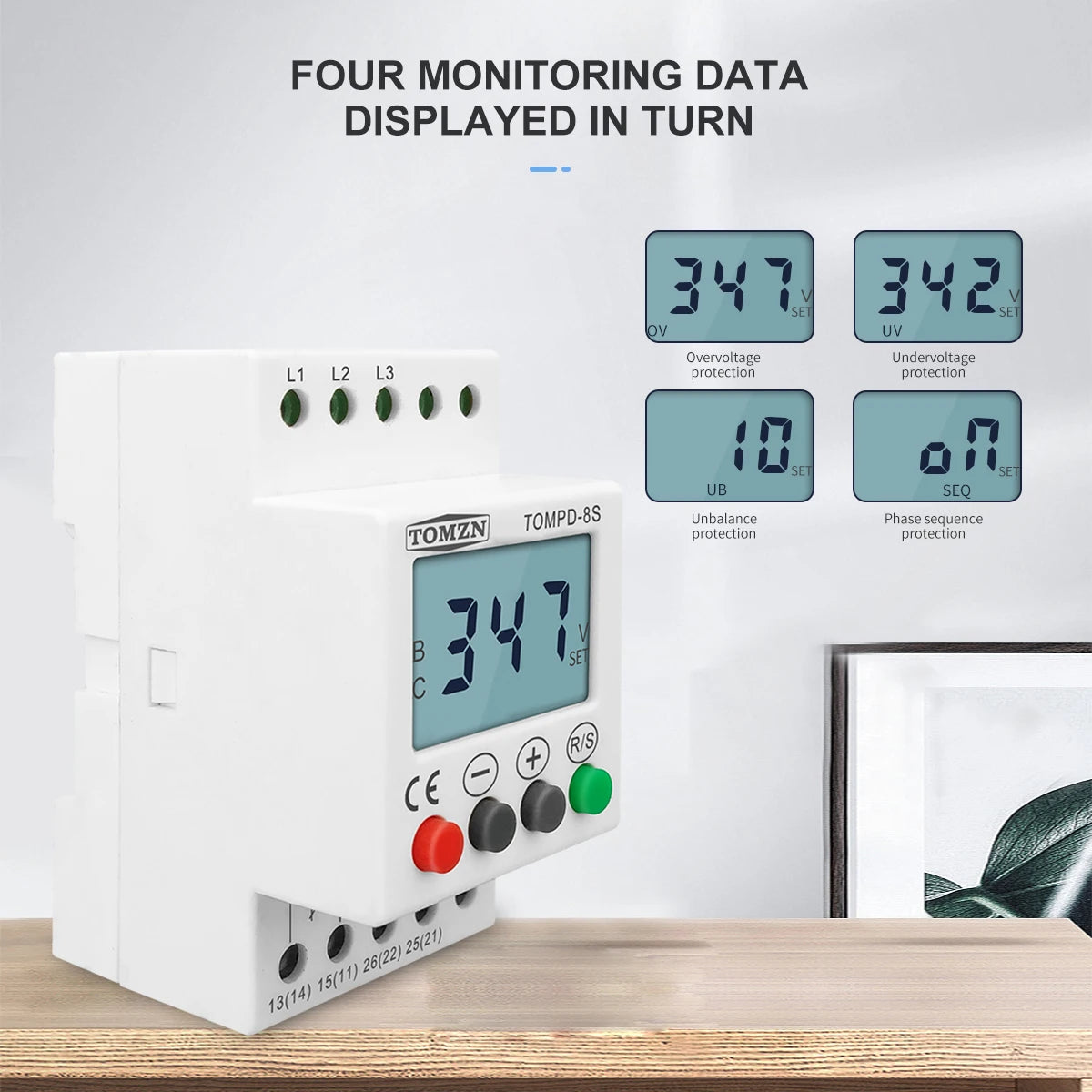

●Adjustable over-and undervoltage,phase unbalance threshold
●Independent adjustable delay time forovervoltage, undervoltage phase unbalance
●Adjustable reset method automatic resetor manual reset
●1 NO&INC contacts
●Failure recording with last 3 faults
Protective FunctionsI Applications
●Phase Loss(Failure)
●Pase Sequence(Reversal)
●Phase Unbalance(Asymmetry)
●Undervoltage
●Overvoltage
Applications
●Pumps, Fans, Refrigeration Unit, Blowers, Motors, Compressors, Lifts, Elevators, Crane, Mining excavators and conveyors

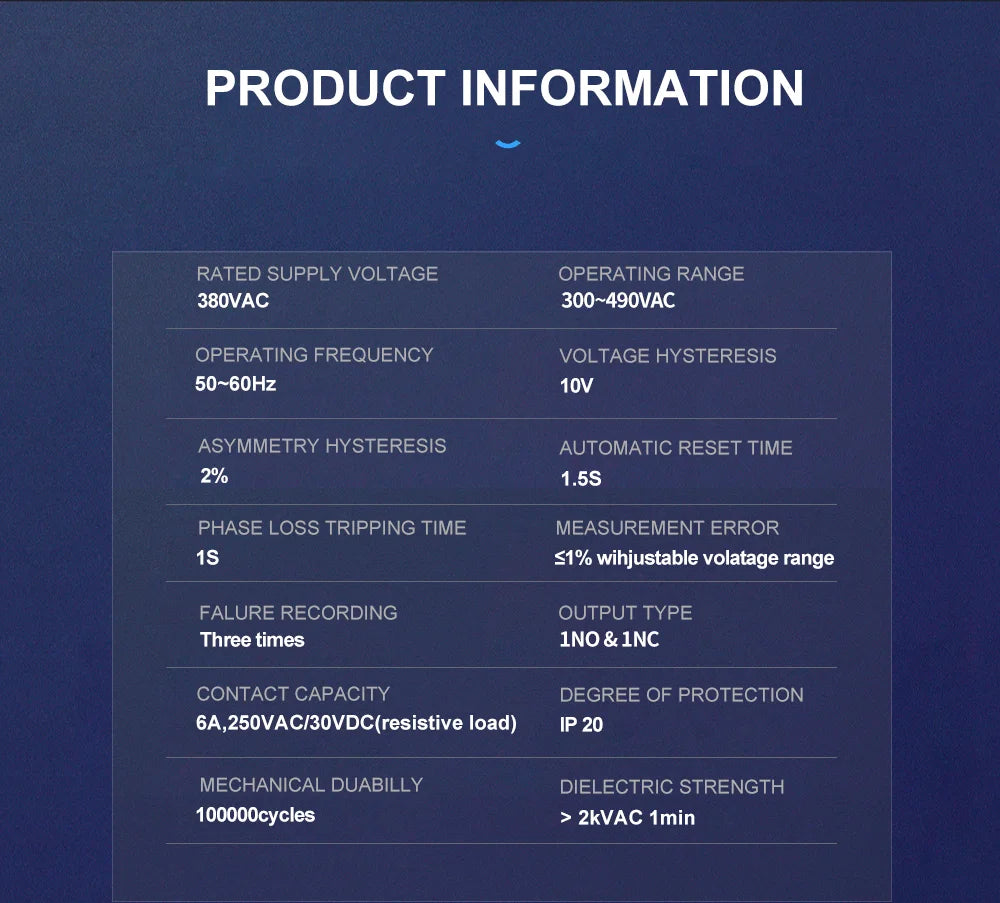

Rated voltage: 380V 50-60Hz, Operating range: 300-490VAC
