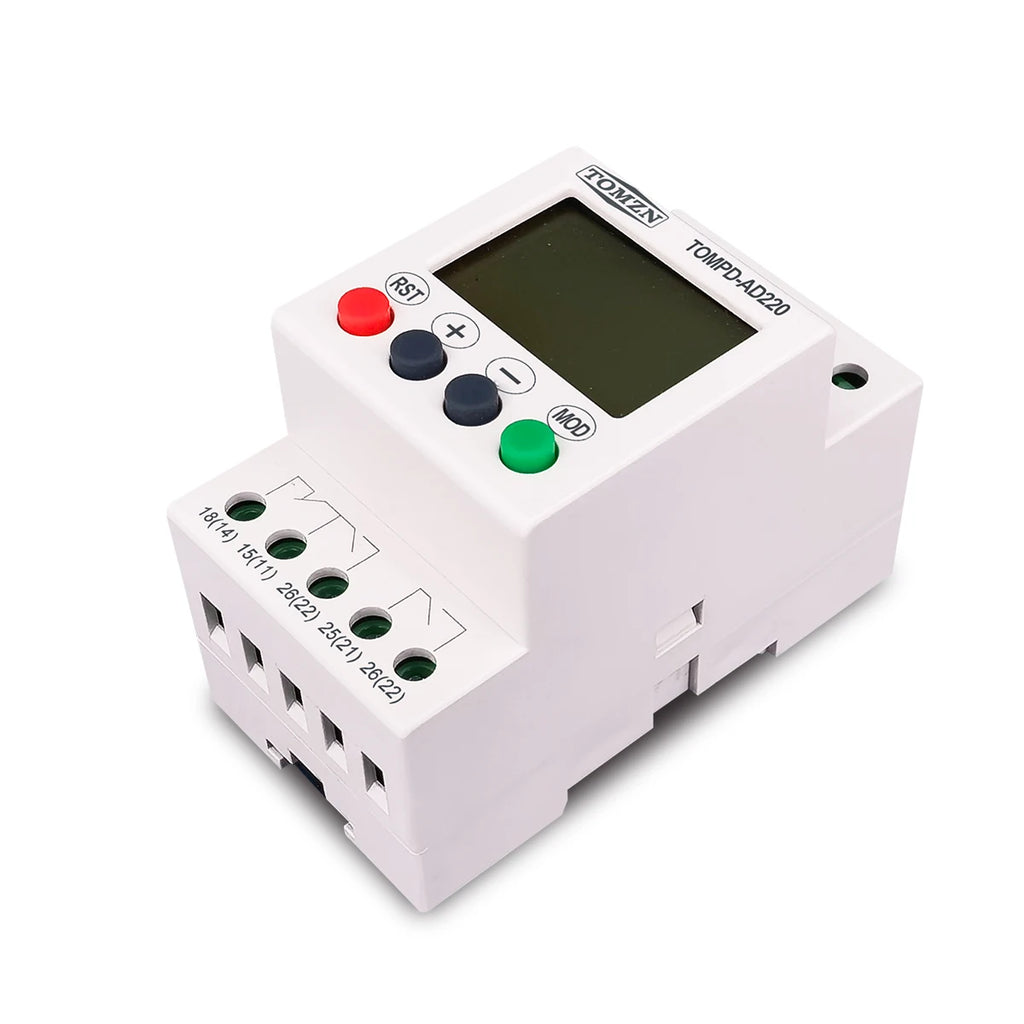

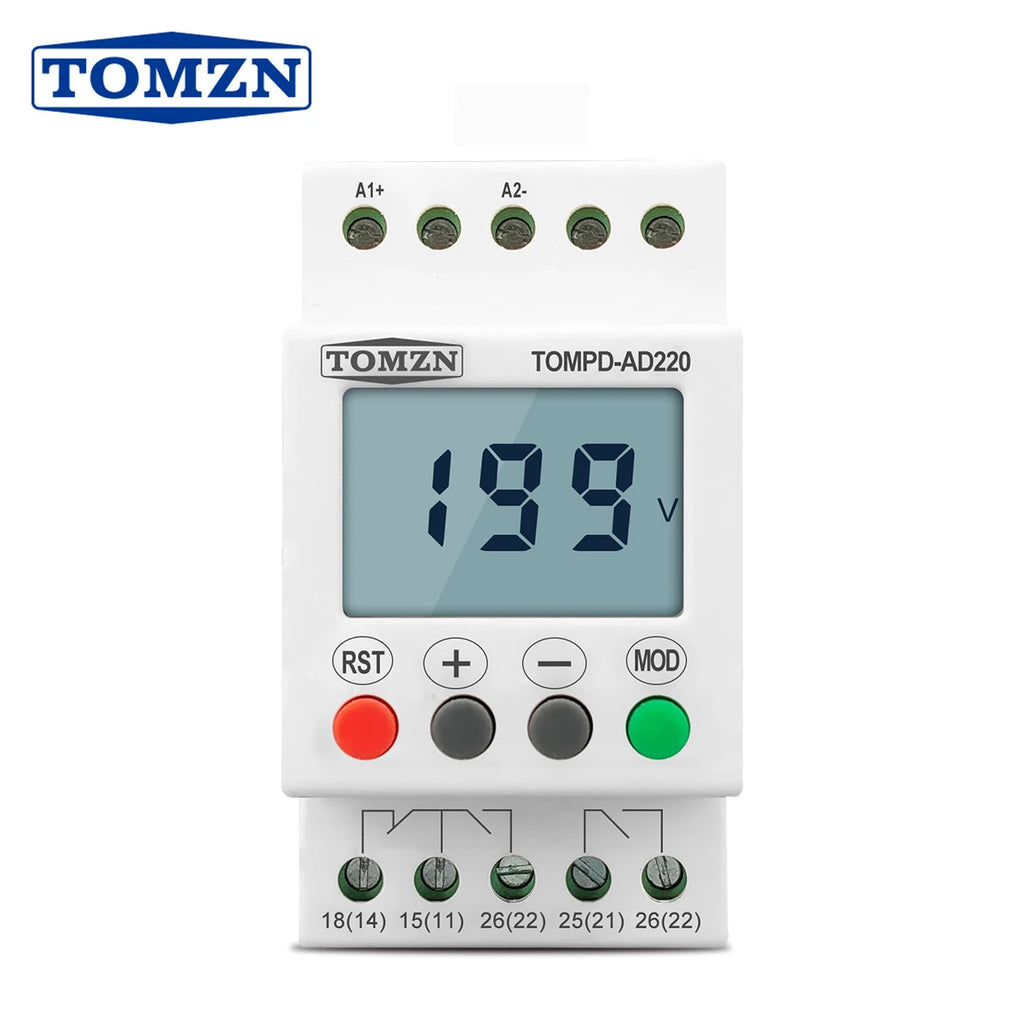

TOMZN AC DC 110V-240V DIN Rail Over and Under Voltage Protection Monitoring Relays Protector
Default Title
$94.19
Sale price
$94.19
Regular price
$0.00
Skip to product information

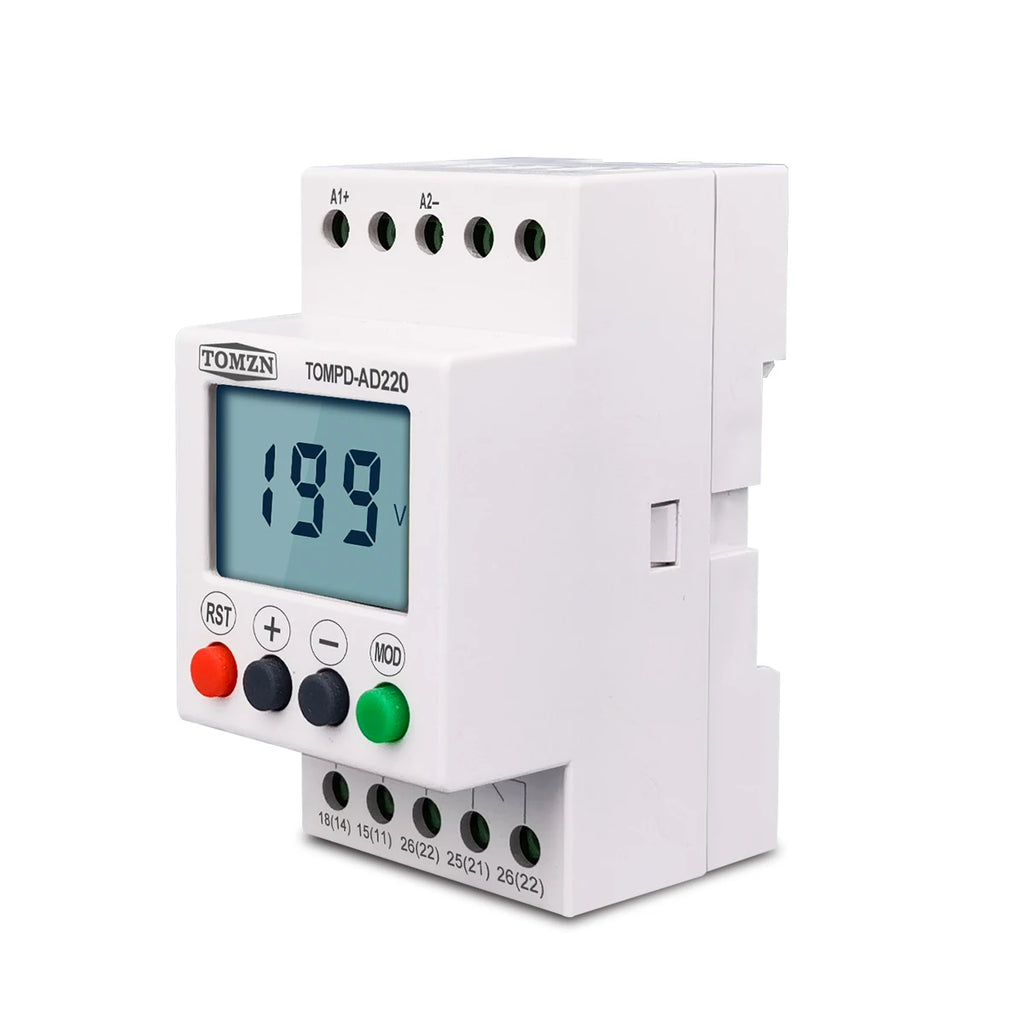

TOMZN AC DC 110V-240V DIN Rail Over and Under Voltage Protection Monitoring Relays Protector
$94.19
Sale price
$94.19
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: TOMZN
Certification: CE
Choice: yes
Contact Load: Low Power
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: TOMPD-AD220
Origin: Mainland China
Power Source: Ac
Protect Feature: Sealed
Theory: Voltage relay
Usage: General Purpose
Voltage: 380V
is_customized: Yes
semi_Choice: yes

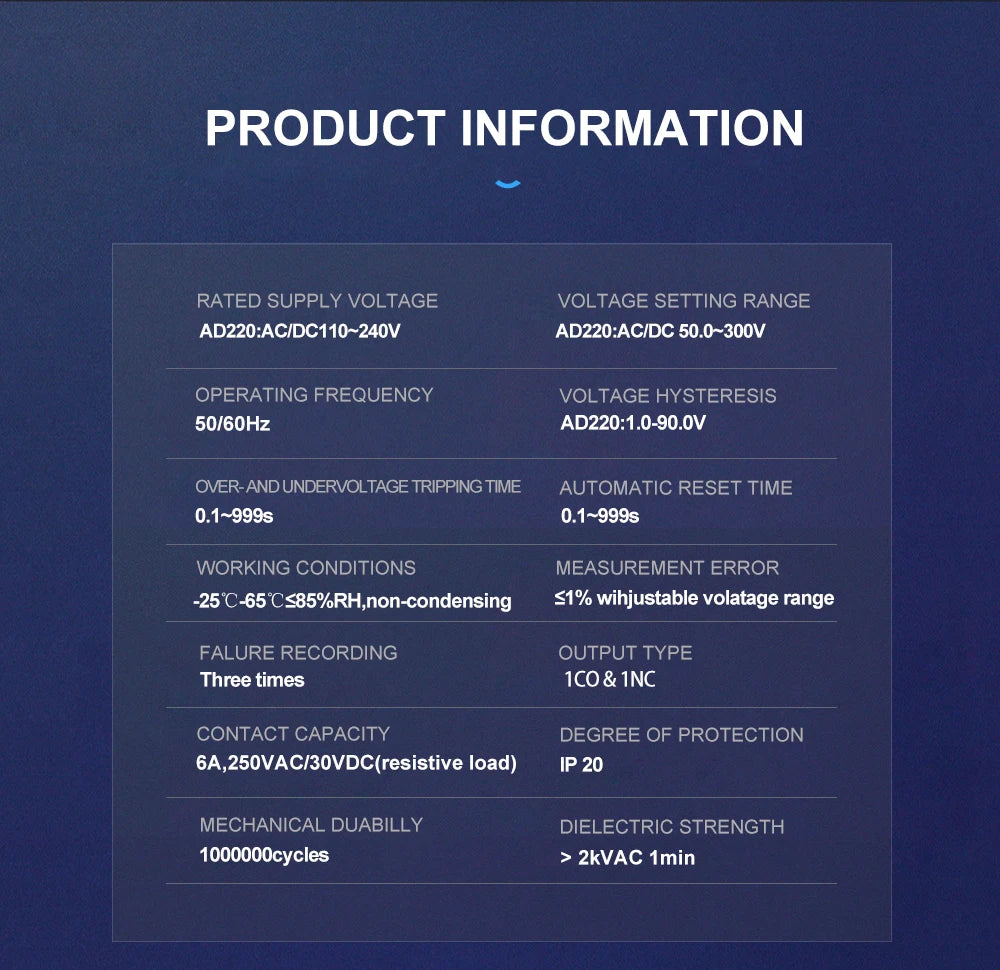

Rated voltage: AC/DC 110V~240V 50-60Hz,
Operating range: AC/DC 40-310V
Over and under voltage setting range: AC/DC 50-300V
Features
●Powered by measuring circuit

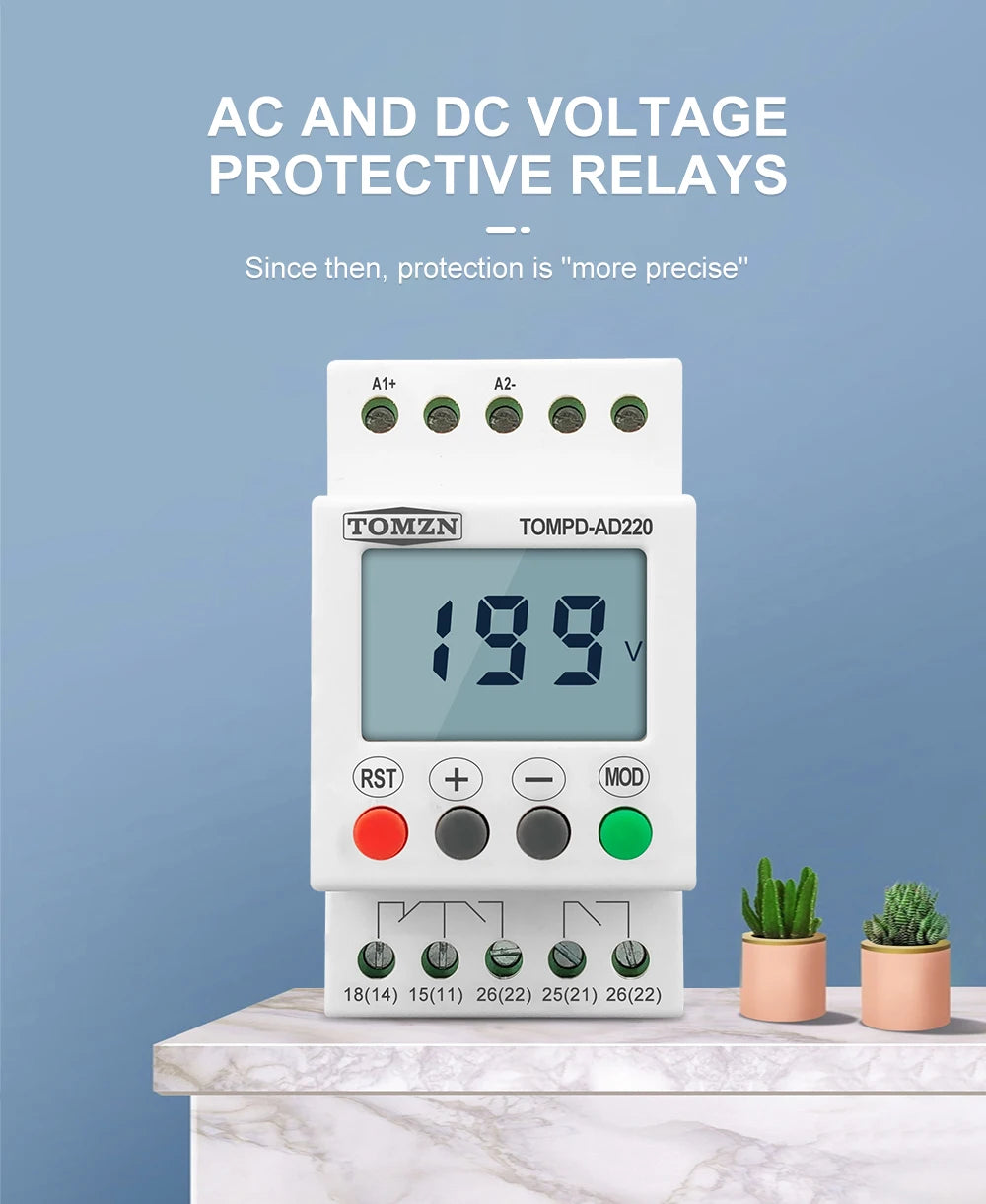

●Compatible with AC and DC supply

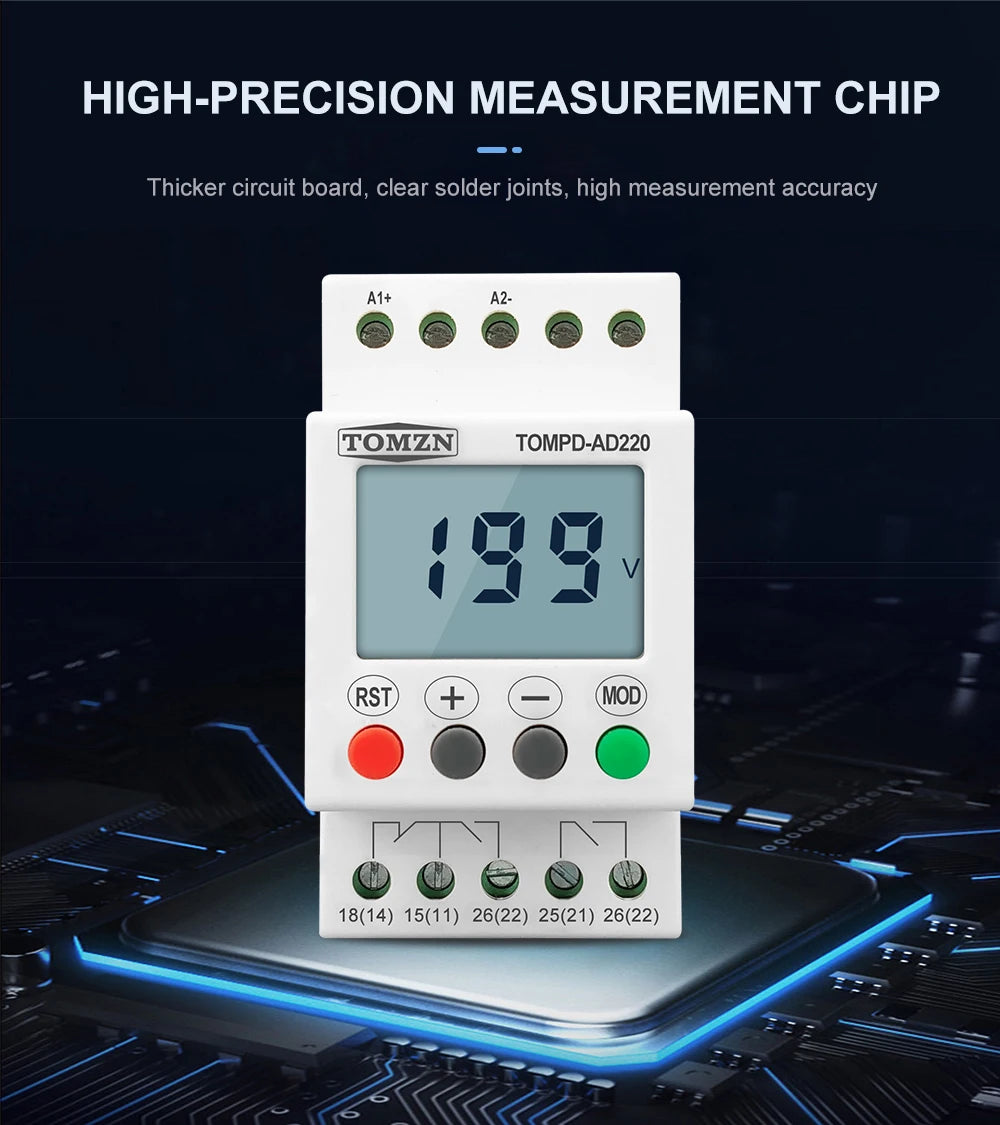

●Microprocessor technology provides highly accurate and repeatable protection

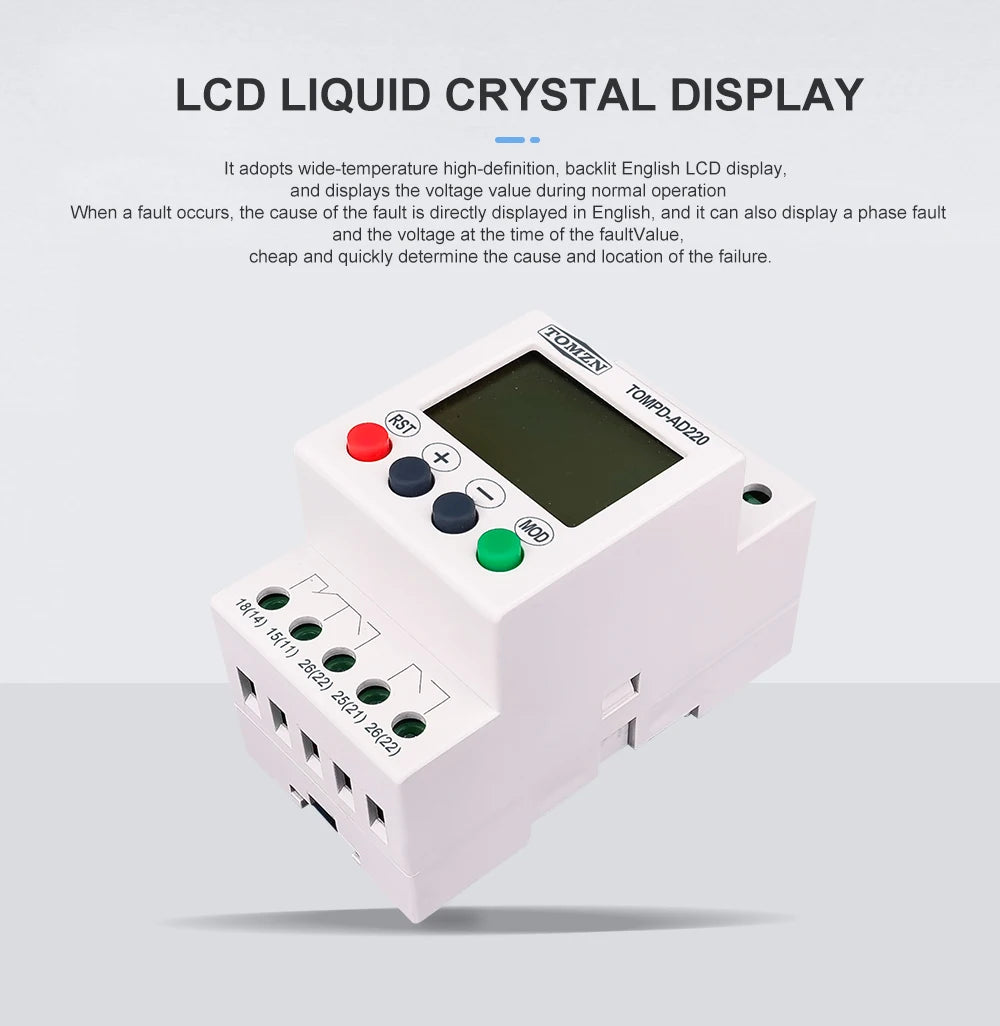

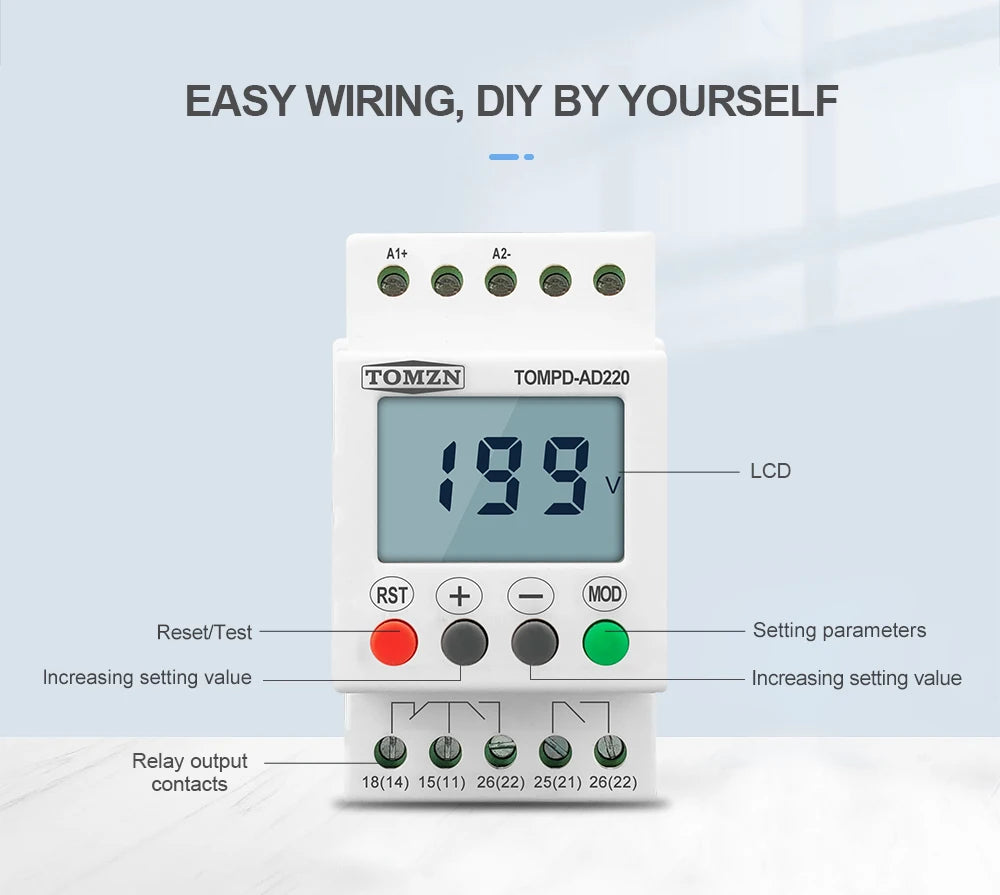

●Built-in LCD and keypad afford a precise digital setting

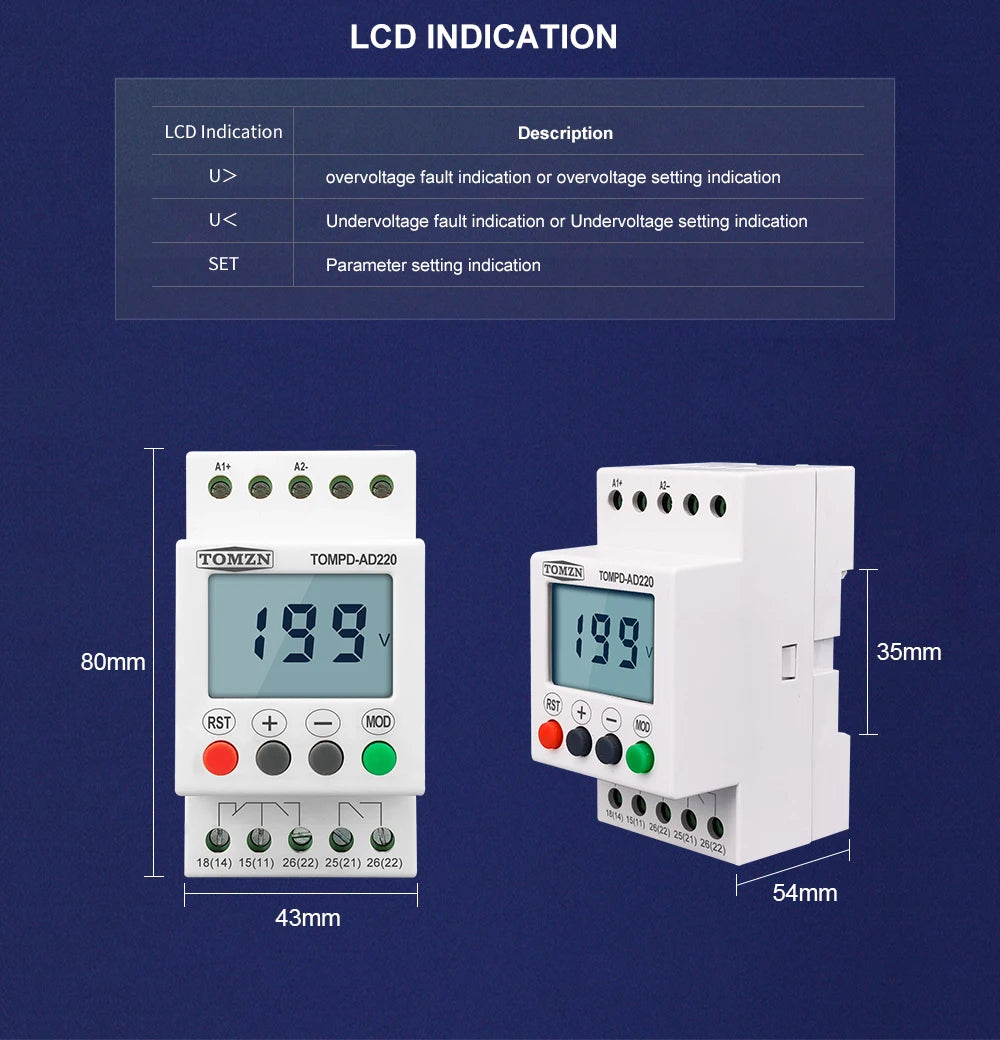

●Cpmpack modular 43mm housing

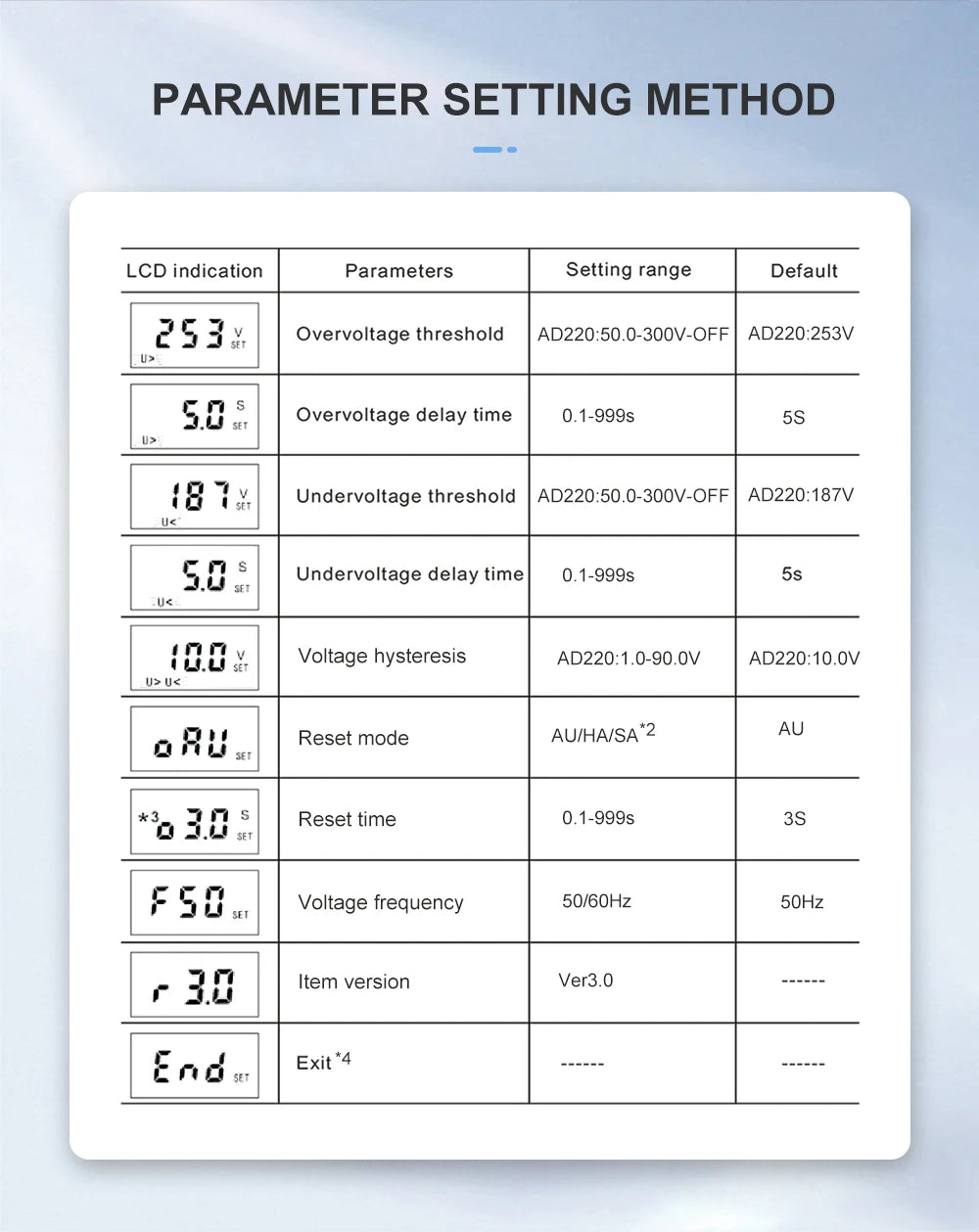

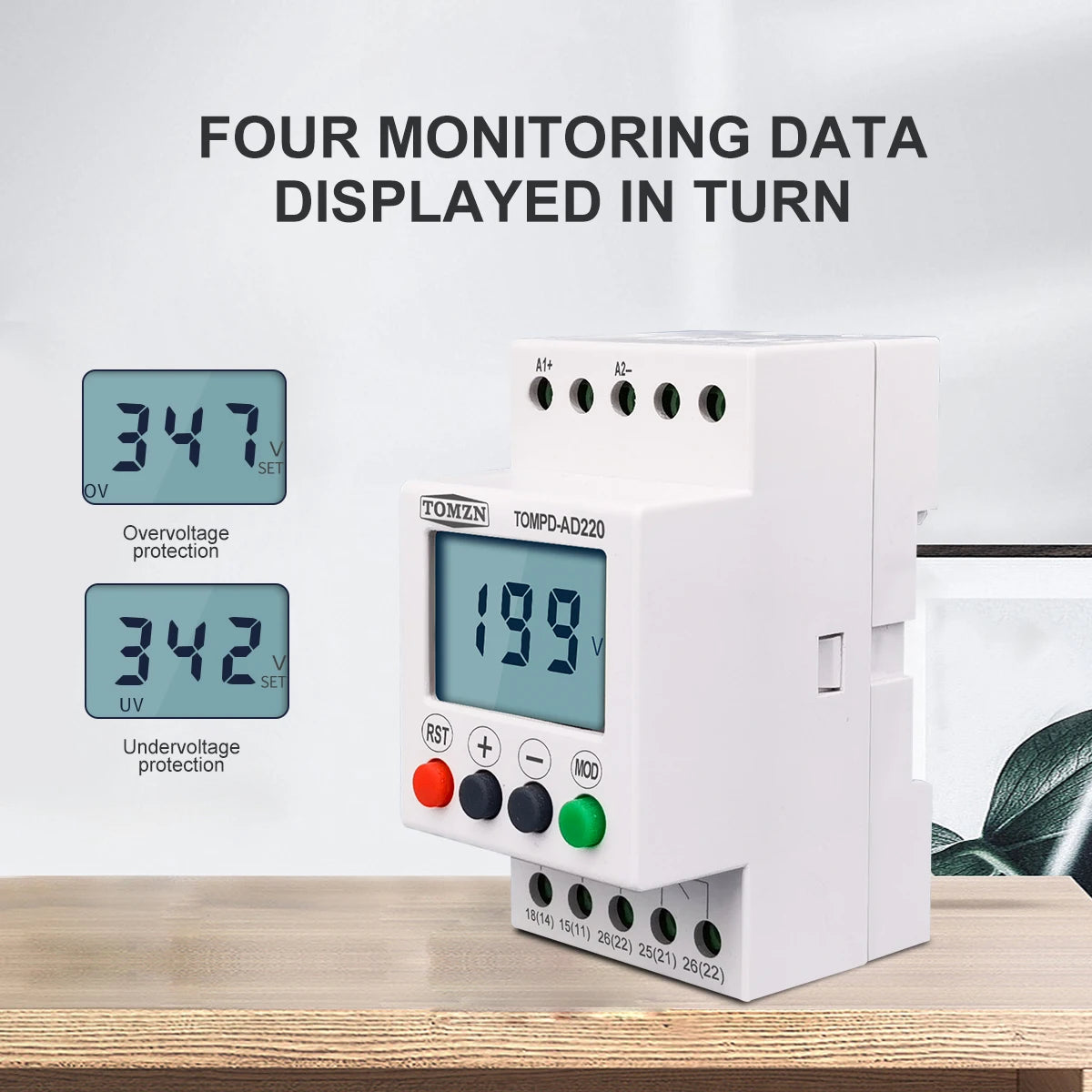

●Adjustable over and under voltage
●Independent adjustable delay time for overvoltage and undervoltage
●Adjustable reset mode: automatic reset or manual reset
●1 CO&1NC contacts
●Failure recording with last 3 faults
Protective FunctionsI Applications
●Undervoltage
●Overvoltage

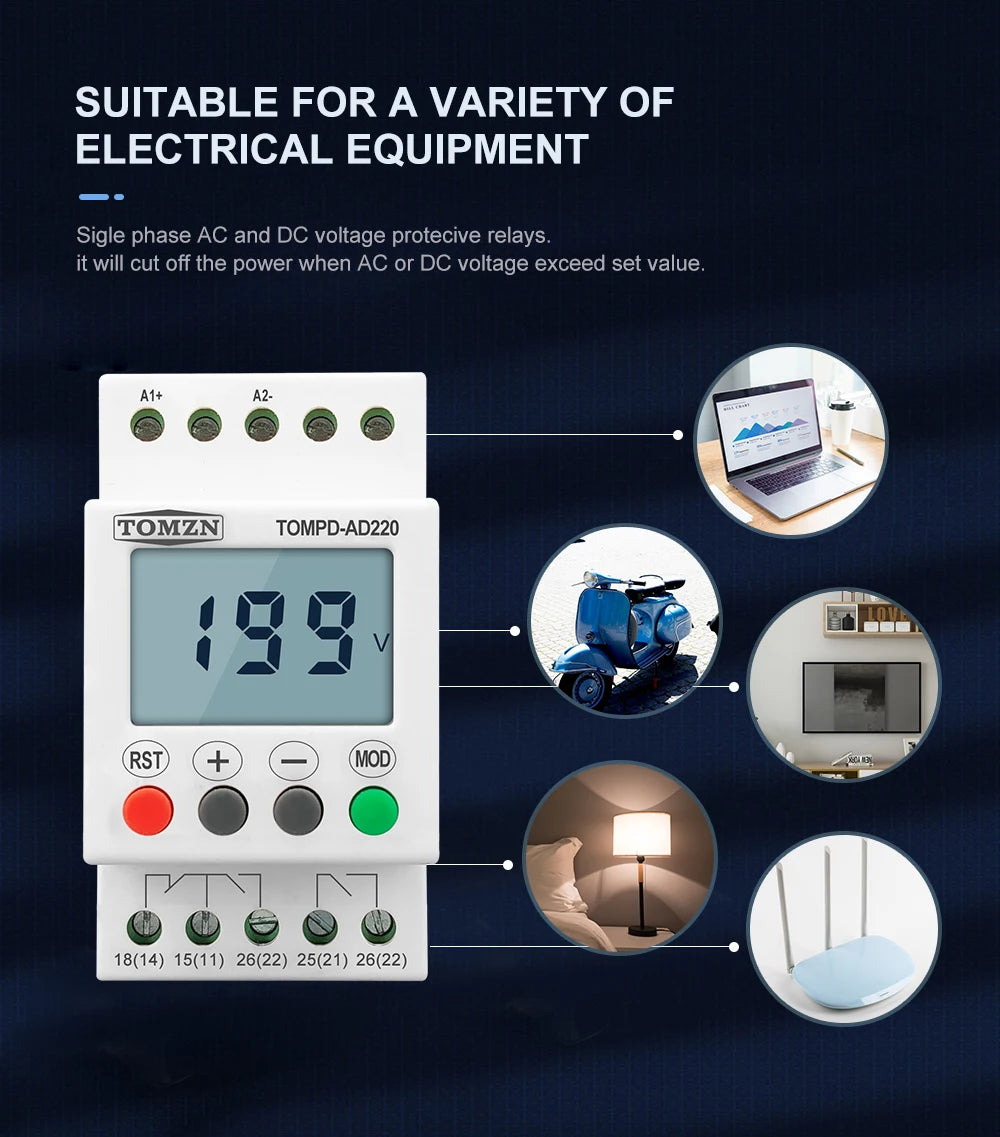

Applications
●Pumps, Fans, Refrigeration Unit, Blowers, Motors, Compressors, Lifts, Elevators, Crane, Mining excavators and conveyors
