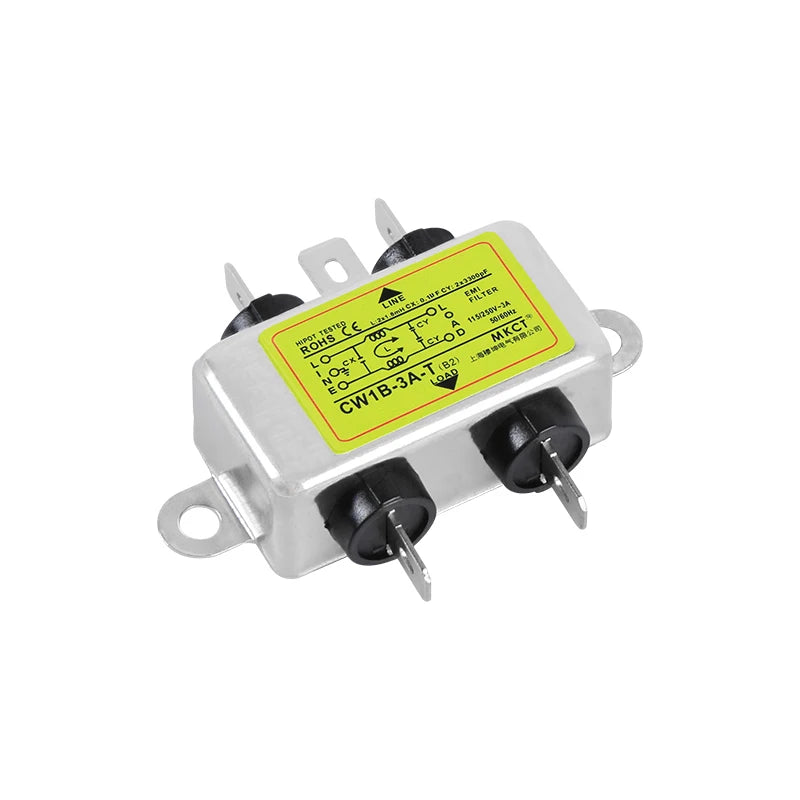

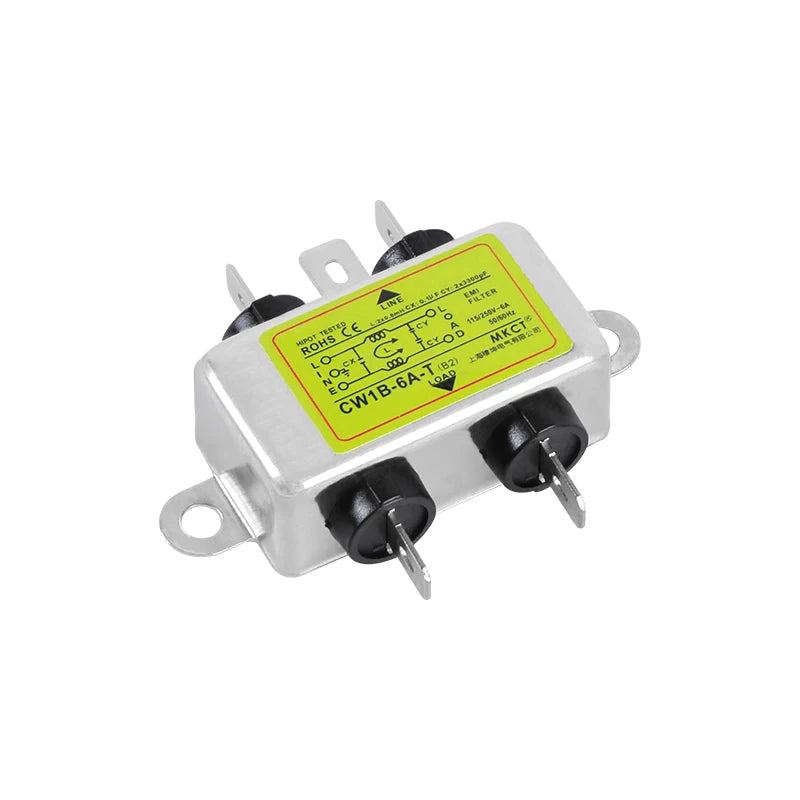

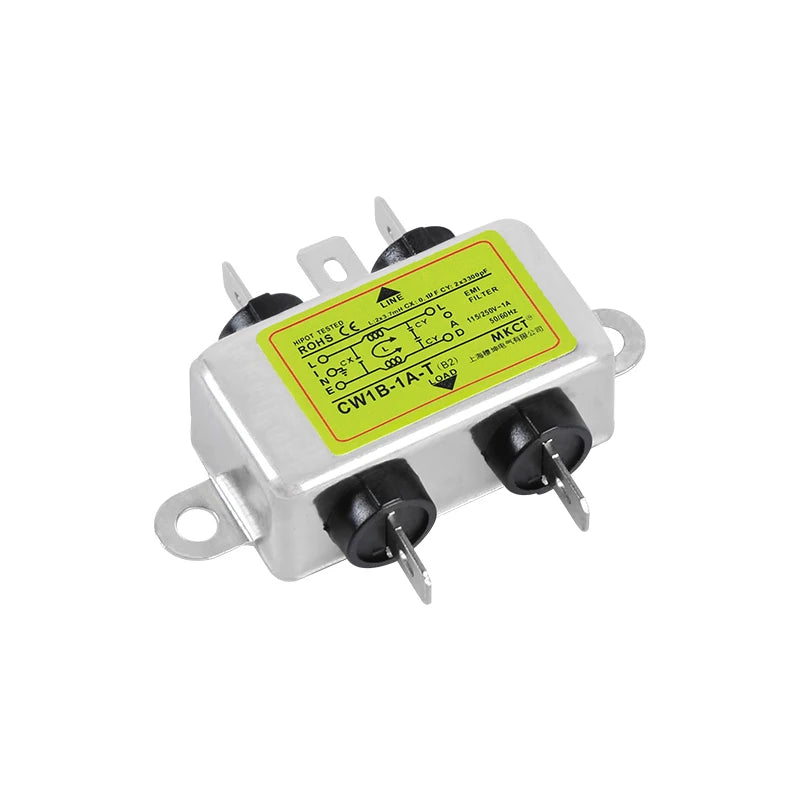

TOMZN AC Purification 115V 230V single-phase power supply filter EMI anti-interference purification audio CW1B-T(B2)1A 3A 6A 10A
CW1B-1A-T(B2)
$17.64
Sale price
$17.64
Regular price
$0.00
Skip to product information
TOMZN AC Purification 115V 230V single-phase power supply filter EMI anti-interference purification audio CW1B-T(B2)1A 3A 6A 10A
$17.64
Sale price
$17.64
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: TOMZN
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: CW1B-T(B2)
Origin: Mainland China
Voltage: 自定义编辑
semi_Choice: yes
Insert connection Single-Phase General Purpose Series
Features and benefits
Small size,Fast and easy chassis mounting
Various terminal connection styles
Good conducted attenuation performance,applied toenvironment required low interference suppression
Typical applications
Electrical and electronic equipment
Medical and household equipment
Automation,datacom and electronic data processing equipment

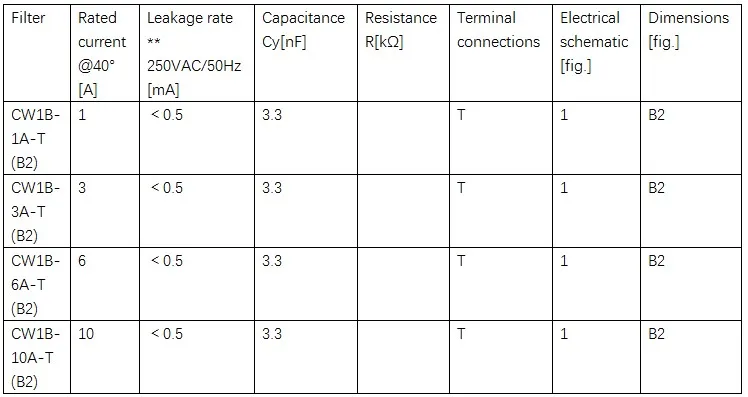

Technical specifications
Maximum continuous operating voltage:250VAC
Operating frequency:50/60Hz
Rated currents:1A-10A@40°Max.
High potential test voltage(1 min):Line to Line 1500VDC/Line to Ground 1500VAC
Operation and storage temperature range:-25°~+85°(25/085/21)
*
The suffix ”T” represents Insert commection.
**
Maximum leakage under normal operating conditions,note:if the neutral line is interrupted, worst case leakage could reach twice this level.
Electrical schematics

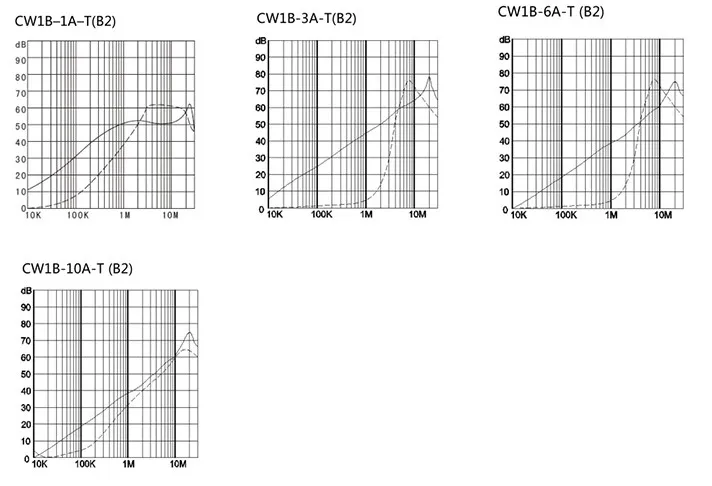

Typical filter attenuation
Per CISPR 17/50Ω system [——Common mode;-----Differential mode ]
Dimensions[All dimensions in mm]
Connections style “T”
