SPECIFICATIONS

Relay-Based Automatic Dual Power Switch

DESCRIPTION

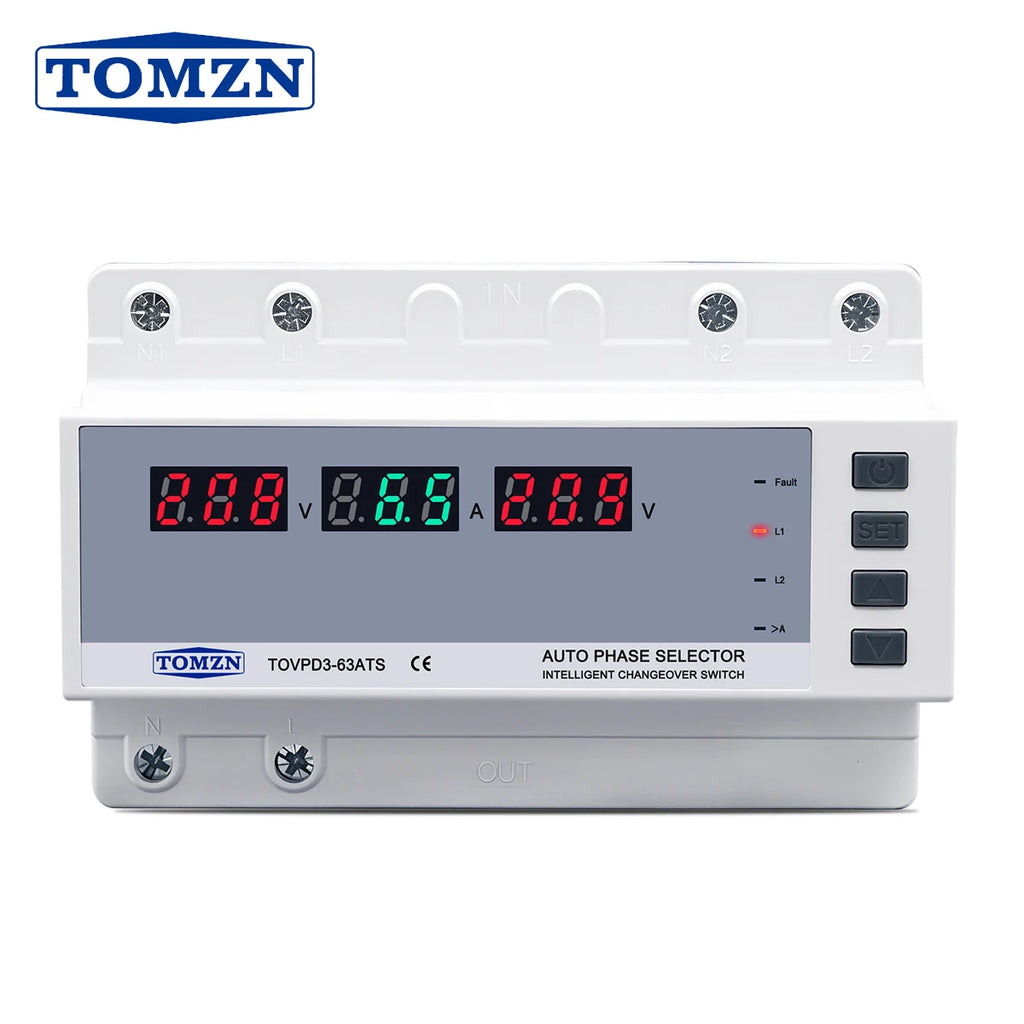

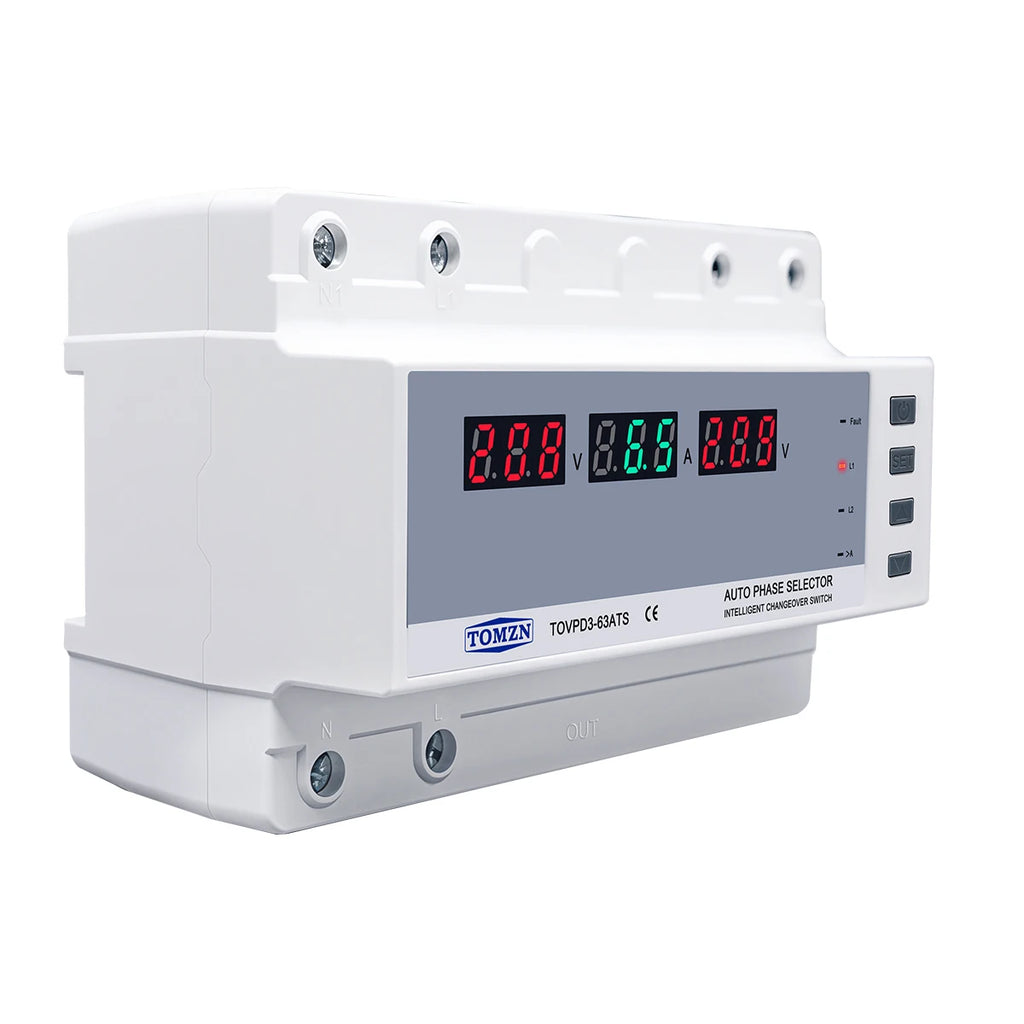

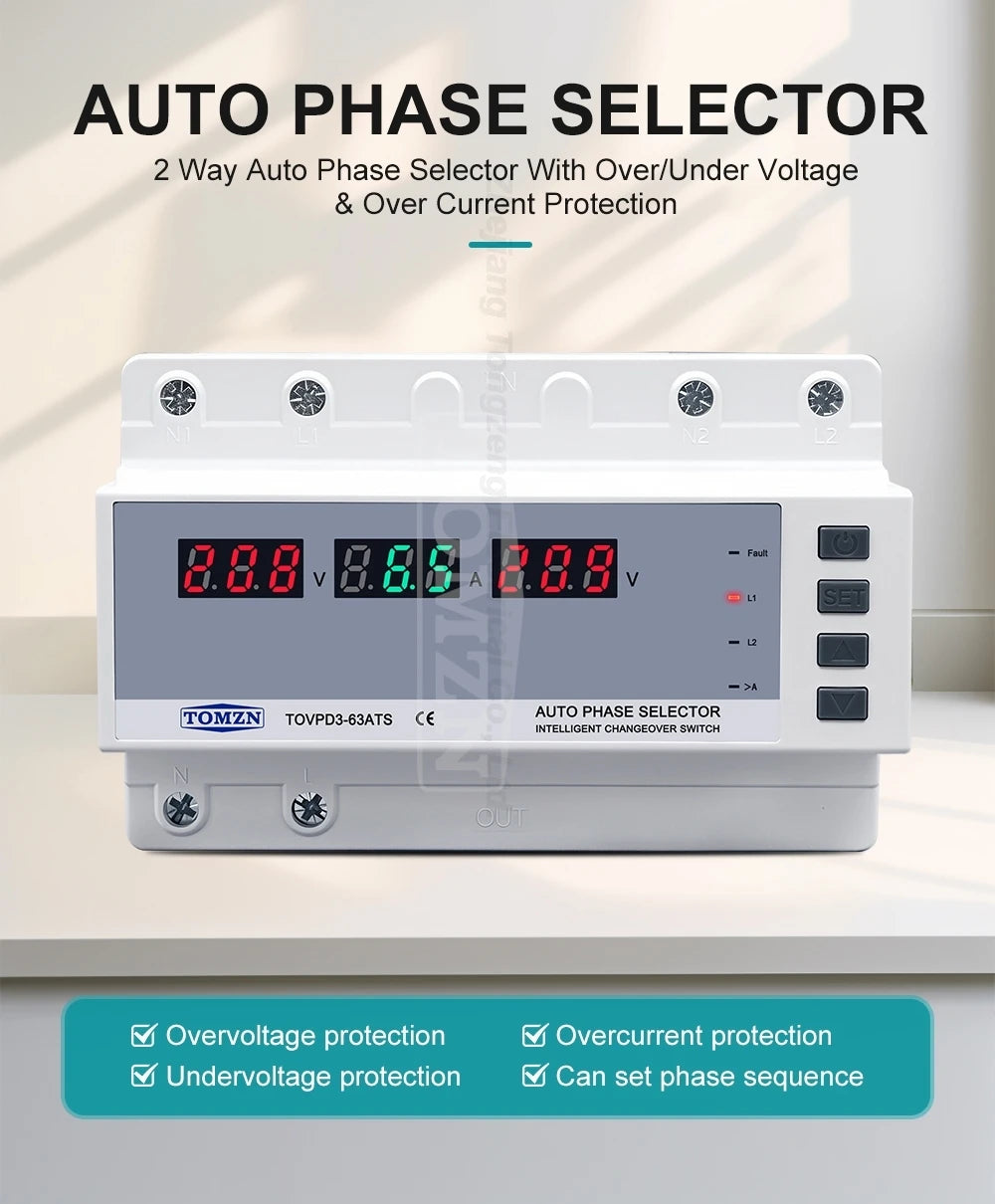

The TOVPD3-63ATS represents a relay-type automatic transfer switch engineered for dual power supply systems. What sets it apart from standard ATS products is its built-in protection against both voltage irregularities and overcurrent situations, accompanied by a real-time monitoring display for voltage and current parameters. A key safety feature is its capability to interrupt both the phase and neutral lines at the same time, providing comprehensive isolation. This unit is particularly suitable for installations where electrical safety cannot be compromised.

KEY ATTRIBUTES

1. Controlled by advanced microcontroller technology

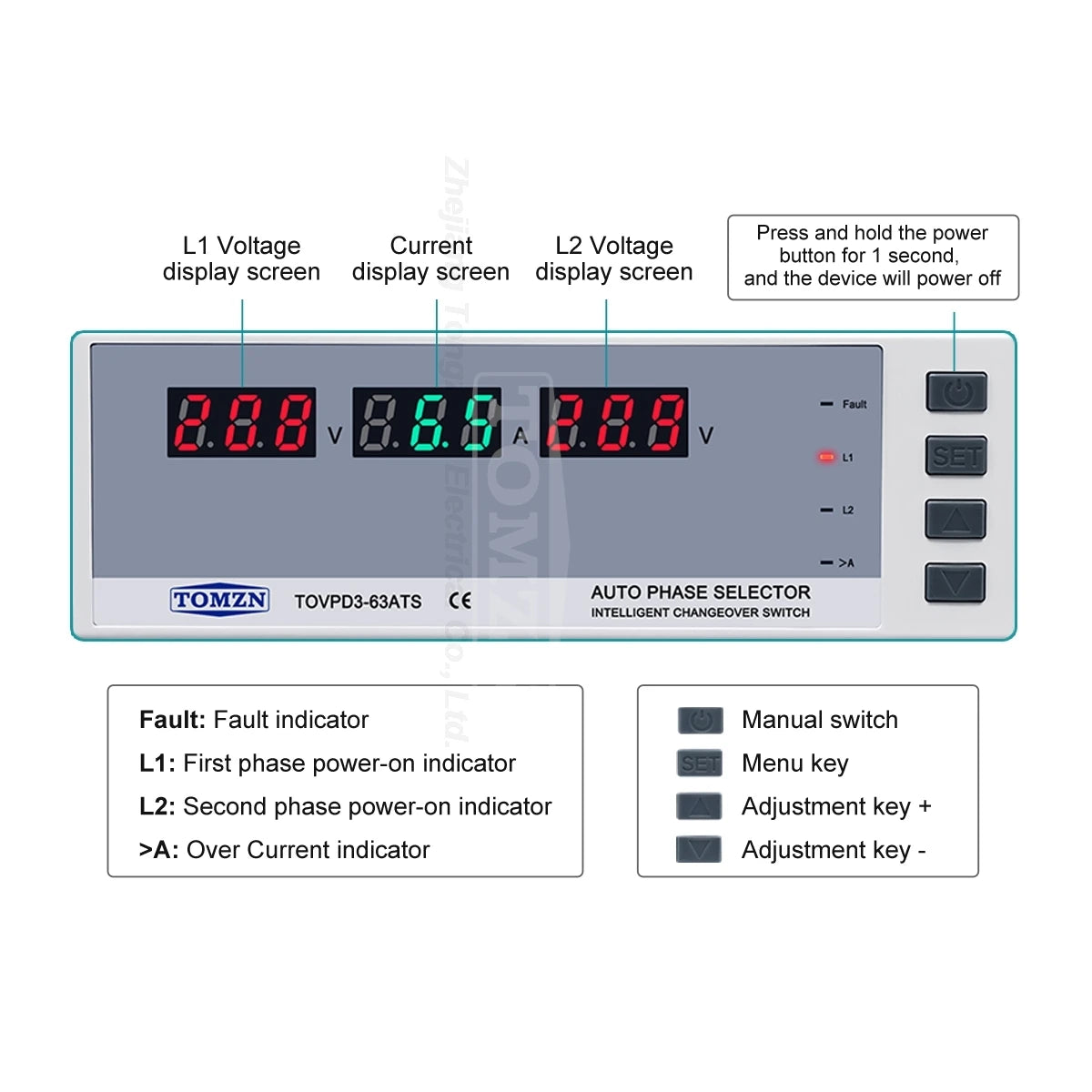

2. Real-time LCD readout of operational voltage and current

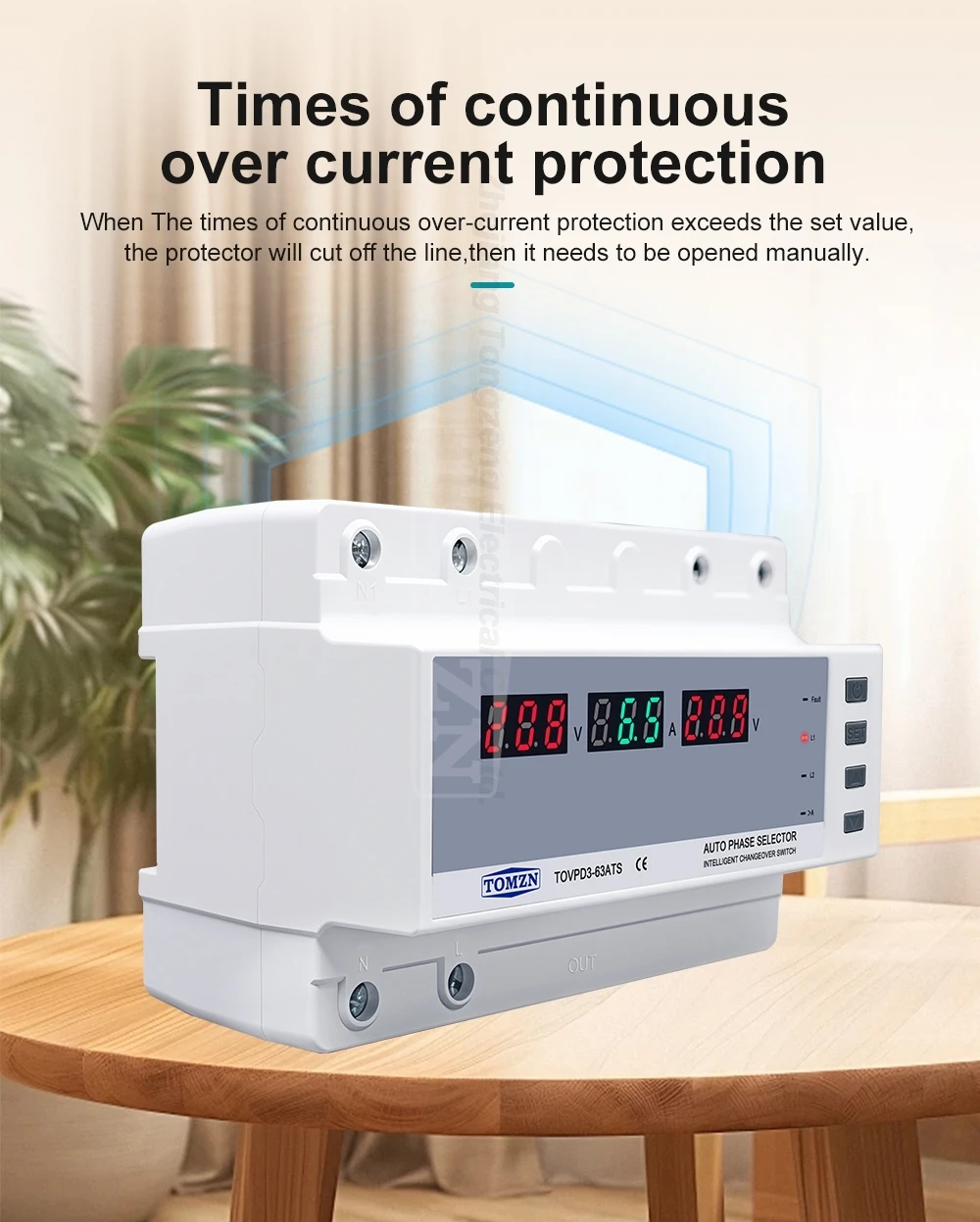

3. Automatic shutdown during over/under voltage or overcurrent events

4. High-precision voltage monitoring with ≤1% error margin

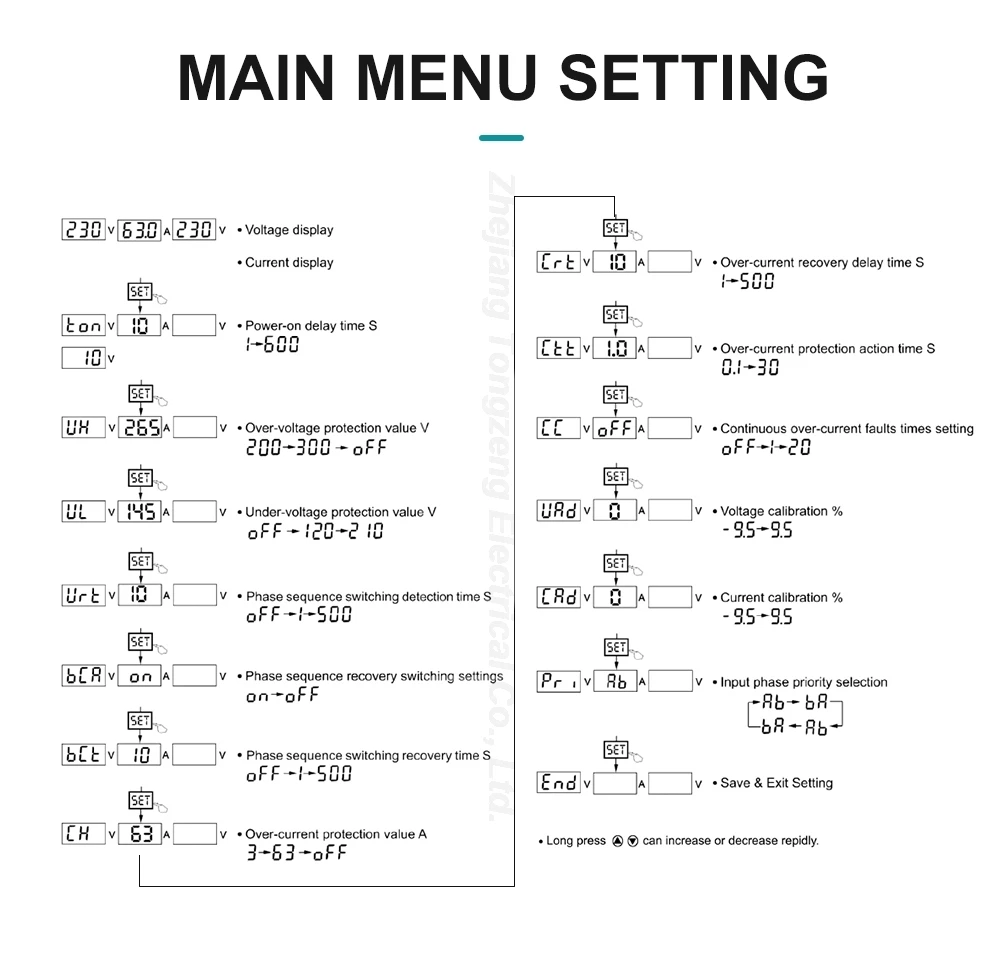

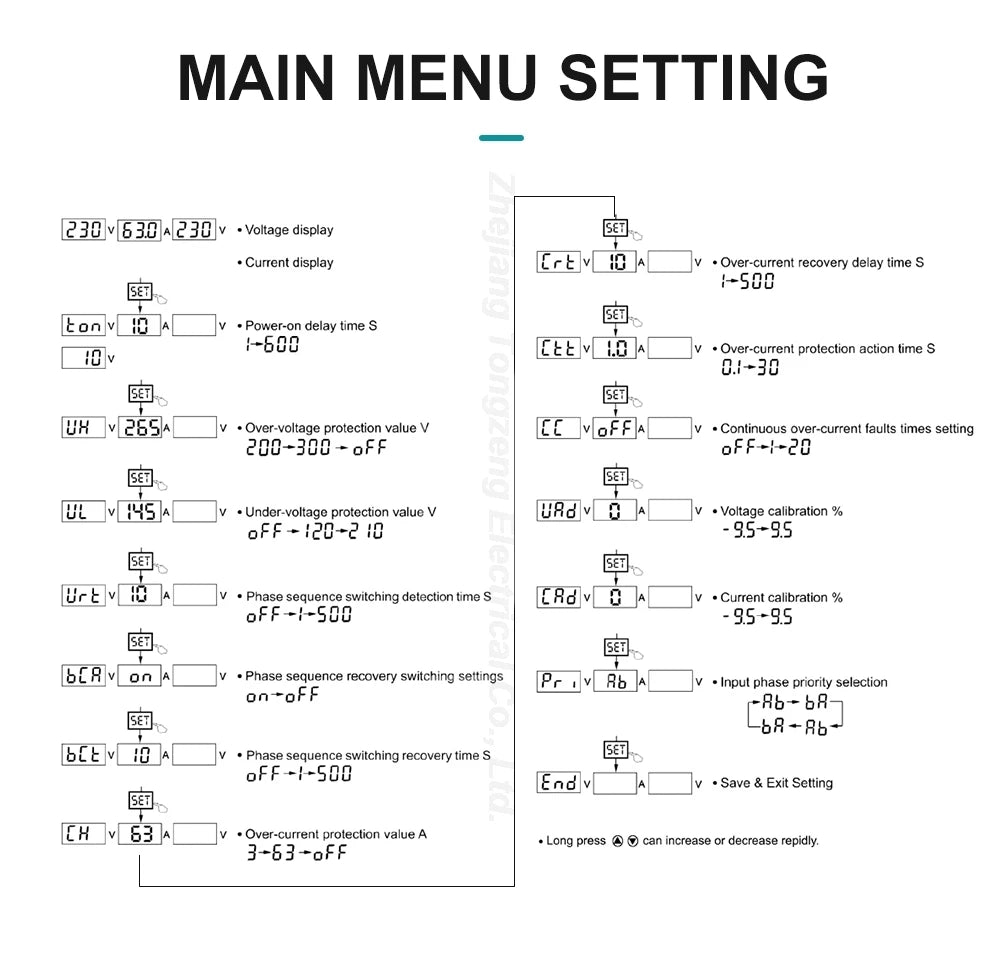

5. User-configurable parameters through front panel controls

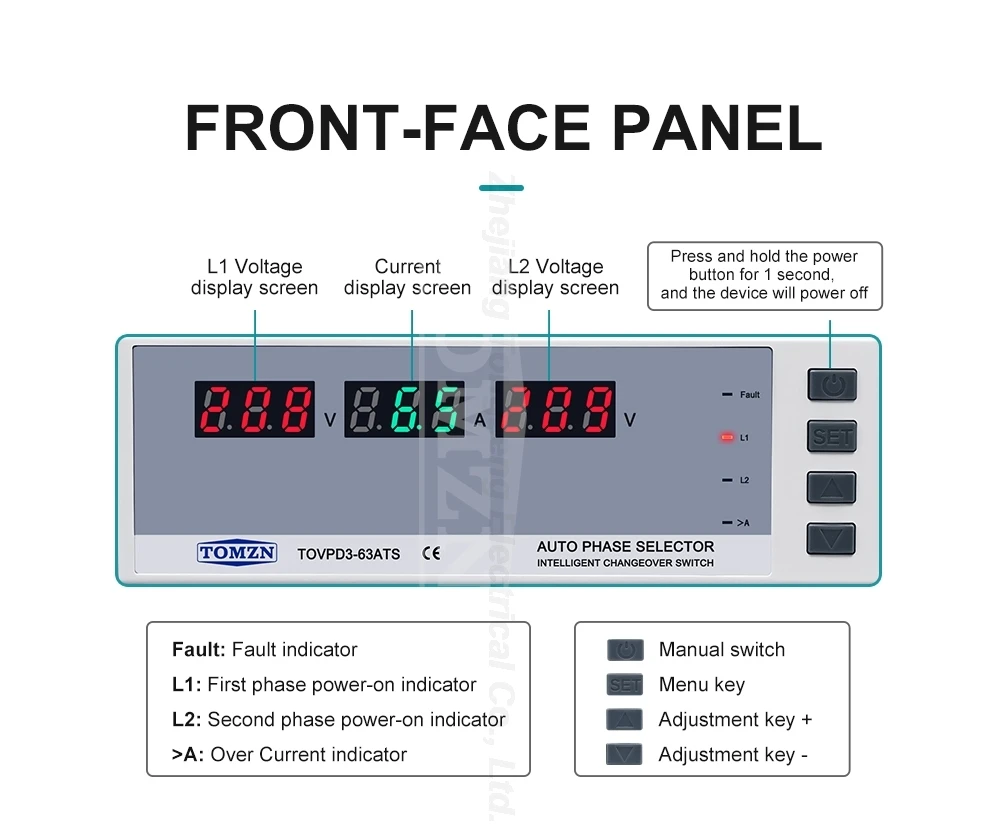

6. Color-coded LED indicators for different fault conditions

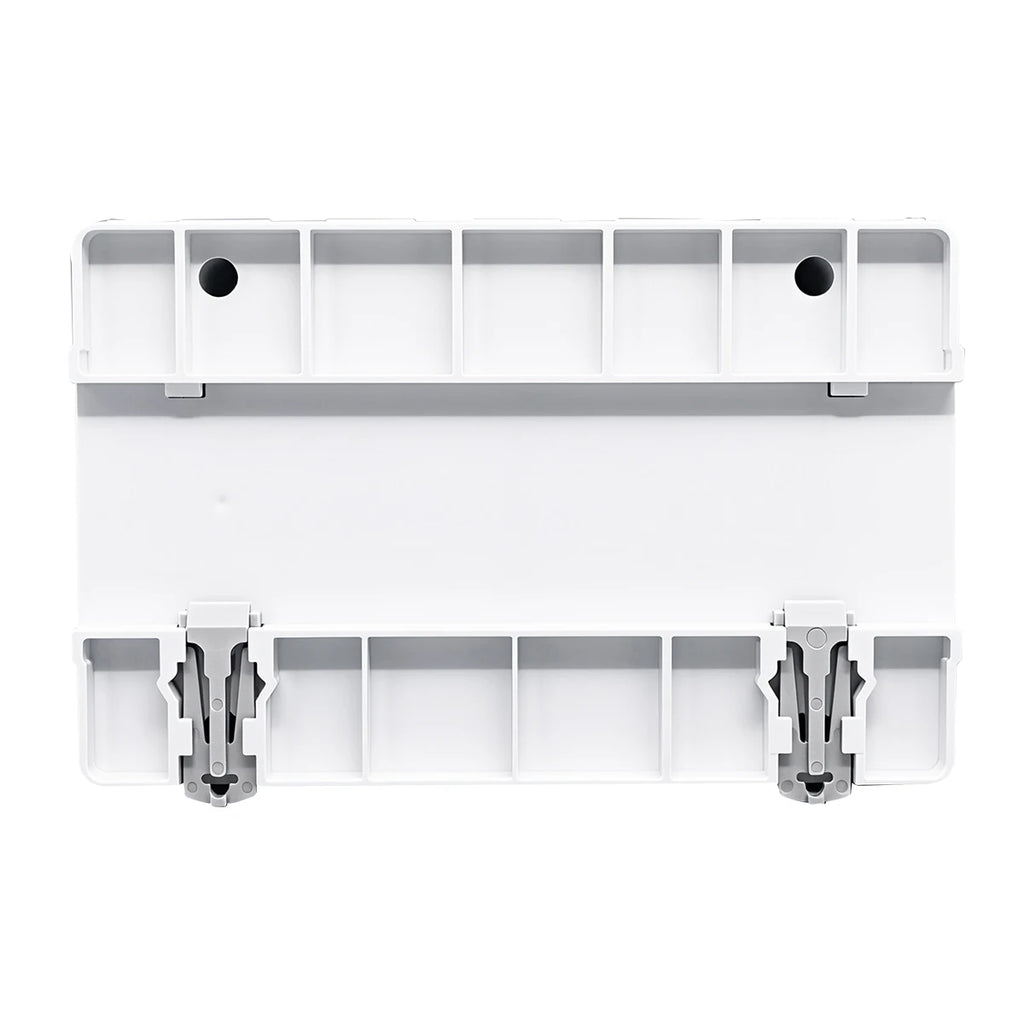

7. Standardized for 35mm DIN rail attachment

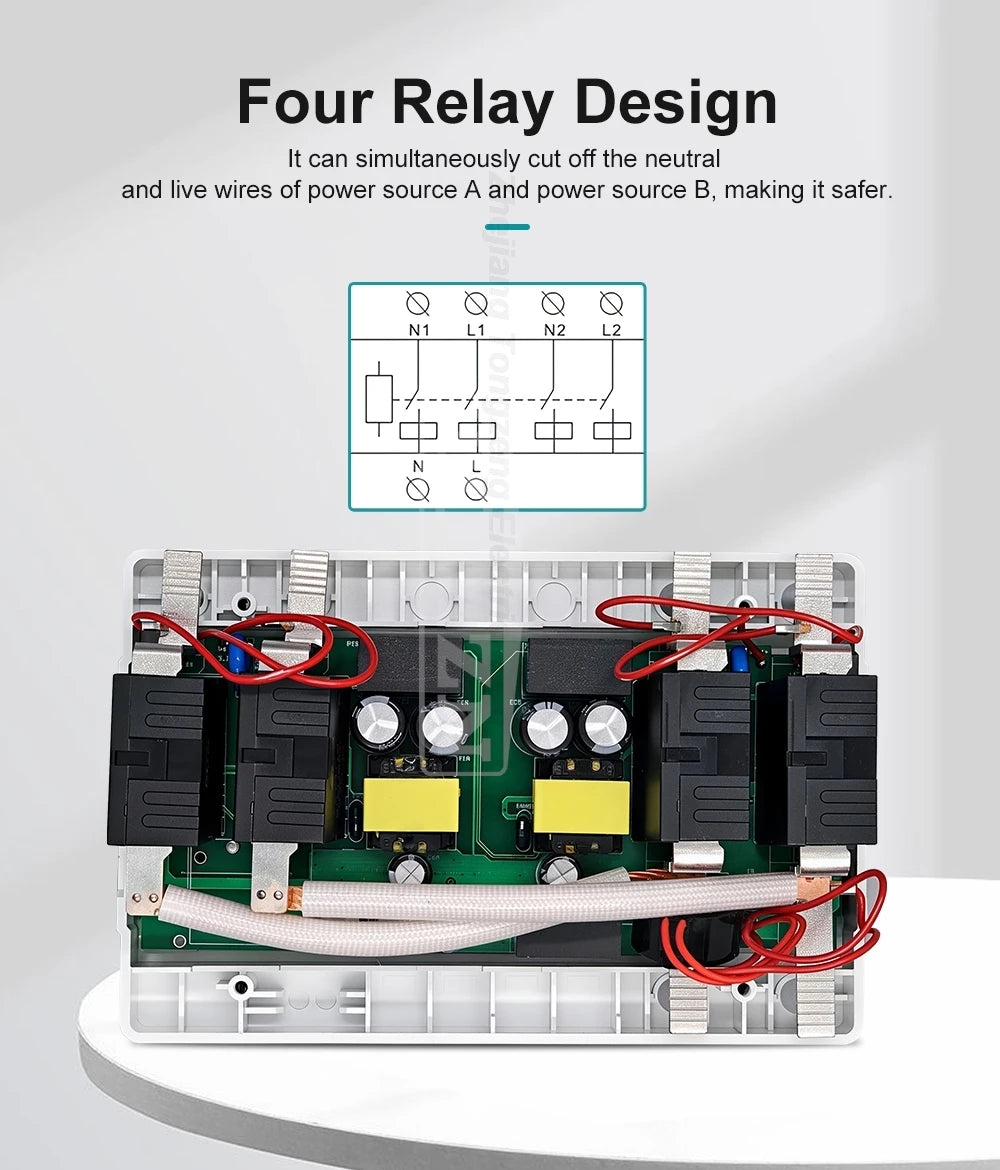

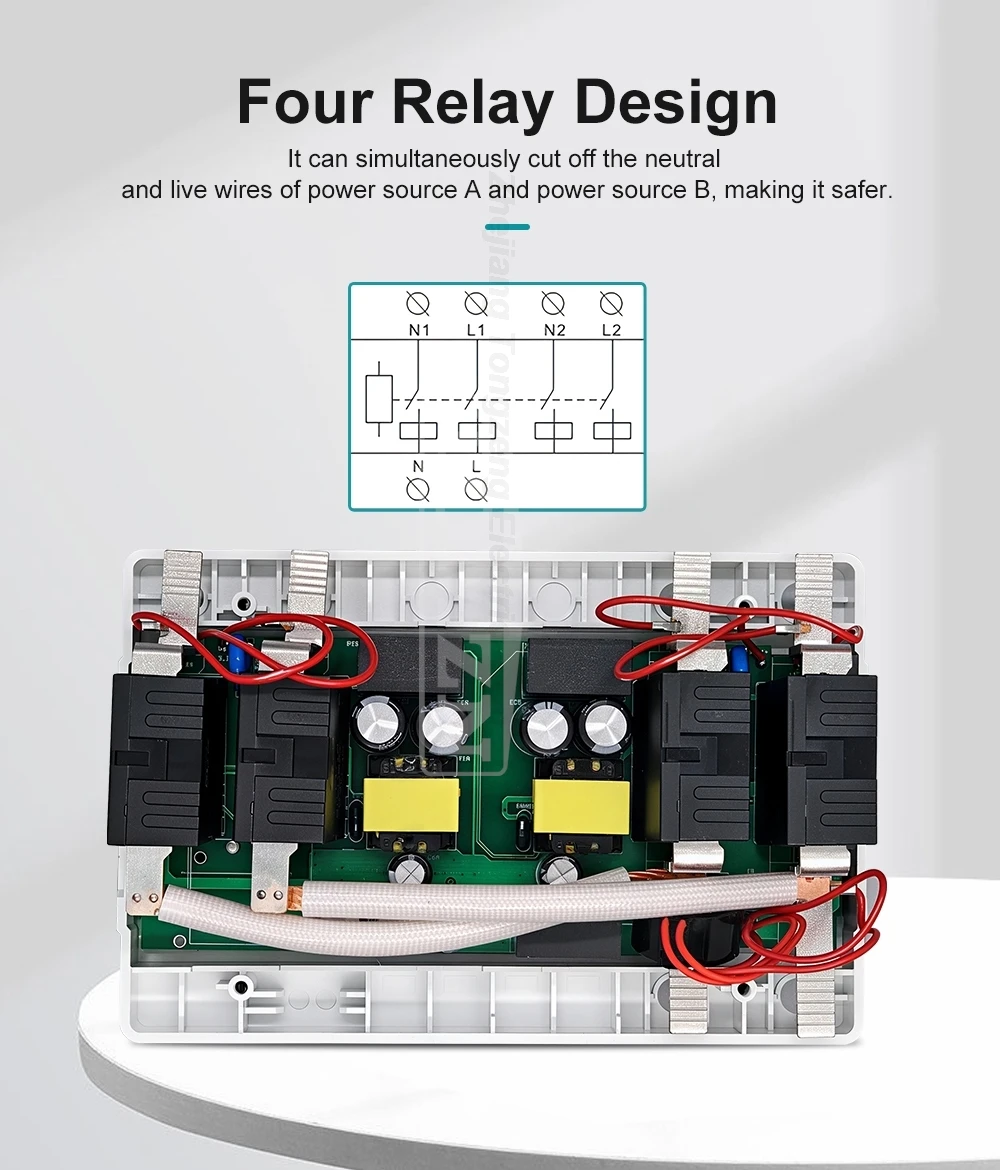

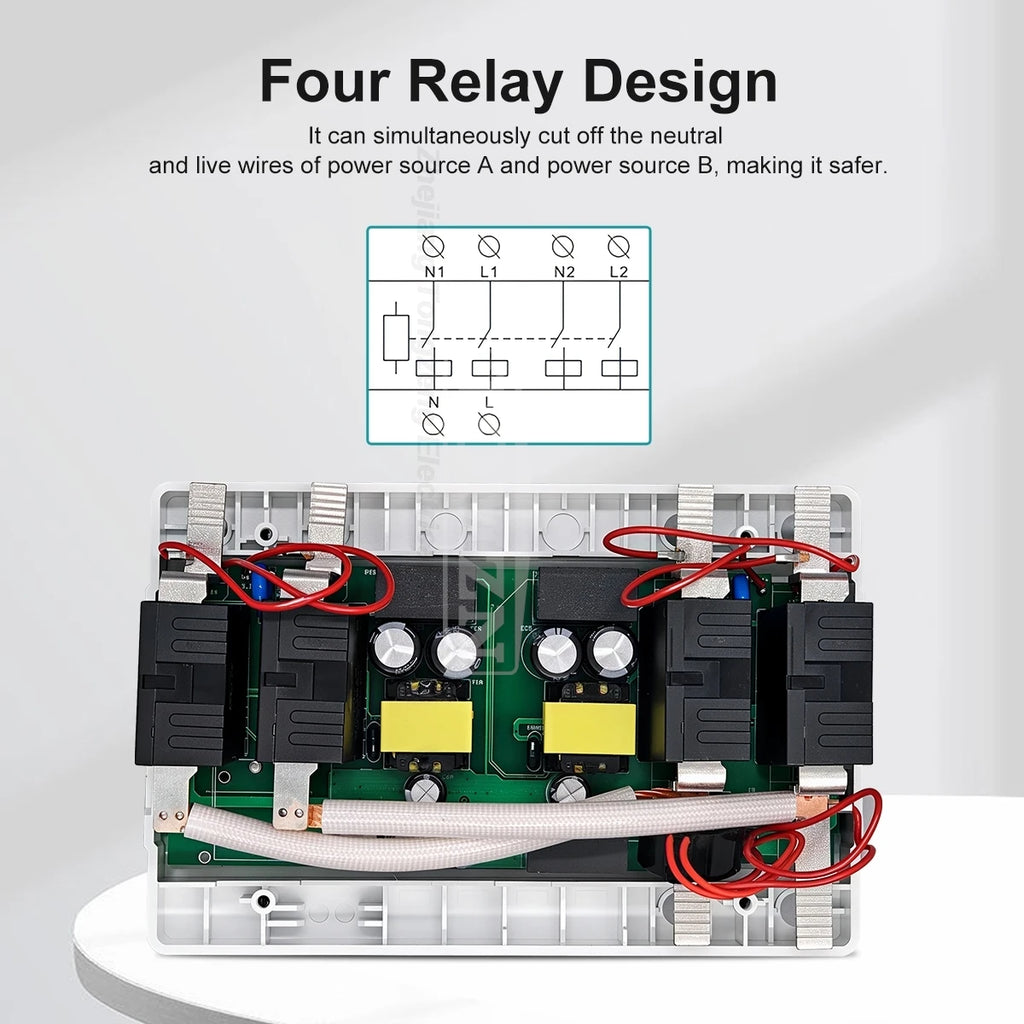

8. Complete line disconnection through relay mechanisms

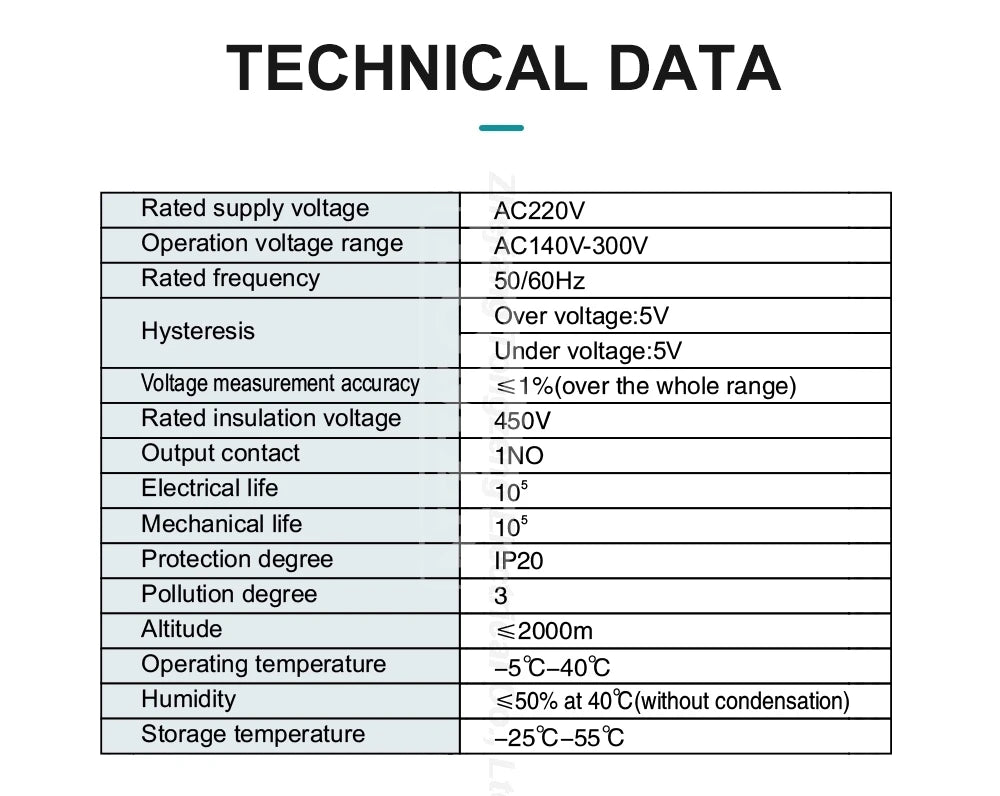

TECHNICAL SPECIFICATIONS

1.Standard operating voltage: 220V AC

2. Permissible voltage fluctuation range: 140V to 300V AC

3. Operational frequency: 50 or 60Hz

4. Overvoltage reset differential: 5V

5. Undervoltage reset differential: 5V

6. Voltage detection precision: within 1% throughout entire range

7. Maximum insulation withstand voltage: 450V

8. Output interface: Single normally open contact

9. Rated electrical operations: 100,000 cycles

10.Rated mechanical operations: 100,000 cycles

11. Ingress protection rating: IP20

12. Suitable for pollution environment class 3

13. Installation altitude limit: up to 2000m above sea level

14. Working temperature range: -5°C to +40°C

15. Humidity tolerance: max 50% at 40°C (no condensation)

16. Storage conditions: -25°C to 55°C

IMPORTANT NOTE

This device features an adjustable transfer delay ranging from 1 second up to 500 seconds, with the quickest changeover taking just 1 second.

For installations requiring instantaneous switching, we recommend exploring the TOQ5-TOQ9 product line.

When comprehensive circuit protection is your main concern, the TOVPD3-63ATS delivers outstanding performance.
