SizeCut off both L and N
Current Range2P AC 110V 230V 63A
Description

SPECIFICATIONS

Applicable Object: Electromechanica

Brand Name: TOMZN

Certification: CE

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Load Current: 60A

Model Number: TOVPD1-63DK

Origin: Mainland China

Power Source: Ac,Ac

Theory: Voltage relay

Use: Protective

is_customized: Yes

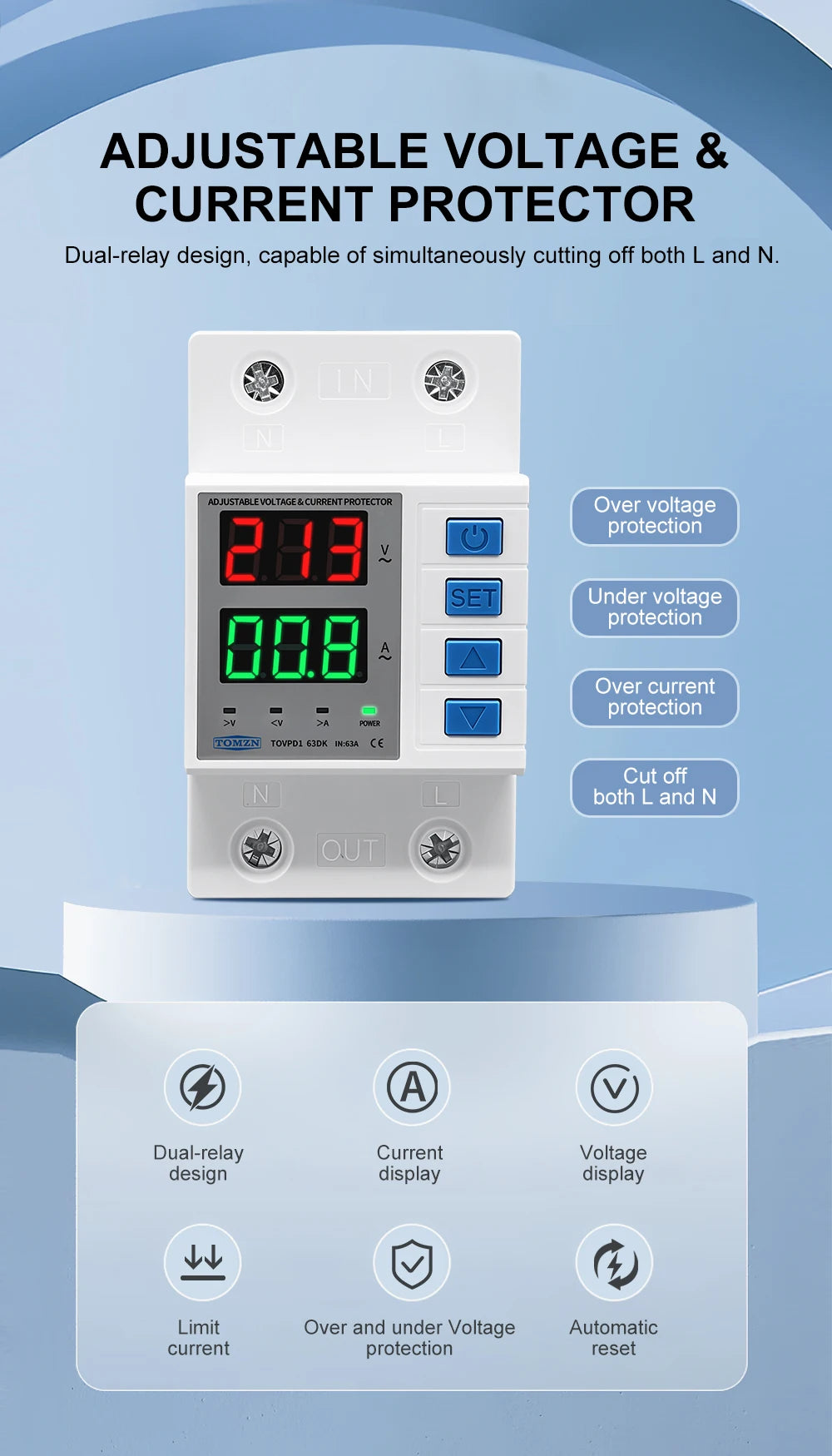

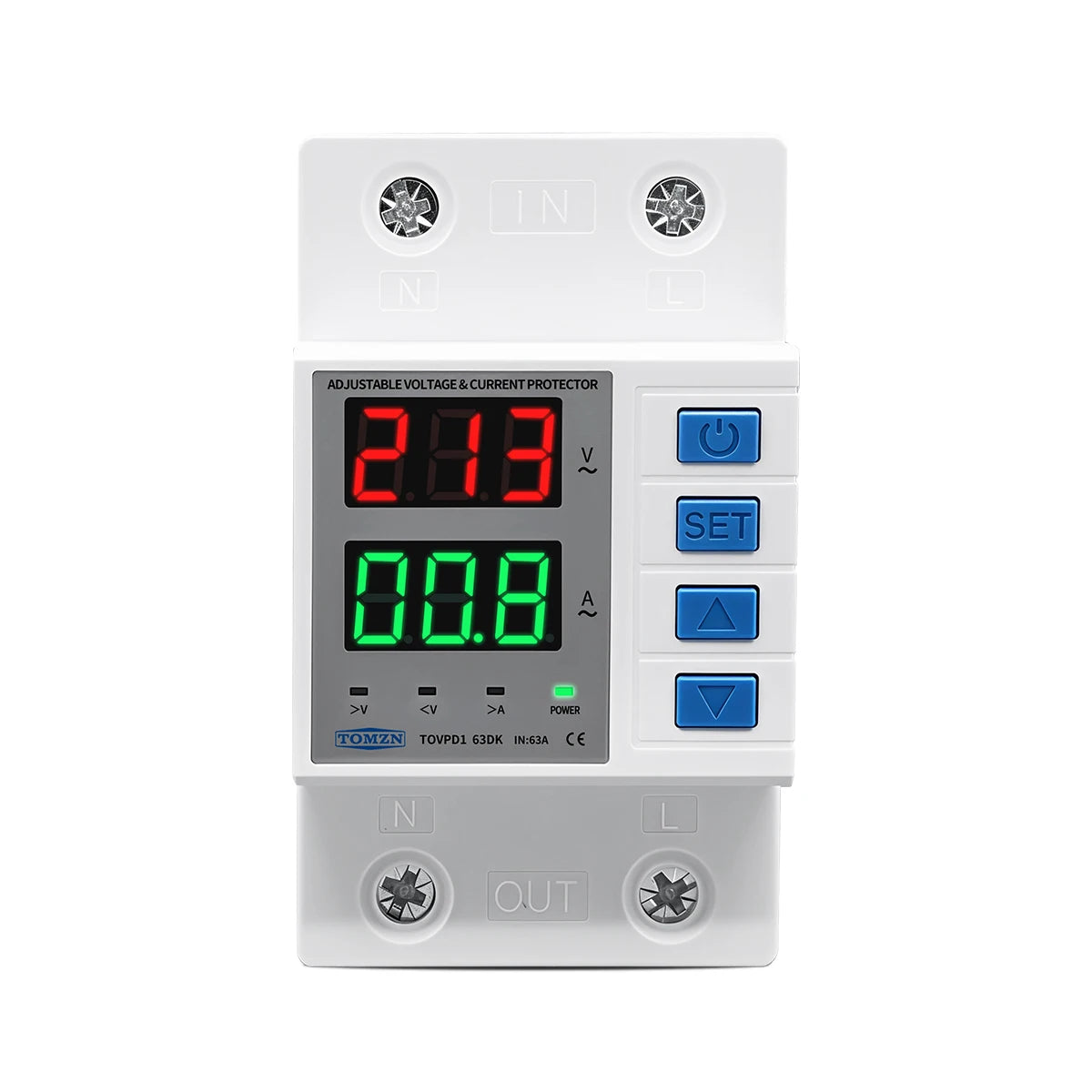

TOVPD1-63DK Can simultaneously cut off both L and N

General

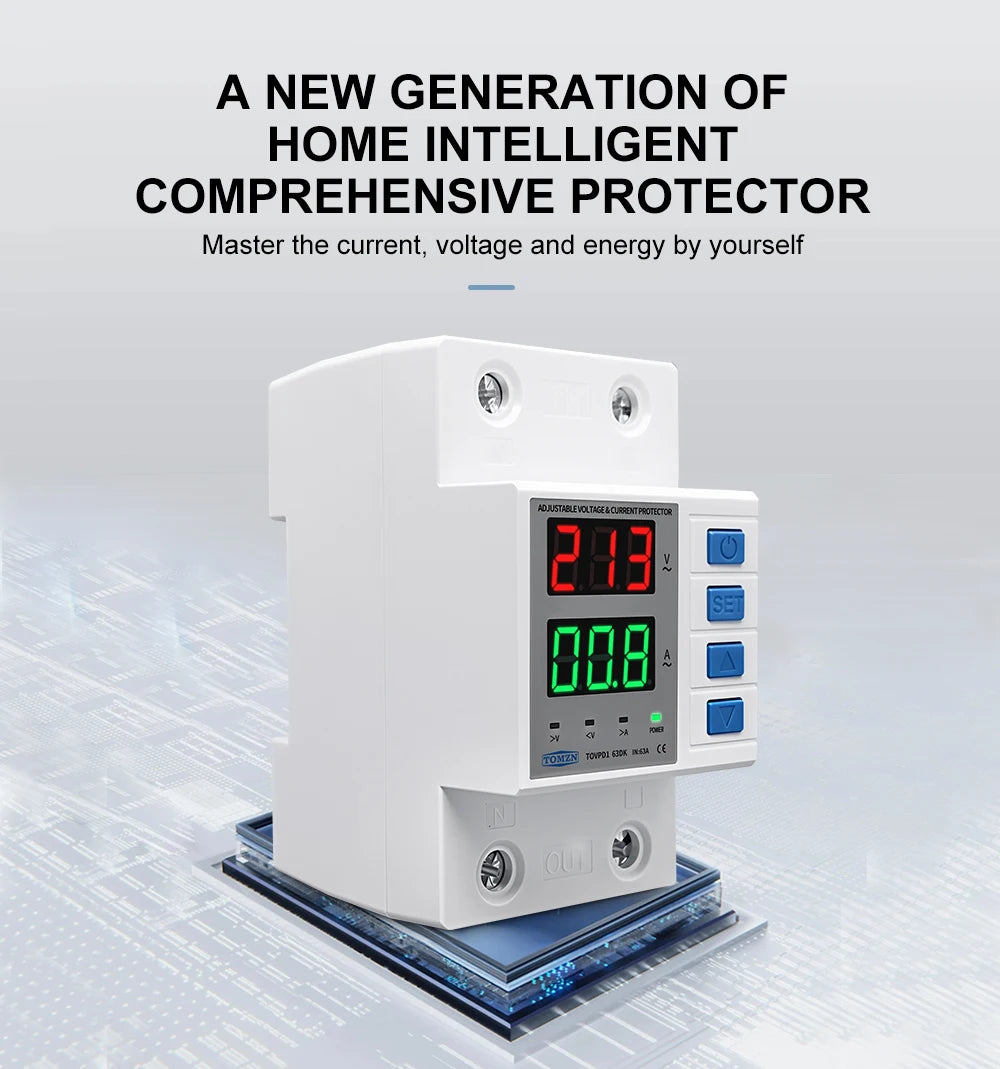

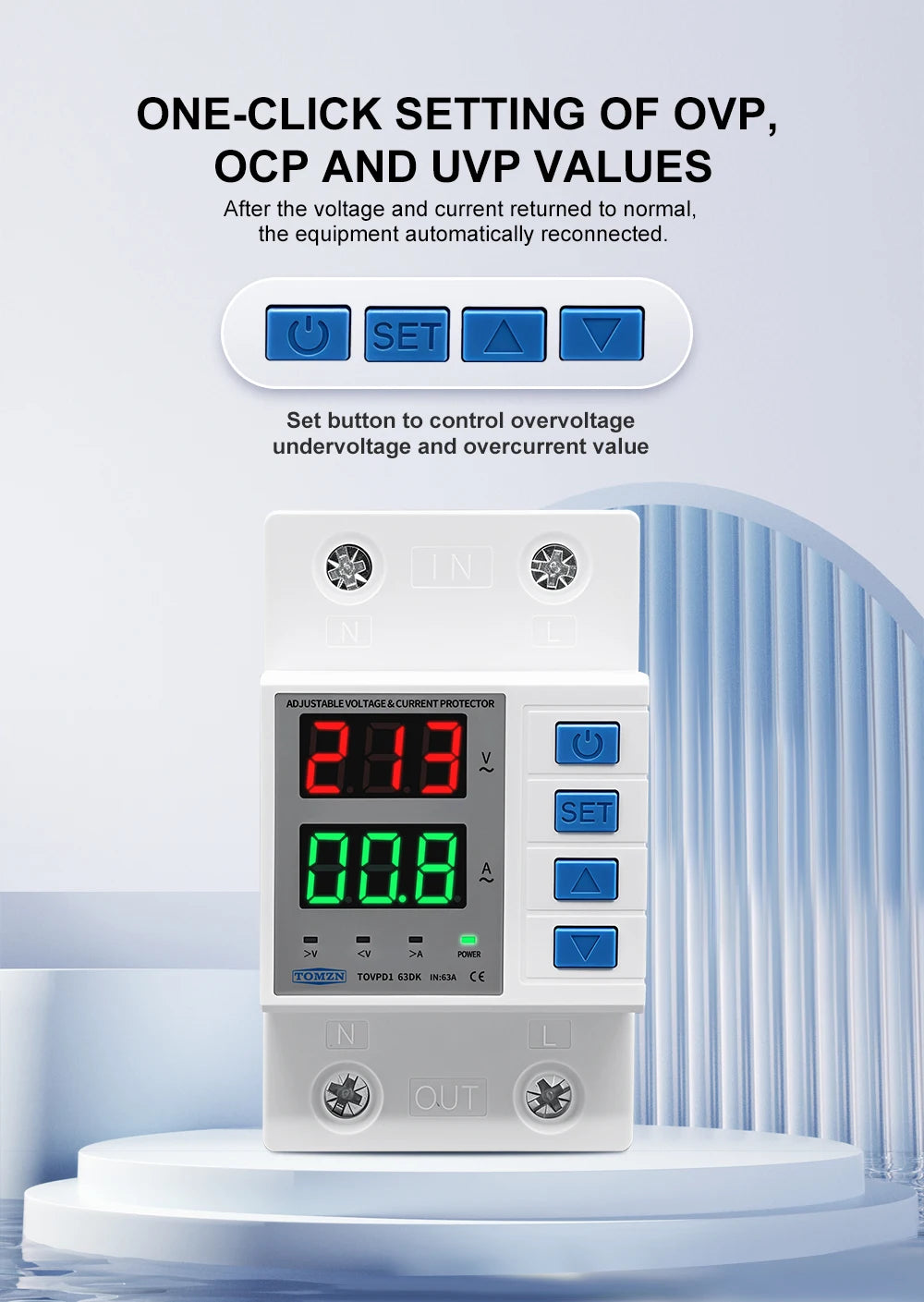

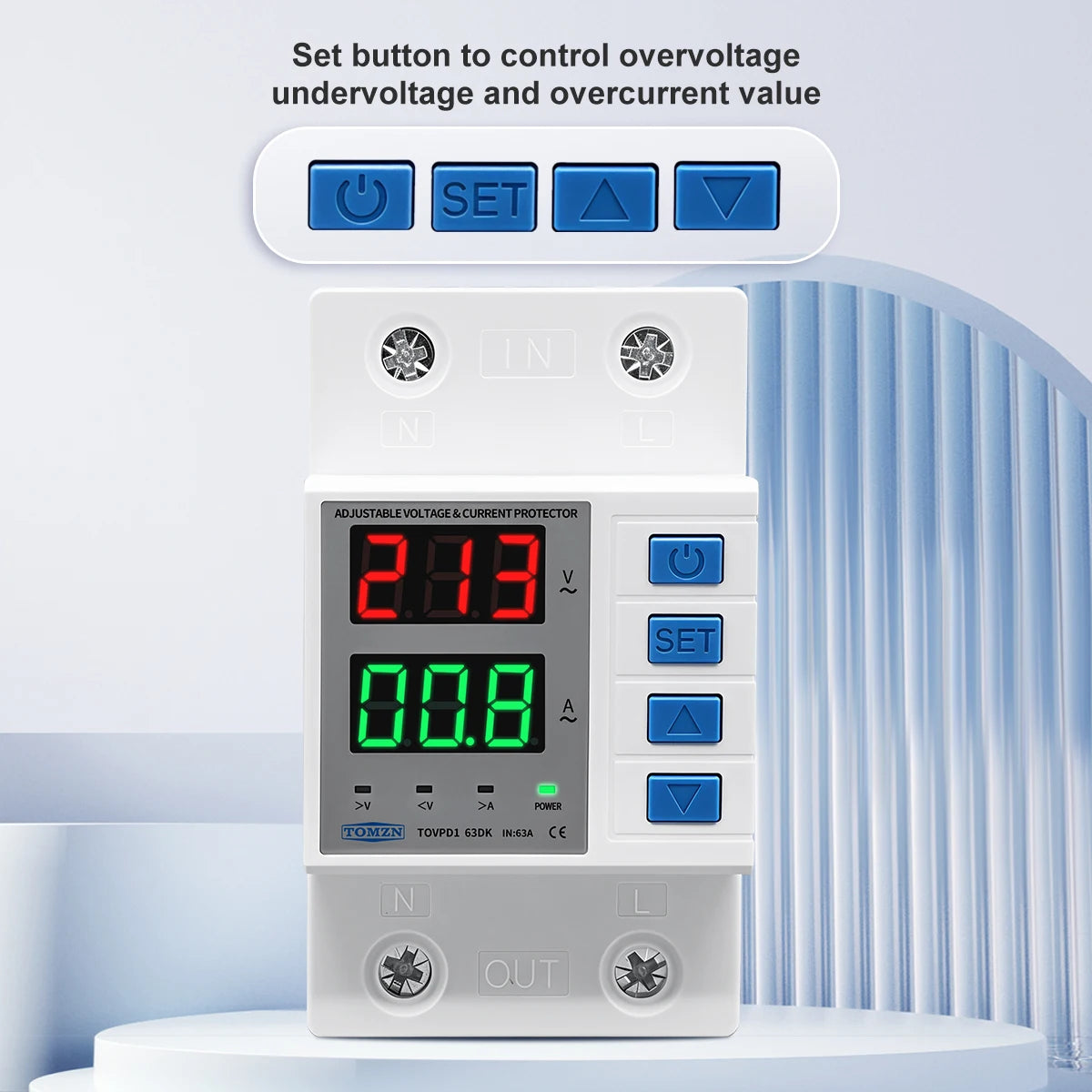

TOVPD1-63DK is an intelligent protector integrated with over-voltage protector, under-voltage protector and over-current protector. In case of over-voltage fault, under-voltage fault or over-current fault in the line, this product can instantly power off to prevent electrical equipment from being damaged. The over-voltage, under-voltage, and over-current values of this product can all be set by the user and adjusted according to local practical conditions.

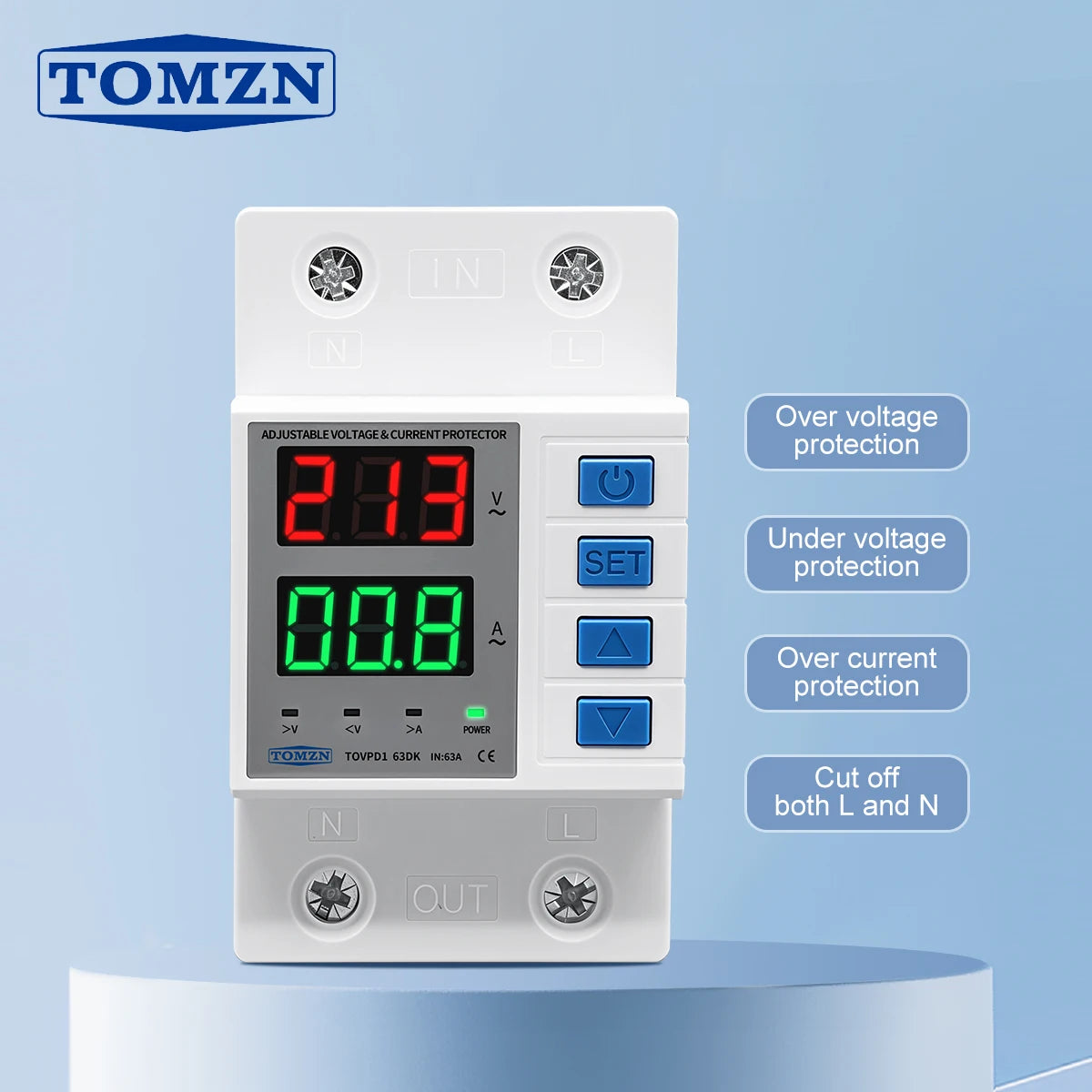

Functions

1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

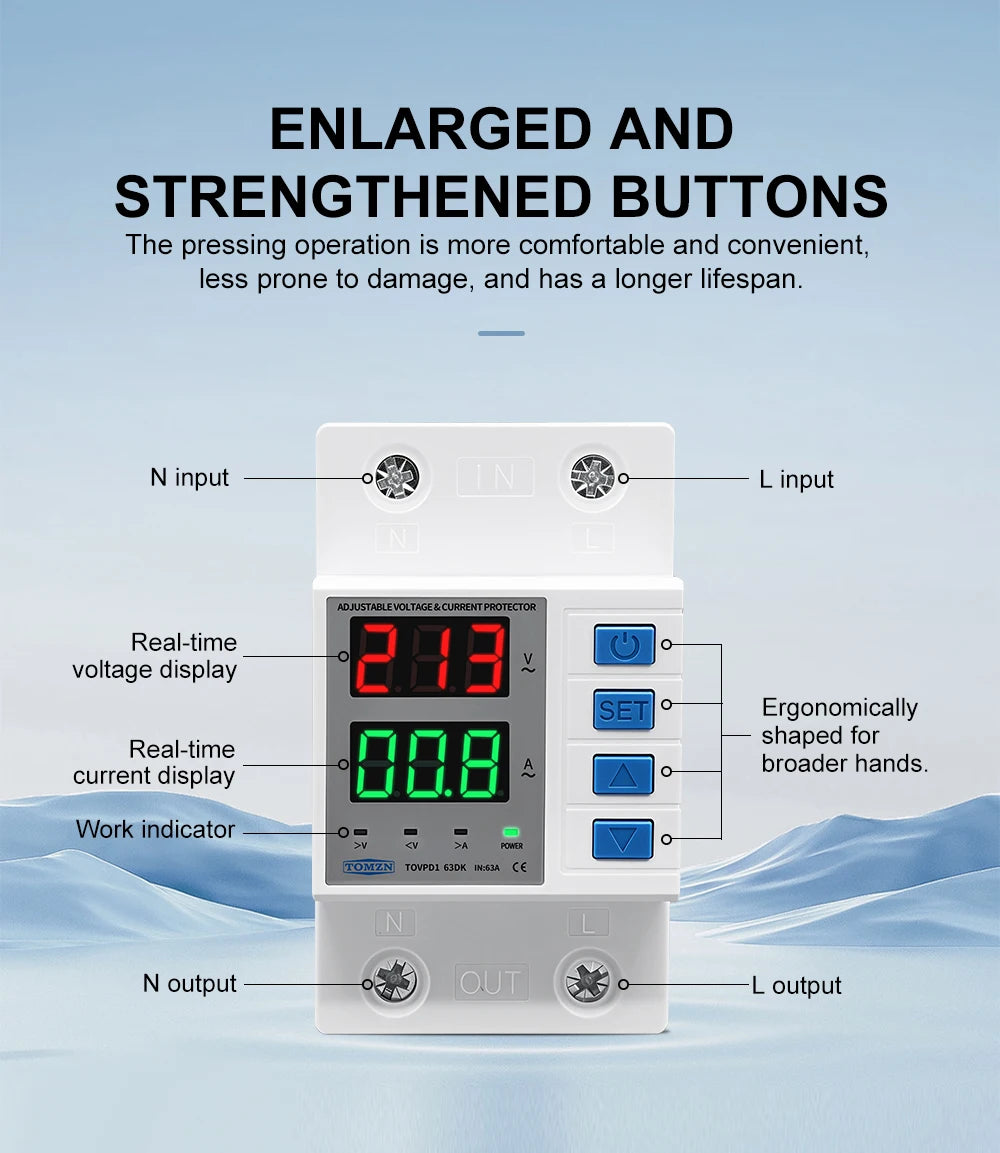

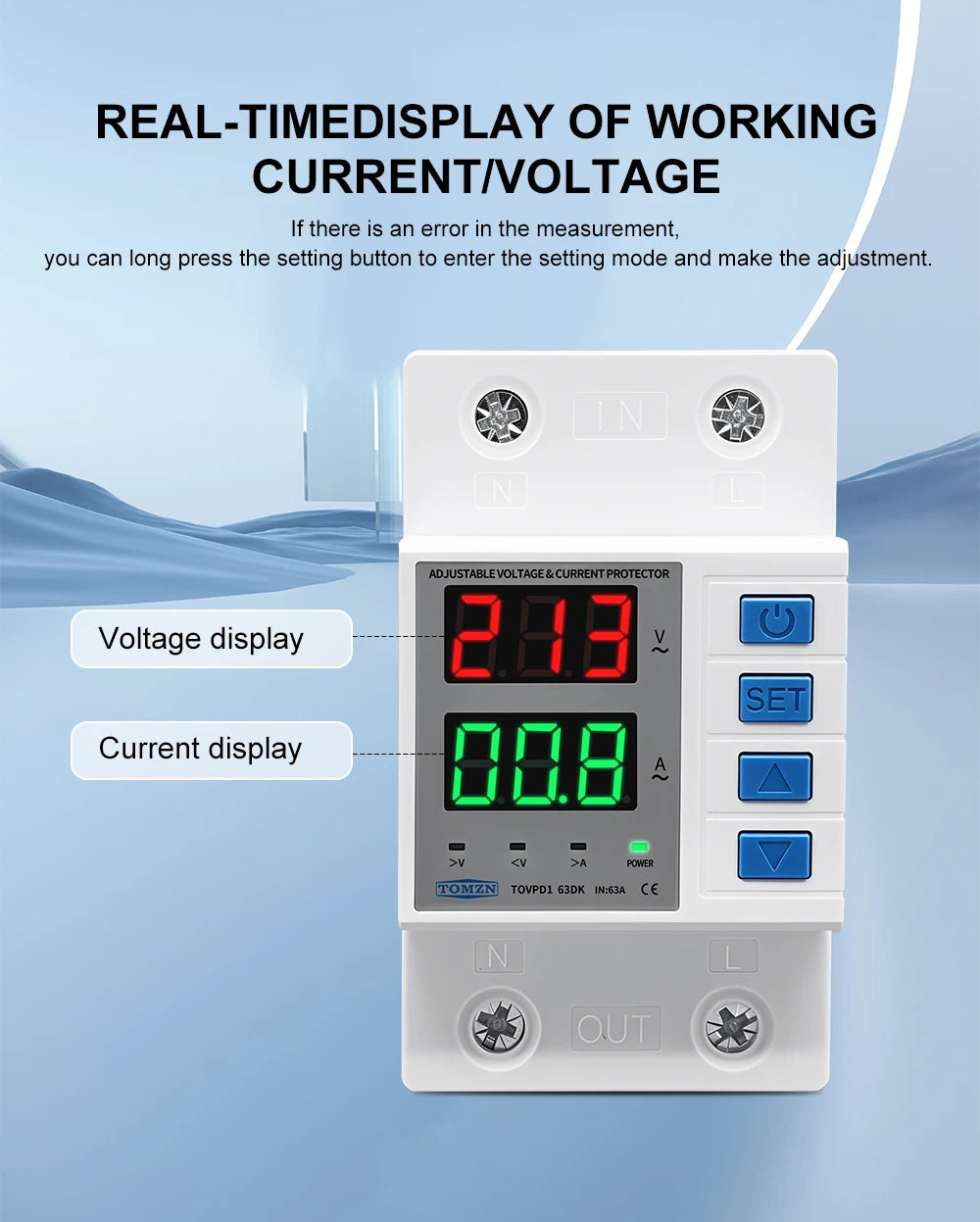

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7.Voltage calibration: Voltage ±9.5% adjustable

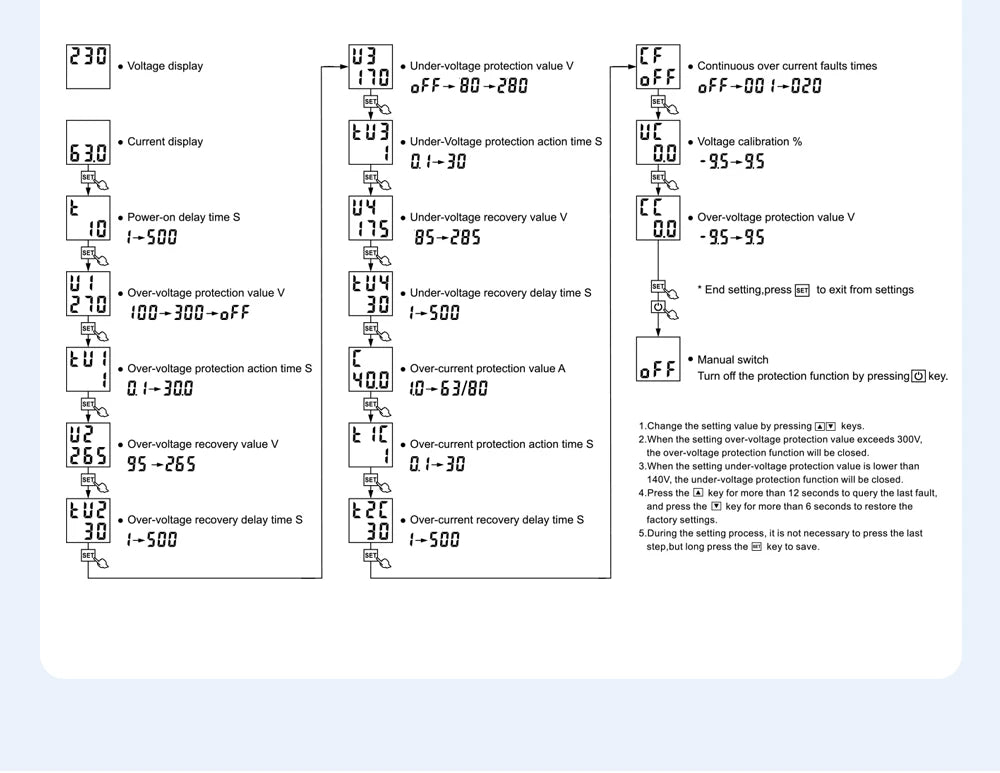

8.Restore factory settings: press the down button for more than 6s

9.Fault inquiry: Press the UP button from more than 12S

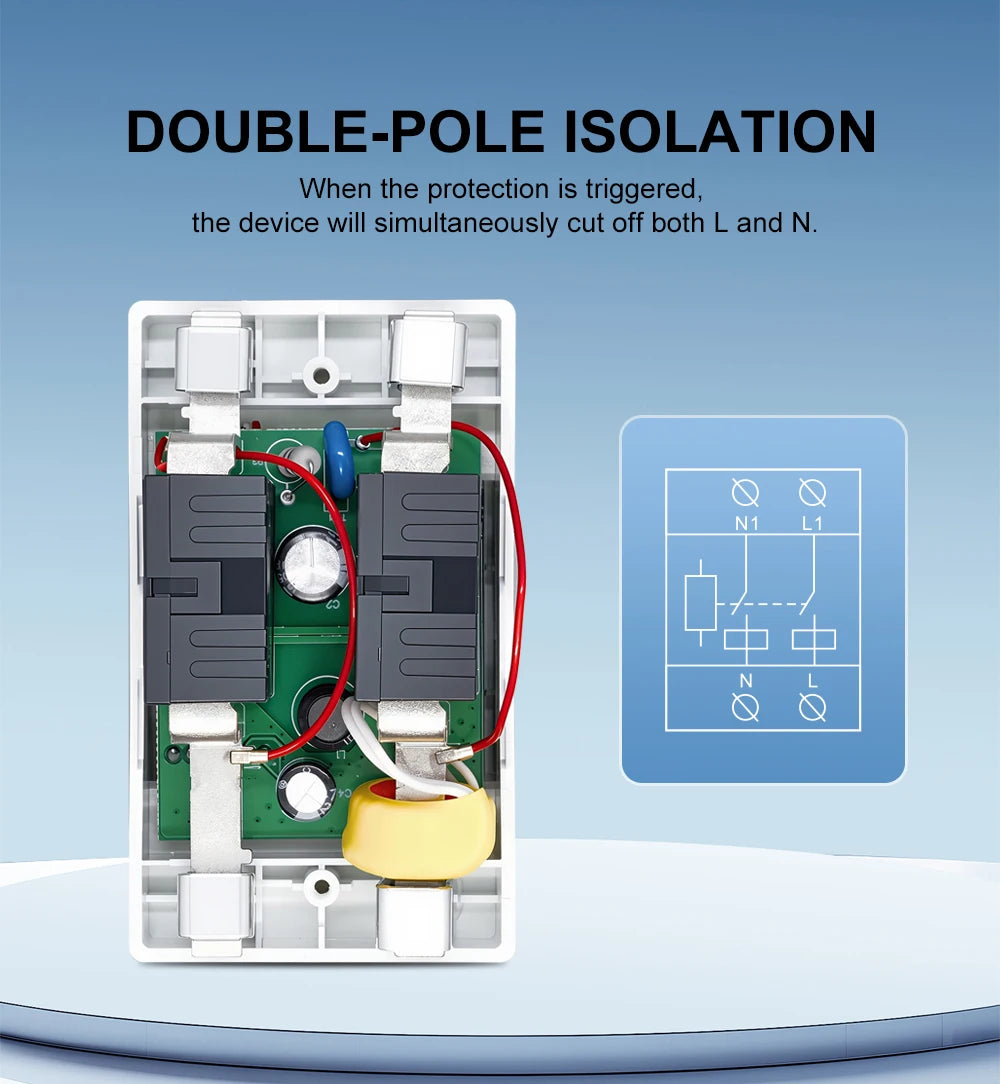

10. Cut off both the neutral wire and the live wire.

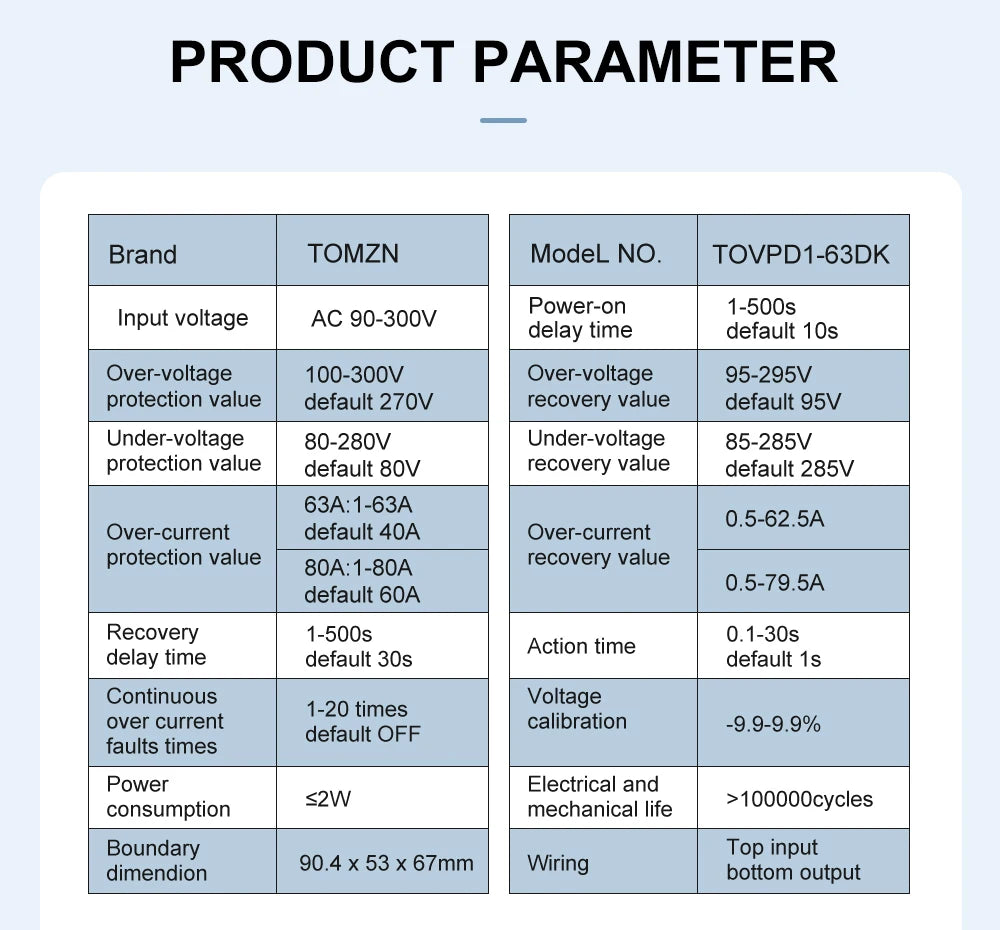

Product Parameters
1.Model number: TOVPD1-60DK
2.Power supply: 110V 230V AC 50/60Hz
3.Max.Loading power: 1~63A  Adjustable(default: 63A)
4.Over-voltage protection value range: 100-300V(default: 270V)
   Over-voltage recovery voltage range: 95V-295V(default: 95V)
   Over-voltage protection action time:0.1s~30s(default value: 1s)
   Over-voltage recovery delay time: 1s~500s(default: 30s)
5.Under-voltage protection value range: 80-280V(default: 80V)
   Under-voltage recovery voltage range: 85-285V (default:285V)
   Under-voltage protection action time: 0.1s~30s(default: 1s)
   Under-voltage recovery delay time: 1s~500s(default:30s)
6.Over-current adjustment range: 1-63A (default:40A)
   Over-current action range: 0.1~30 second (default: 1s)
   Over-current recovery delay time: 1s~500s(default:30s)
7.Power-on delay time: 1s~500s(default:10s)
9.Power consumption: <2W
10.Electric machinery life: 100,000 times

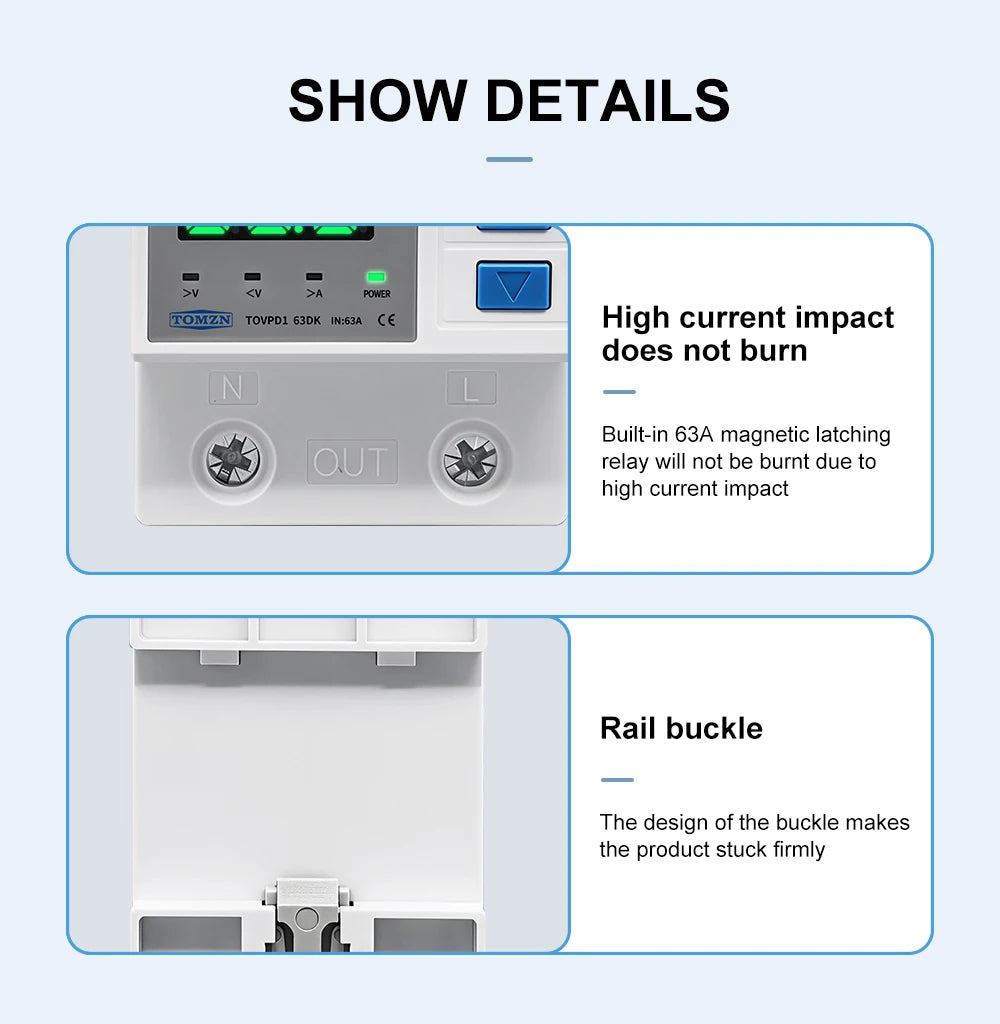

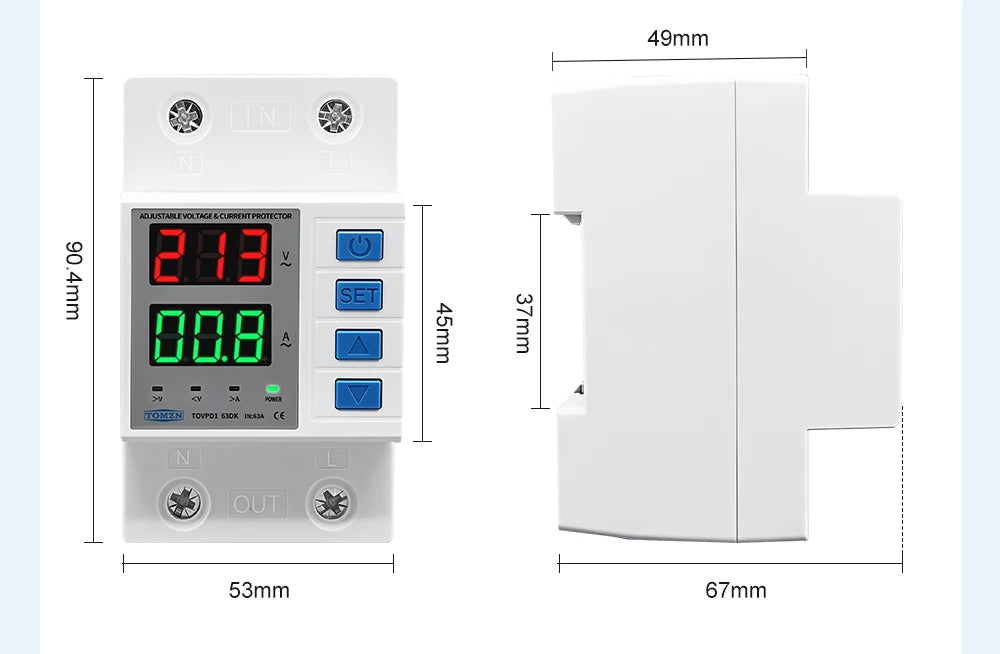

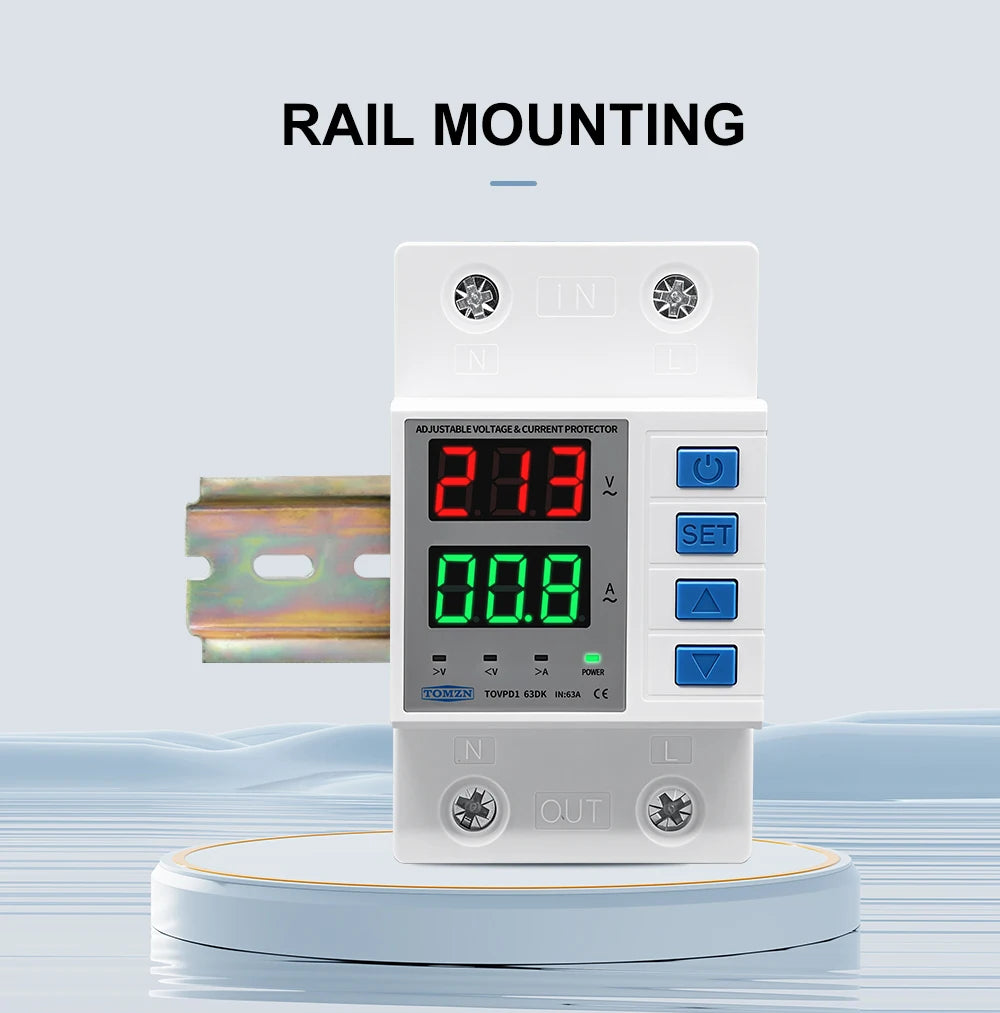

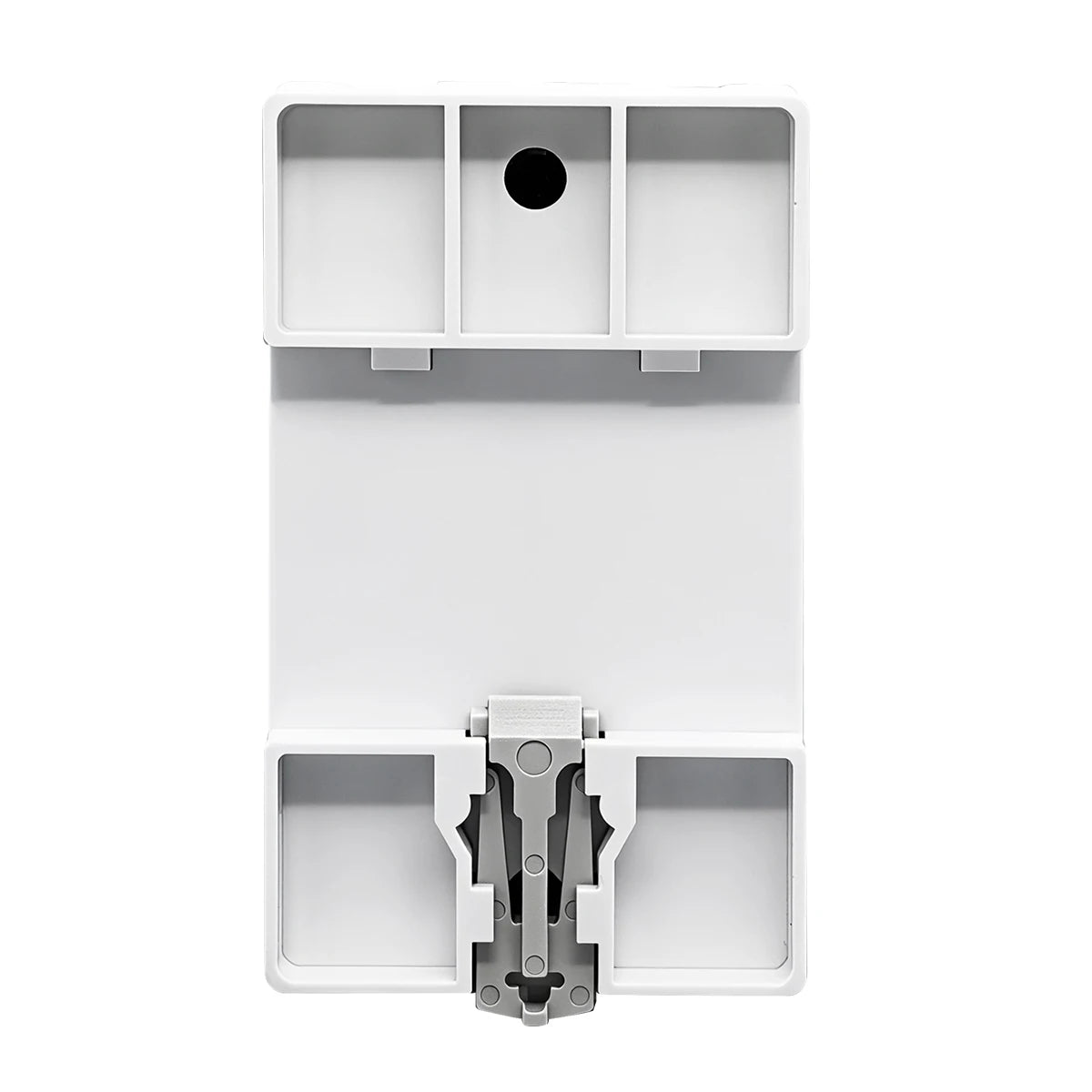

11.Installation: 35mm Dinrail
