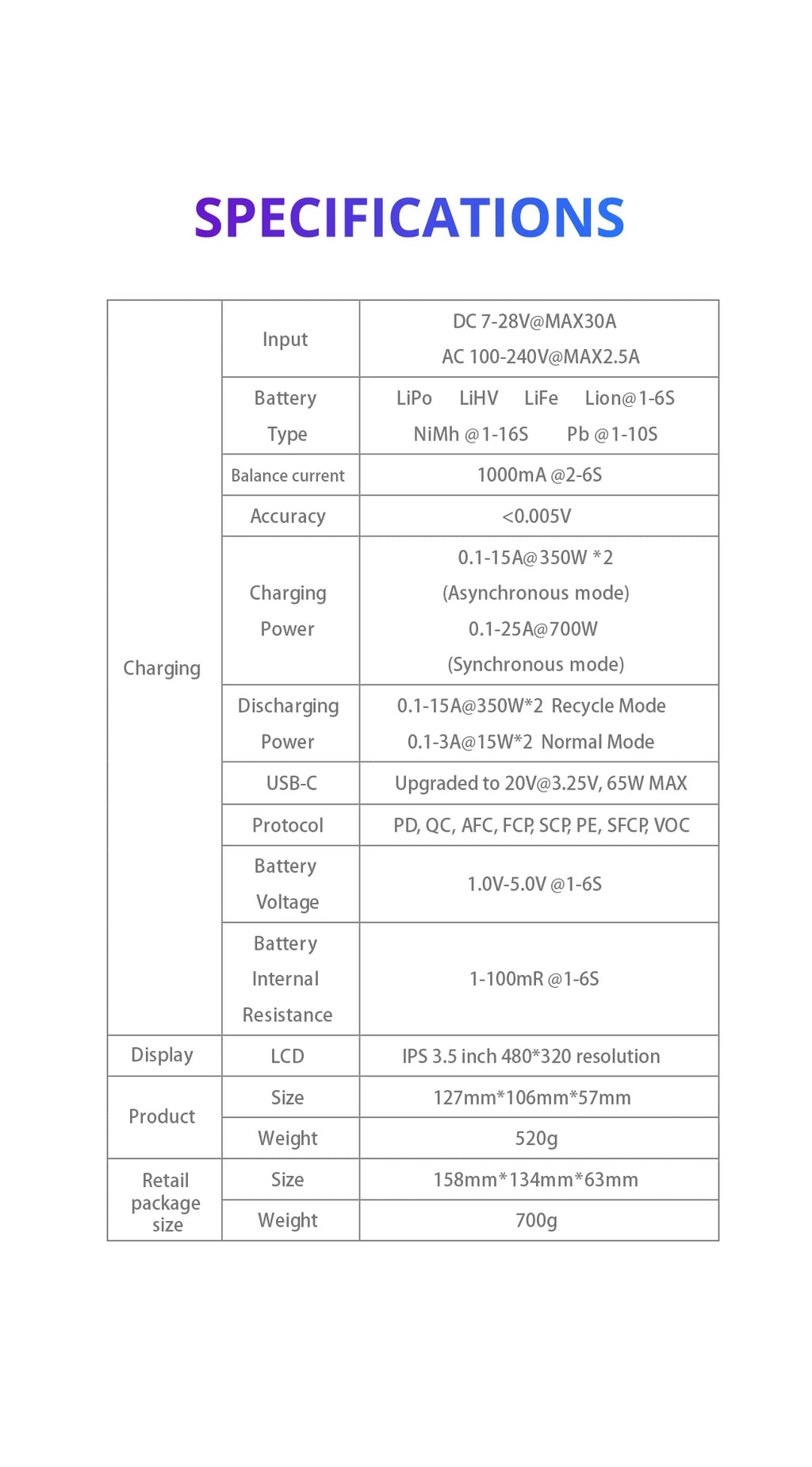

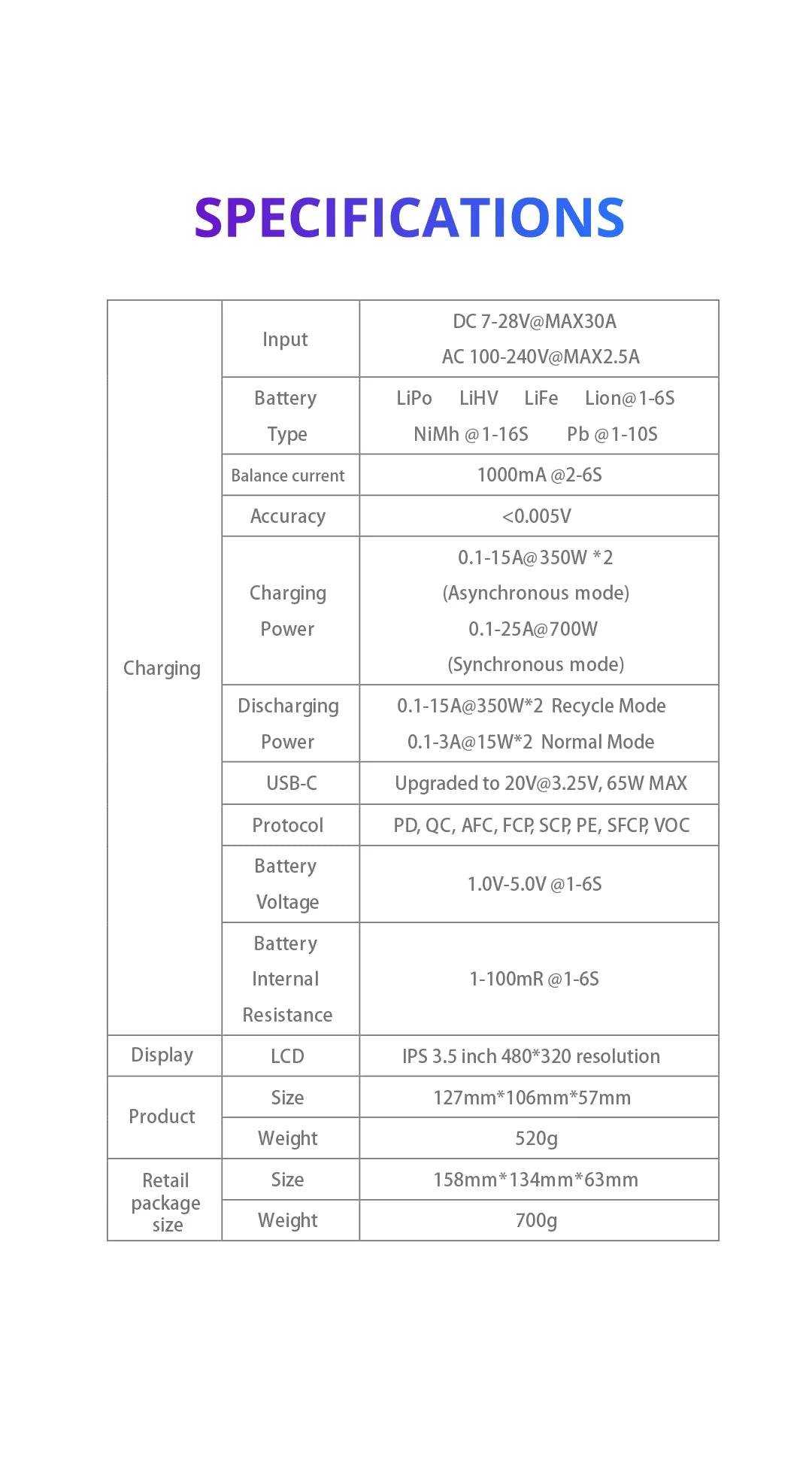

SPECIFICATIONS

Brand Name: NONE

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Material: Composite Material

Model Number: M6DAC

Origin: Mainland China

Quantity: 1 pcs

Recommend Age: 14+y

Remote Control Peripherals/Devices: Battery Charging Units

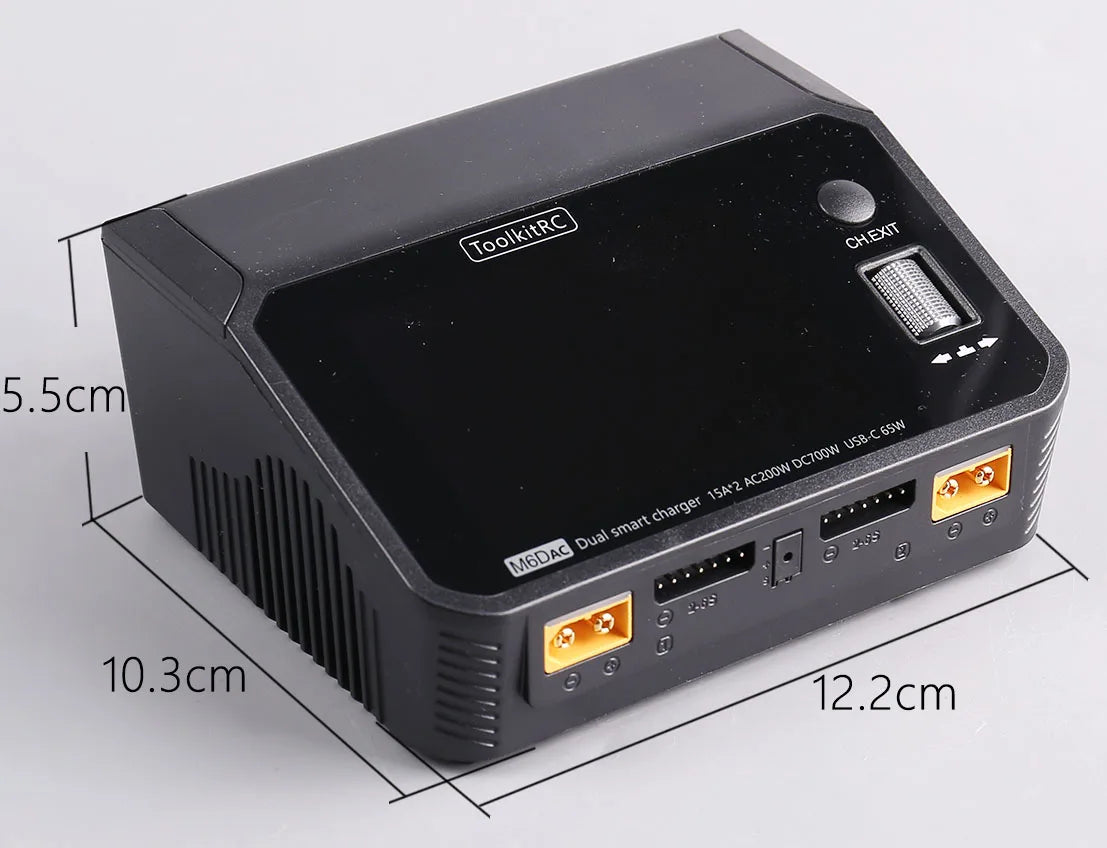

Size: 127*106*57 mm

Tool Supplies: Assembled class

Use: Vehicles & Remote Control Toys

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

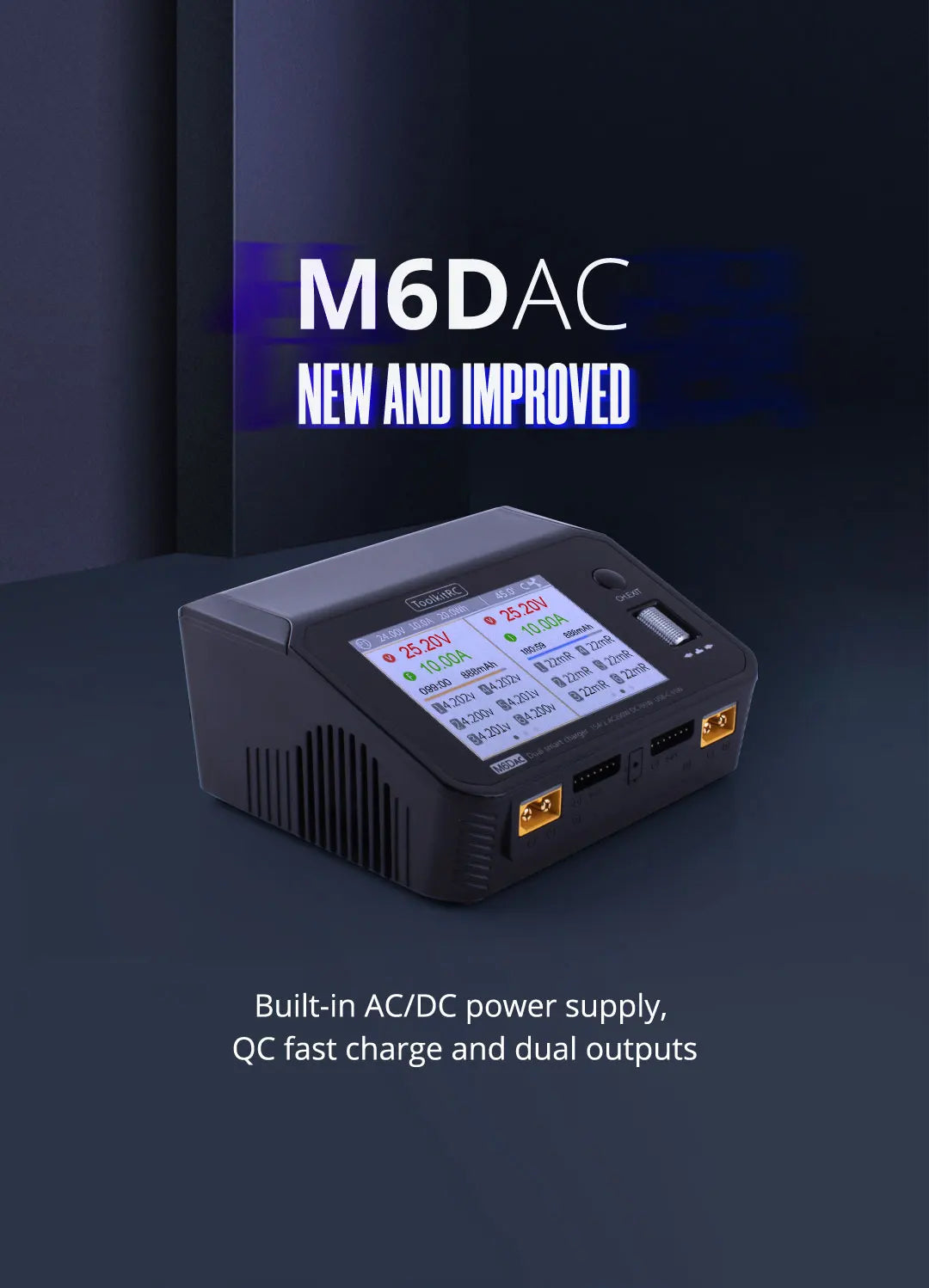

Equipped with a built-in power supply, it can be directly connected to (110v-220v) mains power, and can be charged through two channels, with different brands and models available. It can also be charged with an external battery pack (purchased separately)

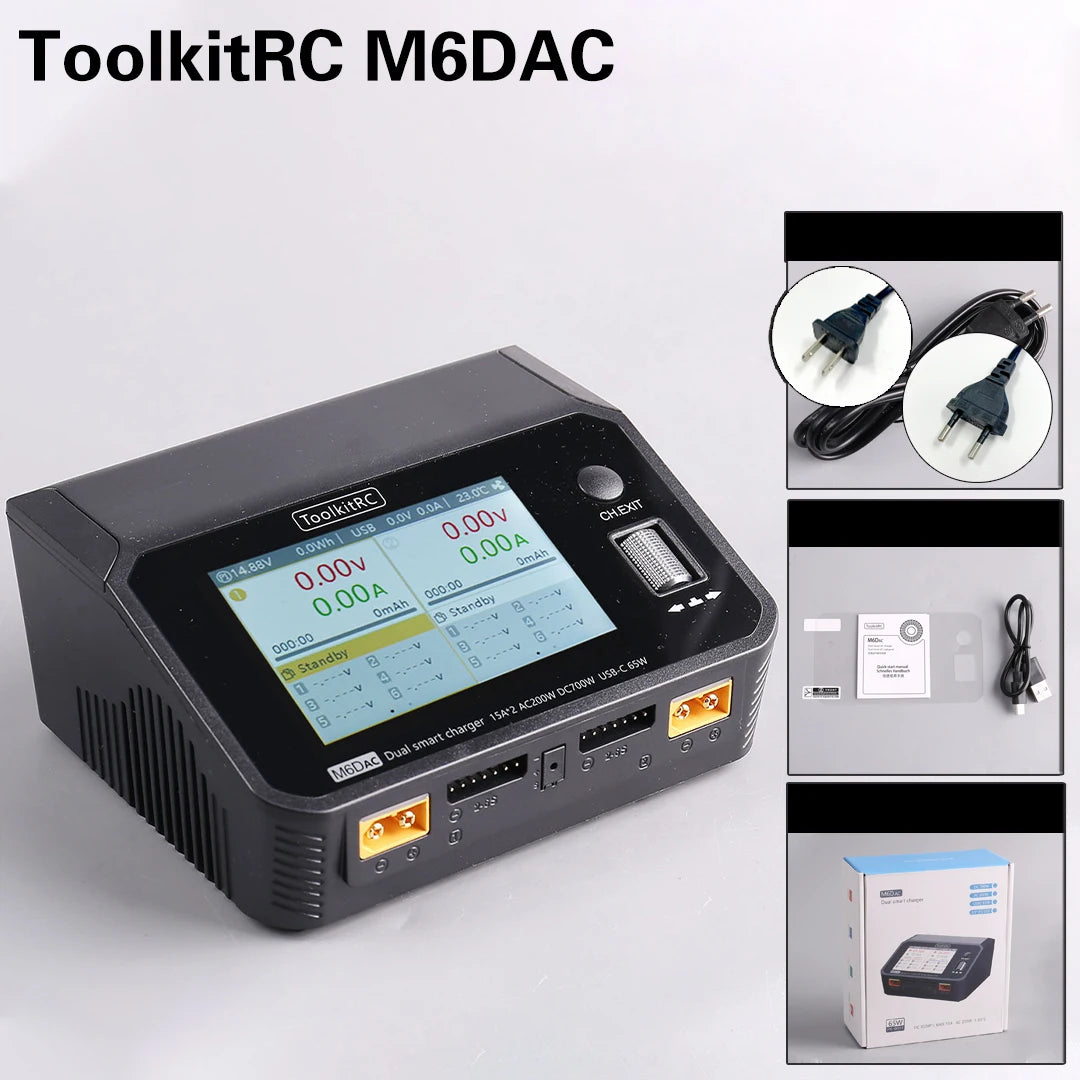

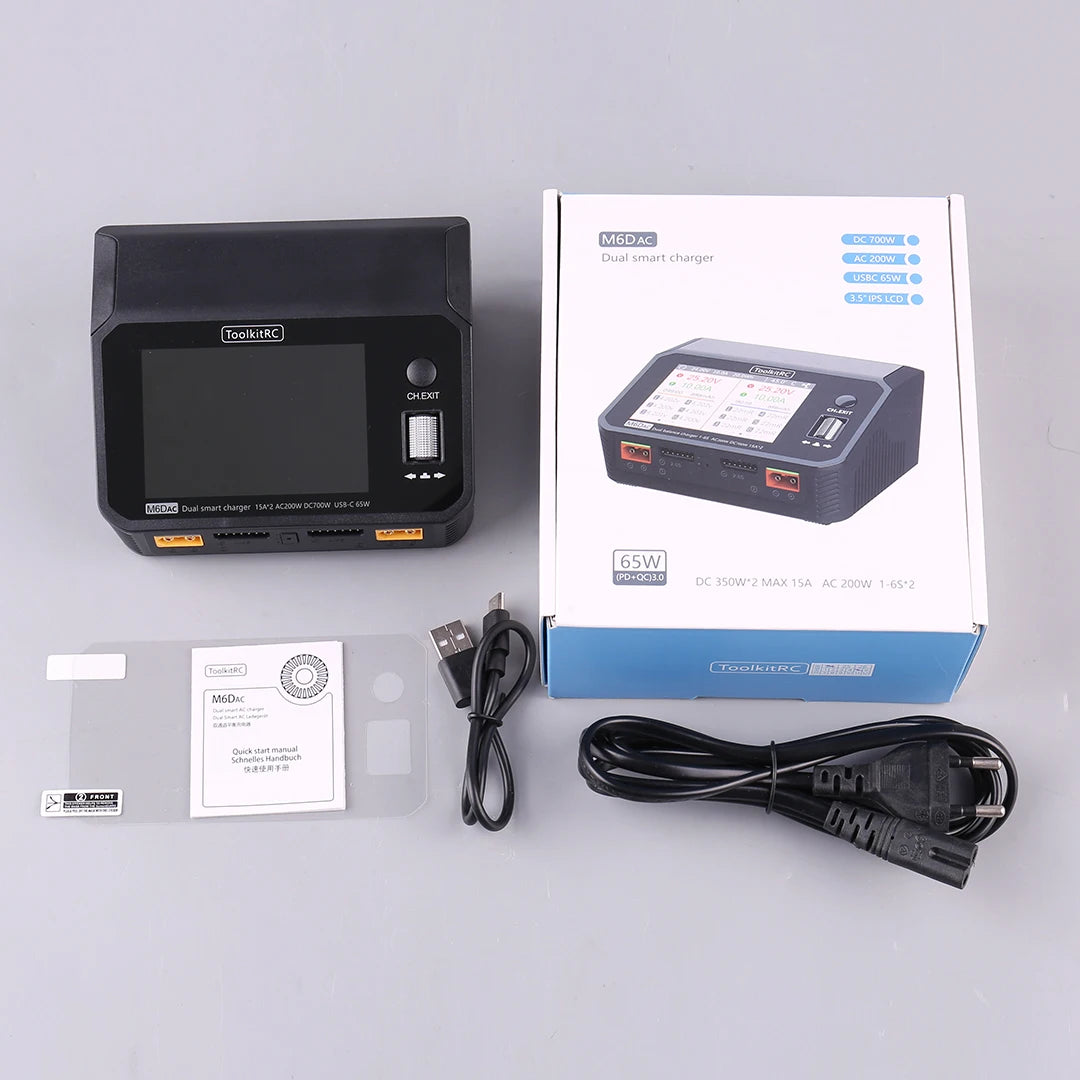

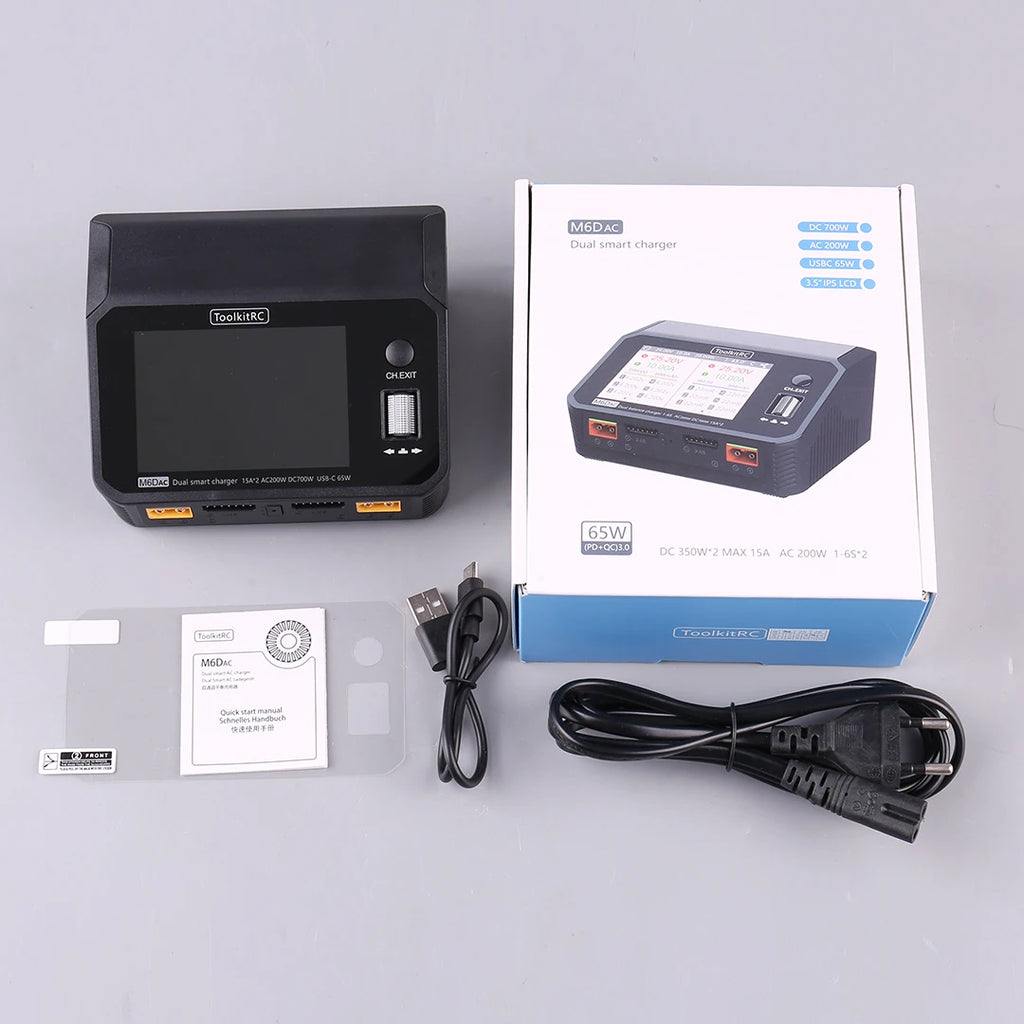

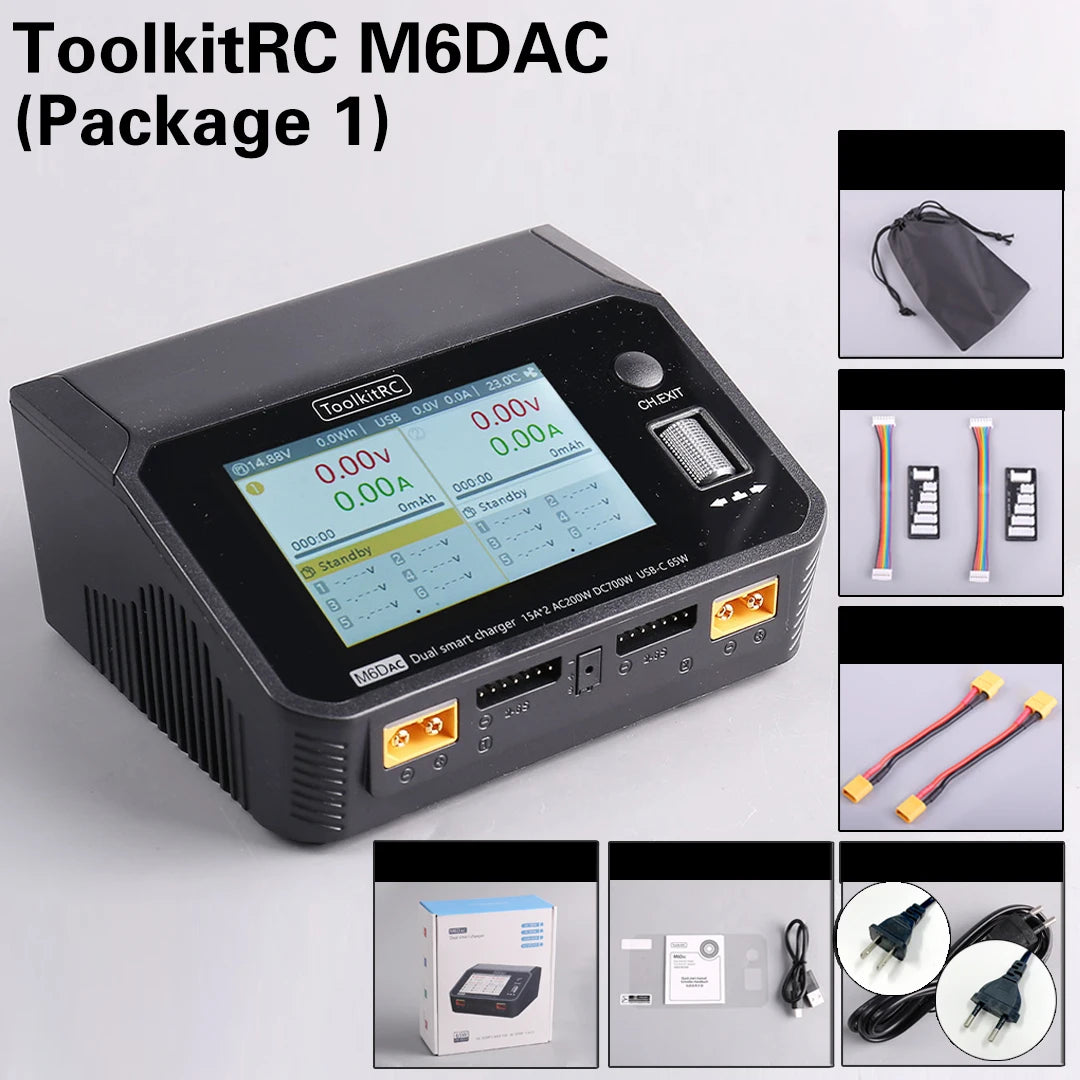

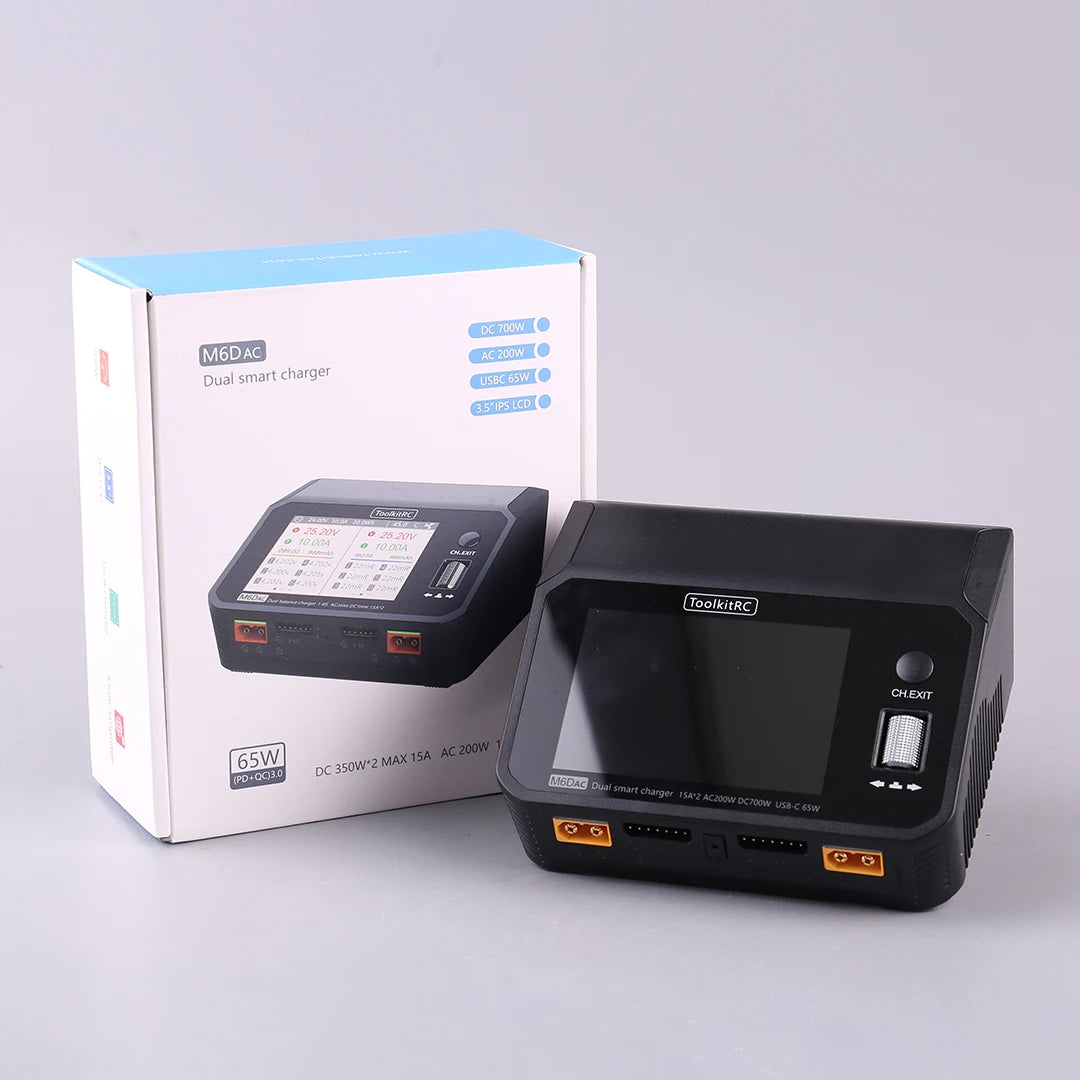

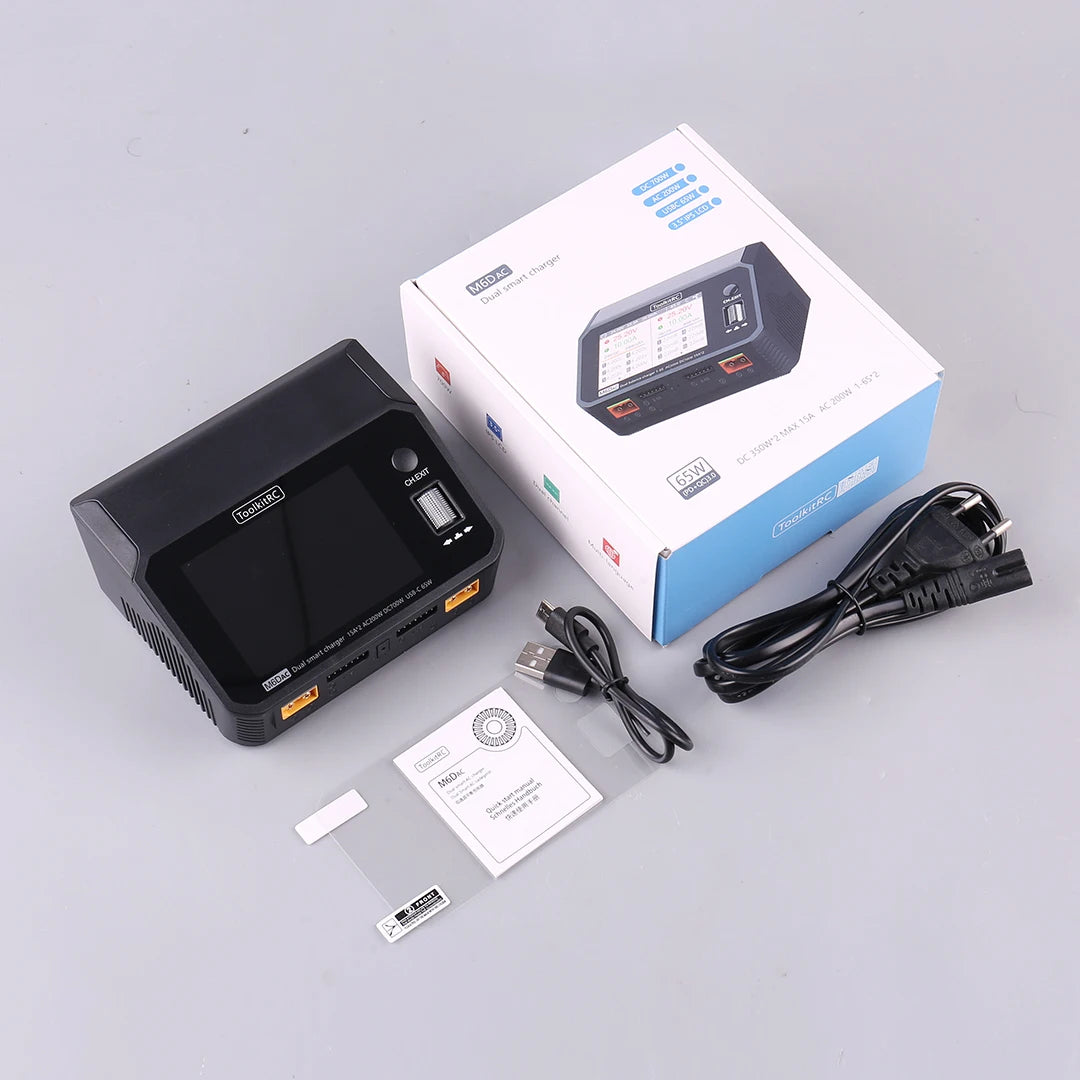

Standard accessories: charger, protective film, instruction manual, upgrade cable, power cord

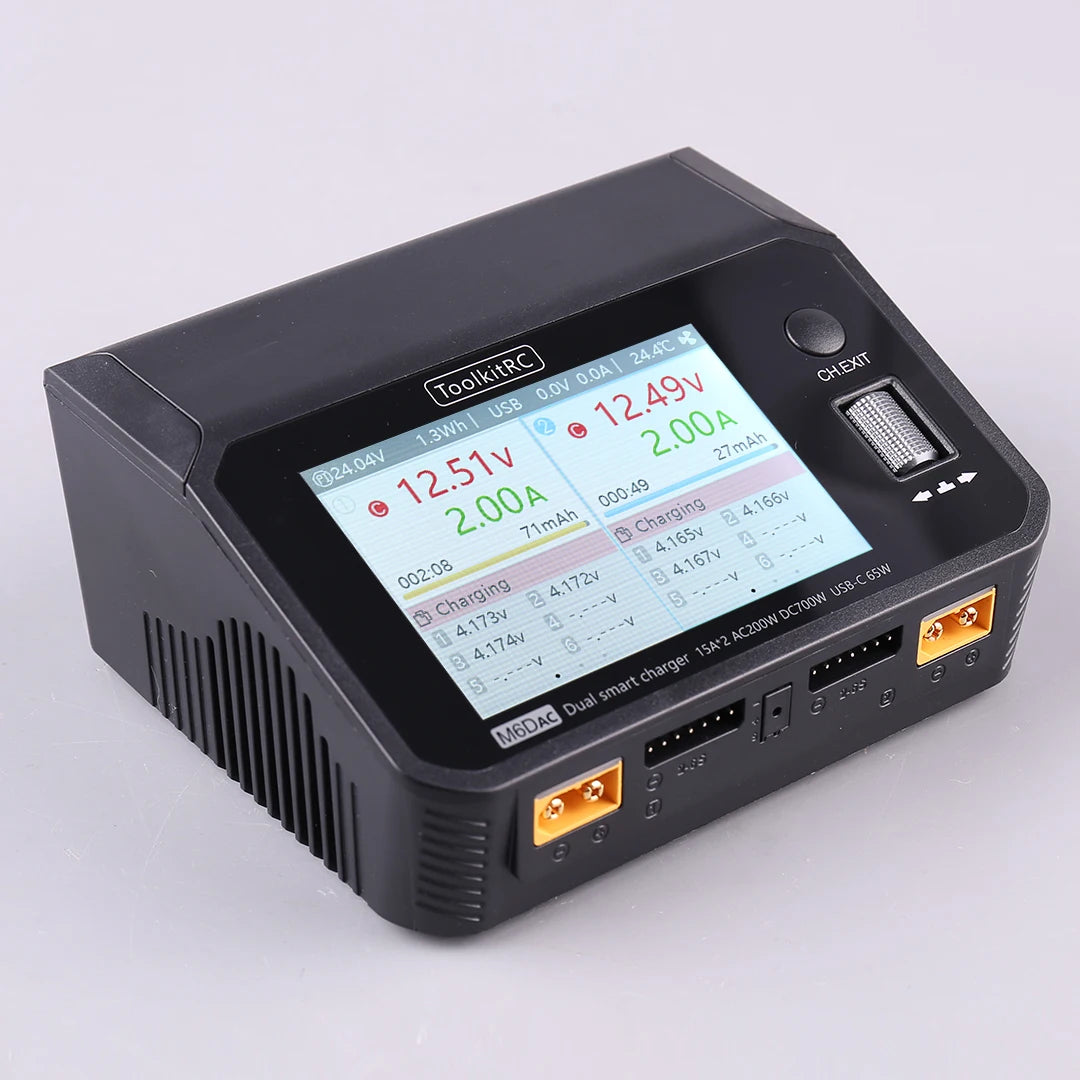

Product description

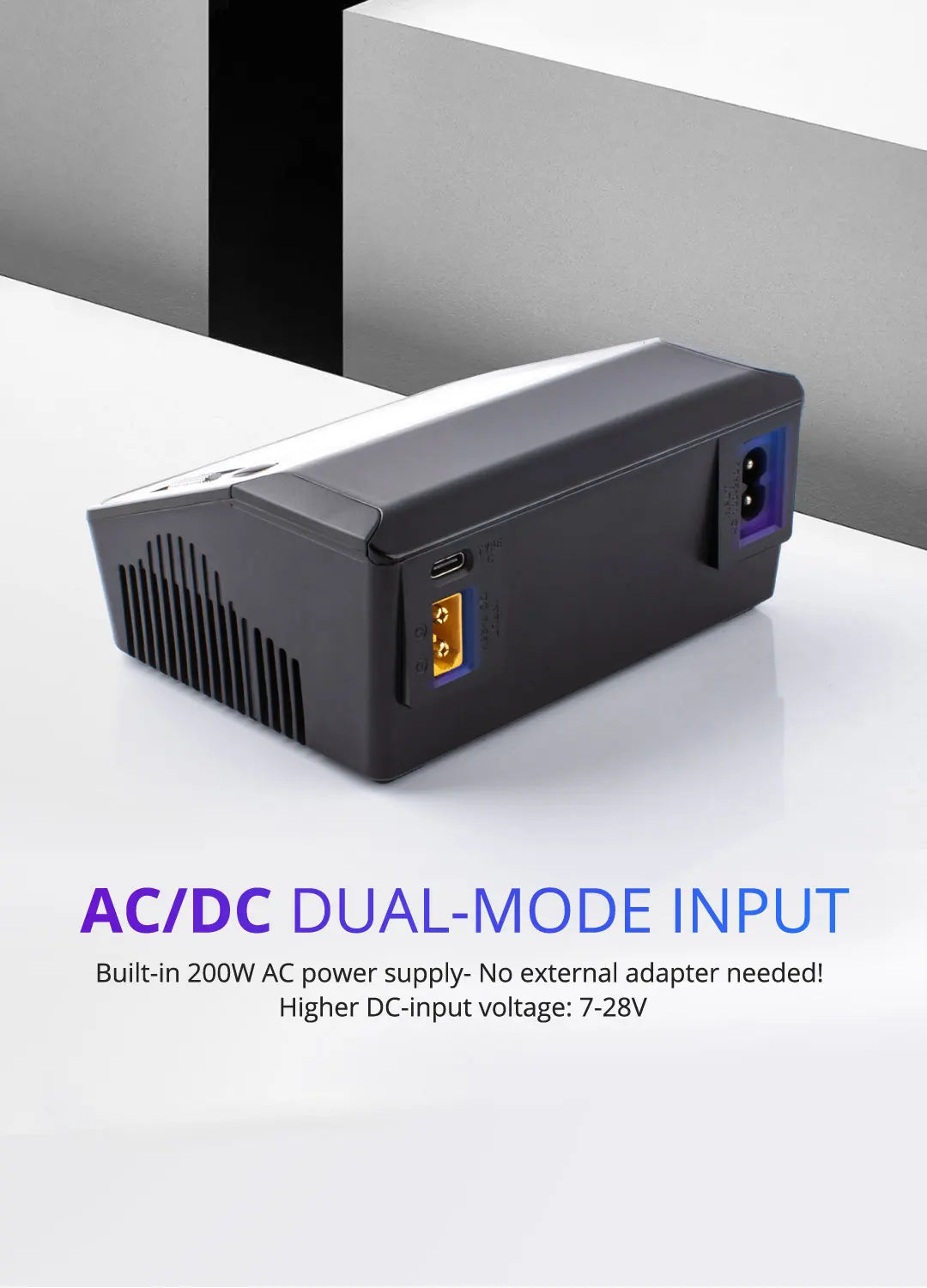

• Built-in 200W AC power supply.
• Charge, discharge and balance management of LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB 1-10S batteries.
• Charging current：
• Synchronous mode maximum 25A@MAX700W
• Asynchronous mode maximum 15A@MAX350W

• Discharge current：
• Recycle mode maximum 15A @350W *2
• Normal mode maximum 3A @15W *2

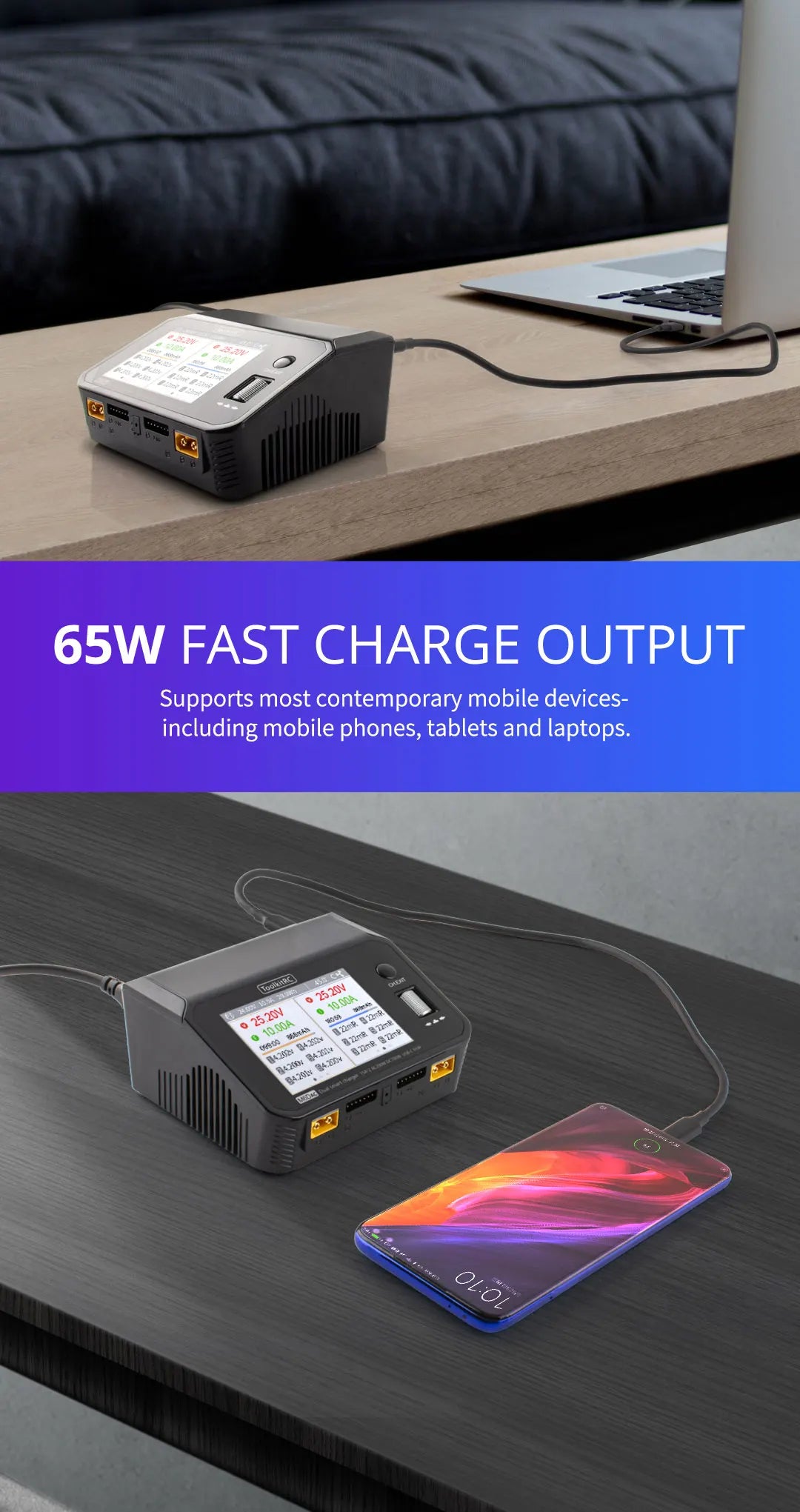

• 65W fast charge USB-C output.
• PD/QC/AFC/FCP/SCP/PE/SFCP/etc. full protocol.
• Lithium battery cut-off voltage can be set (TVC function).
• Constant current and constant voltage output,  customizable 1-28V constant voltage, 1-15A constant current.
• Can be adapted to mainstream UAV batteries,  automatically activated and charged.

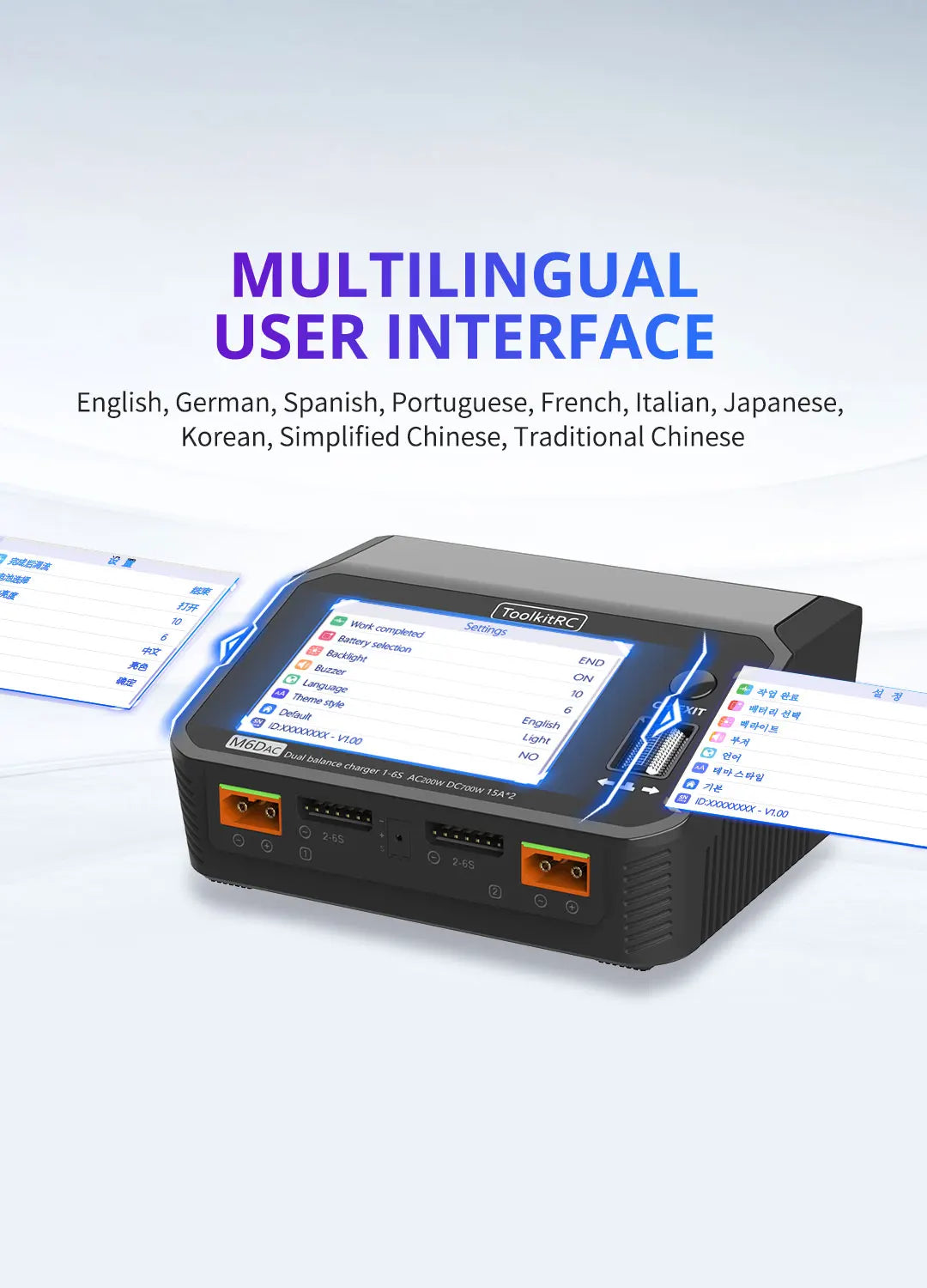

• Multi-language system, can arbitrarily upgrade the required language.
• The device connects to PC like a USB drive for easy firmware upgrades. Simply copy and paste new firmware files to update.

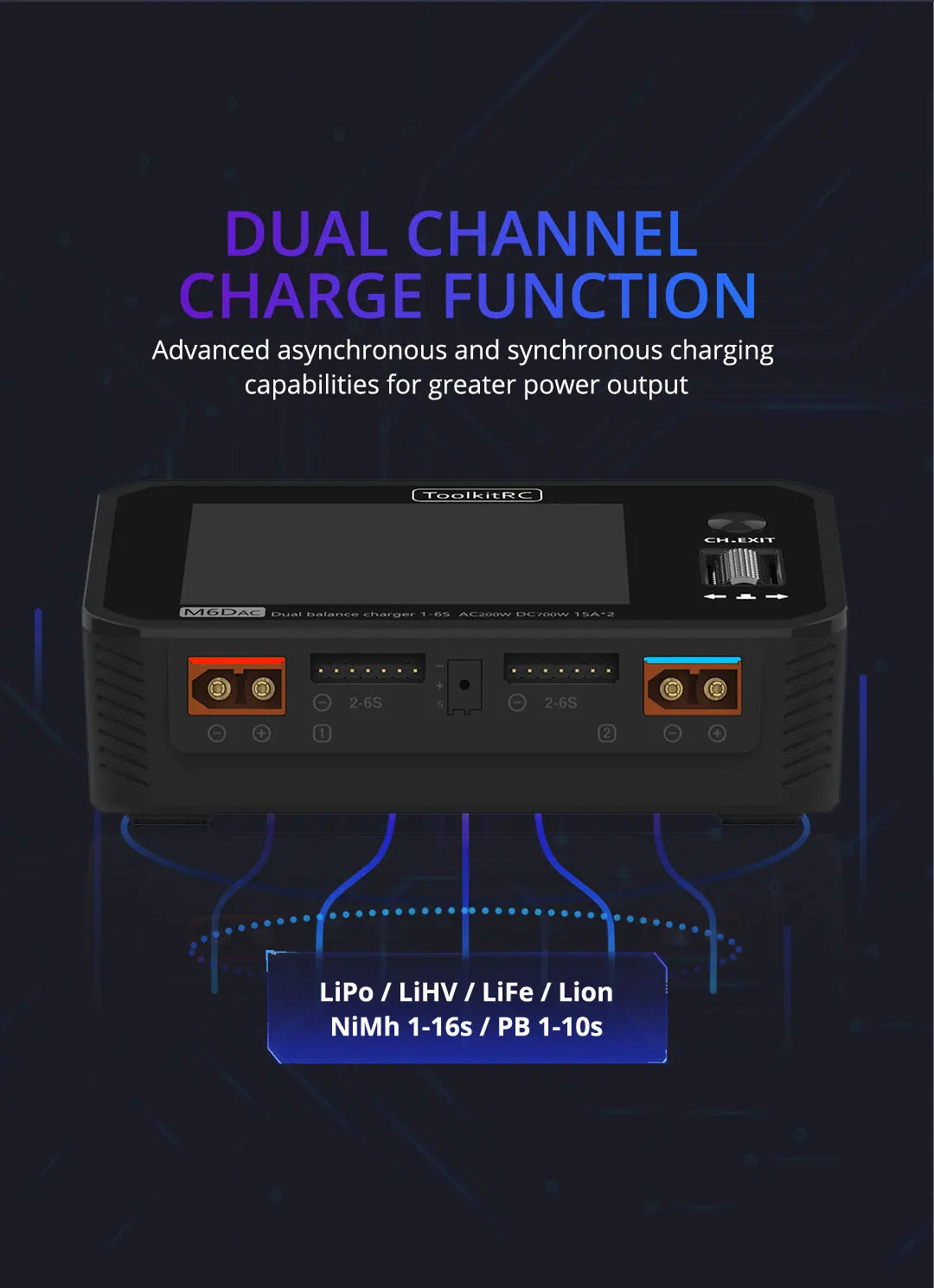

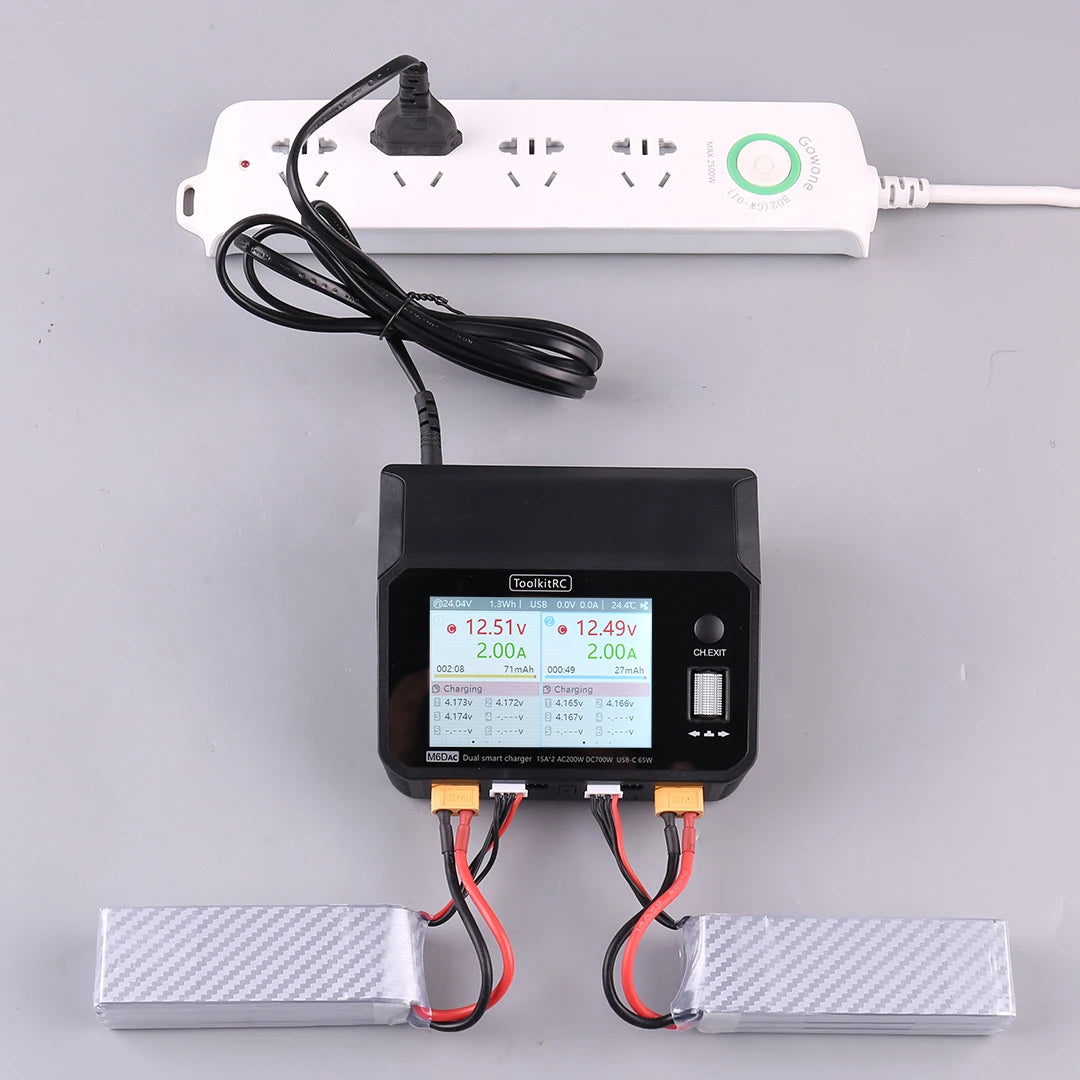

Synchronous mode, capable of synchronously charging two different brands and S batteries

Asynchronous mode, can charge one battery with two ports, doubling the charging current (asynchronous parallel cables need to be purchased separately)

Synchronization mode

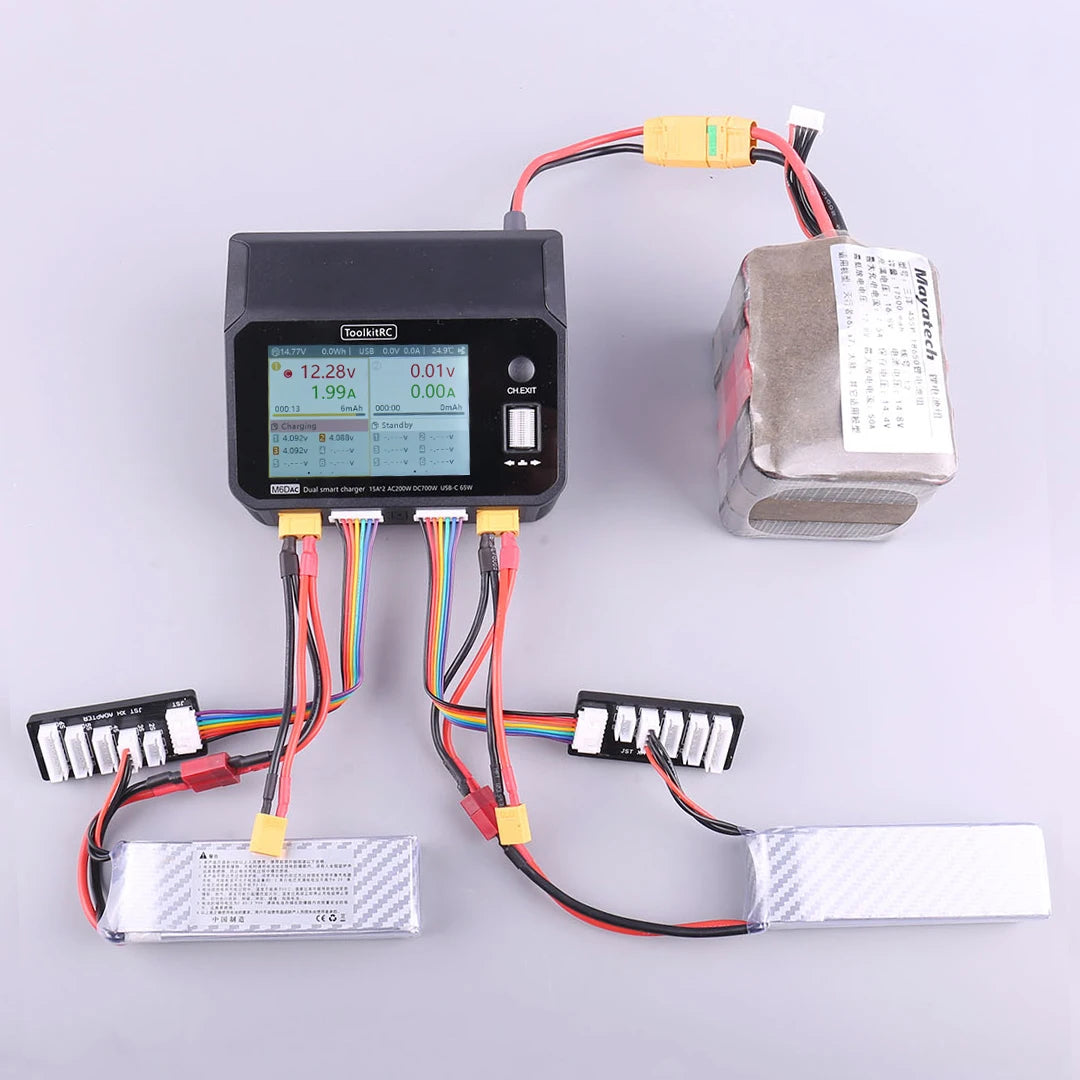

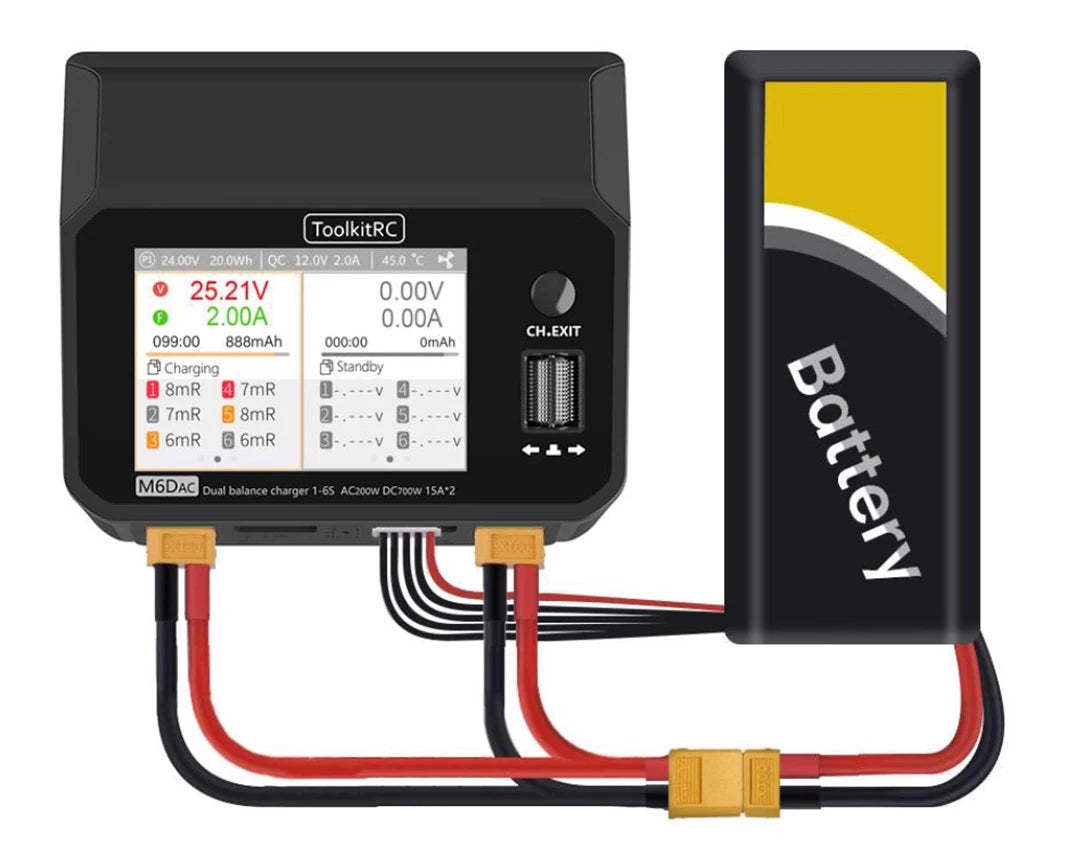

In the settings menu, when the synchronization function is turned on. M6DAC will allow dual charging of the same battery, with a total current of up to 25A. The connection method is shown in the following figure

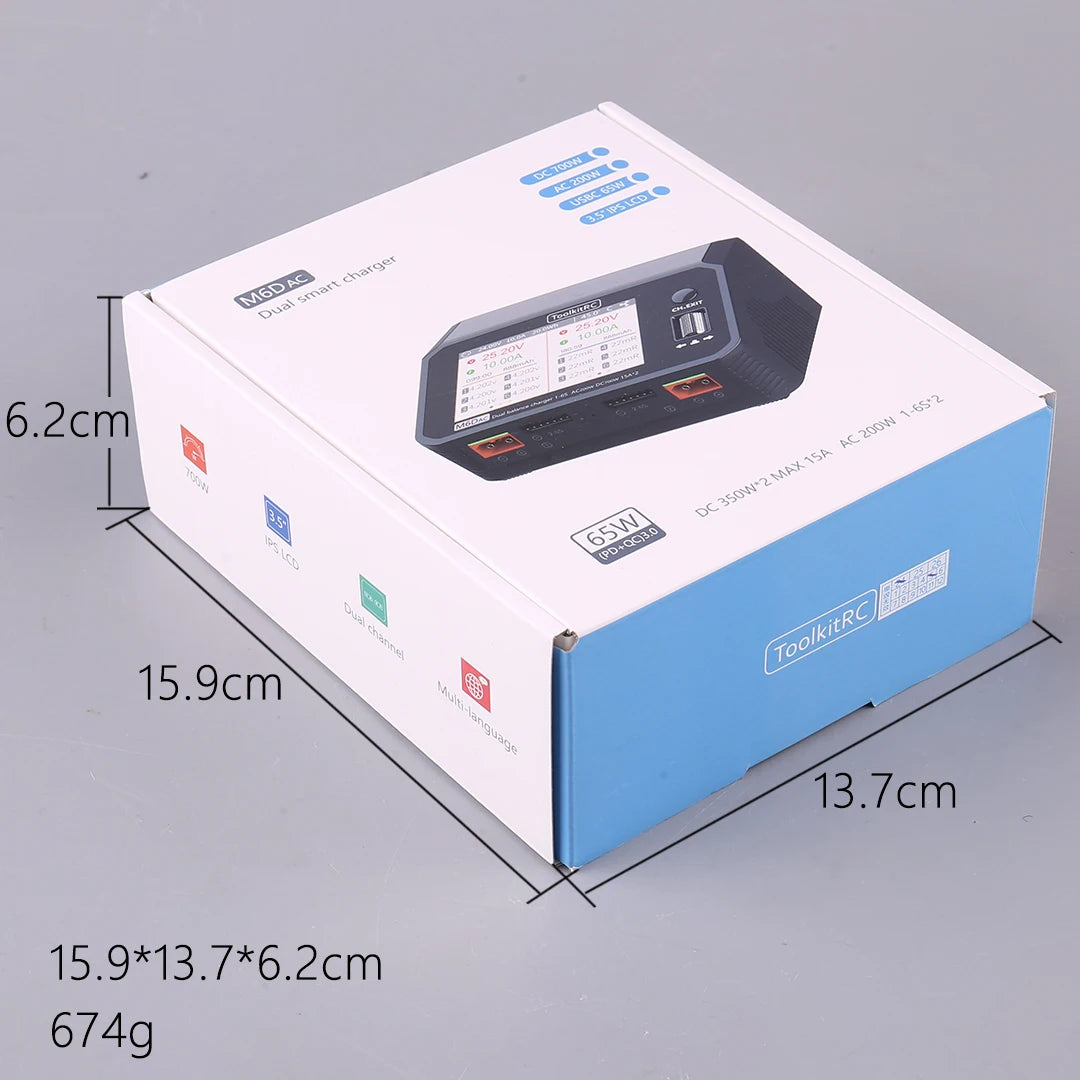

size

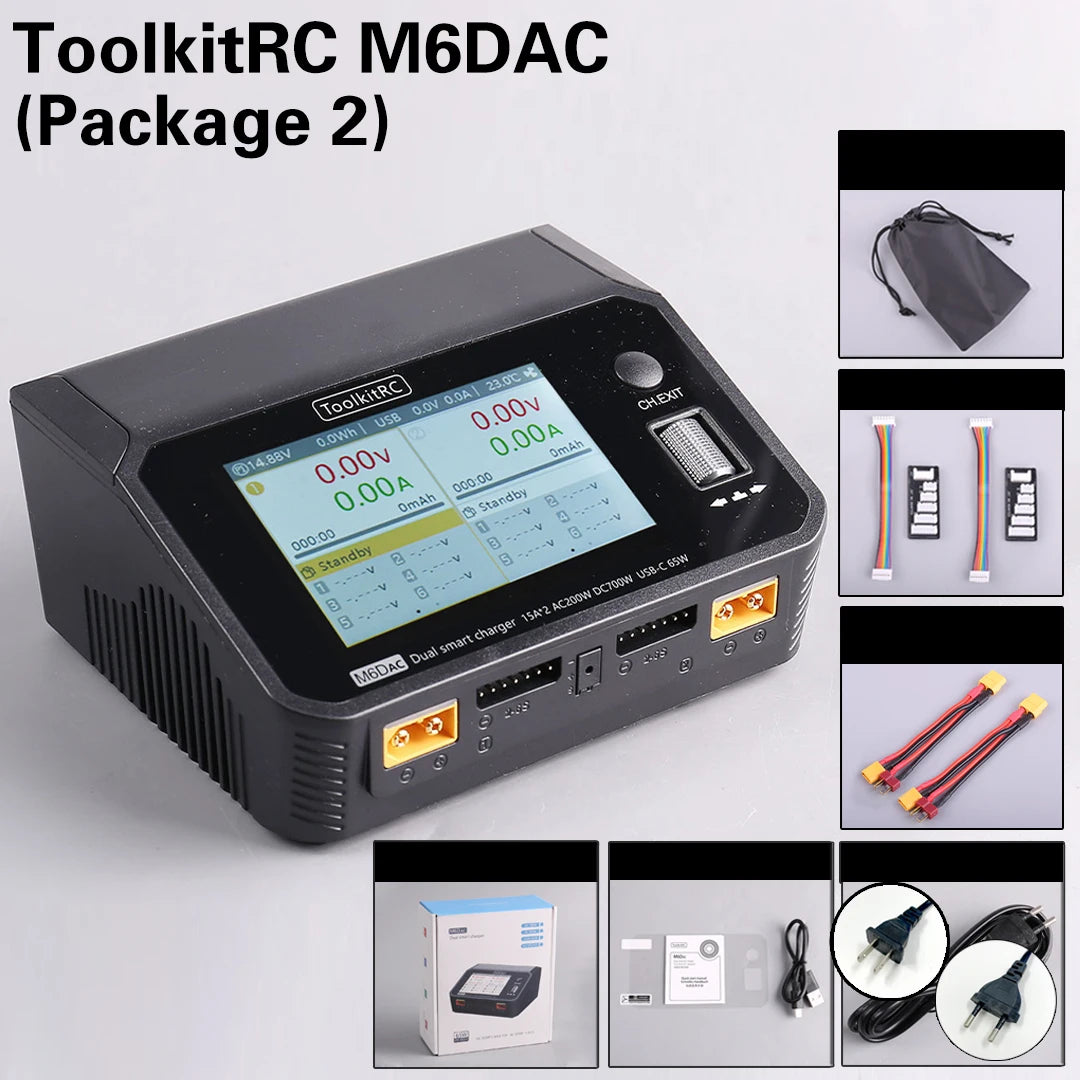

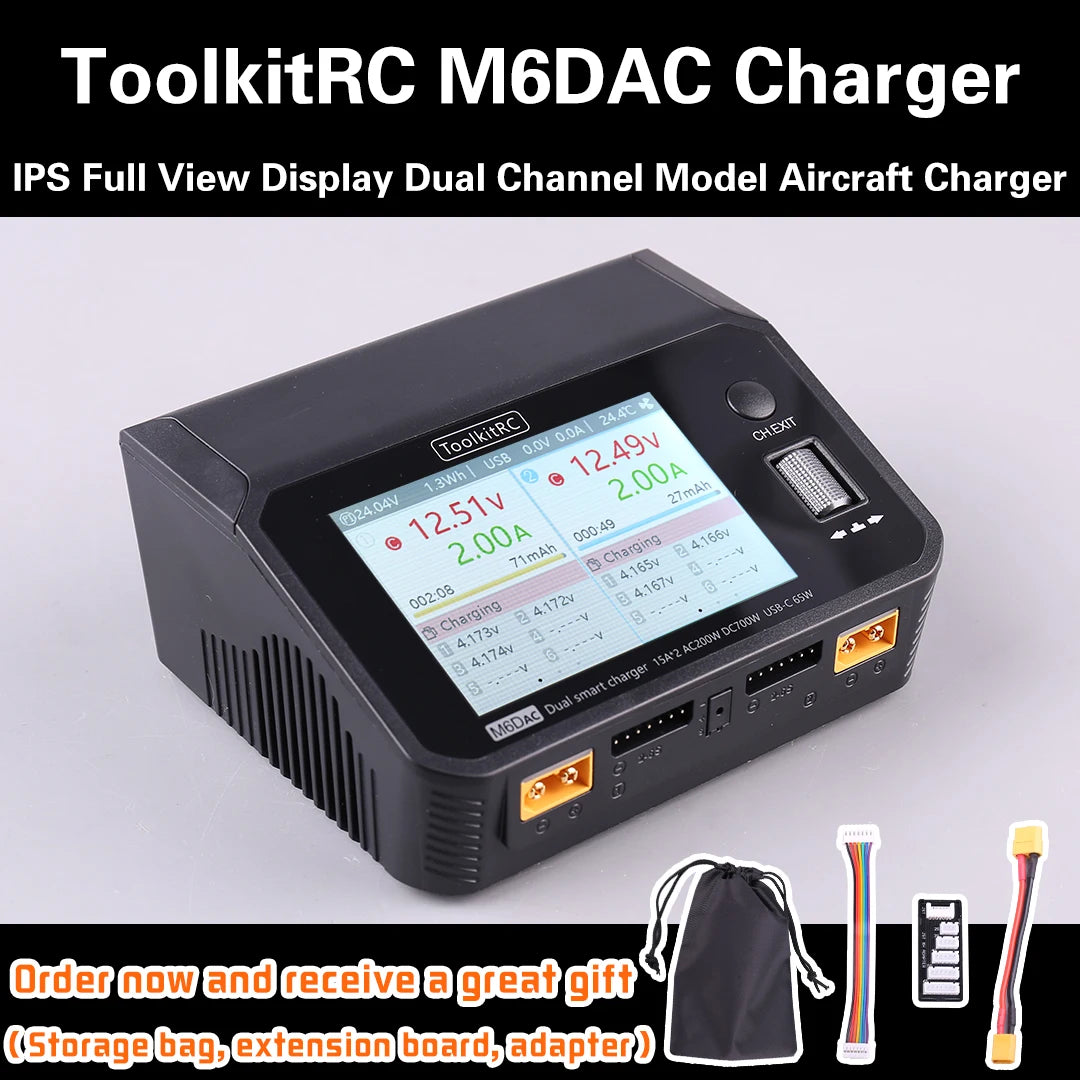

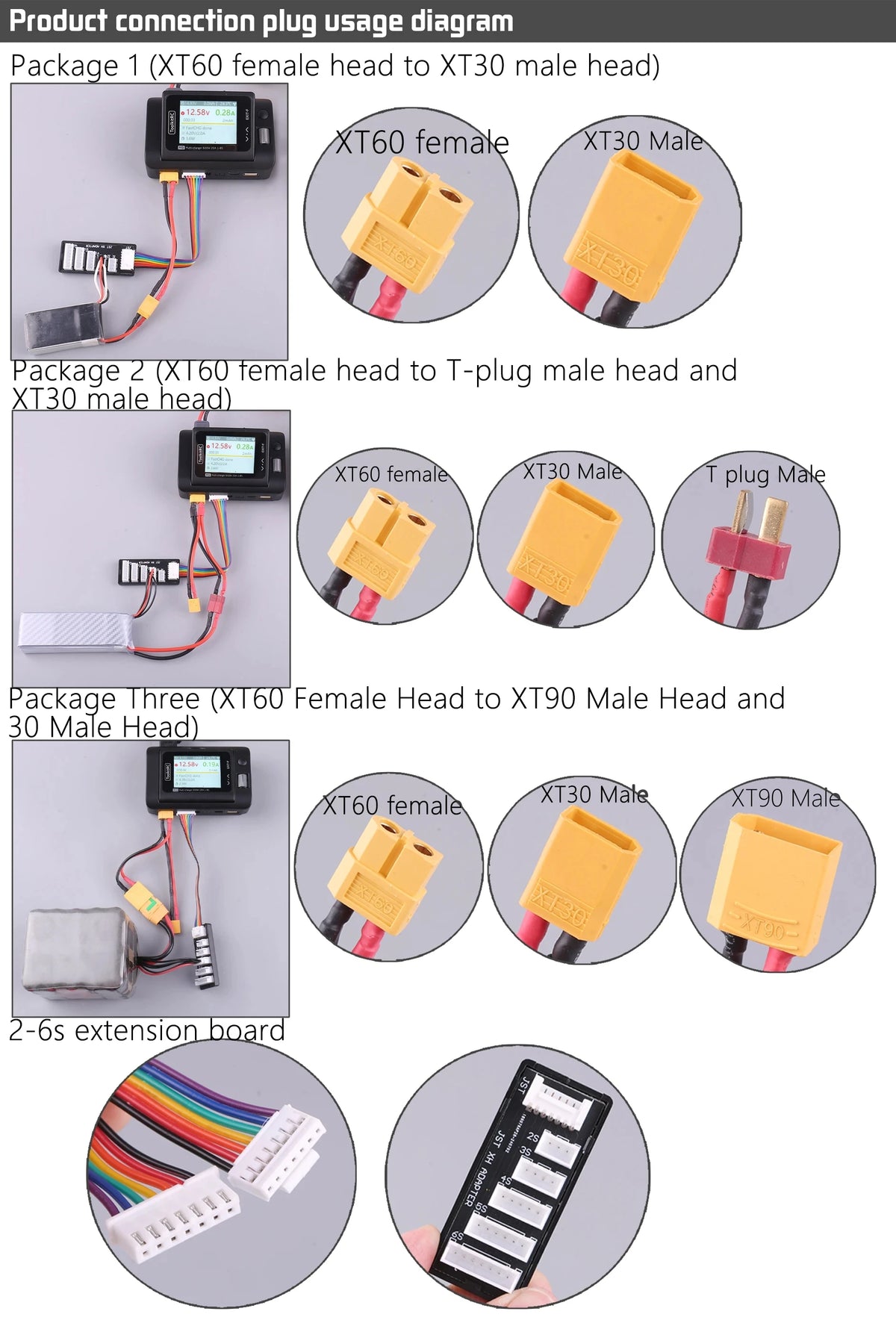

Now when purchasing a package, there is no additional charge for increasing the quantity, and the extension board is convenient for inserting and removing batteries of various models. The adapter cable is convenient for customers to handle the charging conversion of different battery plugs, easy and fast, and a good partner for chargers
