SPECIFICATIONS

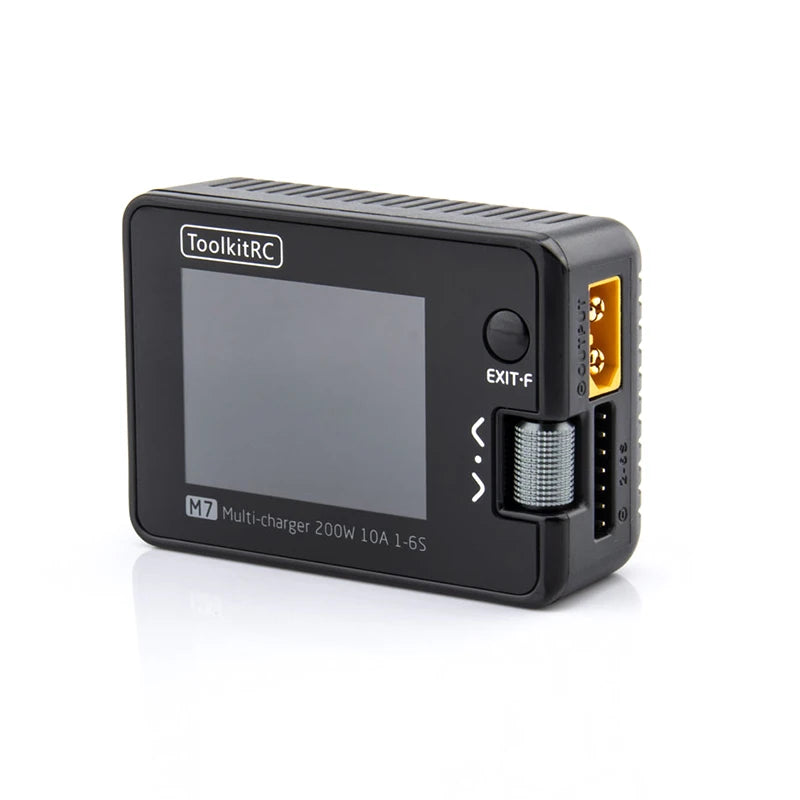

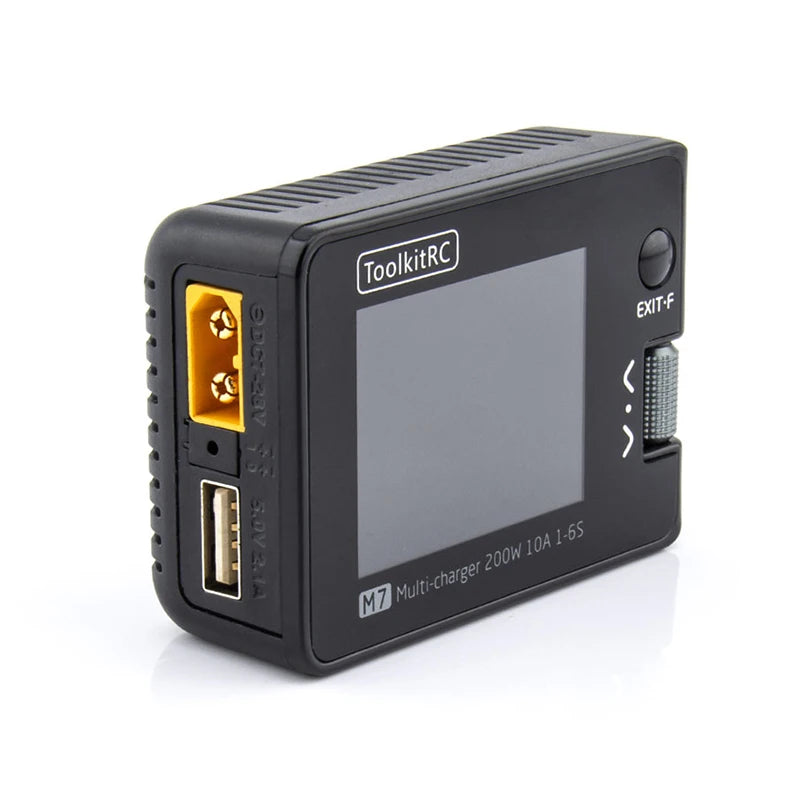

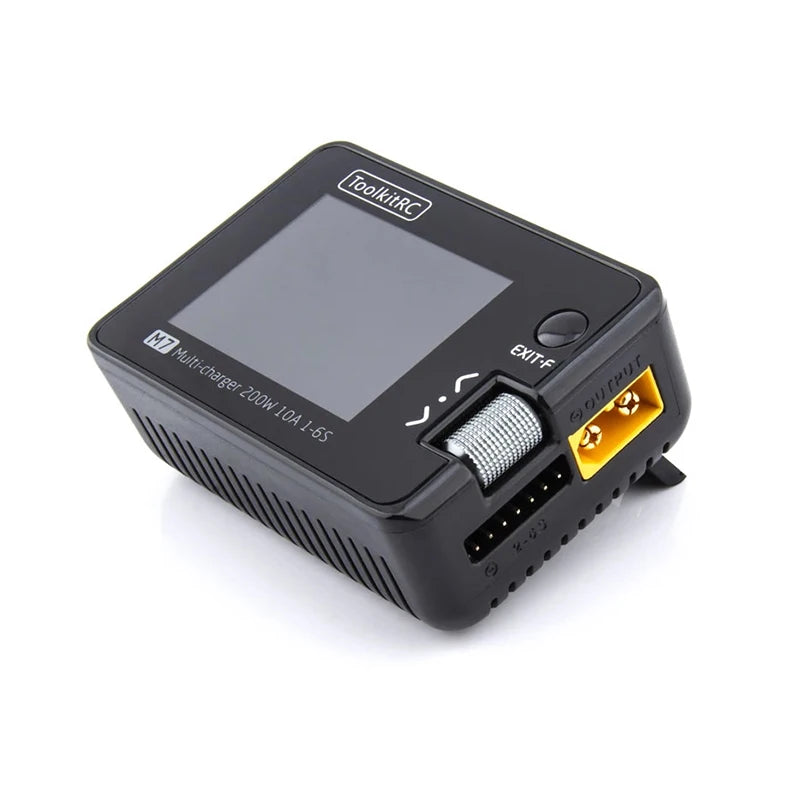

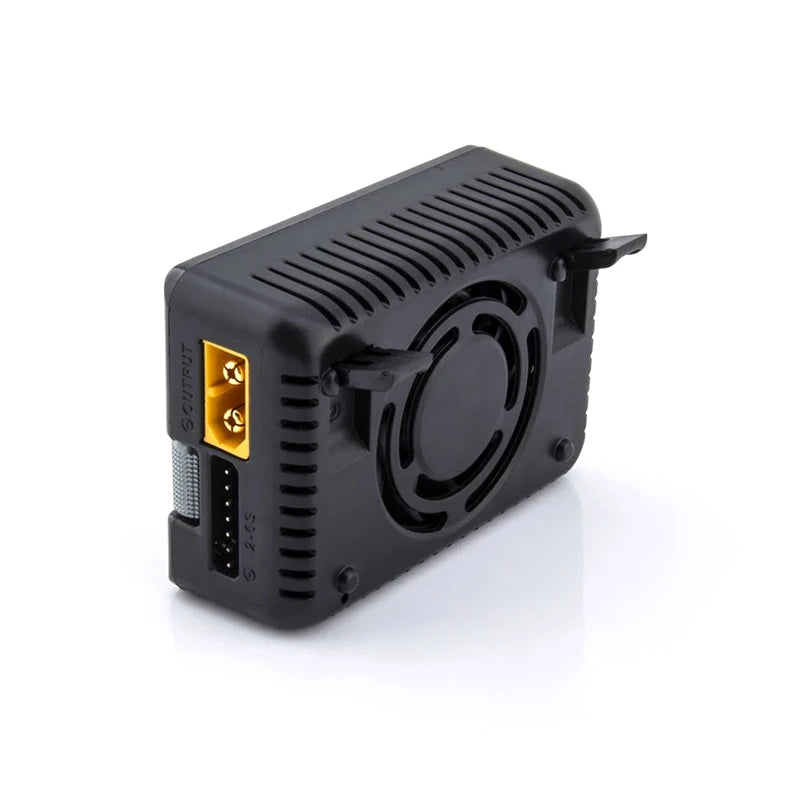

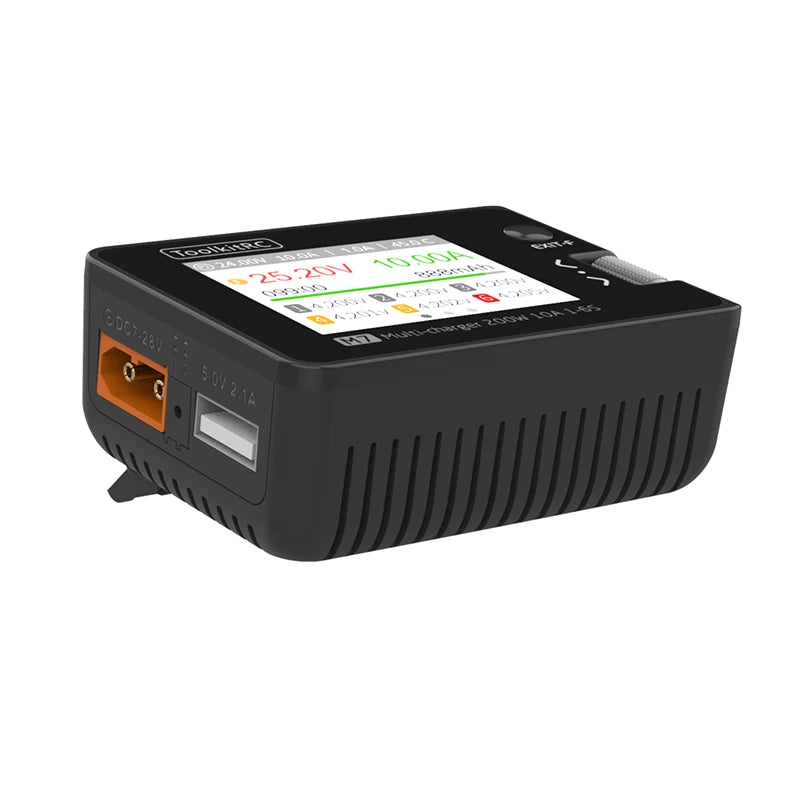

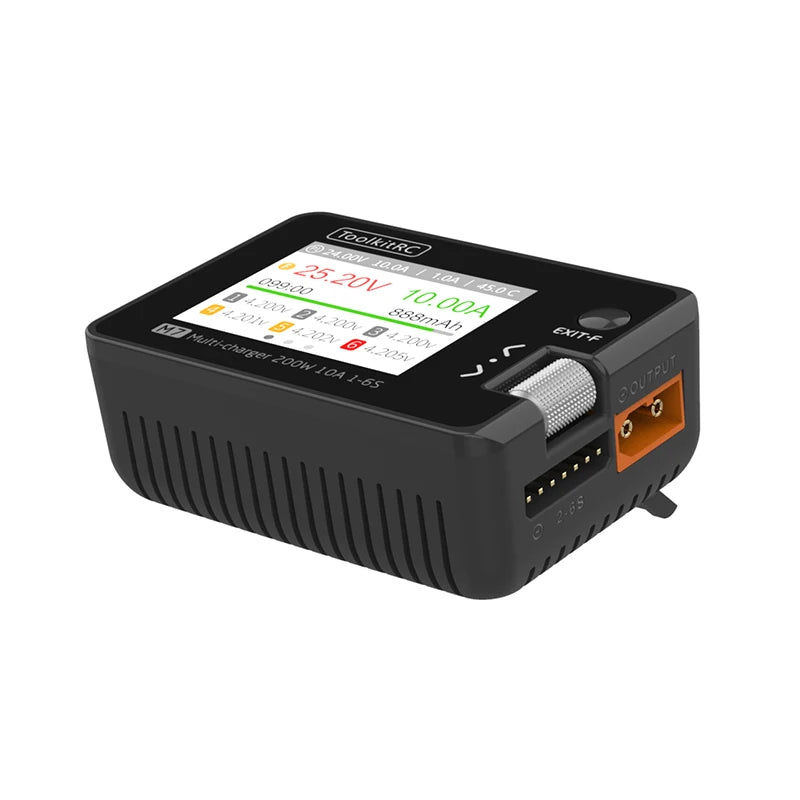

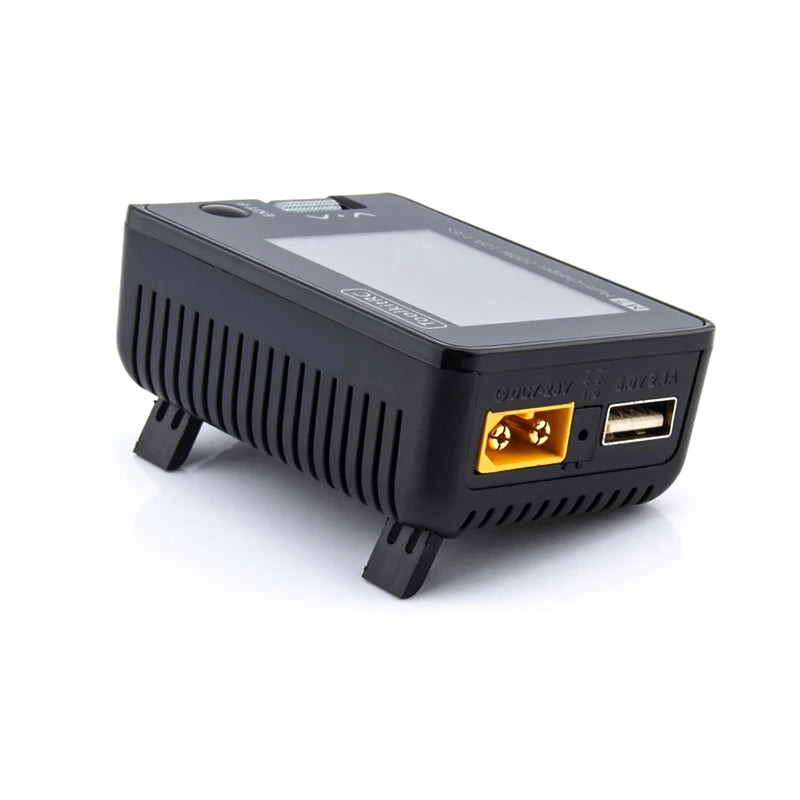

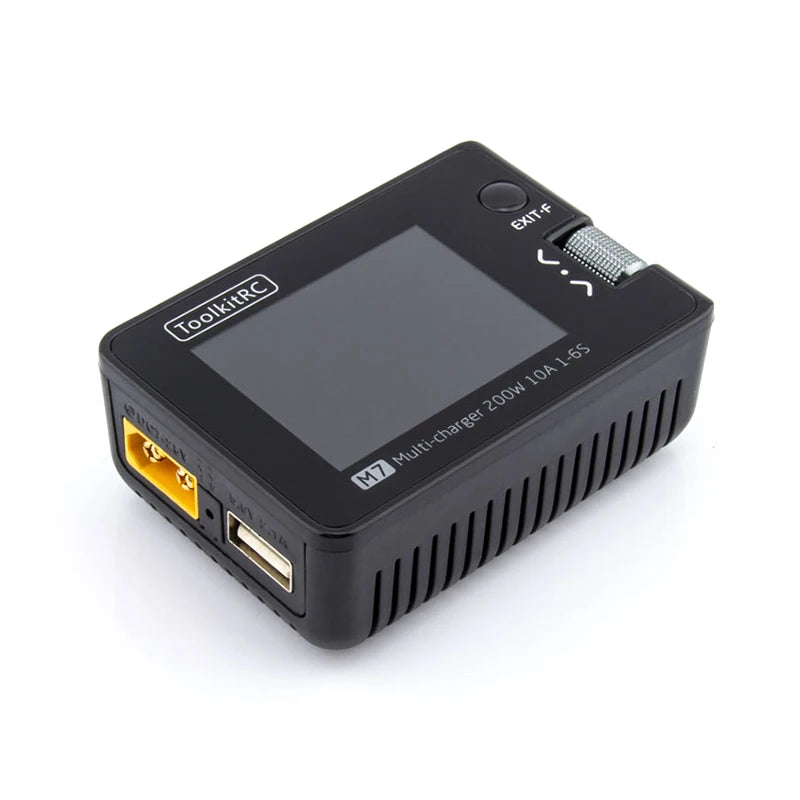

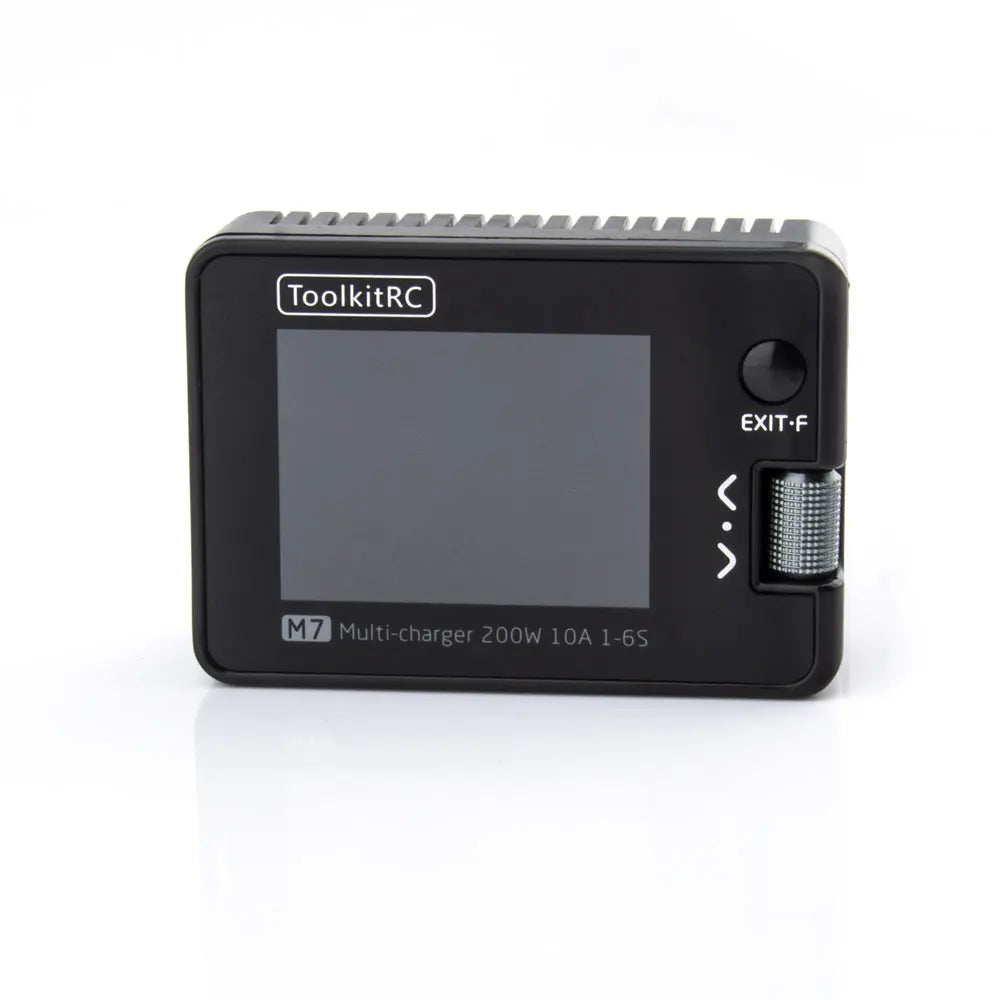

Item: Toolkitrc M7 lithium battery multi-function balance charger

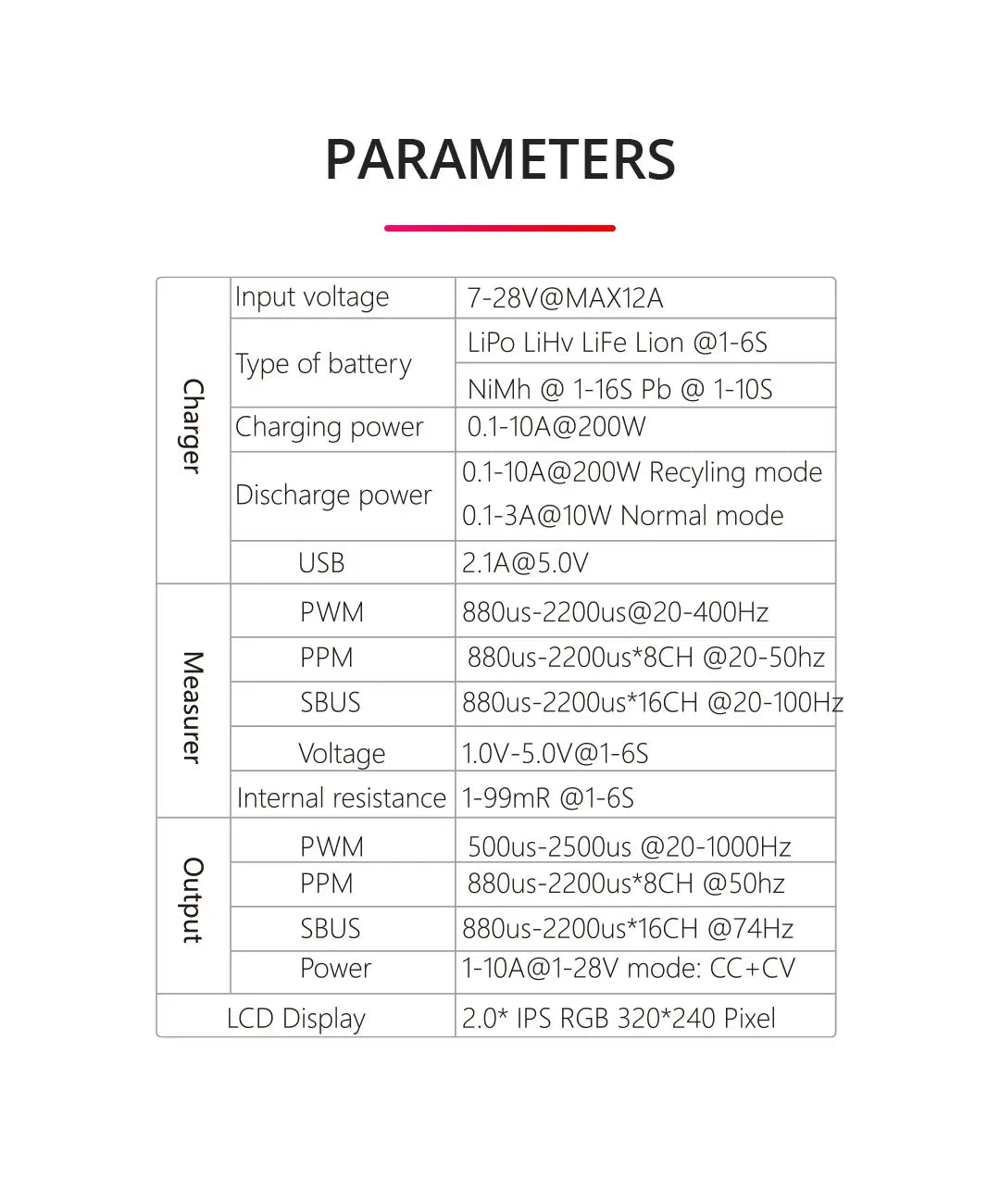

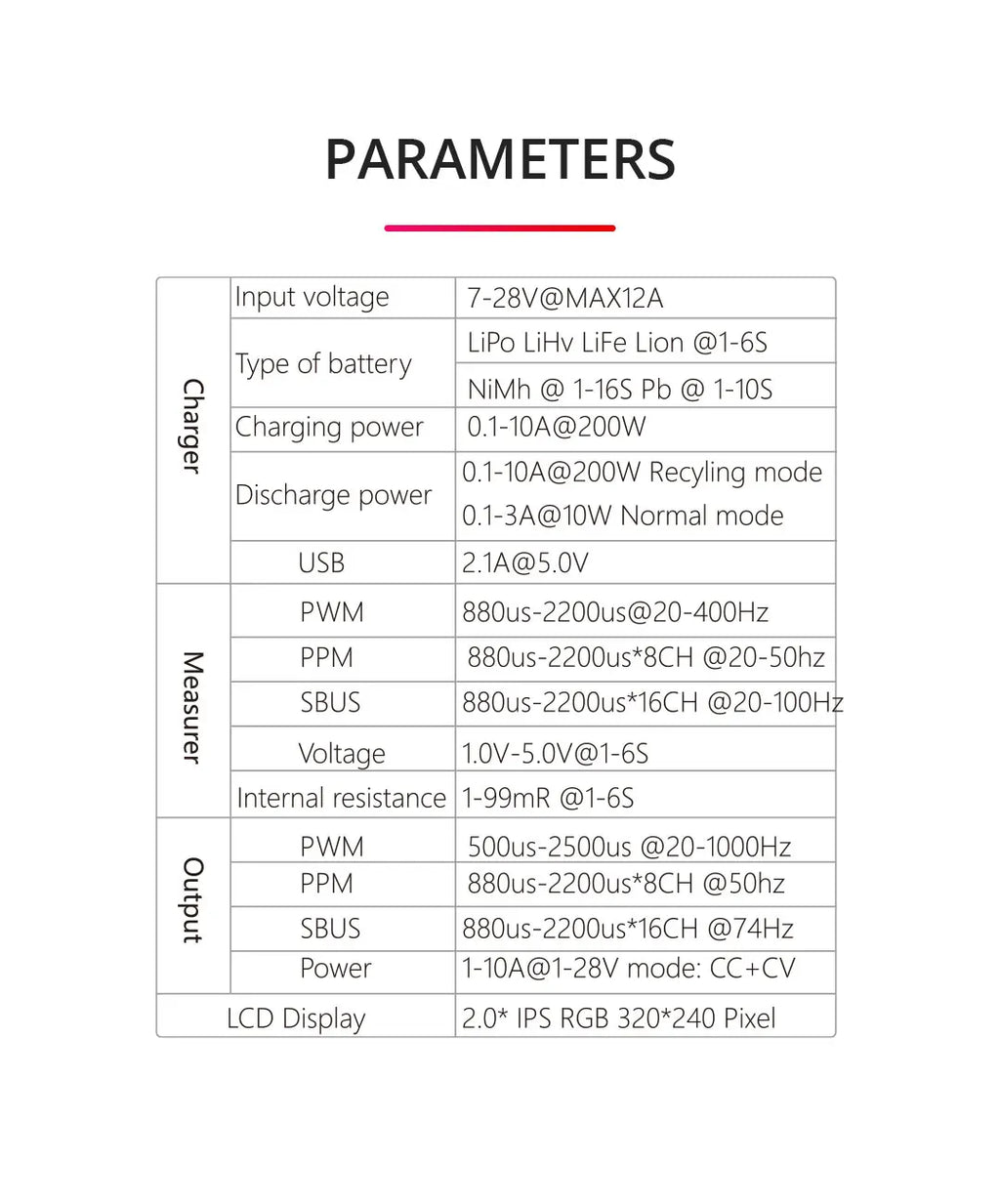

Parameters:
Size: 73*51*27 mm
Weight: 90g

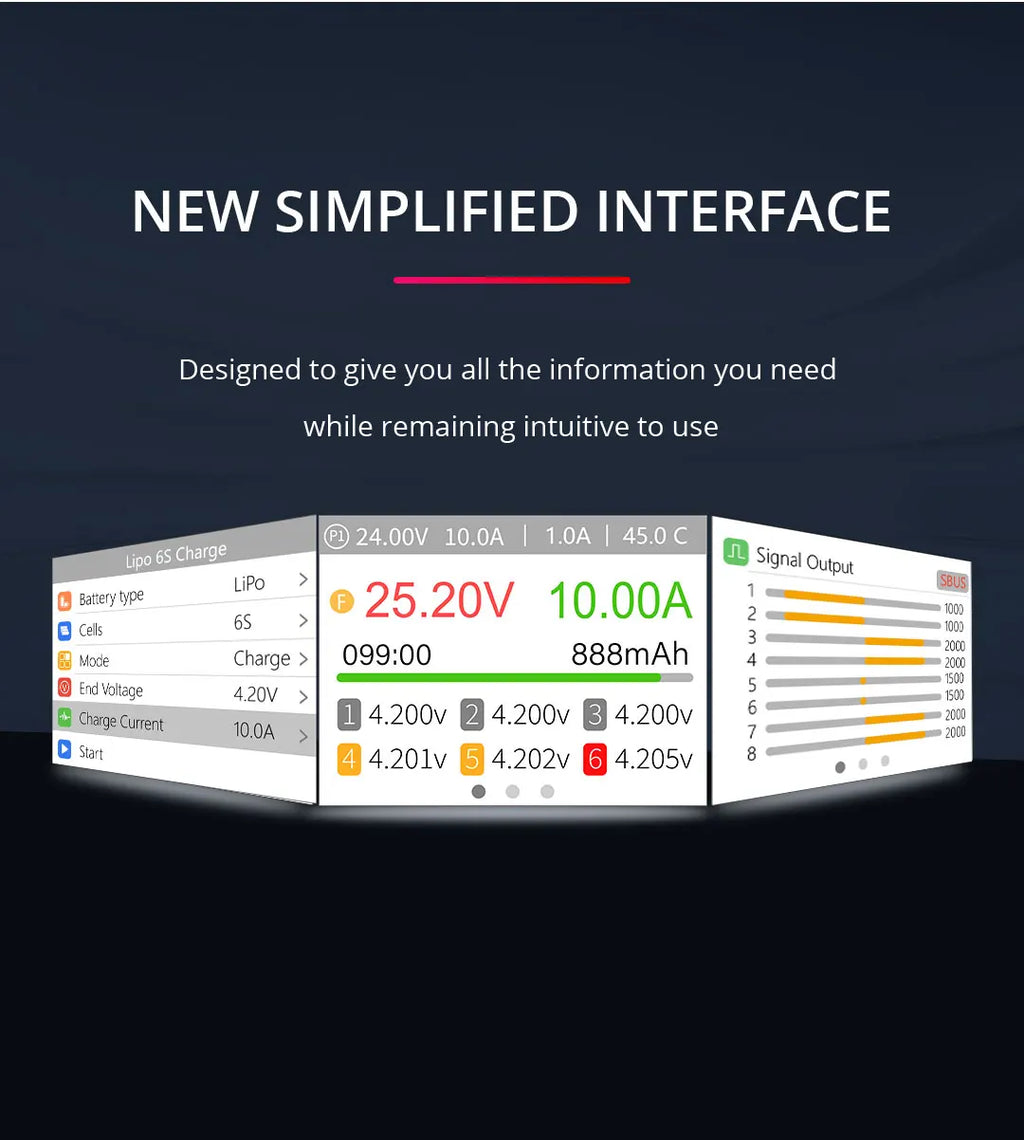

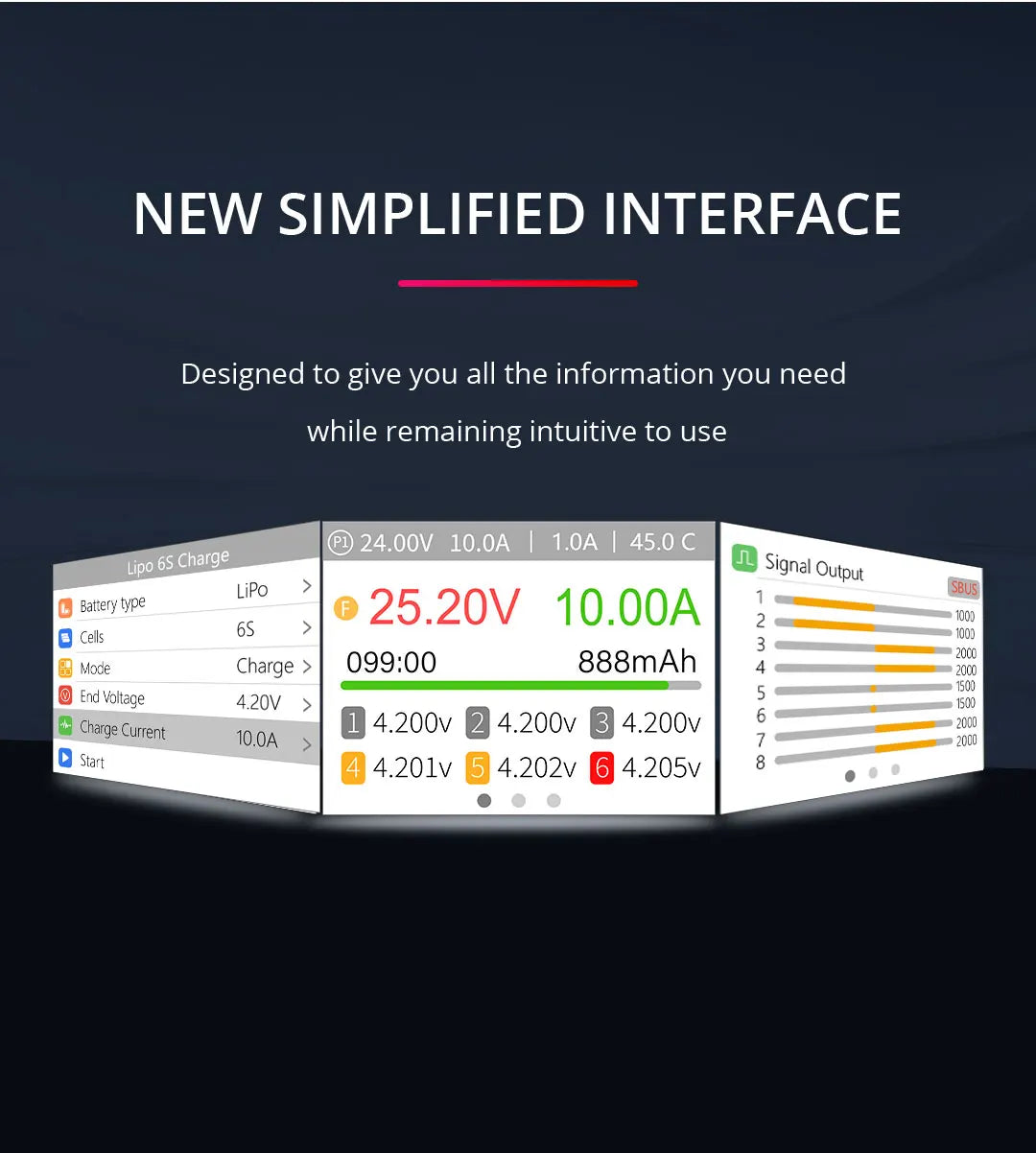

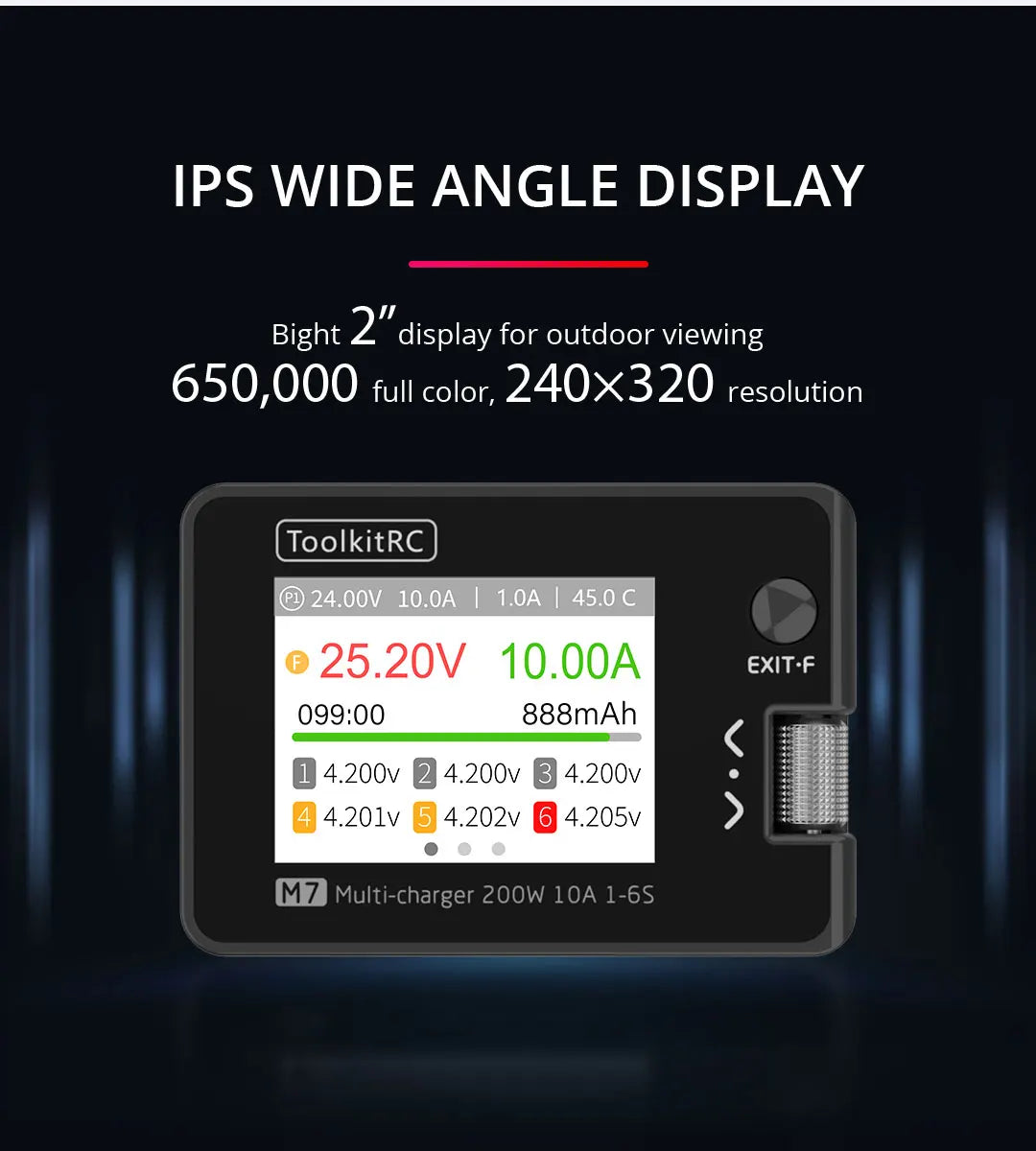

LCD: IPS  2.0inch LCD 320*240 Pixel
Input voltage: 7.0-28.0V  @MAX 12A
Type of battery: Lipo  LiHV  LiFe Lion@1-6
NiMh @1-16S   Pb @1-10S
Balance current: 400mA @2-6S

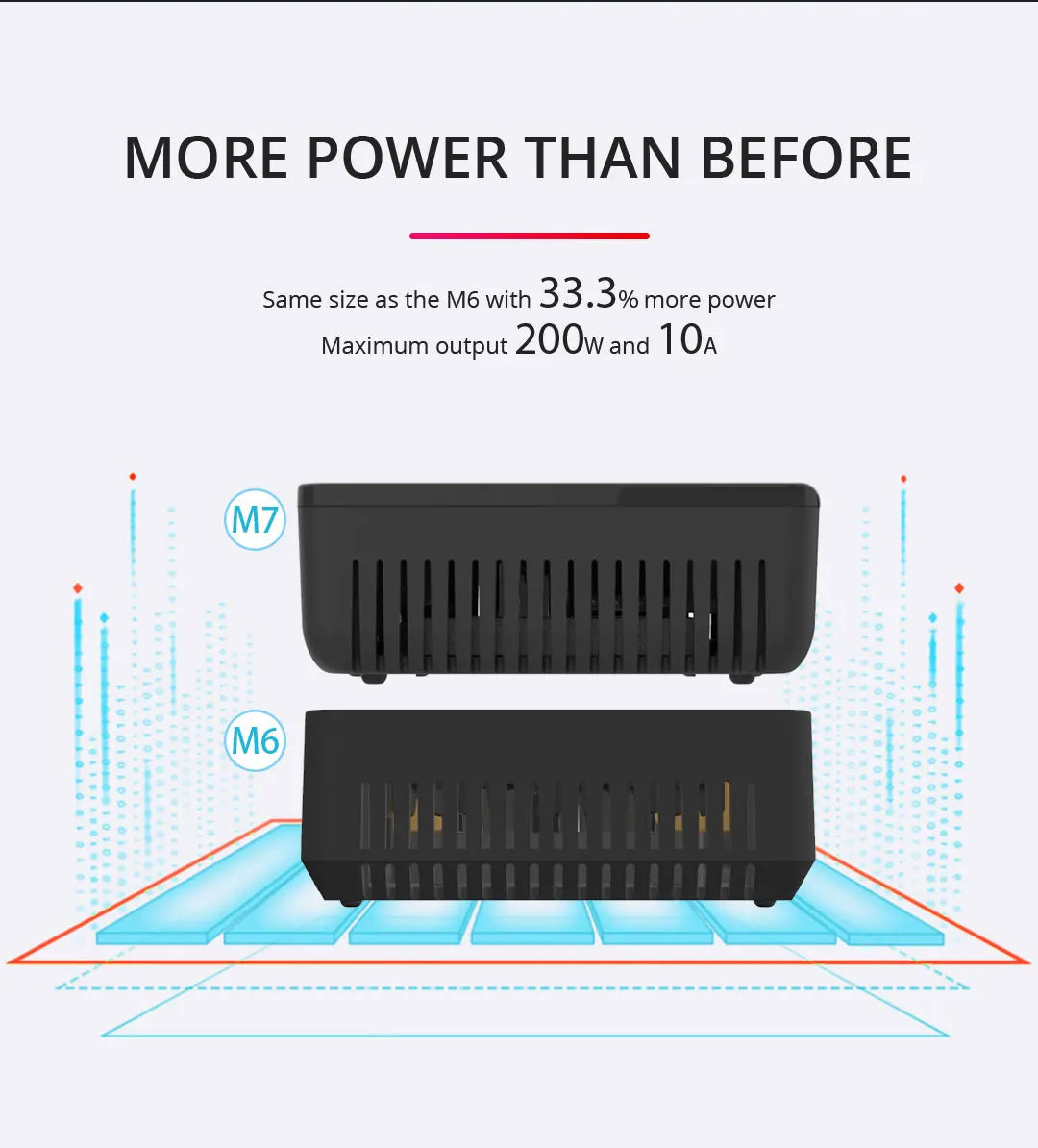

Charger power: 200W @MAX 10A
Discharge power: 200W  @MAX 10A Recycle mode
10W@3A Normal mode
USB: 2.1A @5.0V or Upgrade

Input:
PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
Internal resistance: 1-99mR @1-6S
ESC: 200W@10A       PWM Output

Output:
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Power supply: 1.0-28.0V  @1.0-10A  mode:CC+CV
OverCurrent Cutoff time: <5ms

M7 is a multifunctional tool chain product that integrates functions such as a balanced charger and discharger, an electric display, a signal measuring device, and a signal source.
Can charge and discharge and balance
management of LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB 1-10S batteries
Charge current:MAX 10A @MAX200W
Discharge current:
Recycle mode Max 10A @200W
External mode Max 10A @200W
Inter mode Max 3A @10W
Lithium battery cut-off voltage can be set (TVC function)
Can measure battery voltage, battery internal resistance, lithium battery balance management
Can measure the signal value of PWM/PPM/SBUS, with an accuracy of 1 microsecond
Can output PWM/PPM/SBUS standard signals with an accuracy of 1 microsecond
Constant current and constant voltage source output, customizable 1-28V constant voltage, 1-10A constant current
Can be adapted to mainstream drone batteries, automatically activated and charged
Multi-language system, you can upgrade any language you need
USB 2.1A@5.0V output, rechargeable mobile devices
The device is simulated as a U disk, and the upgrade file is copied to realize the product firmware upgrade

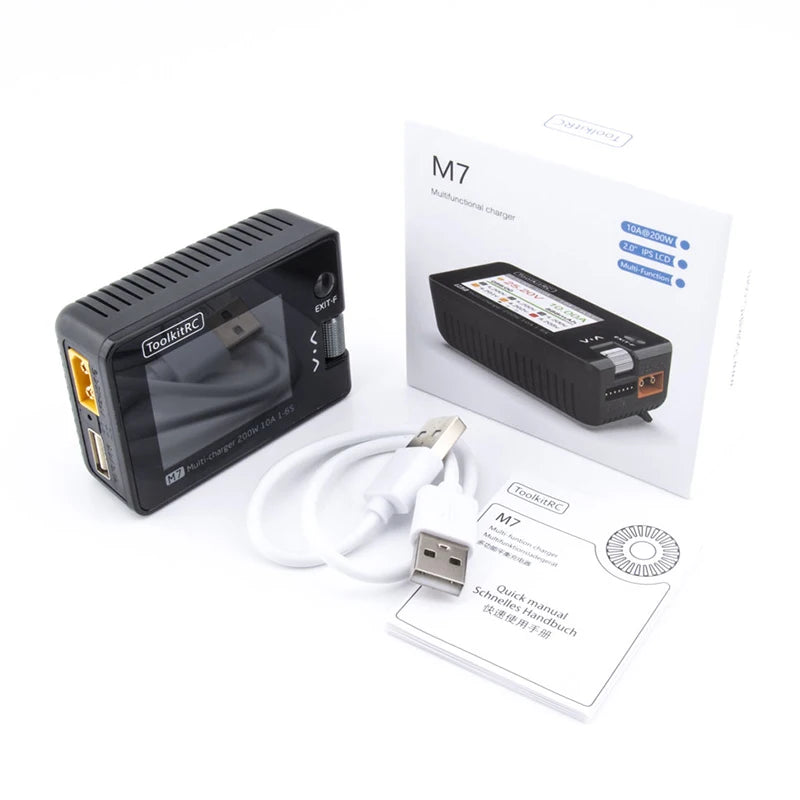

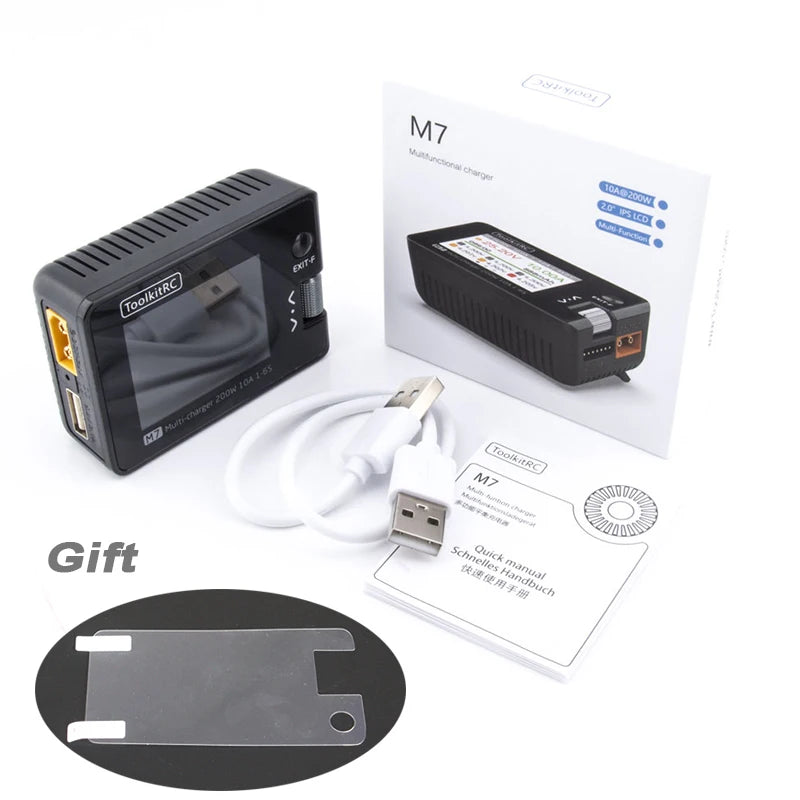

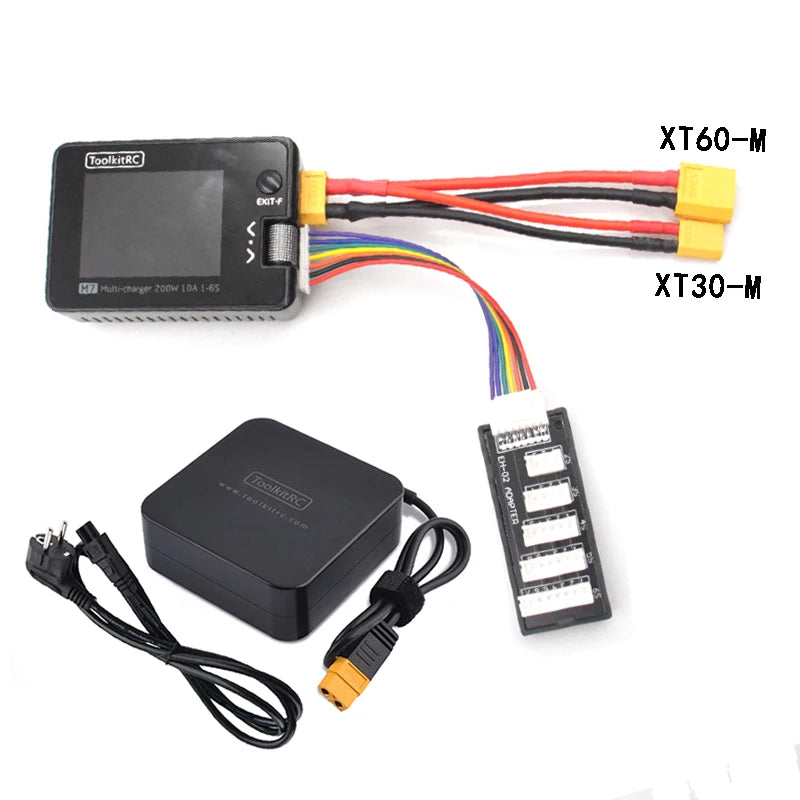

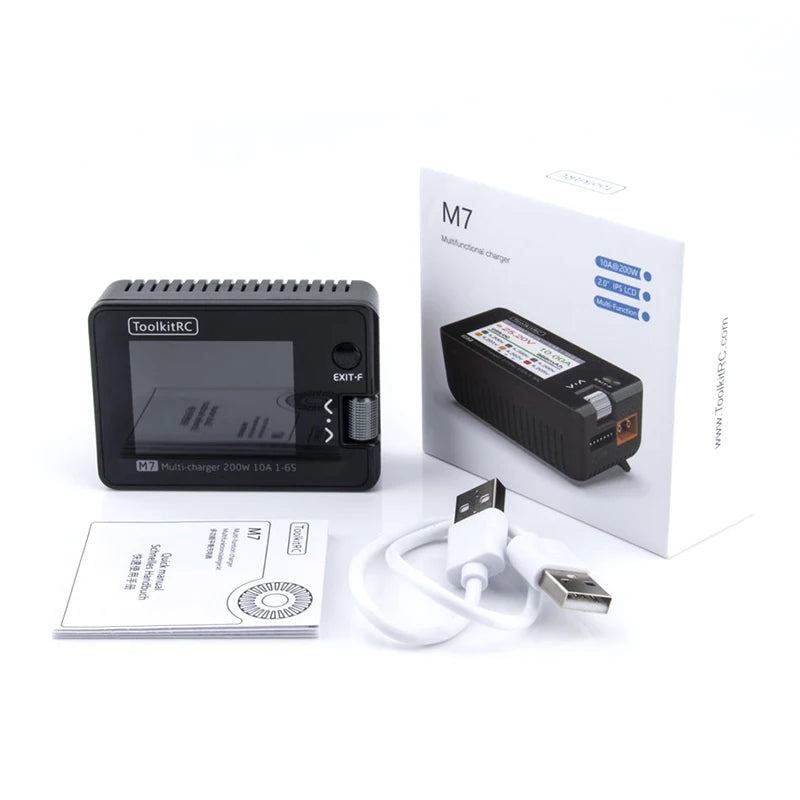

• Package Included:
• 1 X ToolkitRC M7 Charger
• or

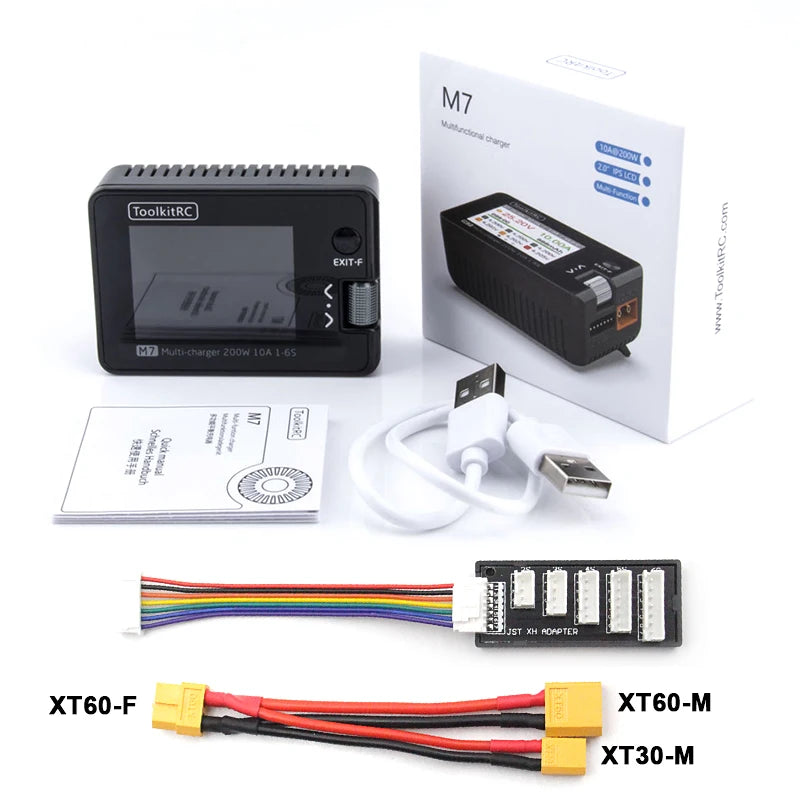

• 1 X ToolkitRC M7 Charger
• 1 x XT60-F to XT60-M XT30-M Extension cord
• 1 x 2-6S Adapter board
• or

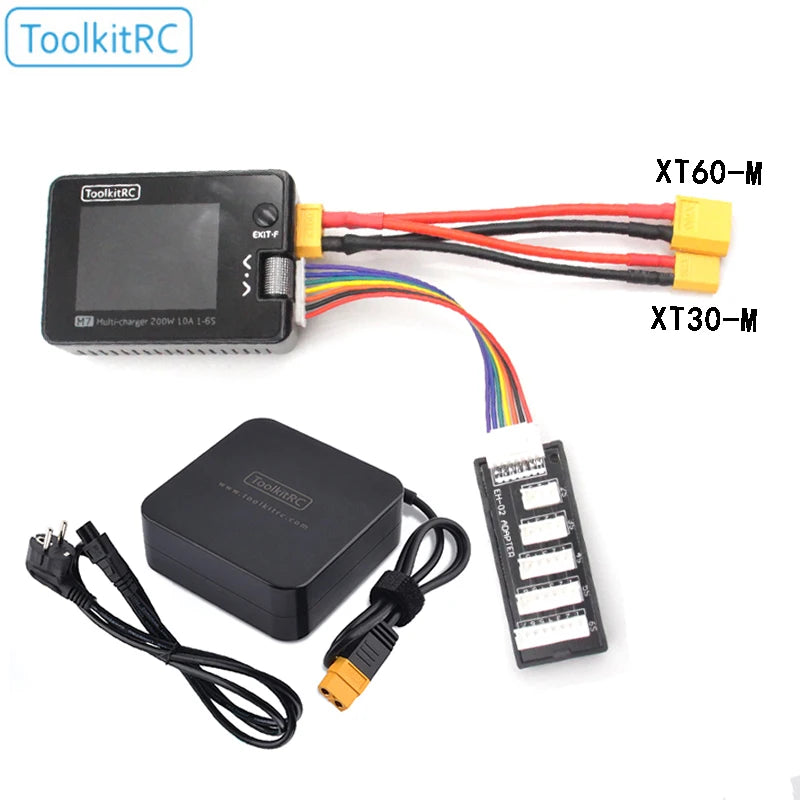

• 1 X ToolkitRC M7 Charger
• 1 x XT60-F to XT60-M XT30-M Extension cord
• 1 x 2-6S Adapter board
• 1 x ADP100 power supply

•
