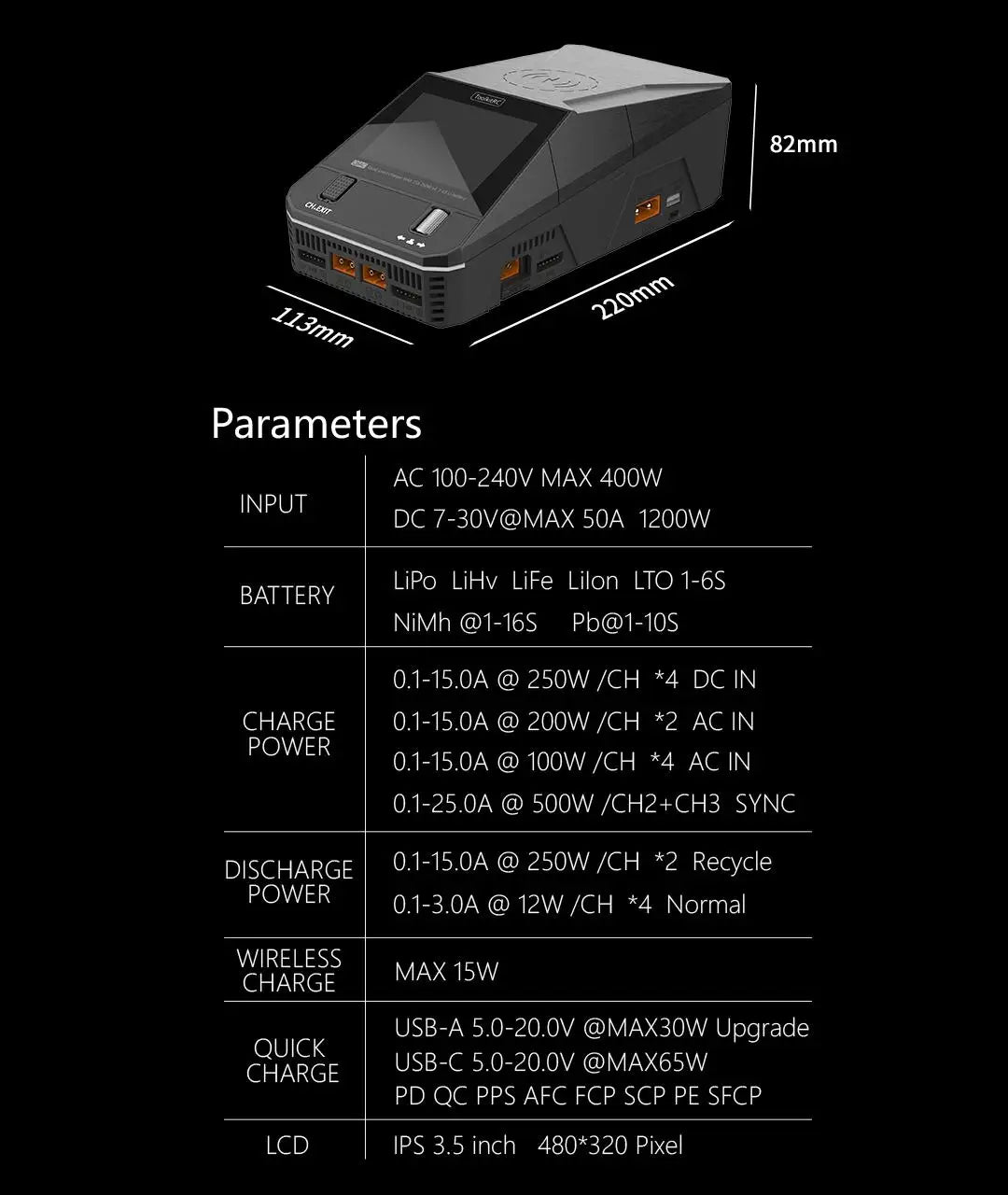

SPECIFICATIONS

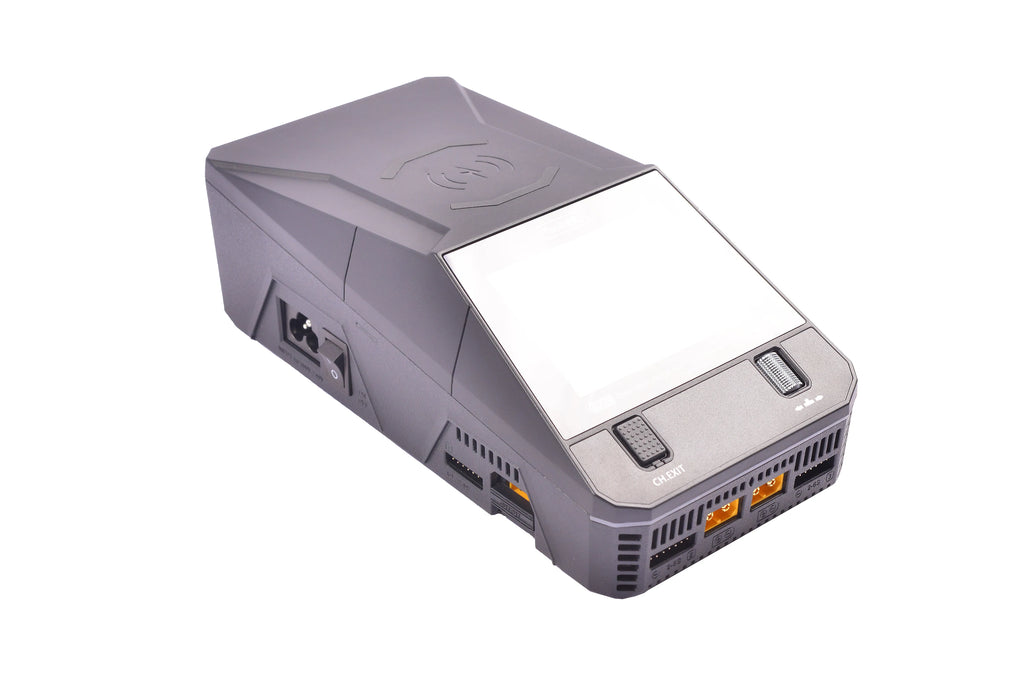

ToolkitRC Q6AC 400W/ DC 1000W 4CH Smart Balance Output Built-in 65W USB Output 15W Charger With Wireless for 1‑6S LiPo Batter

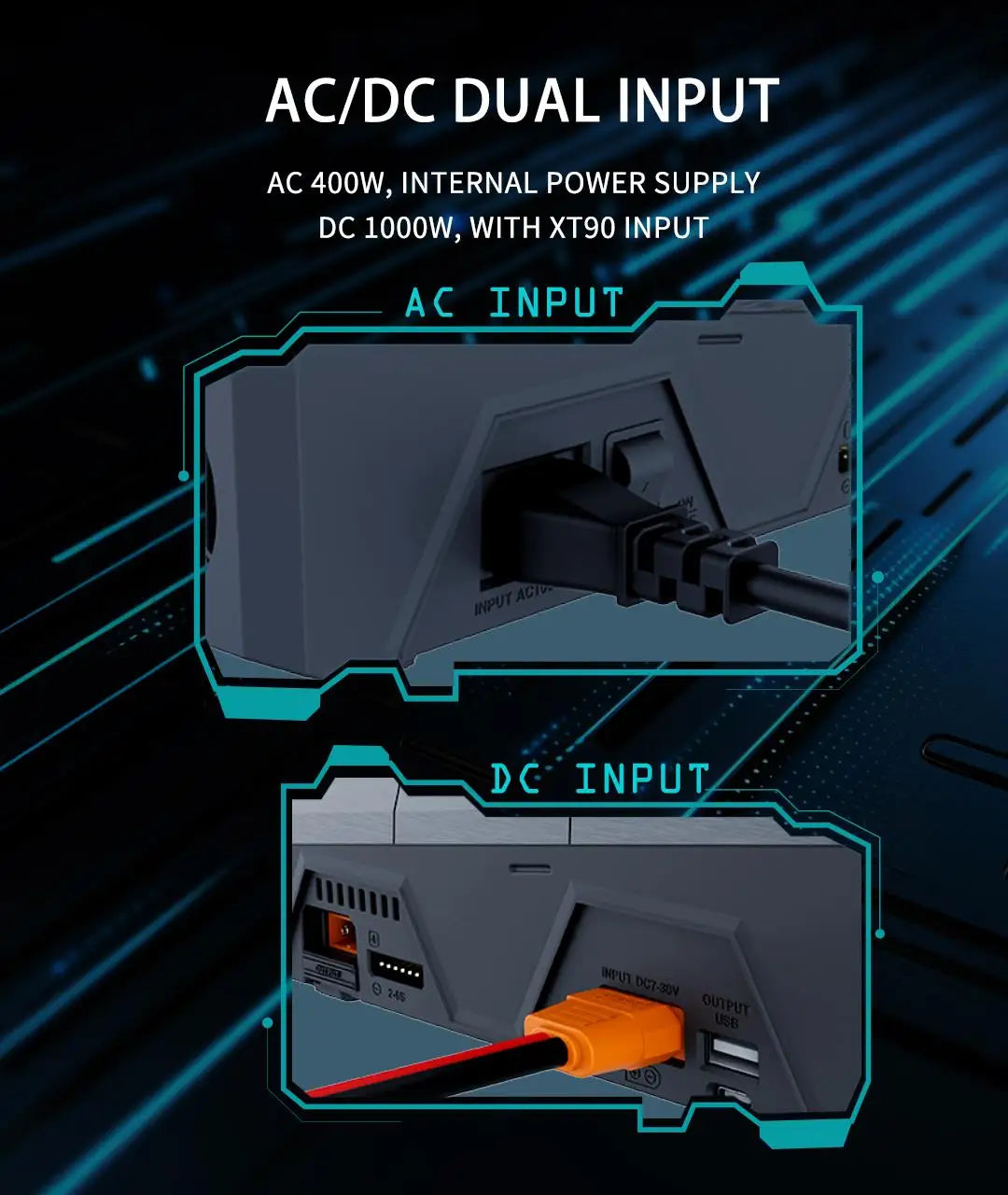

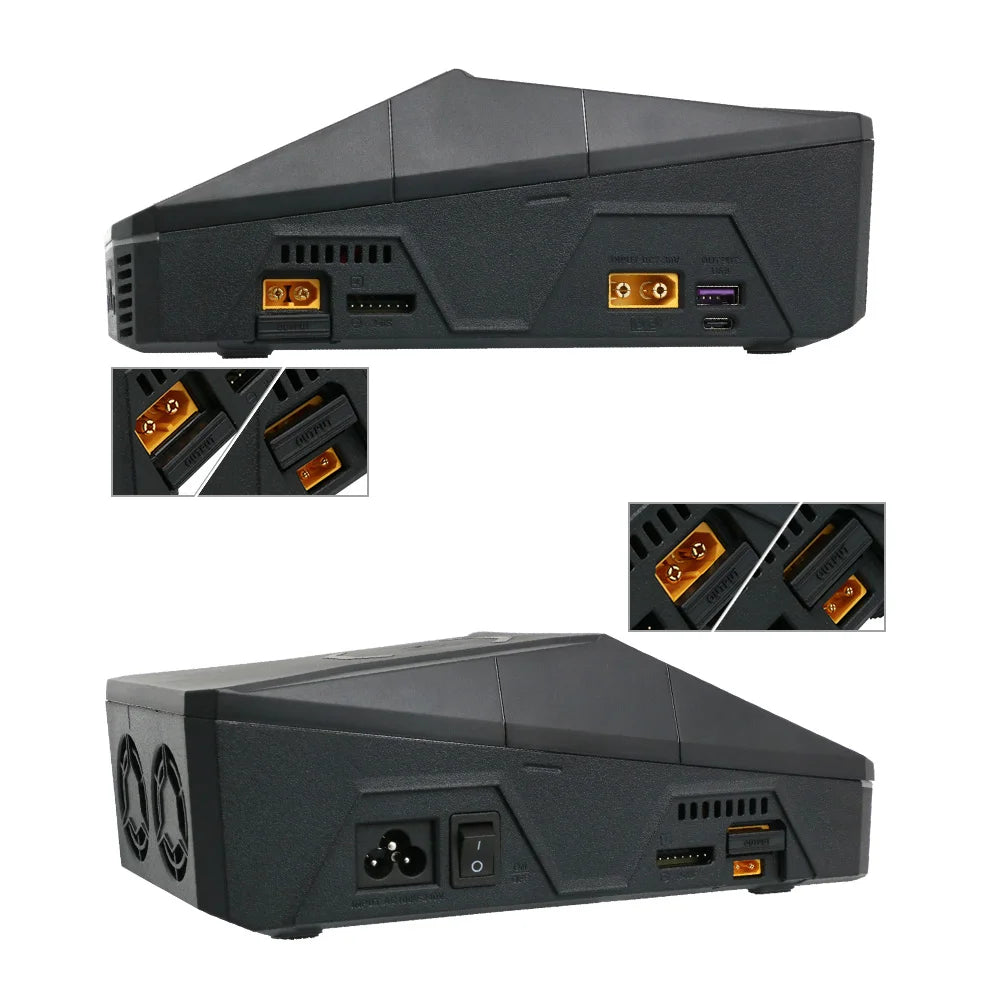

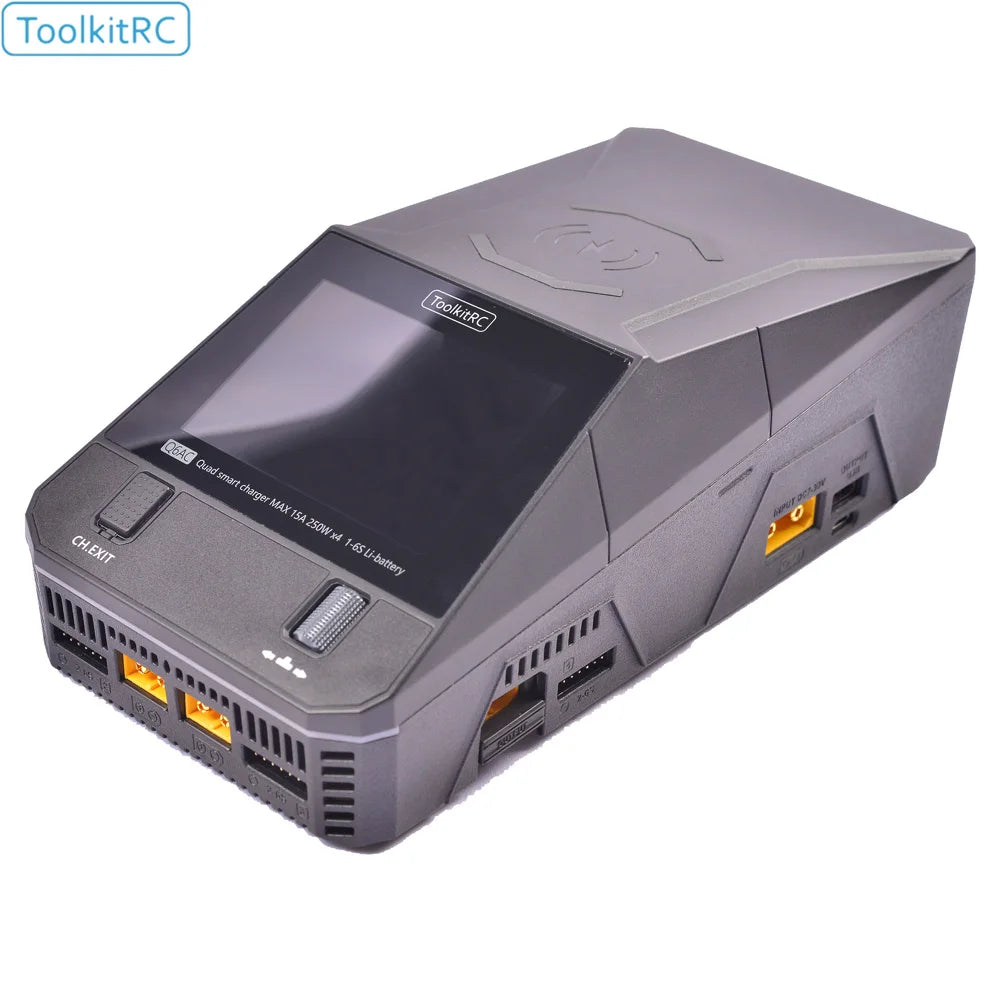

Q6AC four channel independent output, automatic power distribution, total output power up to 1000W, AC/DC dual mode input, built-in 400W AC power supply, XT90 DC input, power up to 1000W, Magesafe magnetic suction wireless charging, slider design, compatible with XT60/XT30 optional,


Input voltage: AC 100-240V, maximum 100W 5.0A

DC 7.0-30.0v @ Max 50A

Battery type: Lipo LiHV LiFe Lion LTO @ 1-6S

NiMh @ 1-16S Pb @ 1-10S

Balance current: 800mA @ 4.2V

Charging power: 250W @ MAX 15A * 4

Discharge power: 250W @ MAX 15A recycling mode

12w @ 3A normal mode

USBA: 30w or upgrade firmware

USBC: Maximum 65W@20.0V

PD QC PPS AFC FCP SCP PE SFCP

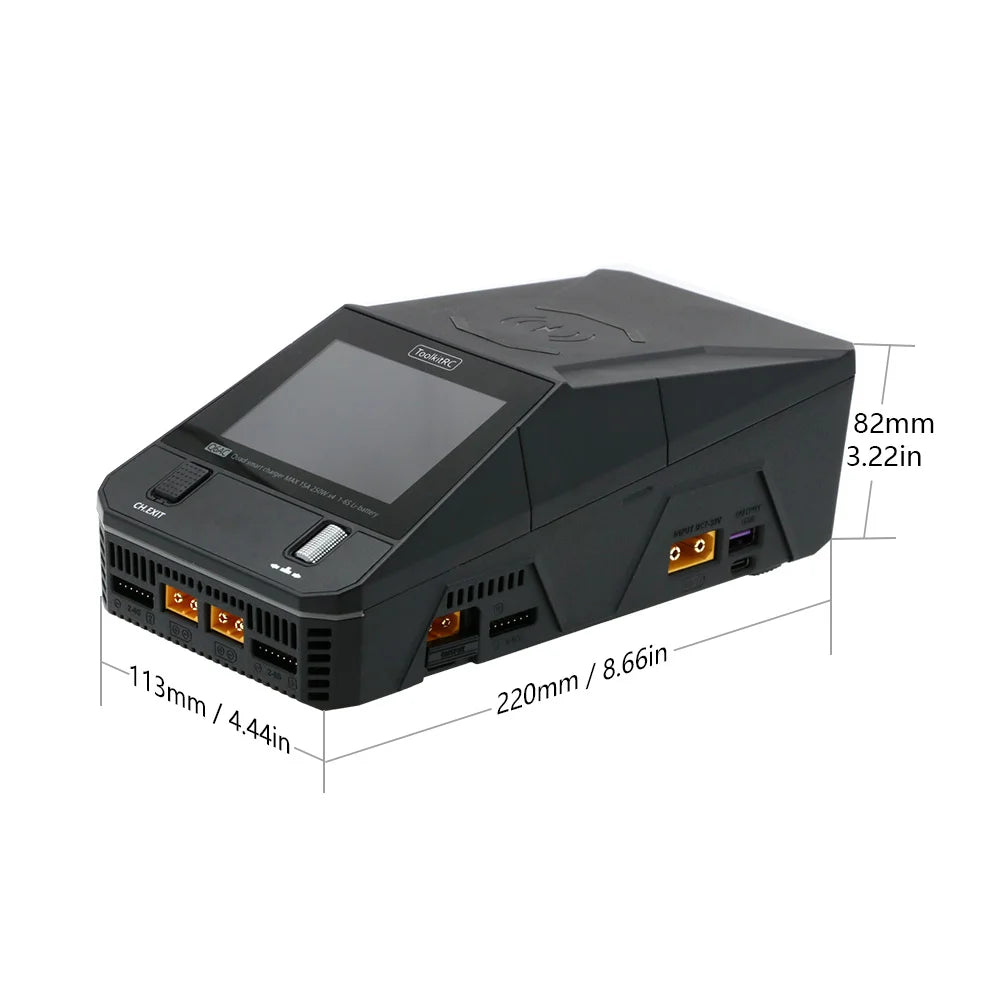

Product size: 220mm * 113mm * 82mm

Product weight: 1120g

Packaging size: 260 * 220 * 120 mm

Packaging weight: 1600g


Product Overview

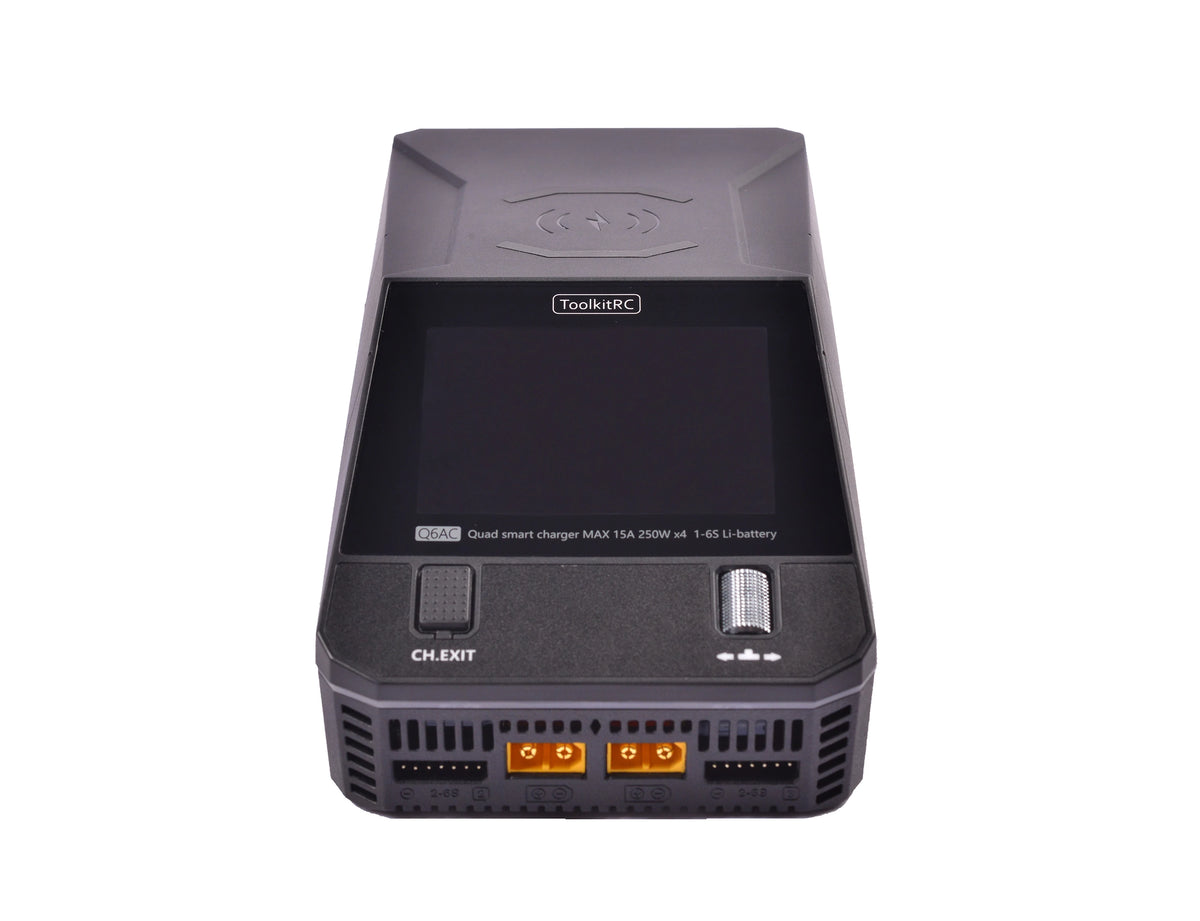

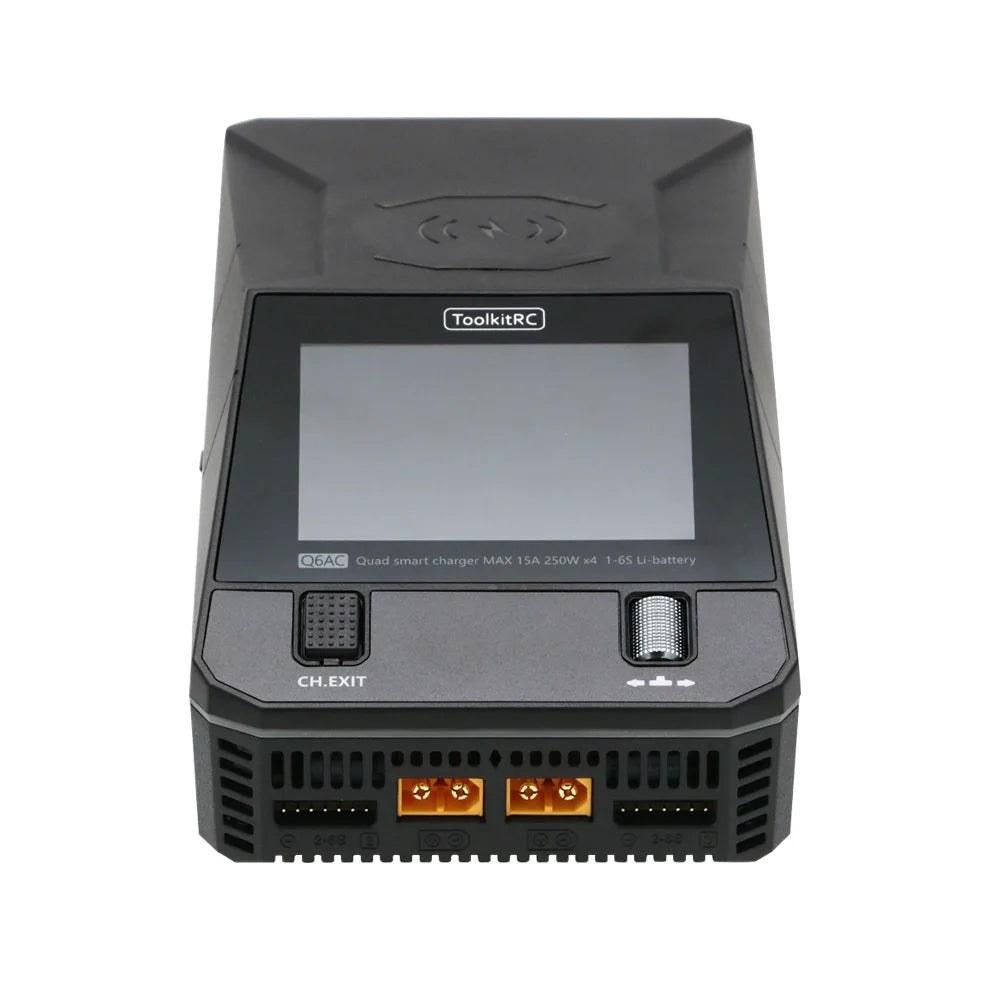

Q6AC is a four channel balanced charger product with IPS highlighted display screen and more convenient operation of roller encoder.

1. Charging accuracy<0.005V.

2. Balance current 800mA

3. Built in 15W wireless charging.

4. Built in 65W C/30W A fast charging.

5. Lithium battery cut-off voltage can be set (TVC function)

6. Automatic allocation of input power

7. Multi language system, can switch to the desired language at will

8. Simulate the device as a disk, copy the upgrade file to achieve product firmware upgrade

9. Can record 32 commonly used batteries.

10. It can record 3 sets of commonly used power supplies, making it convenient for quick translation selection.
