Top-Quality 24V Imported Electric Skateboard Motor 56mm Diameter 130KV Brushless Motor with External Rotor and Hall Sensor

Top-Quality 24V Imported Electric Skateboard Motor 56mm Diameter 130KV Brushless Motor with External Rotor and Hall Sensor

$127.94

$127.94 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CCC,ce

Commutation: Brushless

Construction: Permanent Magnet

Continuous Current(A): 0.8A

Efficiency: IE 1

Model Number: Neodymium strong magnetic external rotor brushless motor

Origin: Mainland China

Protect Feature: Drip-proof

Type: Micro Motor

Usage: BOAT,Car,Electric Bicycle,Fan,Home Appliance

modname=ckeditor

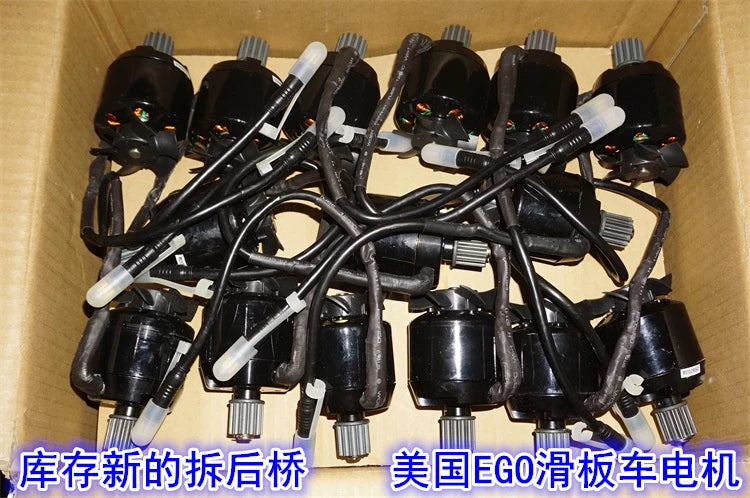

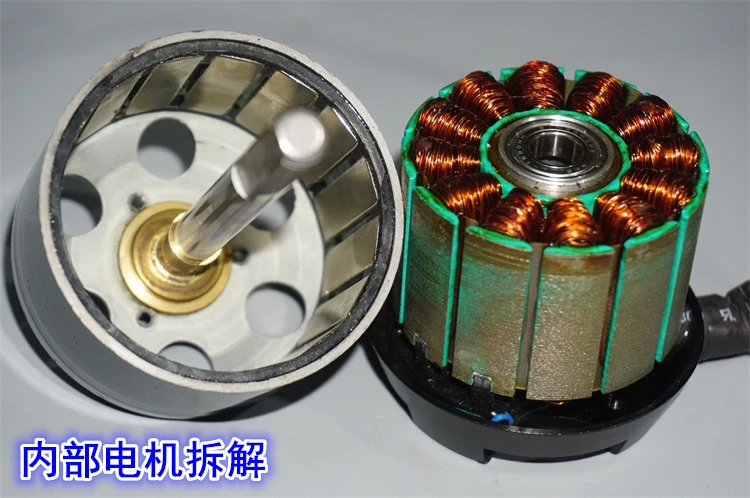

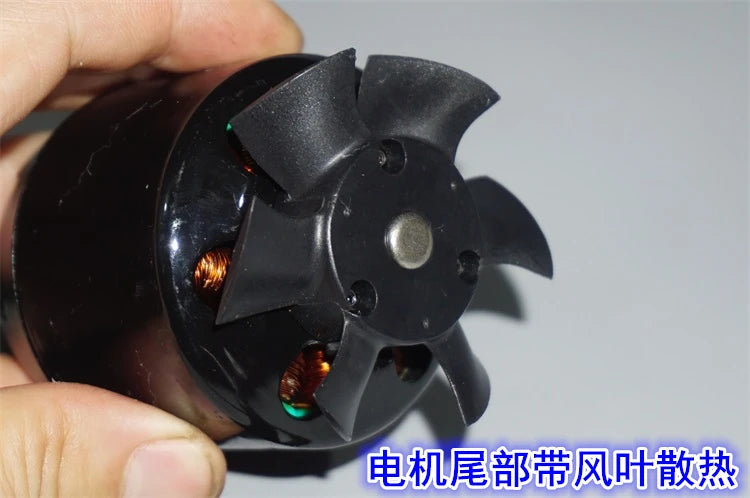

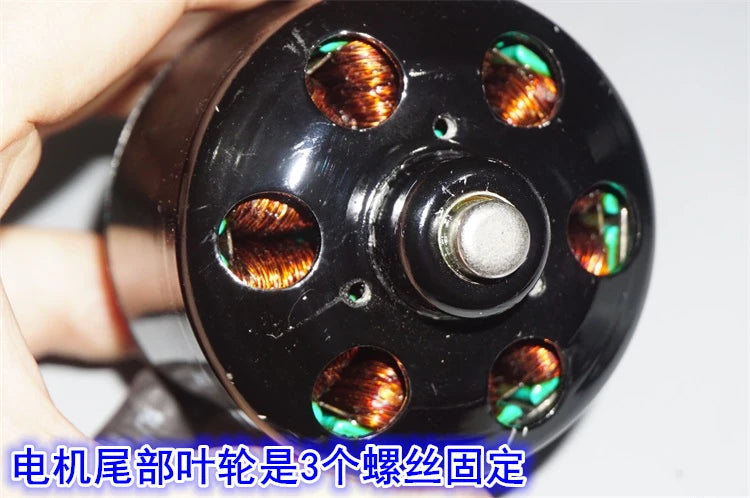

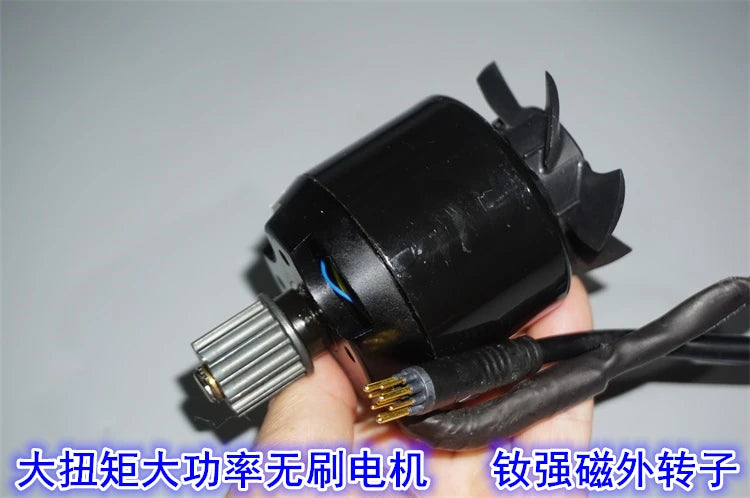

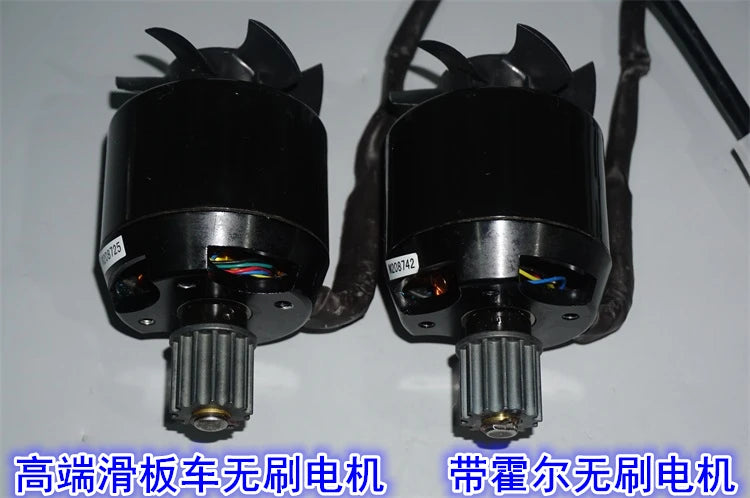

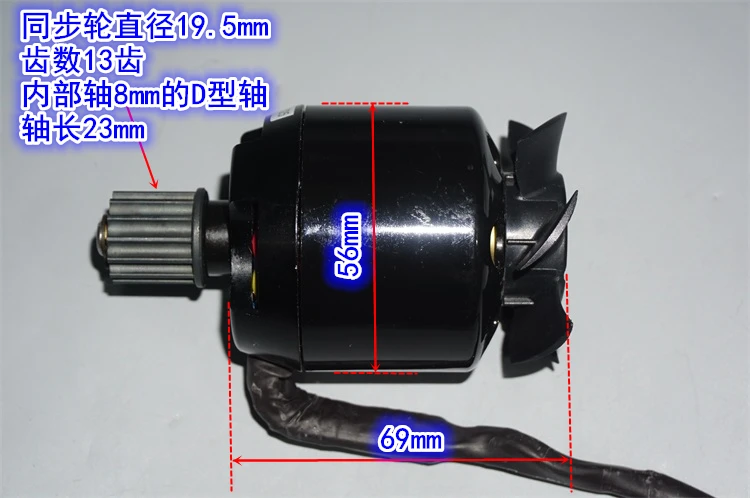

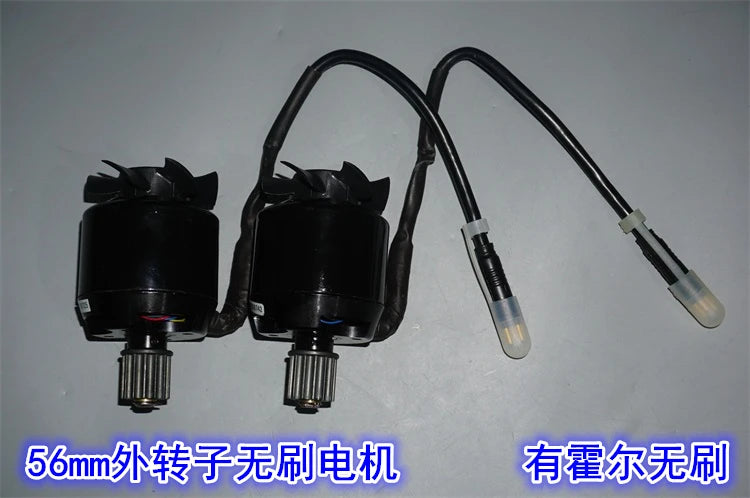

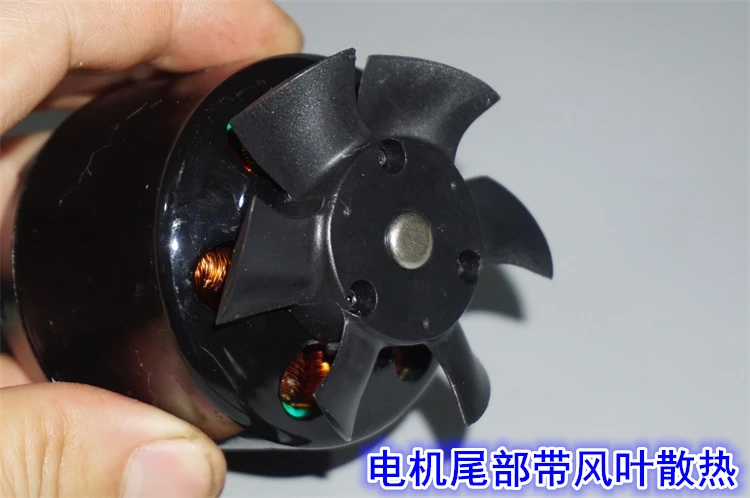

A new inventory of disassembled scooter rear axle brushless motors is available on an American brand EGO scooter, with a motor diameter of 56mm and a neodymium strong magnetic outer rotor brushless motor. The tail is equipped with cooling blades, a high-power brushless motor with high torque, and a Hall type brushless motor. Currently, Hall does not have the condition to test. Generally, the new problem is not significant, and to avoid controversy, Hall is not included. The motor can also be driven by a Hall free brushless electric motor, KV130, Original 7S power battery drive.

After removing the motor, there may be slight friction and scratches on its appearance during transportation, which does not affect its functional use.

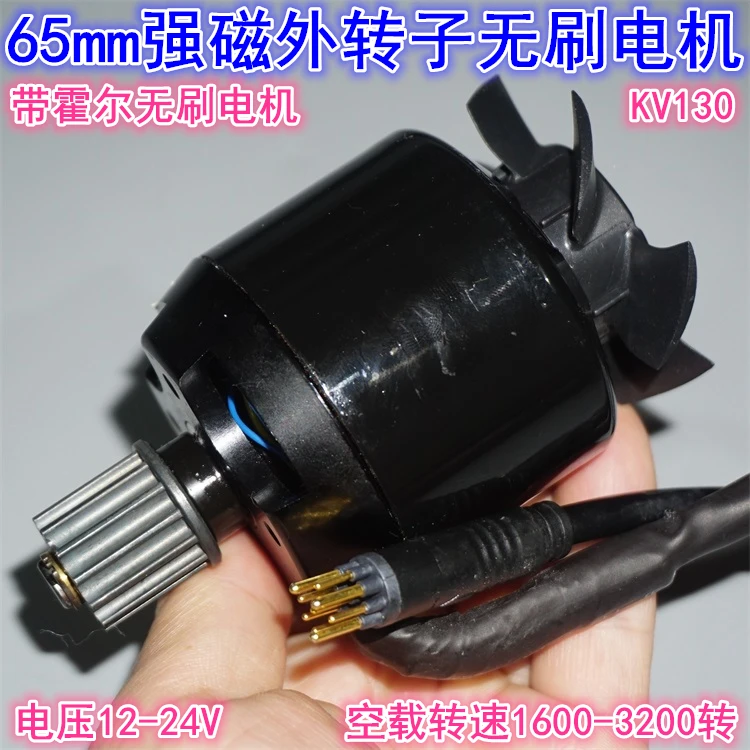

The motor can operate with a measured nominal voltage of 25.2V and a measured voltage of 12-24V, depending on the actual test. As long as it is not overheated or overloaded, it can be used, even with an overpressure of 36V. The measured rotational speeds under different voltages are as follows.

Voltage 12V, no-load current 0.45A, no-load speed 1600 rpm.

Voltage 24V, no-load current 0.63A, no-load speed 3200 rpm.

Voltage 36V, no-load current 0.8A, no-load speed 5000 rpm.

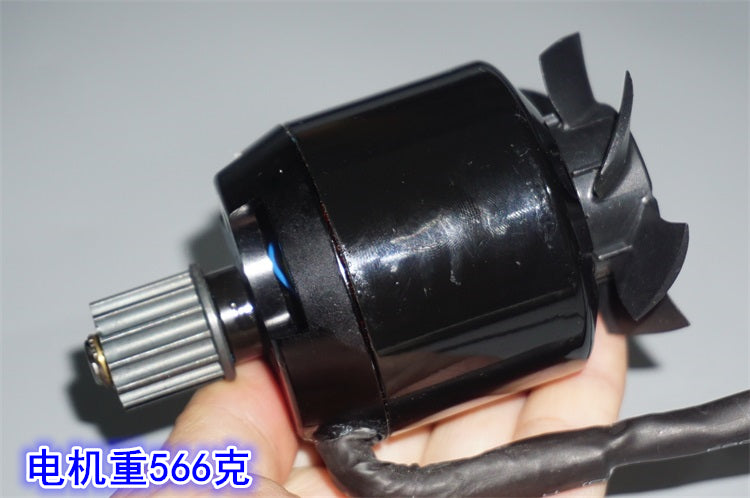

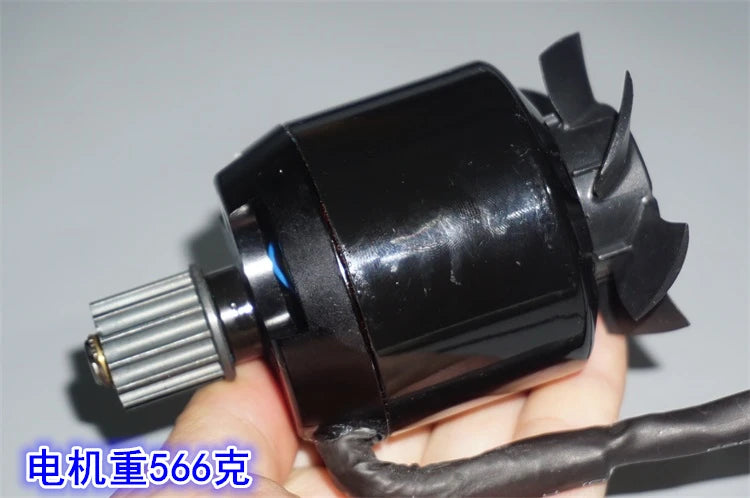

The motor weighs approximately 566 grams.
