TORT7 Series Delay-ON Delay-OFF 10in1 Asymmetric Cycler Time Relay Multi-function Timer Switch 0.1S-10D Pulse Generator Interval

TORT7 Series Delay-ON Delay-OFF 10in1 Asymmetric Cycler Time Relay Multi-function Timer Switch 0.1S-10D Pulse Generator Interval

$68.85

$68.85 $0.00

Size TORT7-B1 Delay-off TORT7-A1 Delay-on TORT7-S1 Asy Cycle TORT7-M1 10 IN 1

Current RangeAC230V 16A 50-60Hz

Description

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: TORT7 series

Origin: Mainland China

Power Source: Ac,Ac

TIME: 0.1S-10D

Theory: Time Relay

Use: General Purpose

VOLT: AC230V 50/60Hz

Voltage: 220V

is_customized: Yes

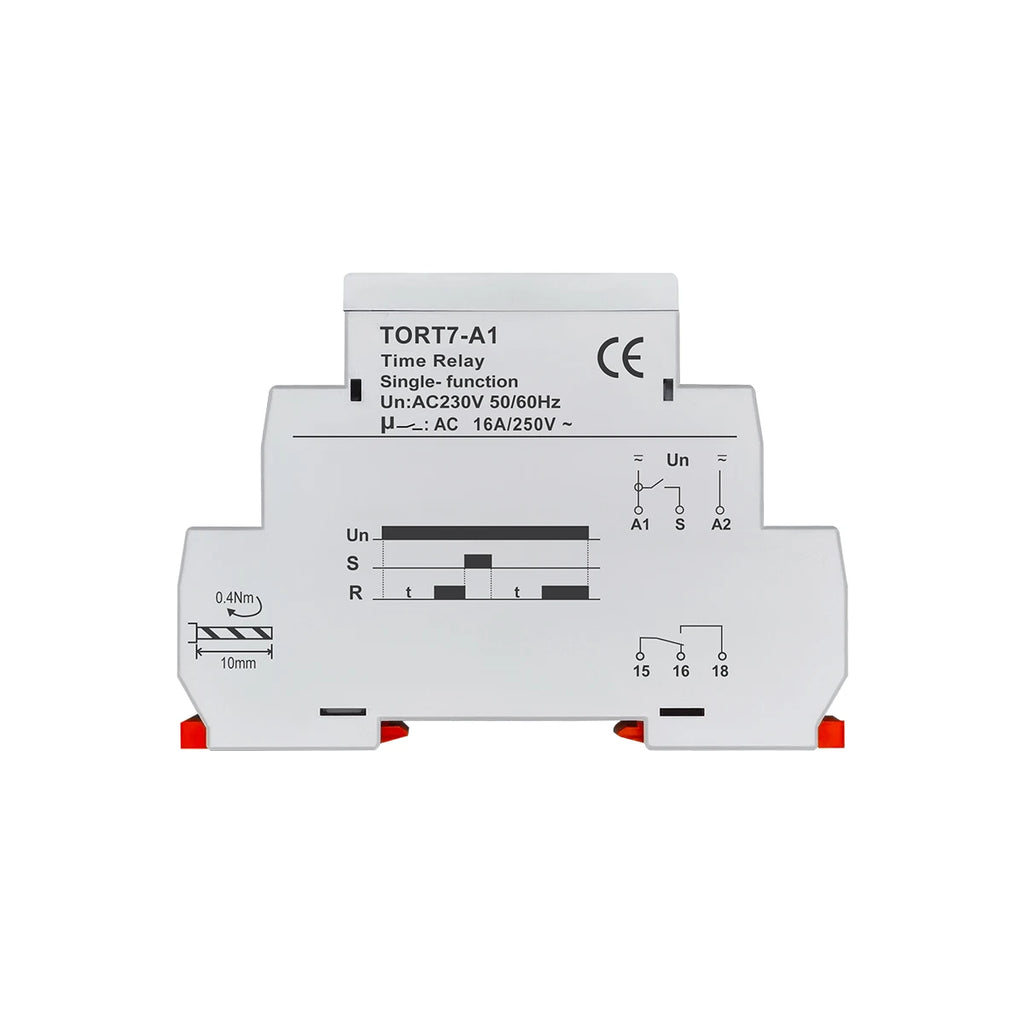

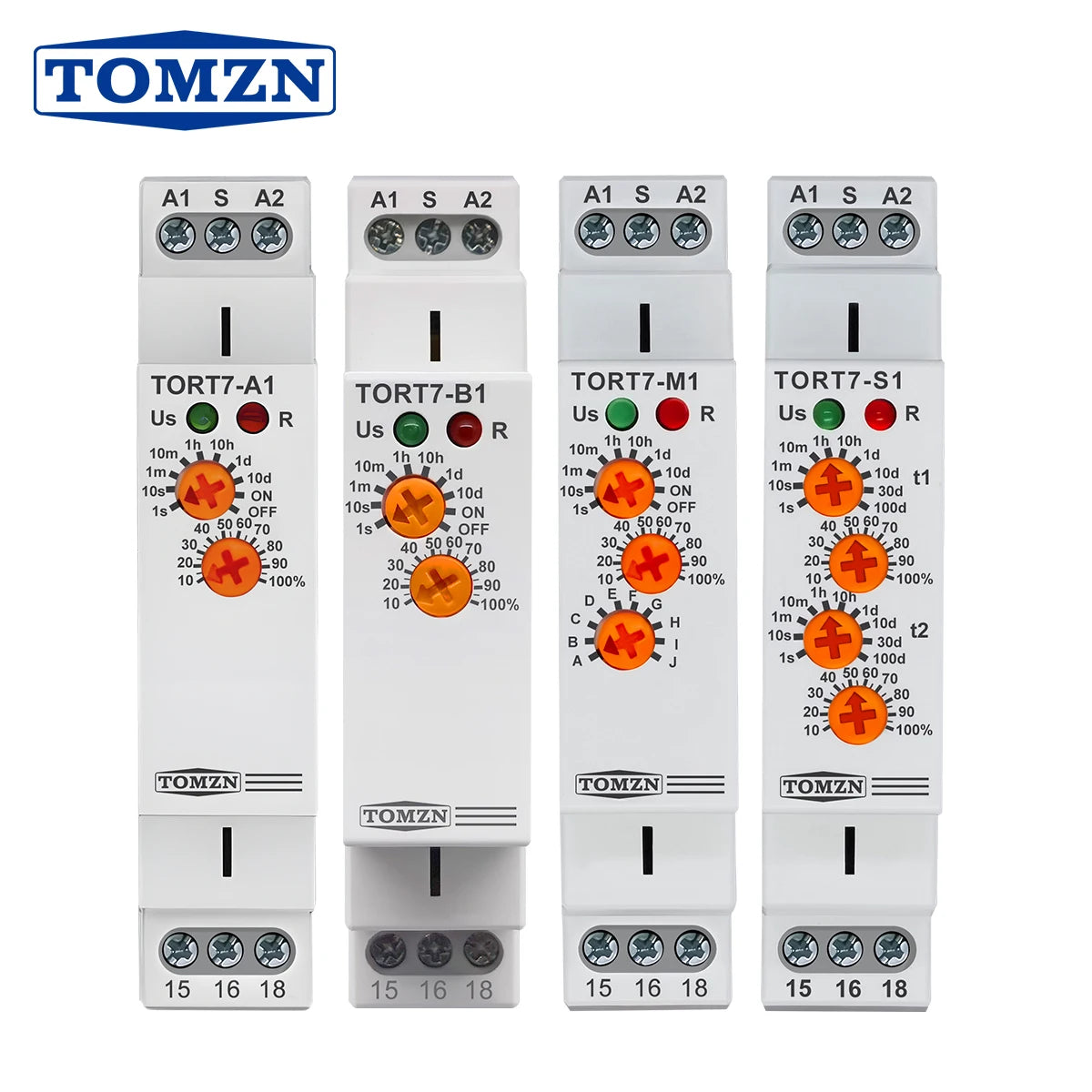

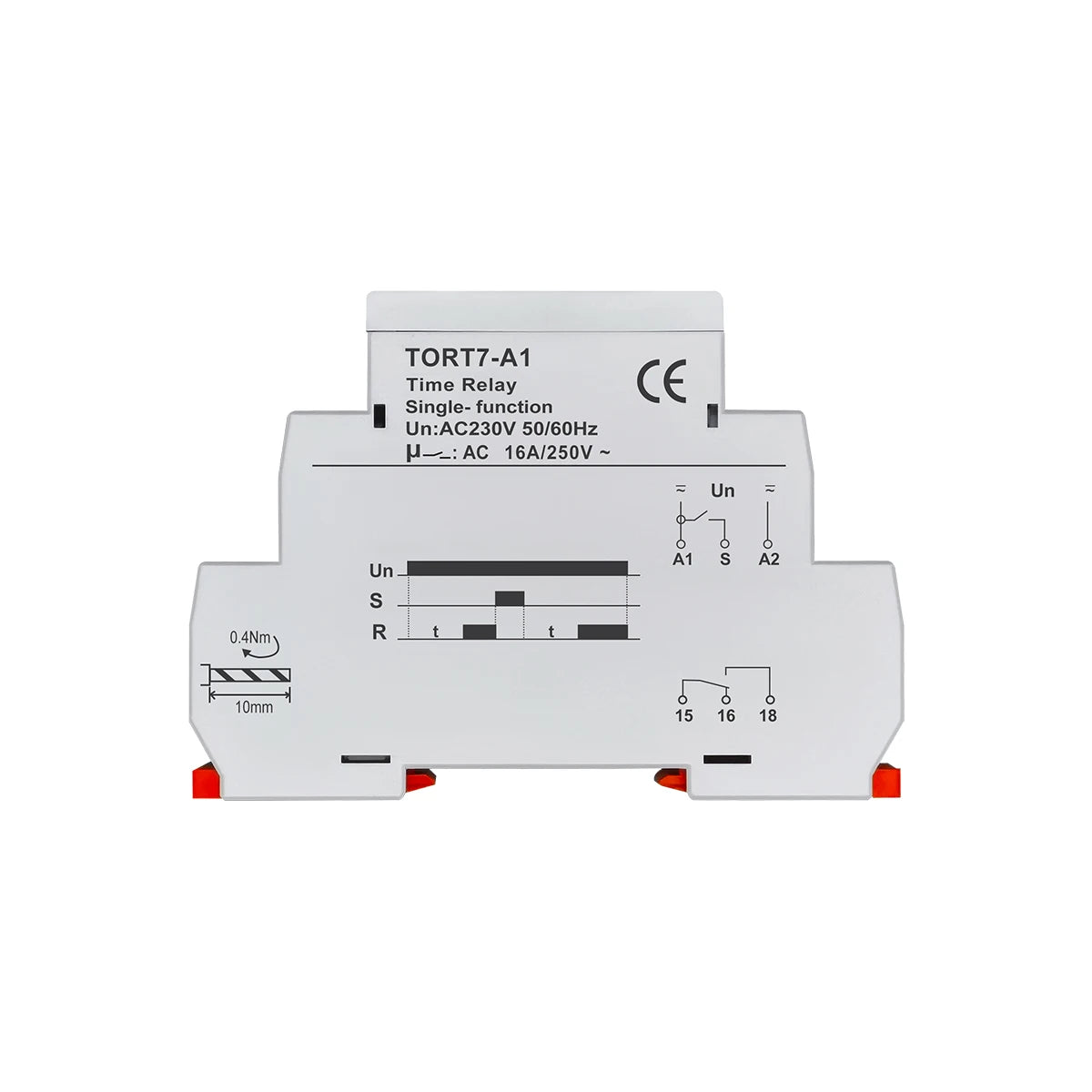

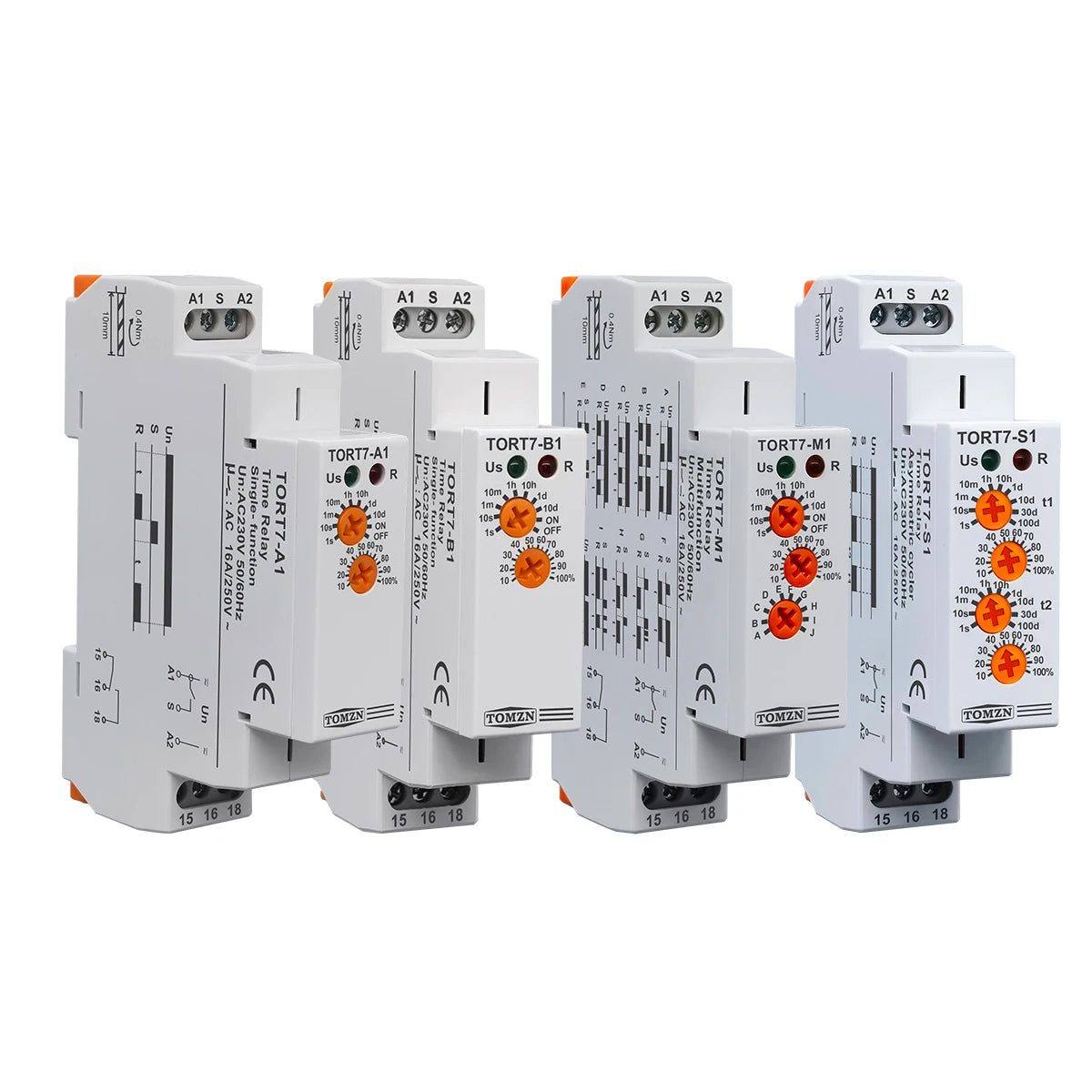

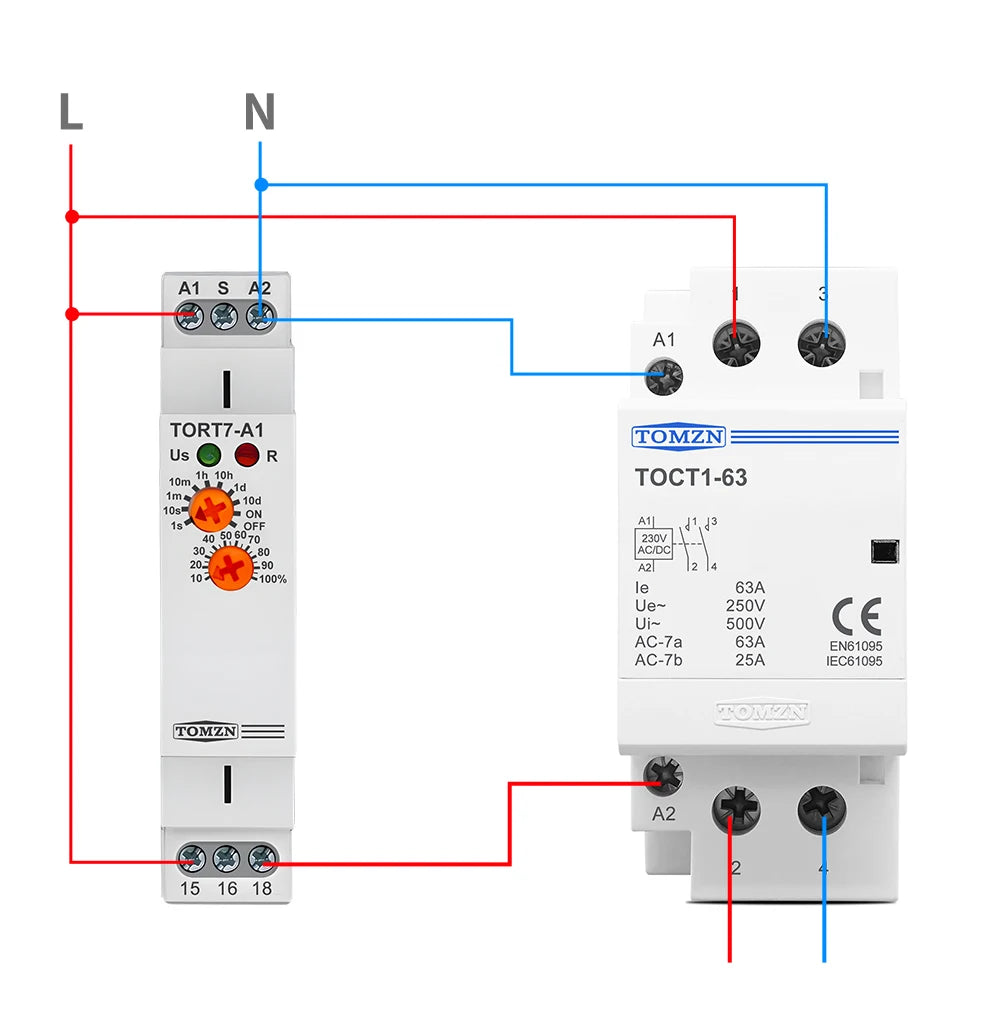

TORT7-A1 Delay-ON Time Relay 0.1S-10DAYS

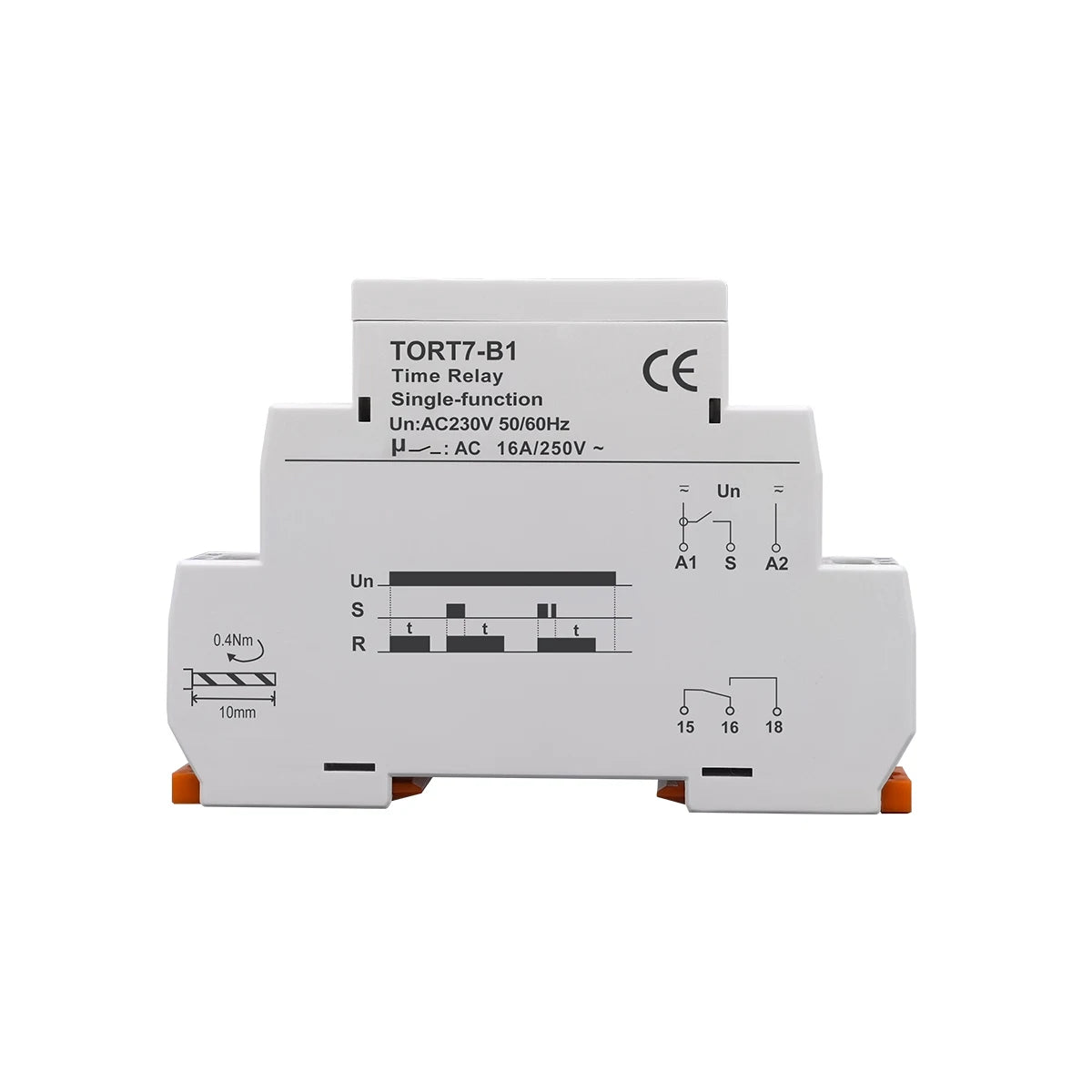

TORT7-B1 Delay-OFF Time Relay 0.1S-10DAYS

TORT7-M1 10 IN 1 Multi-function Time Relay 0.1S-10DAYS

TORT7-S1 Asymmetric cycle Time Relay 0.1S-10DAYS

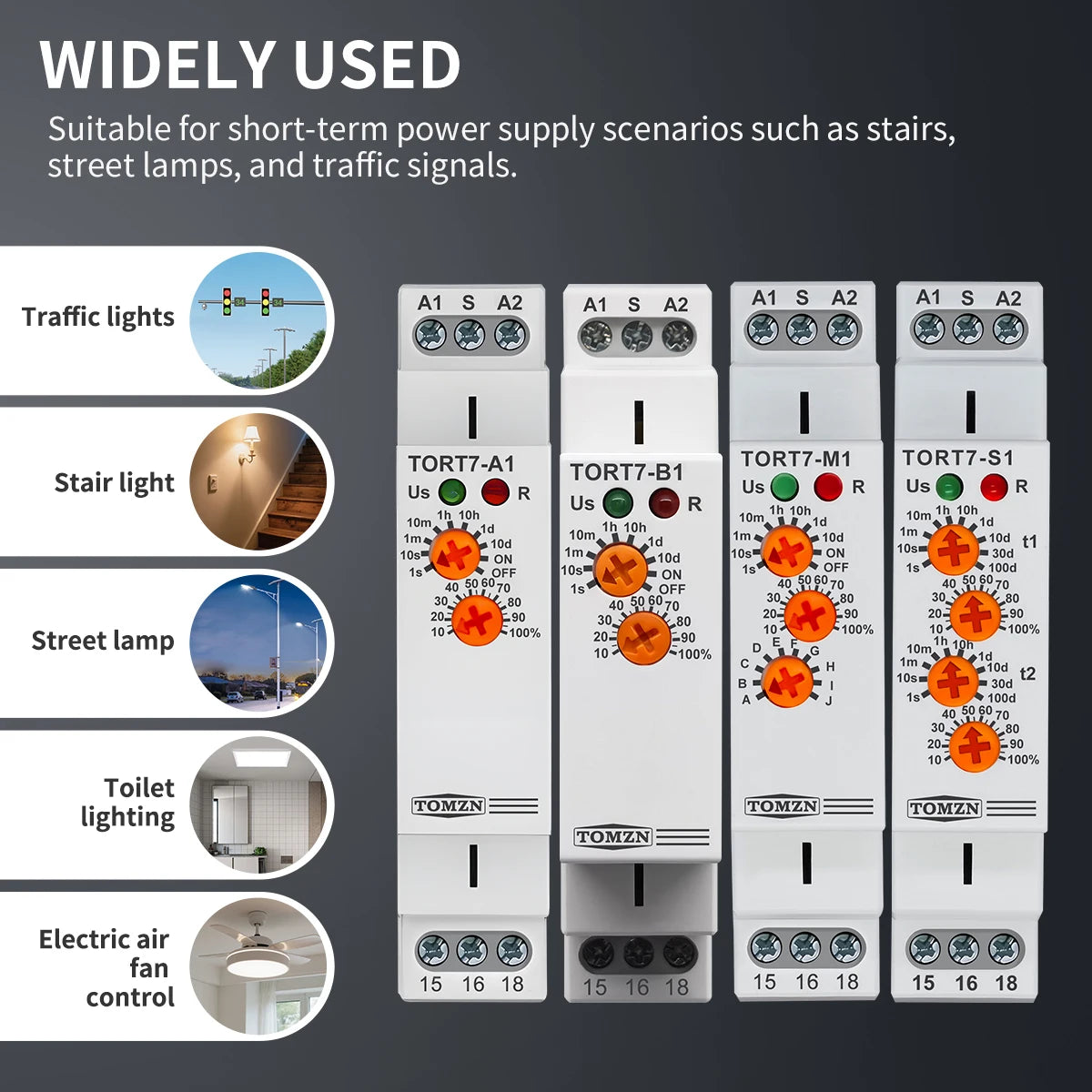

1.General

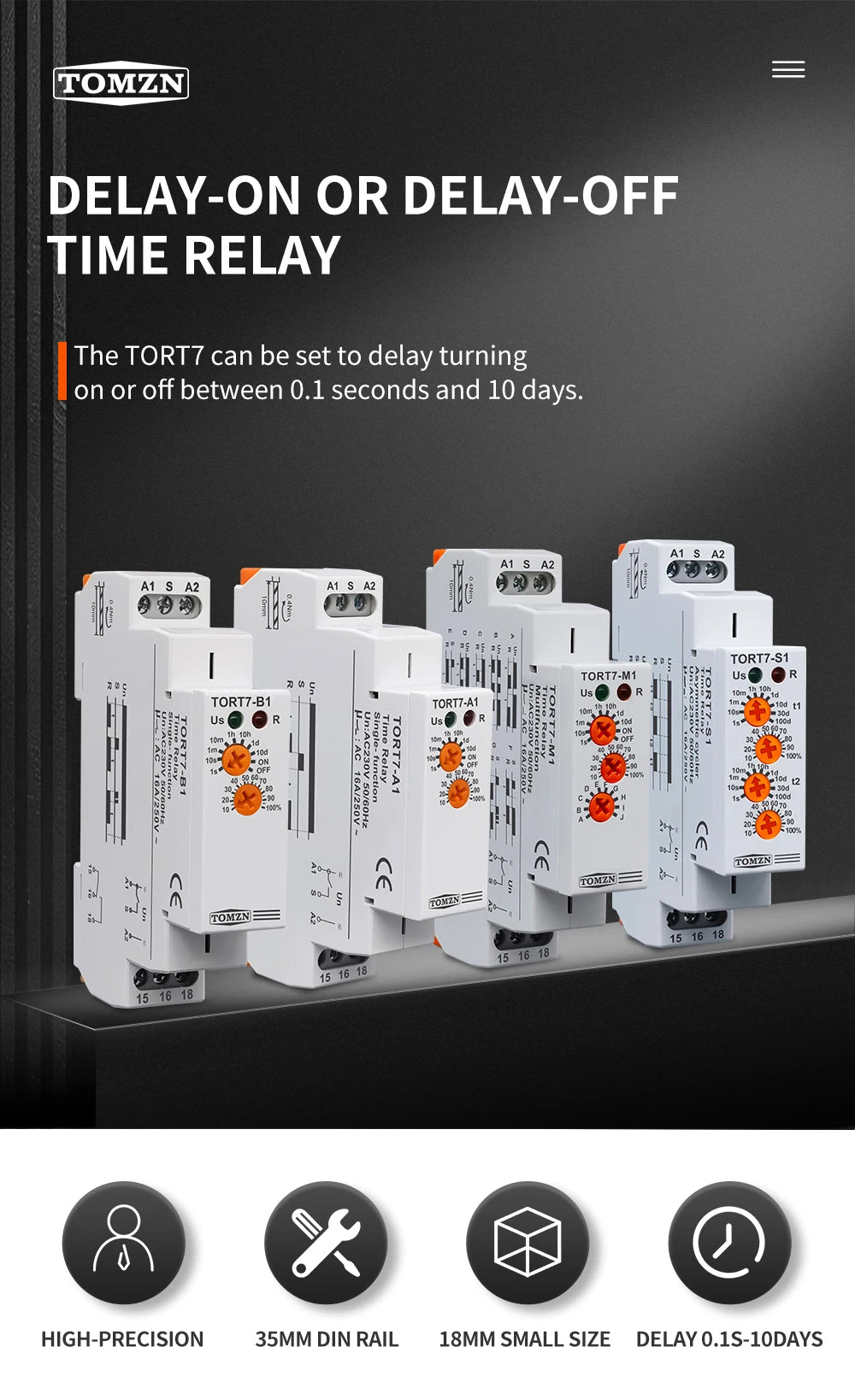

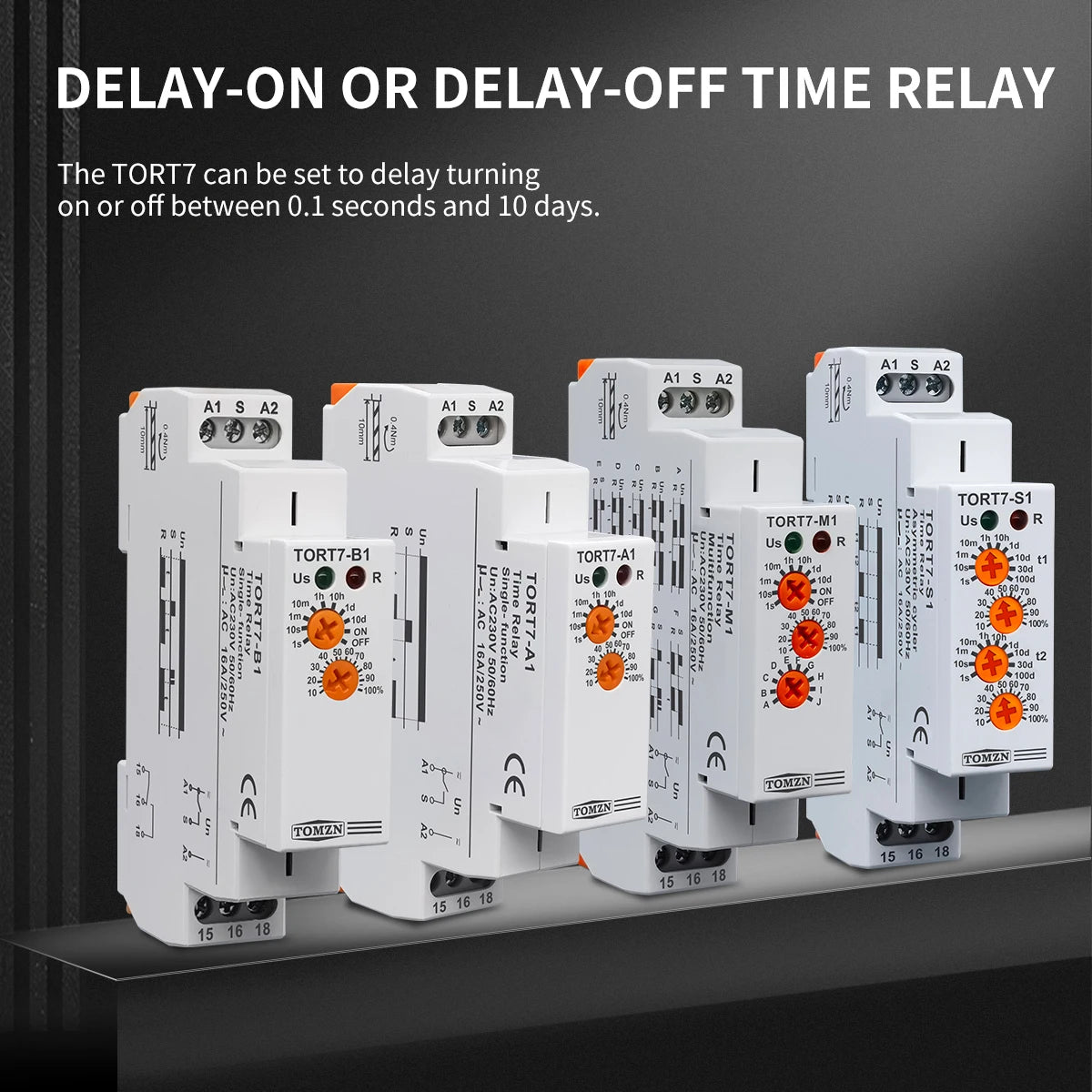

TOMZN TORT7 series is a versatile, high-performance off-delay time relay designed for robust industrial automation and control applications. It excels in scenarios requiring a delayed ON/OFF after a control signal is removed, such as providing pump decay time after a heating system is switched off or for the extended operation of ventilation fans. With a flexible timing capacity that scales from 0.1 seconds up to 10 days across ten selectable ranges, it offers unparalleled adjustment versatility. The relay is available in two output configurations to suit various load control needs and features a clear LED status indicator for easy monitoring. Housed in a standard 18mm DIN rail module.

3.Function

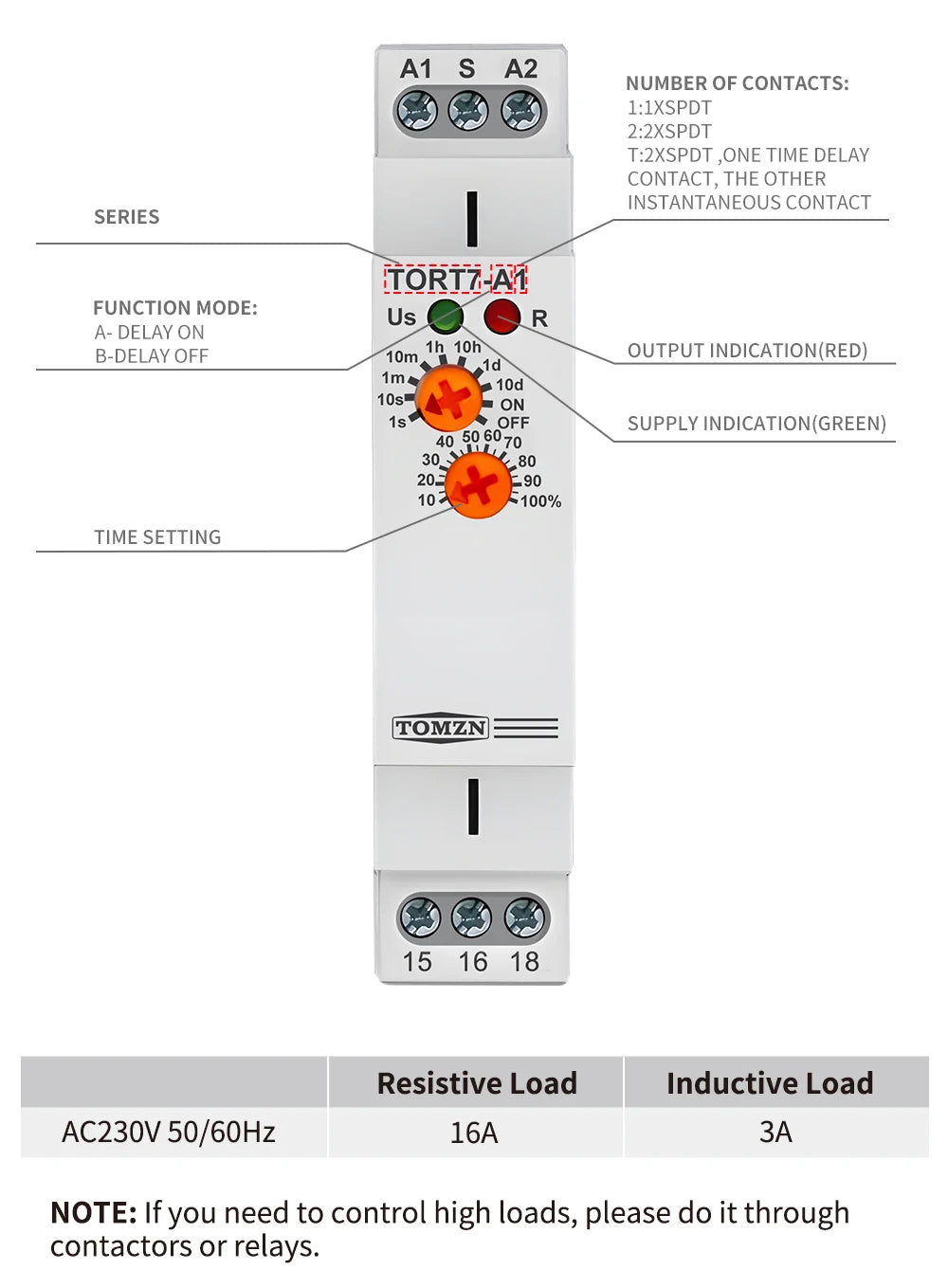

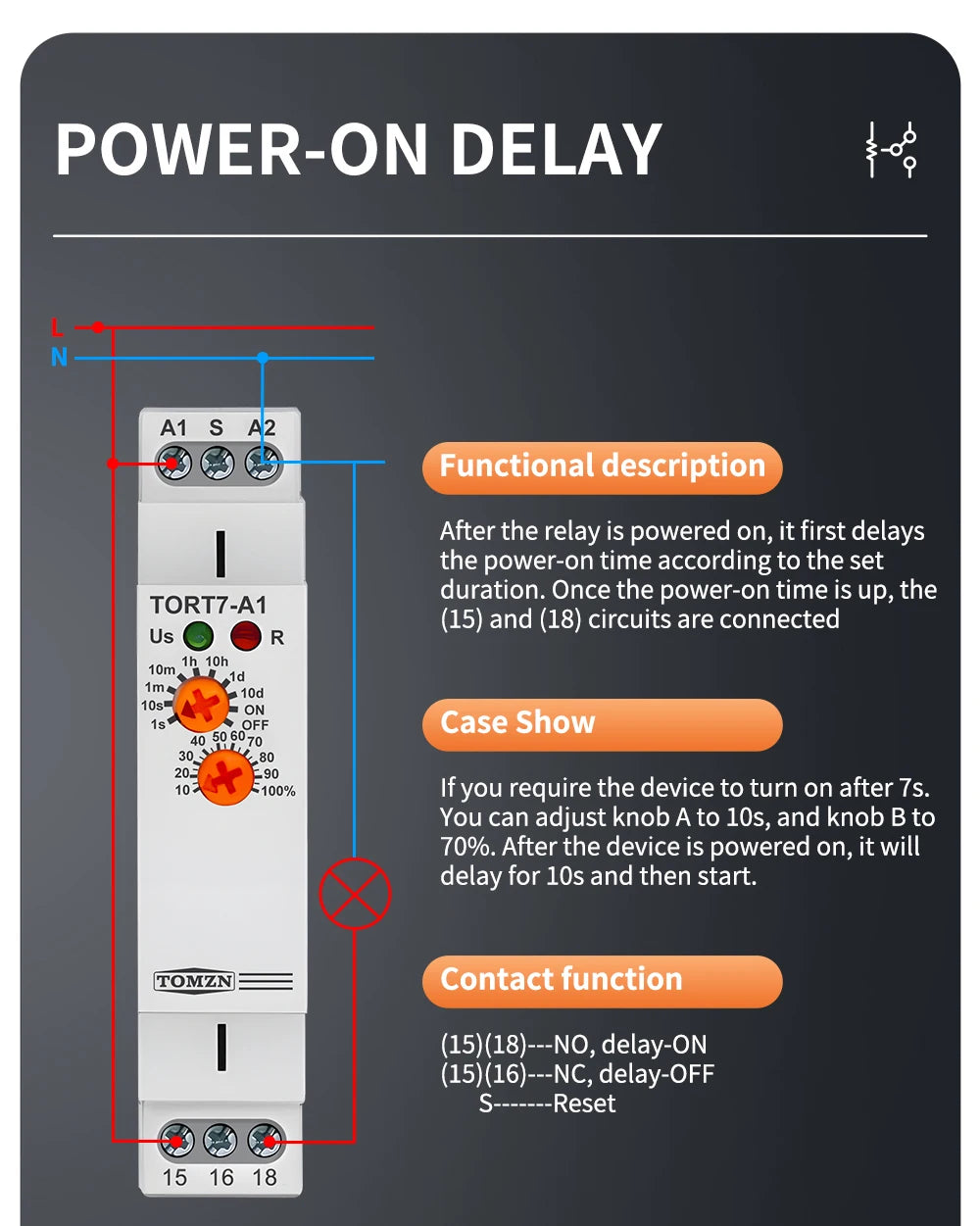

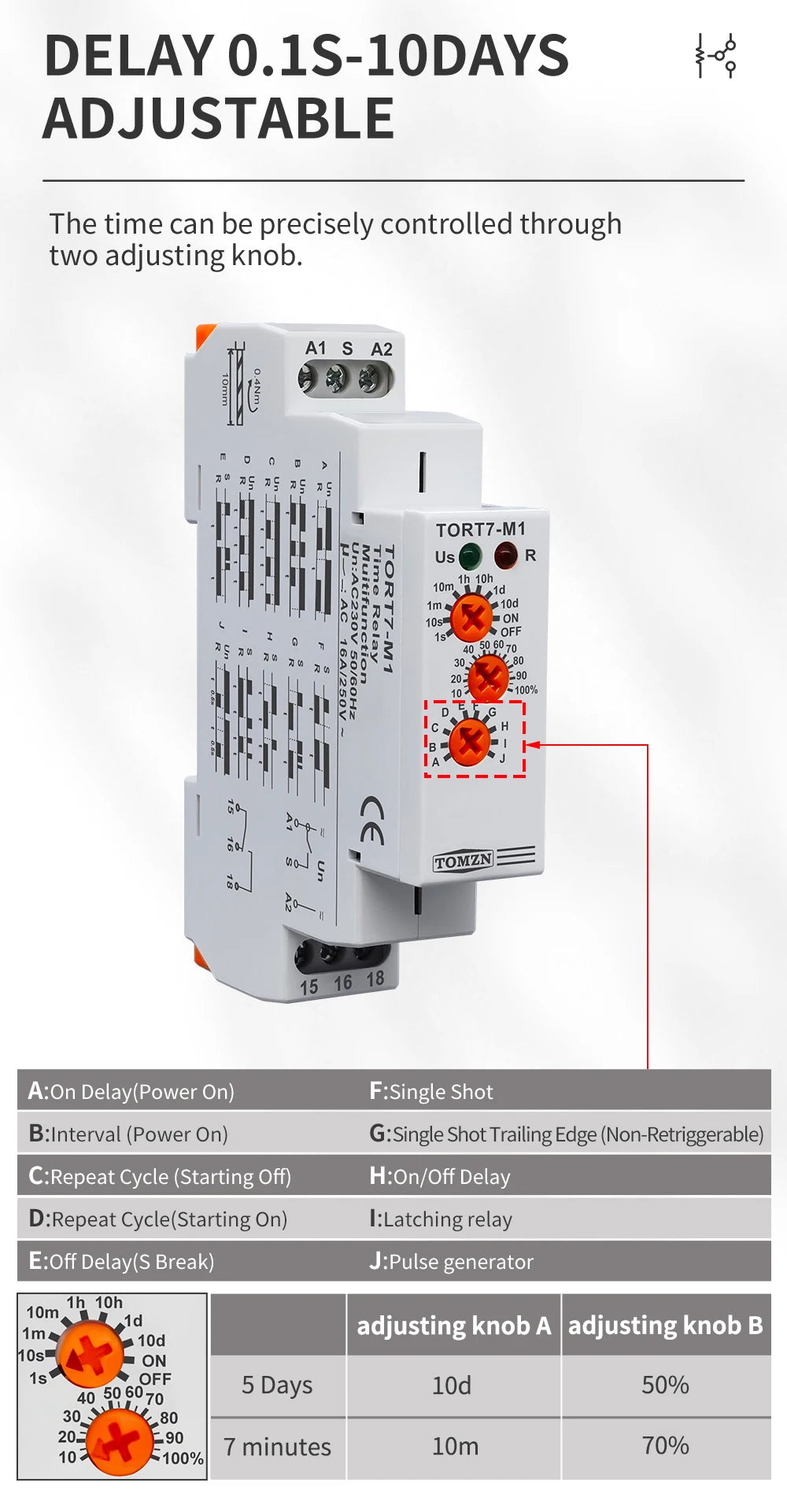

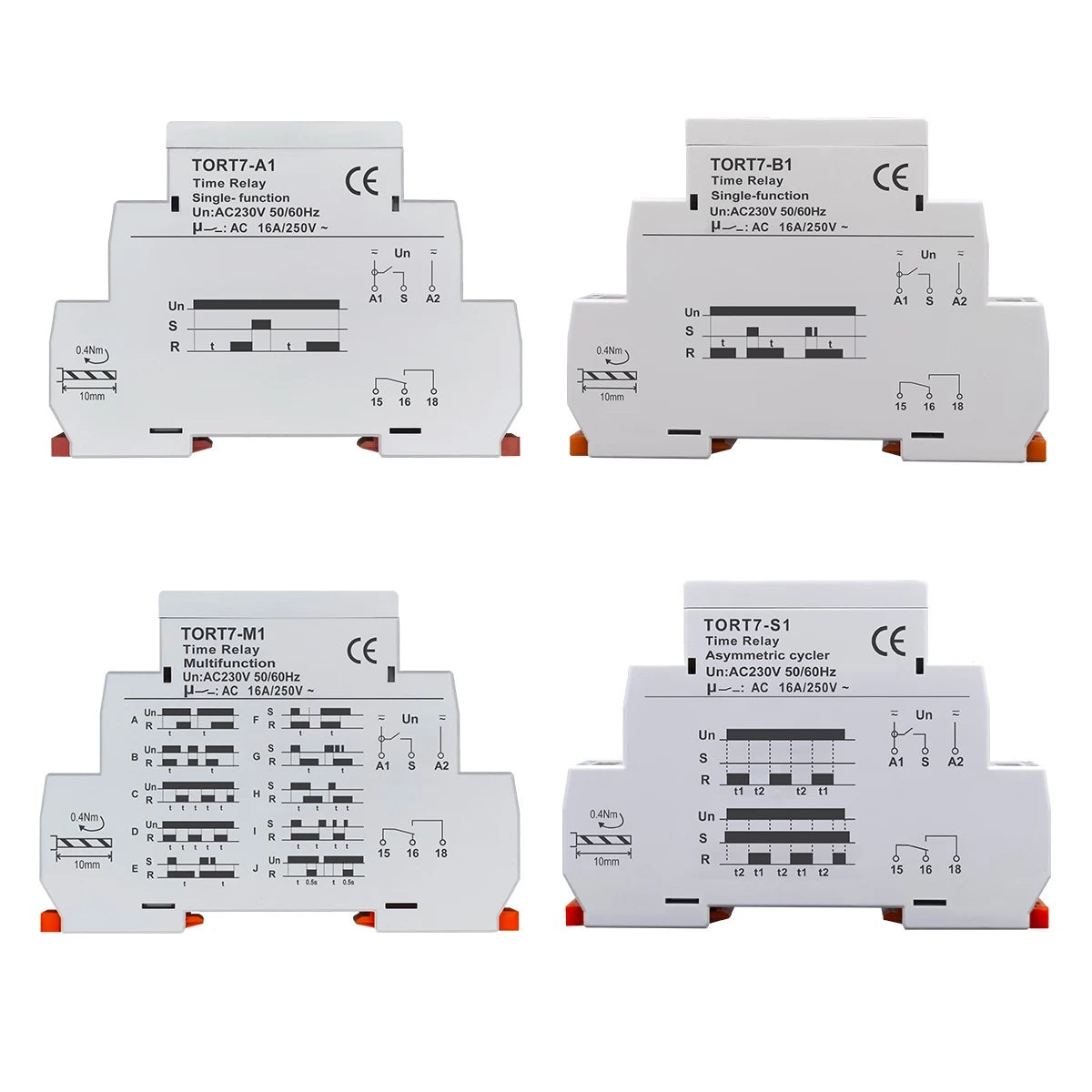

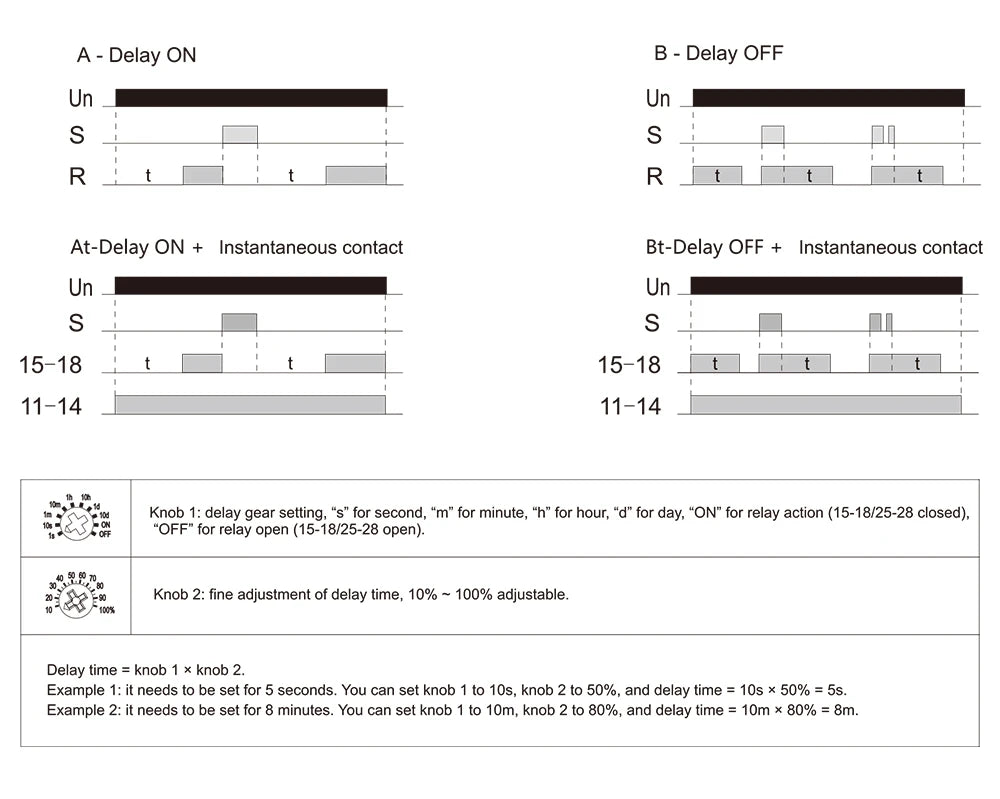

TORT7-A1: delay-ON

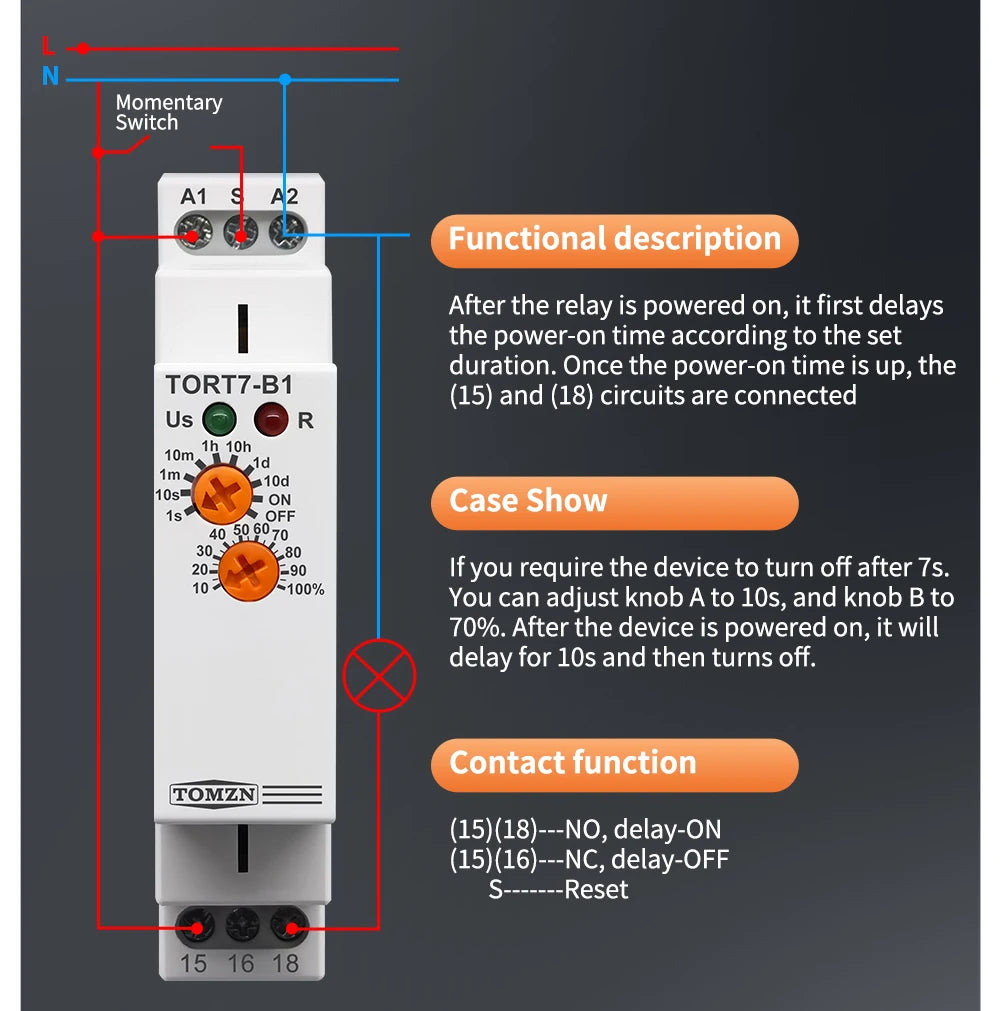

TORT7-B1: delay-OFF

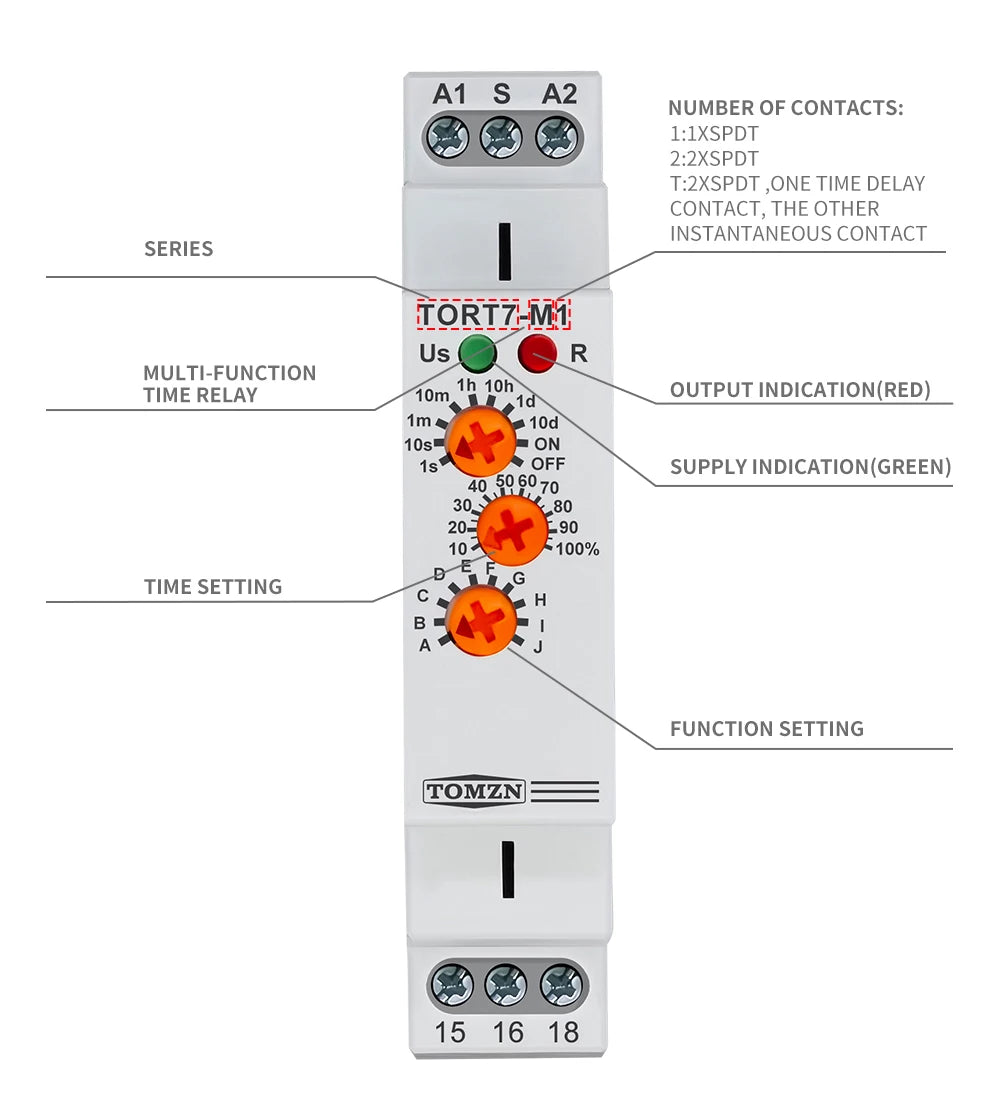

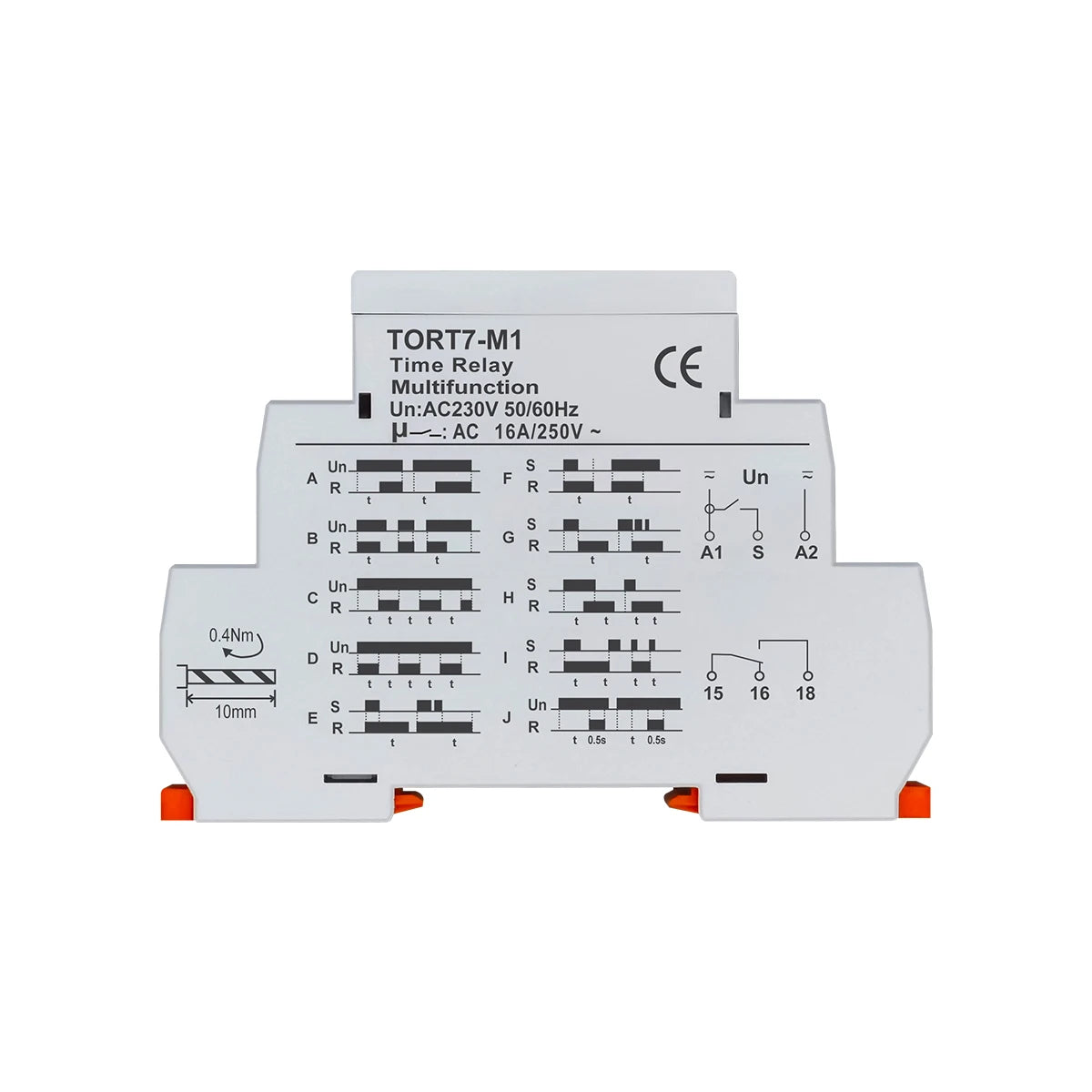

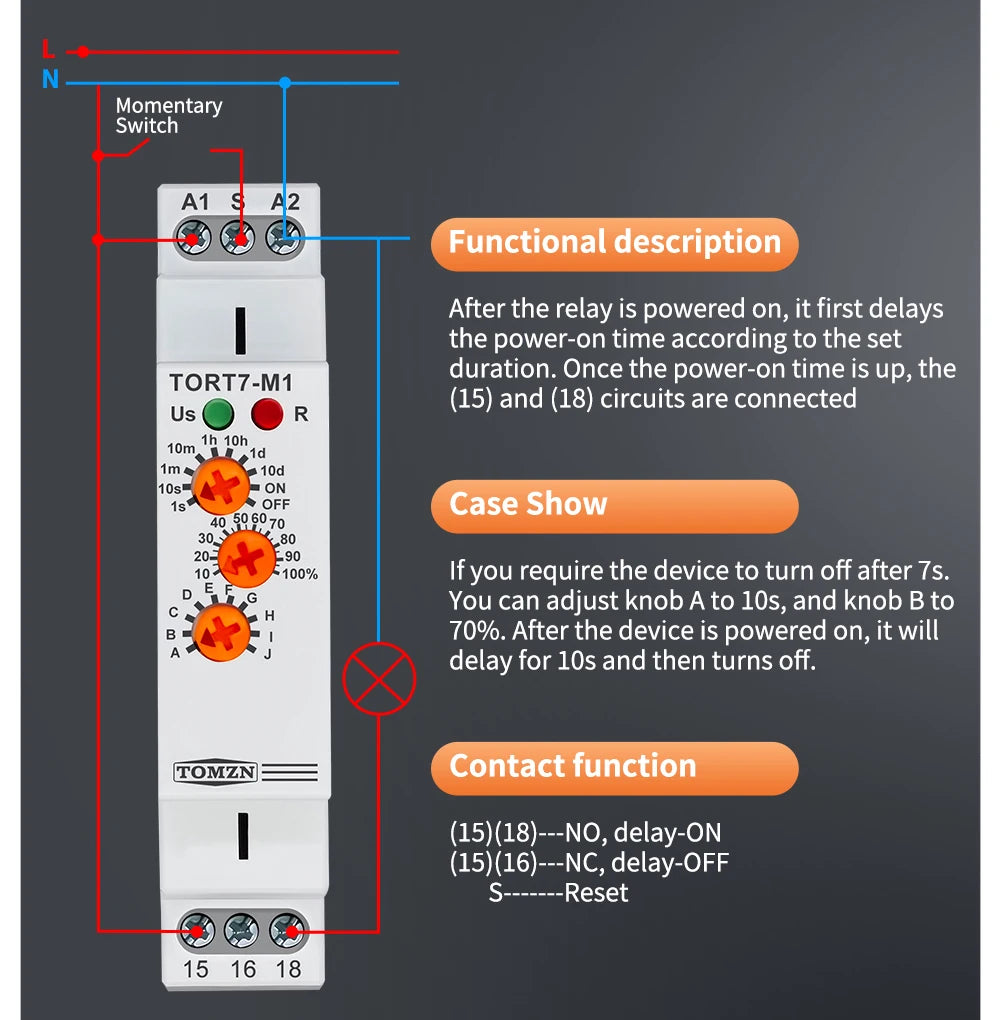

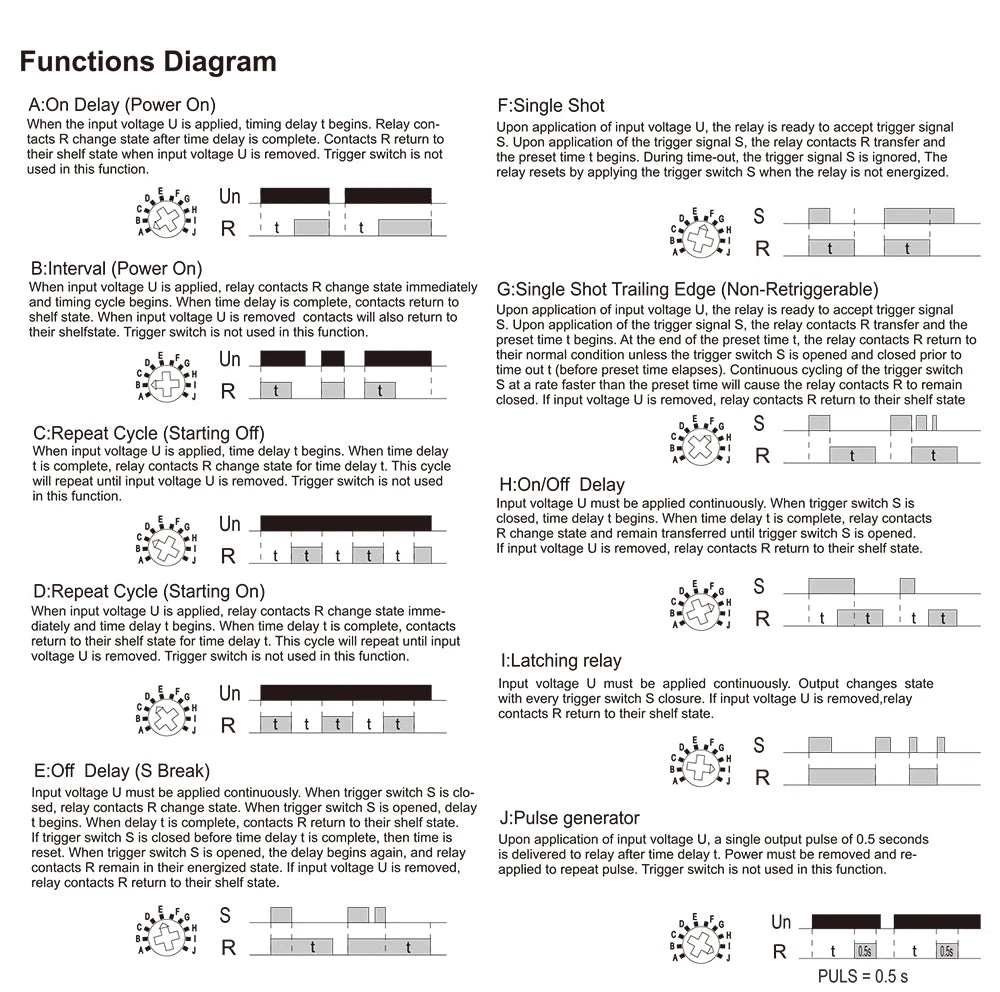

TORT7-M1: on-delay, off-delay, interval, repeat cycle, single shot, latching, pulse generation

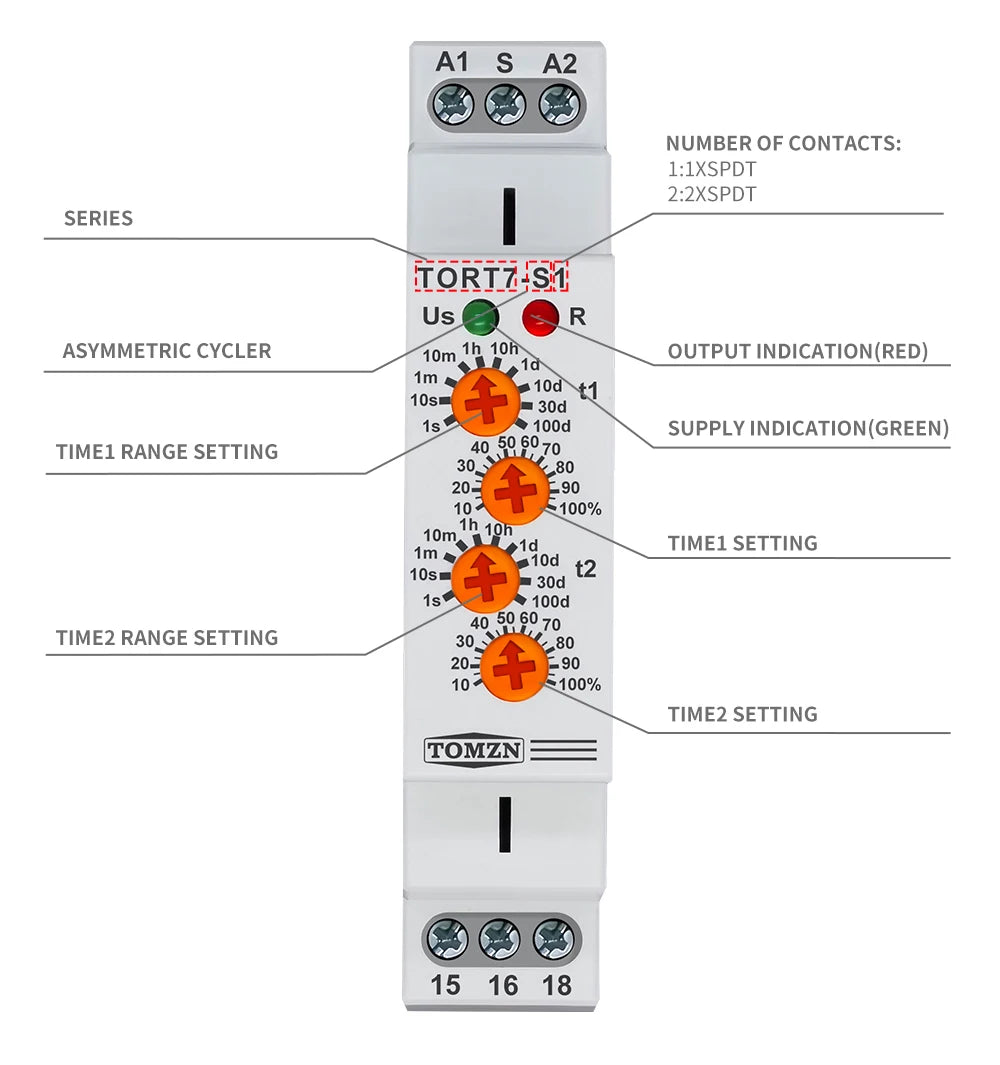

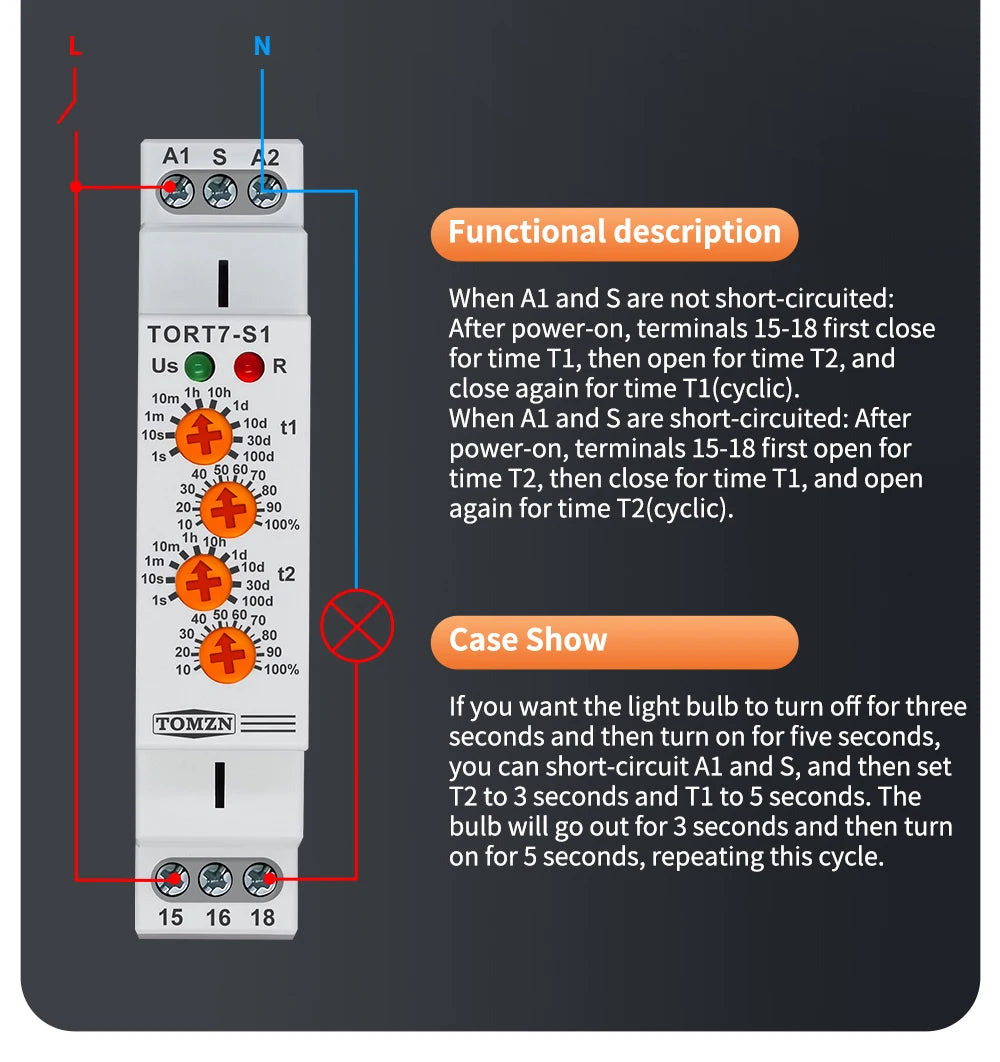

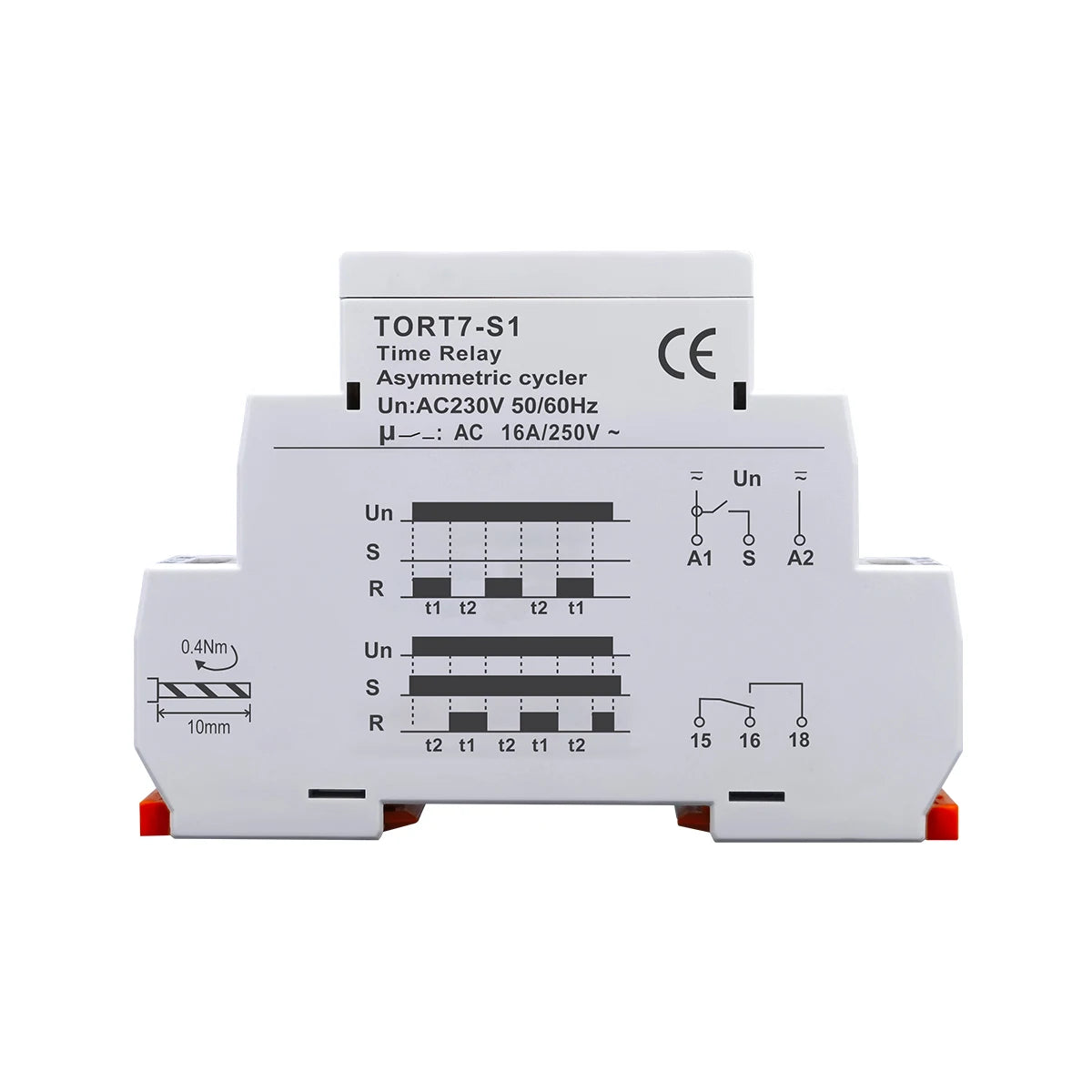

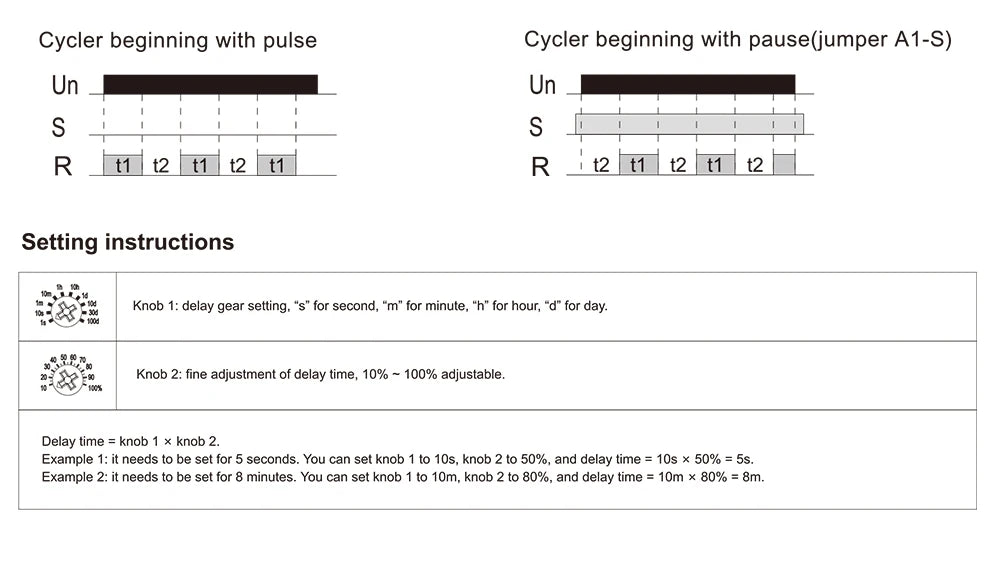

TORT7-S1: Asymmetric cycle

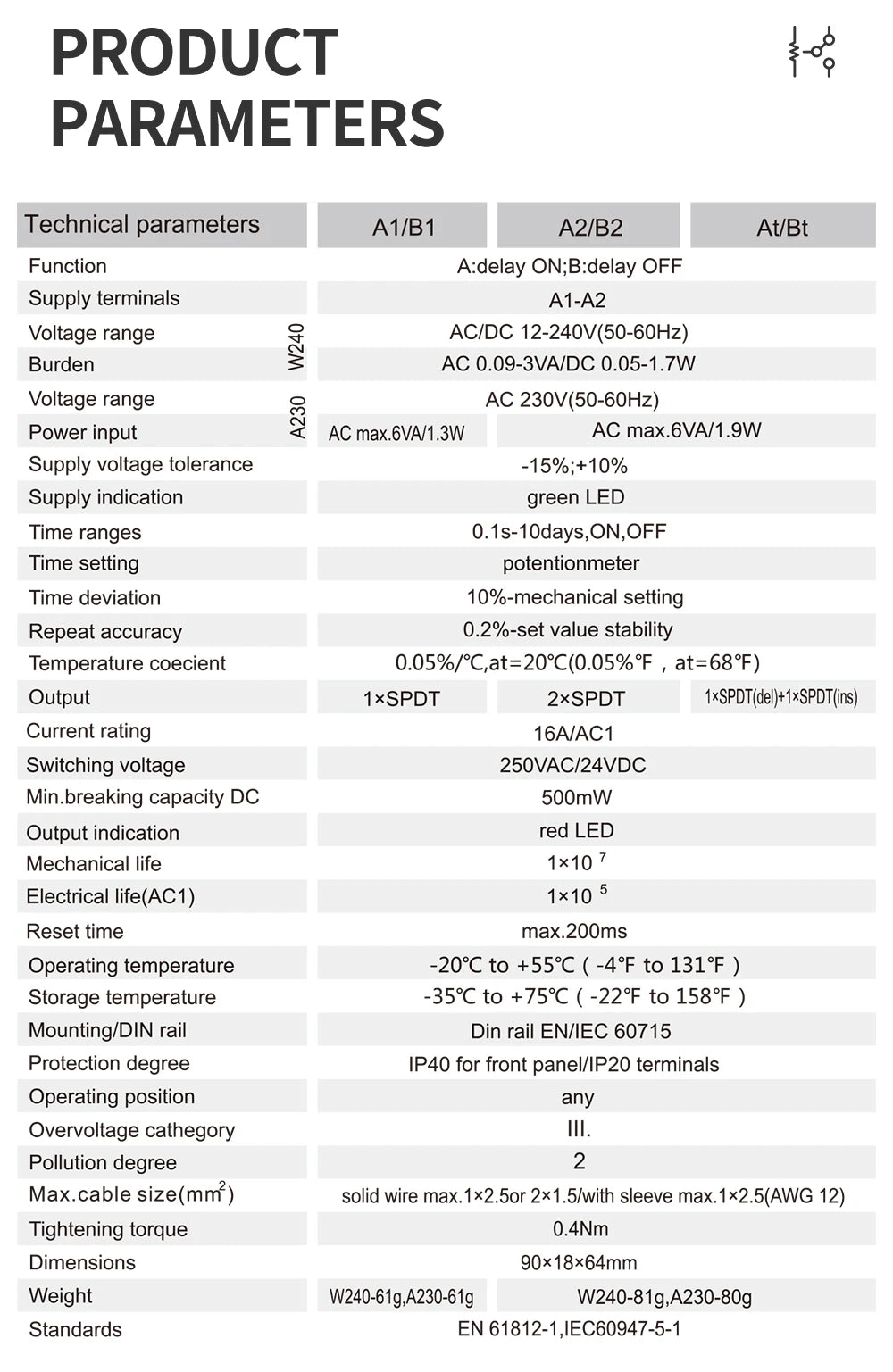

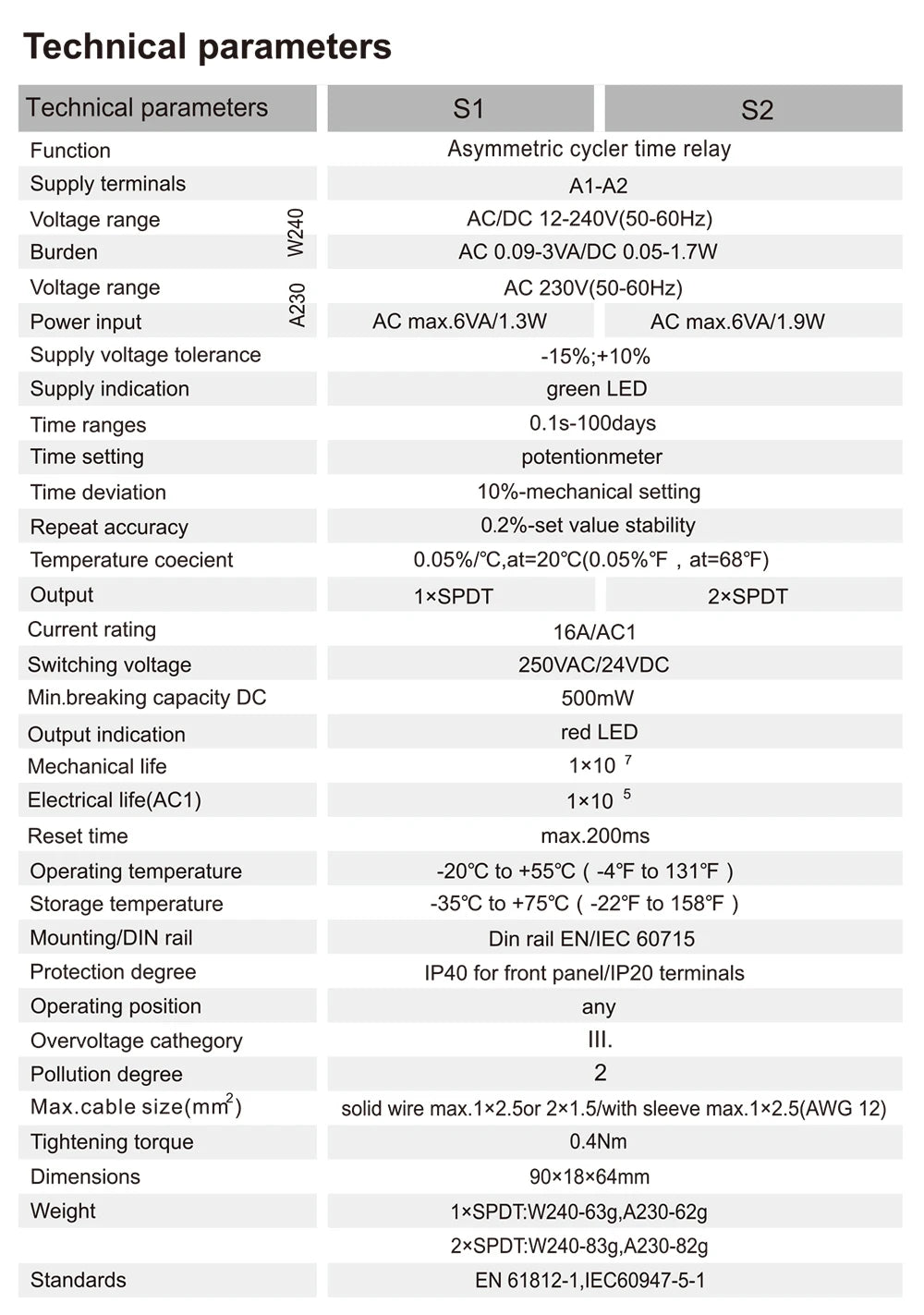

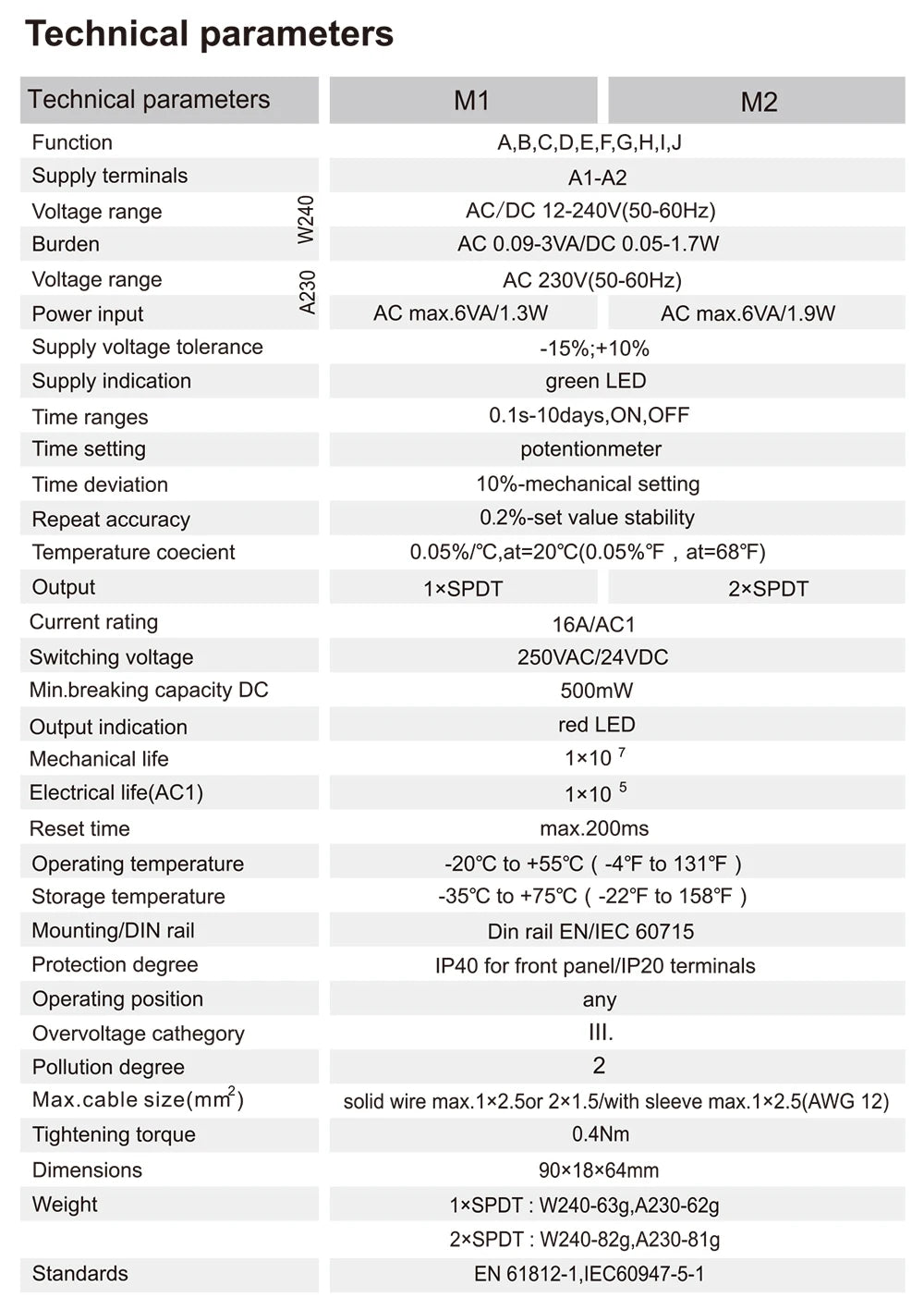

2.Technical Data

Model: TORT7

Voltage range: AC230V (50/60Hz)

Power input: AC max.6VA/1.3W

Supply voltage tolerance: -15%;+10%

Time ranges: 0.1s-10days,ON,OFF

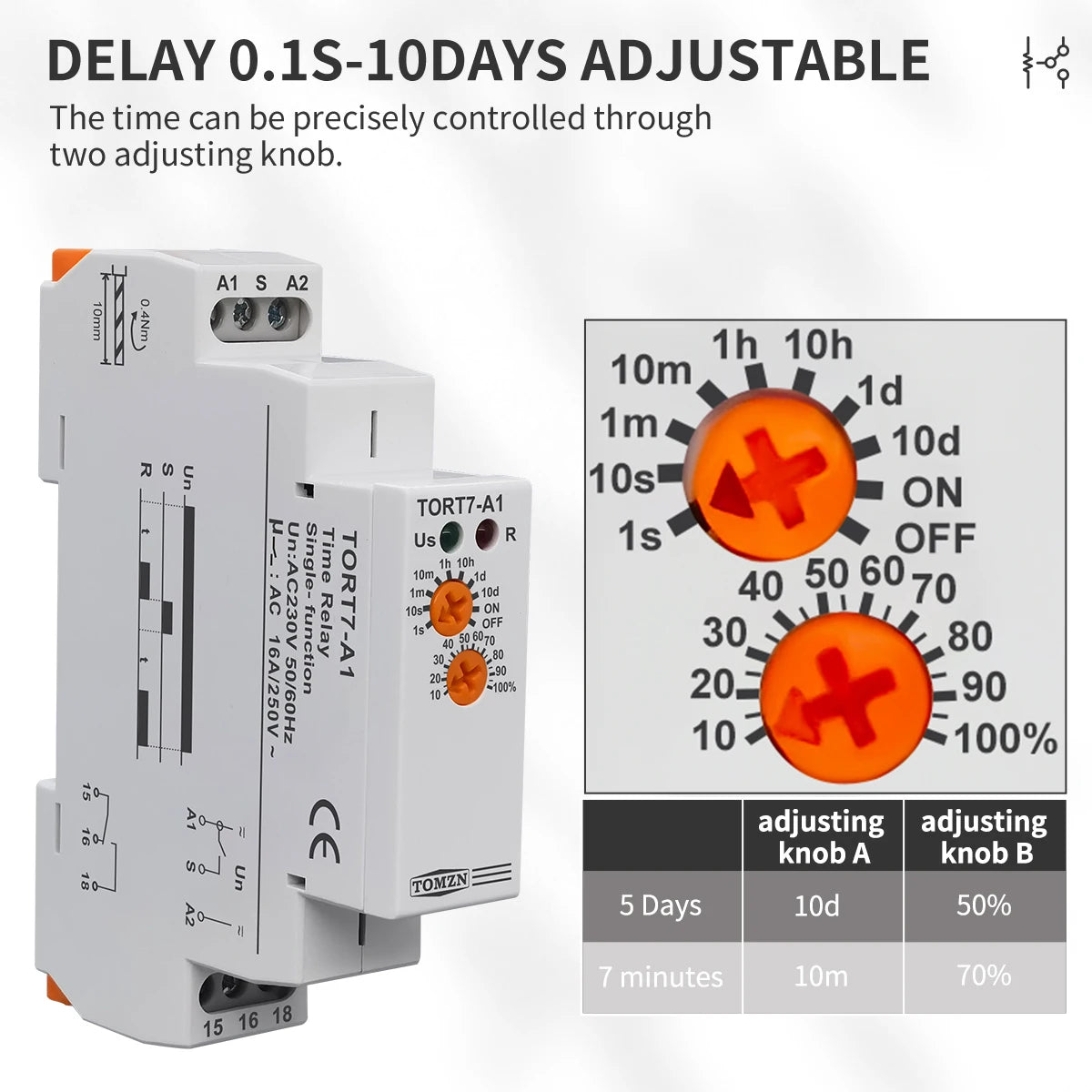

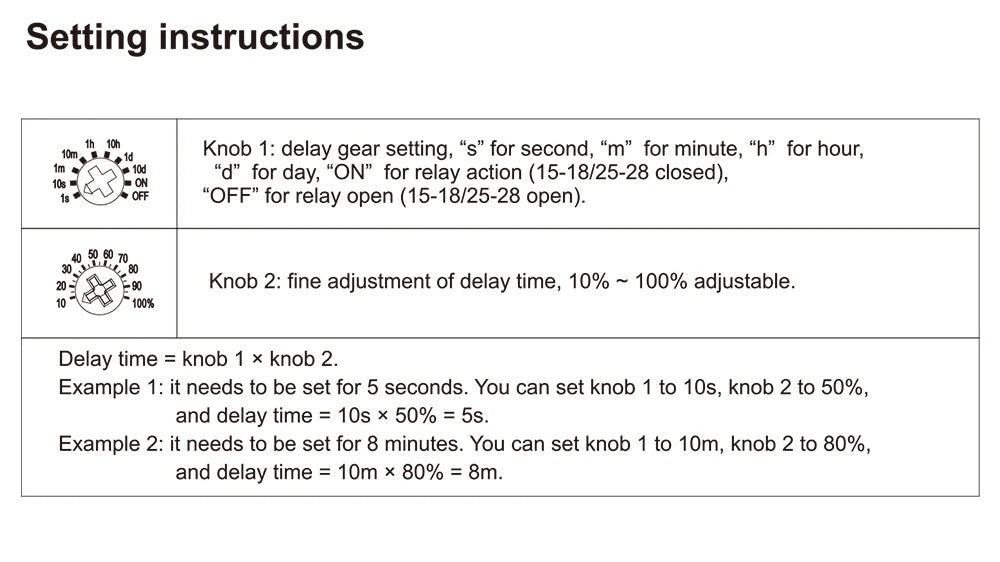

Time setting: Potentionmeter

Time deviation: 10%-mechanical setting

Repeat accuracy: 0.2%-set value stability

Temperature coecient: 0.05%/C,at=20°C(0.05%，at=68℉)

Output: 1xSPDT

Current rating: 16A/AC1

Switching voltage: 250VAC

Min.breaking capacity DC: 500mW

Supply indication: green LED

Output indication: red LED

Mechanical life: 1x107

Electrical life: 1x105

Reset time: max.200ms

Operating temperature: -20℃ to +55℃

Storage temperature: -35°C to +75°C

Mounting/DIN rail: Din rail EN/IEC 60715

Protection degree: IP40 for front panel/IP20 terminals

Operating position: any

Overvoltage cathegory: III.

Pollution degree: 2

Max.cable size(mm2): solid wire max.1x2.5 or 2x1.5/with sleeve max.1x2.5(AWG 12)

Tightening torque: 0.4Nm

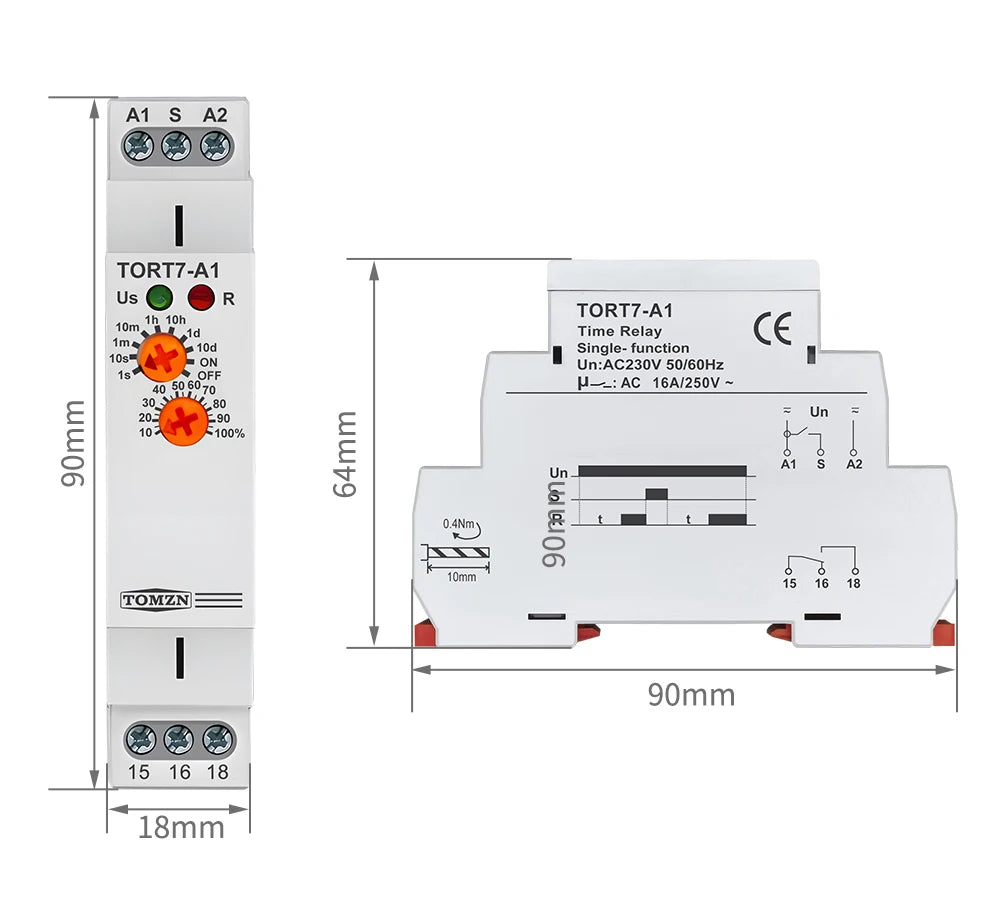

Dimensions: 90x18x64mm

Standards: EN 61812-1,EC60947-5-1

Note: To ensure reliable operation, install this electrical device in a standard cabinet away from interference sources, using protective measures and verifying system compatibility.
