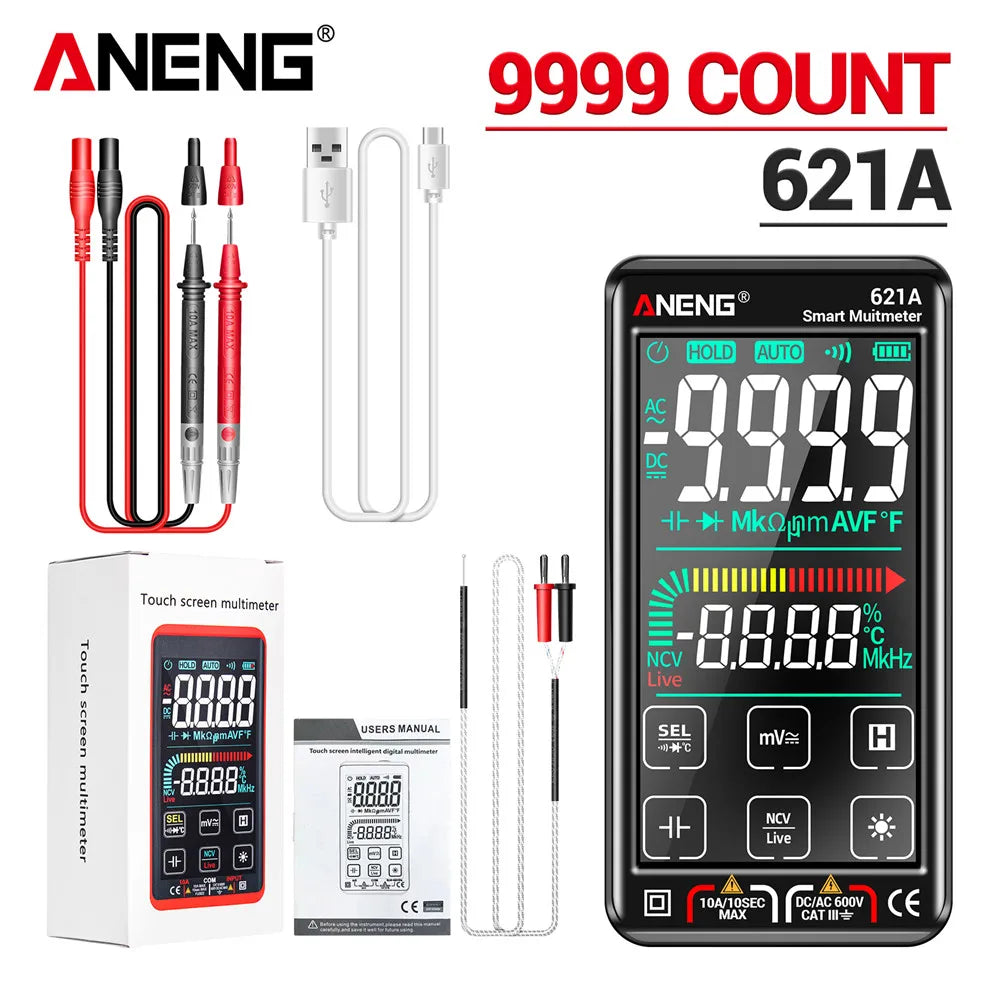

Touch Screen Multimeter Tester ANENG 621A Professional AC/DC Voltage Current Capacitor NCV Sensing Diode Smart Multimetro Tools
621A Black Pro
$145.08
Sale price
$145.08
Regular price
$0.00
Skip to product information
Touch Screen Multimeter Tester ANENG 621A Professional AC/DC Voltage Current Capacitor NCV Sensing Diode Smart Multimetro Tools
$145.08
Sale price
$145.08
Regular price
$0.00
Description
SPECIFICATIONS
AC Current: 999.9mA/10A
AC Voltage: /
Battery Included: no
Brand Name: NONE
Certification: CE
DC Current: 999.9mA/10A
DC Voltage: 999.9mV/9.999V/99.99V/999.9V
DIY Supplies: Electrical
Dimensions: --
Display Type: Digital Display
High-concerned chemical: none
Is Smart Device: no
Measuring Capacitance Range: 9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Measuring Inductance Range: 100Hz/1000Hz
Measuring Resistance Range: 999.9/9.999k/99.99k/999.9k/9.999M/99.99M
Model Number: 621A Multimeter
Operating Mode: Manual Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Semi-finishedproduct: Yes
ANENG 621A 9999 Counts Digital Smart Multimeter Rechargeable Multifunctional Professional AC/DC Voltage Multimetro Tester Tools

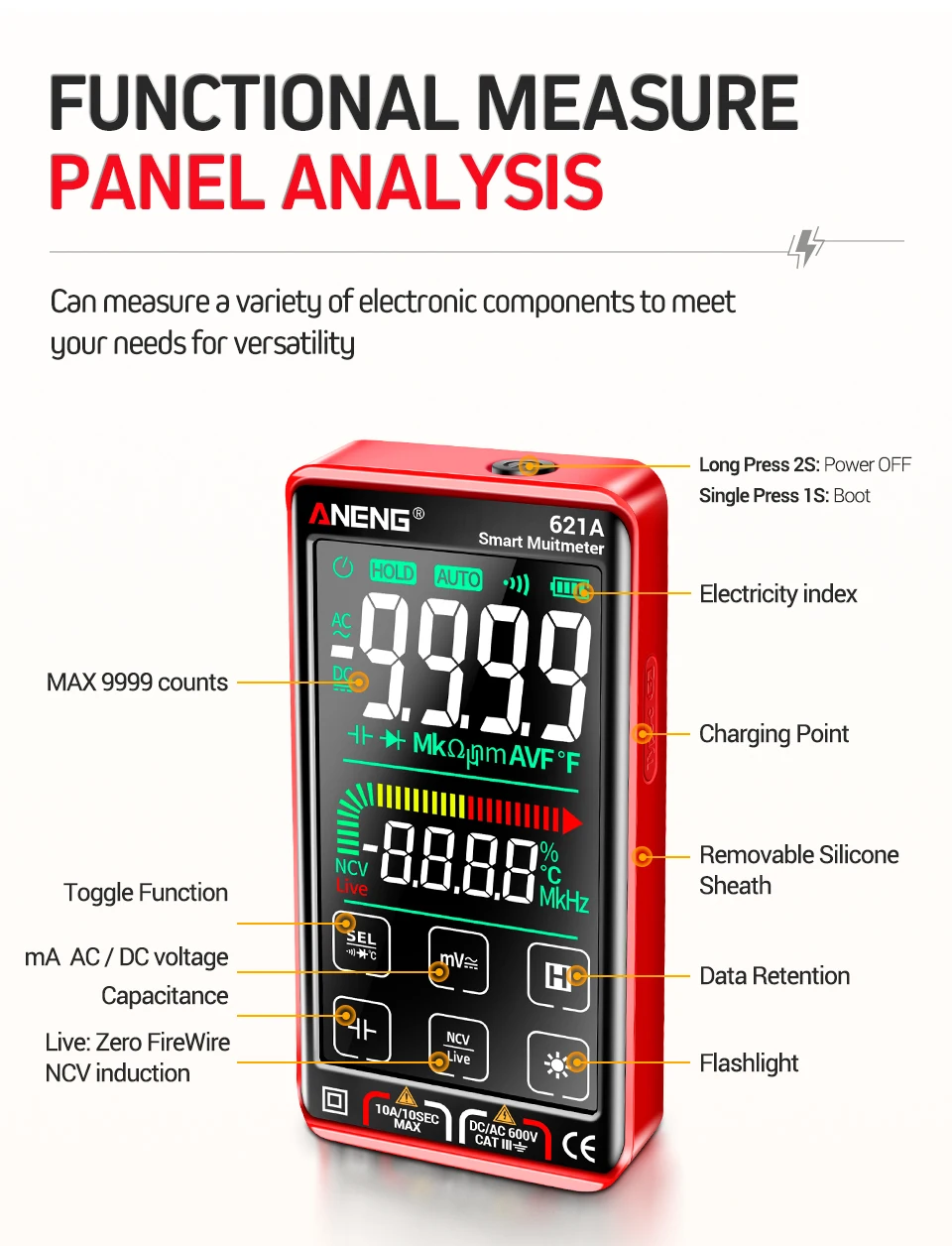

A.Overview:
Automatic selection of measurement functions and ranges.
Full-scale overload protection.
The maximum voltage allowed between the measuring terminal and the earth is 1000V DC or 750V AC
The maximum LCD display value is 9999 digits.
Polarity indication: Automatic indication, '－' means negative polarity.
Overrange display: 'OL' or '-OL' .
Sampling time about: 3 times / second
Auto shutdown time: 15 minutes

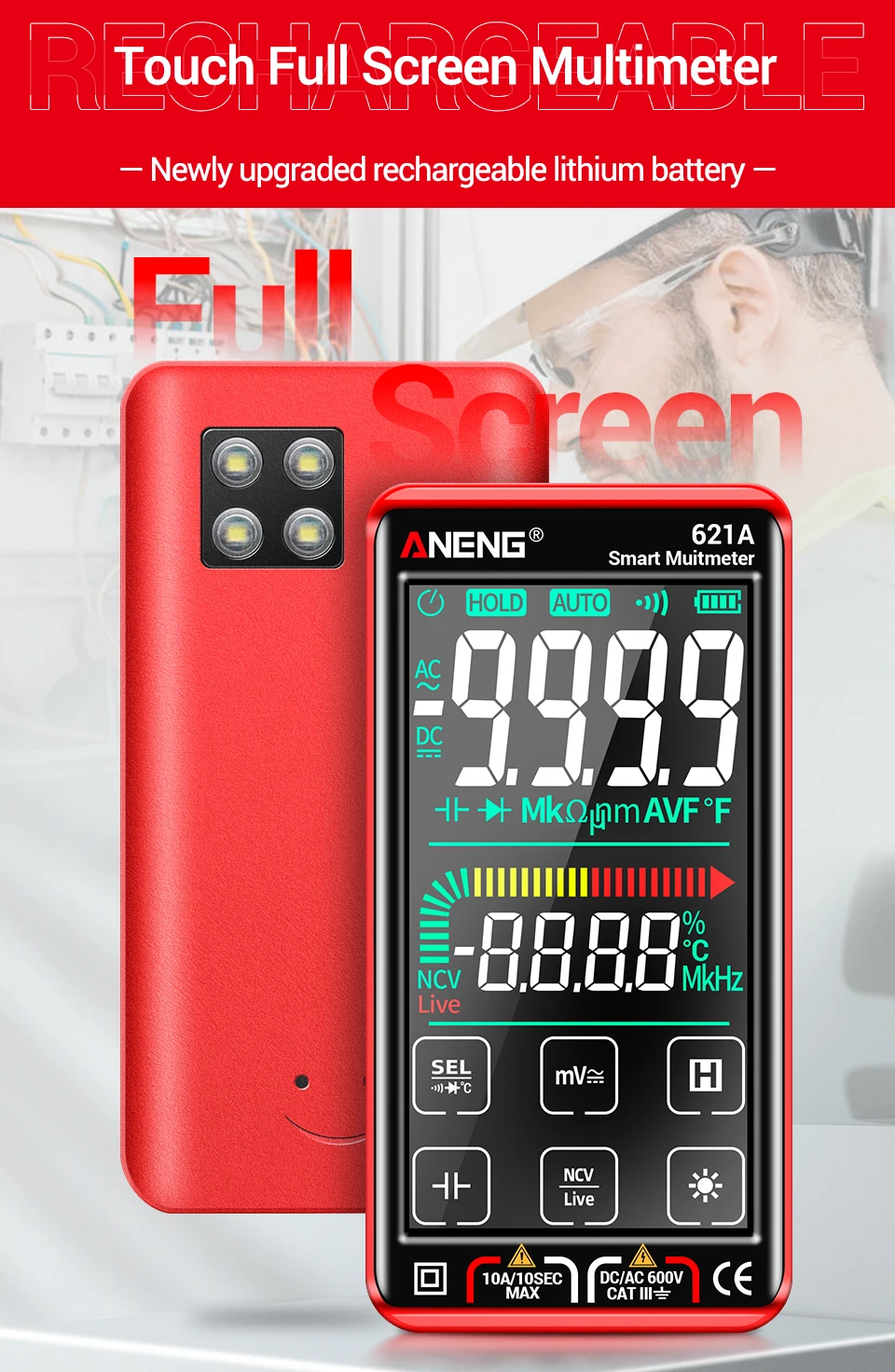

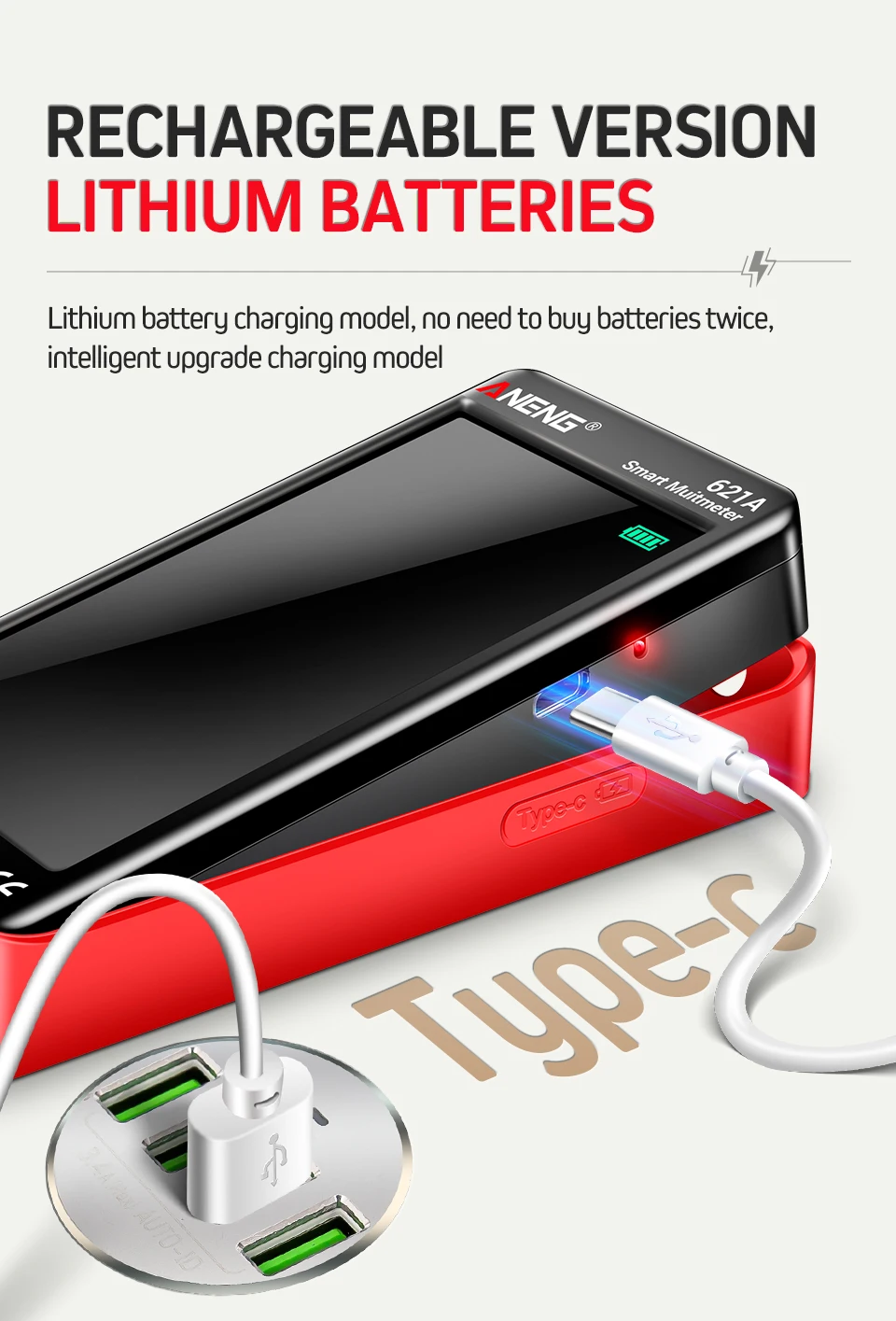

Power supply: 3.7V/600mAh lithium battery
Operating temperature: 0°c - 40°c
B.Specification:
Automatic selection of measurement functions and ranges.
Full-scale overload protection.
The maximum voltage allowed between the measuring terminal and the earth is 1000V DC or 750V AC
The maximum LCD display value is 9999 digits.
Polarity indication: Automatic indication, '－' means negative polarity.
Overrange display: 'OL' or '-OL' .
Sampling time about: 3 times / second
Auto shutdown time: 15 minutes
Power supply: 3.7V/600mAh lithium battery
Operating temperature: 0°c - 40°c

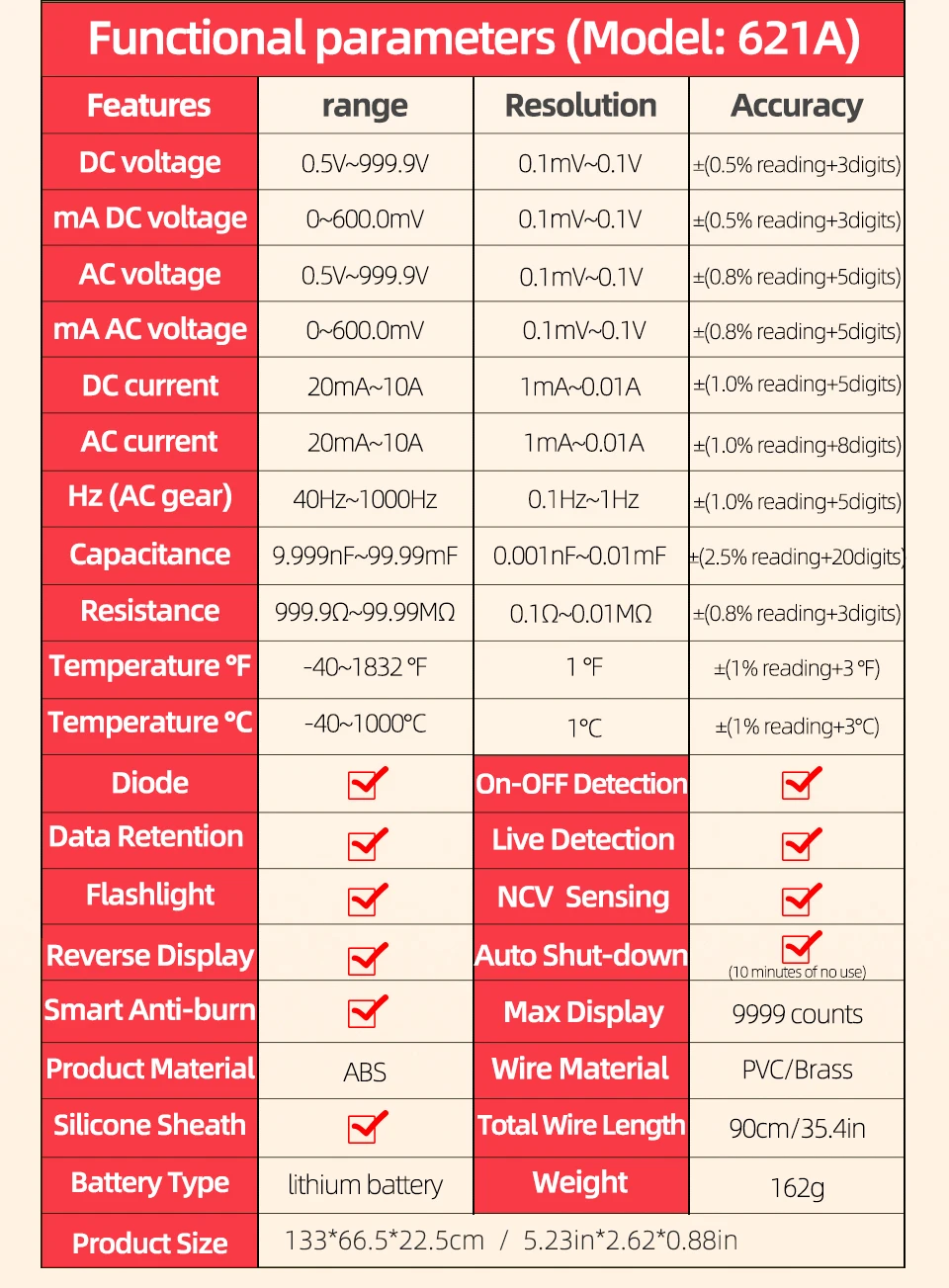

B.Specification:
Function |
Range |
Accuracy |

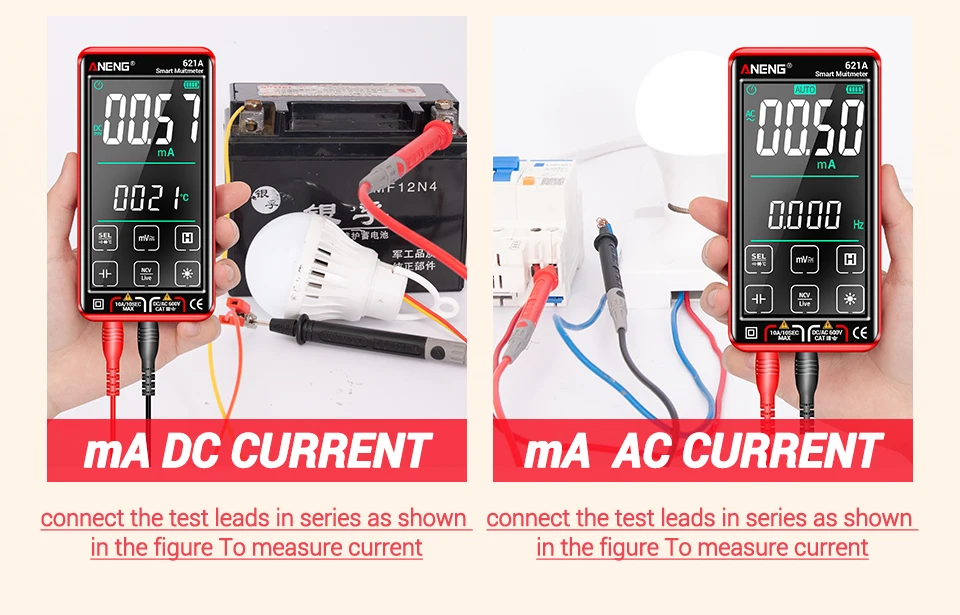

AC Current |
999.9mA/10A(Min 20mA/Max 10A) |
+-(1.0%reading+8 digits) |
DC Current |
999.9mA/10A(Min 20mA/Max 10A) |
+-(1.0%reading+5 digits) |
DC Voltage |
999.9mV/9.999V/99.99V/999.9V |
+-(0.5%reading+3 digits) |
AC Voltage |
999.9mV/9.999V/99.99V/999.9V |
+-(0.8%reading+5 digits) |
Line on-off Test |
-- |
0.1Ω |
Resistance |
999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ |
+-(0.8%reading+3 digits) |

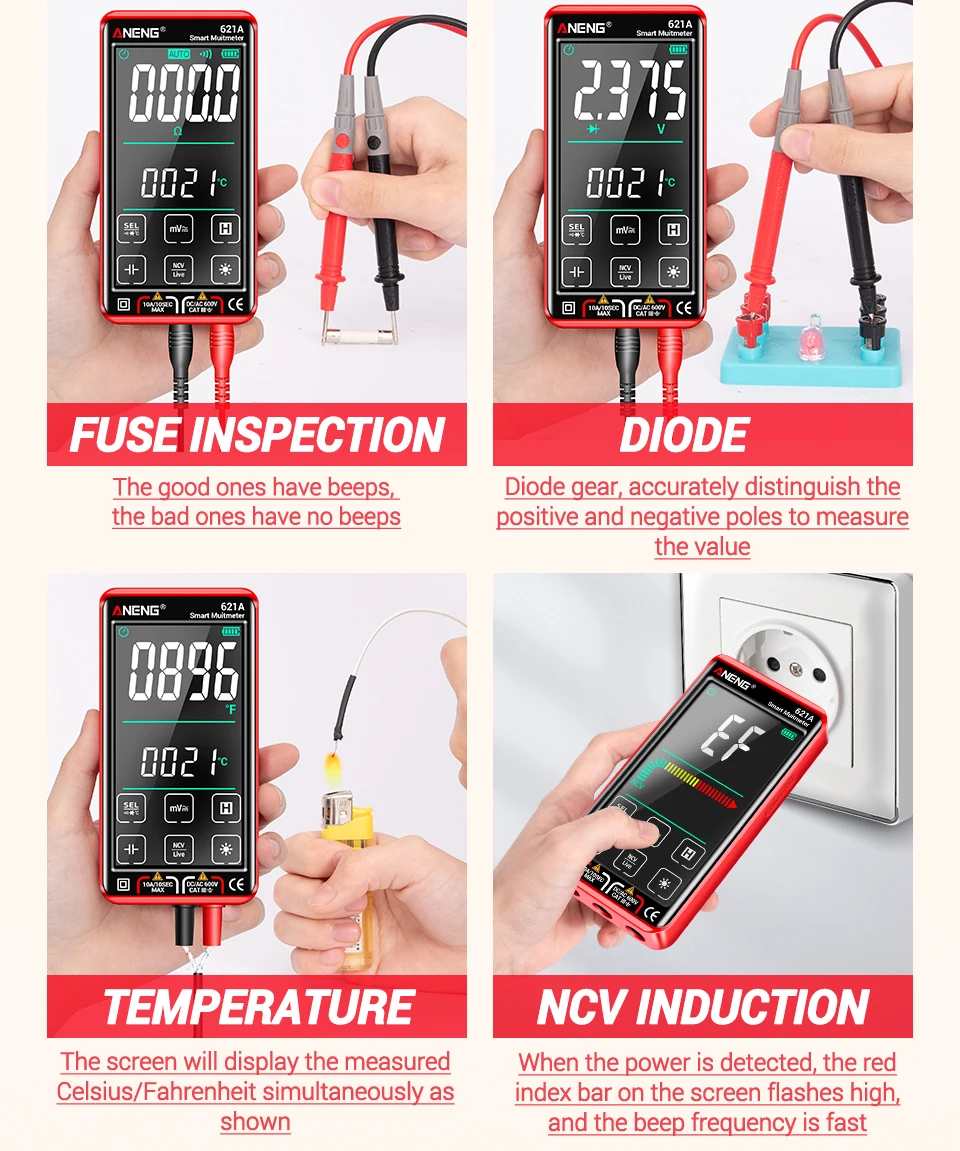

Diode Test |
-- |
1V |
Capacitor |
9.999nF |
+-(10%reading+40 digits) |
999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF |
+-(2.5%reading+20 digits) |
|
Temperature |
-40~1000℃ |
+-(1%reading+3℃) |
-40~1832℉ |
+-(1%reading+3℉) |
|
Frequency |
100Hz/1000Hz |
+-(1.0%reading+5 digits) |
100Hz/1000Hz |
+-(1.0%reading+5 digits) |

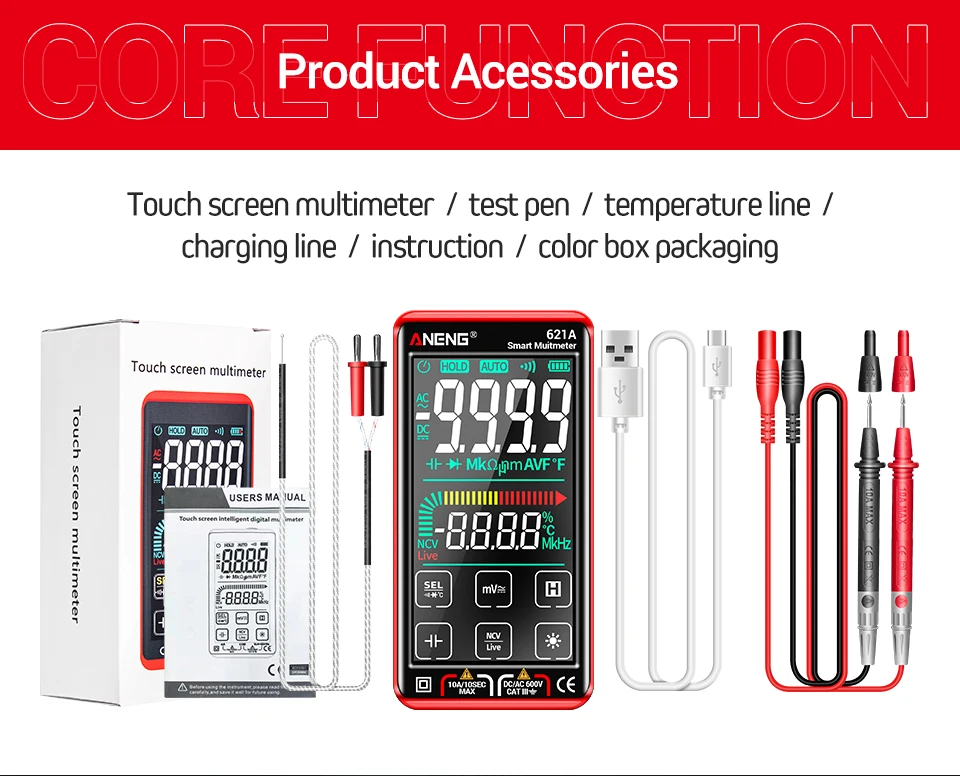

C.Package Include:
According to your choice
