SPECIFICATIONS

Application: Electric Toy

Brand Name: diymore

Choice: yes

Condition: New

Dissipation Power: Lithium Battery Step UP Step Down Power Supply Module

Feature: DC-DC TPS63802 MINI Lithium Battery Boost Buck Module 1.8-5.5V to 3.3/5V 2A/1A Step UP Step Down Power Supply Converter Module,TPS63802 Mini Lithium Battery Buck-Boost Converter DC Input 1.8-5.5V Output 3.3V/5V 2A/1A Step UP Step Down Power Supply Module

High-concerned chemical: none

Operating Temperature: -20-70℃

Origin: Mainland China

Package: TQFP

Product Name: Mini Lithium Battery Boost Buck Module

Quantity: 1

Supply Voltage: DC 1.8-5.5V

Type: Module,Step Up Down Power Module TPS63802 Boost Buck Board Low Ripple Voltage Regulator

is_customized: Yes

Features:

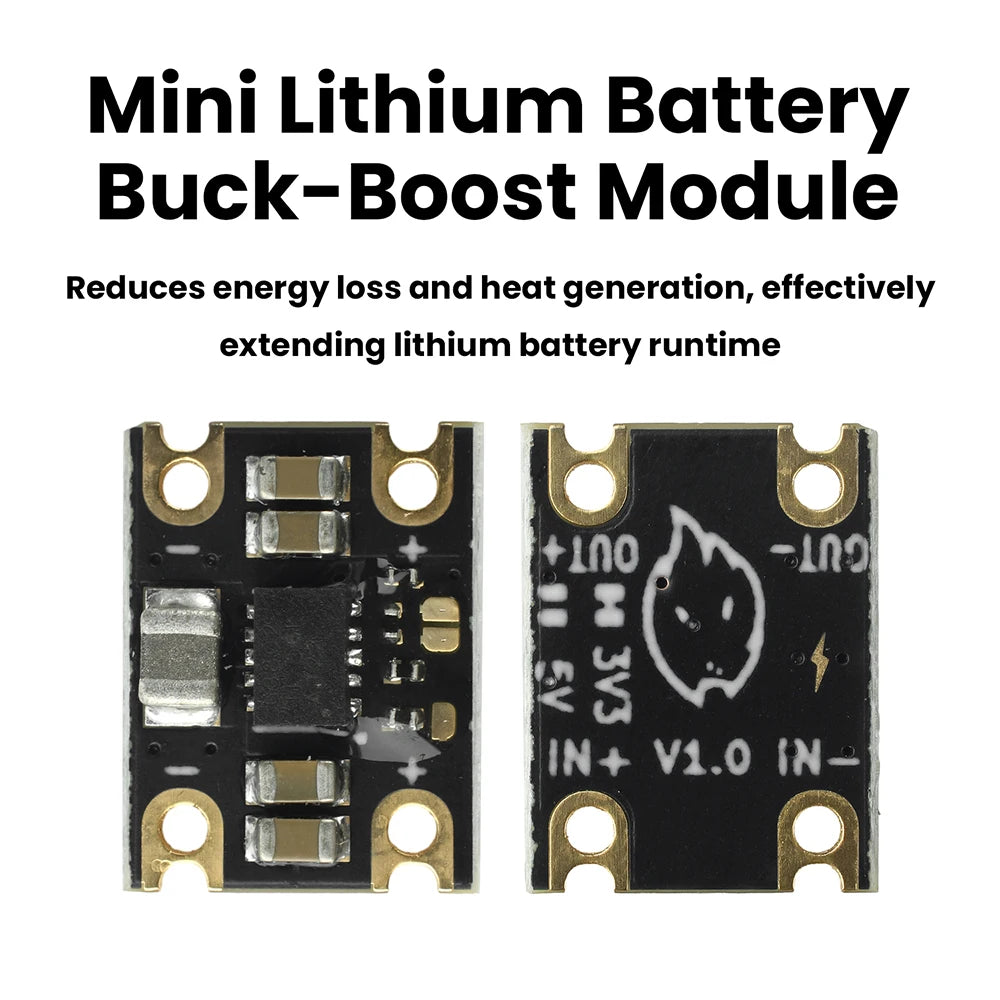

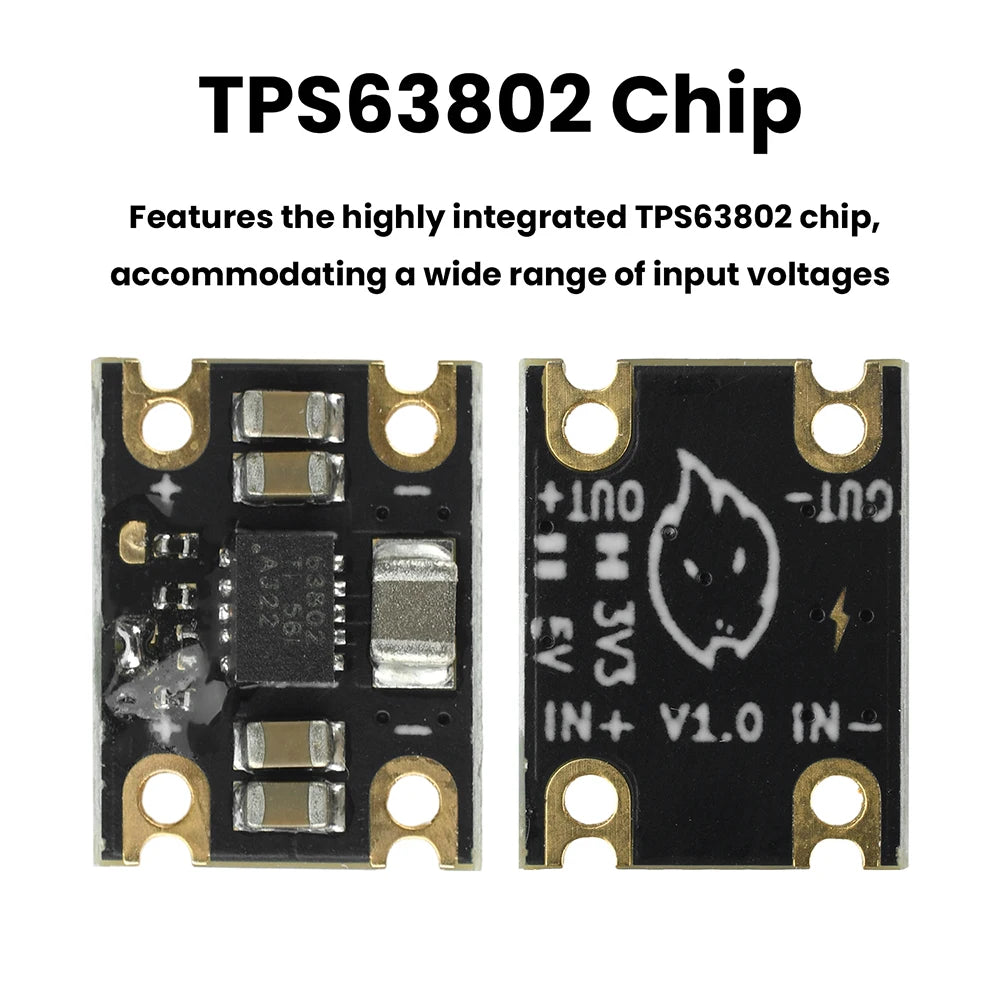

1. Features the highly integrated TPS63802 chip, supporting multiple input voltages

2. Reduces energy loss and heat generation, effectively extending lithium battery runtime

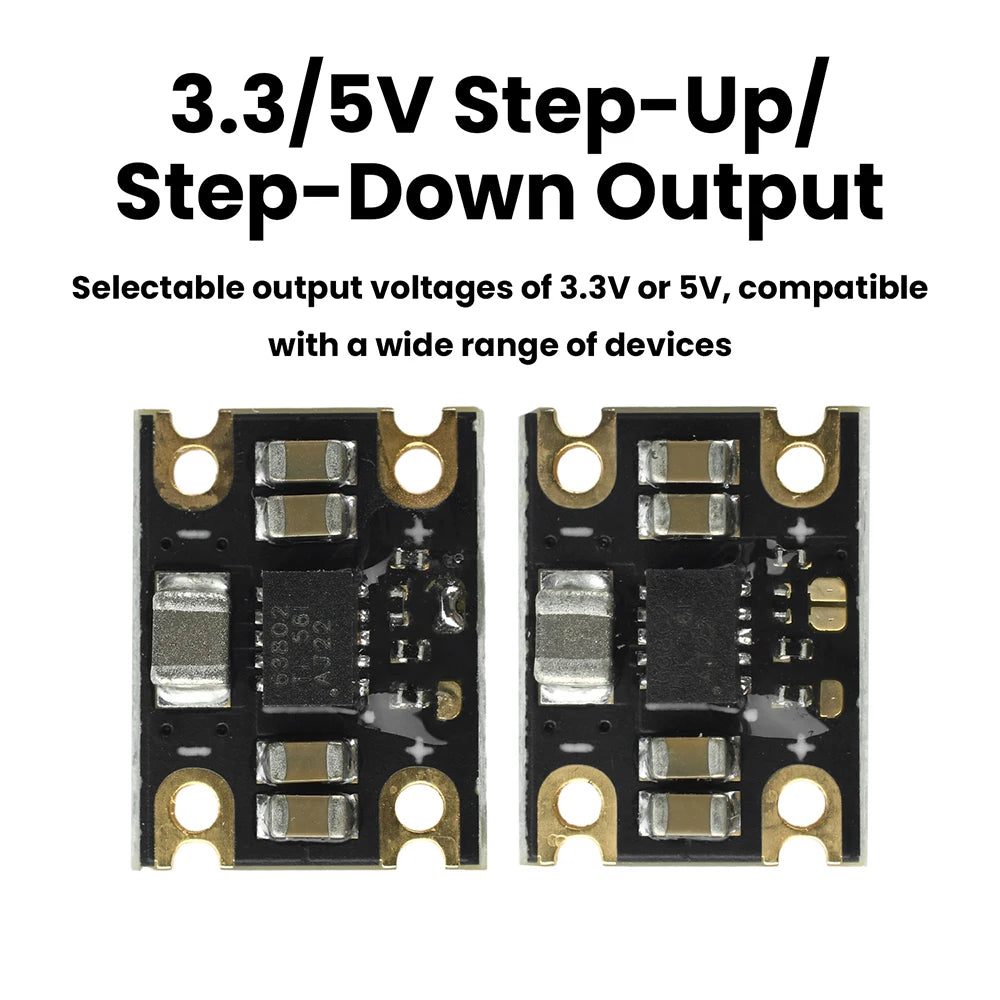

3. Offers two selectable output voltages (3.3V/5V) for compatibility with diverse devices

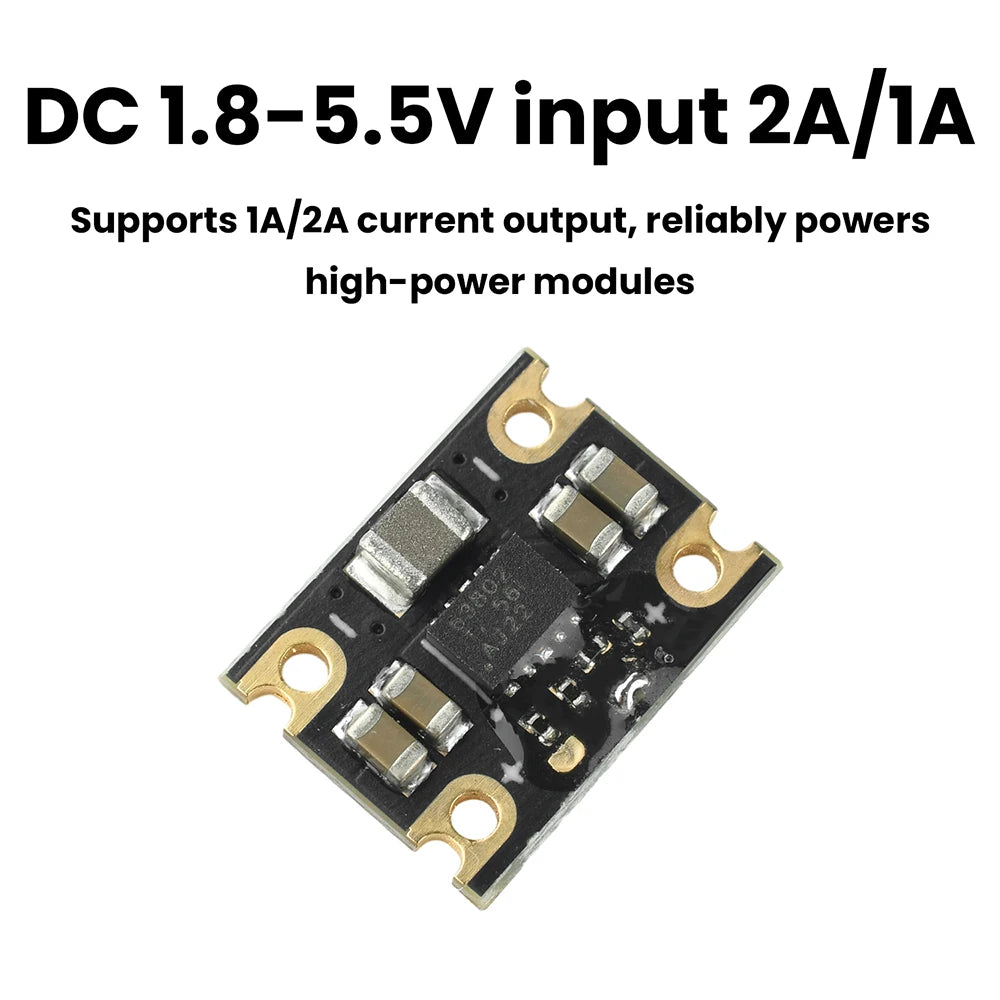

4. Supports 1A/2A current output, reliably driving high-power modules

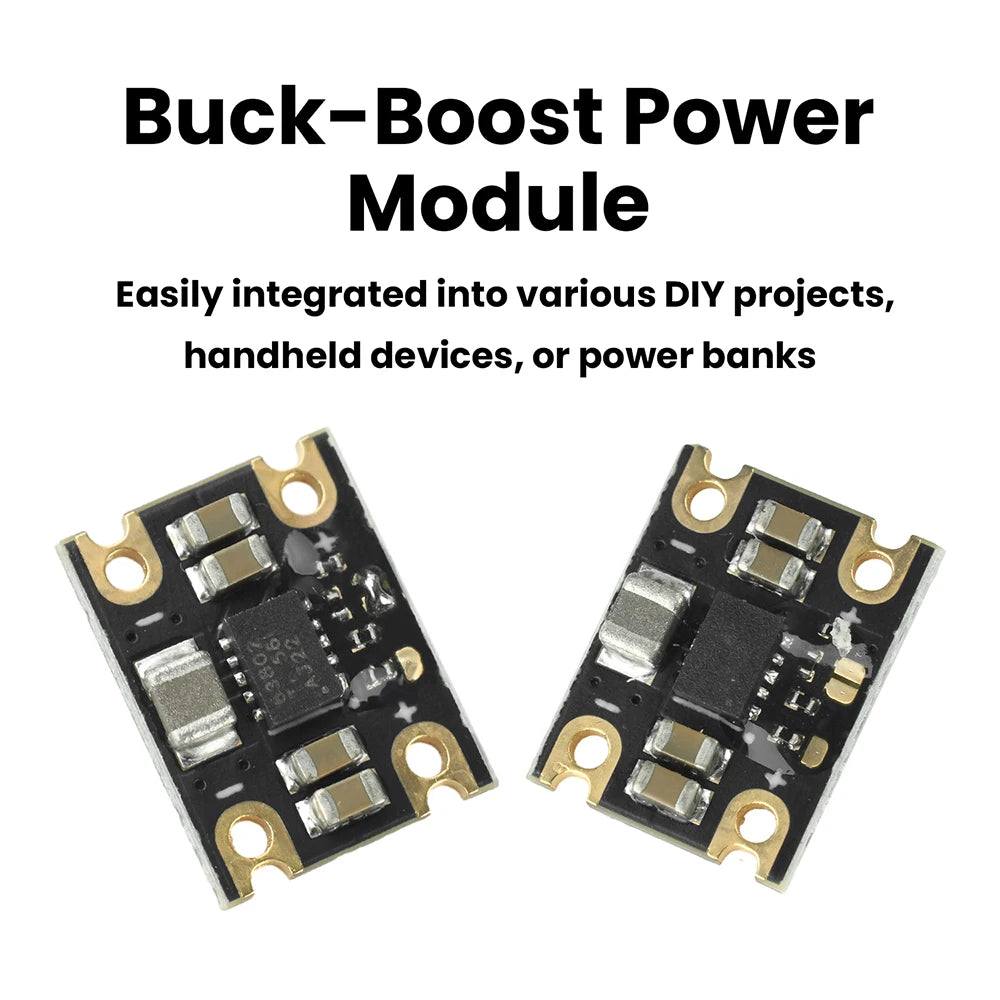

5. Easily integrates into various DIY projects, handheld devices, or power banks

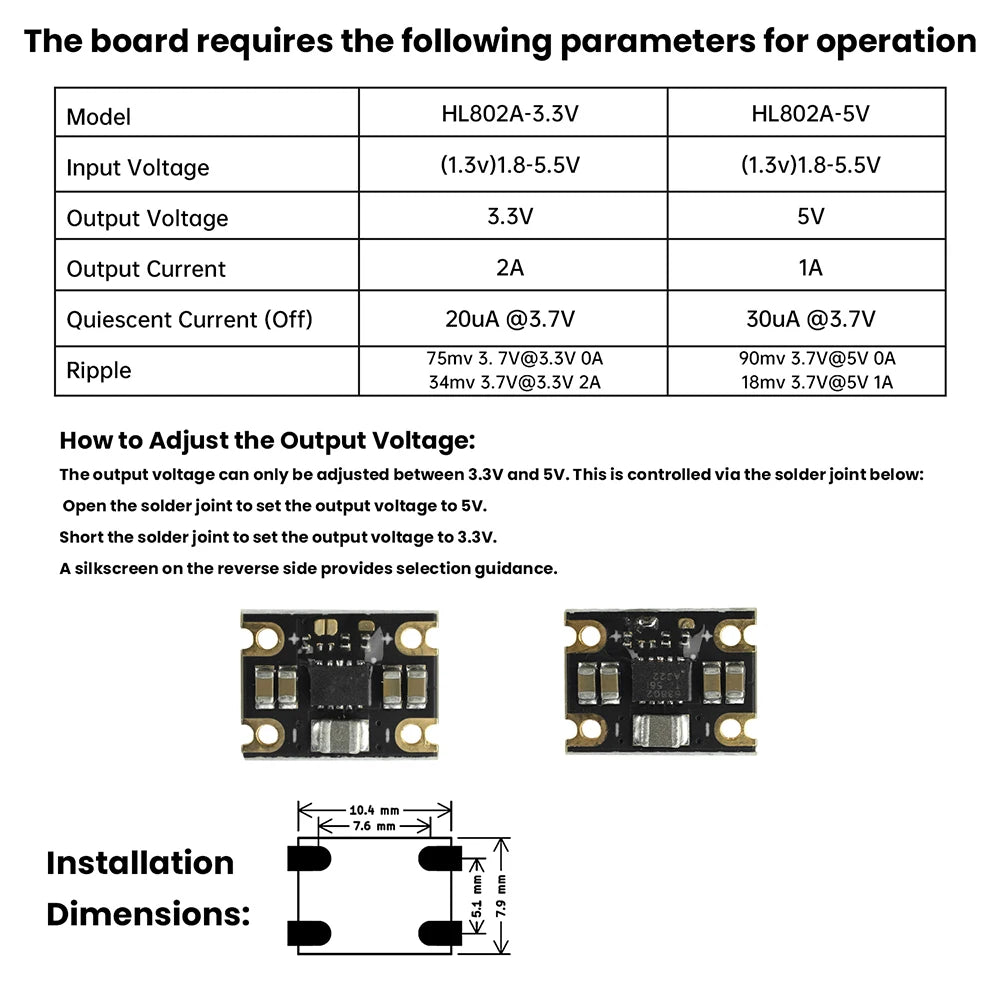

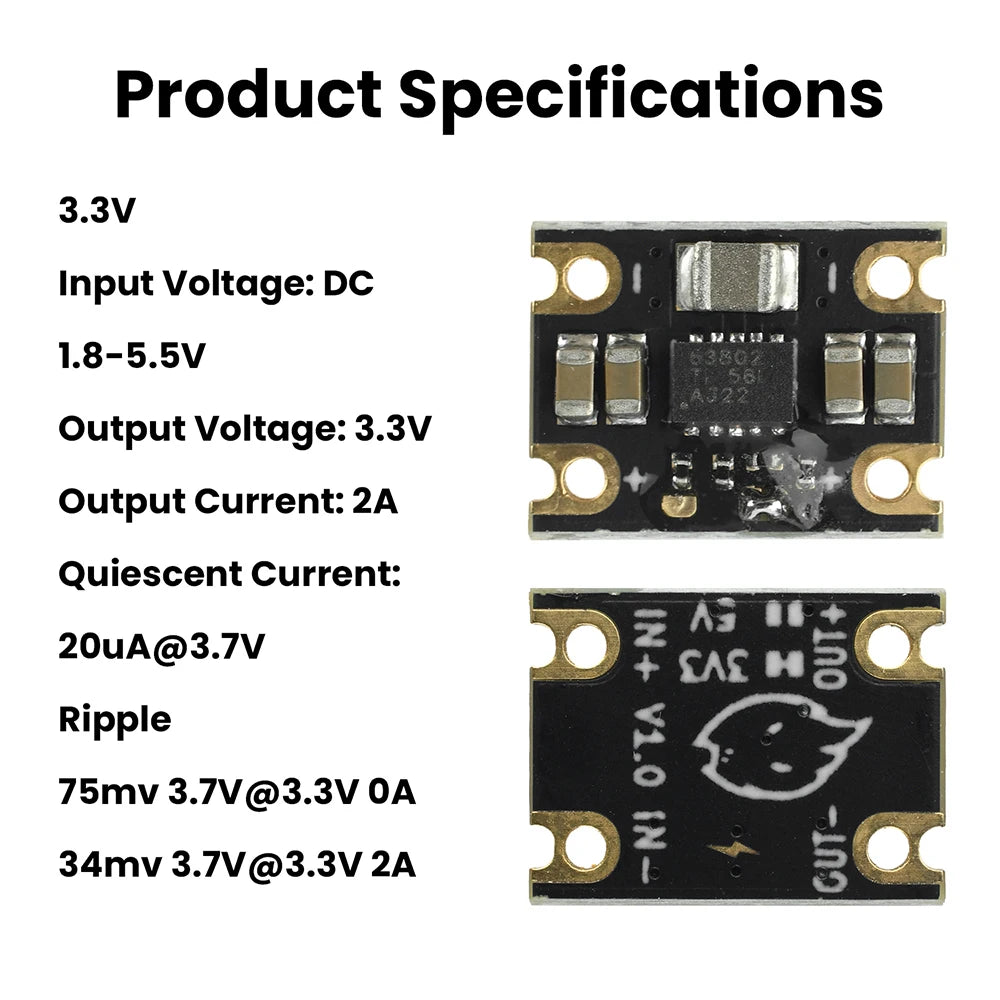

Parameter:

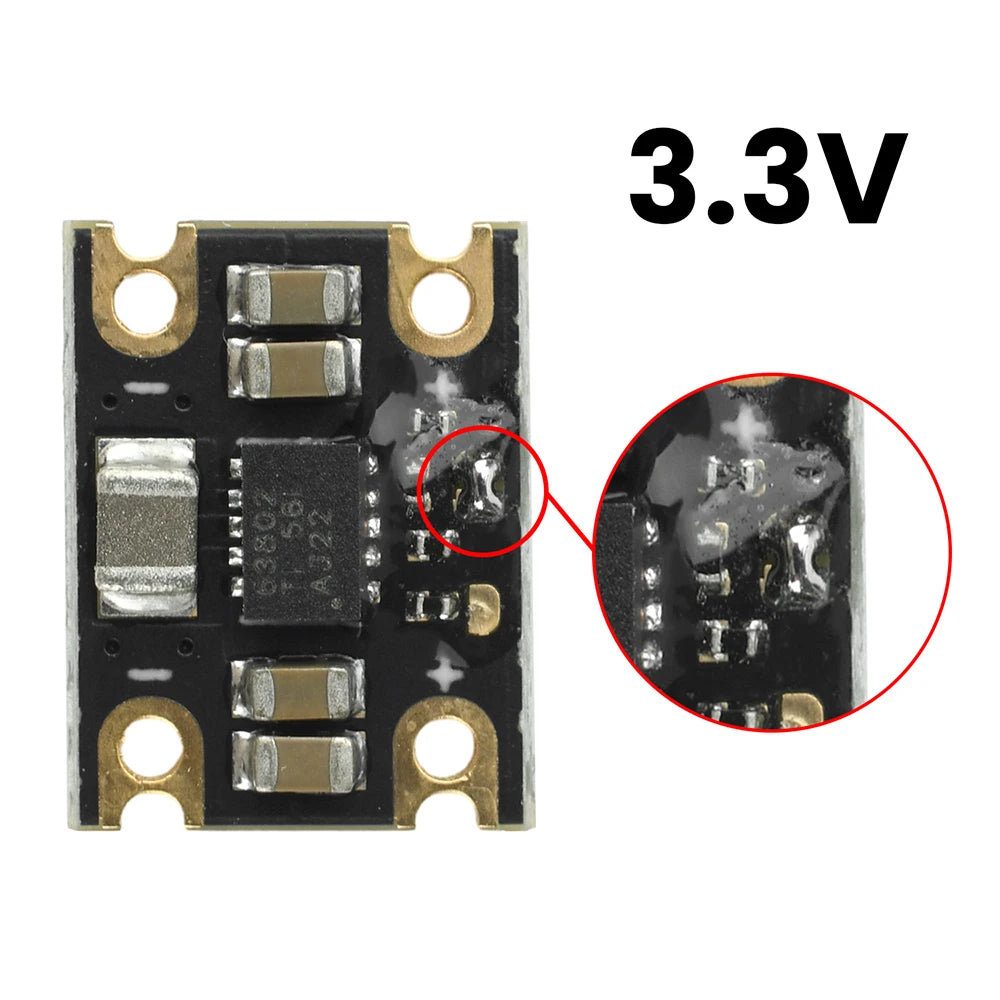

3.3V

Input Voltage: DC 1.8-5.5V

Output Voltage: 3.3V

Output Current: 2A

Quiescent Current: 20uA@3.7V

Ripple

75mv 3.7V@3.3V 0A

34mv 3.7V@3.3V 2A

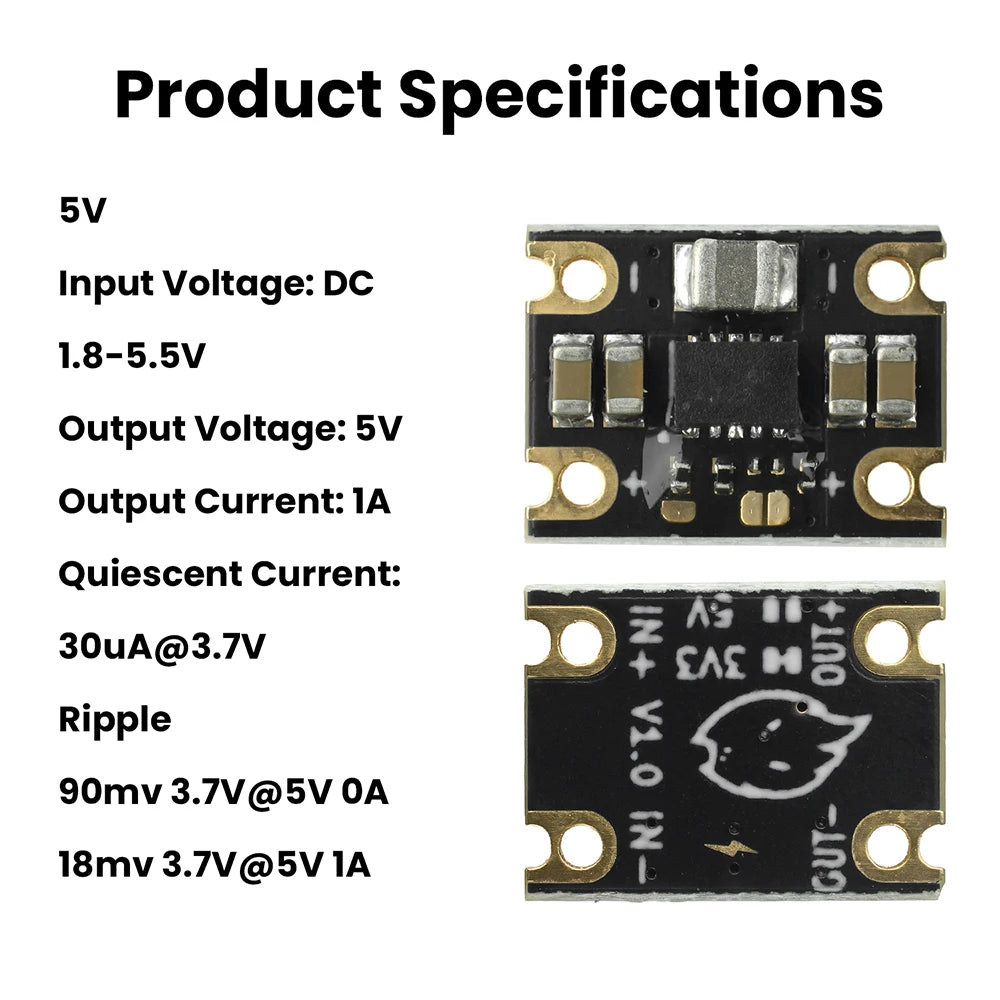

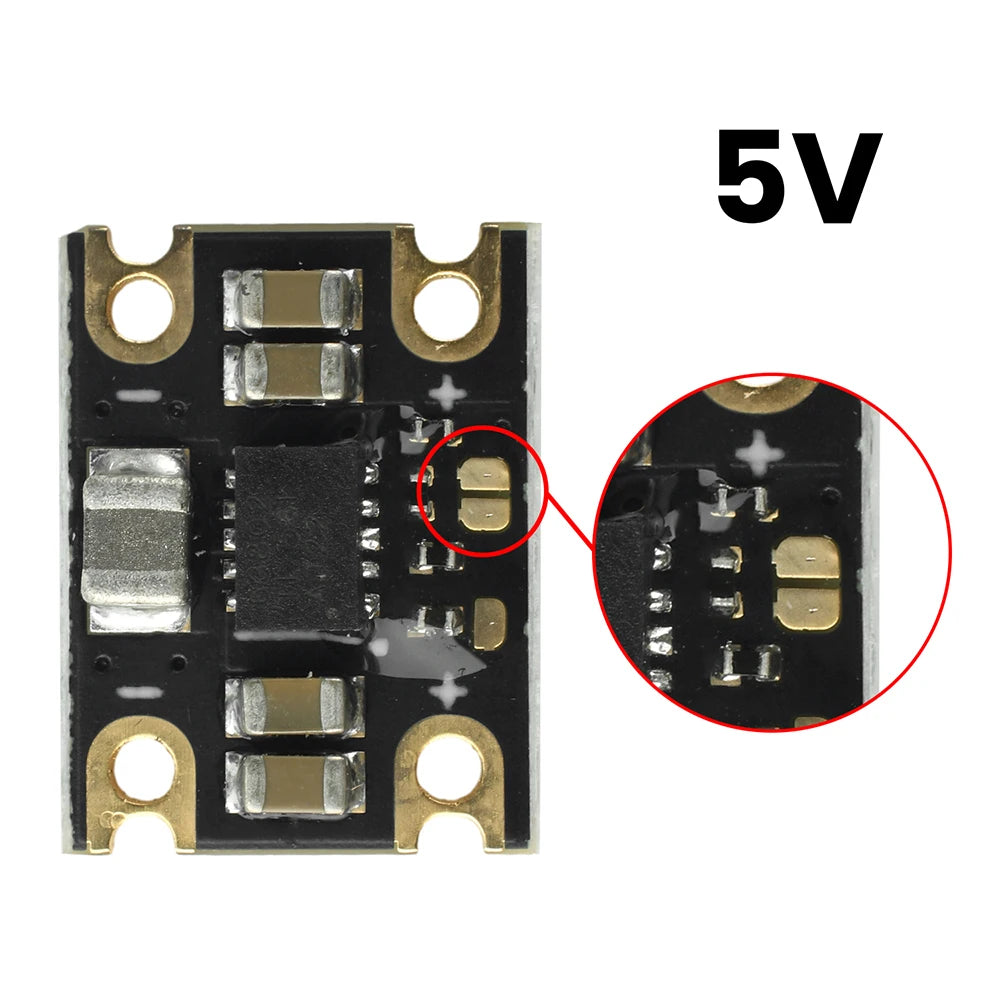

5V

Input Voltage: DC 1.8-5.5V

Output Voltage: 5V

Output Current: 1A

Quiescent Current: 30uA@3.7V

Ripple

90mv 3.7V@5V 0A

18mv 3.7V@5V 1A

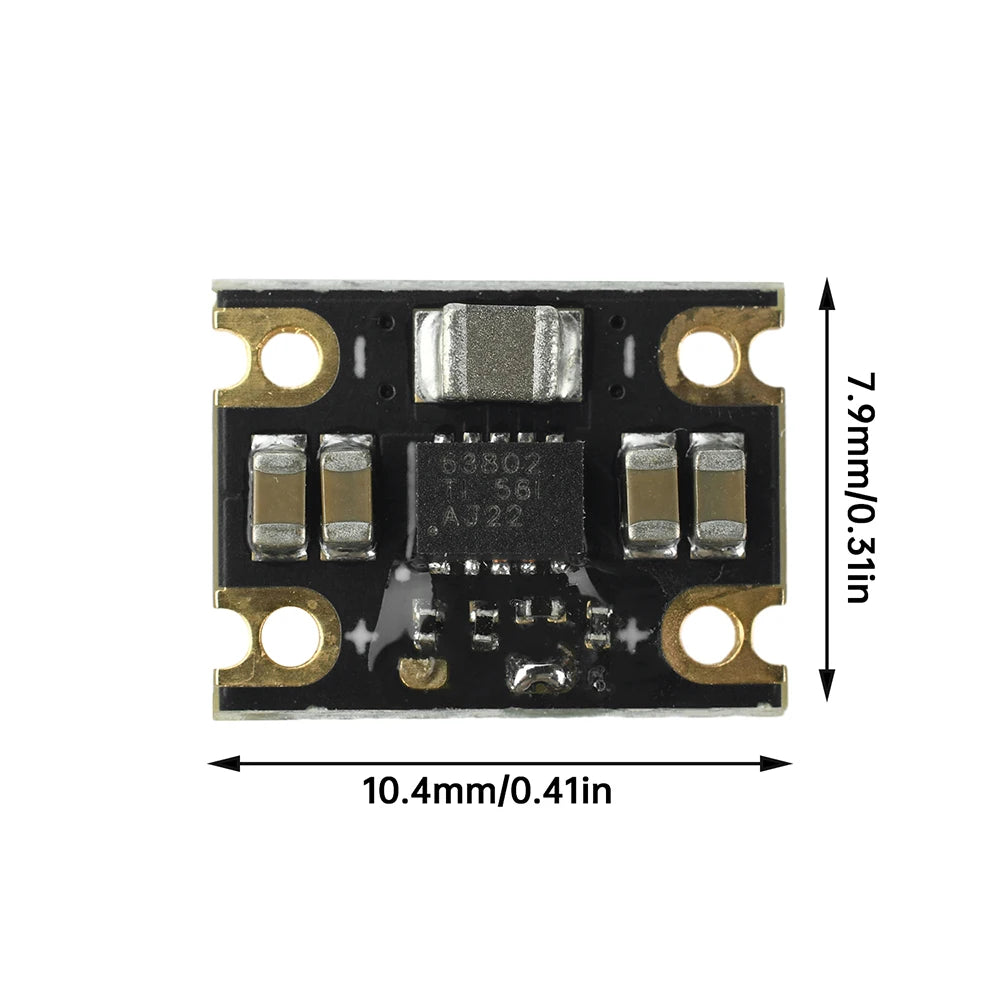

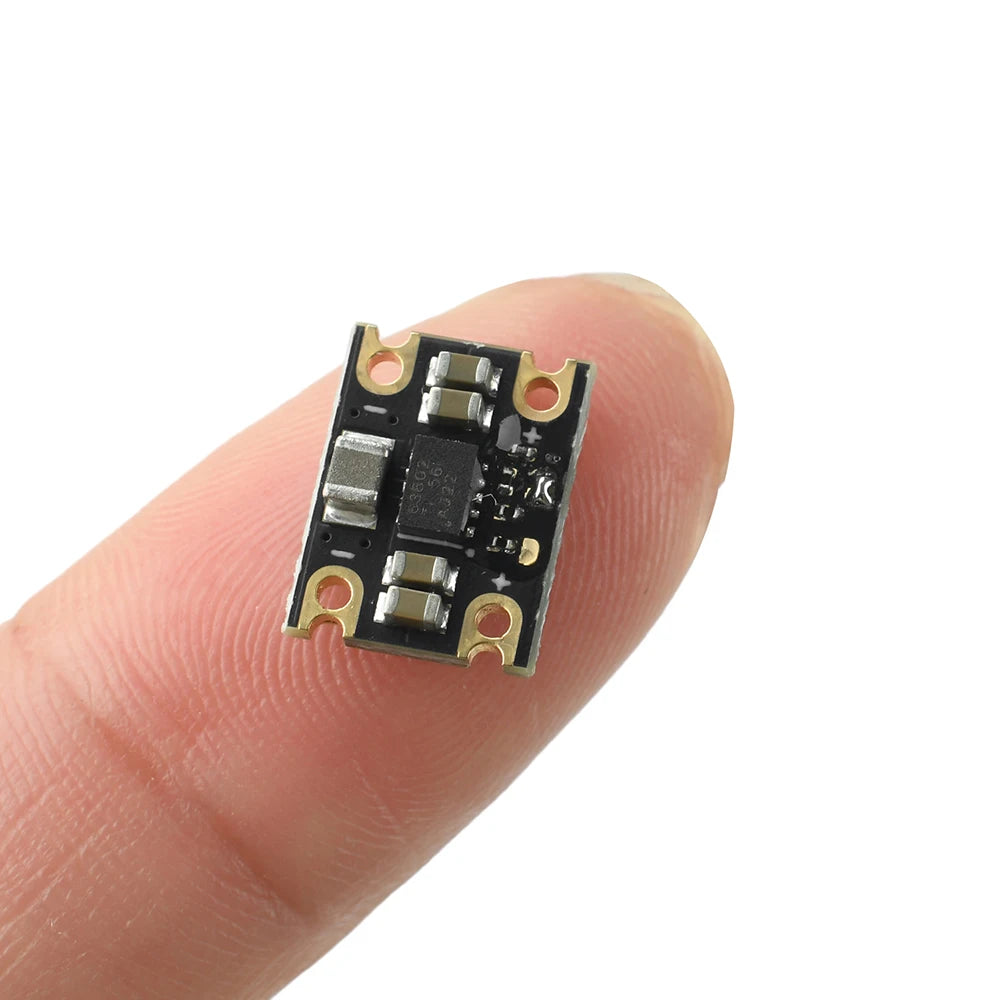

PCB dimensions: 10.4 × 7.9 mm

Package include:

buck-boost power supply Module*1
