TPS7A4701 1A RF Low-Noise Voltage Regulator Power Supply DC-DC 3V-35V TO 3.3V 5V 9V 12V 15V 19V 24V Audio DAC Decoder Amplifiers
TPS7A4701 1A
$34.72
Sale price
$34.72
Regular price
$0.00
Skip to product information
TPS7A4701 1A RF Low-Noise Voltage Regulator Power Supply DC-DC 3V-35V TO 3.3V 5V 9V 12V 15V 19V 24V Audio DAC Decoder Amplifiers
$34.72
Sale price
$34.72
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: DYKBmetered
Certification: NONE
Choice: yes
DIY Supplies: Electrical
Data Record: No
Electronic: No
High-concerned chemical: none
Model Number: TPS7A4701P1 module is a low-noise buck-type linear positive voltage
Origin: Mainland China
Output Voltage: DC +1.4V~+20.5V;
Semi-finishedproduct: Yes
Size: DC-DC buck Converter
Style: Hifi DAC Audio Amplifier Opamp
TPS7A4701 1A RF Linear Voltage Rregulator: positive voltage
Type: TPS7A4701 1A RF Linear Voltage Rregulator Power
semi_Choice: yes
TPS7A4701 1A RF Linear Voltage Rregulator Power Converter DC 3V~35V To 3.3V 5V 9V 12V 15V 24V Hifi DAC Audio Amplifier Opamp
Module Name: TPS7A4701P1ASMD
Mounting Style: SMD or 2.54mm pin header
Input Voltage: DC +3V to +35V
Output Voltage: DC +1.4V to +20.5V adjustable Solder joint required
Output Current: 1000mA
Features:
Utilizes Texas Instruments TPS7A series low-noise voltage regulator IC

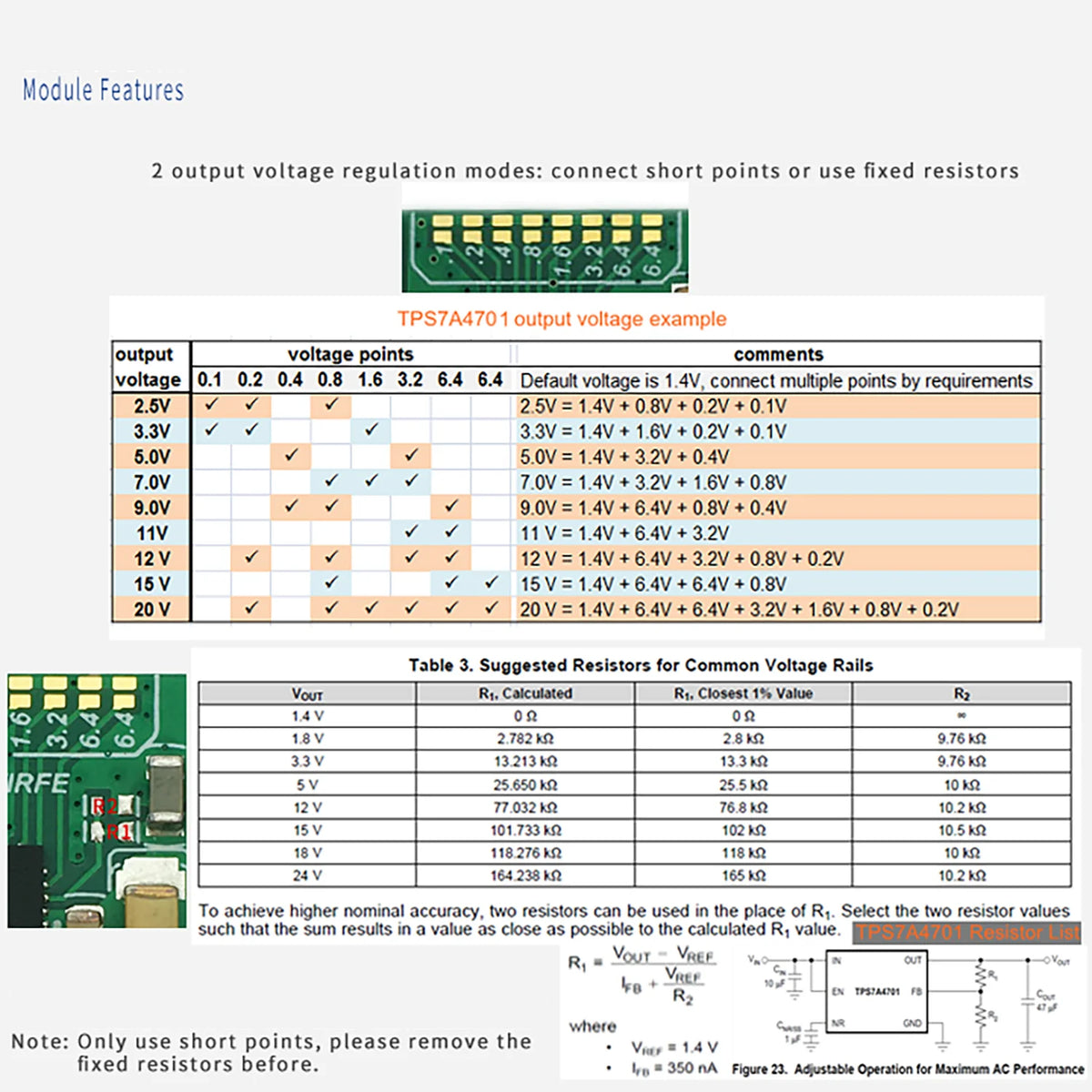

Offers two output voltage configuration methods
Enhanced input/output filtering capability improves module PSRR (Power Supply Rejection Ratio)
Built-in EN shutdown function and reverse polarity protection
Adjustable FB resistor supports wide voltage range customization
Standard 2.54mm pin pitch compliant with Chinese GB standard
Product Description:
The TPS7A4701P1ASMD module is a low-noise buck-type linear positive voltage regulator module, widely used in:
RF circuit applications
Audio DAC decoding circuits
Instrumentation amplifiers and ADC circuits
Precision analog systems requiring clean power supply
Performance Index STD: refer to chip specification
Description
Size (unit: mm) :L28 x W18.4 x H10mm
Component sources :Tl,AVX, kemet, Samsung,Murata, Yageo, Sunlord.
Manufacturing Technology ：Lead-free technology, machine mount

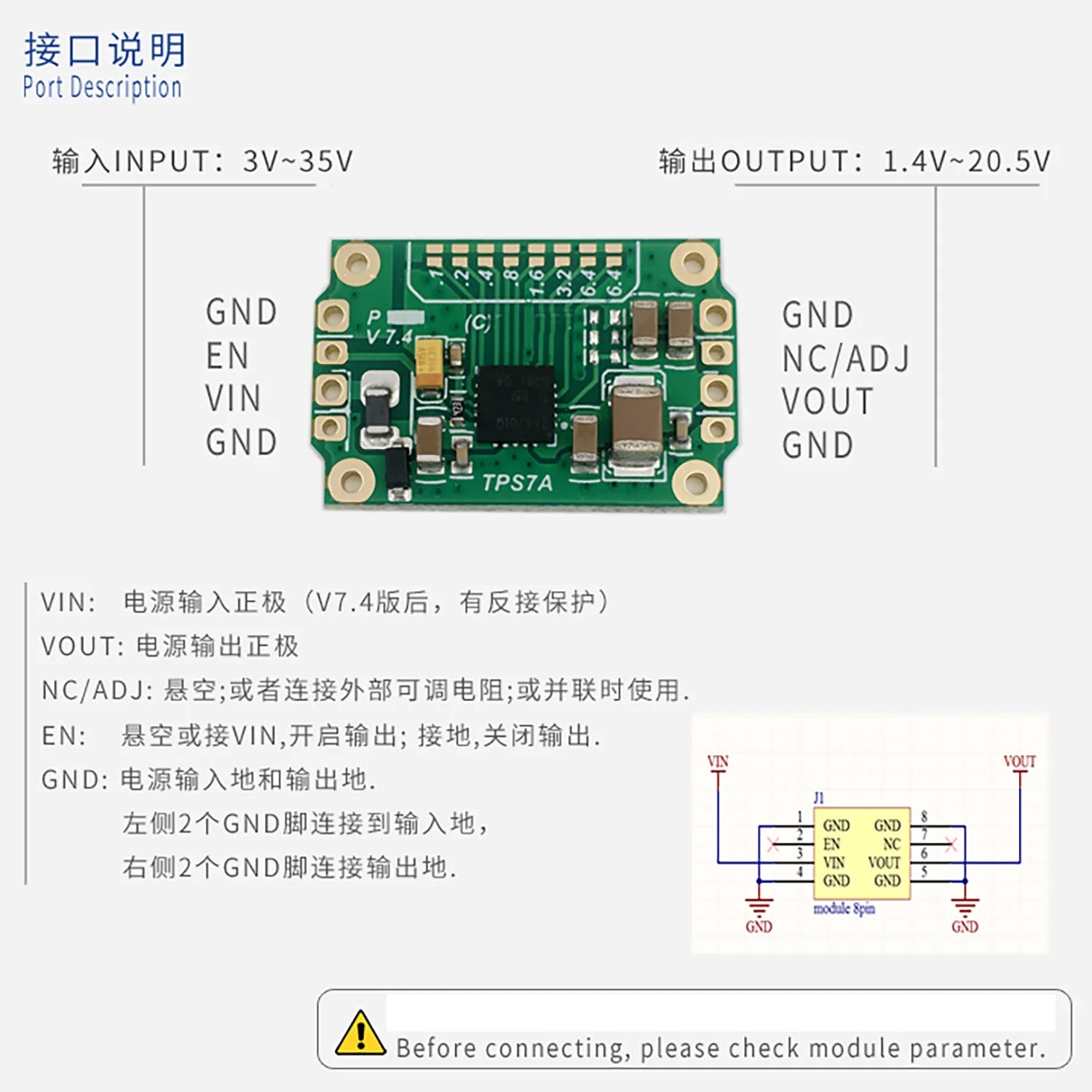

Interface Mode : SMD,2.54mm pin connection
Input Voltage : DC +3V~+35V
Output Voltage :DC +1.4V~+20.5V;+1.4~34V (adjust FB R1/R2)
Output Current :1000mA(MAX)
Output Accuracy : 0.01V
Dropout Voltage : 0.4V
IQ : ON:Input 30V, output 15V,4mA;OFF < 1mA(By EN pin)
PSRR : ~86dB(100Hz)
Vrms : ~4.7uV
Line Transient :+/-0.06%(1A/0-2000mV)
Load Transient : +/-0.4%(5V/0~1A)
EN : support (Low for shutdown, otherwise turn on)
VIOC : Not support
Electrical lsolation : NO
Working Temperature : -20°℃ ～+85°℃
Working Humidity :20% ~90%，No condensation
Storage Temperature :-40°℃～+125°℃
Aging Test : >72 hours
Working Life : STD
Note the line transient calculation method:
for example, while input is 12V，0.06% indicate input range change in 10V-14V..
