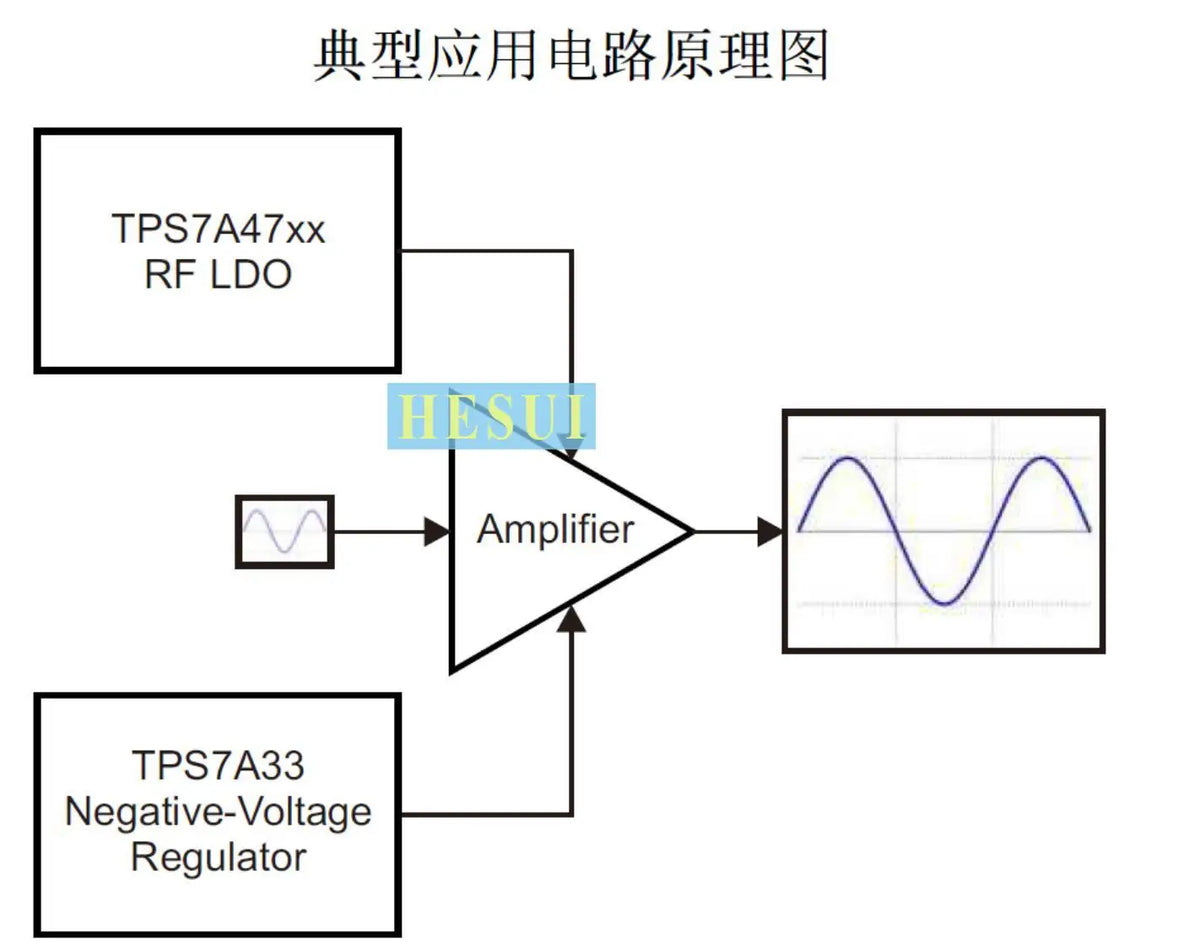

TPS7A4701\TPS7A3301 Module,Pos+Neg 2 power supplyUltra-low noise linear voltage regulator,power supply of RF operation amplifier
Default Title
$88.80
Sale price
$88.80
Regular price
$0.00
Skip to product information
TPS7A4701\TPS7A3301 Module,Pos+Neg 2 power supplyUltra-low noise linear voltage regulator,power supply of RF operation amplifier
$88.80
Sale price
$88.80
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Condition: New
Dissipation Power: standard
High-concerned chemical: none
Model Number: TPS7A4701\TPS7A3301 Ultra-low noise linear voltage regulator
Operating Temperature: standard
Origin: Mainland China
Package: SMD
Supply Voltage: standard
Type: Voltage Regulator
is_customized: Yes
- Module main parameters
Input and output voltage range: IN:±3V to ±36V OUT:±1.4V to ±34
The maximum output of the default adjustable voltage is ±15V, and the 100K adjustable resistor and 10K fixed resistor form a feedback loop. If a wider voltage is required, the 10K resistor can be replaced by 1K resistor. (After reducing the fixed resistance, the adjustable range is increased, the stepping is larger, and the static power consumption will be slightly increased)

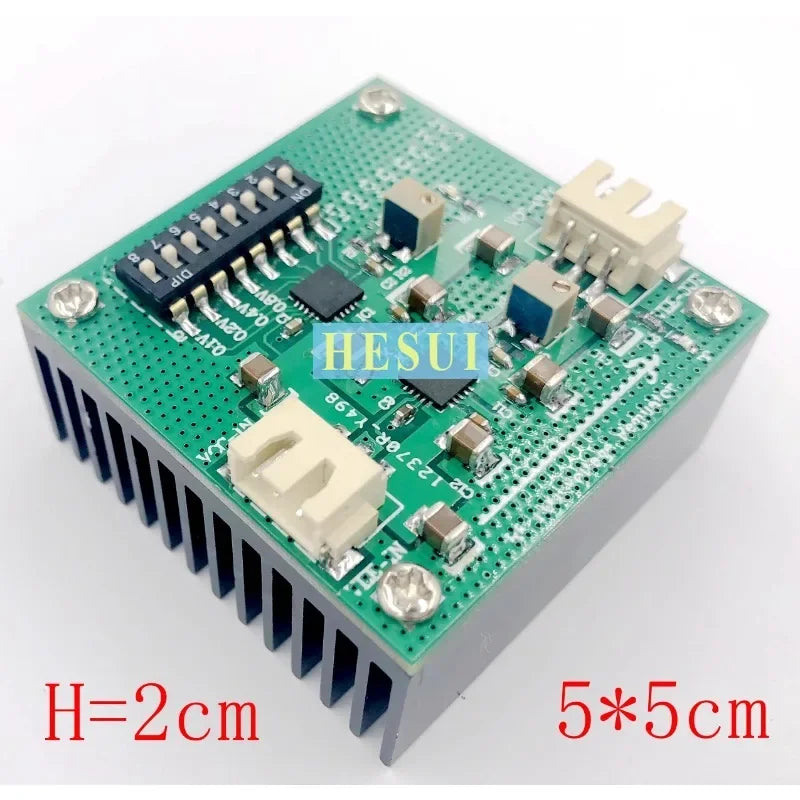

Size: 5cm*5cm(heat sink height =2cm);
The input and output interfaces use XH2.54 3PIN terminal
Current: Maximum 1A (note that when the input and output voltage is higher than 16V, it is best to module the input and output parallel capacitance above 220UF, which can reduce noise well)

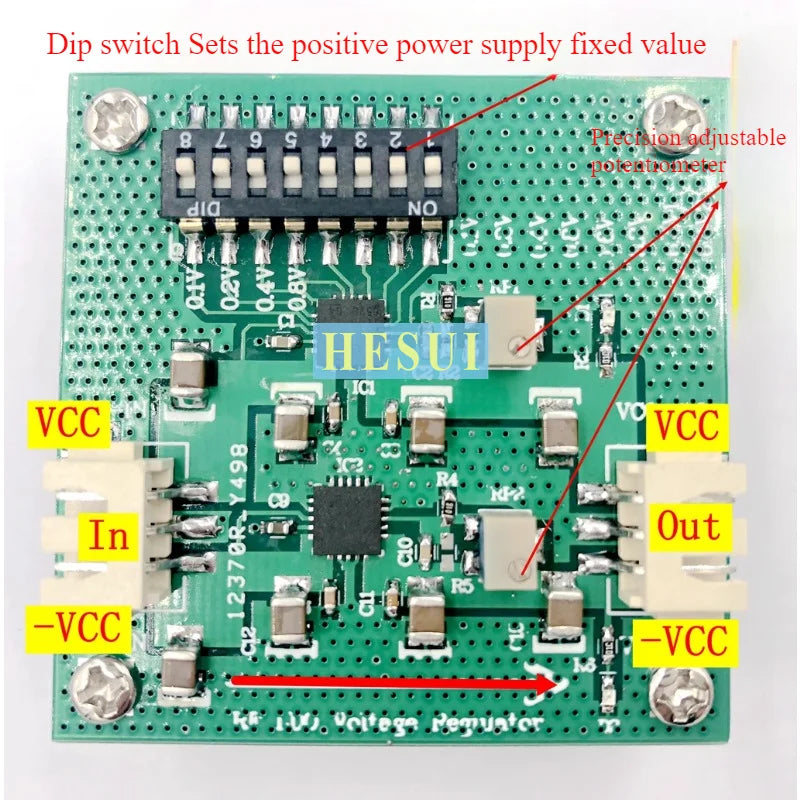

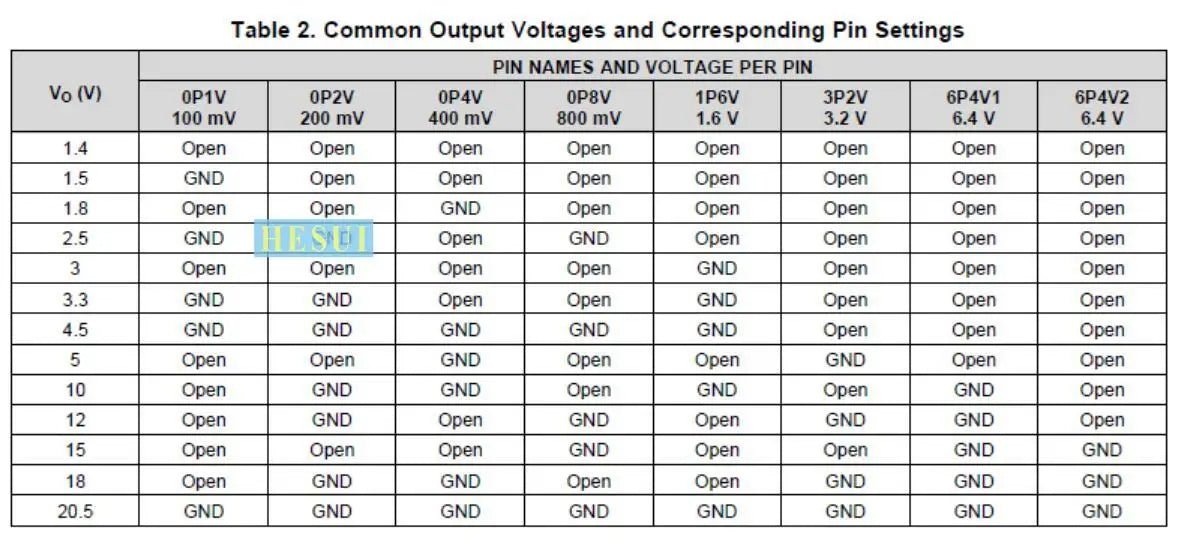

The positive power supply can use dip switches to set some specific voltages, as shown in the figure below
