SPECIFICATIONS

Board Size: 90x60x28mm (L*W*H)

Brand Name: HAXNFIELEC

Filter Technology: Other

Grounding: Standard Grounding

High-concerned chemical: none

Input Voltage: AC 220V

Load Current: 5A

Max Load Current: 20A (The wiring on the back of the board needs to be tinned to make it thicker.)

Origin: Mainland China

Output Voltage: AC 220V

Type: Transformer Filter

WIFI: No

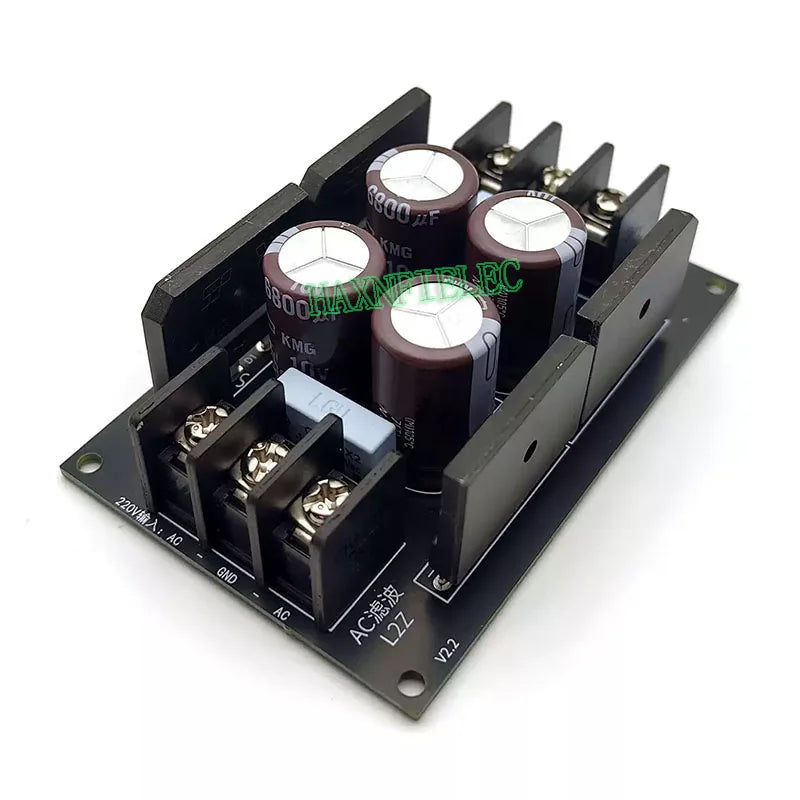

Transformer Filter, AC Power Purification, Eliminate Cow Vibration,

Isolate Mains DC, Anti-interference, Power Filter

Description:

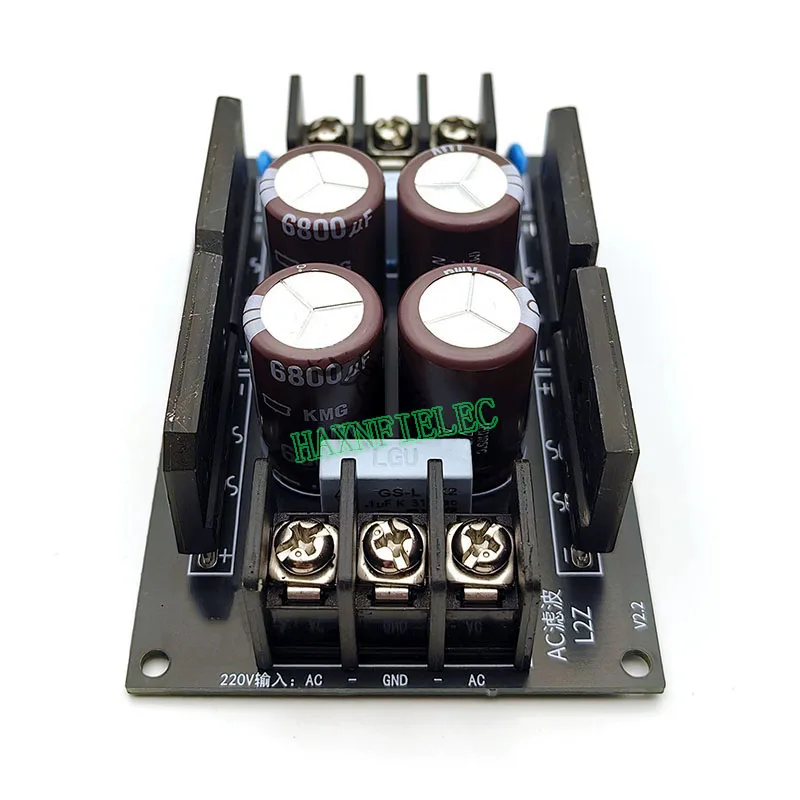

The board uses four rectifier bridges and four fever capacitors to build a dual-channel DC elimination circuit, capacitors for 6800uf two and dual-channel, a single channel filtering DC capacity of 13600uf, dual-channel total capacity of 27200uf. No matter which half of the test power wave DC components can be effectively eliminated and blocked to prevent transformers due to the DC component of magnetic saturation, which affects the transformer current output capacity and vibration (cattle call). The transformer can be prevented from magnetic saturation due to DC component, which will affect the current output of the transformer and produce vibration (cattle call).

Fetures:

Input Voltage: AC 220V

Output Voltage: AC 220V

Load Current: 5A

Max Load Current: 20A (The wiring on the back of the board needs to be tinned to make it thicker.)

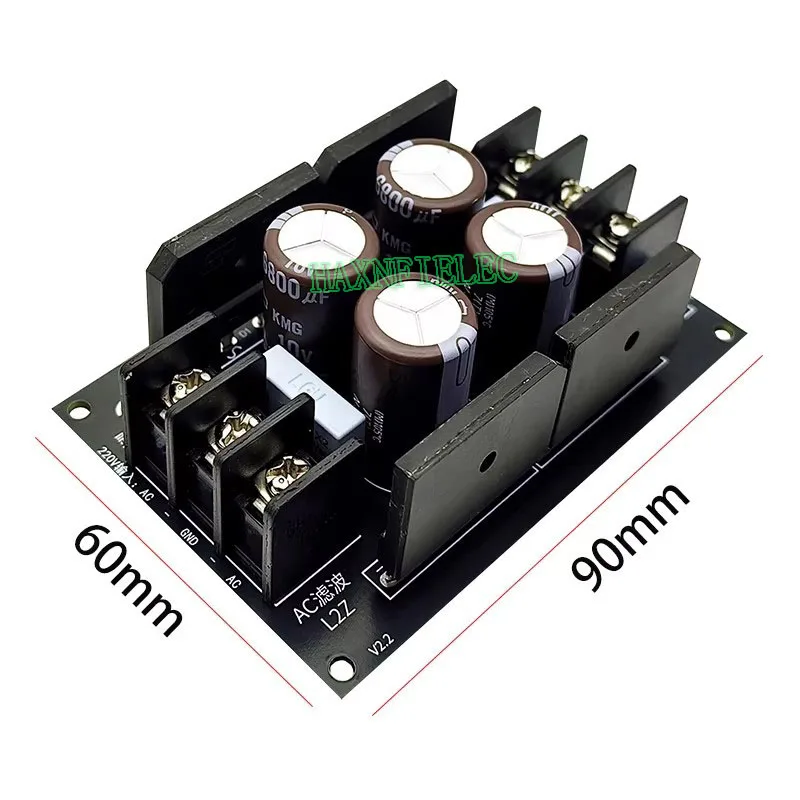

Board Size: 90x60x28mm (L*W*H)
