SPECIFICATIONS

Brand Name: Nvarcher

High-concerned chemical: none

Maximum Power Per Channel: NO POWER

Origin: Mainland China

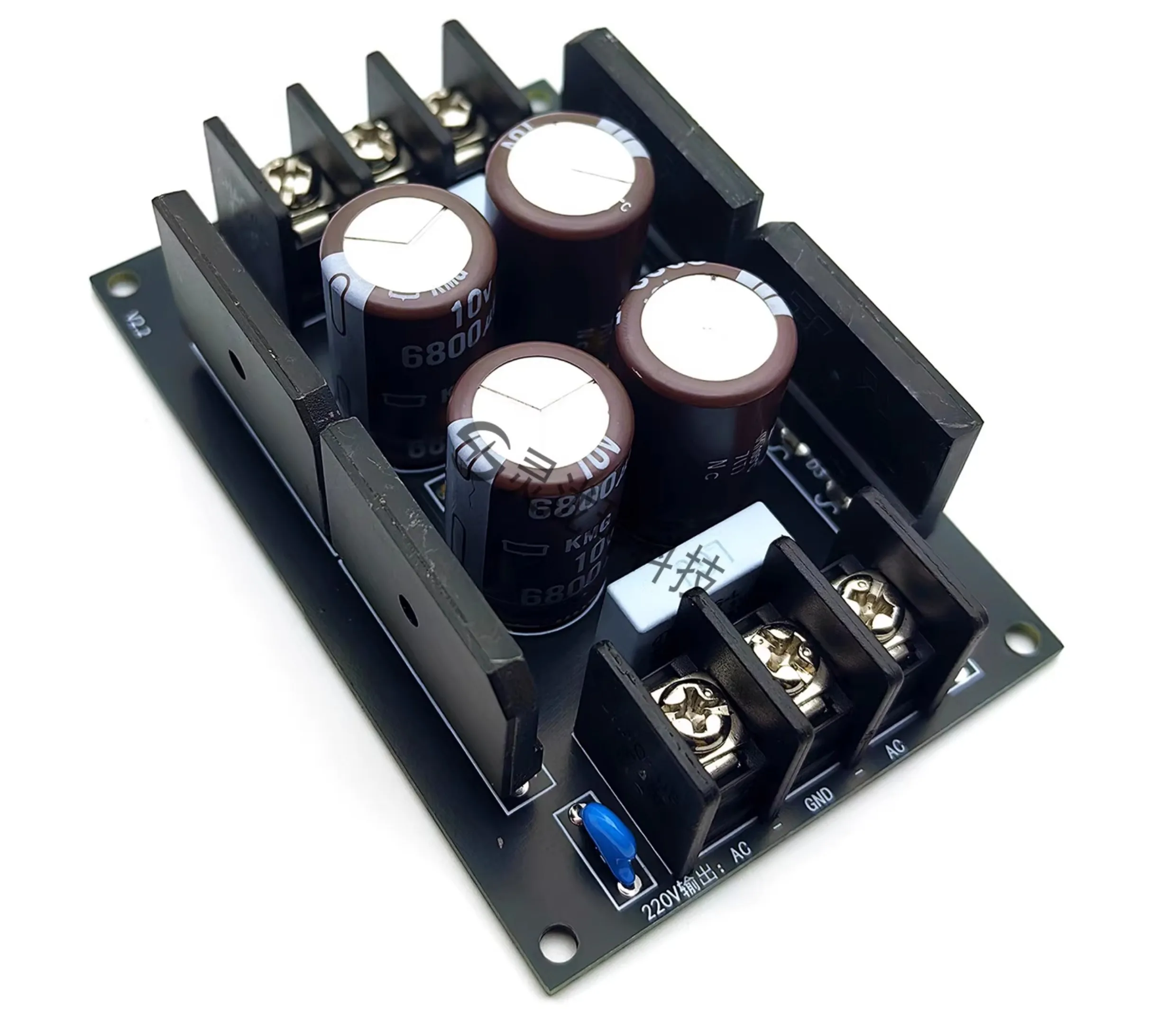

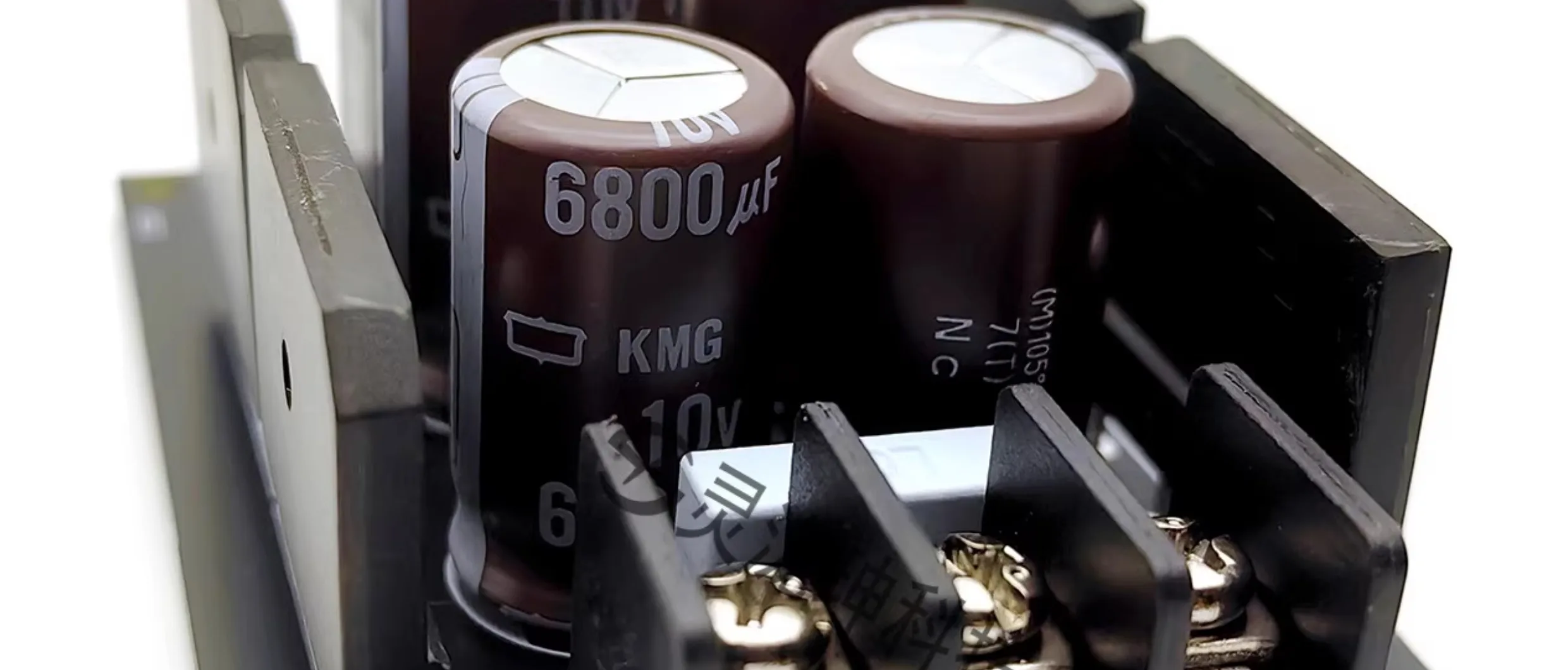

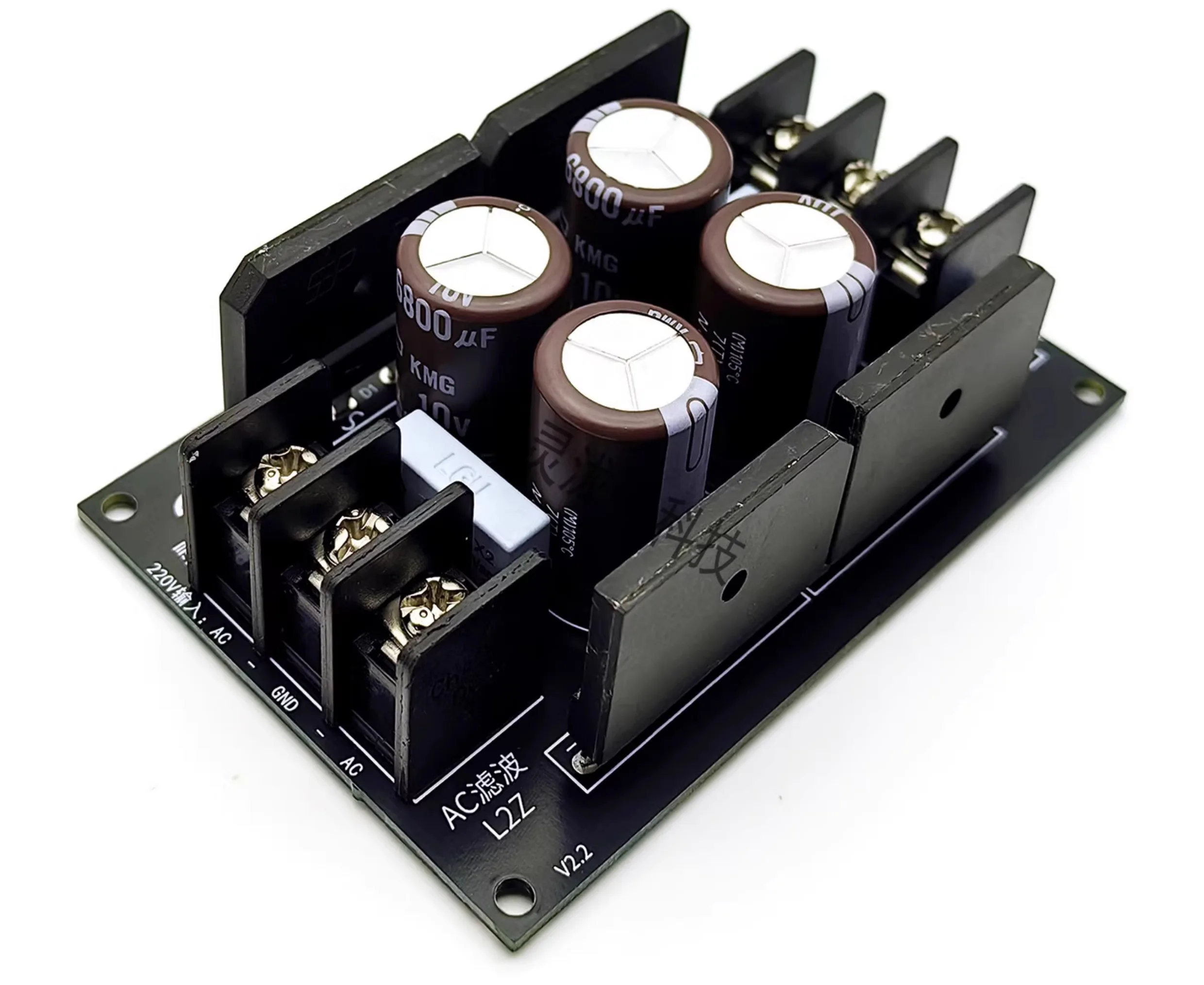

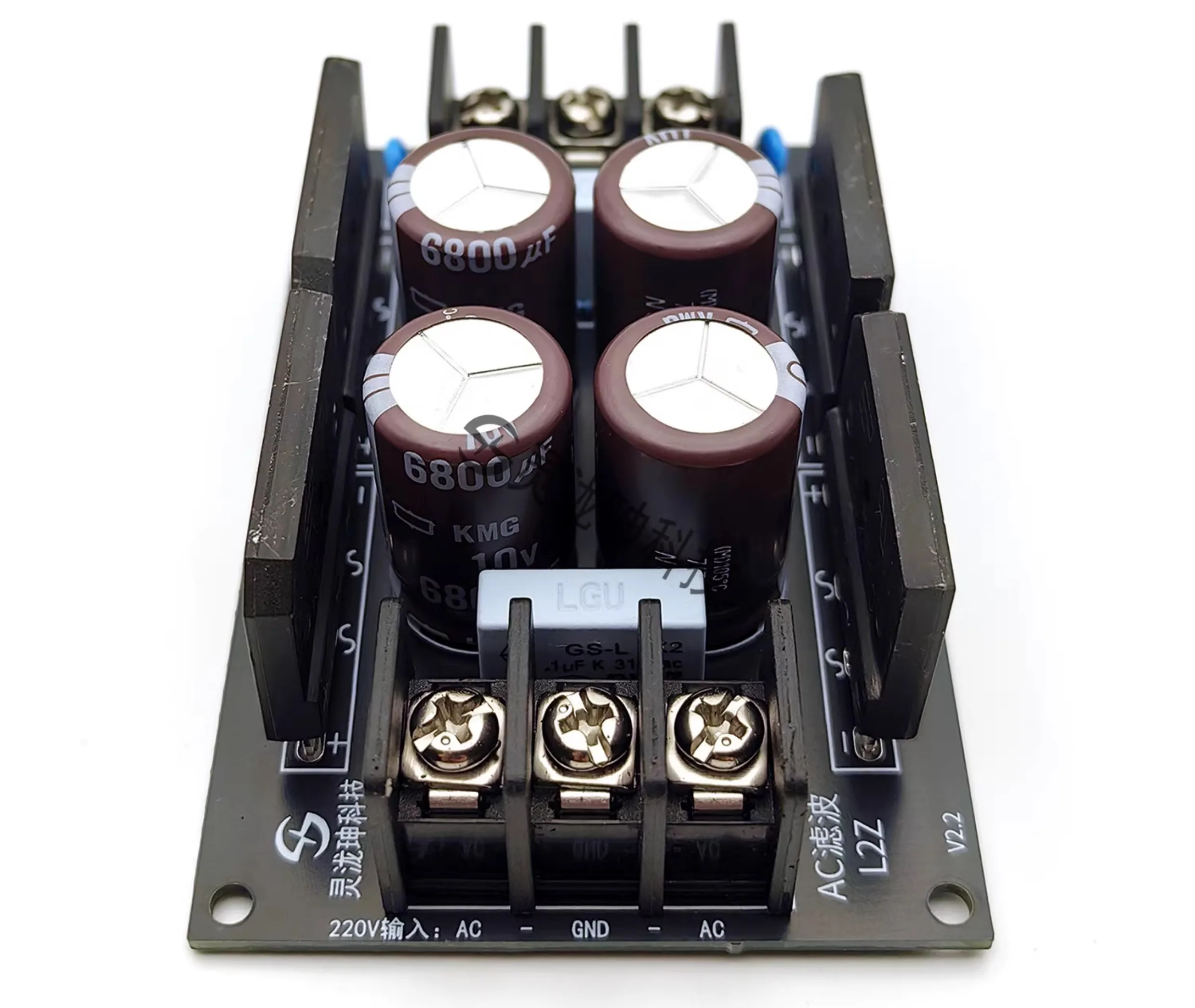

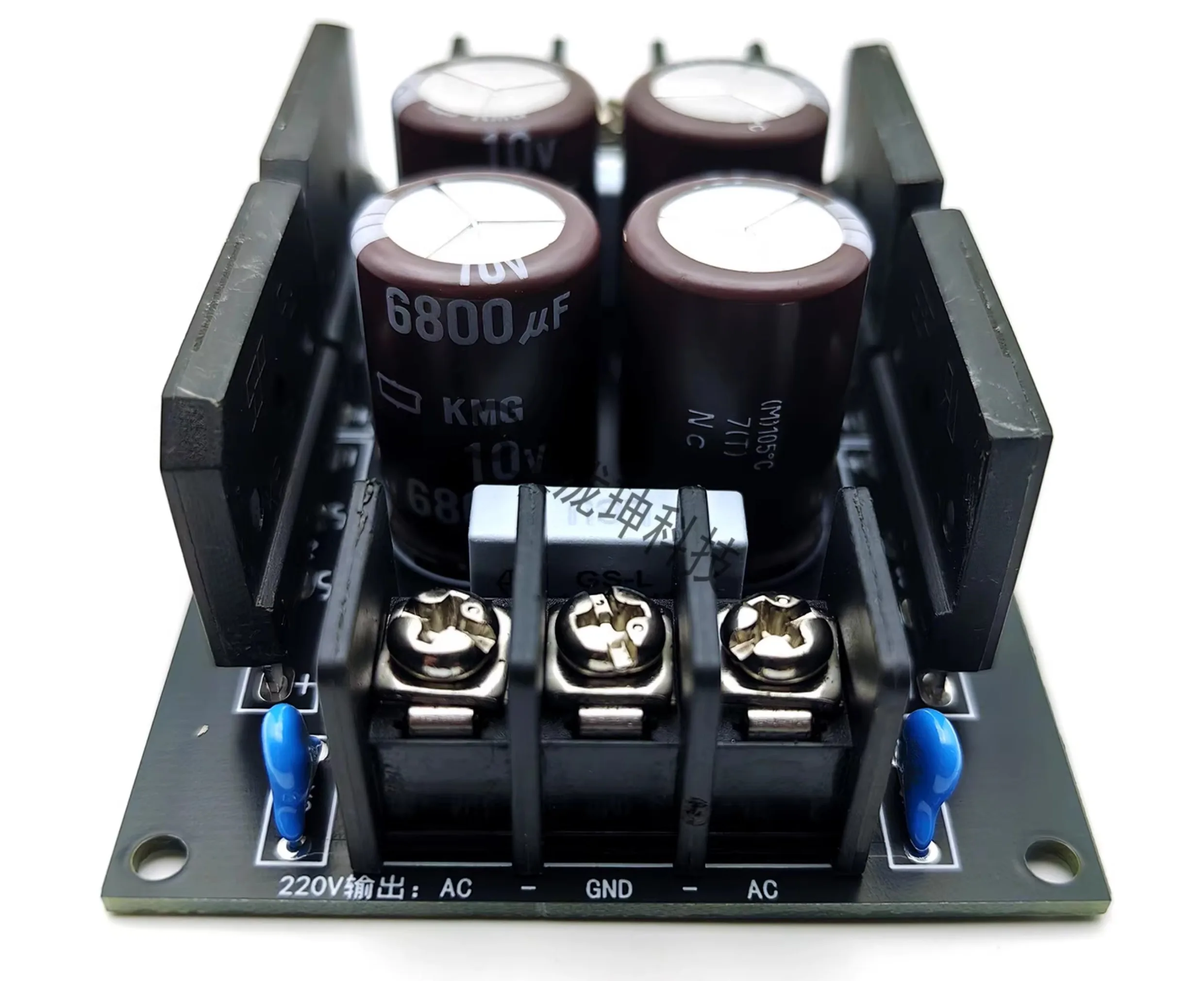

The circuit constructed with a 25A rectifier bridge has a peak passing current of 100A, fully meeting the requirements for both normal and transient response currents of high-power post amplifier,
Input voltage: AC 110V-220V Output voltage: AC 110V-220V Copper thickness: 2oz Long term load current: 5A (bottom not tinned) Long term maximum current: 22A (bottom with copper wire tinned)

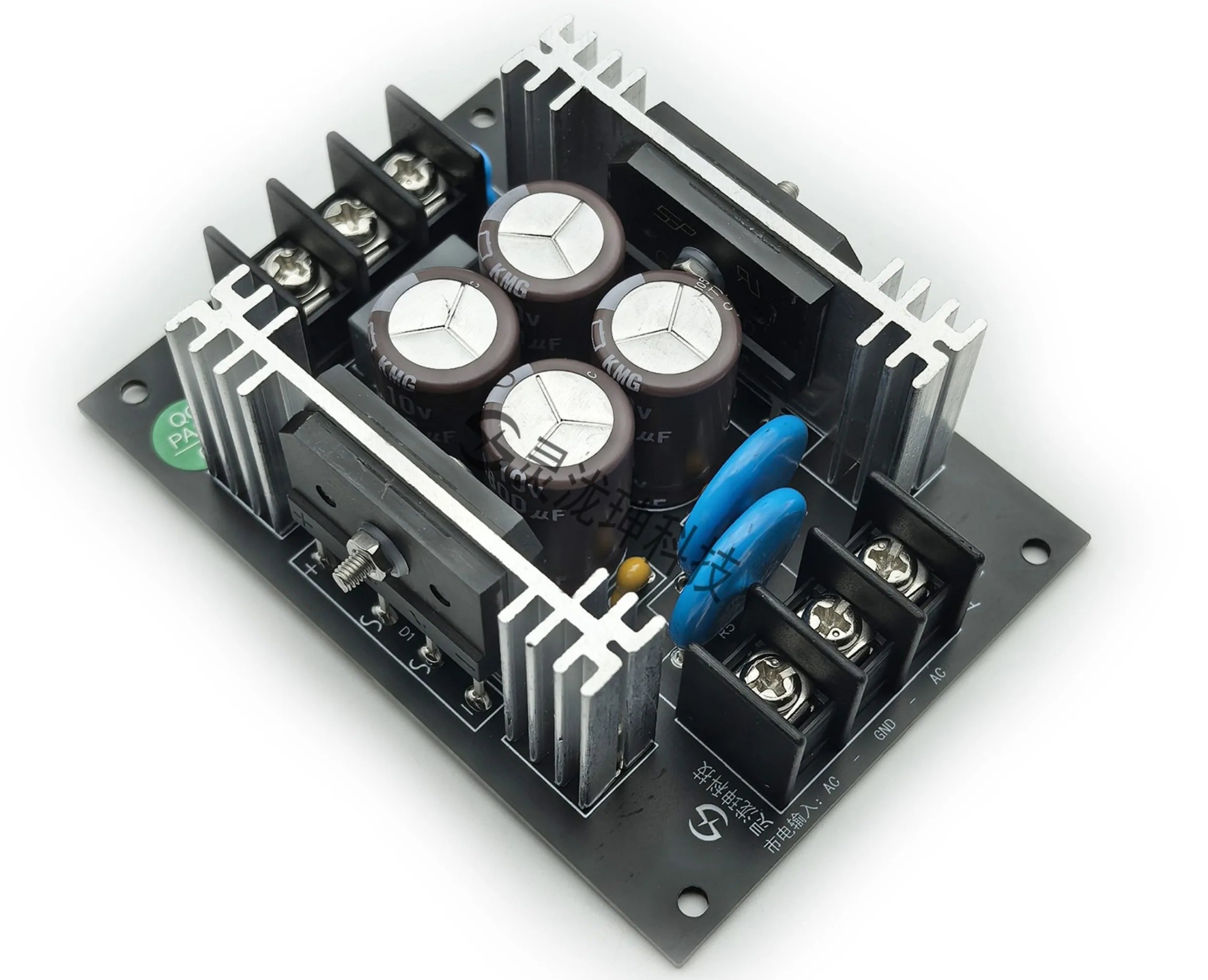

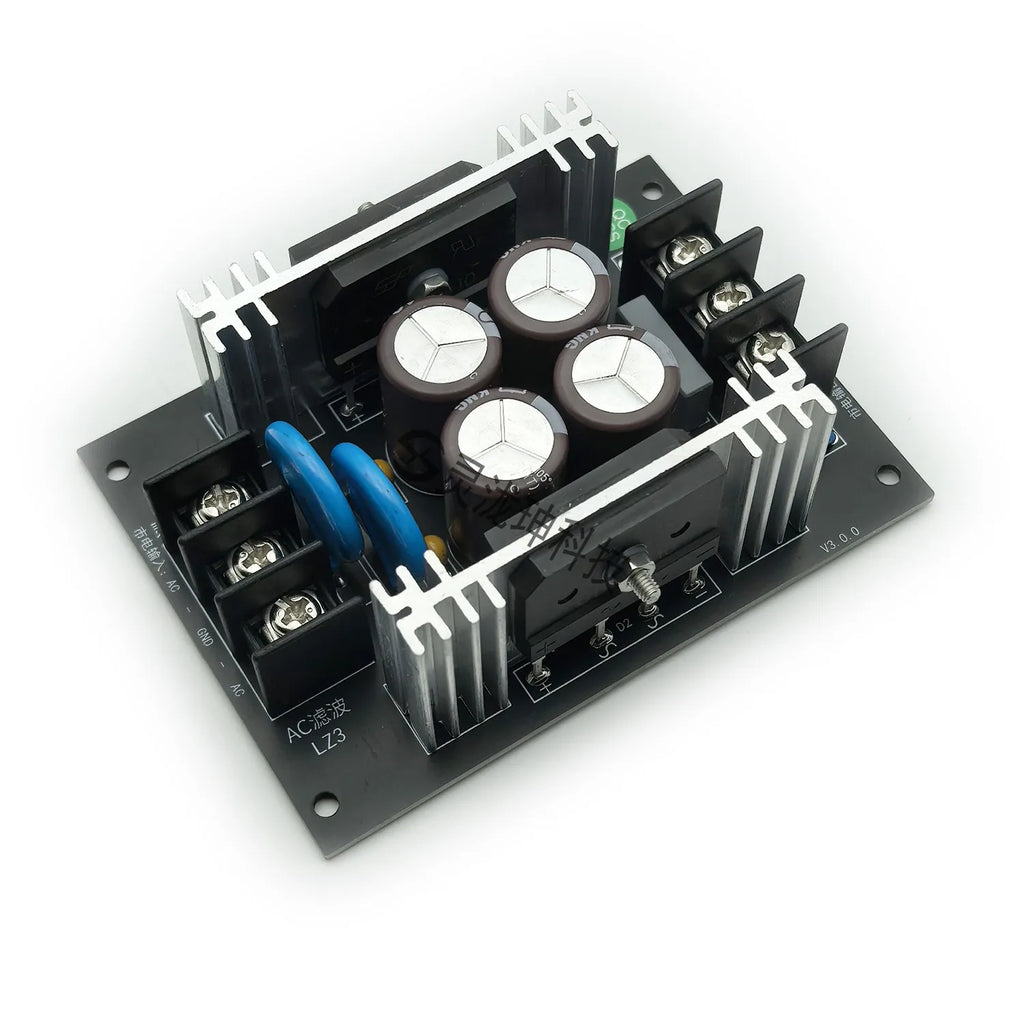

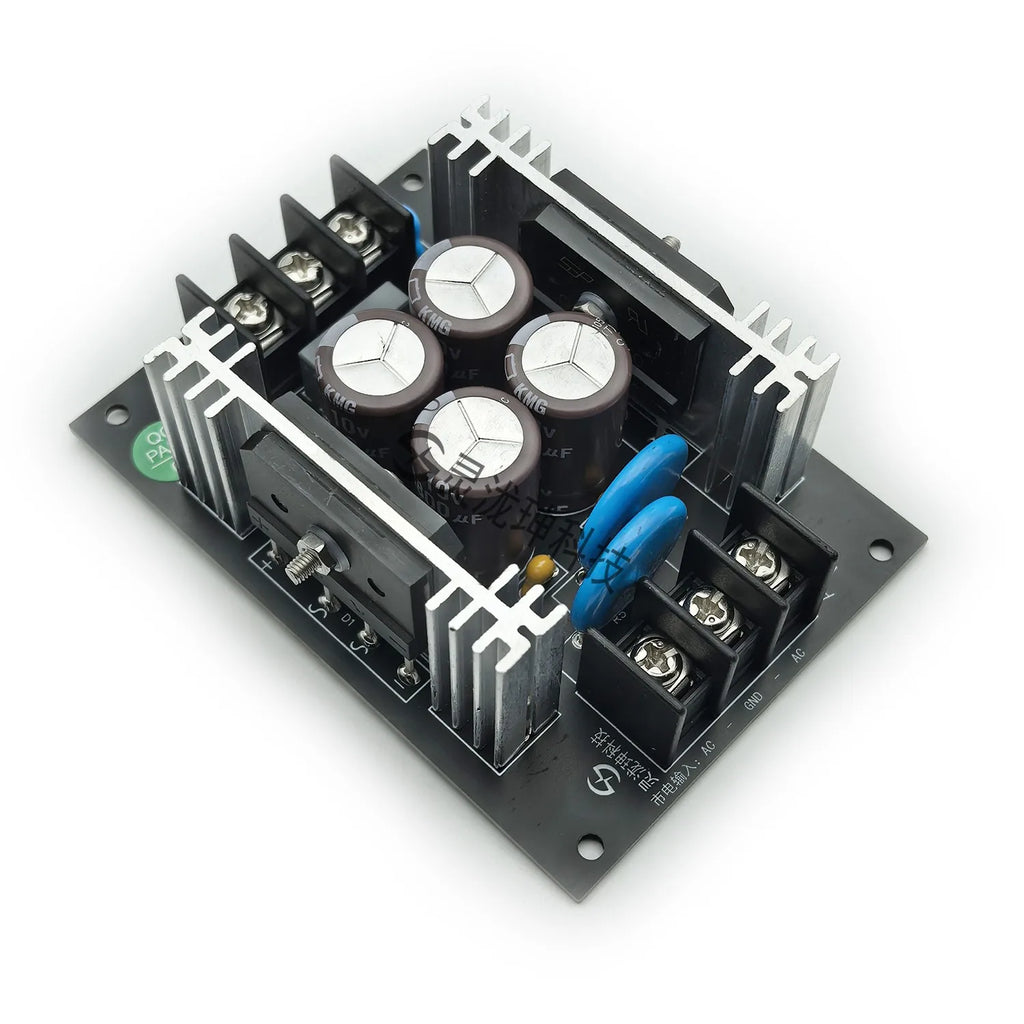

If the long-term load power exceeds 3000W (not based on transformer power), it is recommended to add a small heat sink to the rectifier bridge.
★ The bottom of the board has specially made a window reservation, and buyers can add copper wire and tin to enhance the current passing ability.

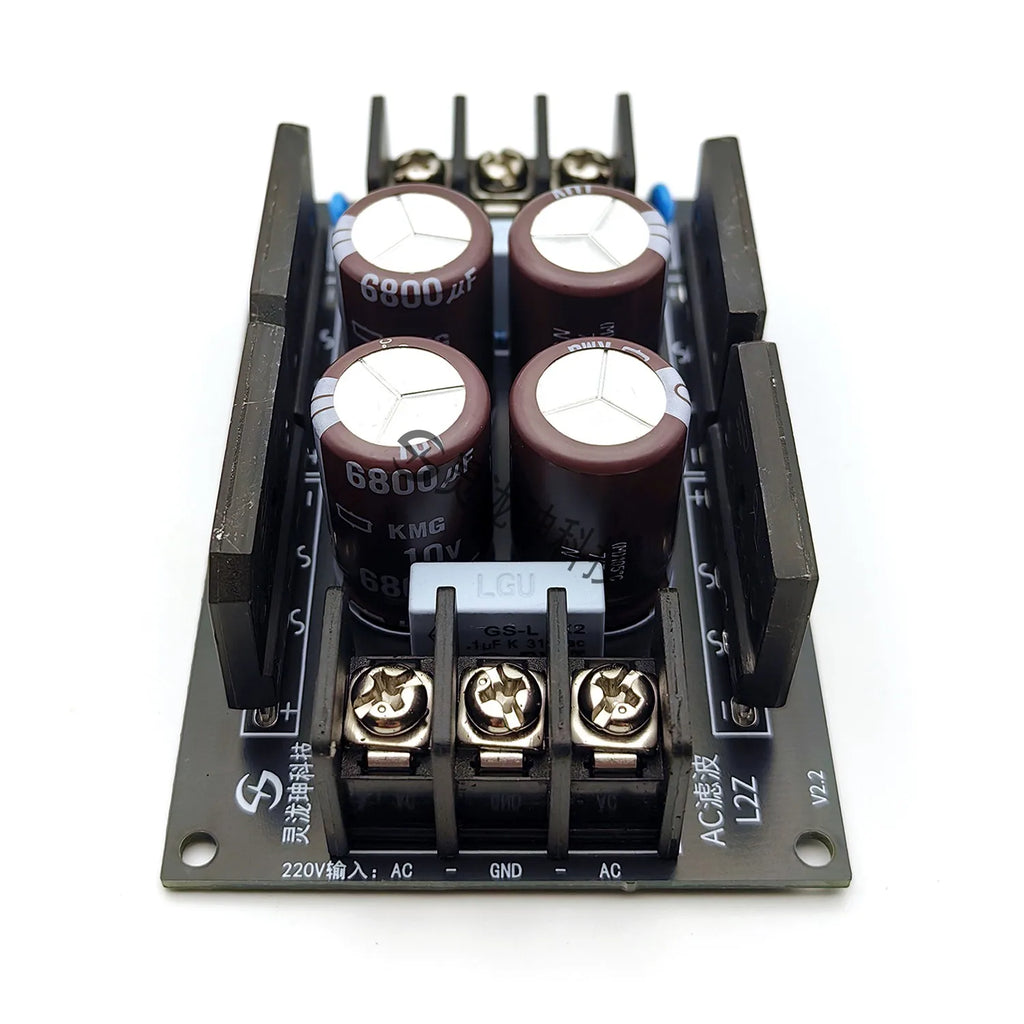

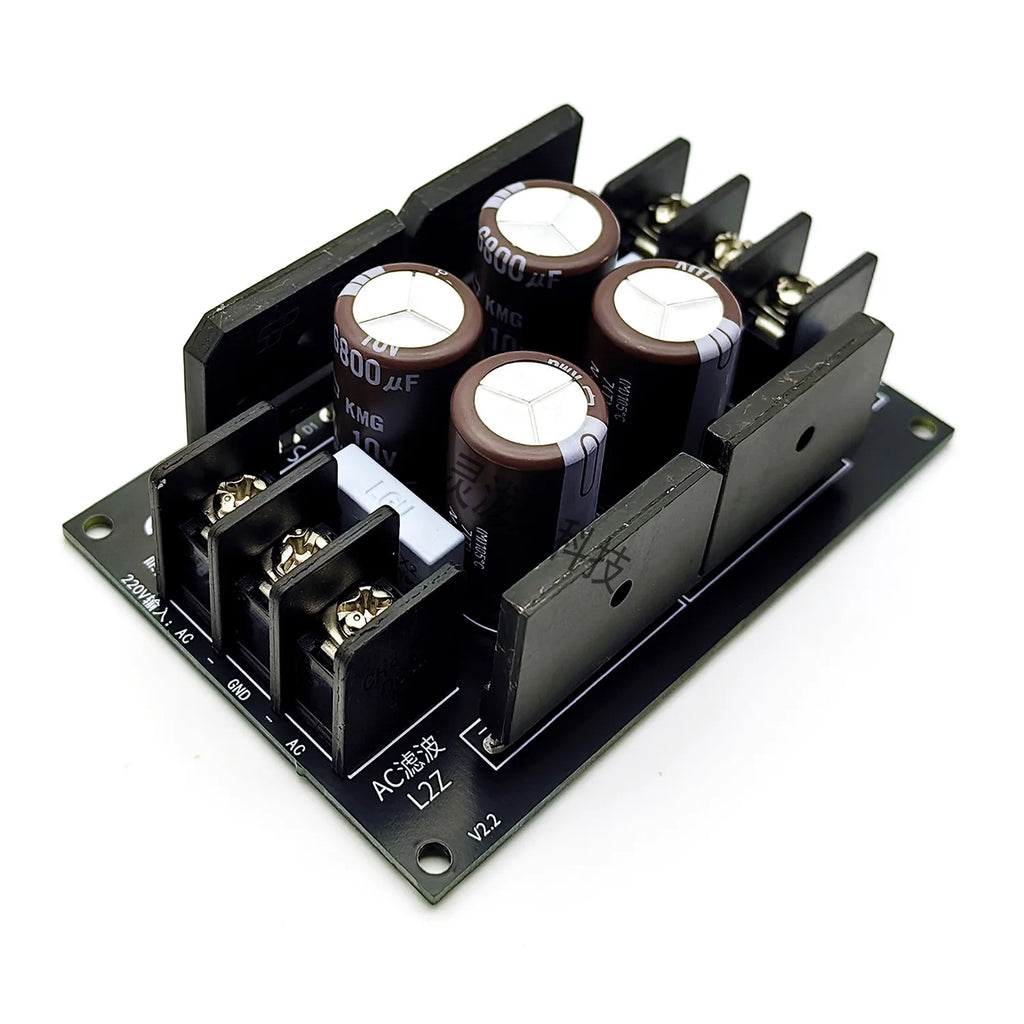

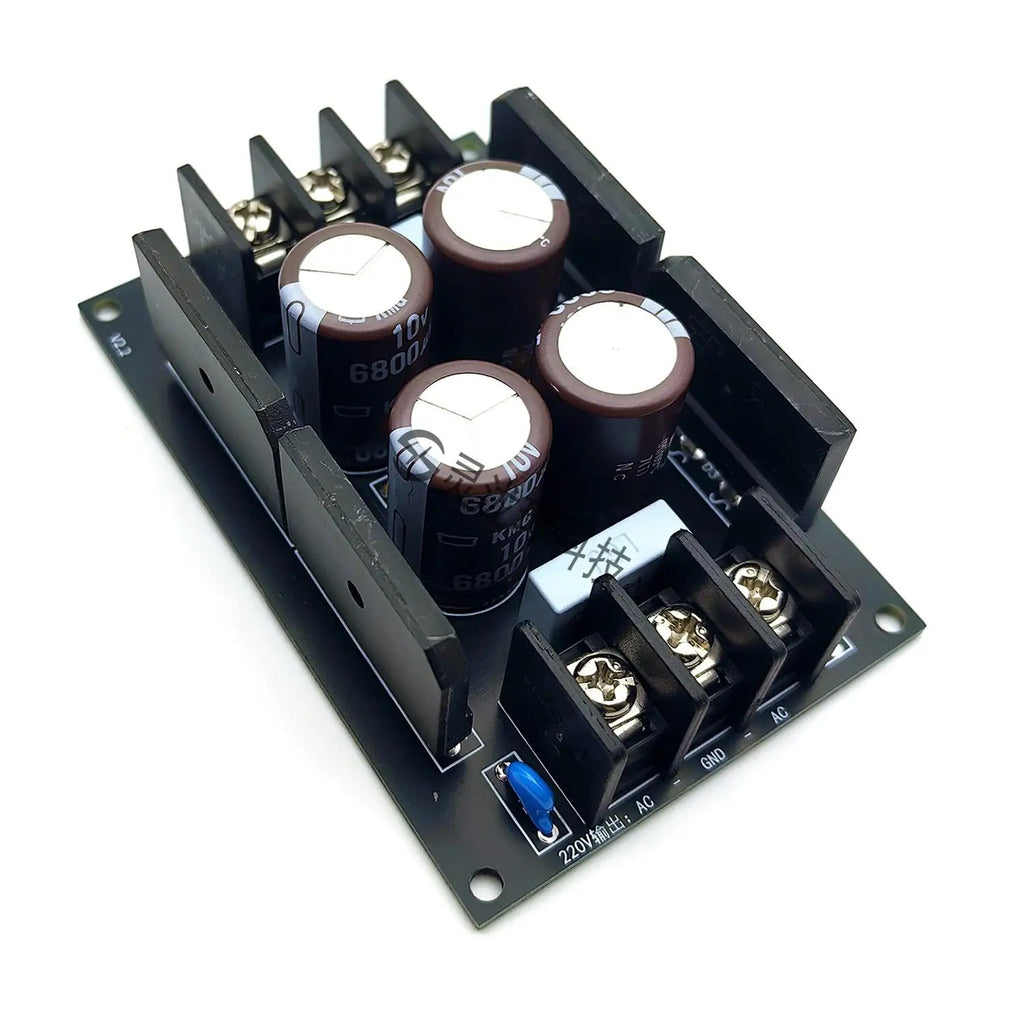

Board size: 90x60mm, height approximately 28mm

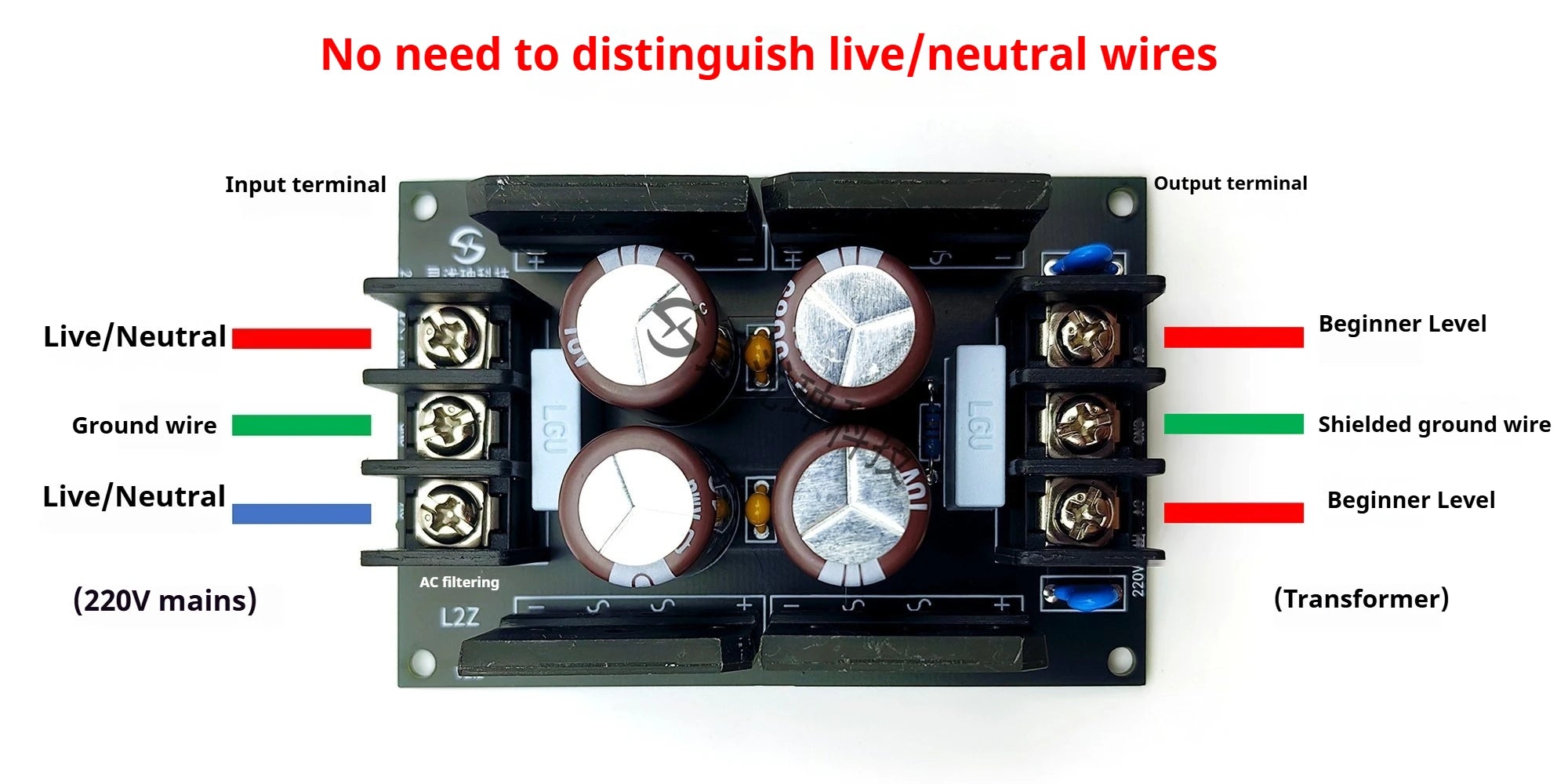

Wiring diagram:
220V mains power → (input) divider (output) → transformer primary

This board is a high-voltage component, please be sure to have some electrical knowledge before purchasing to avoid electric shock. The consequences of electric shock caused by improper operation by the buyer shall be borne by themselves.
Attention must be paid to wiring according to the "input" and "output" markings on the board, otherwise powering on will cause capacitor explosion.
