SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SOP

Quantity: 1

Type: Switch

is_customized: Yes

Product selling points:

1: Temperature during charging is 5-10℃ lower than similar solutions

2: Built-in MCU and charging management IC chip

3: Wiring is simple to use

4: Product certification: CE/FCC/RoHS

5: Safe fast charging 6 protection, over-current protection, over-voltage protection, over-temperature protection, over-power protection, under-voltage protection, short-circuit protection

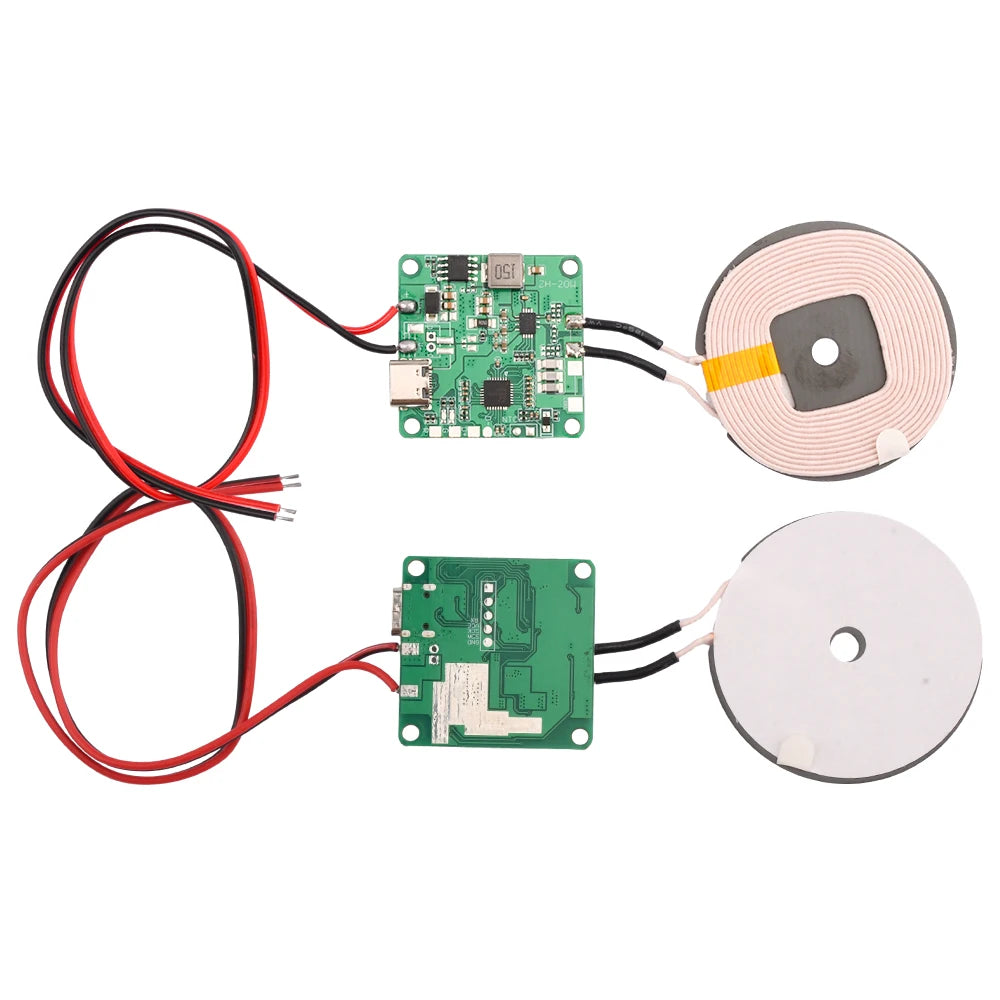

Purchase notes wireless charging = transmitter + receiver

1, the mobile phone ‘has’ wireless charging function: If your mobile phone has wireless charging function, or has purchased the ‘receiving end

Then you only need to buy the ‘transmitter (base)’ can be charged.

2, mobile phone ‘no’ wireless charging function: if your mobile phone does not have ‘receiver (coil patch)’, then you need to buy the

If your mobile phone does not have a ‘receiver (coil patch)’, then you need to buy a ‘transmitter + receiver’ to charge it.

Input power: Type-C port: 5v/9V/12V or QC3.0; Solder wire: 8V-13.5V.

Transmission Distance: Spacer(O-8mm),Max:10mm / Spacer(0-10mm),Max: 14mm

Charging power:5W/7.5W/1oW/15W/20W auto-identification

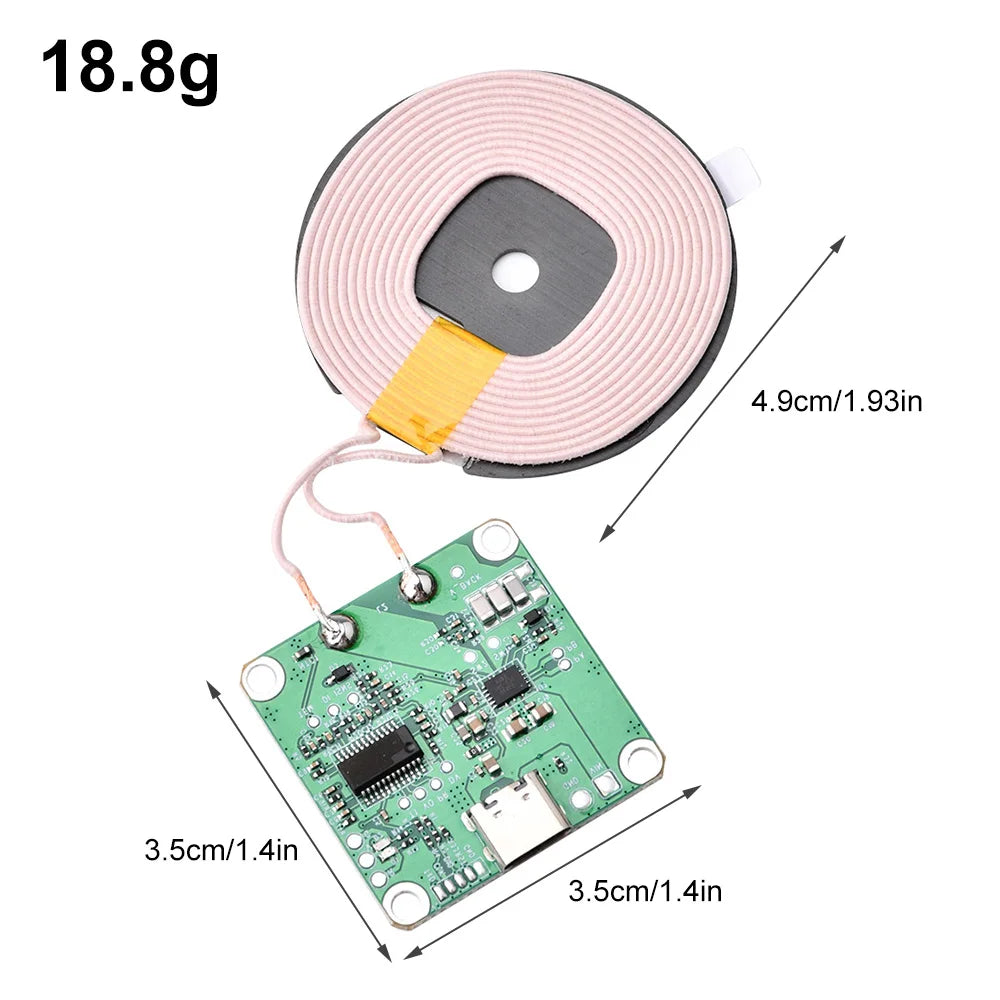

Coil size: diameter 50mm; thickness 2.2mm

Circuit board size: 35mm*35mm; thickness 3.1mm

Standard:Qi wireless charging standard

Product Certification:CE/FCC/RoHS

(Note: No wireless charging function need to add the receiver) support 5W charging

List

1*Wireless fast charging module
