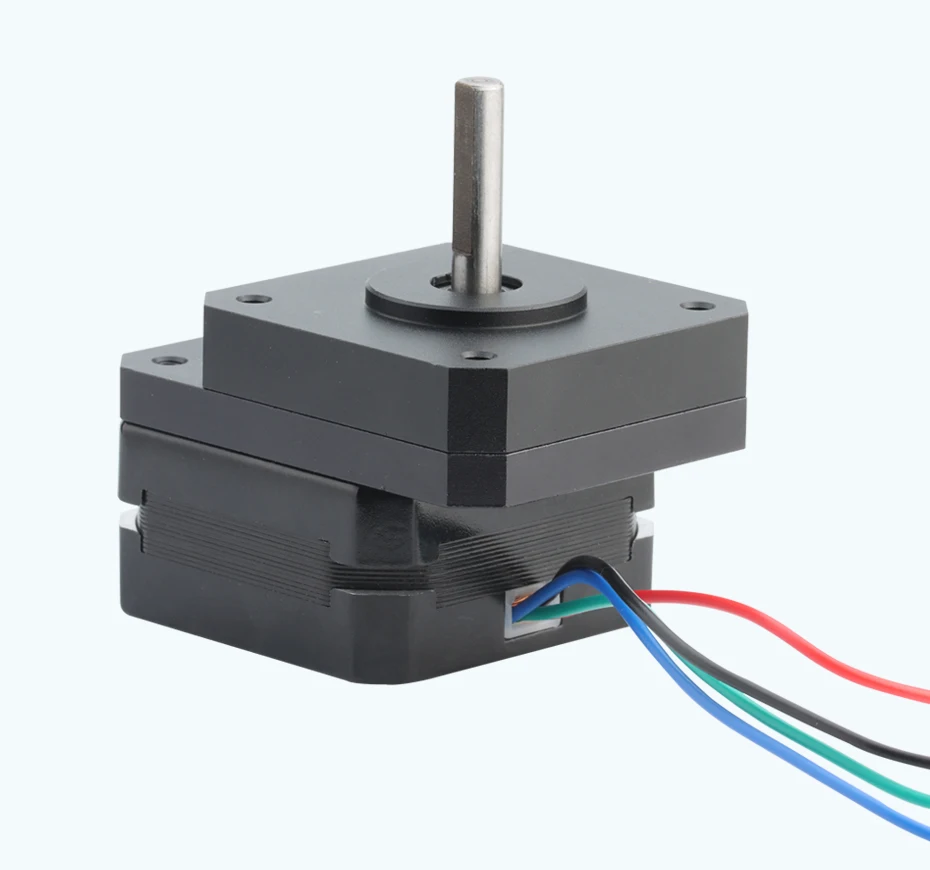

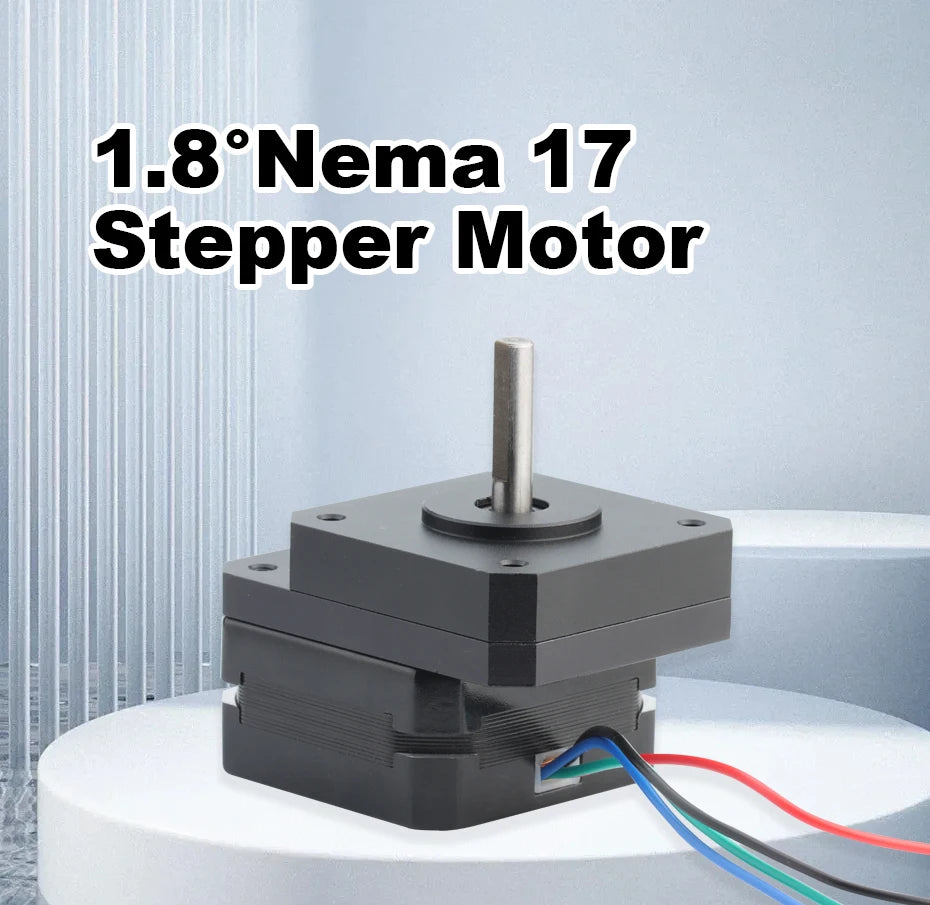

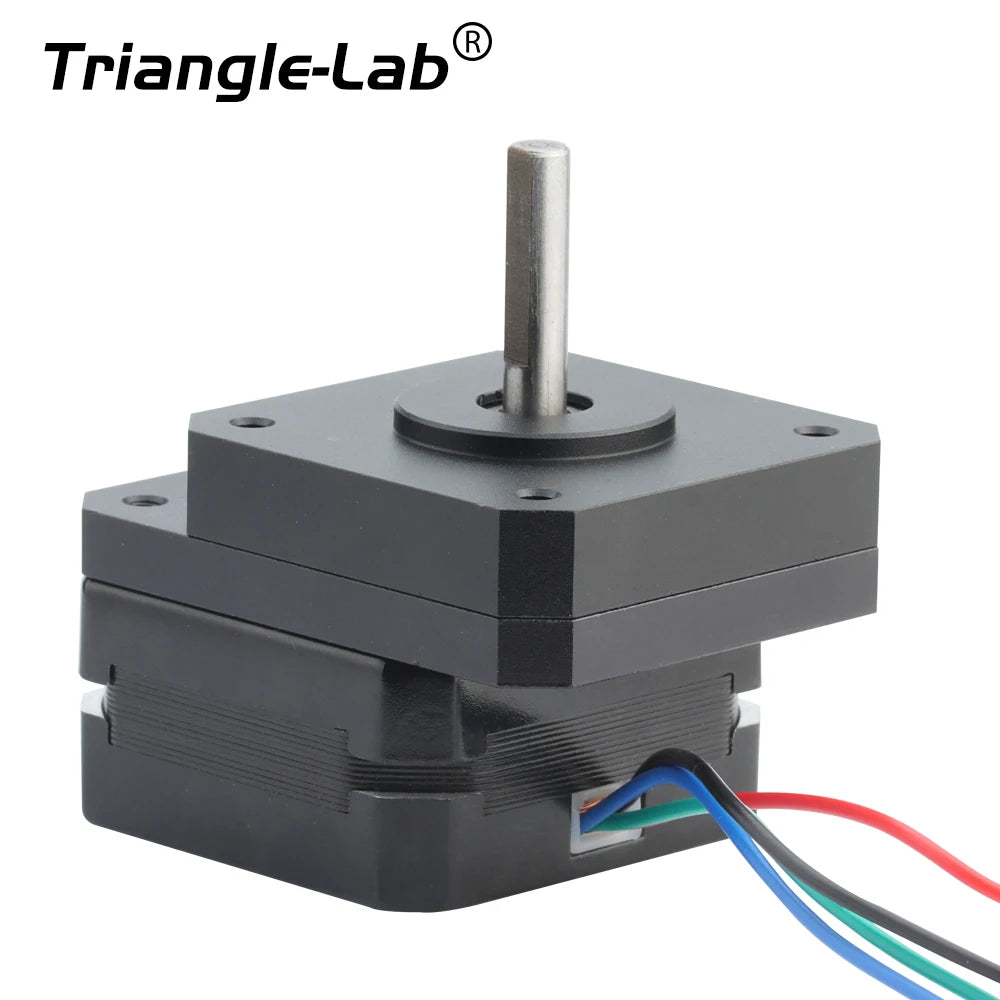

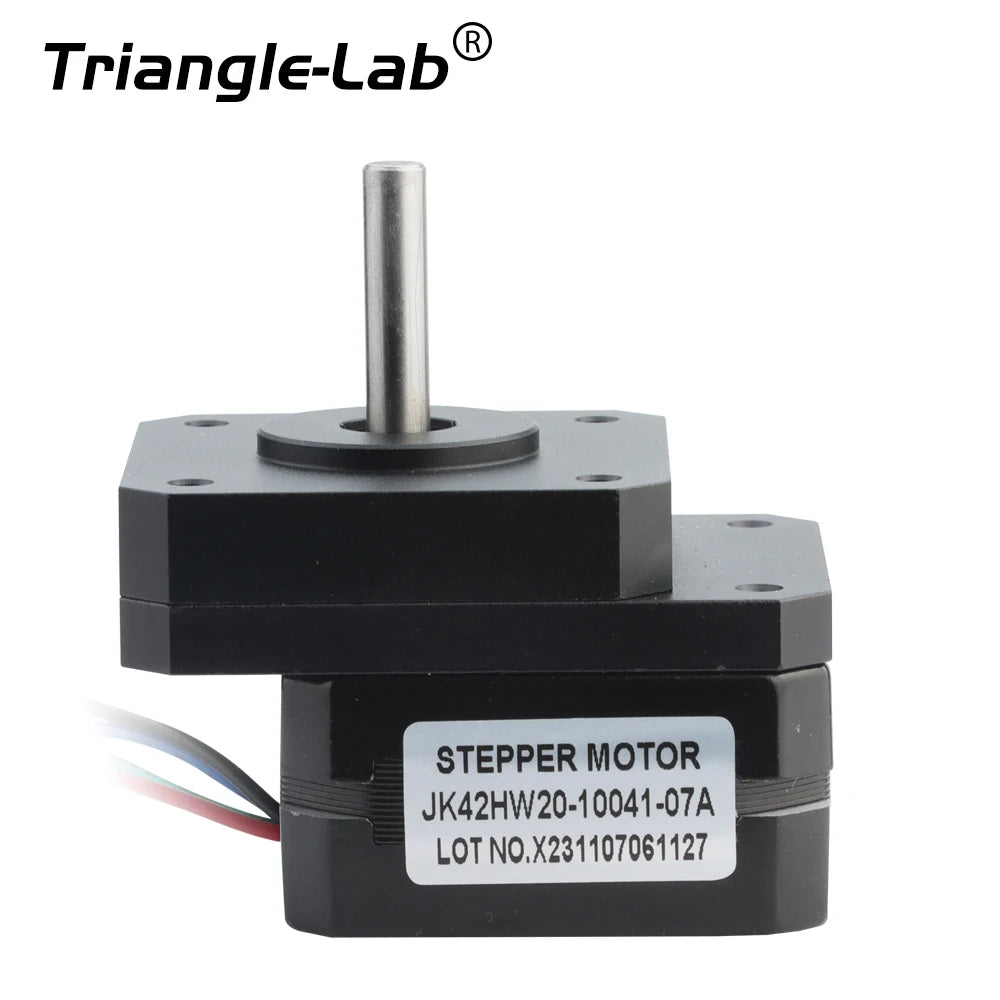

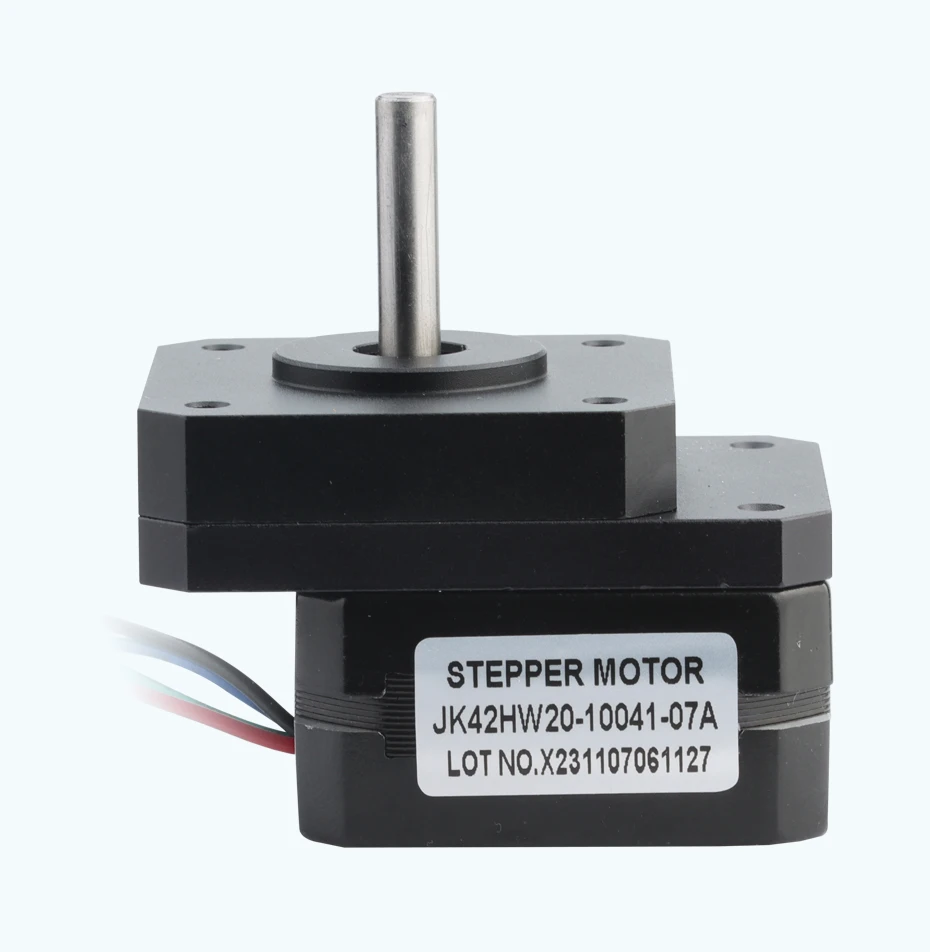

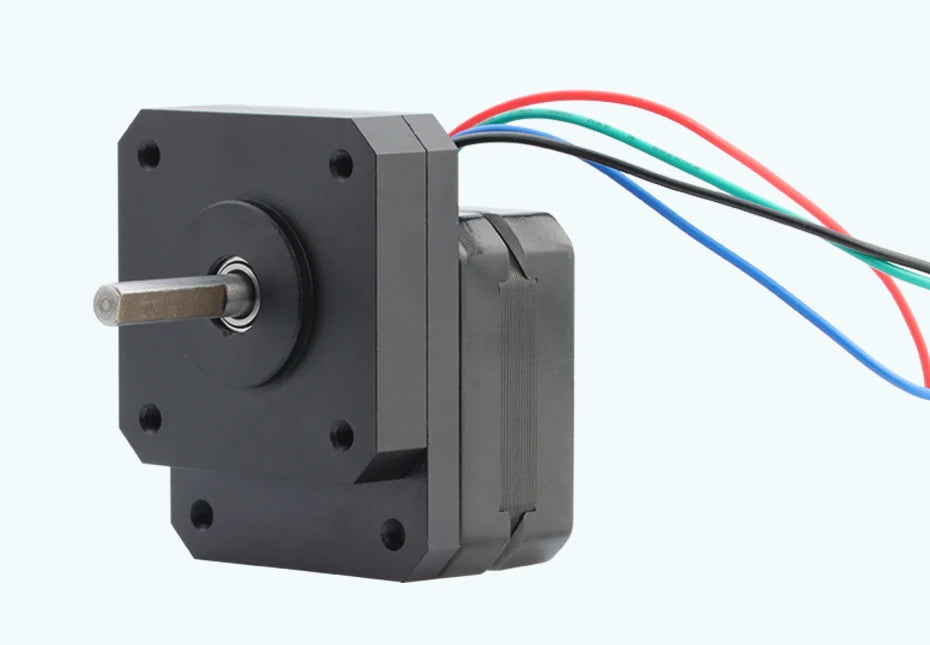

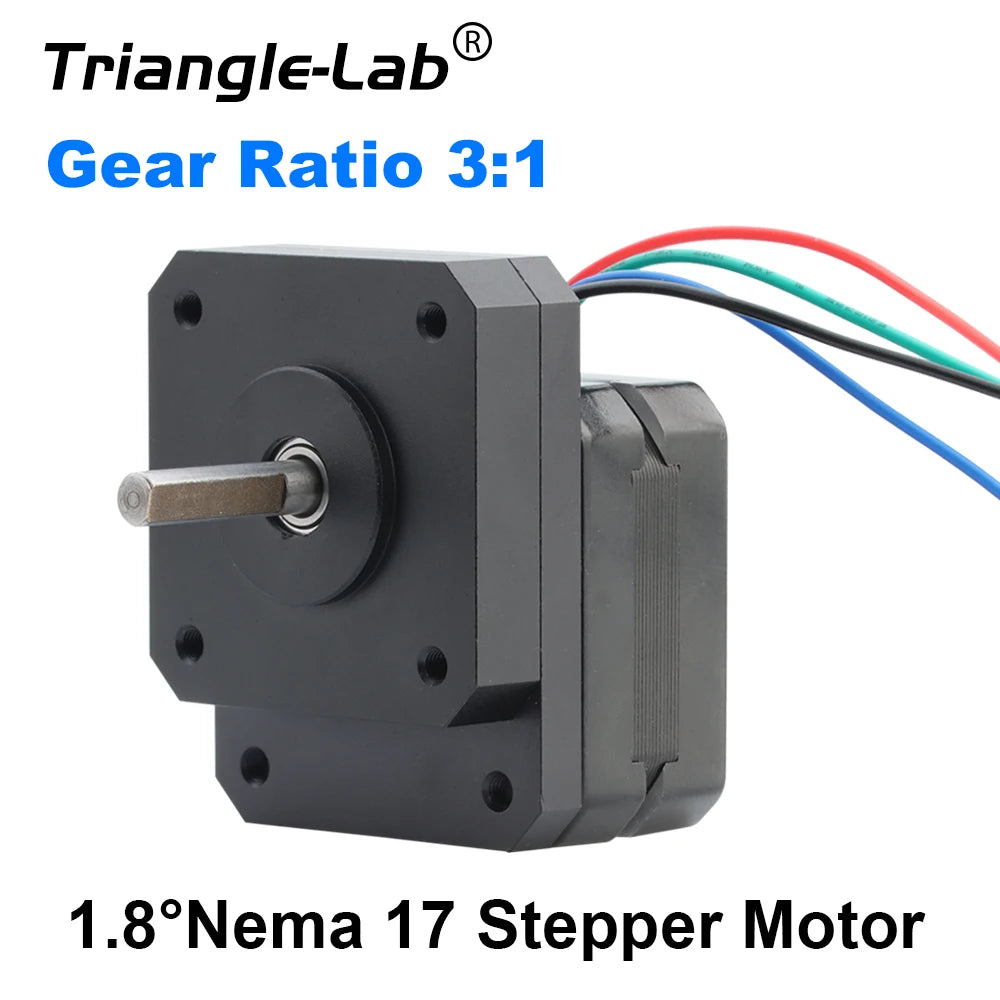

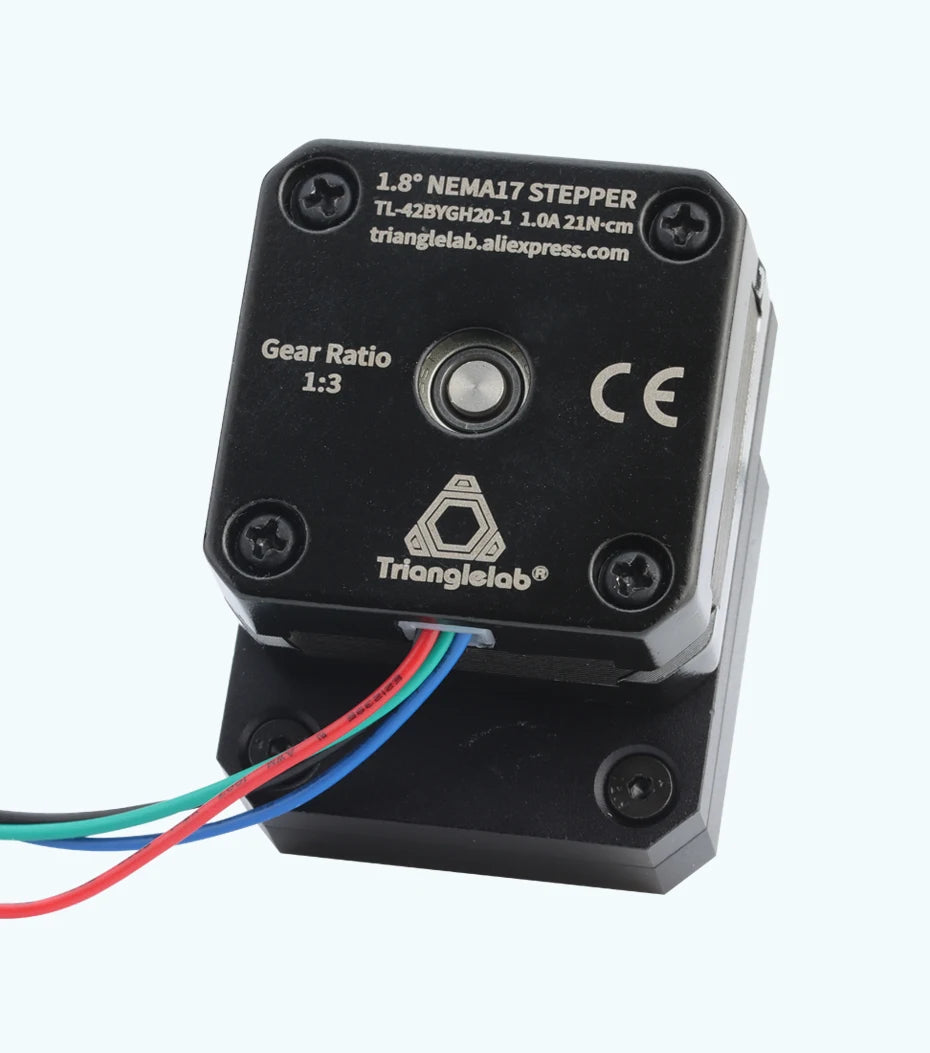

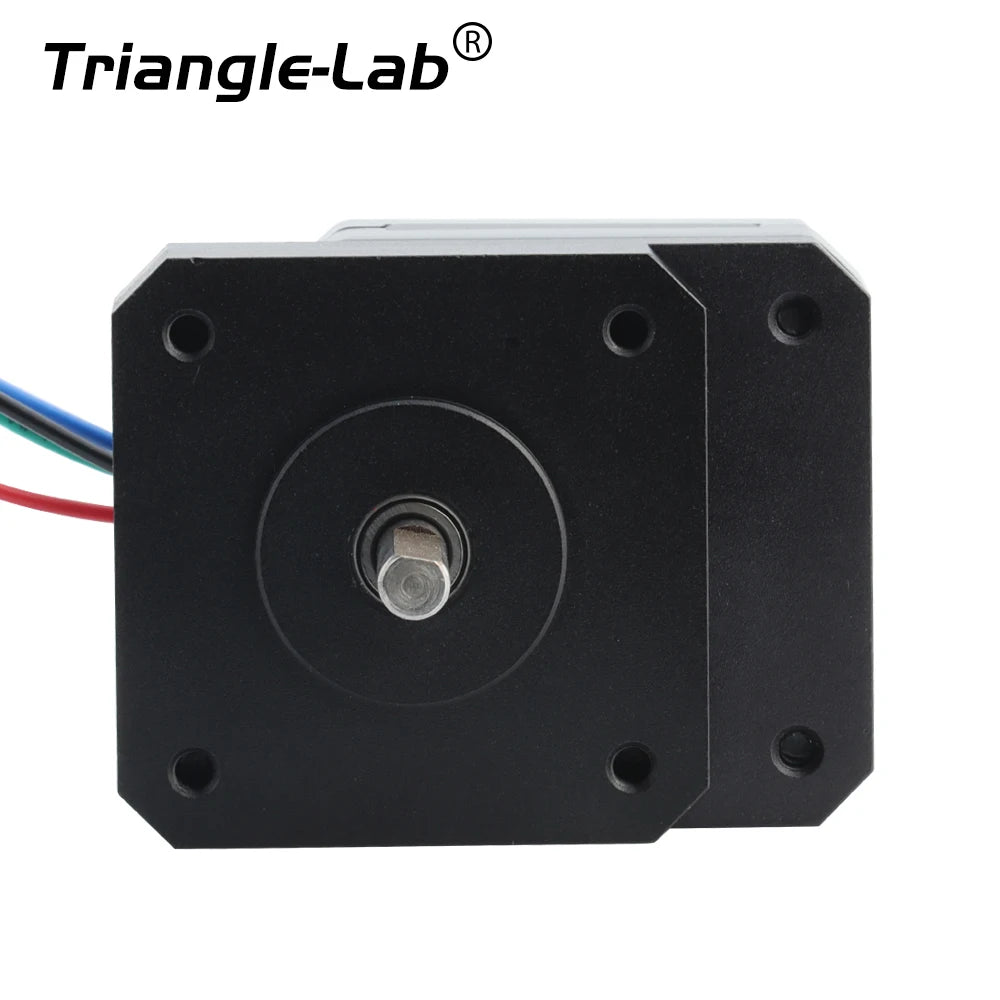

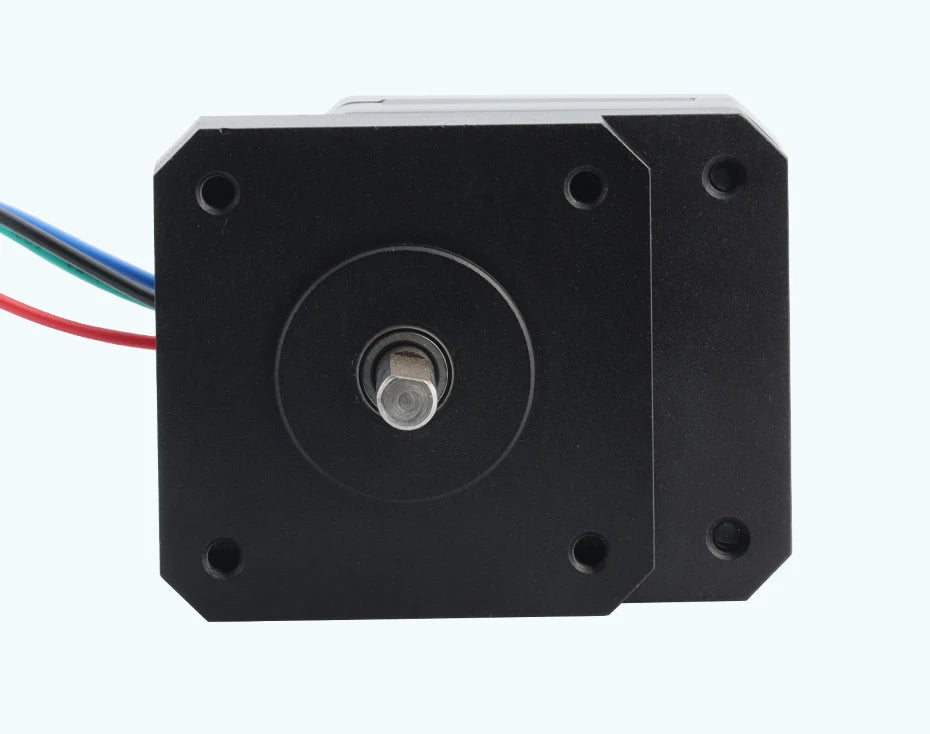

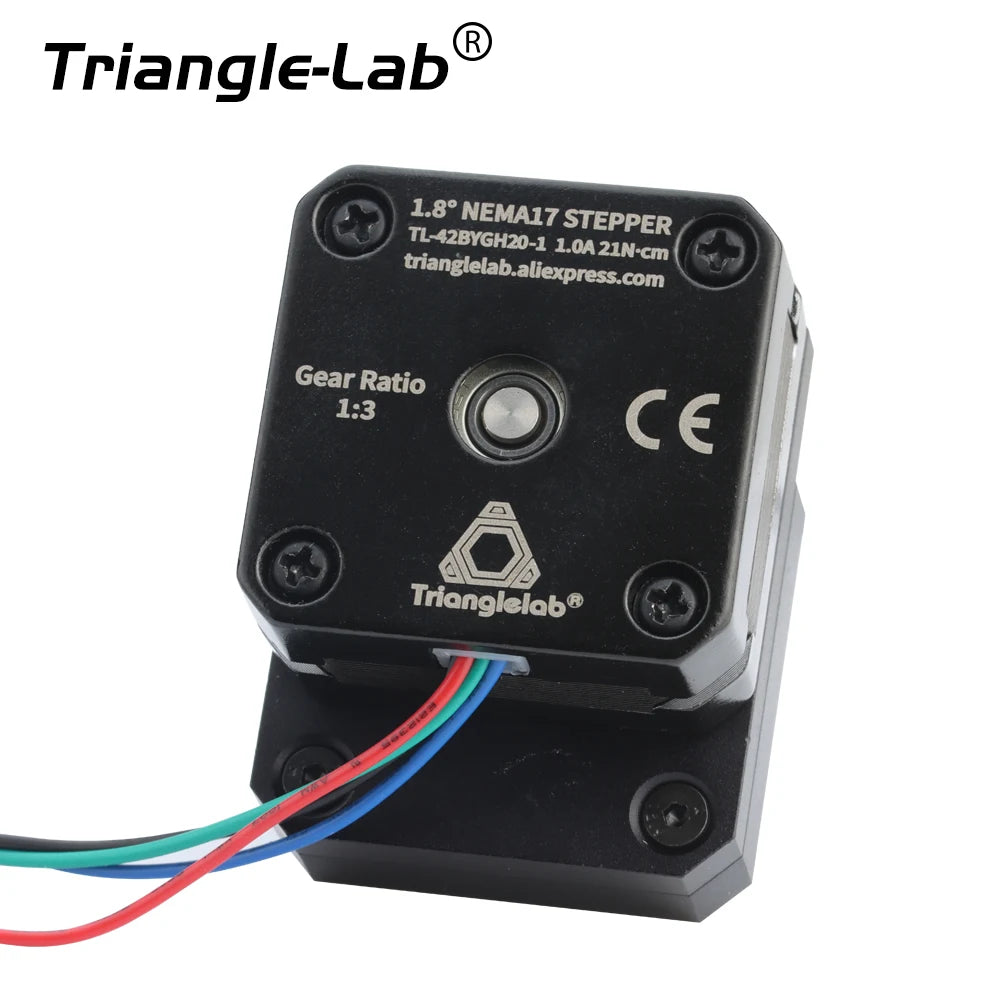

Trianglelab Nema 17 Geared Stepper Motor 3:1 Reducting Stepping Motor For Prusa I3 MK3S Extruder Change 3:1 Gear Ratio
Geared Stepper Motor / 1PC motor
$101.76
Sale price
$101.76
Regular price
$0.00
Skip to product information
Trianglelab Nema 17 Geared Stepper Motor 3:1 Reducting Stepping Motor For Prusa I3 MK3S Extruder Change 3:1 Gear Ratio
$101.76
Sale price
$101.76
Regular price
$0.00
Description
SPECIFICATIONS
Assembly Required: no
Brand Name: Trianglelab
Control Method: Others
High-concerned chemical: none
Item Shape: Others
Item Type: Motor
Model Number: Geared Stepper Motor
Origin: Mainland China
▉Name:
Nema 17 Geared Stepper Motor

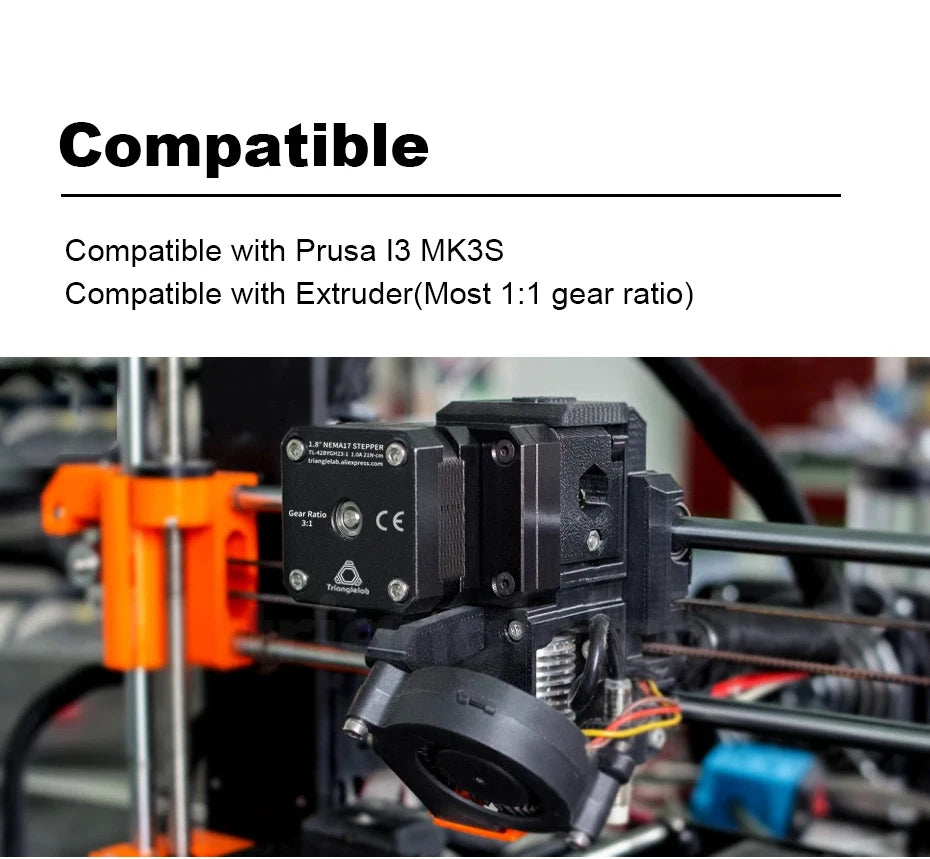

▉Compatible:
Compatible with Prusa I3 MK3S
Compatible withExtruder(Most 1:1 gear ratio)
▉What's in the box:
Trianglelab -Nema 17 Geared Stepper MotorX 1

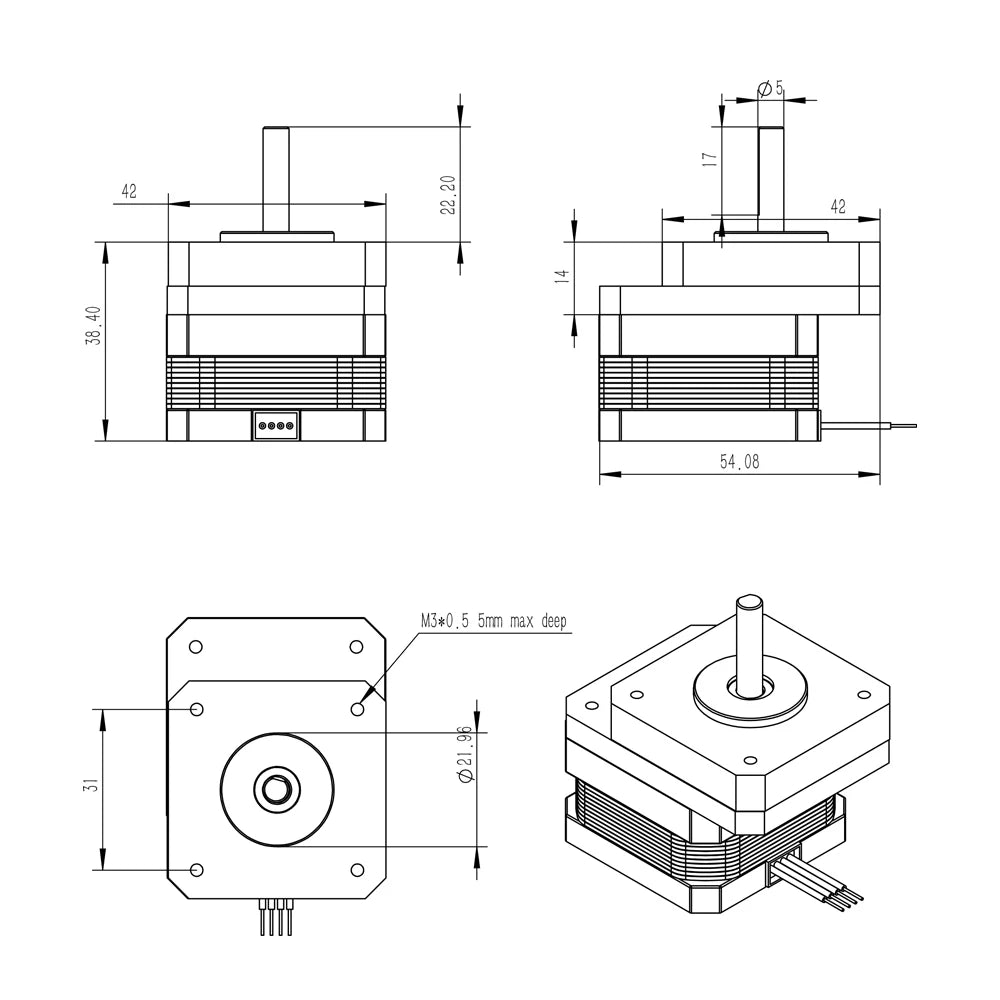

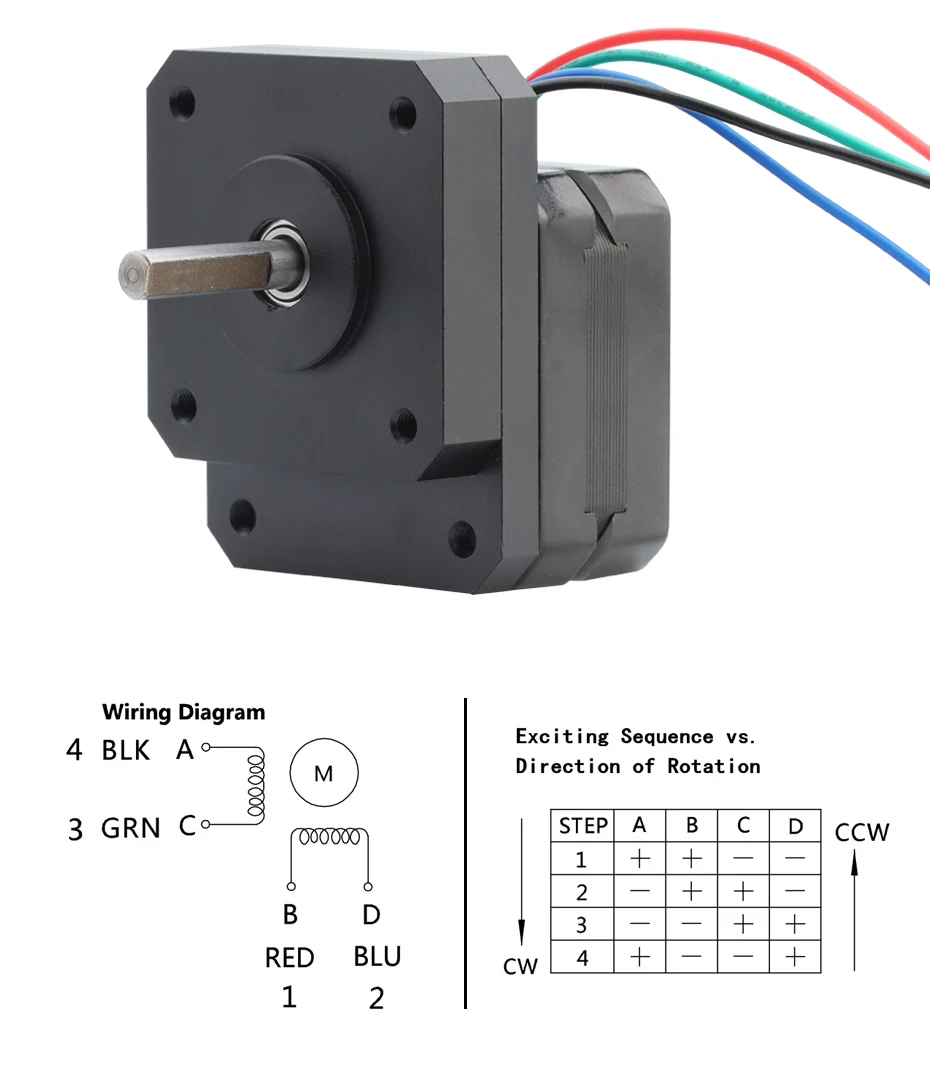

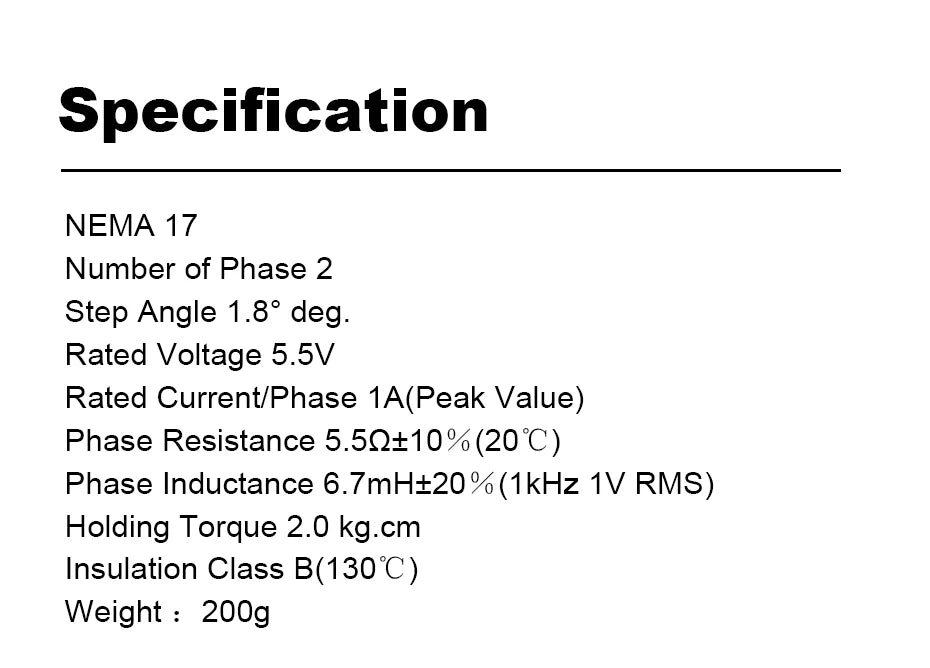

▉Specification
NEMA 17
Number of Phase 2
Step Angle 1.8° deg.
Rated Voltage 5.5V
Rated Current/Phase 1A(Peak Value)
Phase Resistance 5.5Ω±10％(20℃)
Phase Inductance 6.7mH±20％(1kHz 1V RMS)
Holding Torque 2.0 kg.cm
Insulation Class B(130℃)
Weight 200g
▉Prusa MK3S installation effect display:
For Prusa MK3/S Extruder
M350 E16 ; set mircostep to 16
M92 E420 ; set e-steps value
M500
M92 E420 ; set e-steps value
M500

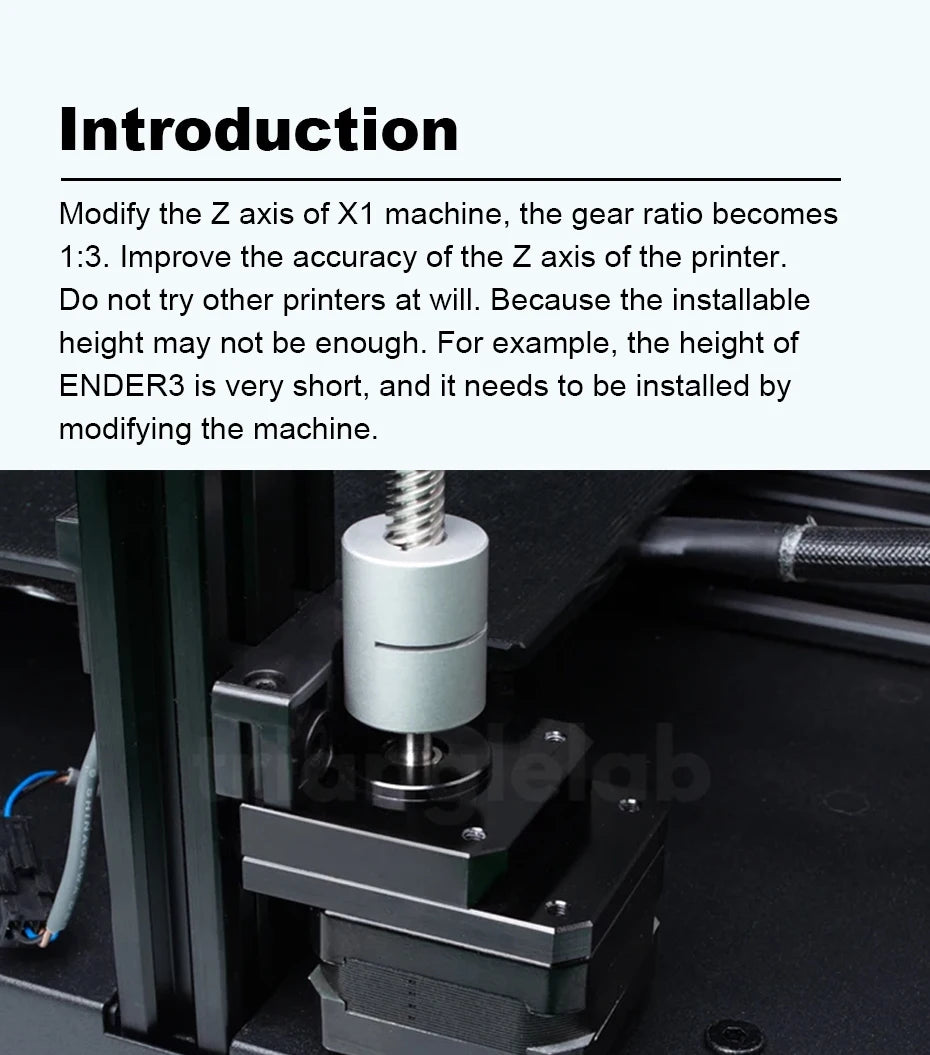

▉Artillery Sidewinder X1 SW-X1 installation effect display
Modify the Z axis of X1 machine, the gear ratio becomes 1:3. Improve the accuracy of the Z axis of the printer. Do not try other printers at will. Because the installable height may not be enough. For example, the height of ENDER3 is very short, and it needs to be installed by modifying the machine.

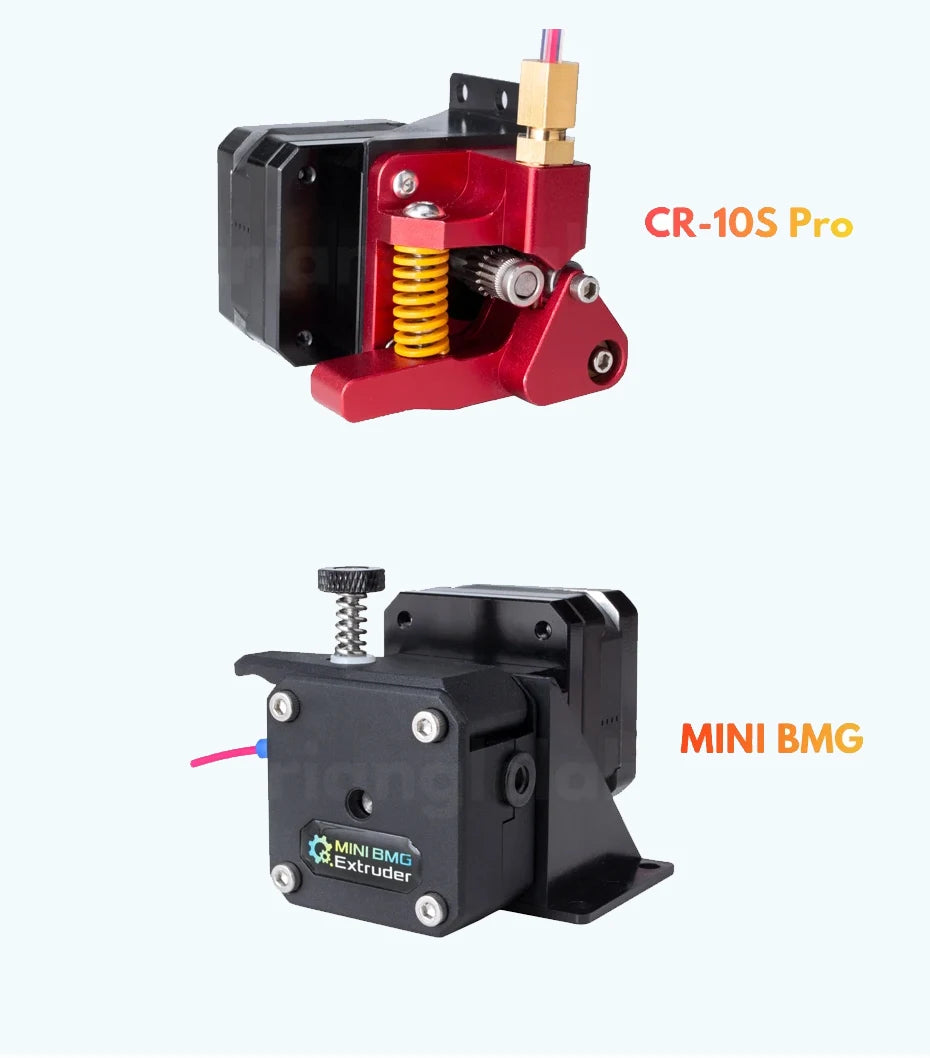

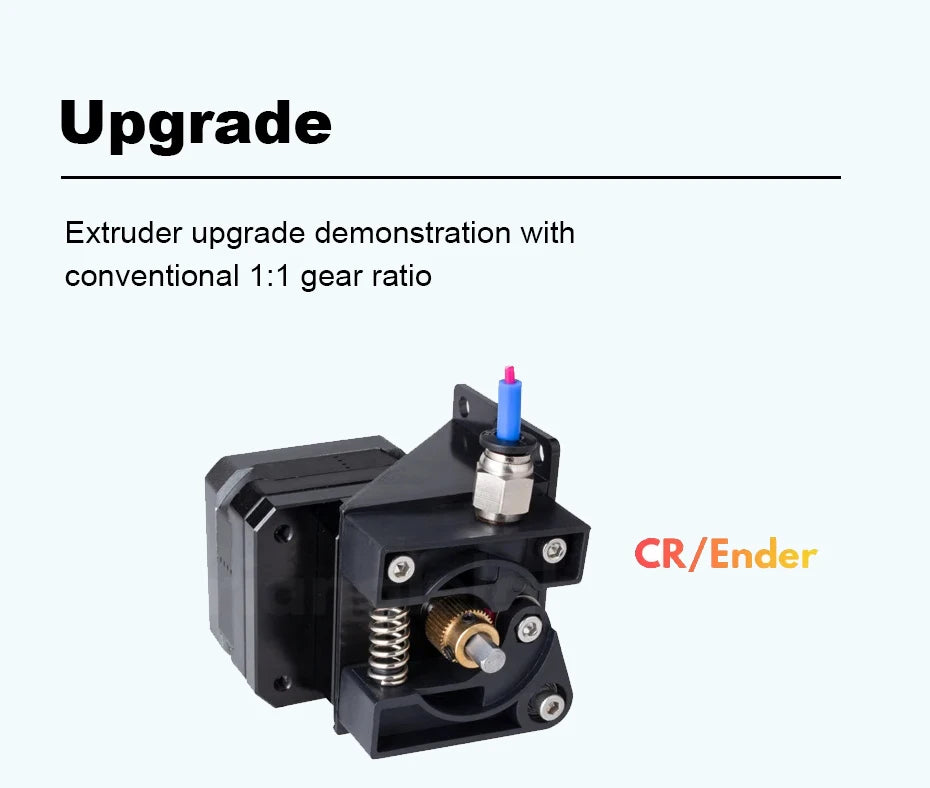

▉Extruder upgrade demonstration with conventional 1:1 gear ratio
