Description

SPECIFICATIONS

Brand Name: EARU

Certification: CE

Contact Load: Low Power

Control Type: DC Control AC

Control Voltage: 5-32 VDC

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Load Current: 10A 25A 40A 60A 80A 100A 120A 200A

Module Number 1: SSR-10DA/SSR-25DA/SSR-40DA/SSR-60DA

Module Number 2: SSR-80DA/SSR-100DA/SSR-200DA

Net Weight: 237.5g

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Rating: 10A 480V

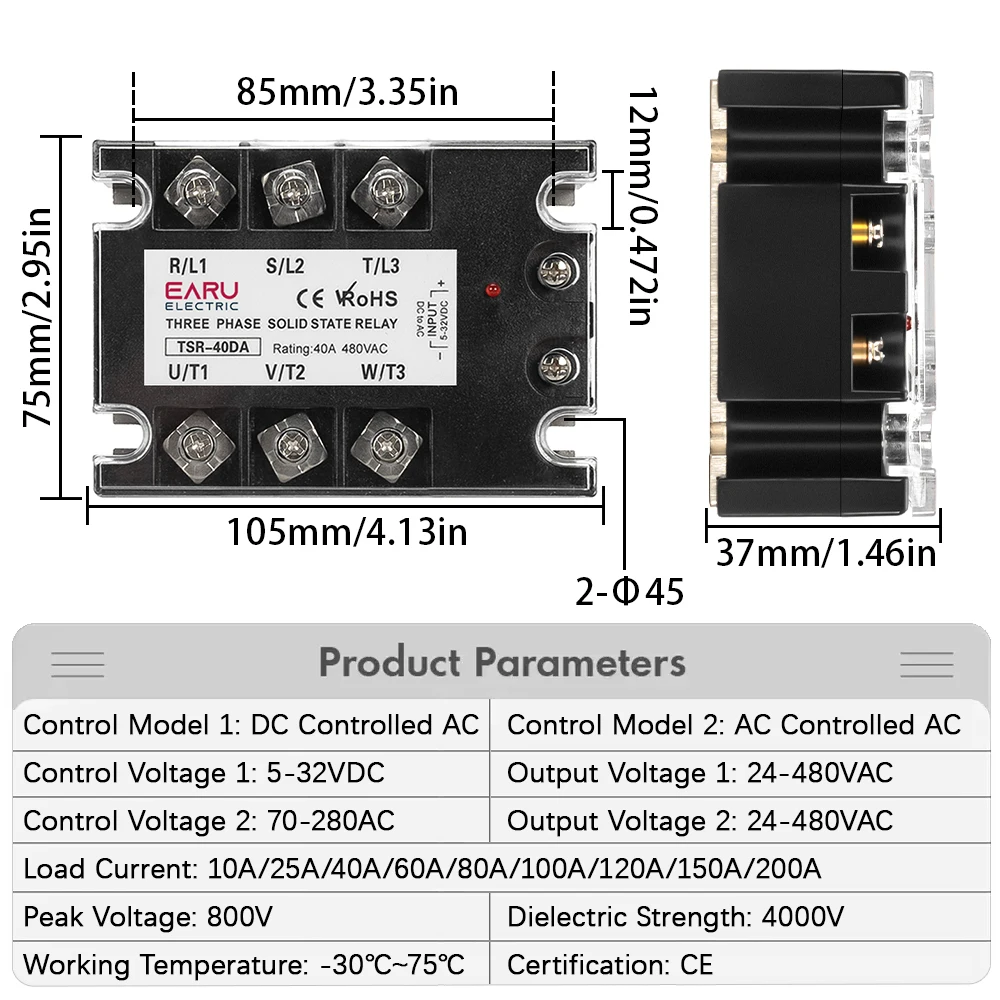

Size: 150.8mm*75.5mm*37.5mm

Theory: Solid State Relay

Use: General Purpose

is_customized: Yes

STEP 1: Choose a Correct Control Mode

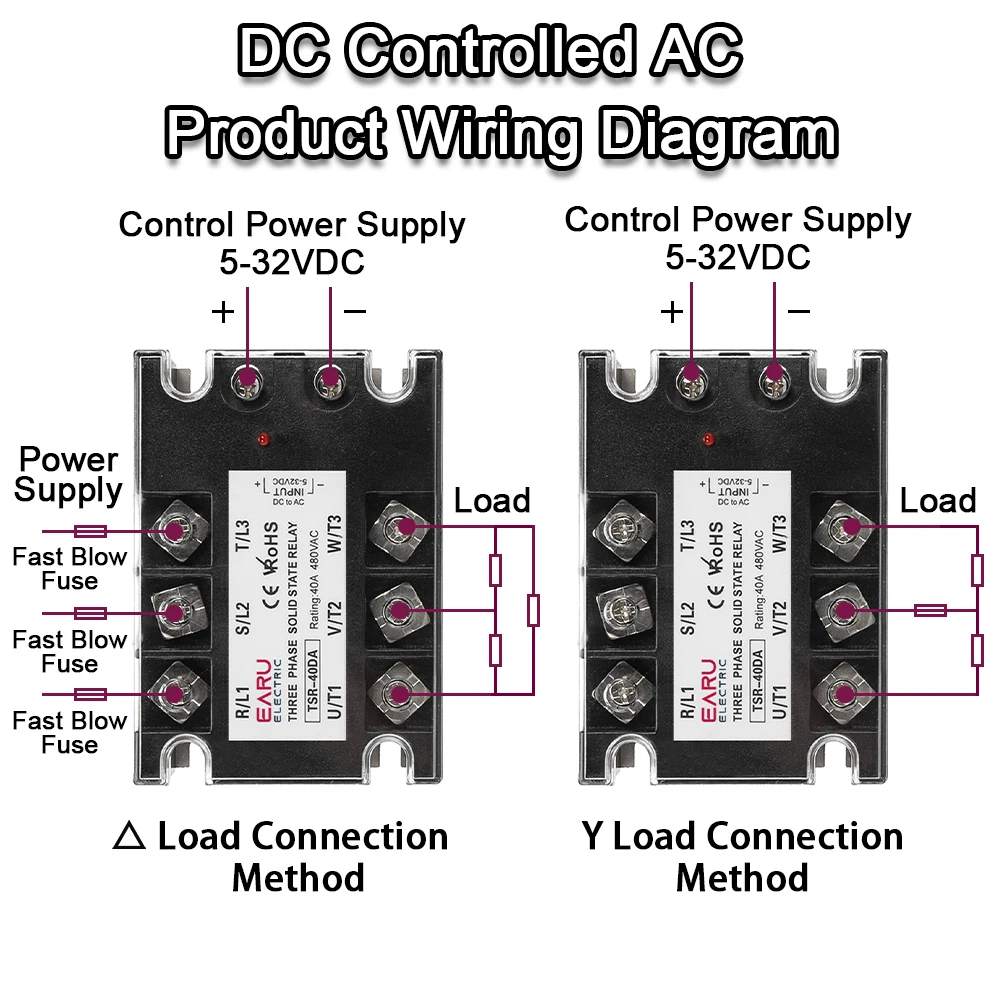

DA- DC Control AC

STEP 2: Choose a Correct Type

Device Current/Factor = Selection Current

Selection Current * Factor = Device Current

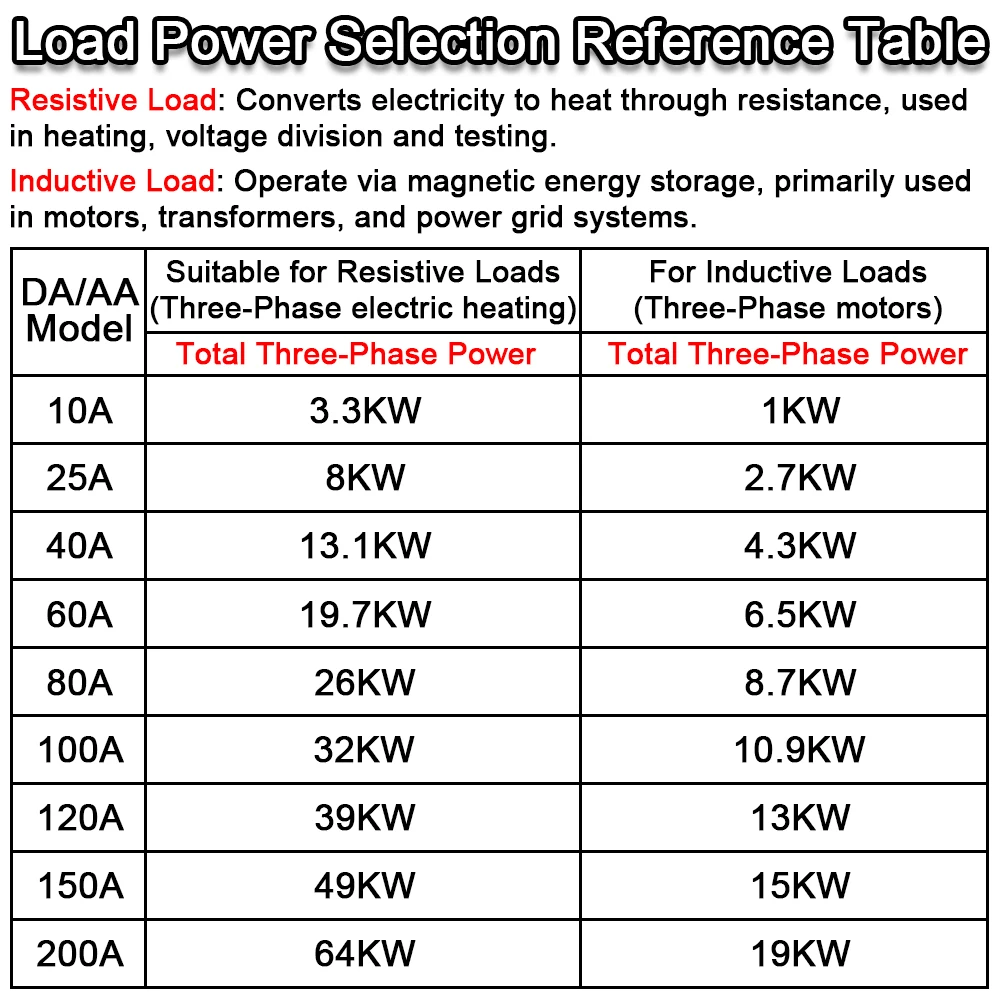

PS: The coefficient is determined by the type of load you want to bring the equipment

Resistive Load:40~50% Inductive Load12%

STEP 3: Choose a Suitable Heat Sink

If you need to buy a heat sink base and fan please click here！

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.

PS: Our Heat Sink include screws (for install heat sink)

NOTICE:

1.The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).

2.According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
