SPECIFICATIONS

Application: Computer

Brand Name: NoEnName_Null

Choice: yes

Condition: New

High-concerned chemical: none

Model Number: TTL turn To RS485 module

Operating Temperature: -40~+80

Origin: Mainland China

Range of application: Switch And Sensor For Arduino STM

Supply Voltage: 3.0V~30V

Type: Module

is_customized: Yes

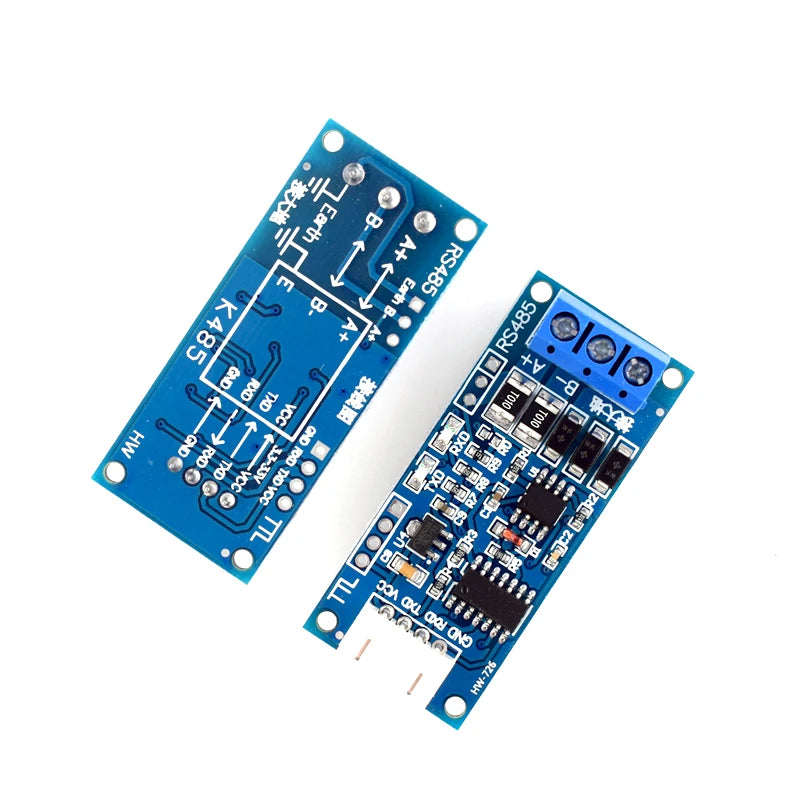

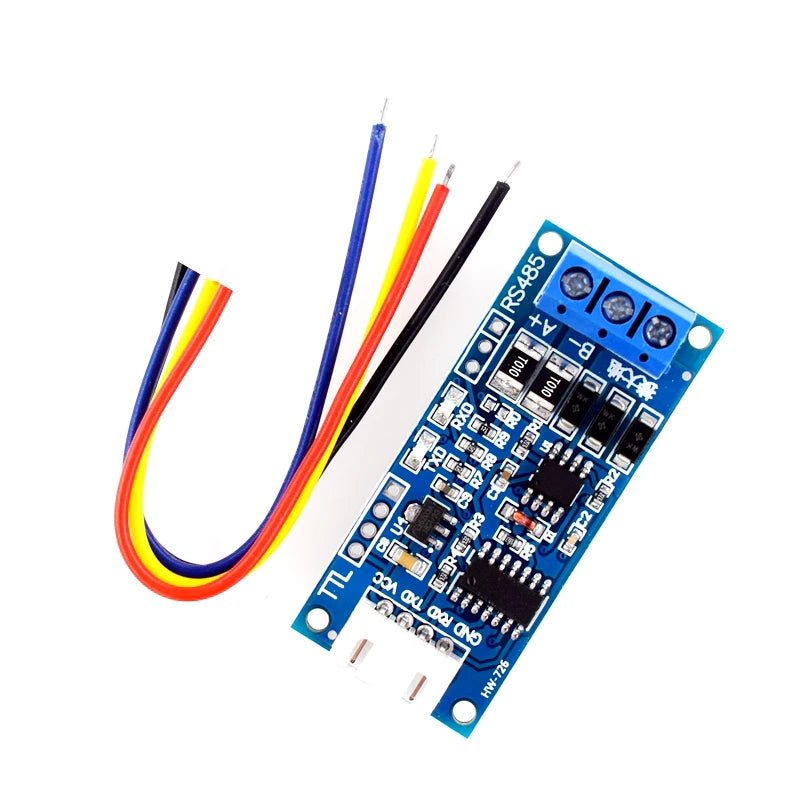

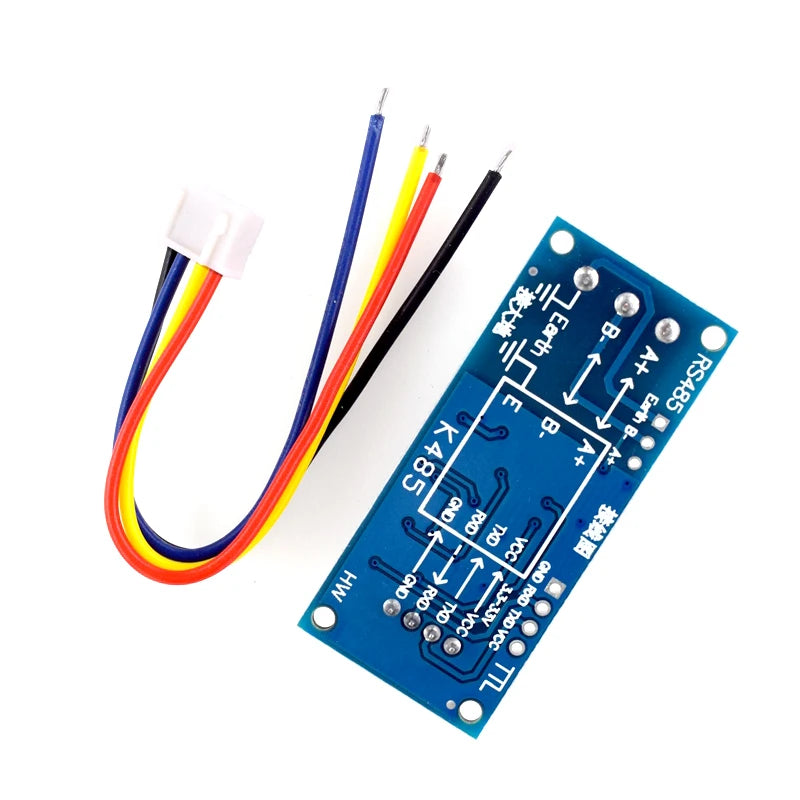

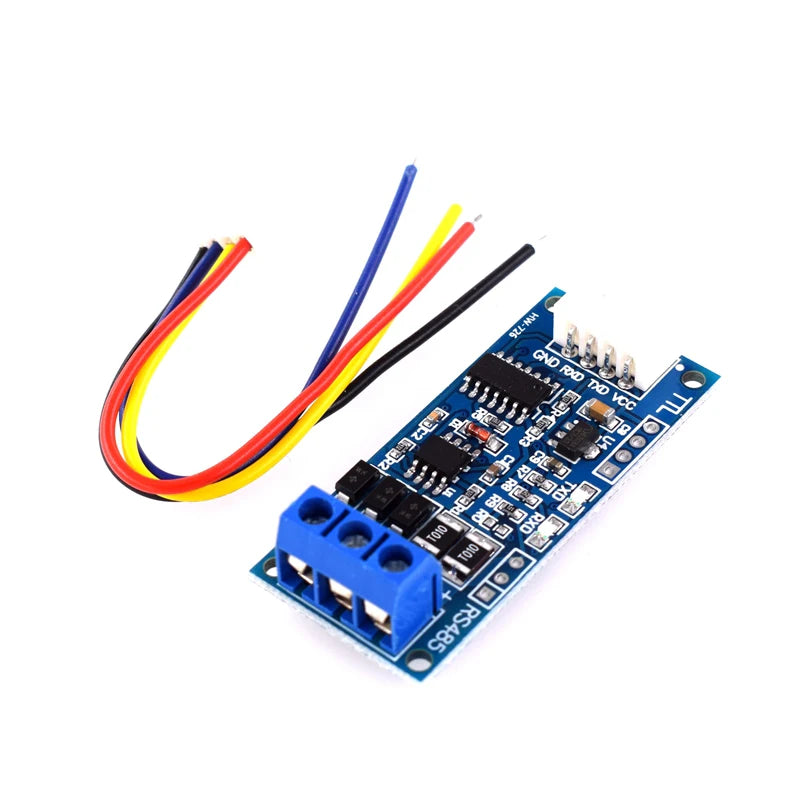

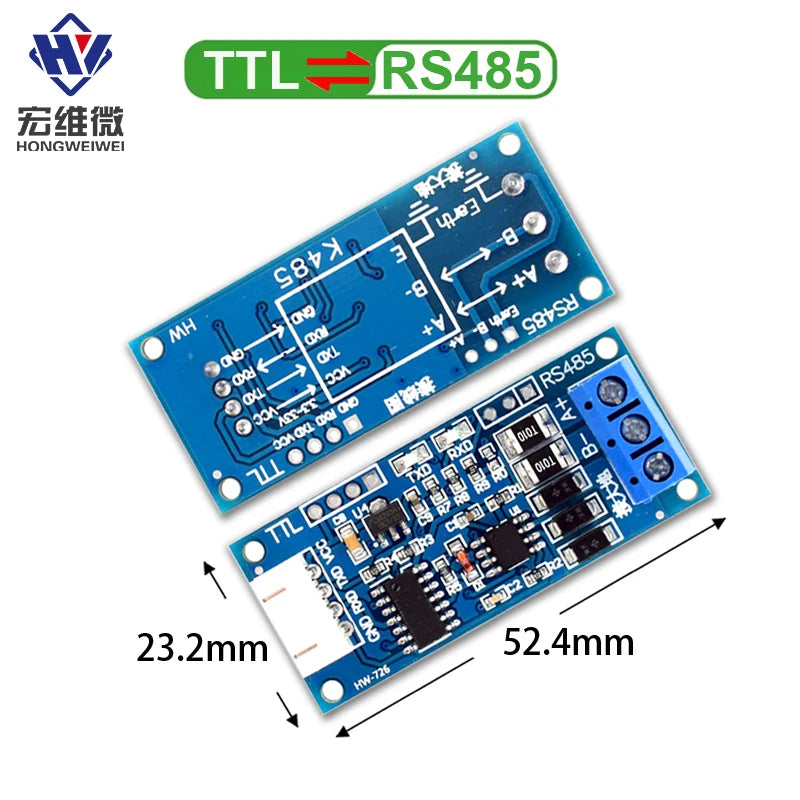

TTL Turn To RS485 Converter 3.3V/5.0V Hardware Automatic Control Converter Module For Arduino For Arduino AVR With Cable

Introduction:

This product converts TTL signals to RS485 signals.

Parameters:

Supply voltage: 3-30V, maximum voltage 33V, recommended for use within 30V, minimum voltage should be higher than 2.8V

Working temperature:- 40℃～85℃

Baud rate: 110~256000bps

Compatible with 3.3V and 5V signals,

Equipped with standard 2.54 pitch needle arrangement

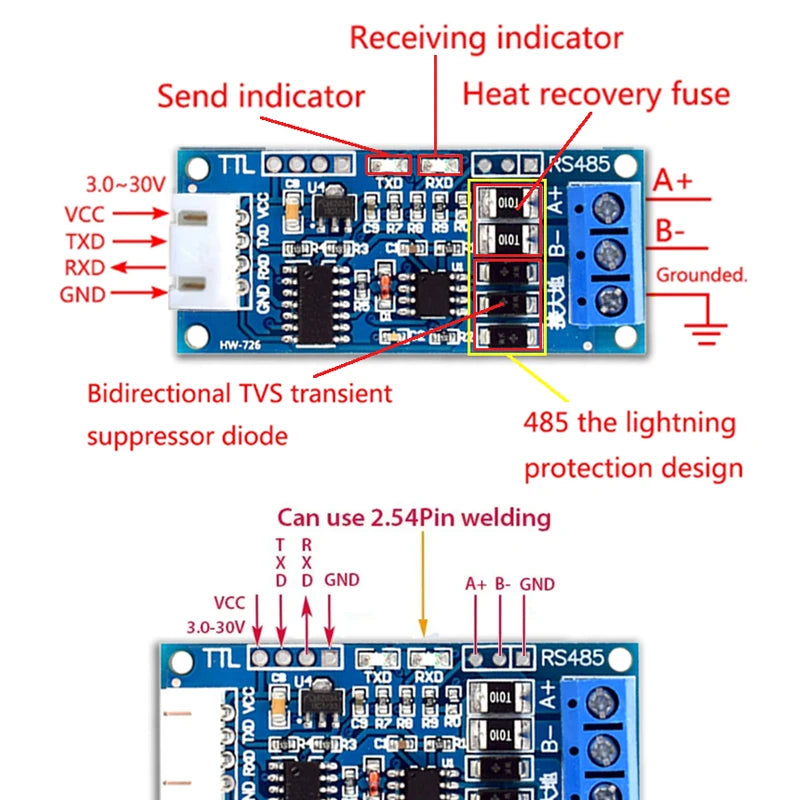

Equipped with RXD and TXD signal indicator lights

Equipped with a 120 ohm matching resistor, short circuiting R0 can enable the matching resistor. Short circuiting is recommended for long-distance transmission
