SPECIFICATIONS

Application: Computer

Brand Name: DIYUSER

Choice: yes

Condition: New

Dissipation Power: 1

High-concerned chemical: none

Operating Temperature: 1

Origin: Mainland China

Package: SMD

Supply Voltage: 2.5V~5.5V

Type: Voltage Regulator

is_customized: Yes

Touch the surface specifications: 1.4 * 1.4 cm

Have mode: point, self-locking

The power supply voltage: 2.5 to 5.5 V

Penetrating distance: about 5 mm (non-metallic)

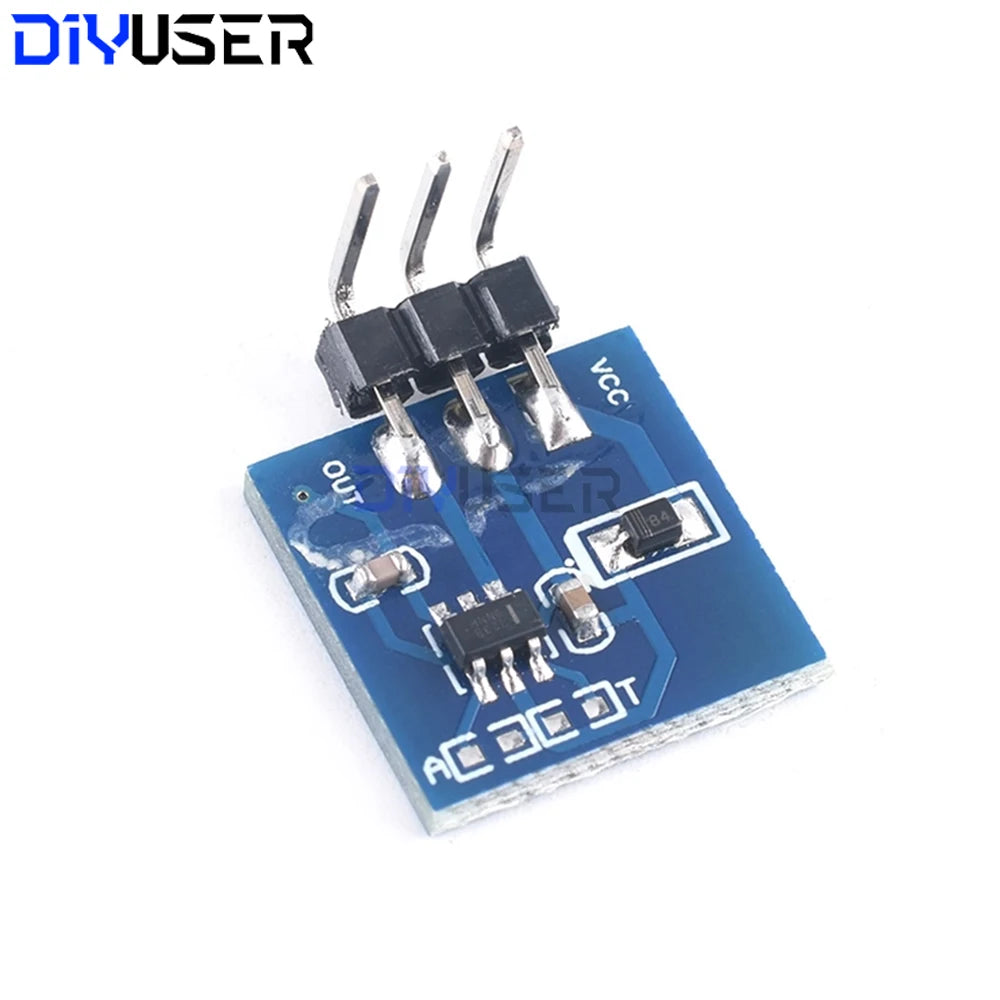

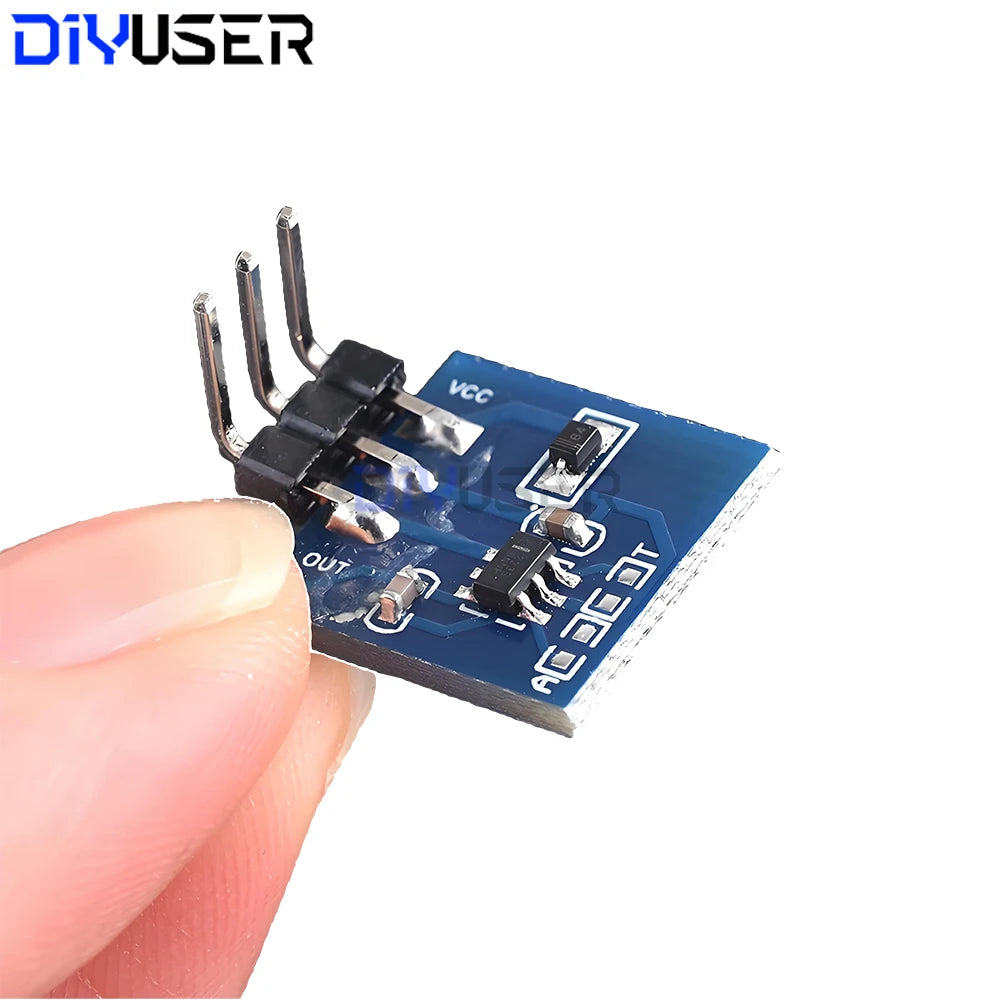

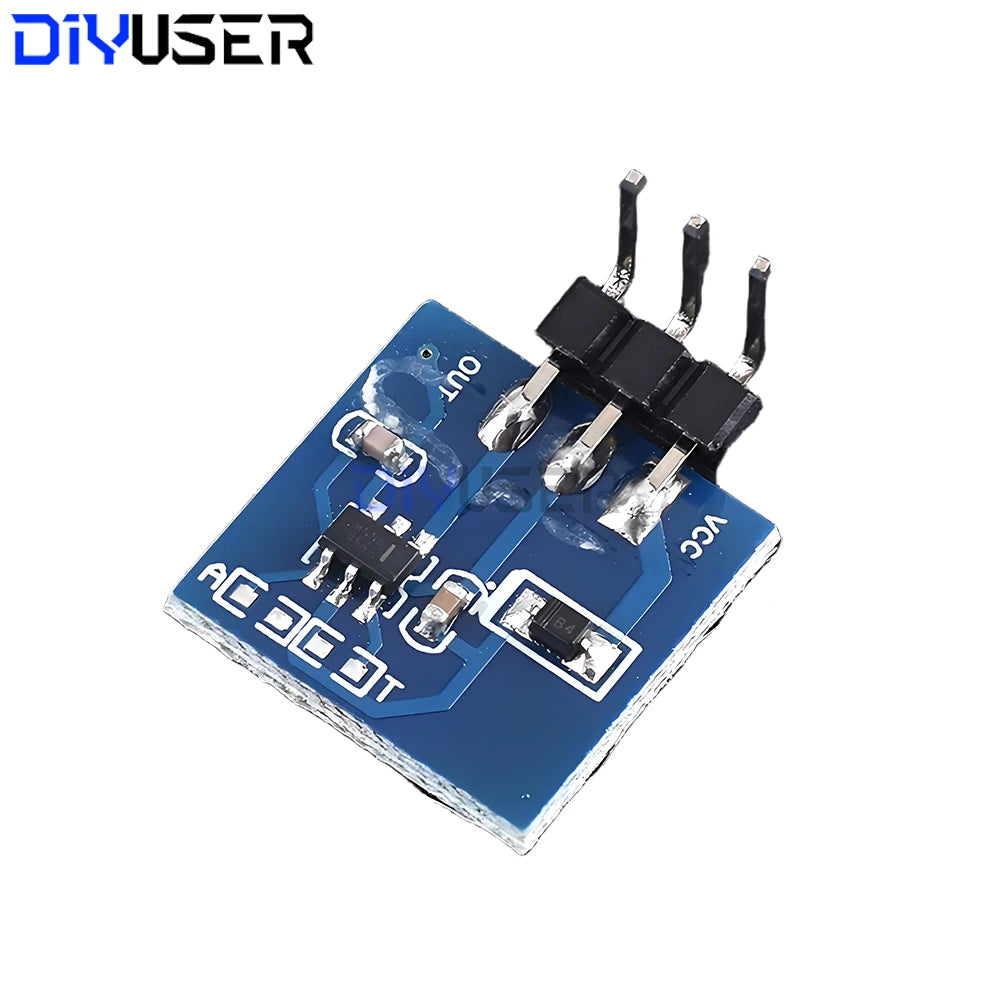

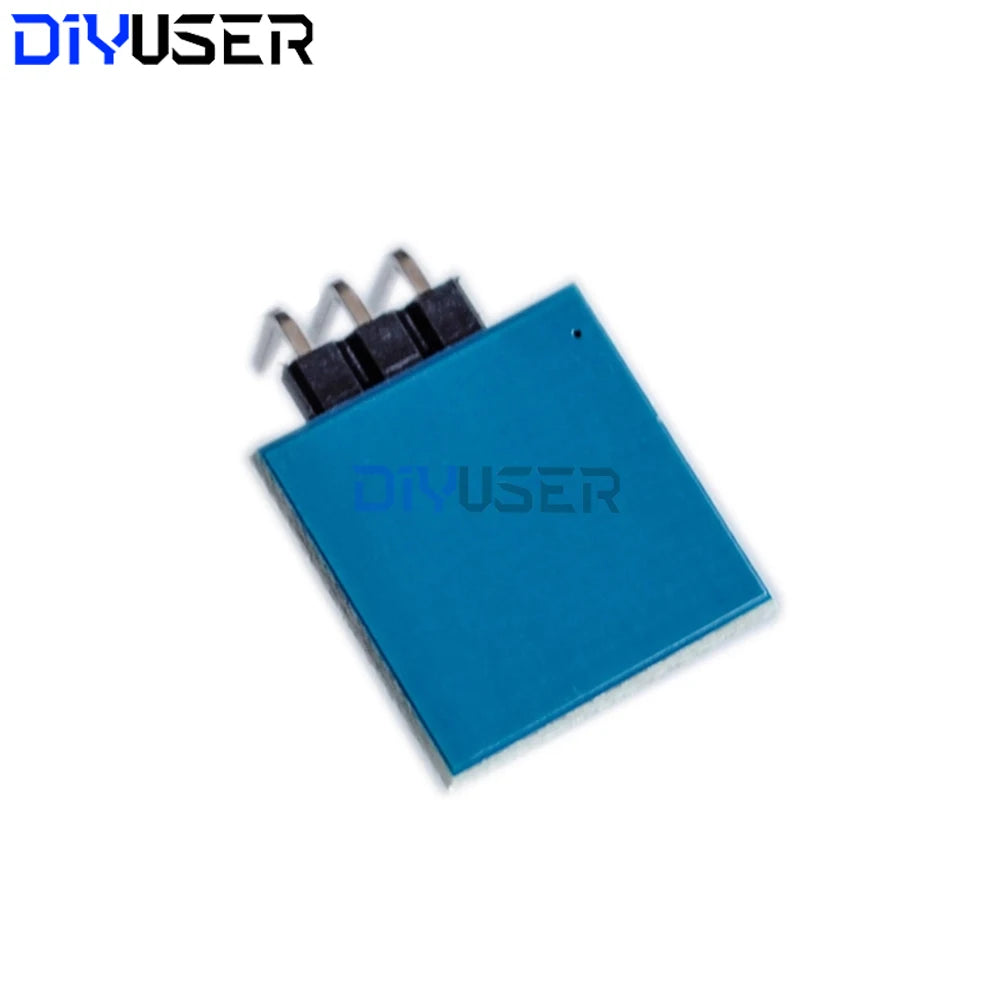

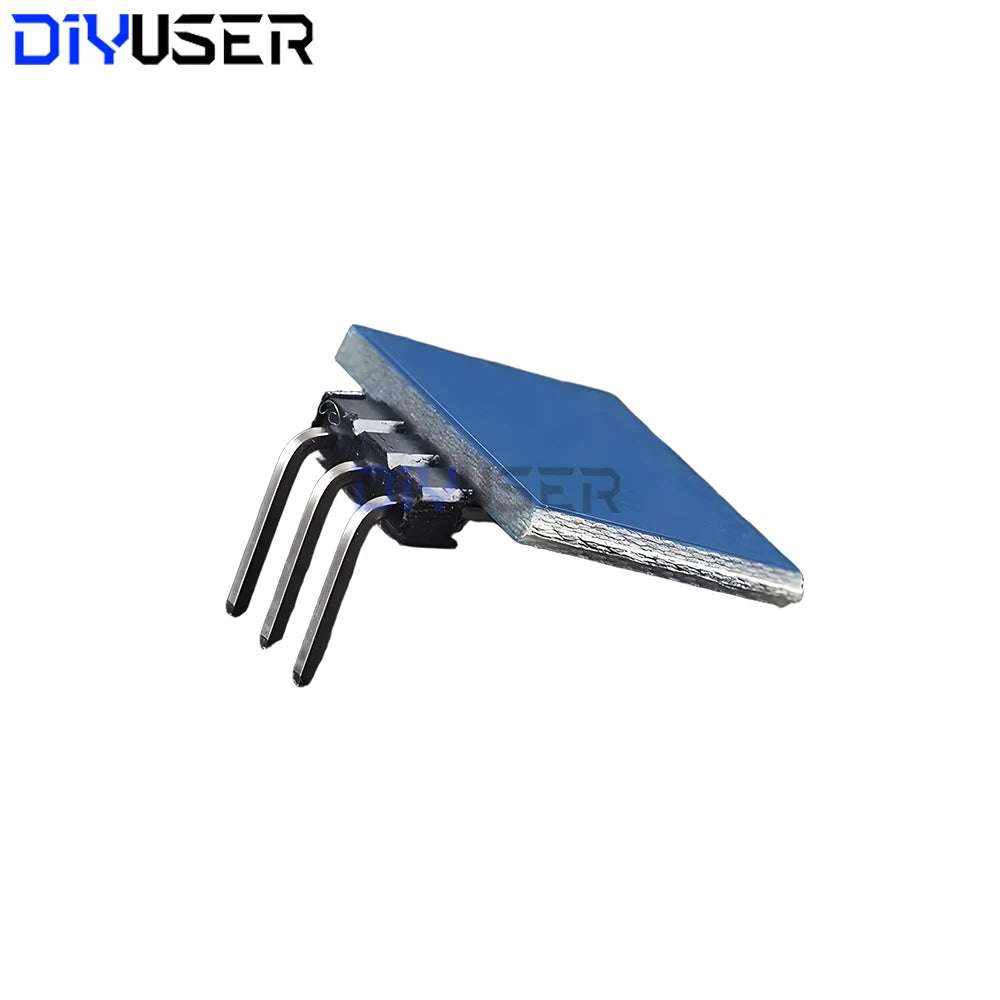

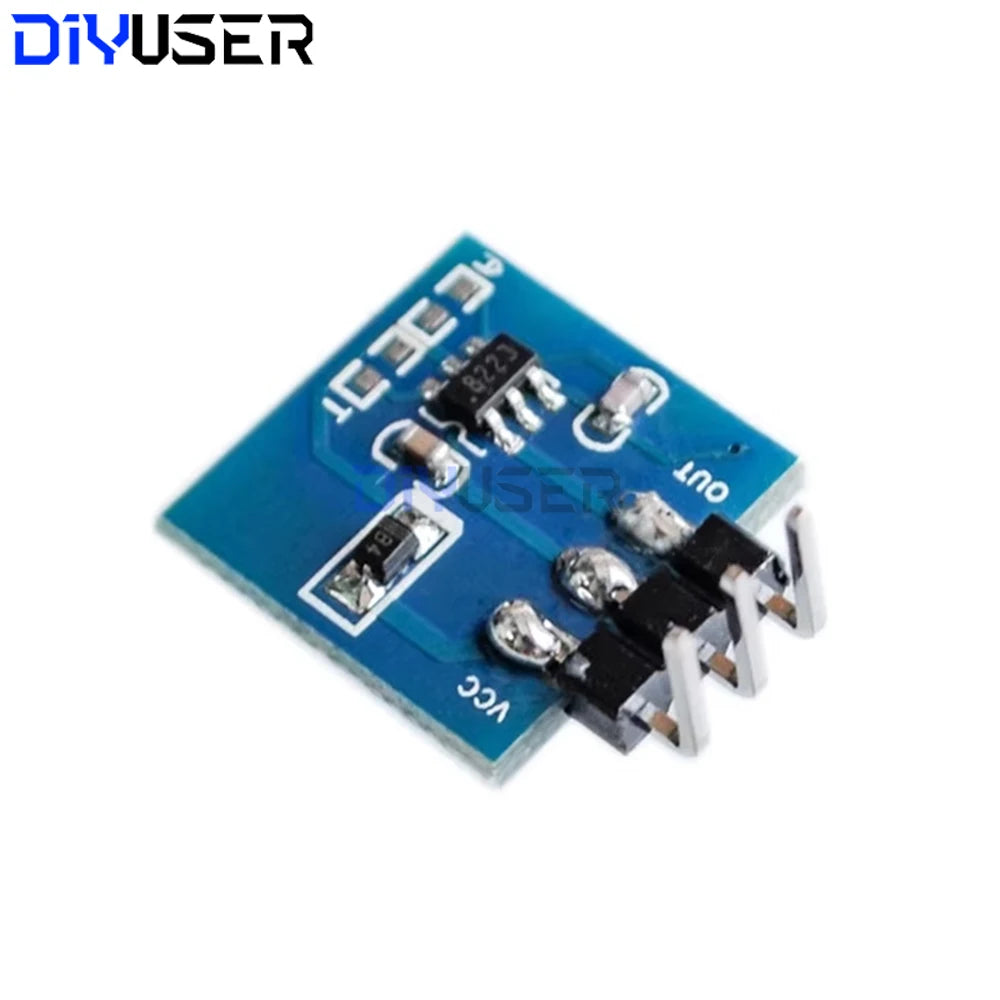

This module is a touch based detectionIC(TTP223B) of the capacitorSome dynamic typeTouch the switch module.This module is the default state output low level, models for low power consumption;When a finger touch the corresponding position, module, output level again touch back to low level.Mode switch for quick mode;When the last12Seconds without touch, mode and switch to a low power mode.Modules can be installed on the surface of non-metallic materials such as plastic, glass, in addition to the thin paper (non-metallic) covering on the surface of the module, as long as the accurate location of the touch, you can make it hidden in the place such as wall, desktop buttons.This module allows you to exempt from conventional type press buttons.

(TTP223B chip parameters)

project	Small values	Typical values	value	unit
The power supply voltageVCC	2.0	3	5.5	V
The output high levelVOH	-	0.8 VCC	-	V
The output low levelVOL	-	-	0.3 VCC	V
Fill current output pin (@ VCC = 3 V, VOL = 0.6 V)	-	8	-	mA
Pull current output pin (@ VCC = 3 V, VOH = 2.4 V)	-	4 -	-	mA
Response time (low power mode)	-	-	220	mS
Response time (fast mode)	-	-	60	mS
size	24 x24x7. 2			mm
The weight of the	2			g

Please note: the installationFixed module, then electricity, so that he can remember the thickness of the diaphragm, the stable after about 1 s need time, this time not to touch the keys.
