SPECIFICATIONS

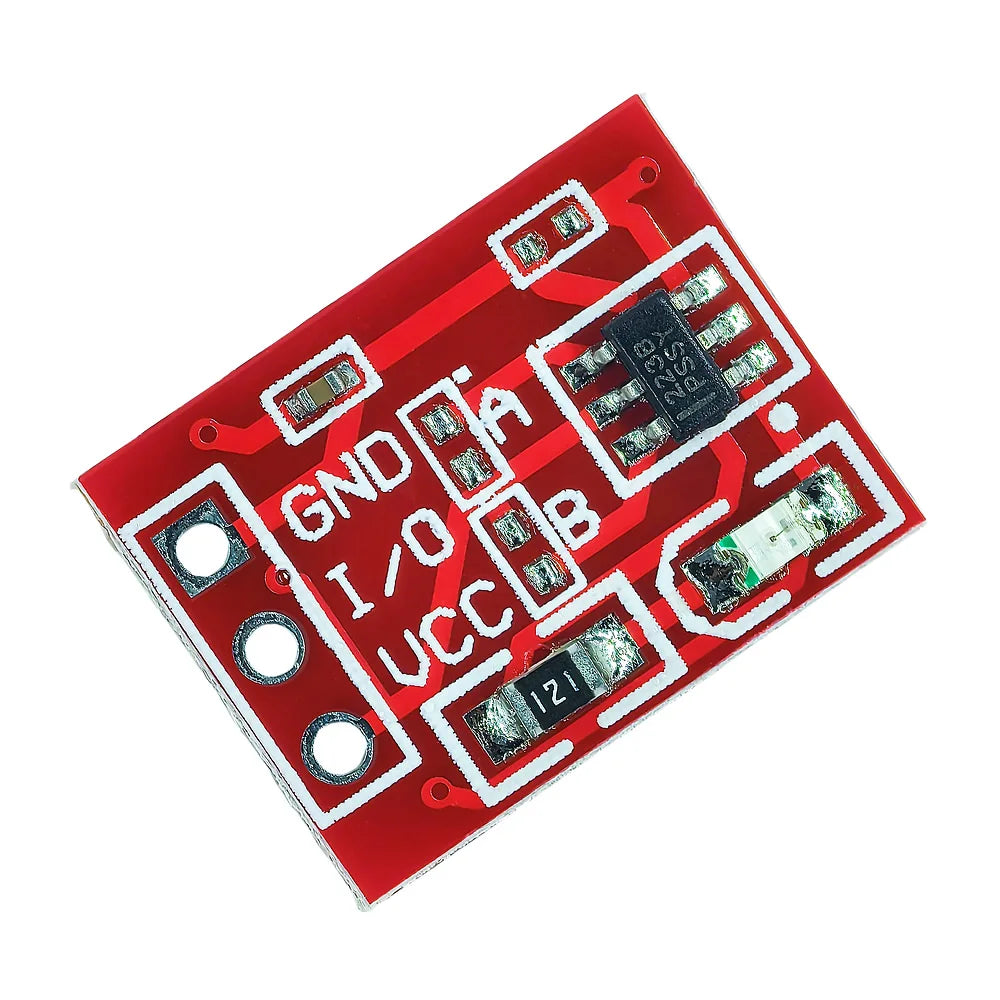

TTP223 Touch Key Capacitive Switch Button Module Capacitor Type Self-Locking/No-Locking Single Channel Reconstruction

Features:

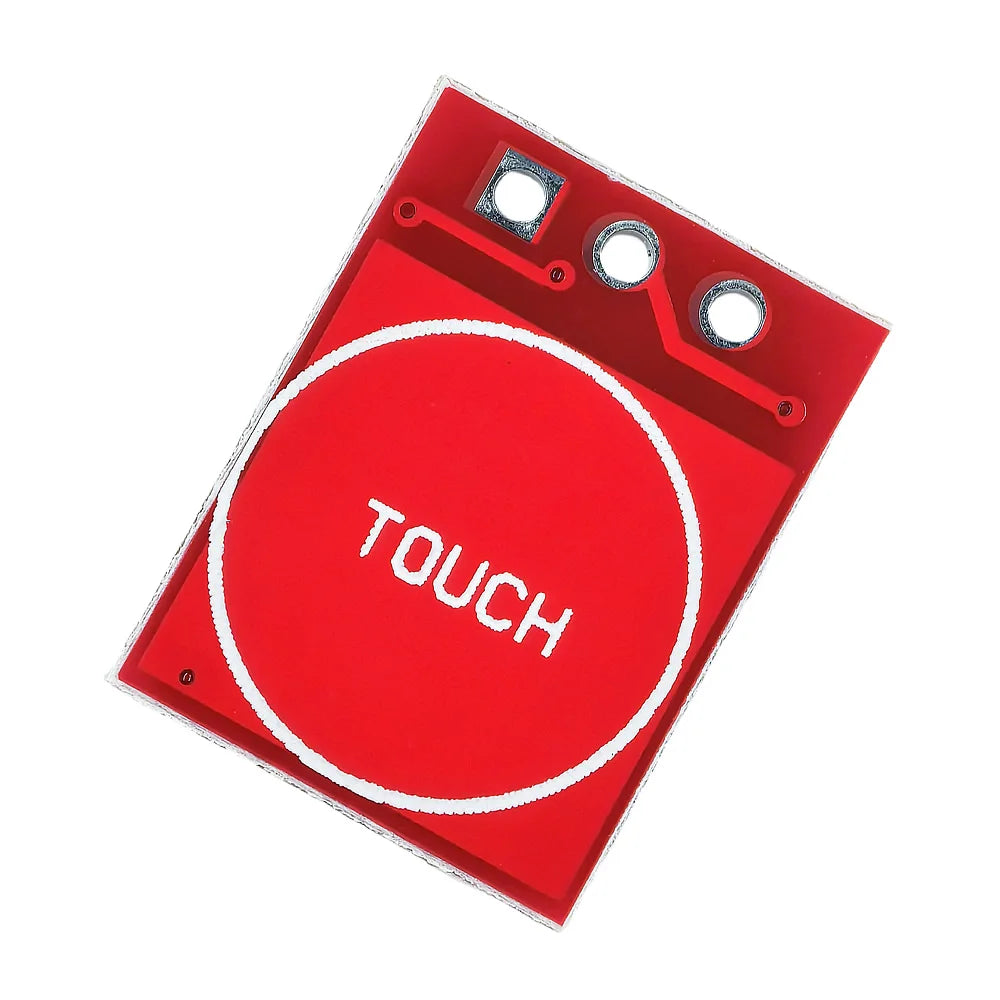

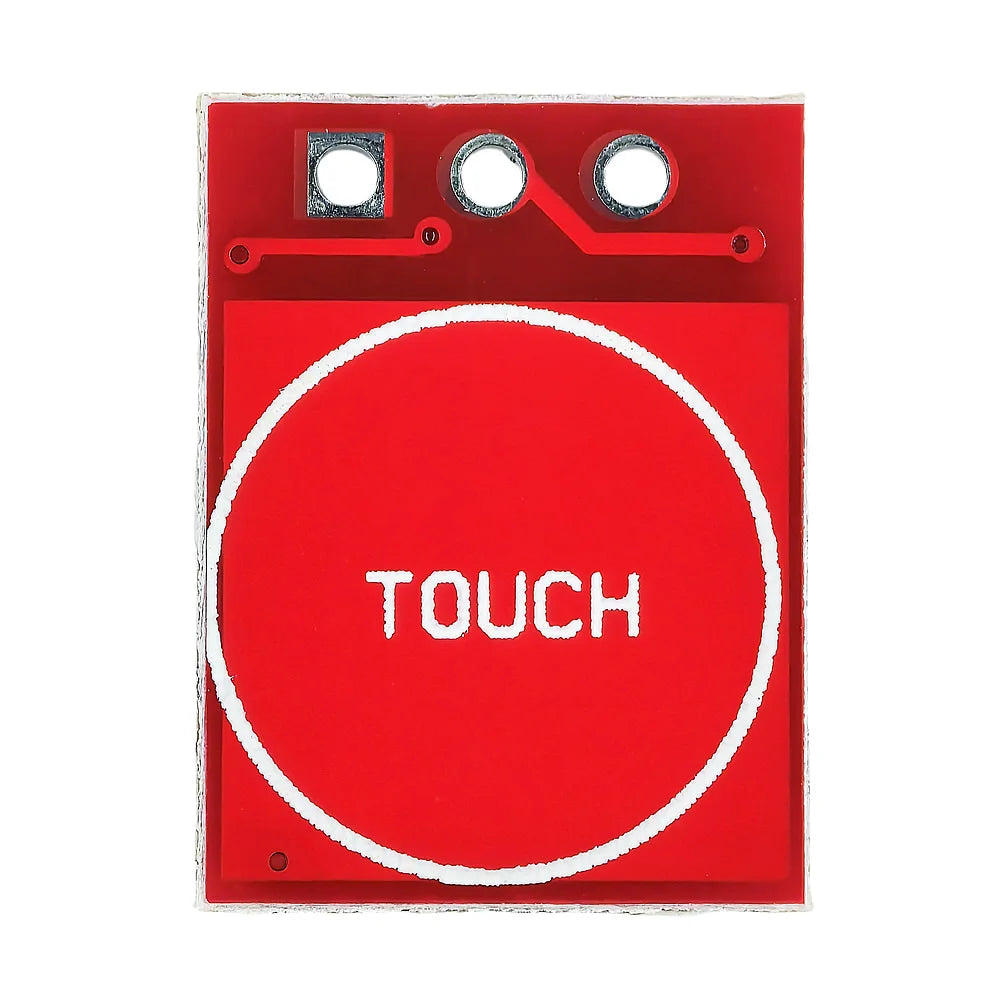

The module provides a single integrated touch sensor area of 11 x 10.5mm with a sensor range of 1~5mm.
An on-board LED will give a visual indication of when the sensor is triggered.
When trigger the modules output will switch its idle status from low to high(default operation).
Tiny and portable,lightweight and durable.

Specification:

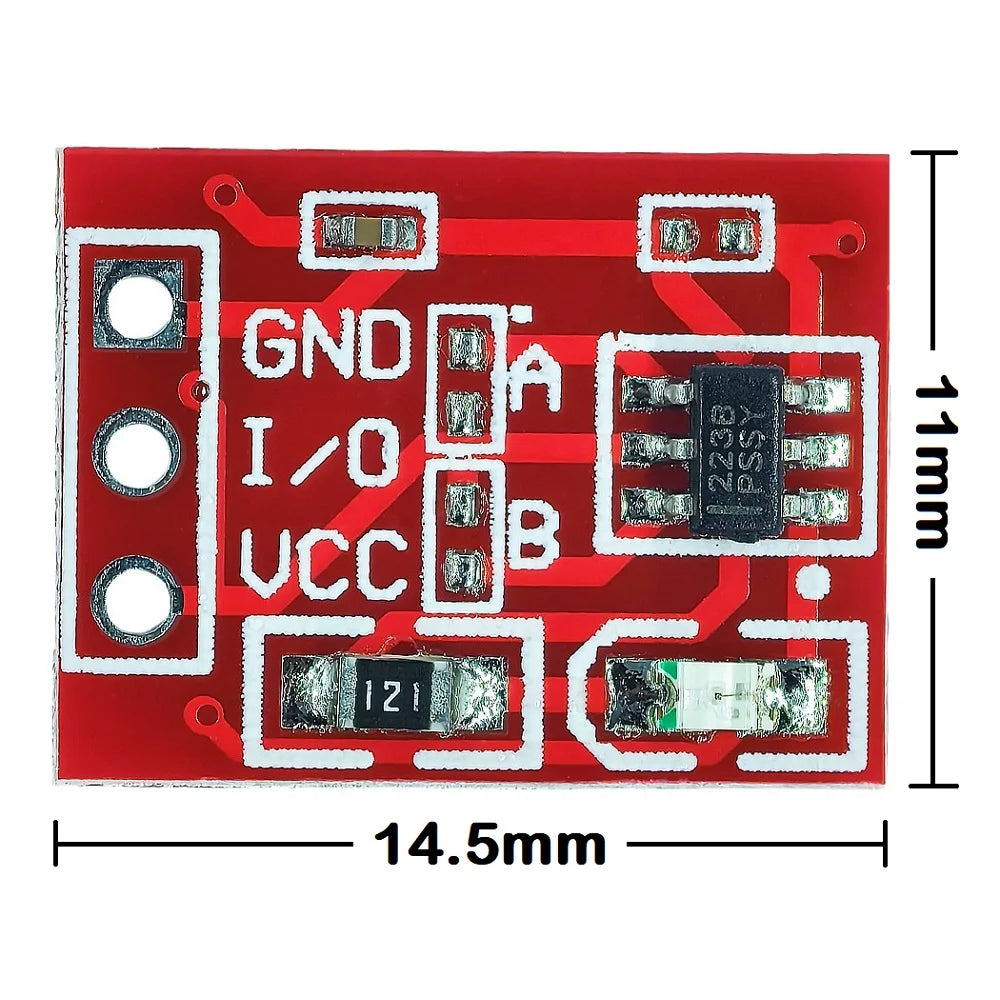

Size: 14.5mm* 8mm

Weight: 0.2g/pcs
Power: 2.5-5.5V
Trigger setting mode: (1- Greater than Short;0- Greater than No Short)
COLOR: Red
Material: CCL

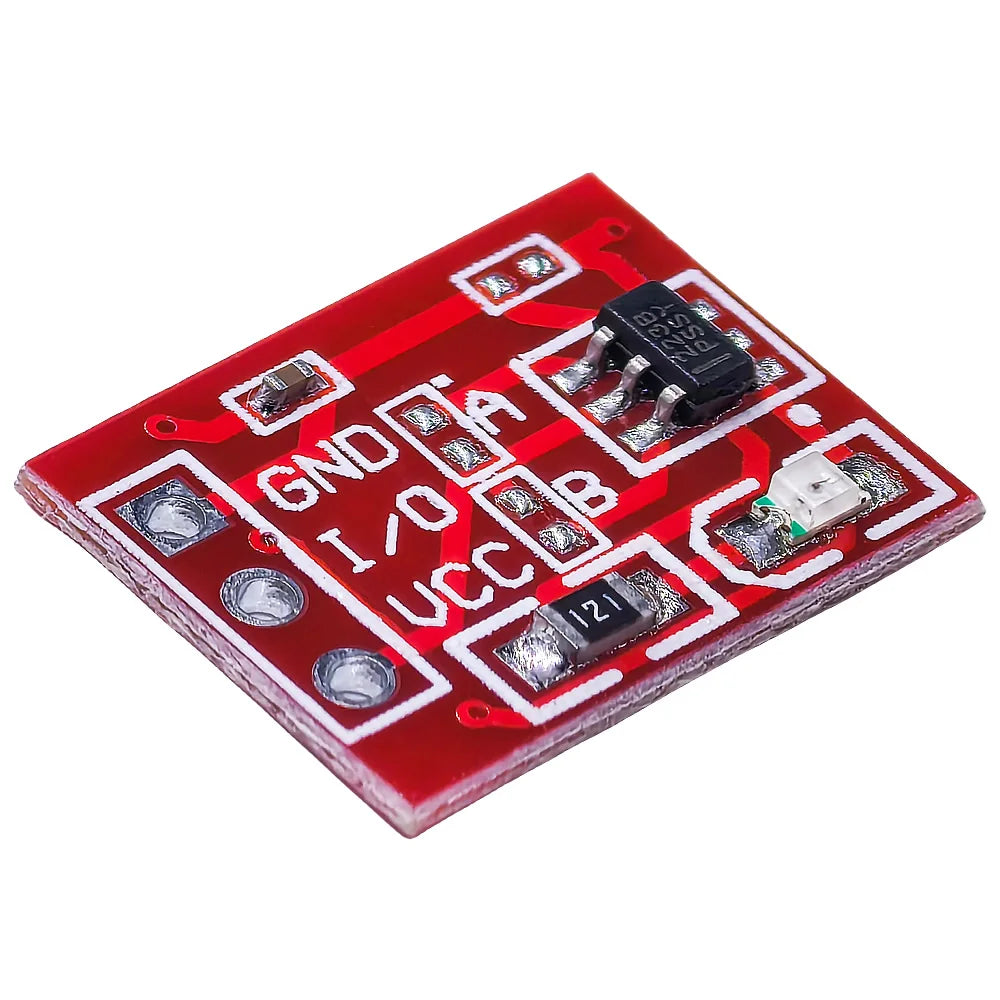

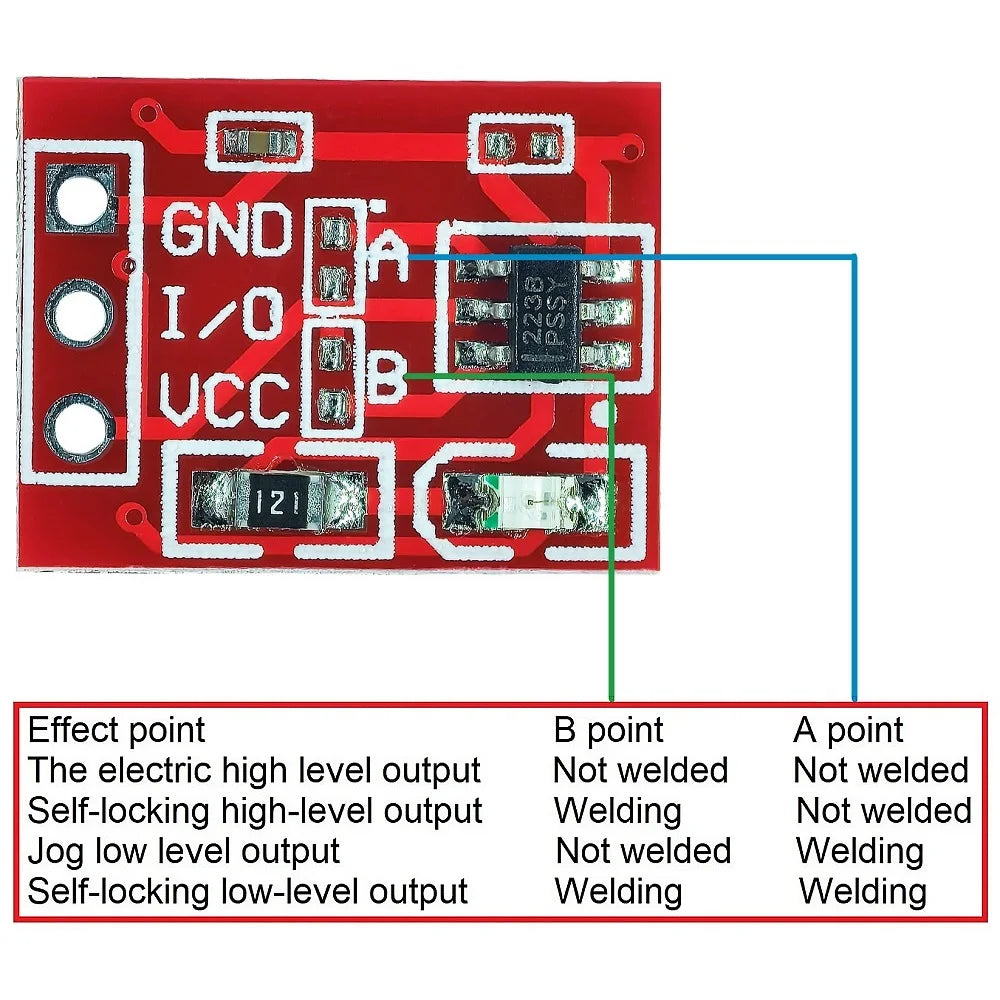

AB=00: No-lock High TTL level output;
AB=01: Self-lock High TTL level output;
AB=10: No-lock Low TTL level output;
AB=11: Self-lock Low TTL level output
