SPECIFICATIONS

Brand Name: diymore

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Features:
1. Long service life: Made of gold-plated quality, the touch area can be expanded, making it more intelligent and durable.
2. Stable and reliable signal: The upgraded version adds filtering capacitors, resulting in more stable output signals and superior performance.
3. Low power design: Under normal conditions, it is in low-power mode, energy-saving and environmentally friendly, suitable for long-term use.
4. Widely applicable voltage: Supports 2~5.2V (latch type) or 2~5.5V (jog type) power supply, with strong compatibility.

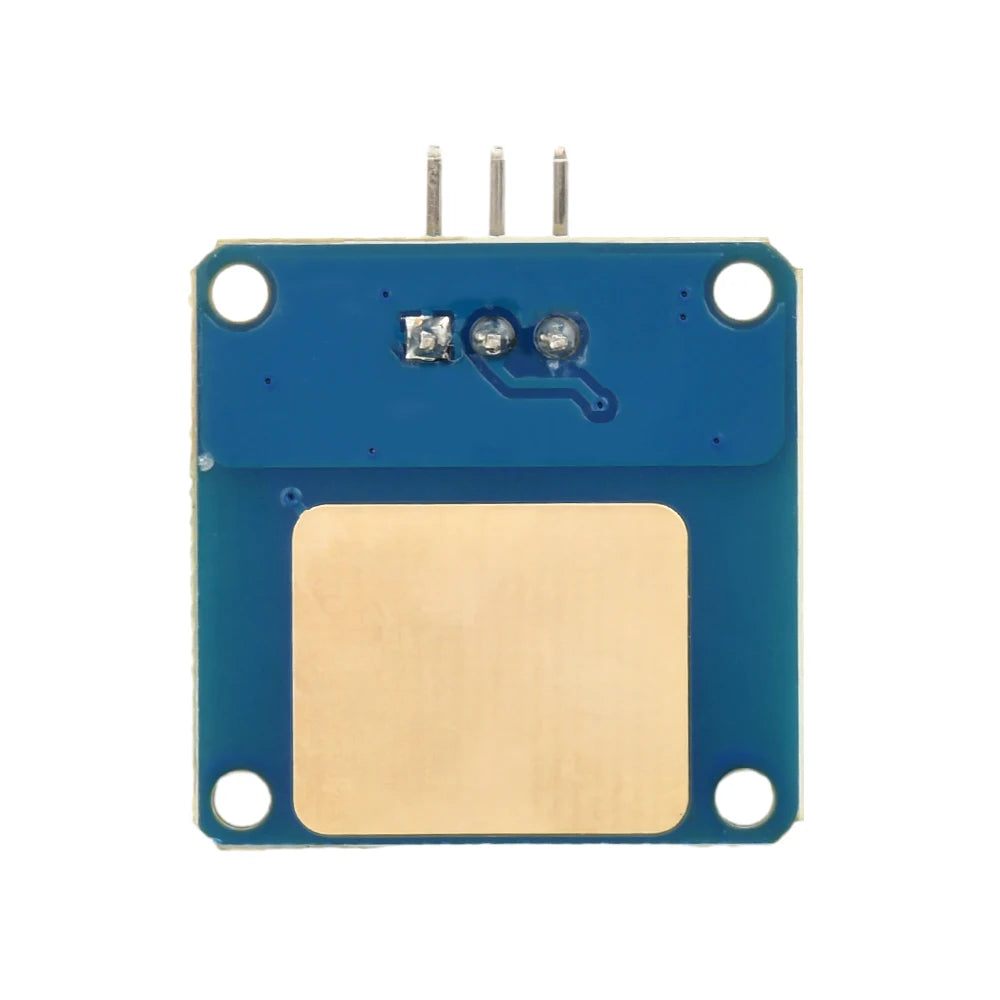

5. Easy installation: The board has 4 M2 screw holes, which are easy to fix and can be hidden on non-metallic surfaces such as plastic and glass.

Parameter:

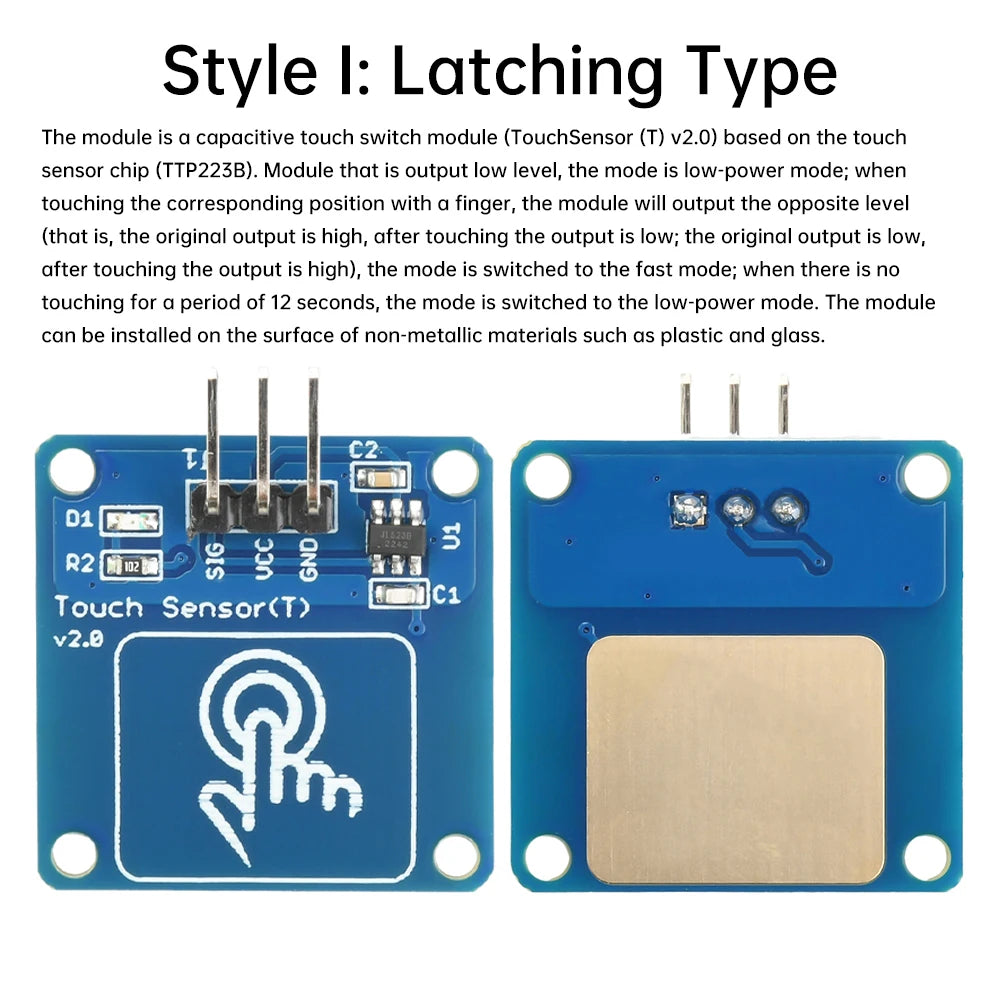

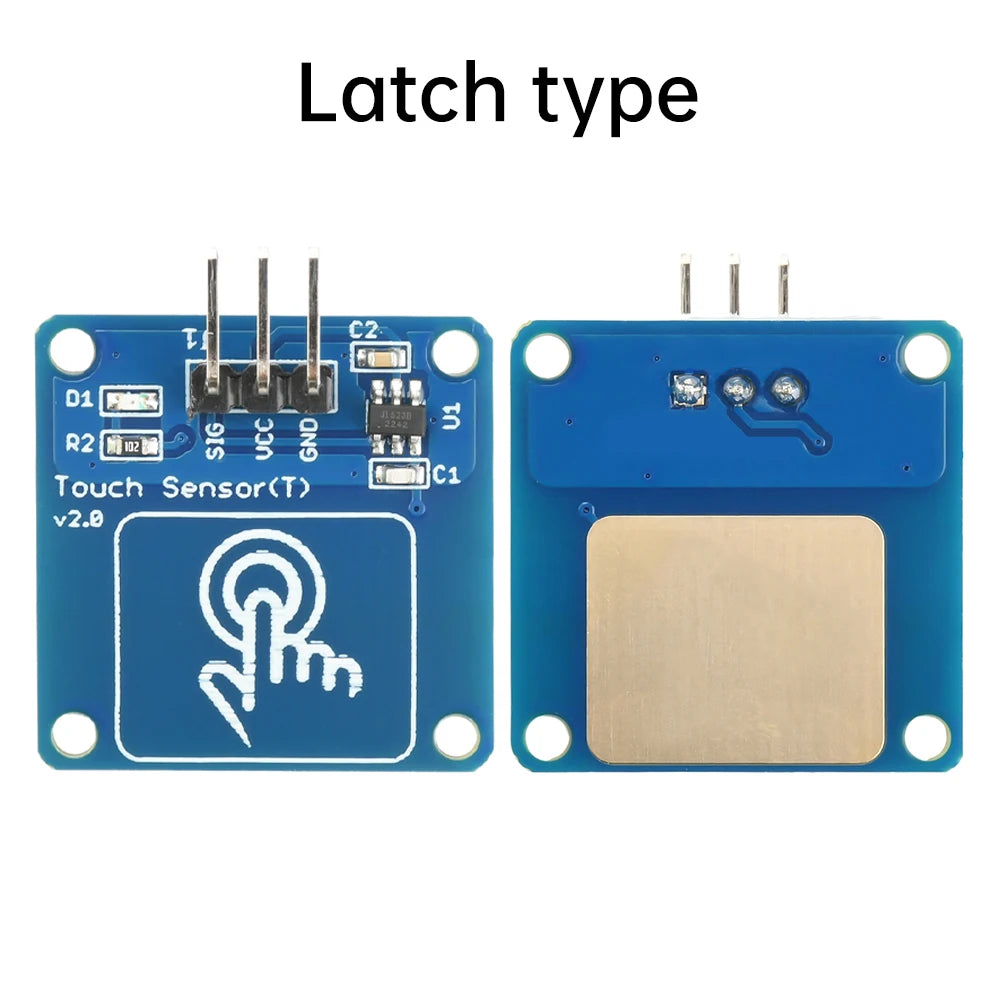

Style 1: Lock type:

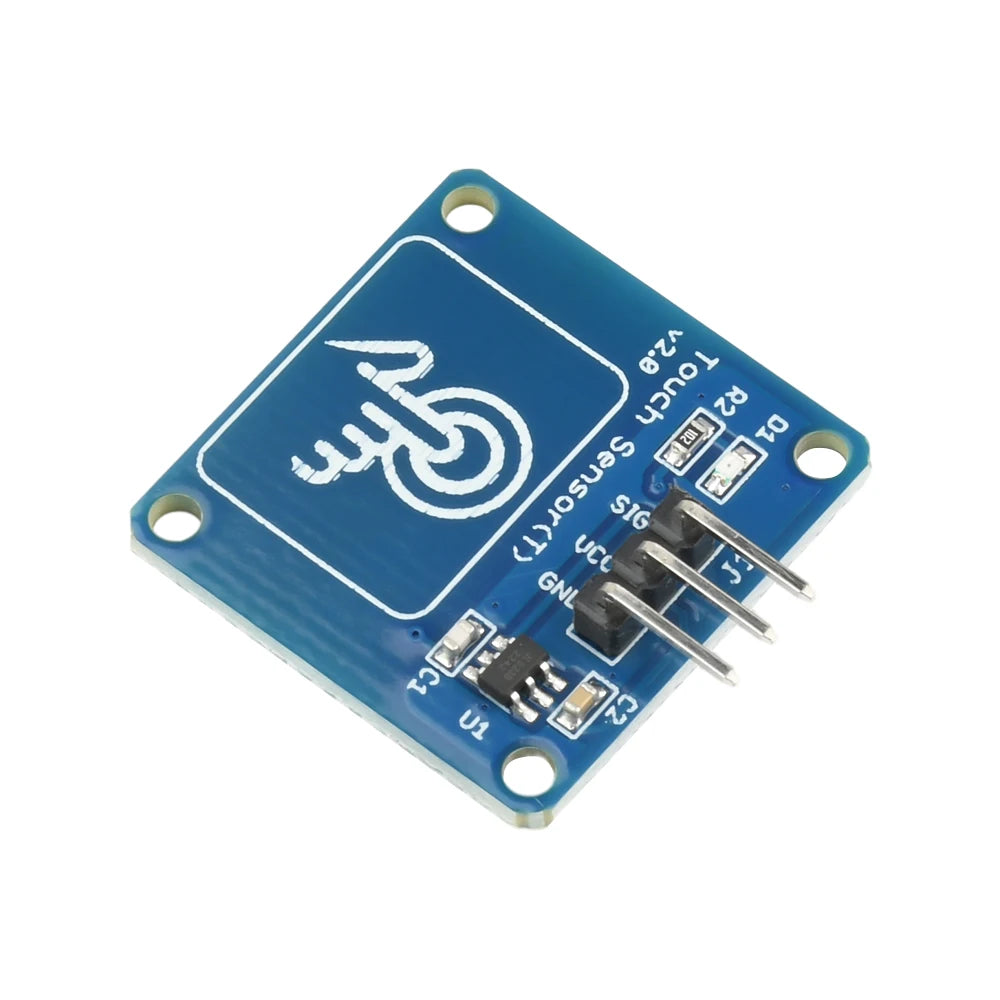

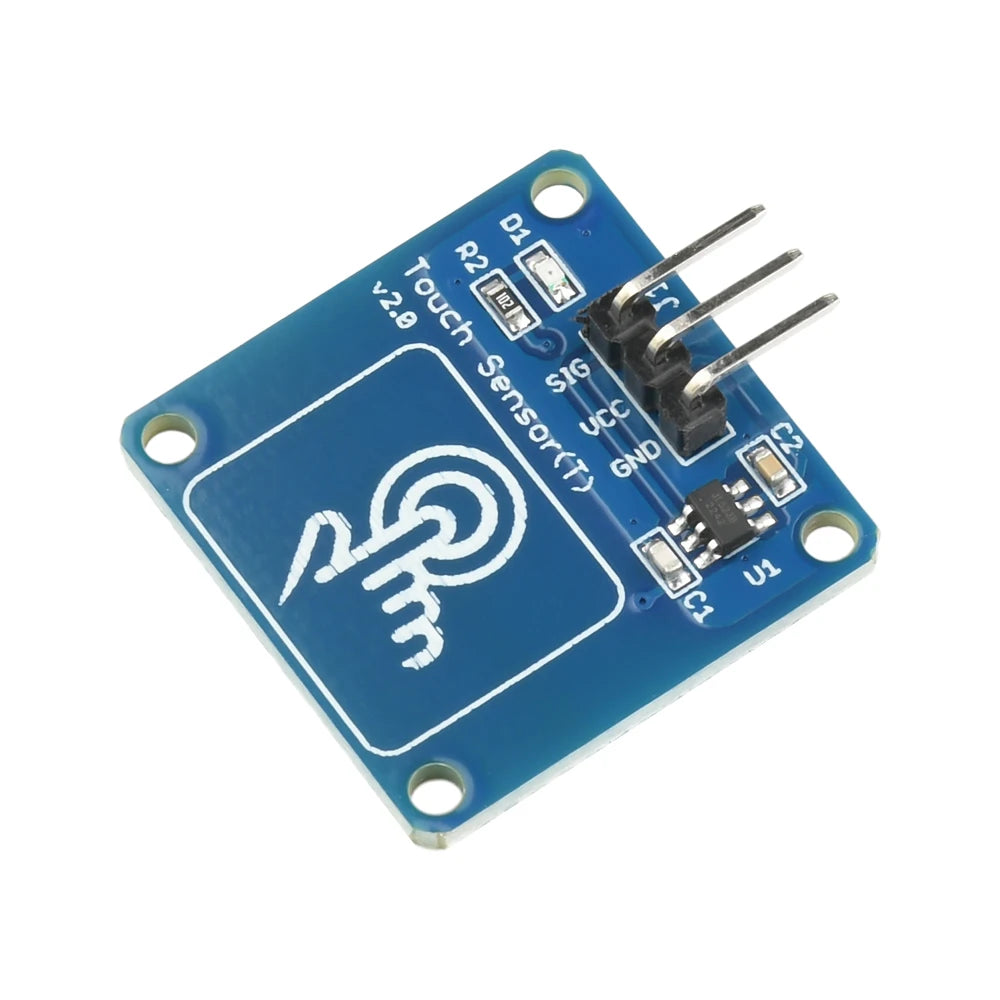

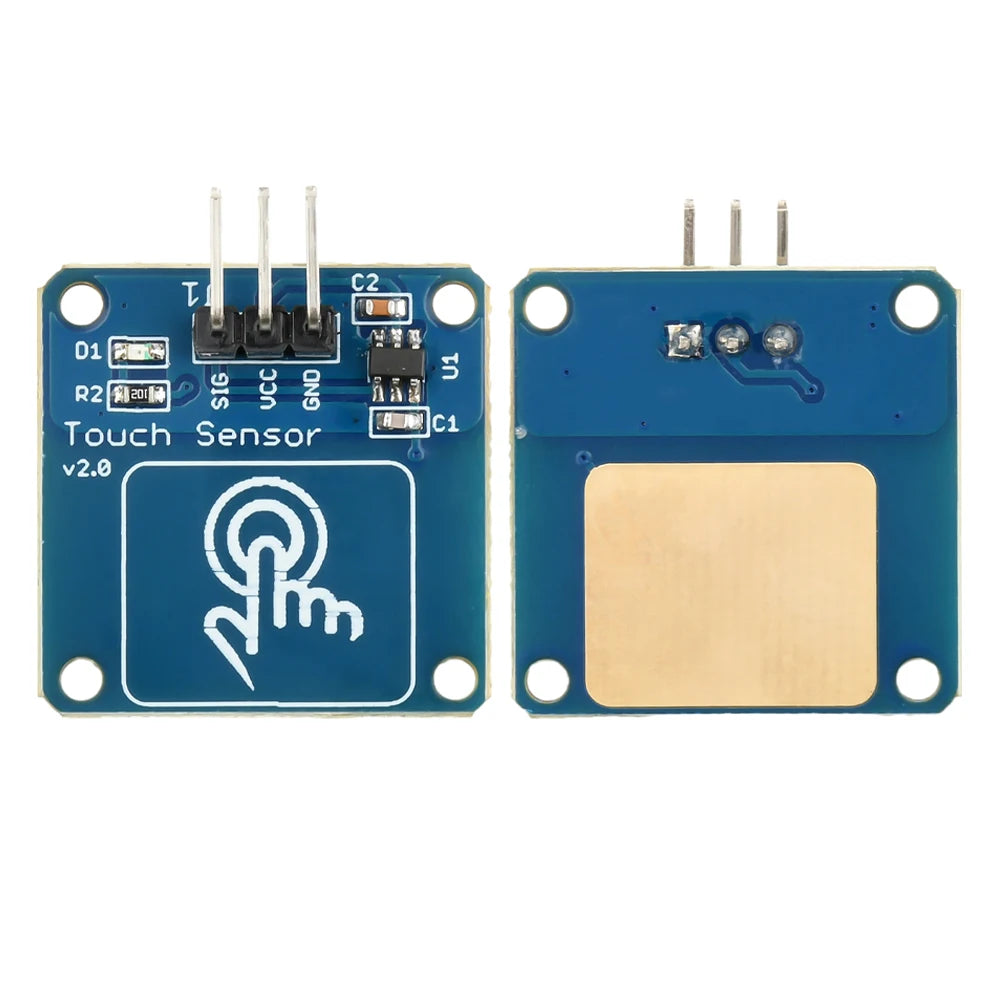

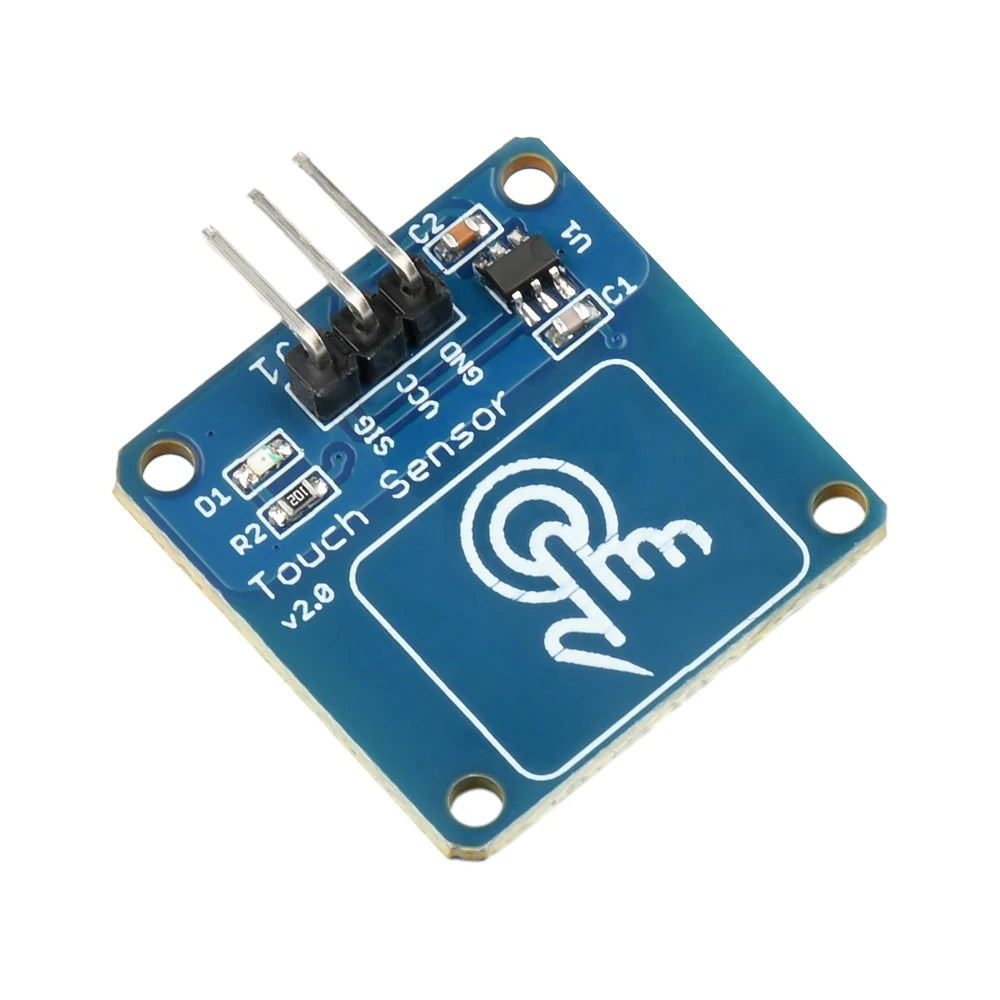

This module is a capacitive touch switch module (TouchSensor (T) v2.0) based on a touch sensing chip (TTP223B). The module outputs a low level and operates in low-power mode; When touching the corresponding position with a finger, the module will output the opposite level (i.e. originally outputting high, then outputting low after touching; originally outputting low, then outputting high after touching), and the mode will switch to fast mode; When there is no touch for 12 seconds, the mode switches back to low-power mode. Modules can be installed on non-metallic materials such as plastic and glass surfaces.
Parameters:
Power Supply: DC 2~5.2V
Screw mounting hole: 4 × M2

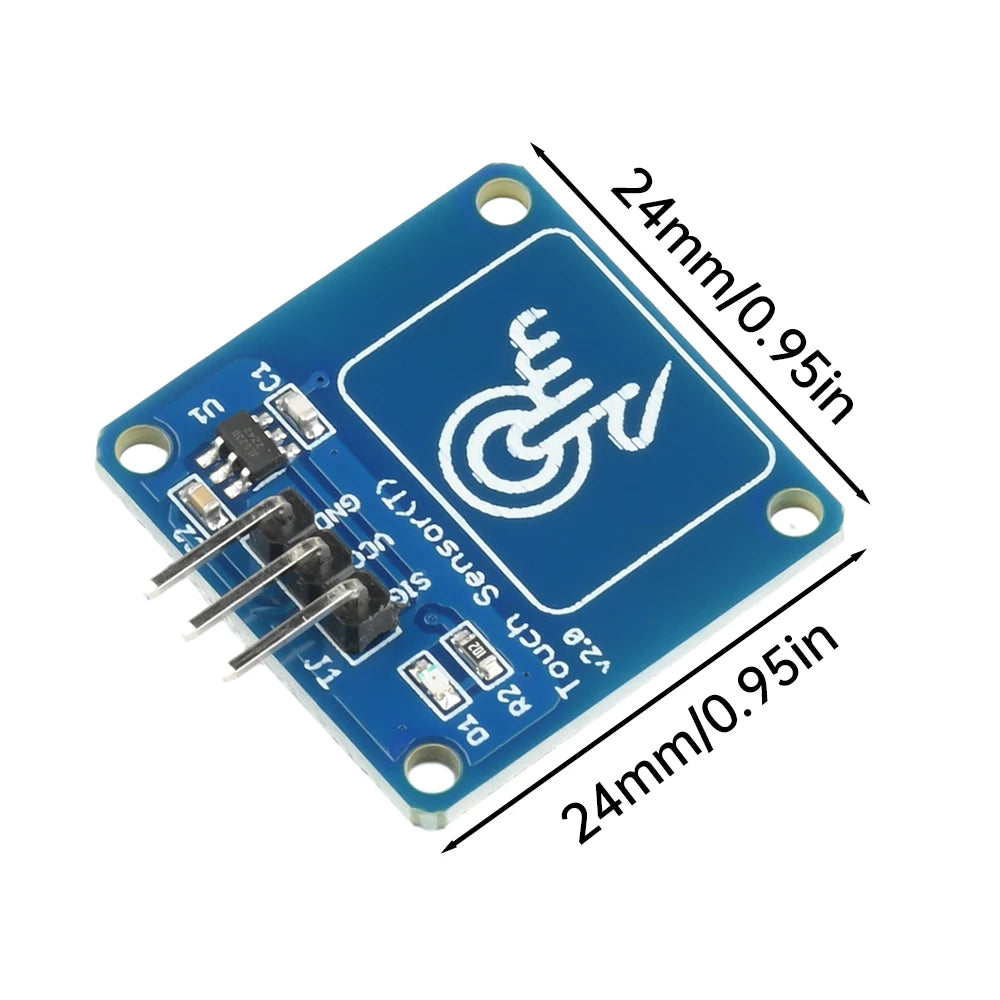

Size: 24mm*24mm
Latch type: The initial state can be set to high or low level, and touch will change the level state (similar to self-locking switch function), with low power consumption, more interesting to use, easy to use, and can replace traditional self-locking switches.

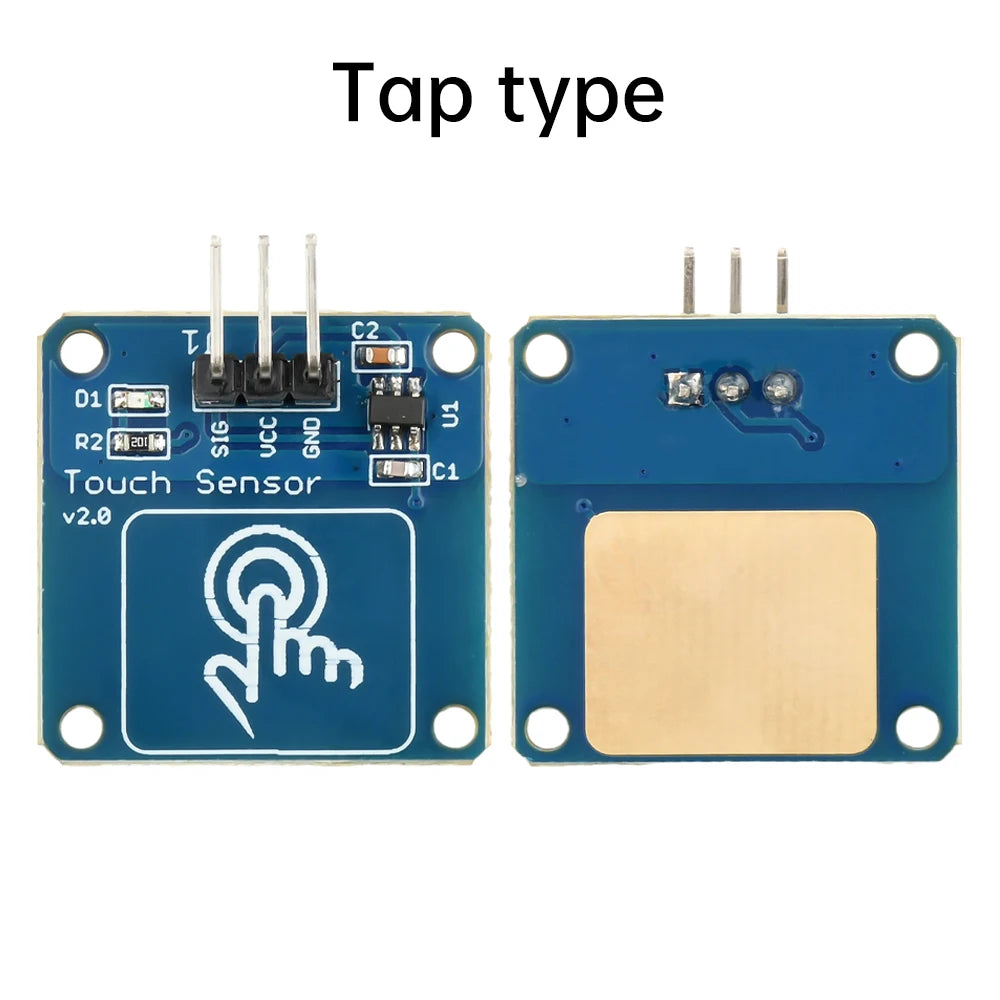

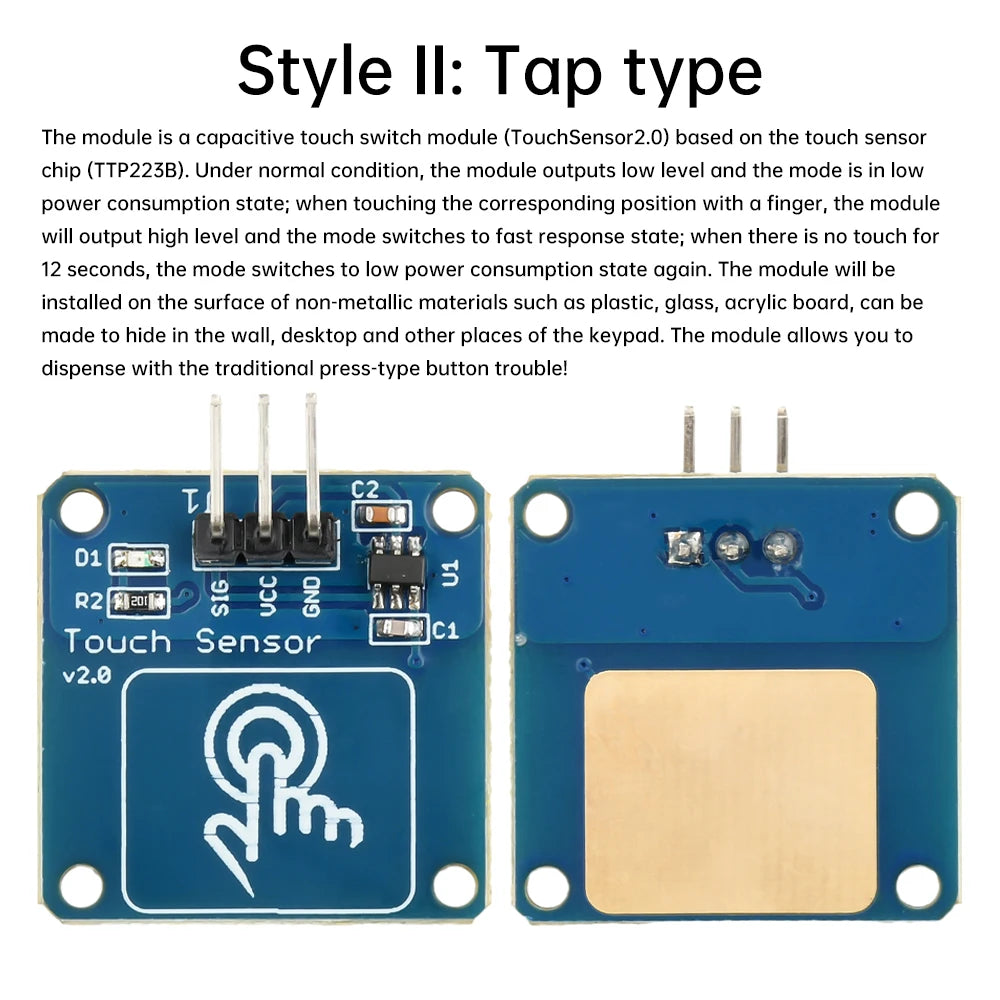

Style 2: Jogging Type:

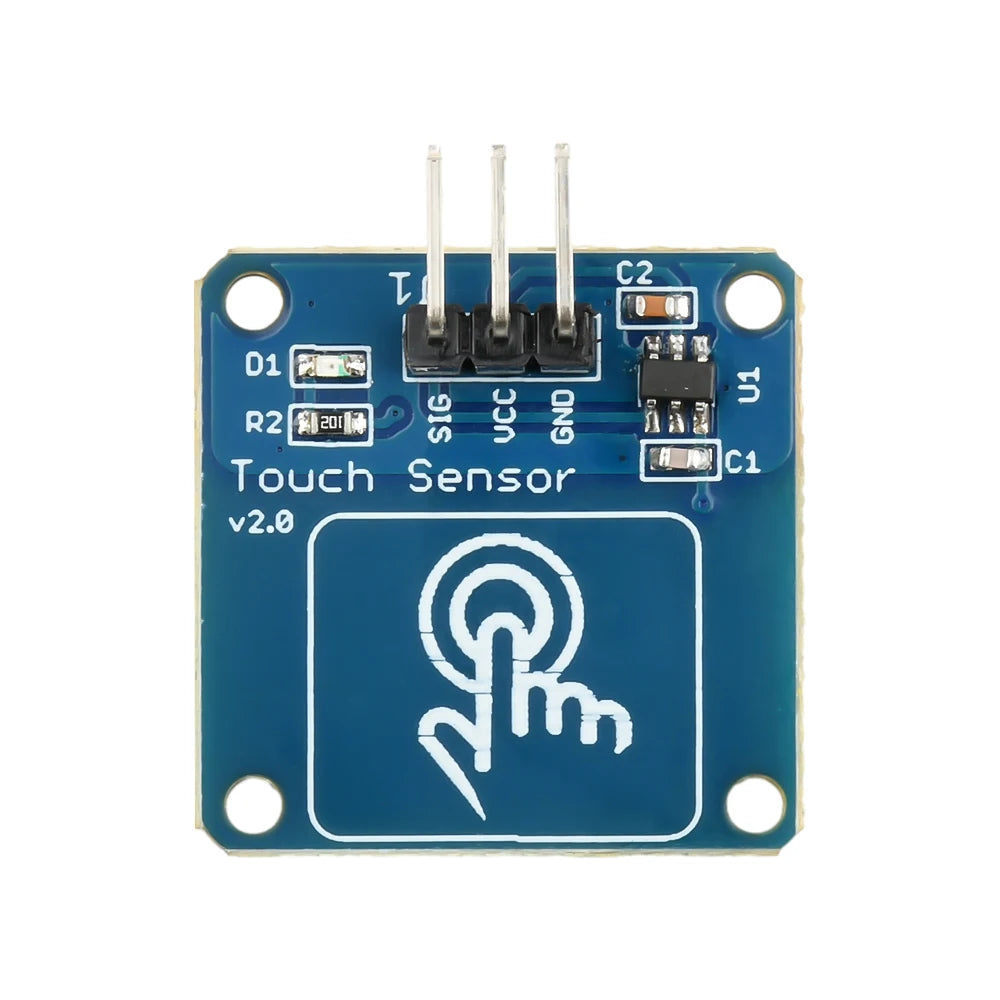

This module is a capacitive touch switch module (TouchSensor2.0) based on a touch sensing chip (TTP223B).
Under normal circumstances, the module outputs a low level and the mode is in a low-power state; When touching the corresponding position with a finger, the module will output a high level and switch to a fast response mode; When there is no touch for 12 seconds, the mode switches back to low-power mode. Installing the module on the surface of non-metallic materials such as plastic, glass, and acrylic sheets can create hidden buttons on walls, desktops, and other places. This module can relieve you of the trouble of traditional press type buttons
Product parameters:
Power supply: DC 2~5.5V
Screw positioning hole: 4xM2
Size: 24mm*24mm
Tap type: Initial state is low level, touch is high level, no touch is low level (similar to the function of a light touch button), low power consumption, easy to use, can replace traditional light touch buttons, outputs high level when touched, and outputs low level when not touched.

Package Include:
1X module
