SPECIFICATIONS

Brand Name: NONE

Choice: yes

Functions: Electronic Module

High-concerned chemical: none

Material: Metal

Origin: Mainland China

Output: Analog Sensor

Range of application: Switch And Sensor For Arduino STM

Theory: Current Sensor

Type: Biosensor

Use: MAGNETIC SENSOR

is_customized: Yes

semi_Choice: yes

AGS02MA Gas sensor
It is mainly used when there are polluting gases in the environment of the sensor, such as ethanol, ammonia sulfide, benzene vapor, monitoring of smoke and other harmful gases, which can be applied to air purifiers, electrical appliances (white goods), home controllers, smart thermostats, etc. Sensors can detect a variety of harmful gases.
Harmful gas definition
Gases that are harmful to human health or hazardous to work safety under general or certain conditions. Including toxic gases, flammable gases and asphyxiating gases.
Air pollutant
It exists in the air in the form of evaporation at room temperature, and its toxicity, irritability, carcinogenicity and special odor will affect the skin and mucous membranes, causing acute damage to the human body is an important class of air pollutants.

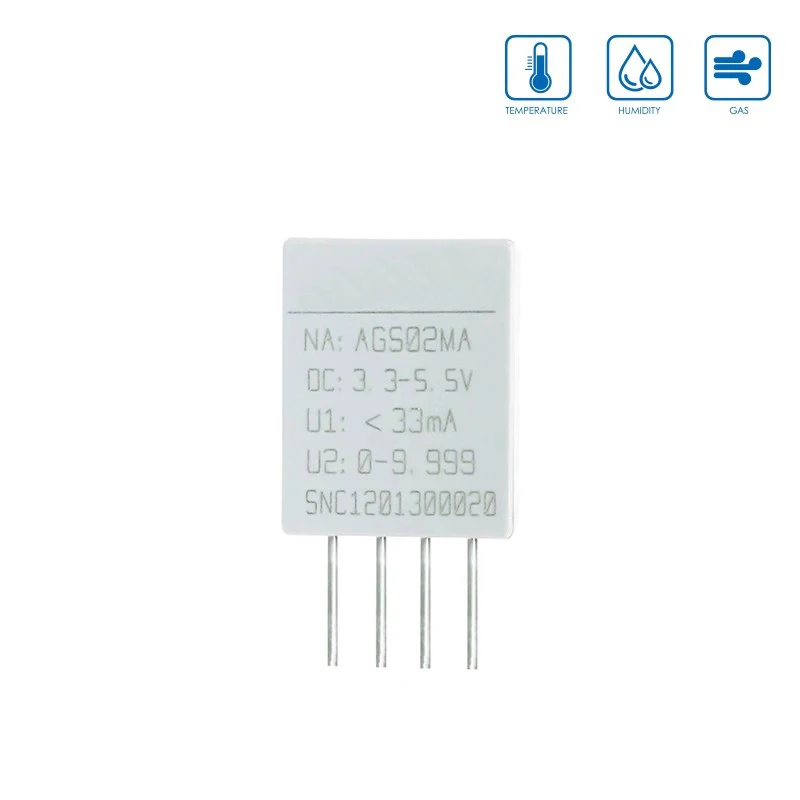

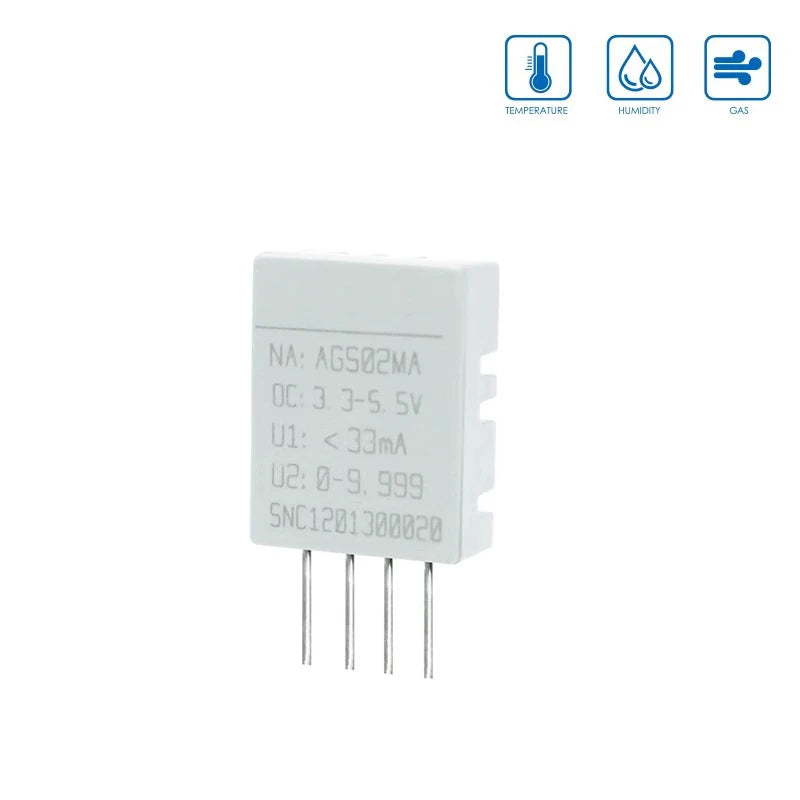

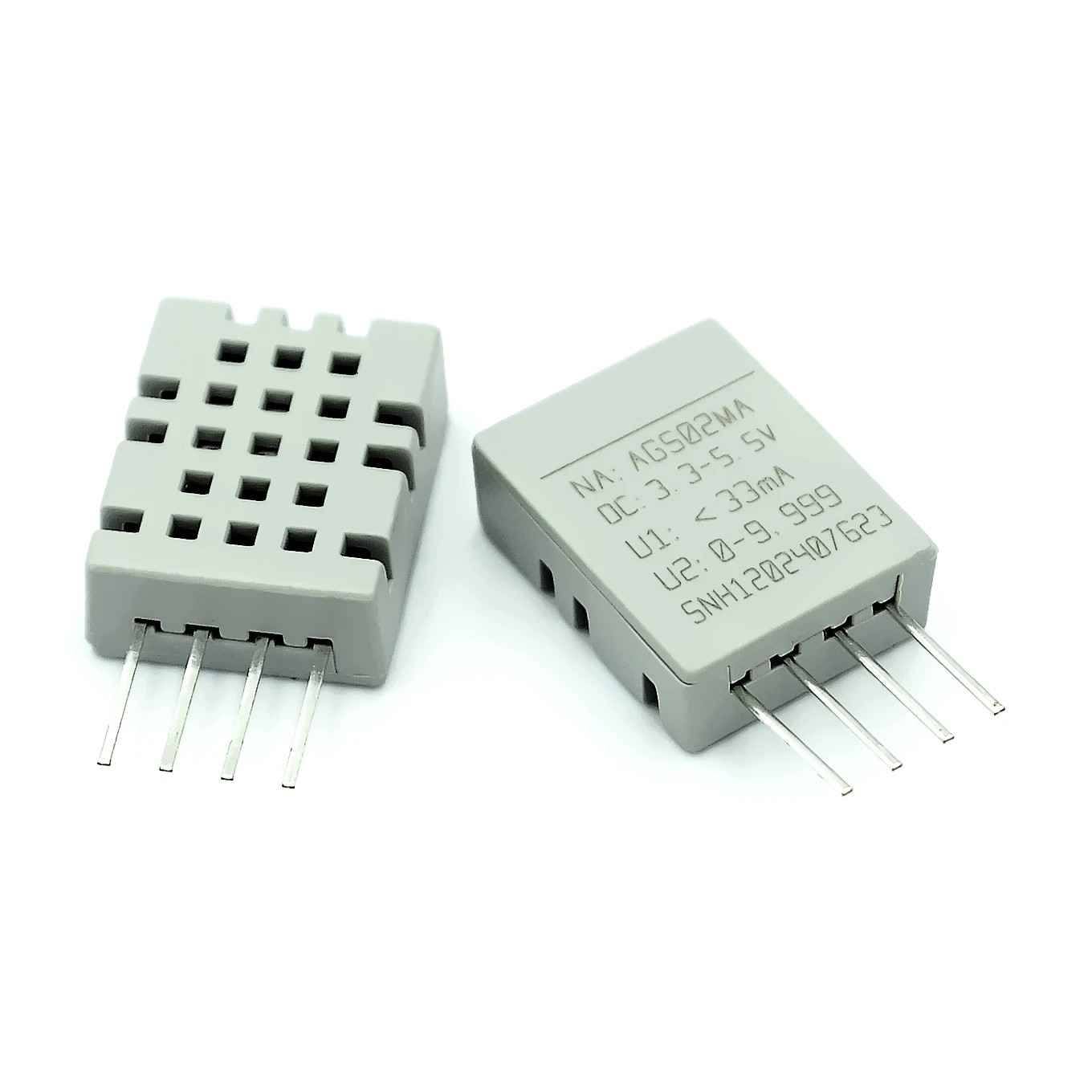

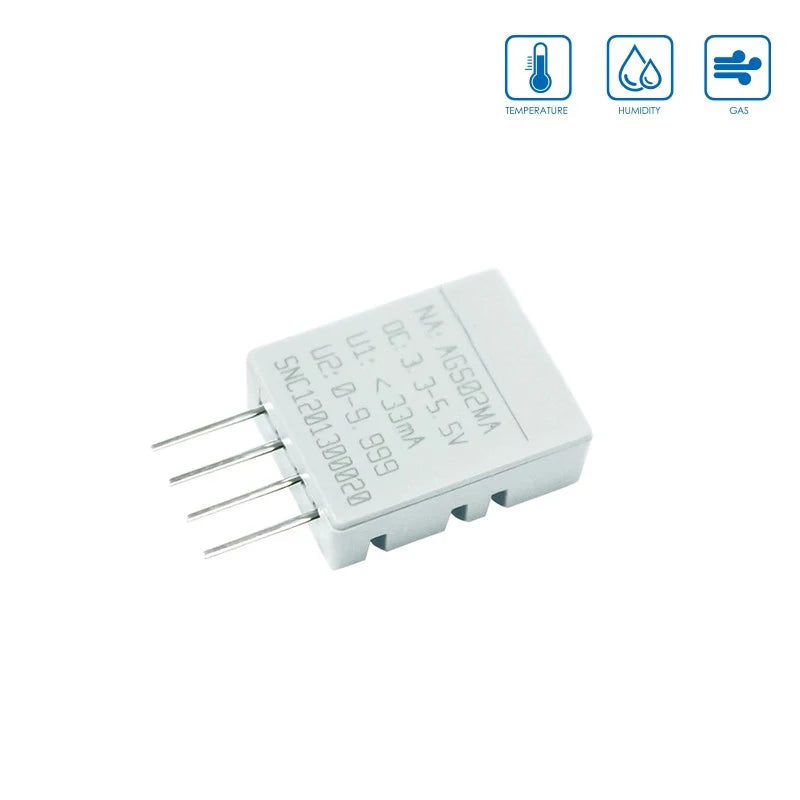

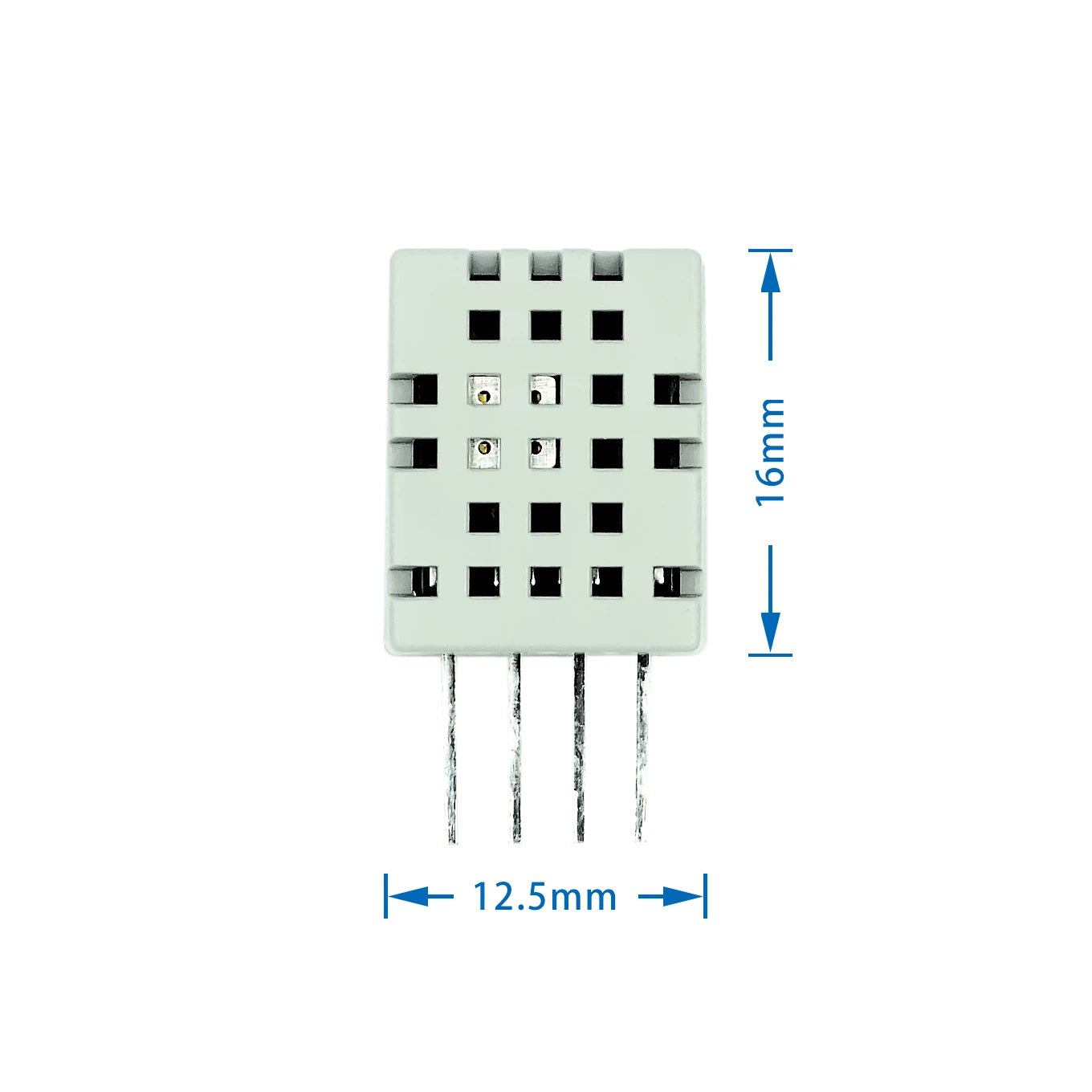

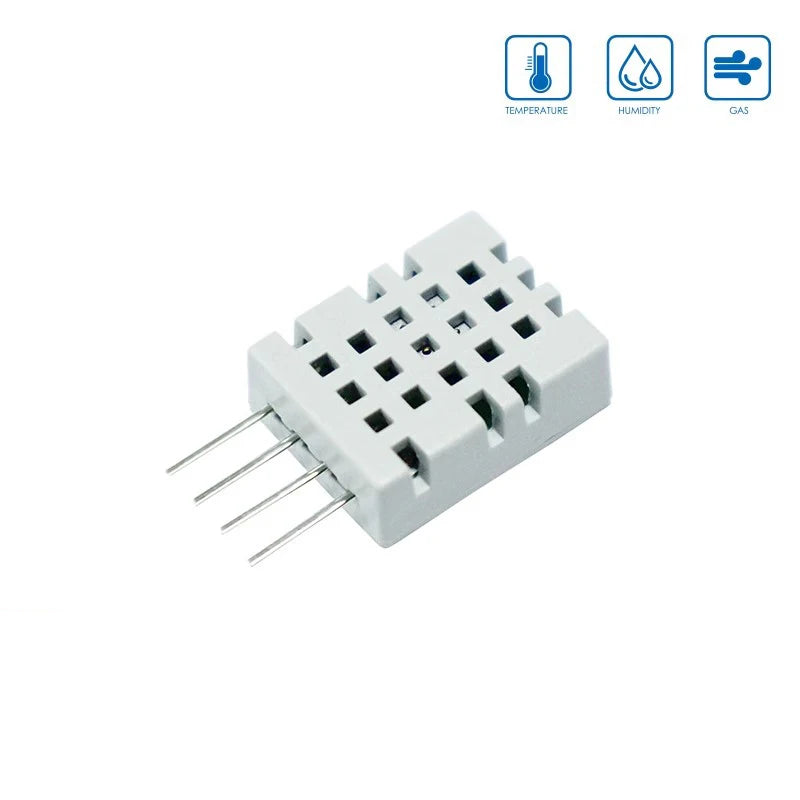

Product model: AGS02MA
Power supply voltage 3.3-5.5V DC
Minimum supply current 25mA
Typical supply current 28mA
The maximum supply current is 33mA
Typical output power (3.3V supply) 98mW
Typical output power (5V supply) 130mW
Sampling period ≥2S/ time
Output mode I2C slave mode (less than 30KHz)
Preheating time ≥120 seconds
Operating temperature 0°C~50°C
Operating humidity 0~95%RH.
Sensor Category MEMS semiconductor metal oxide sensor
Output unit ppb or ug/m3
Measuring range 0-99999ppb (extended range above 999ppb)
Typical accuracy (25°C 50%RH) 30%F.S (Max error 50%F.S)
Standard test gas ethanol
Weight 1g
Pack 4-pin pins
Life span > 5 years
