SPECIFICATIONS

Brand Name: diymore

Bundle: Bundle 1

Chipset: ESP32

Choice: yes

Compatible Audio & Video Equipment Style: Amplifier

Dimensions (WxHxD)): 54mm*38mm

Electronic: no

Frequency: 433 MHz

High-concerned chemical: none

Origin: Mainland China

Package: Yes

Type: Bluetooth

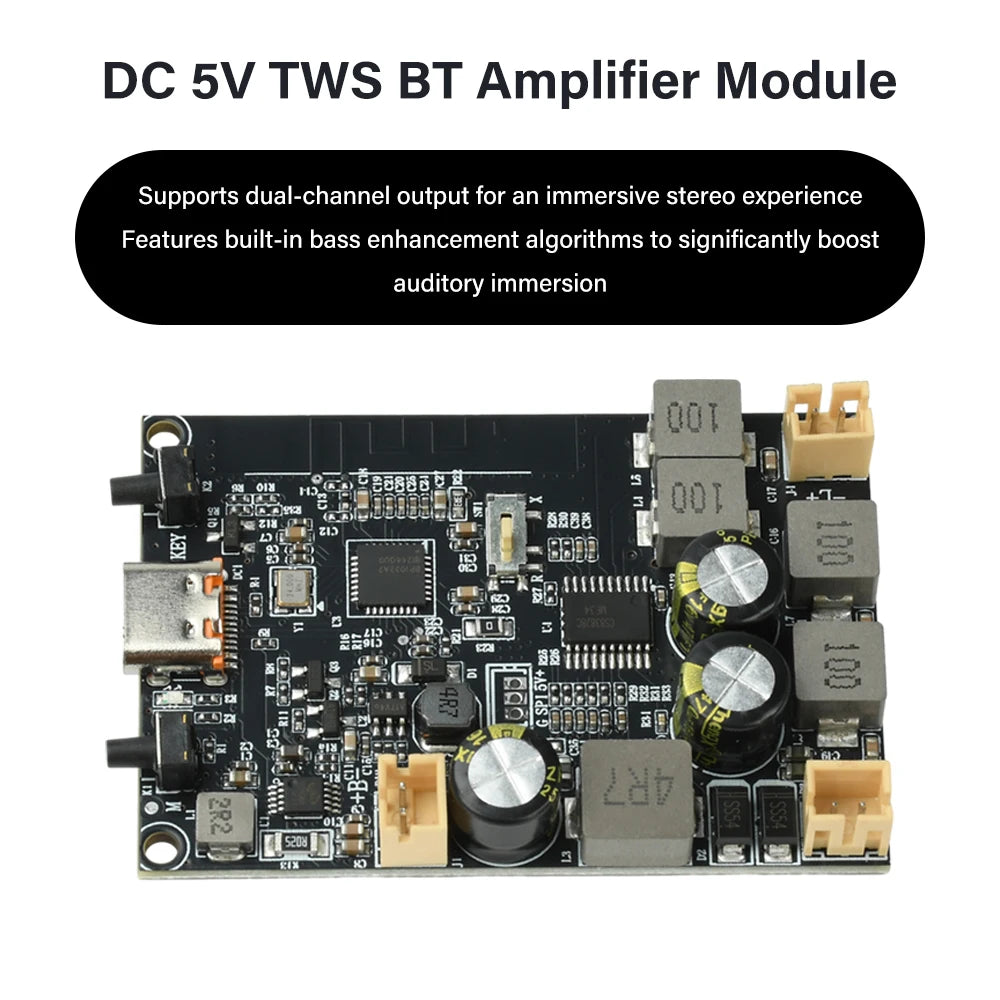

Features:

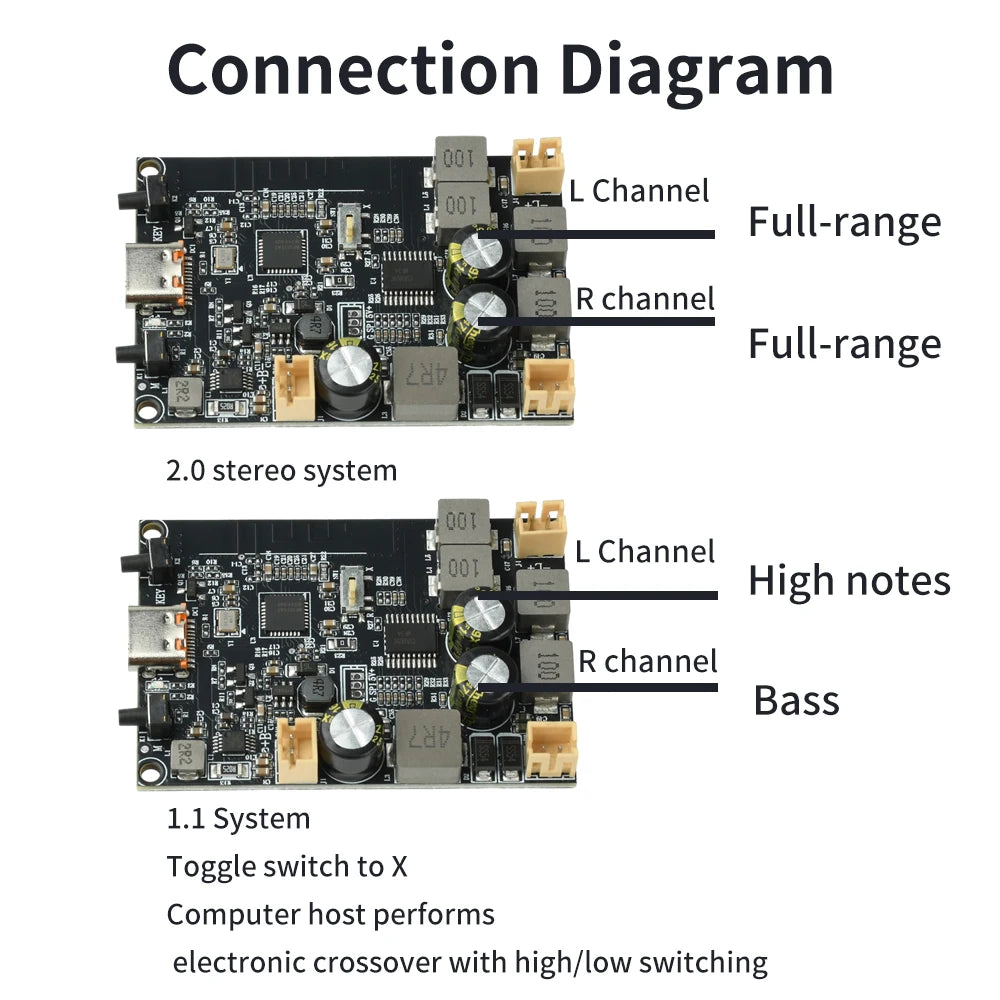

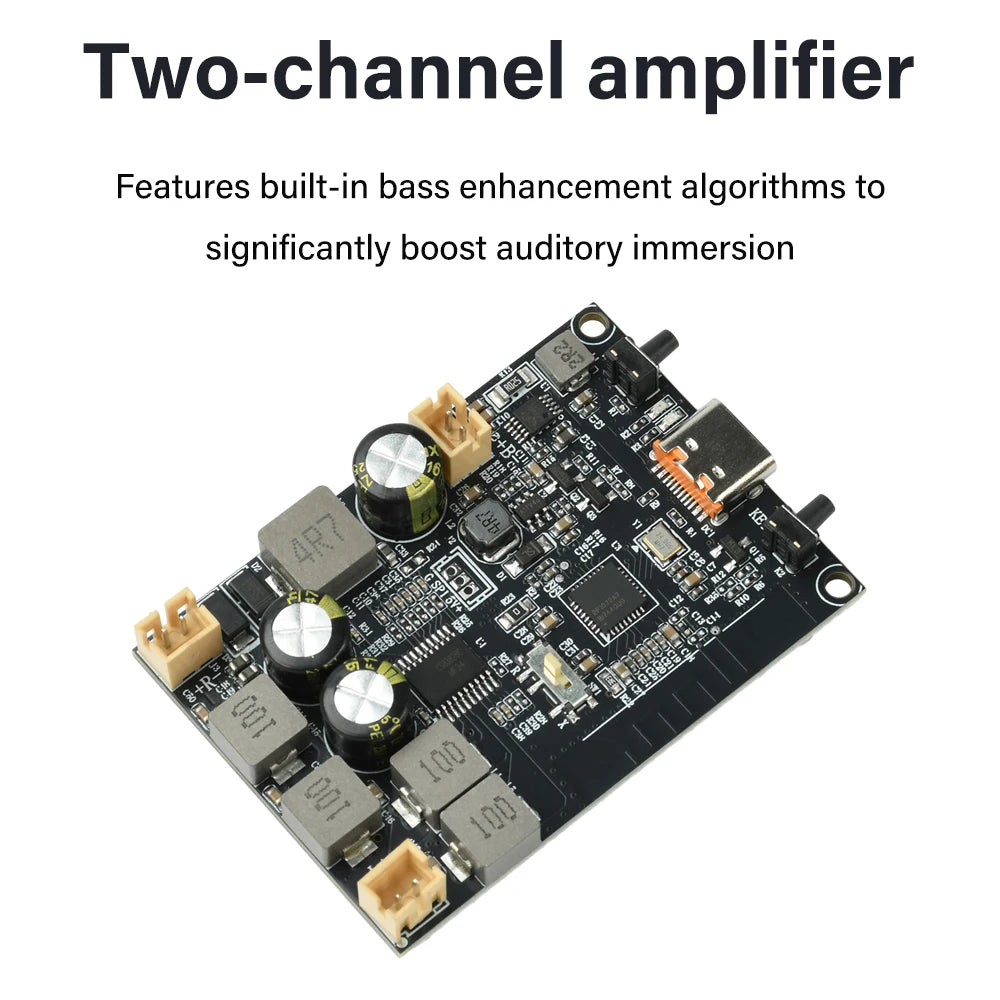

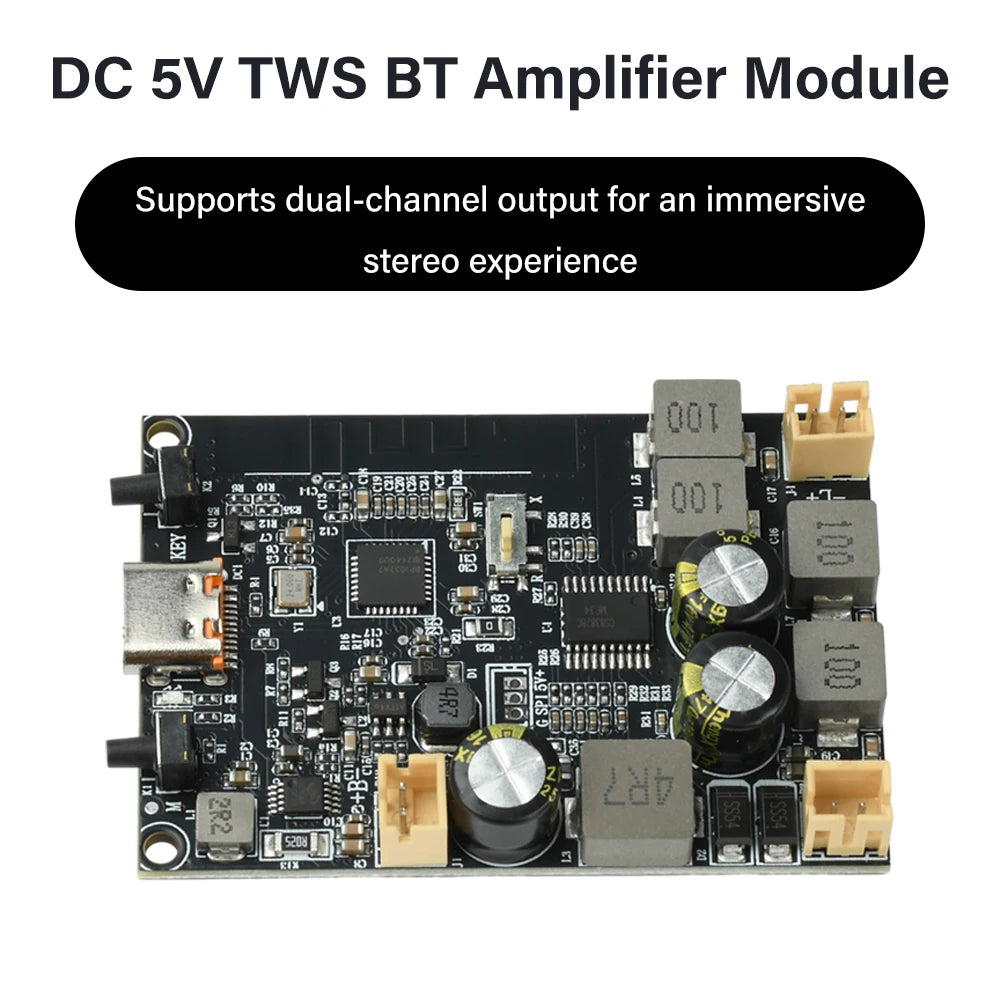

1. Support dual channel output to create a stereo experience.

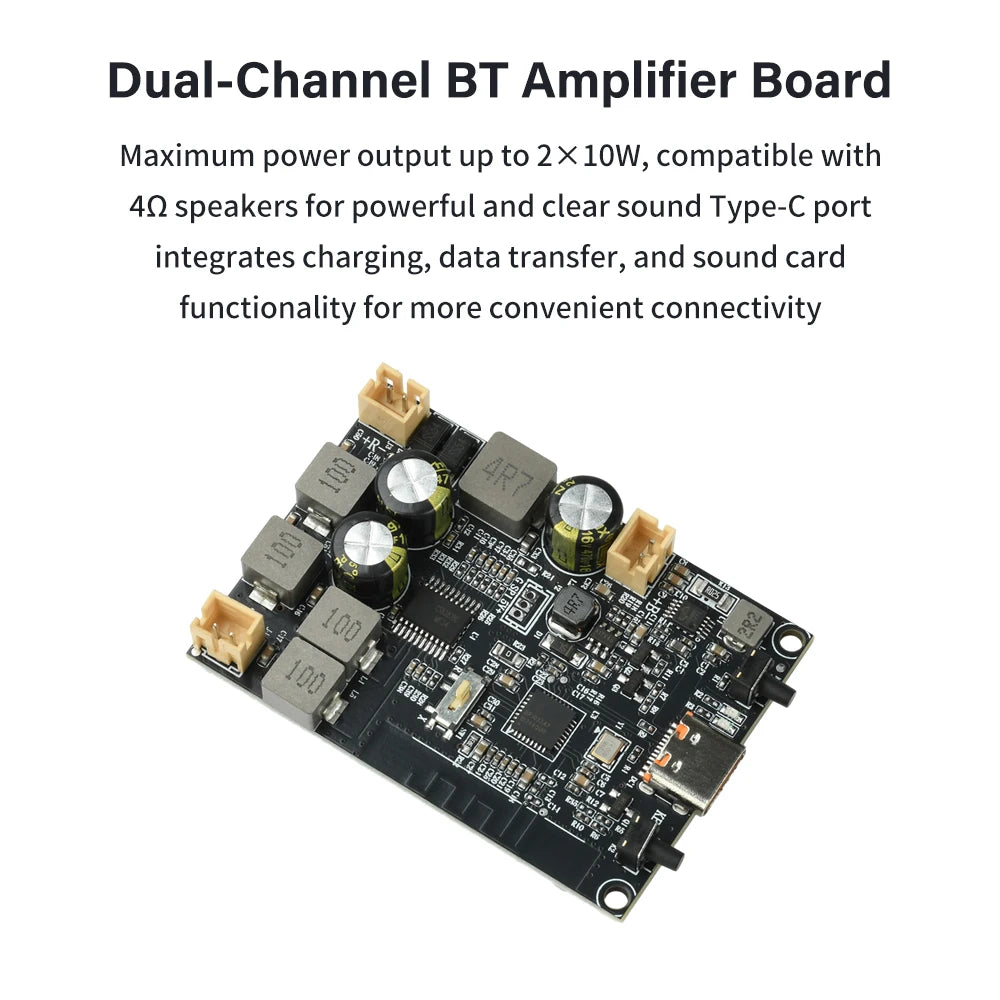

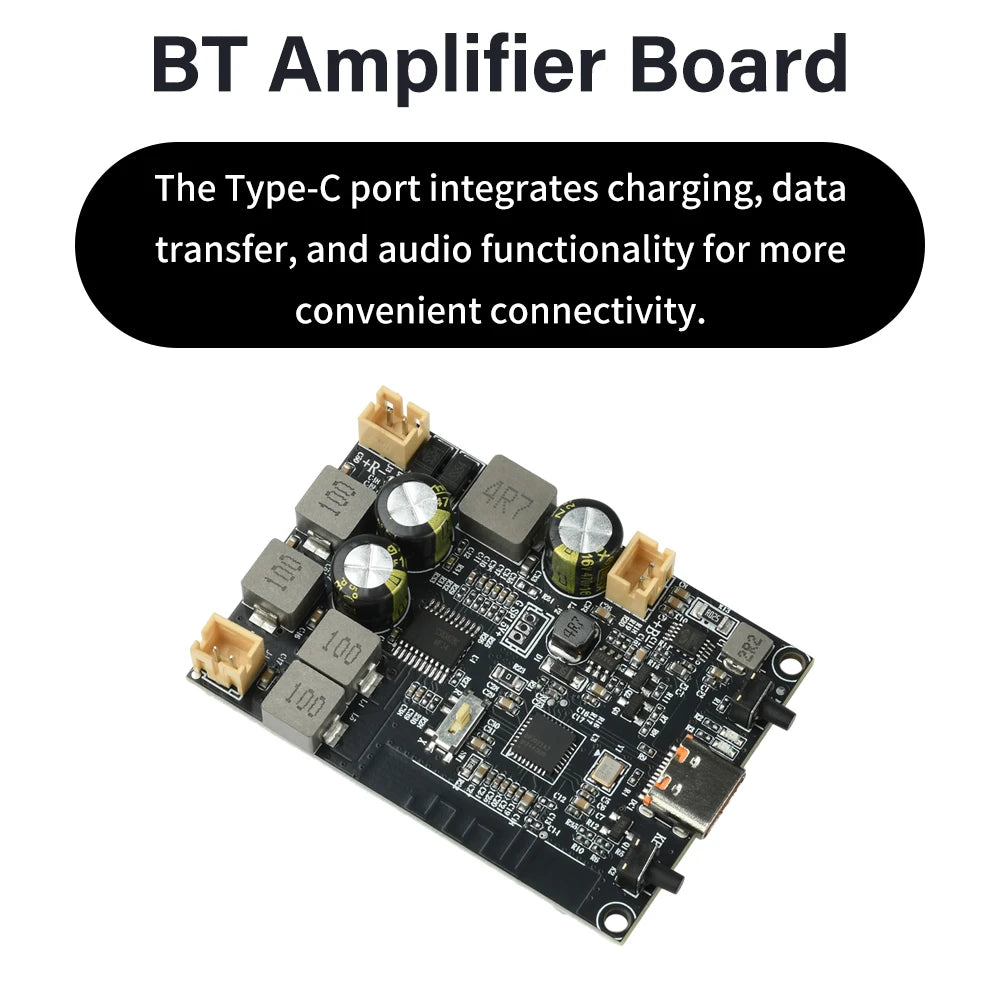

2. The Type-C interface integrates charging, data transmission, and sound card functions, making the connection more convenient.

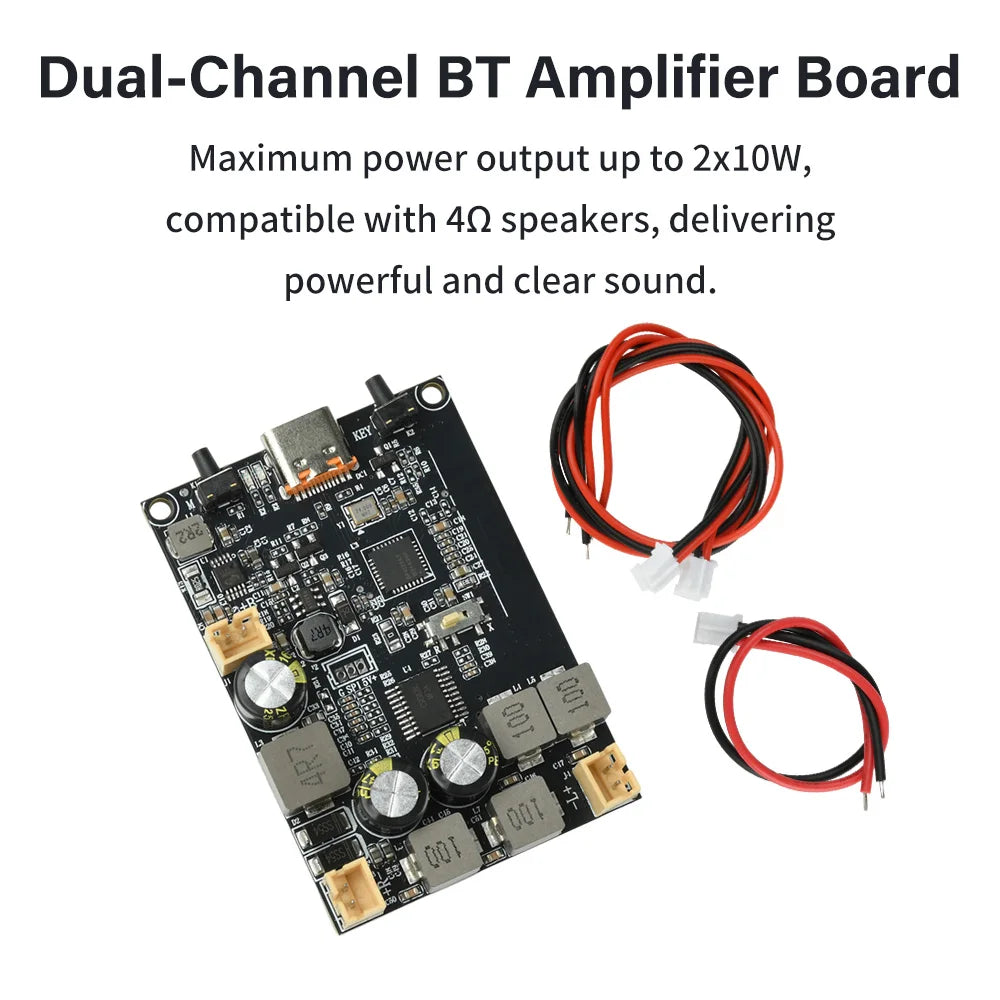

3. The maximum power can reach 2 × 10W, compatible with 4 Ω speakers, and the volume is strong and clear.

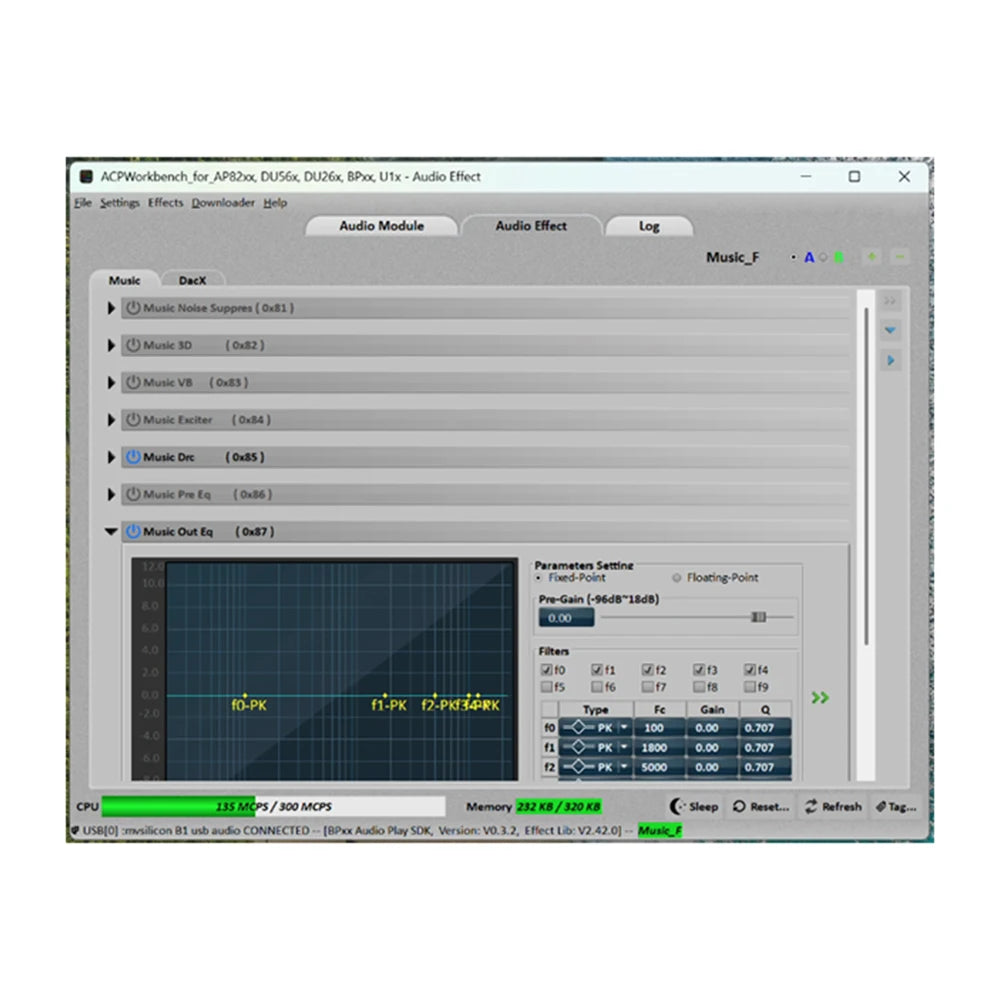

4. Built in bass enhancement algorithm effectively enhances auditory immersion.

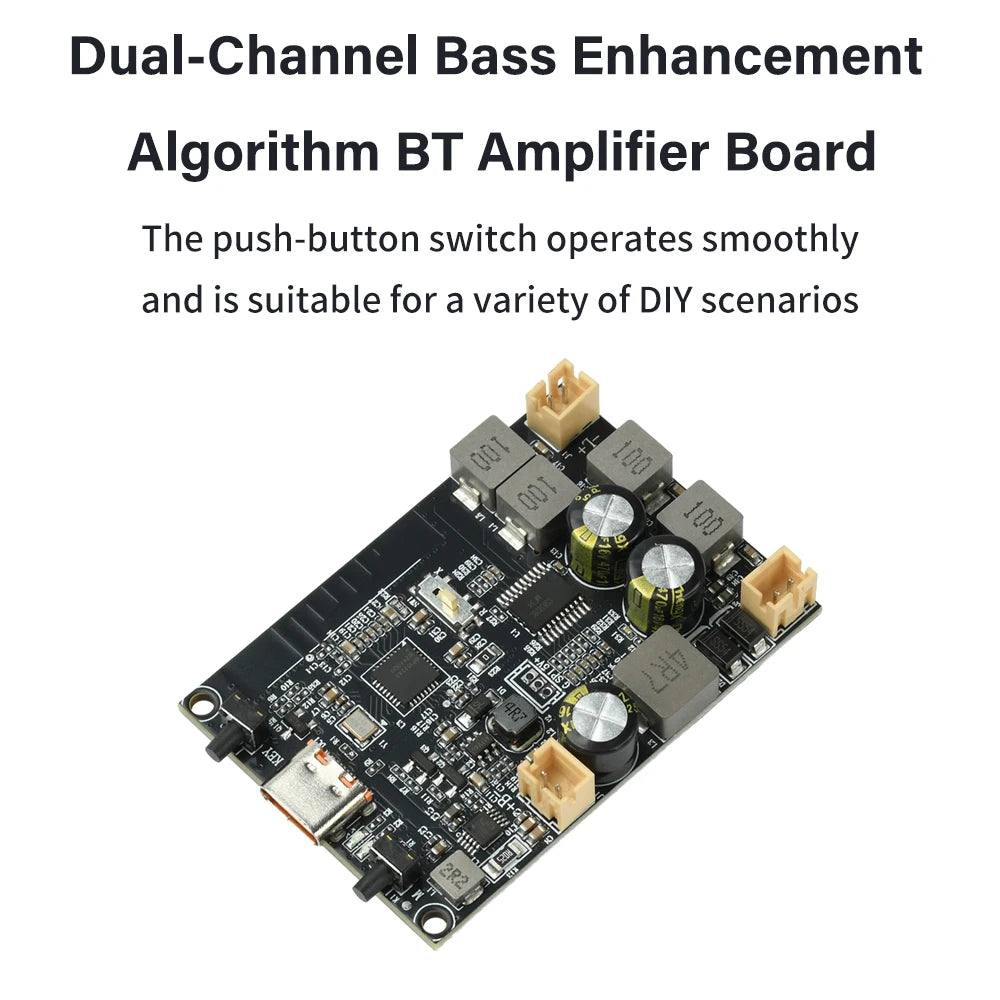

5. The button switch operation is flexible and suitable for various DIY scenarios.

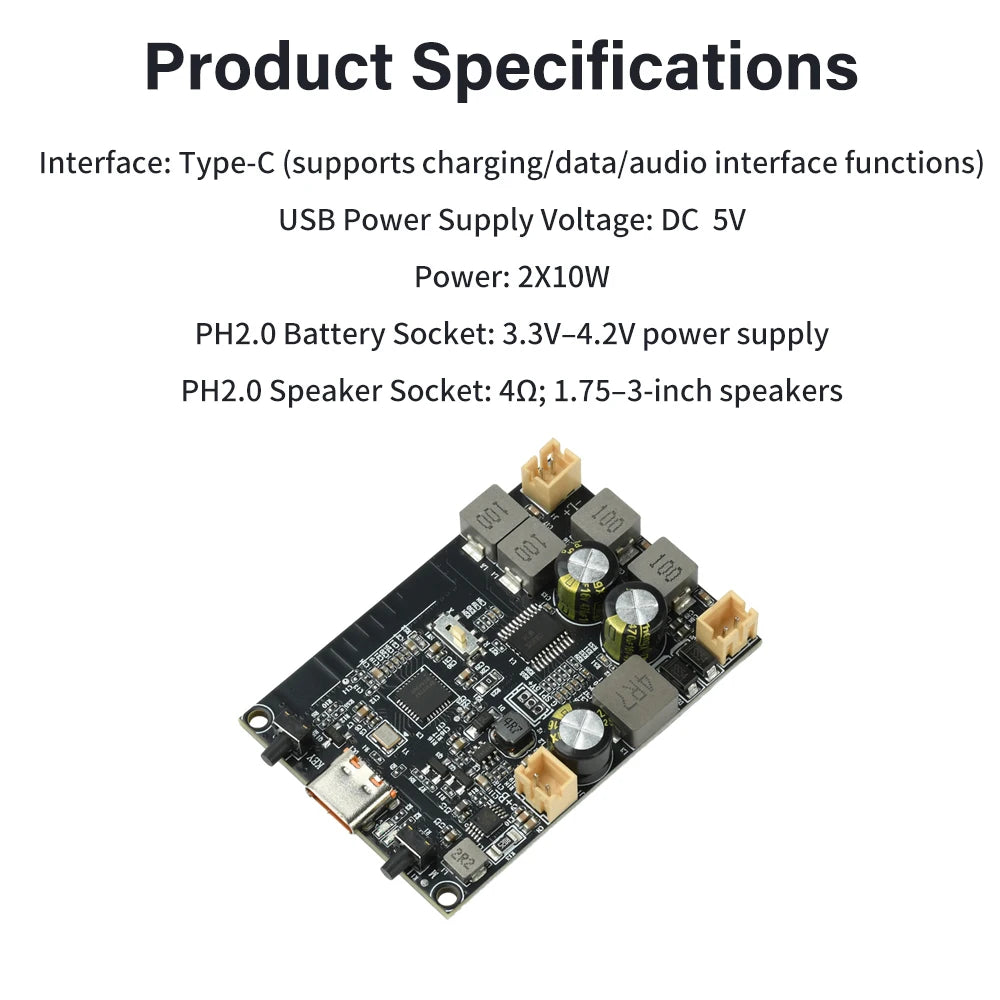

Parameter:

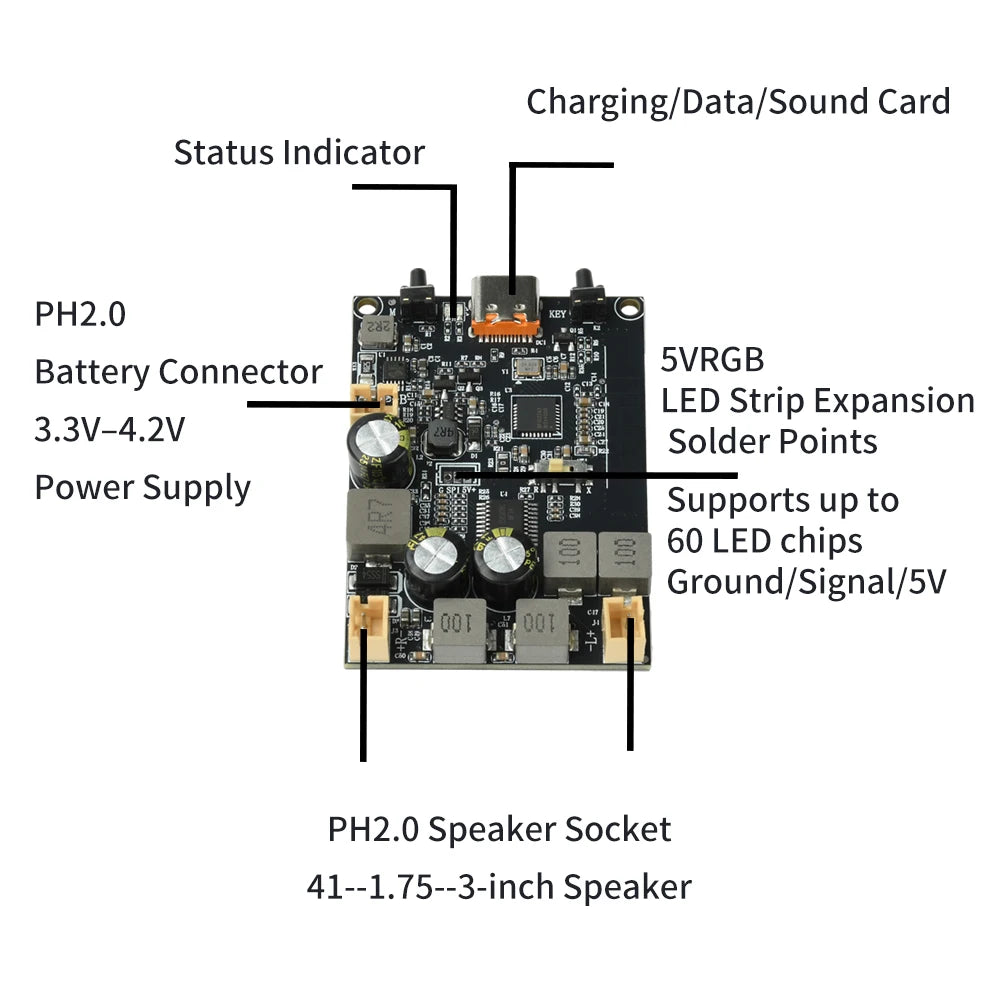

Interface: Type-C (supports charging/data/sound card functions)
USB power supply voltage: DC 5V
Power: 2X10W
PH2.0 battery socket: 3.3V-4.2V power supply
PH2.0 speaker socket: 4 Ω; 1.75-3-inch speaker
PCB board size: 54mm * 38mm

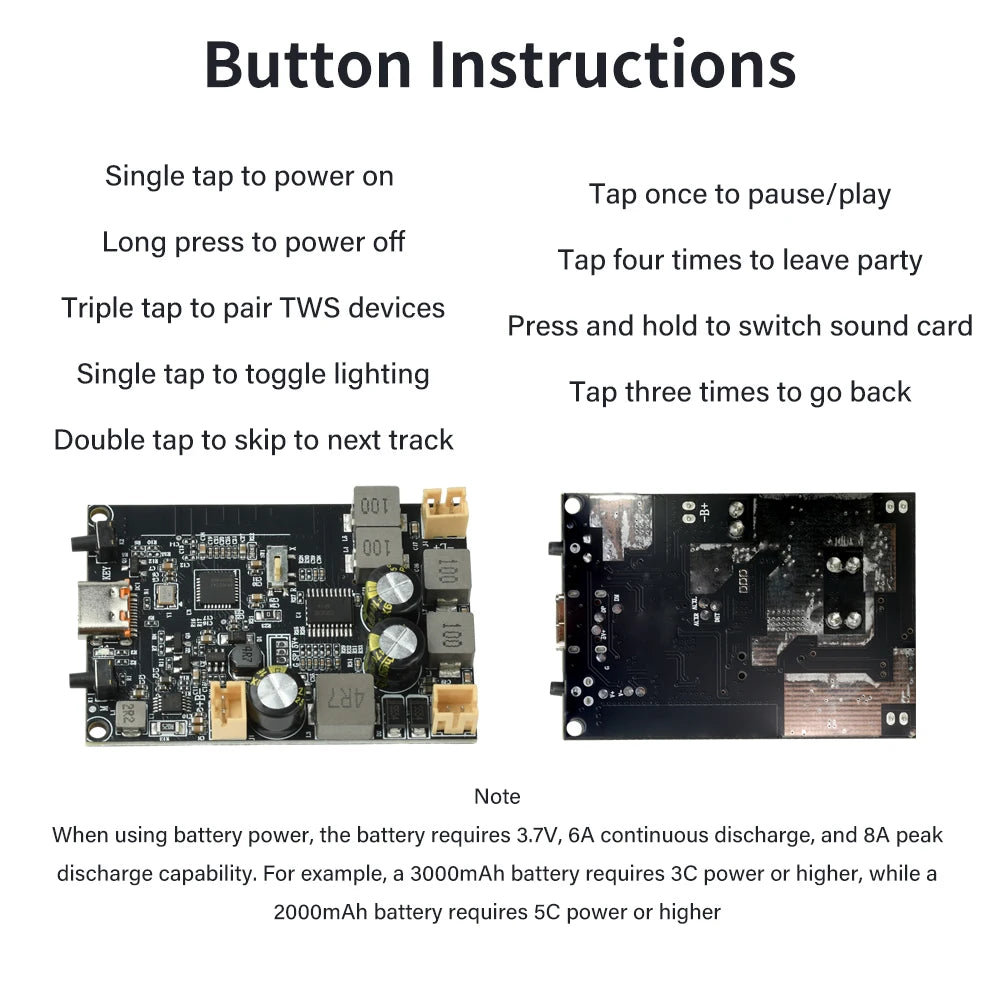

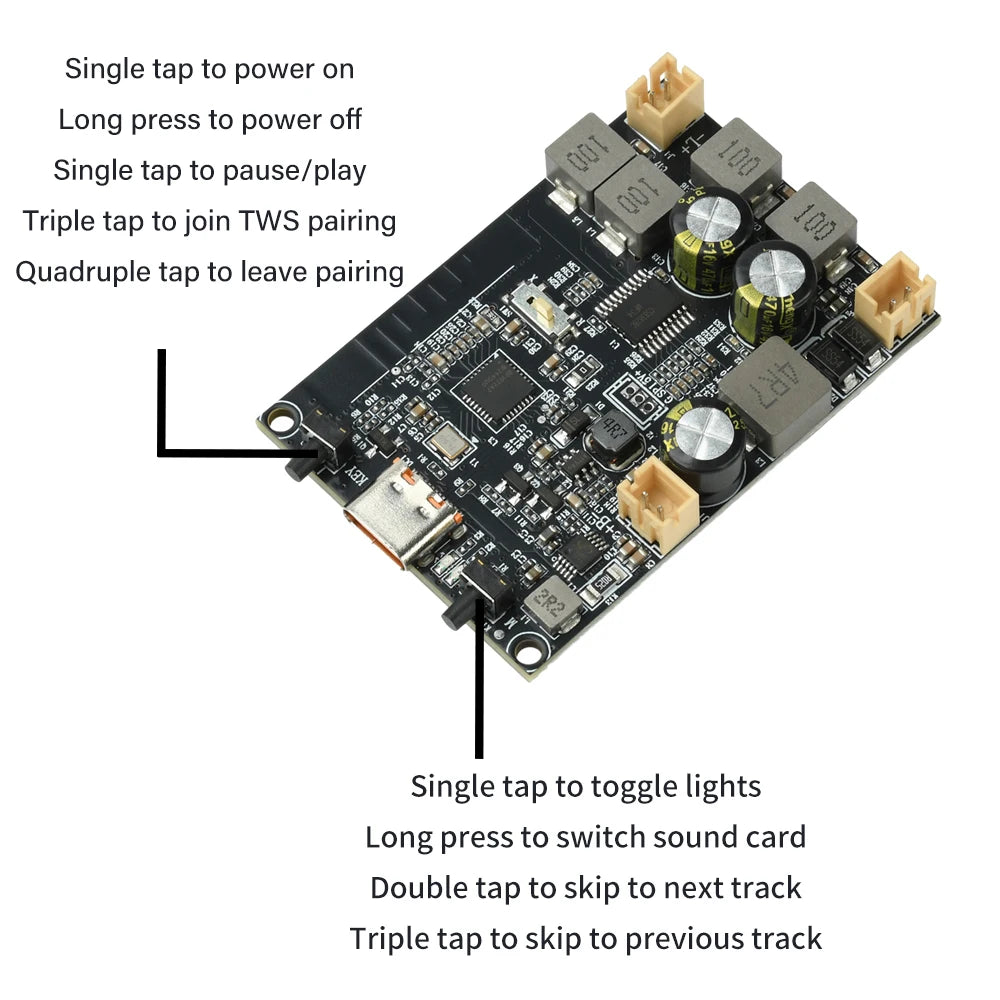

Button Description:
Click to turn on/long press to turn off
Click pause/play
Triple Strike TWS Team
Four hits to cancel the team formation
Click on the light switch
Long press to switch sound cards
Double click on the next track
Three hits on the previous song

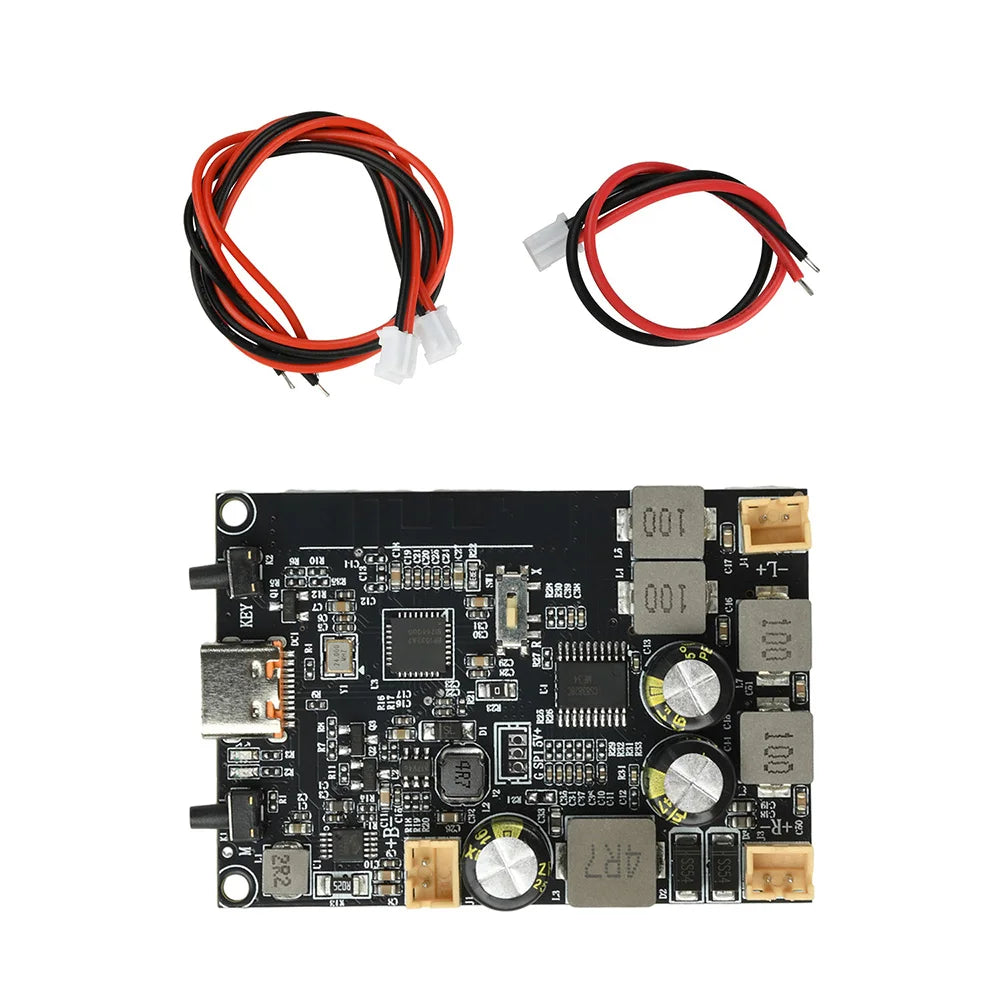

Package Include:
1X module
3X terminal wire (optional with or without wire)

Note:
When using battery power, the battery requires 3.7V, 6A continuous discharge, 8A instantaneous discharge. For example, 3C power above 3000 and 5C power above 2000
