SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Quantity: 1

Type: Module

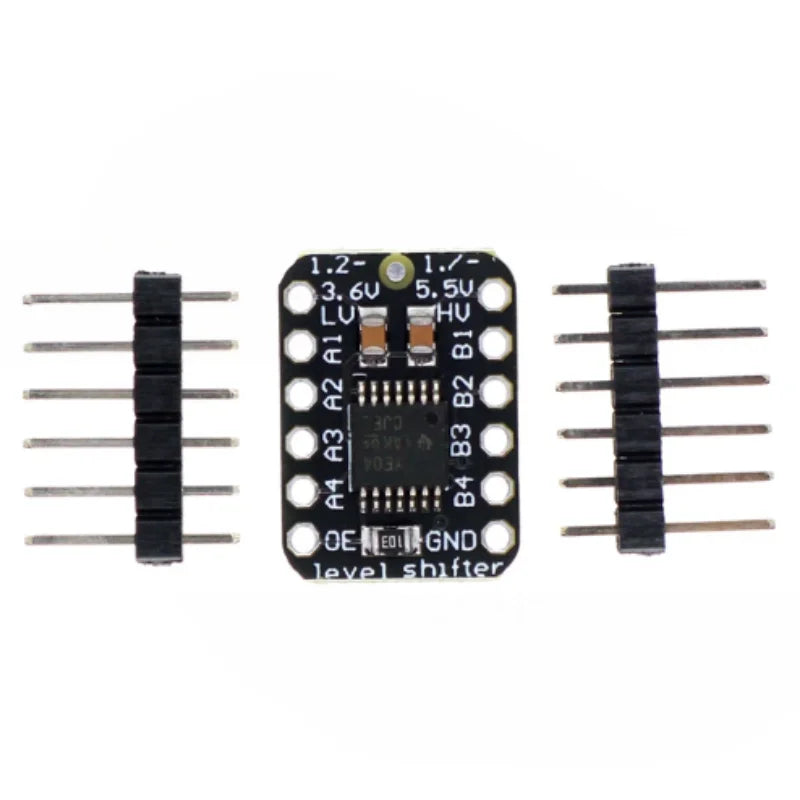

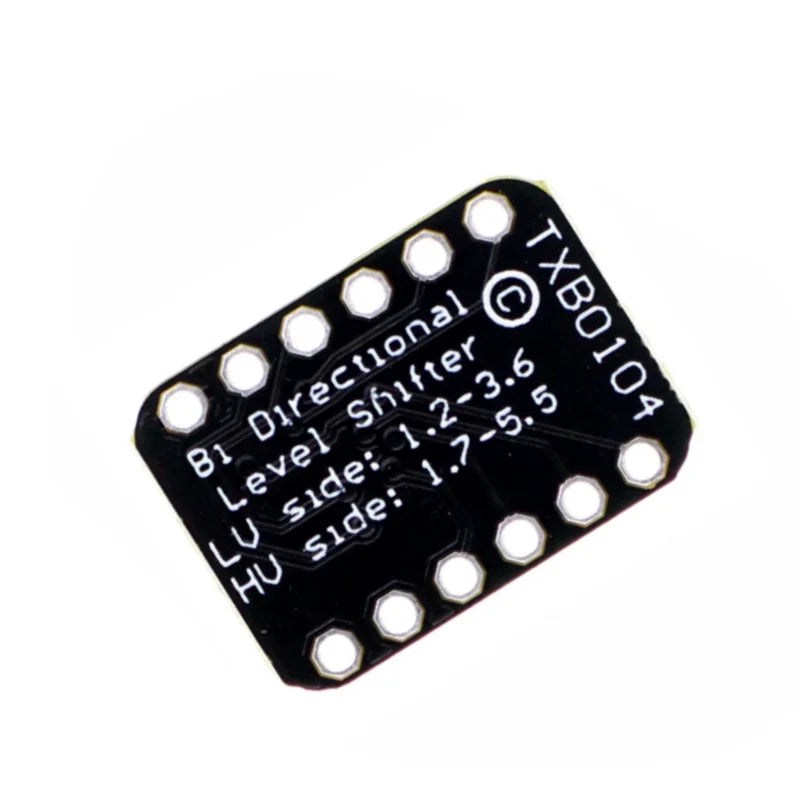

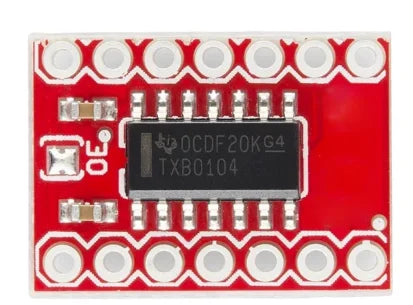

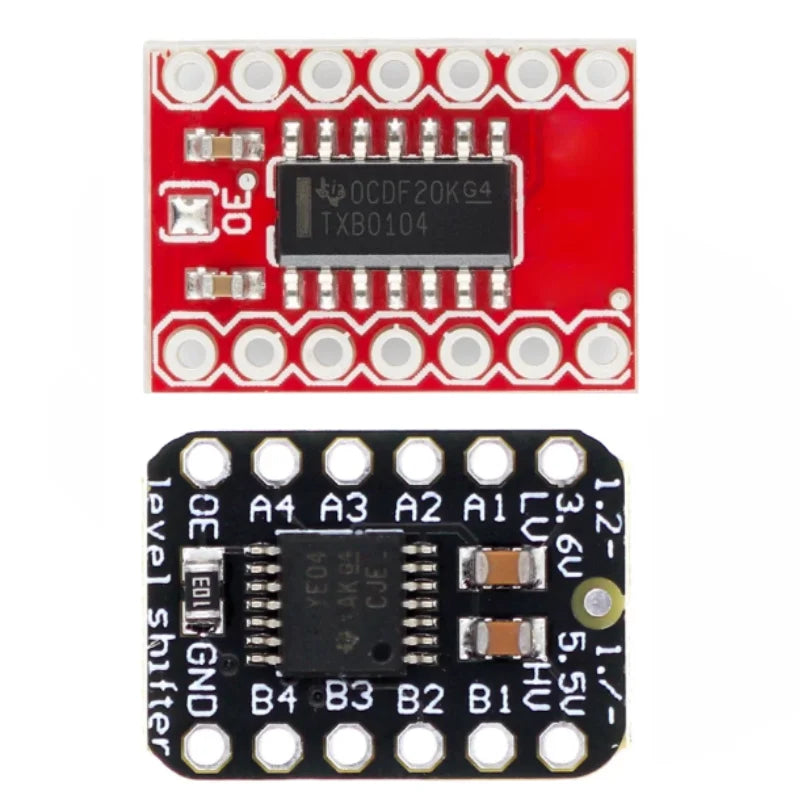

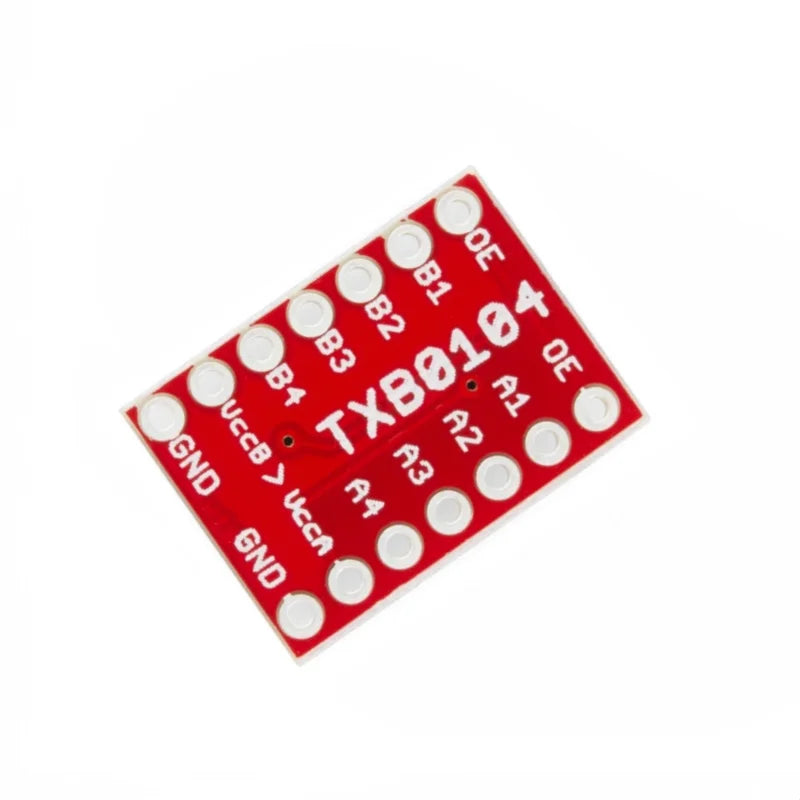

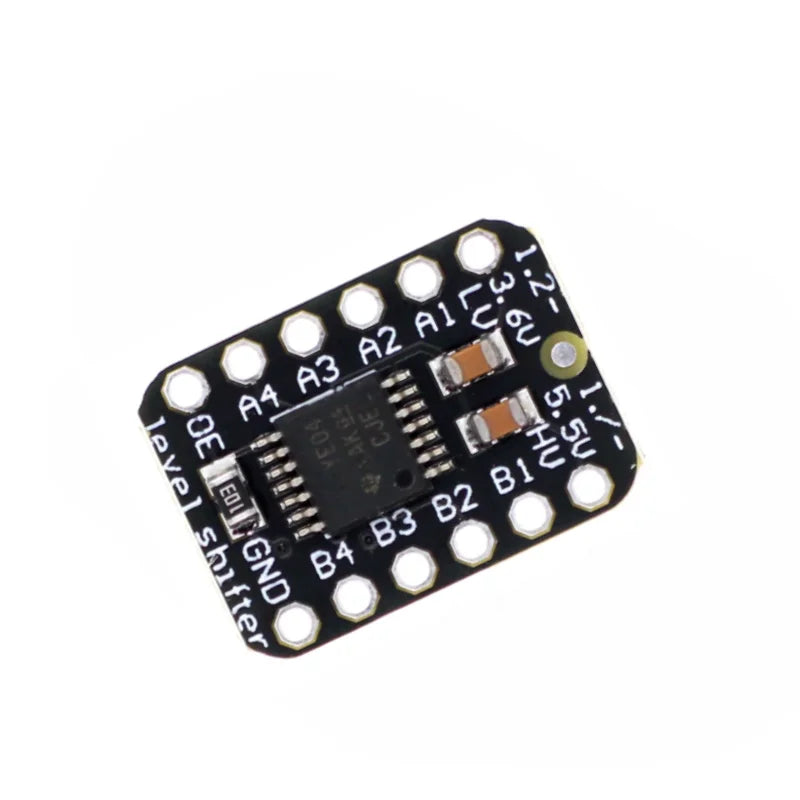

Product Name: TXB0104 Module

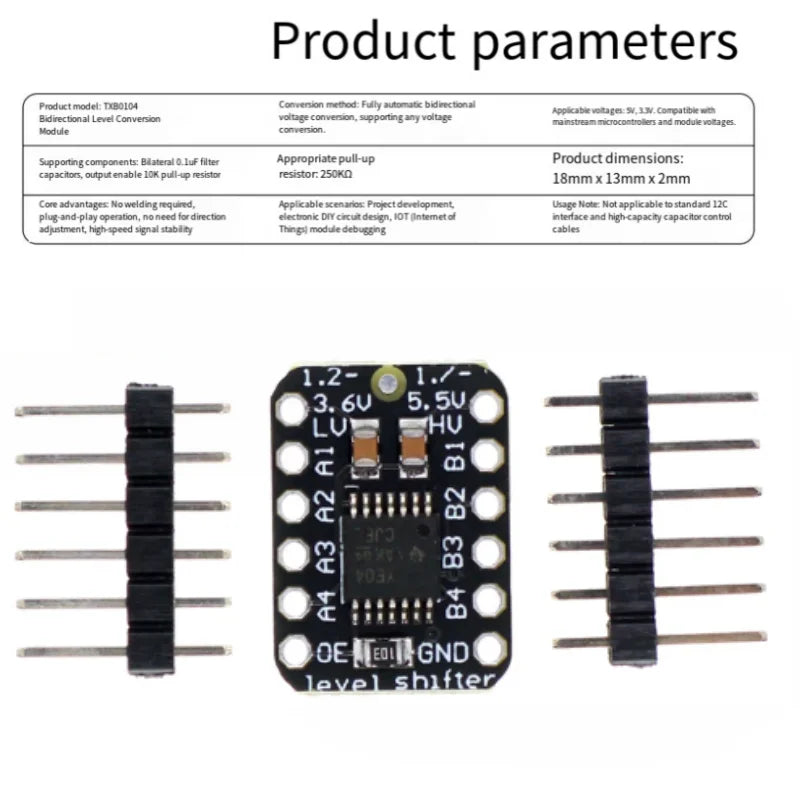

Power Supply Voltage: 1.2V - VCCAs 3.6V 1.65V - VCCBs 5.5V [Port A should be lower than Port B] Data Rate: <100Mbps [Related to VCCA] Suitable for push-pull signal conversion of SPI, UART, 12S, etc. Low power consumption, with the ICC limit reaching a maximum of 5μA. VCC isolation feature, such as when -VCC input is grounded, all outputs will be in a high impedance state. Output enable (OE) input circuit based on VCCA. LOFF supports local shutdown mode operation. Module Interface: 2.54mm pitch solder holes. Size: 18mm * 13mm (Length * Width)

Product Features: 1. The TXB0104 chip automatically performs bidirectional level conversion, eliminating the need for pin adjustment and simplifying wiring. It has strong compatibility. 2. The chip transmission has no resistance voltage division interference, ensuring no distortion of high-speed signals and reducing debugging failures. 3. It is compatible with pull-up resistors above 50KΩ, suitable for most conventional control circuits. 4. The peripheral components are pre-welded, saving development time. 5. The compact design is suitable for project development, DIY electronic circuit design and debugging scenarios.
