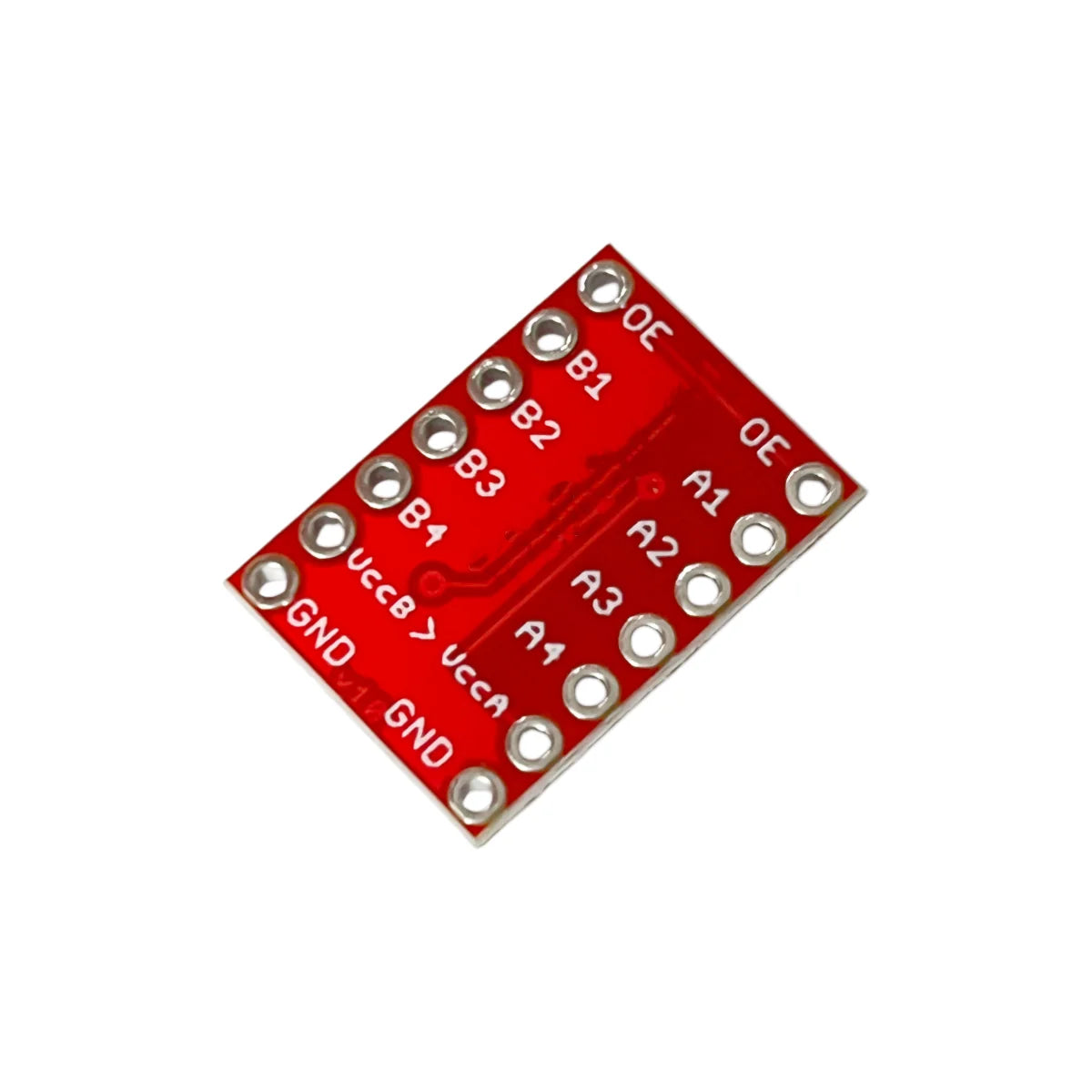

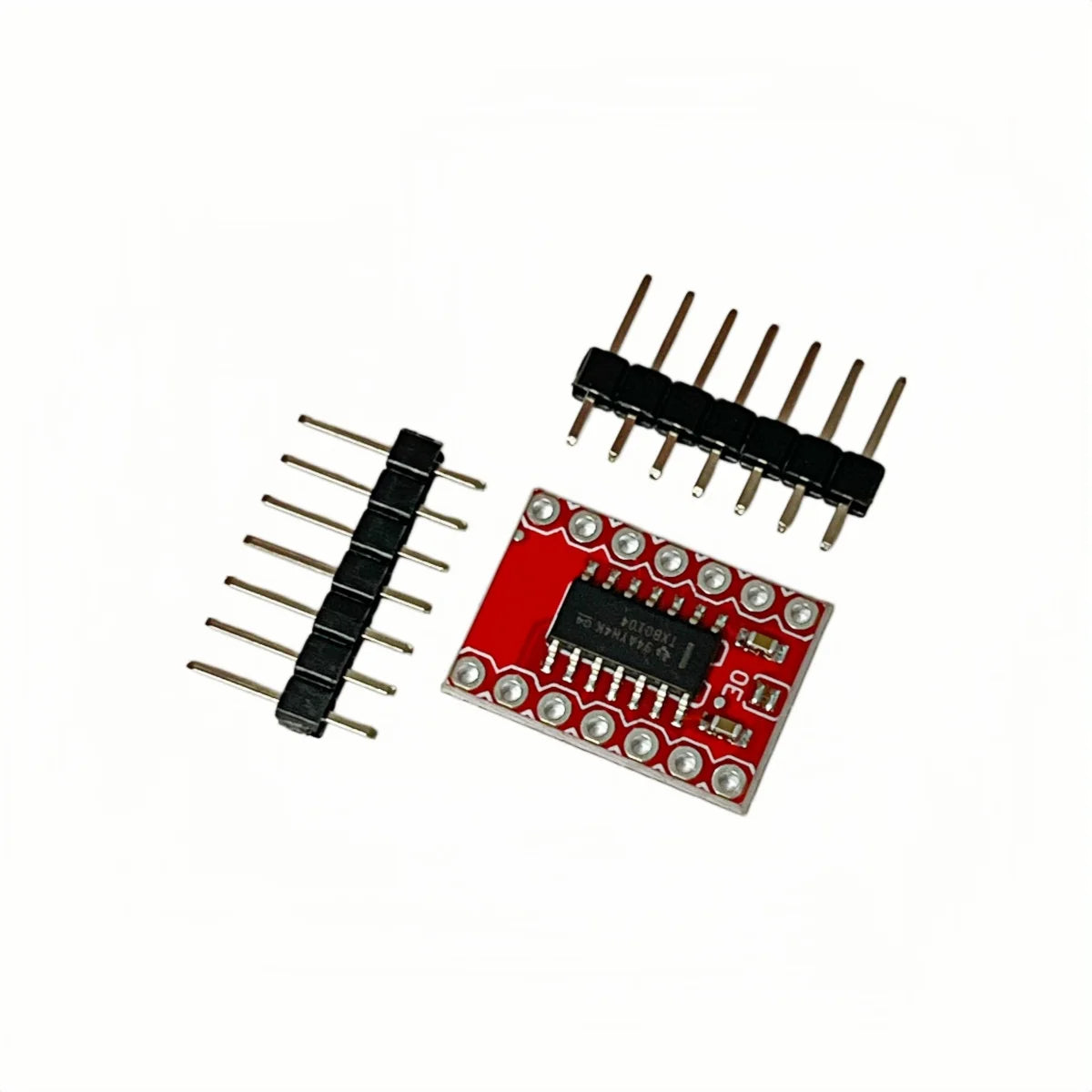

TXB0104 High-Speed Full-Duplex 4-Channel Level Shifter Module, 4-Bit Bidirectional Voltage Converter
TXB0104 High-Speed Full-Duplex 4-Channel Level Shifter Module, 4-Bit Bidirectional Voltage Converter
$8.19
Sale price
$8.19
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
Chip Used in the Module: TXB0104
High-Speed Full-Duplex 4-Channel Level Shifter Module
Provides bidirectional communication capability
The VCCA pin supports voltages from 1.2V to 3.6V
The VCCB pin supports voltages from 1.65V to 5.5V
Provides level shifting capabilities for common voltage ranges such as 3.3–5V and 1.8–3.3V
Main Applications: Ensures communication compatibility between 5V microcontrollers and 3.3V modules, as well as between 3.3V microcontrollers and 5V modules
Supports level conversion for communication between microcontrollers and SD cards
Supports level conversion for microcontrollers and I²C/SPI serial devices
The OE enable pin is active-high (I0 high); it is recommended to connect it to the I0 pin on the lower-voltage side
