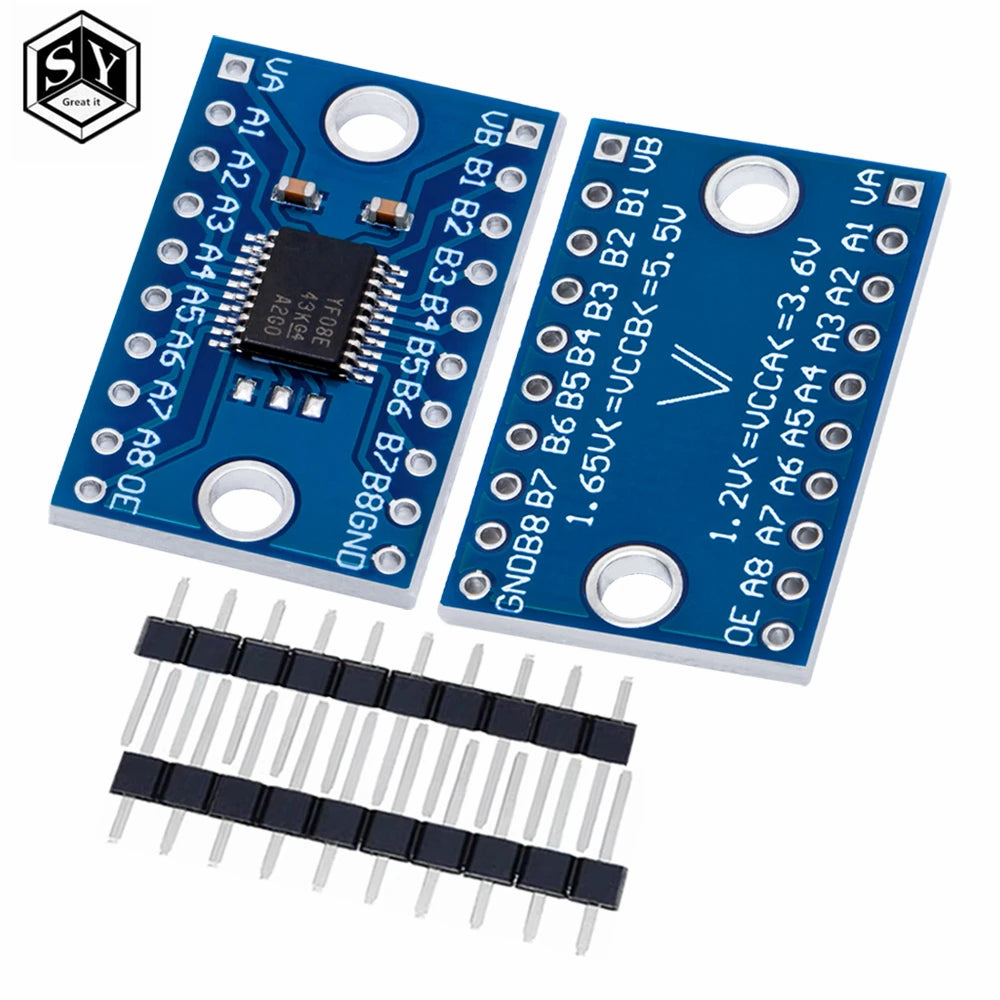

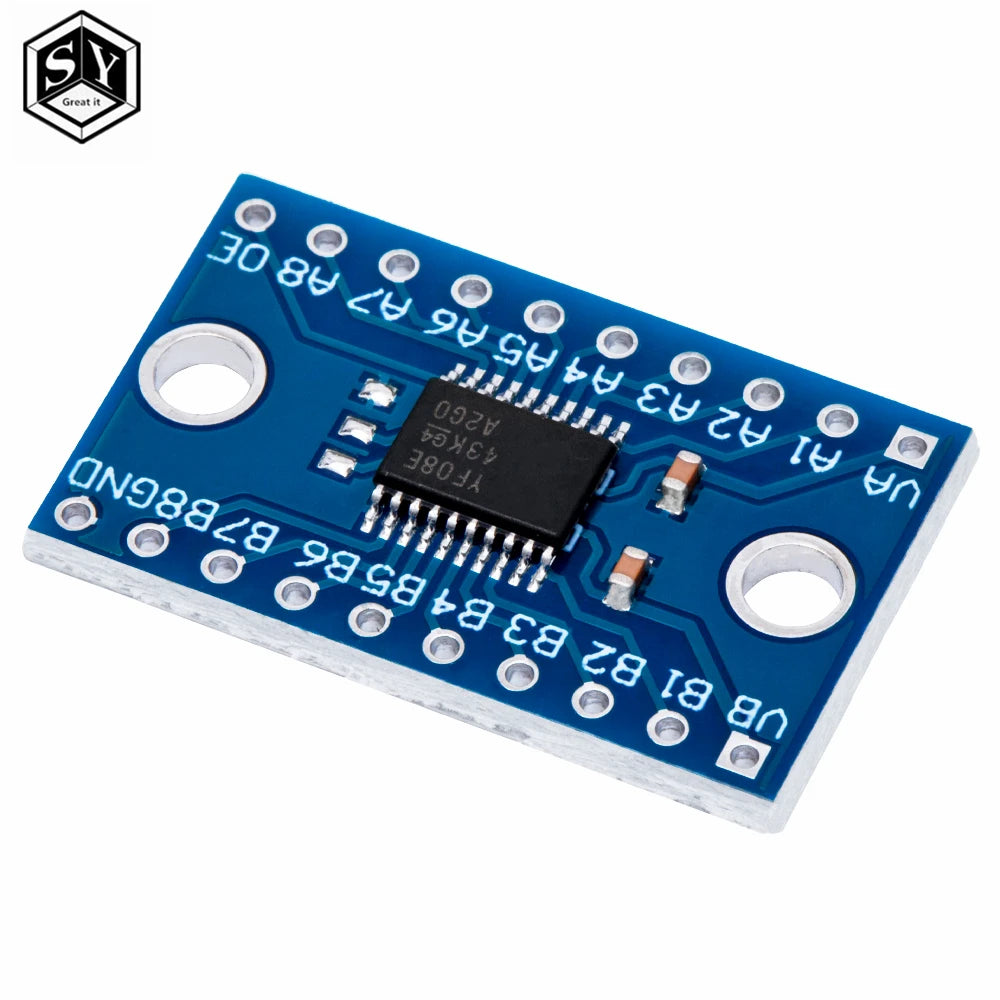

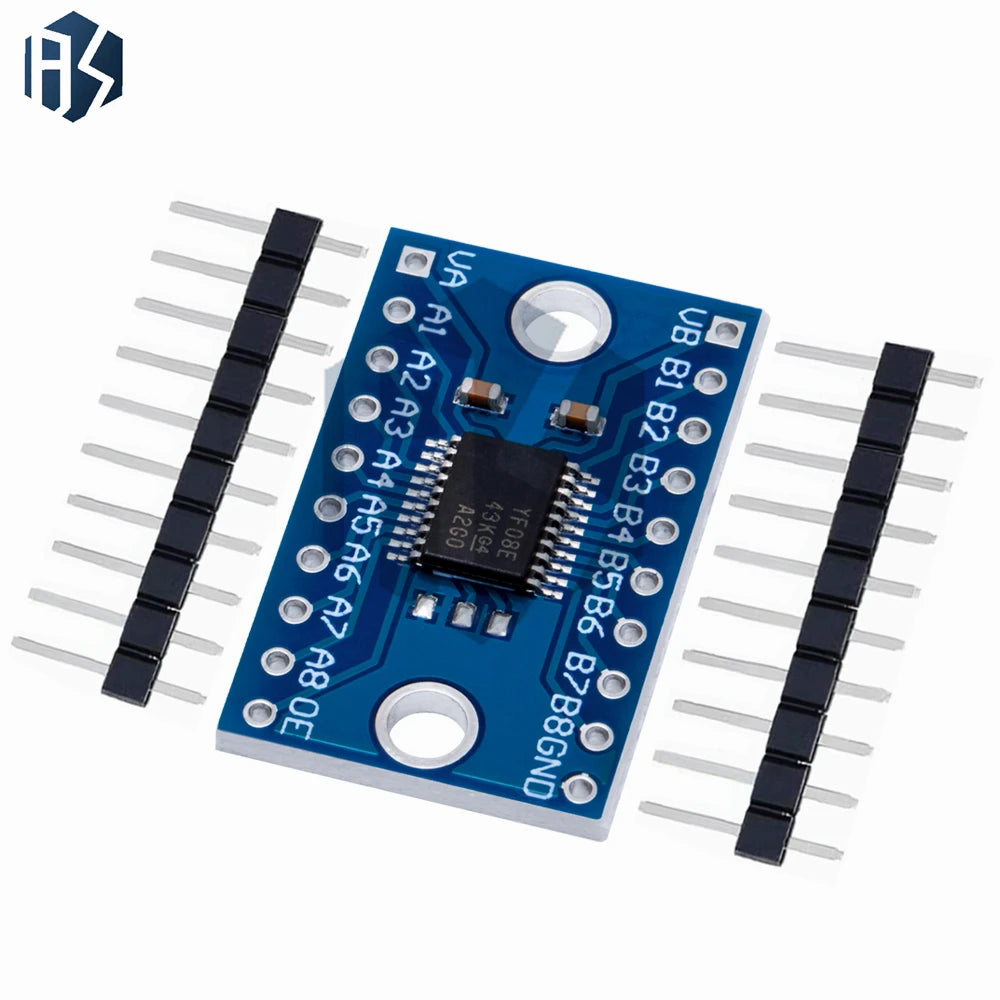

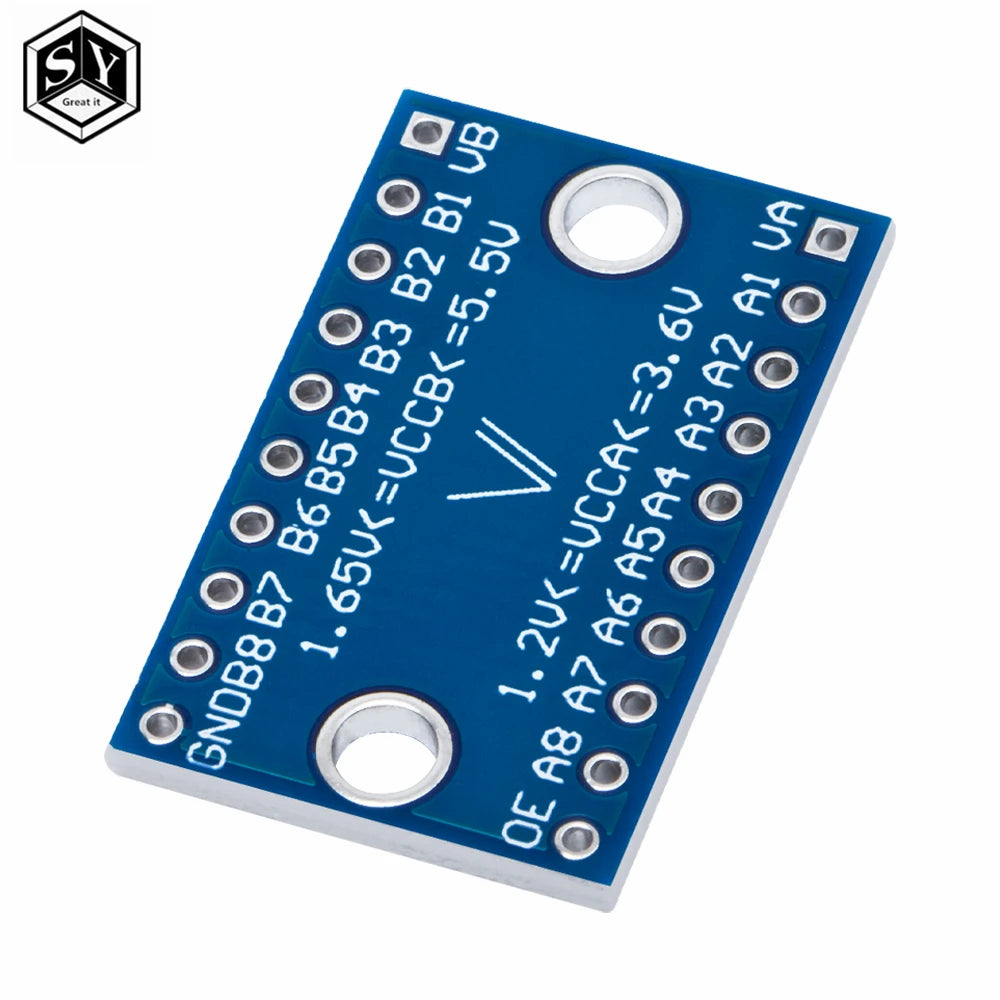

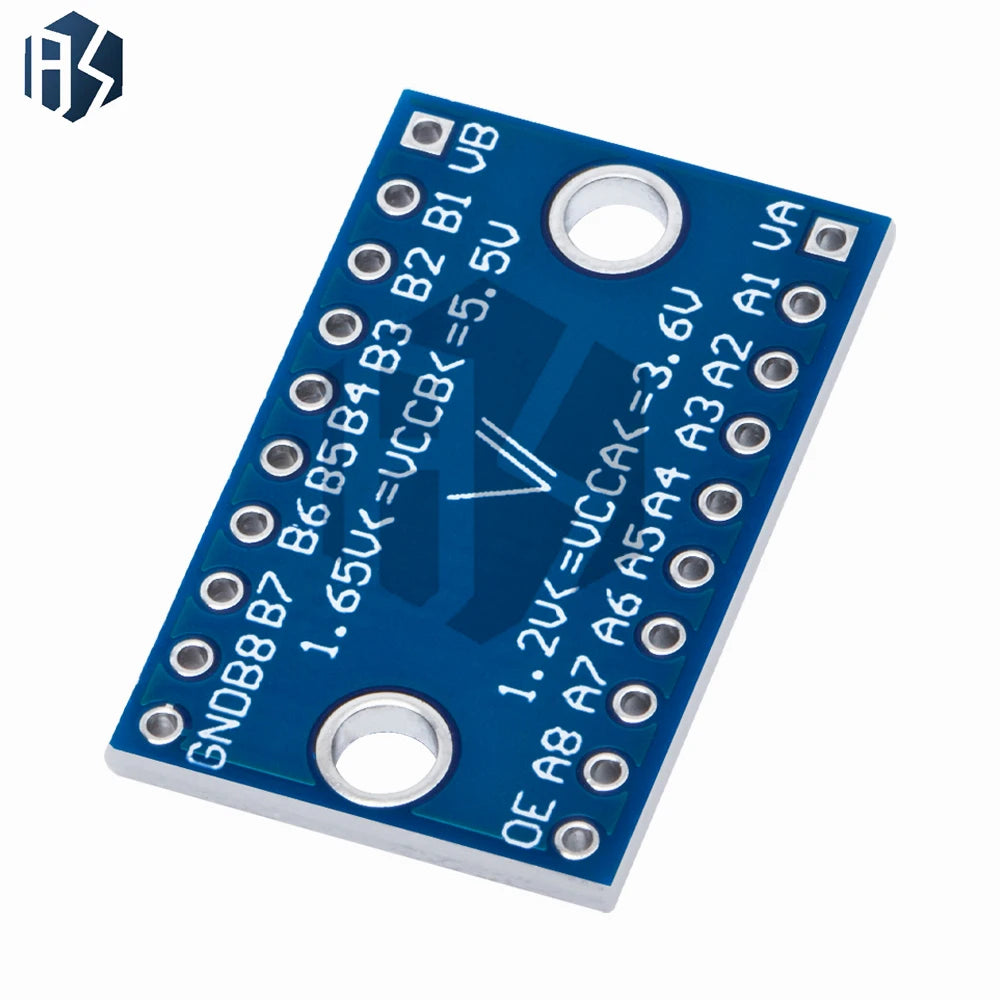

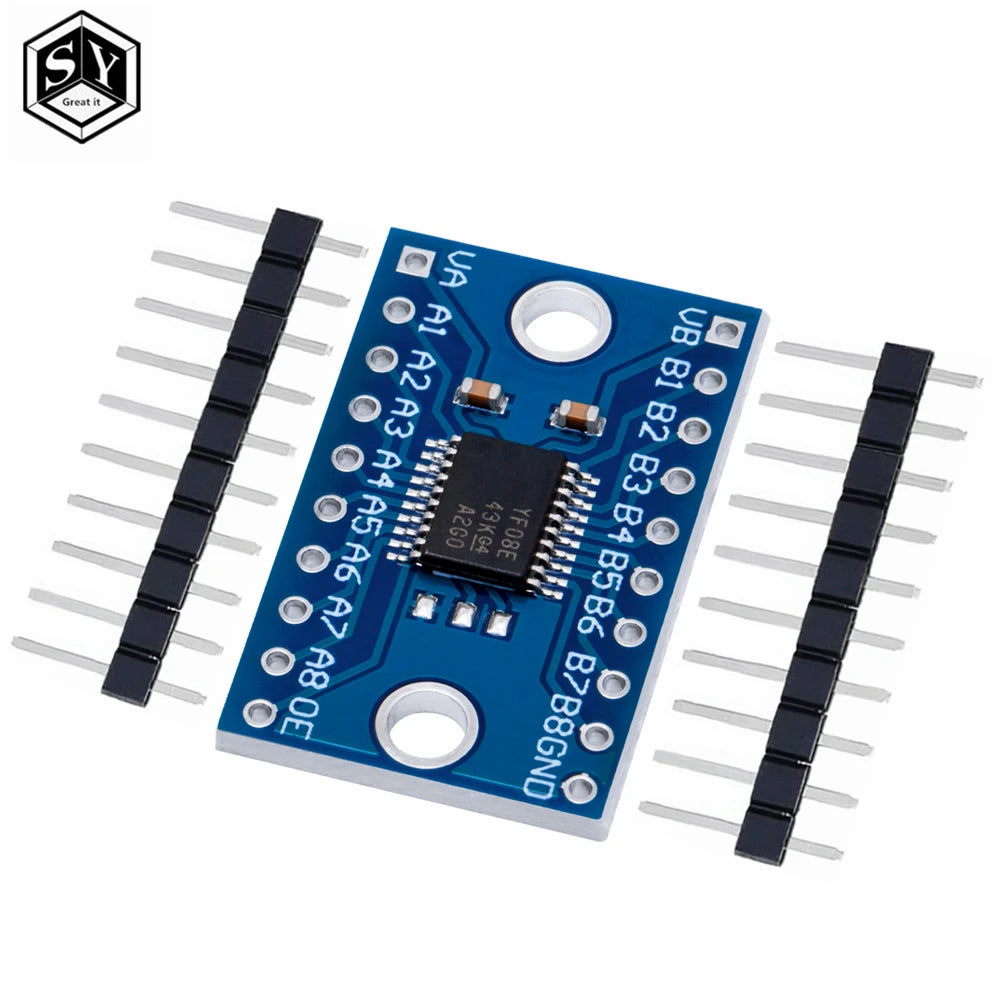

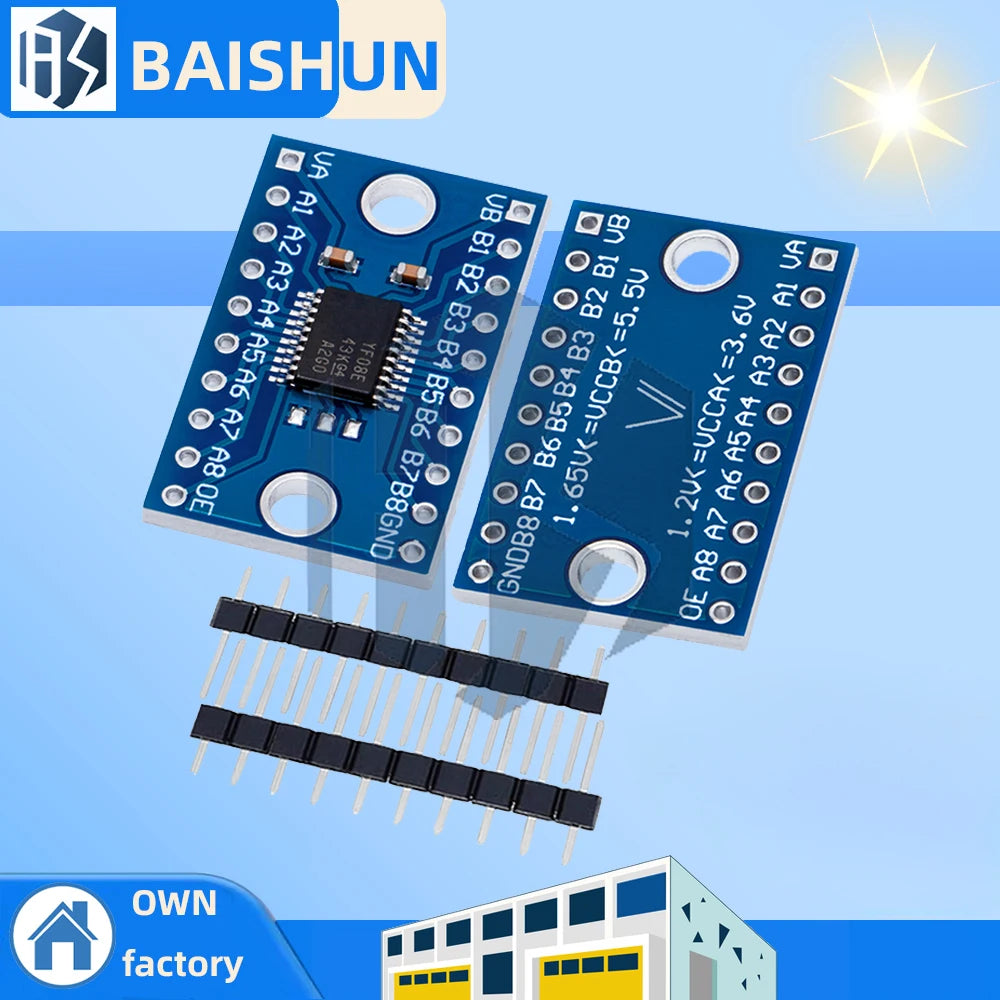

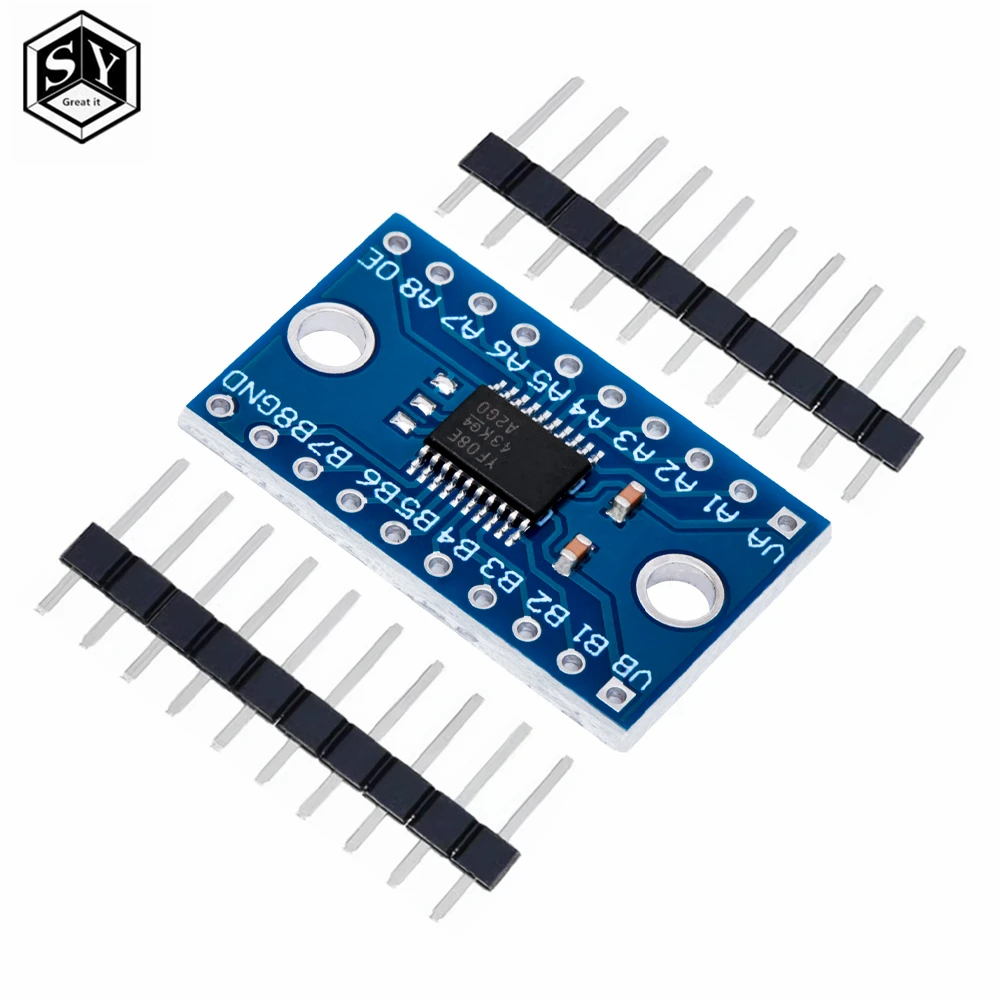

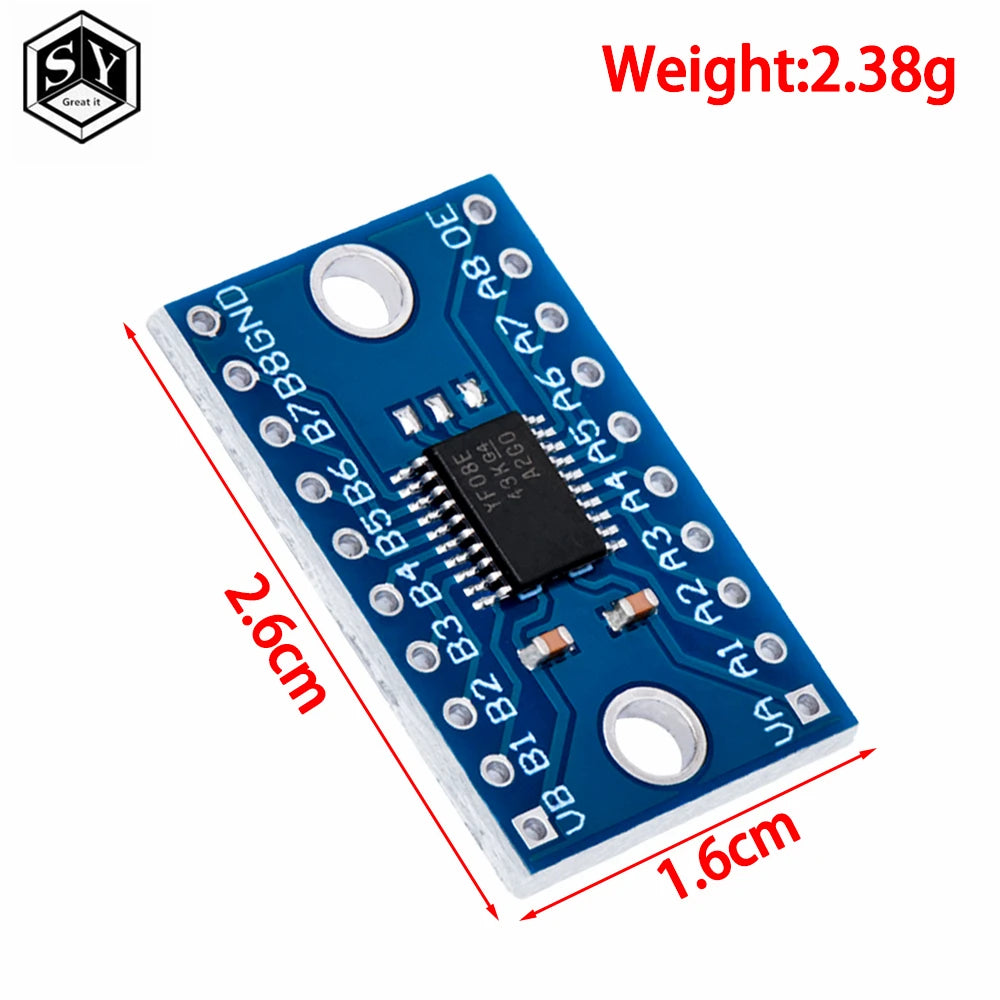

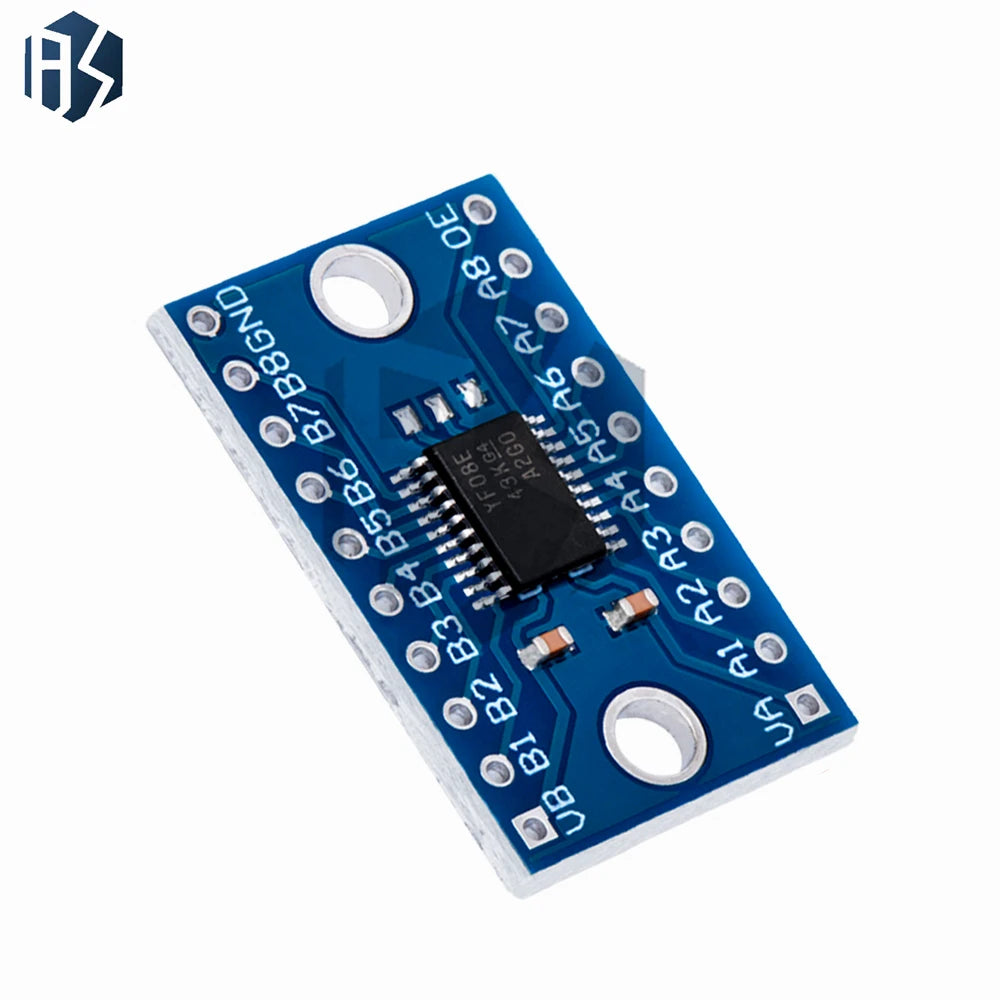

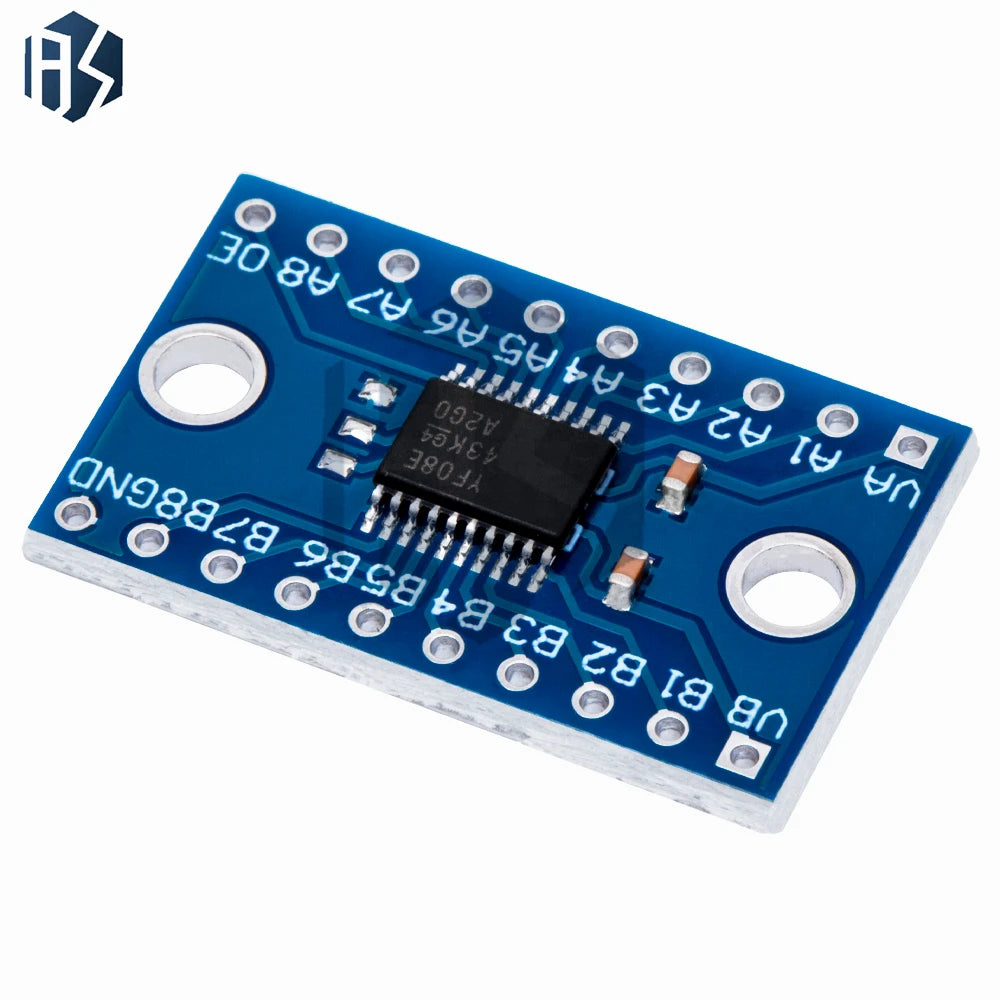

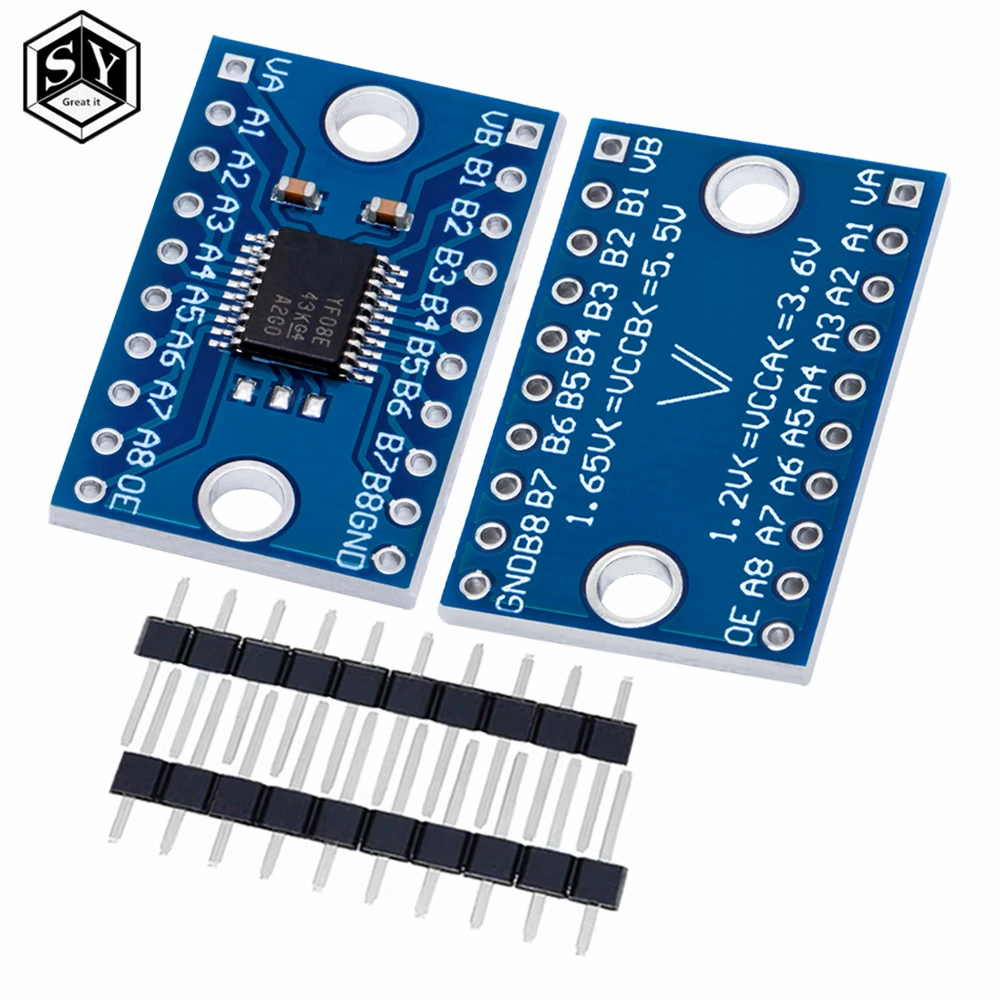

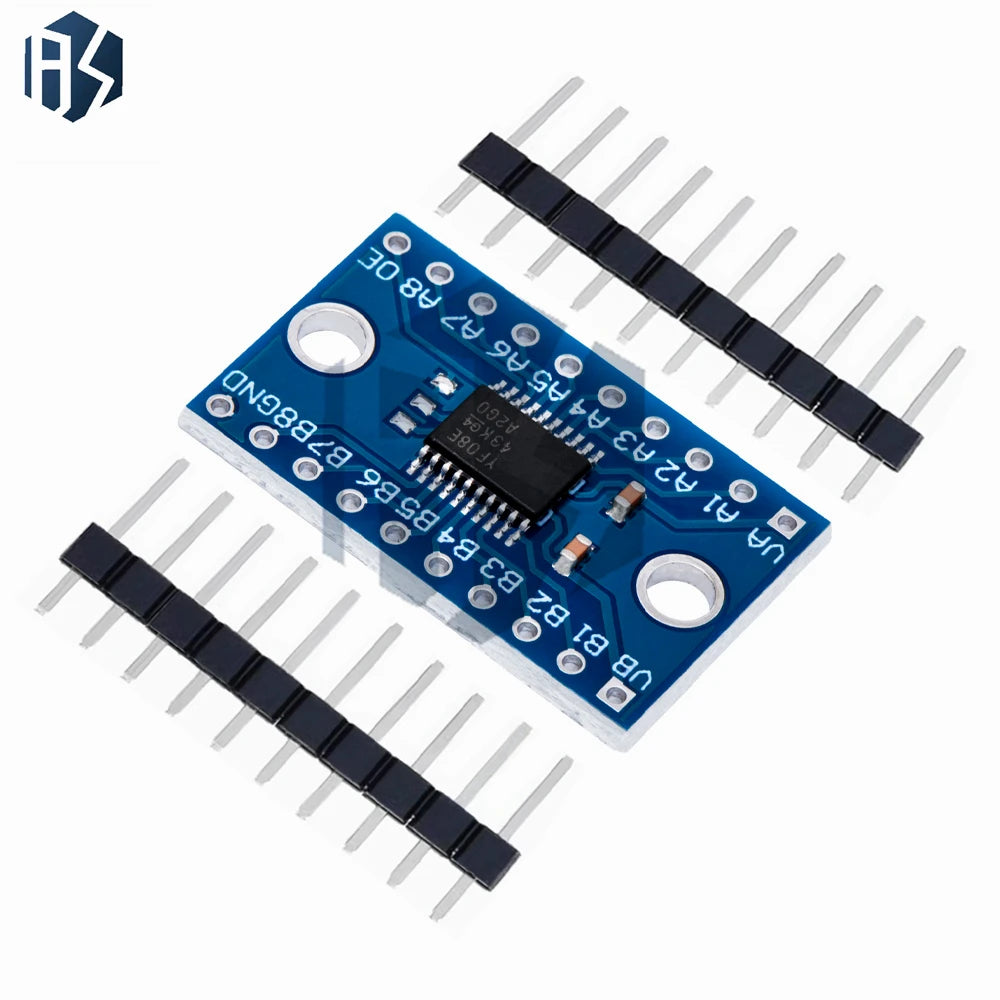

TXS0108E 8-Channel 1.4V-5.5V Bidirectional Logic Level Shifter with Auto-Direction Sensor 10Mbps High-Speed Voltage Converter

TXS0108E 8-Channel 1.4V-5.5V Bidirectional Logic Level Shifter with Auto-Direction Sensor 10Mbps High-Speed Voltage Converter

$7.16

$7.16 $0.00

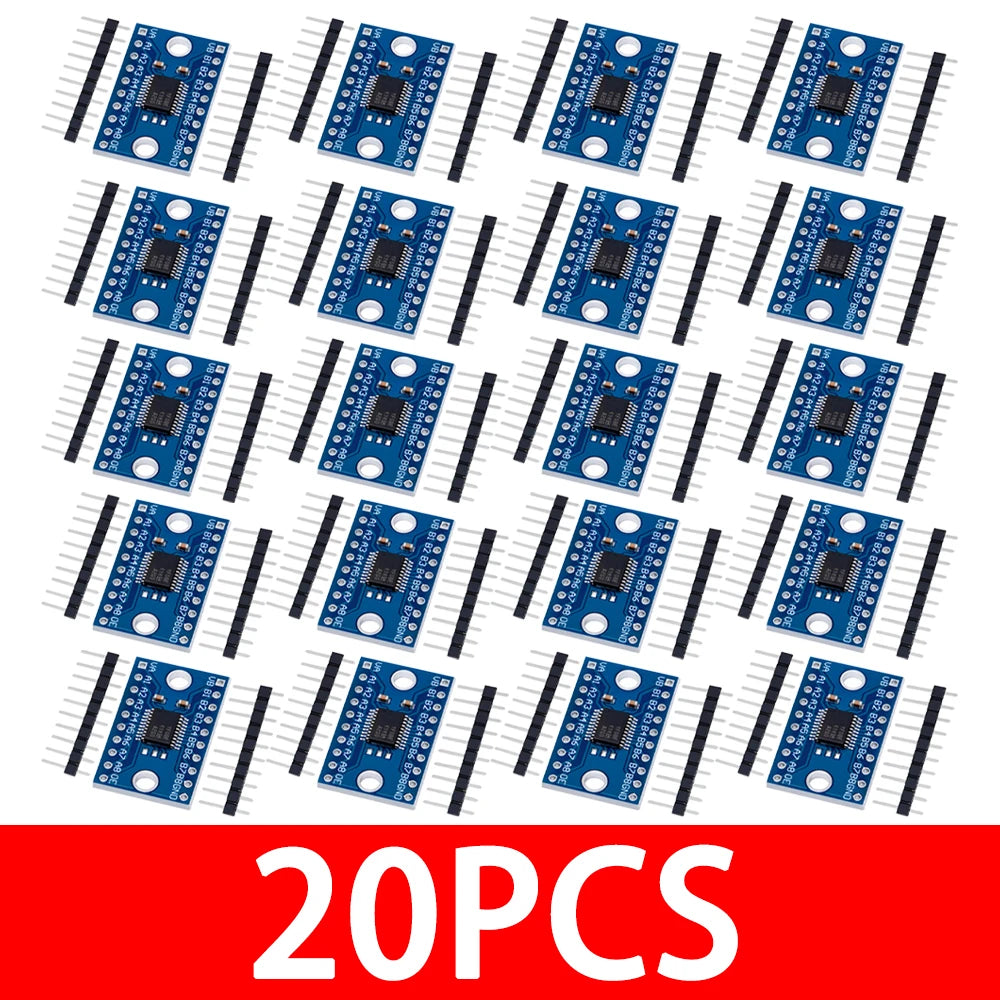

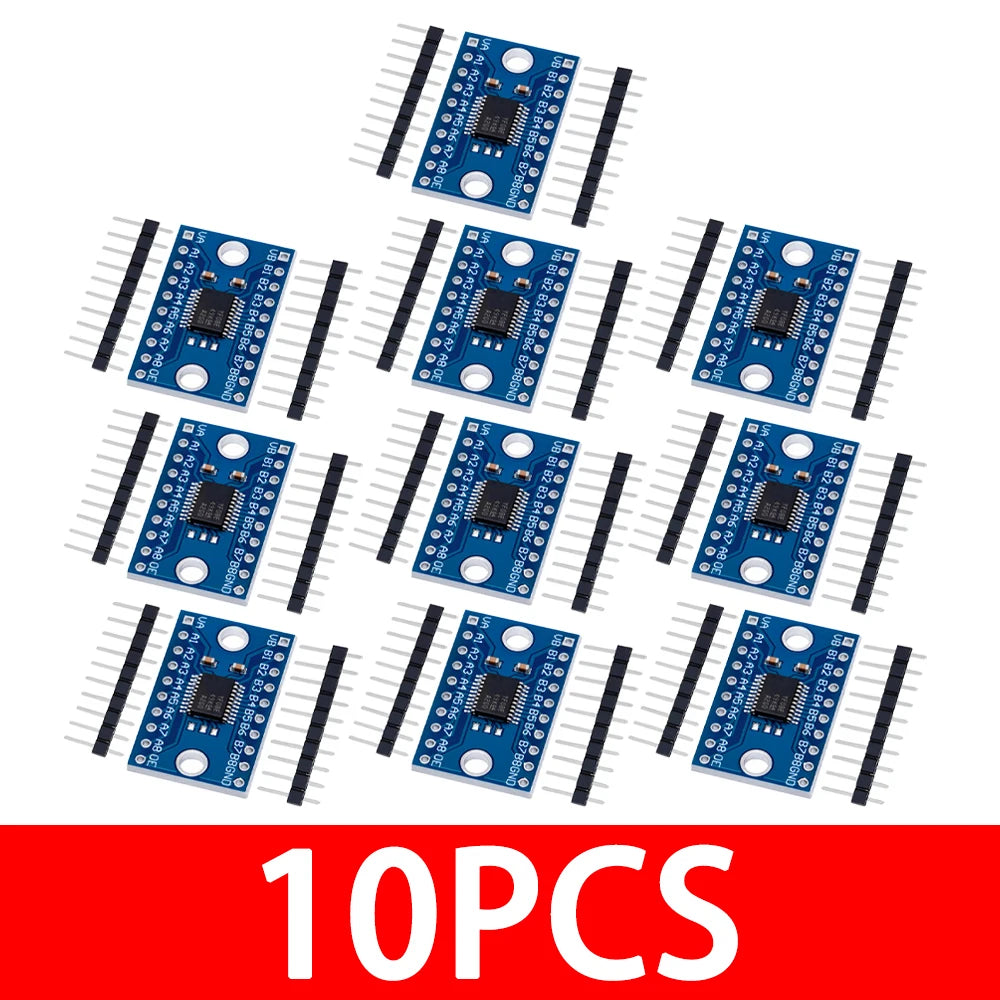

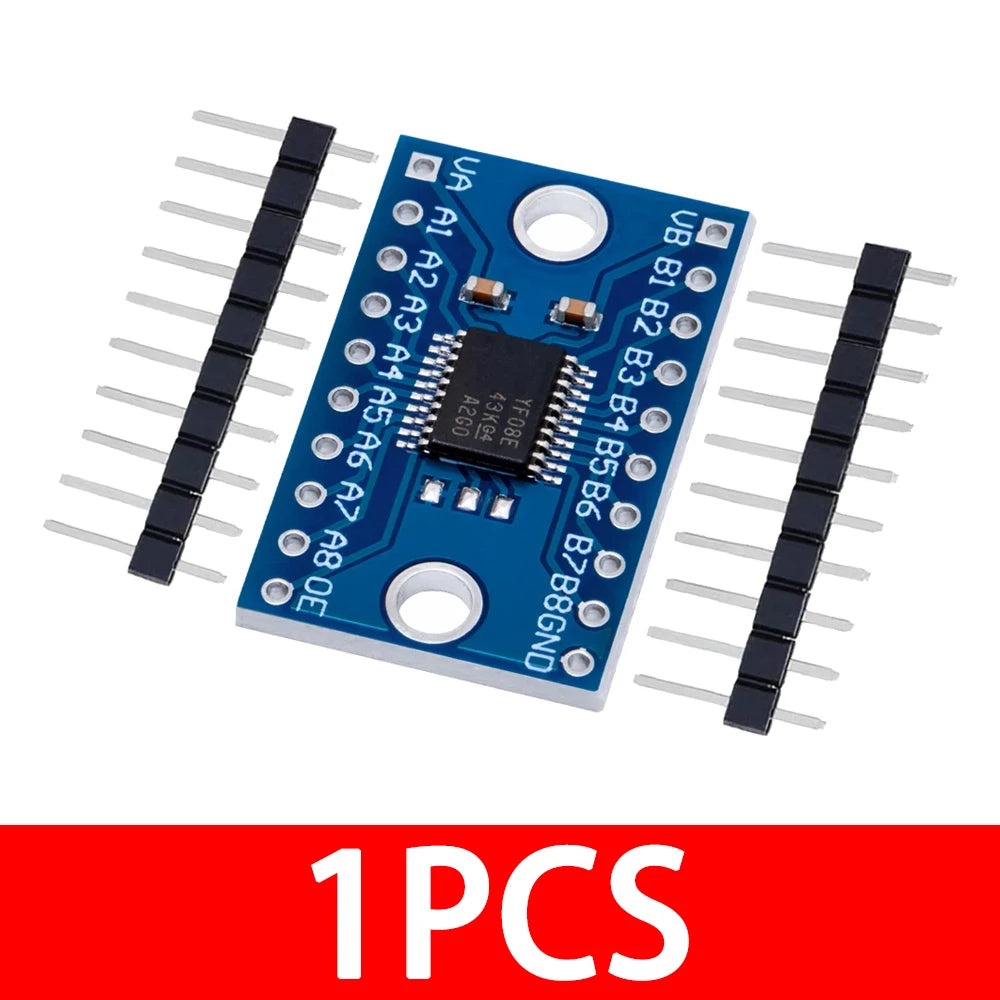

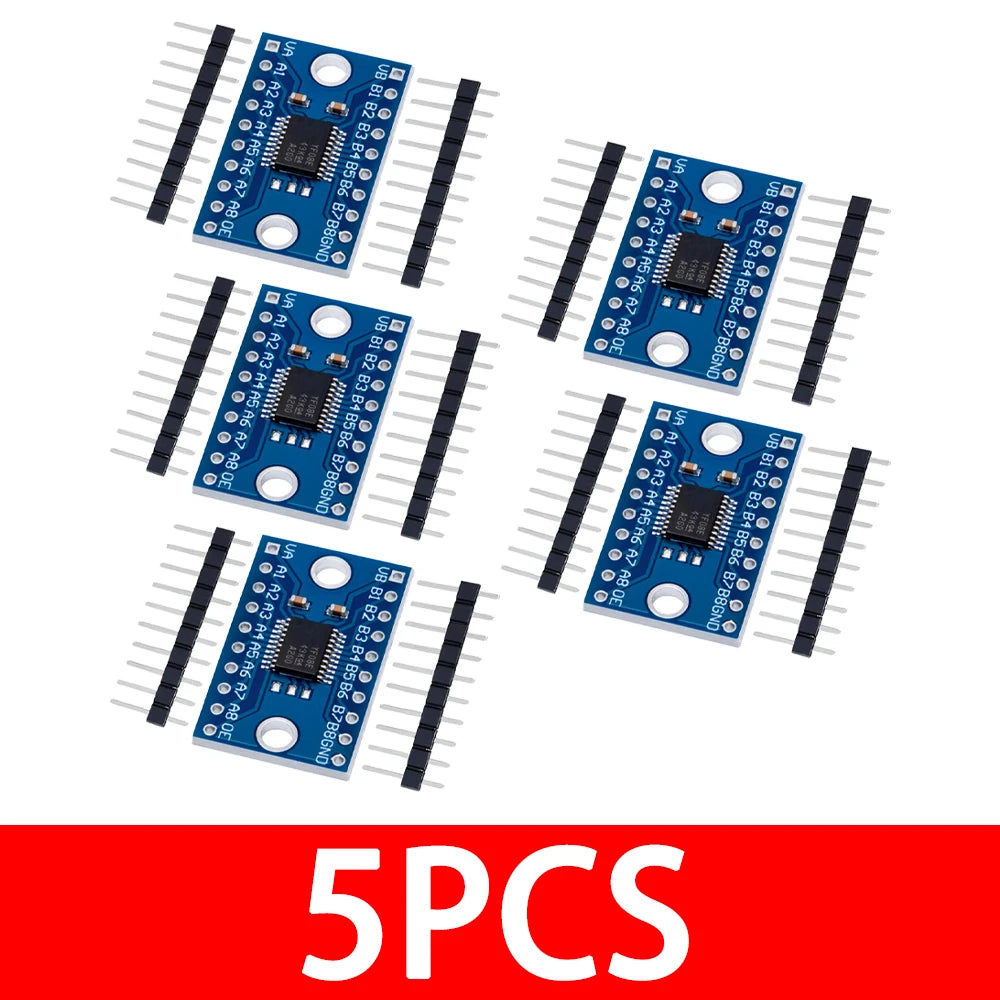

Color 1PCS 5PCS 20PCS 10PCS

Description

SPECIFICATIONS

Application: Computer

Brand Name: baishundianzi

Choice: yes

Condition: New

Dissipation Power: 3.3V 5V

High-concerned chemical: none

Main applications: 5V microcontroller and 3.3V module 3.3V microcontroller and 5V module, and other communication compatible support

Operating Temperature: TXS0108E

Origin: Mainland China

Package: SMD

Supply Voltage: 3.3V 5V

Type: Logic ICs

is_customized: Yes

semi_Choice: yes

TXB0108 bi-directional level converter comes in! This chip perform bidirectional level shifting from pretty much any voltage to any voltage and willauto-detect the direction. Only thing that doesn't work well with this chip is i2c (because it uses strong pullups which confuse auto-direction sensor). If you need to use pullups, you can but they should be at least 50K ohm - the ones internal to AVRs/FOR Arduino are about 100K ohm so those are OK! Its a little more luxurious than a 74LVX245 but if you just don't want to worry about directional pins this is a life saver!

Since this chip is a special bi-directional level shifter it does not have strong output pins that can drive LEDs or long cables, it's meant to sit on a breadboard between two logic chips! If you do not need instant bi-directional support, we suggest the 74LVX245 as below which has strong output drive.

Features:

1.1.2V 1.8V 2.2V 2.5V 3.3V 5V Logic Level Bi-directional Converter Module
