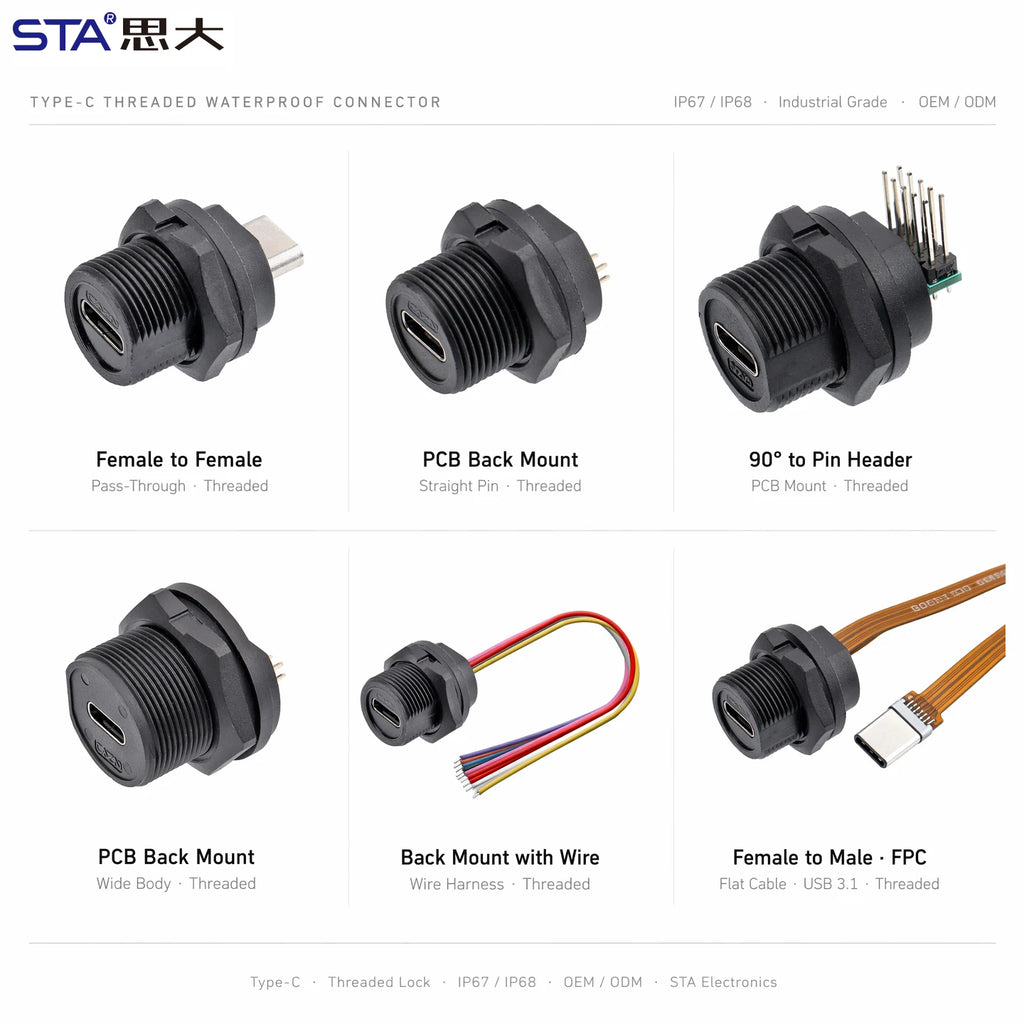

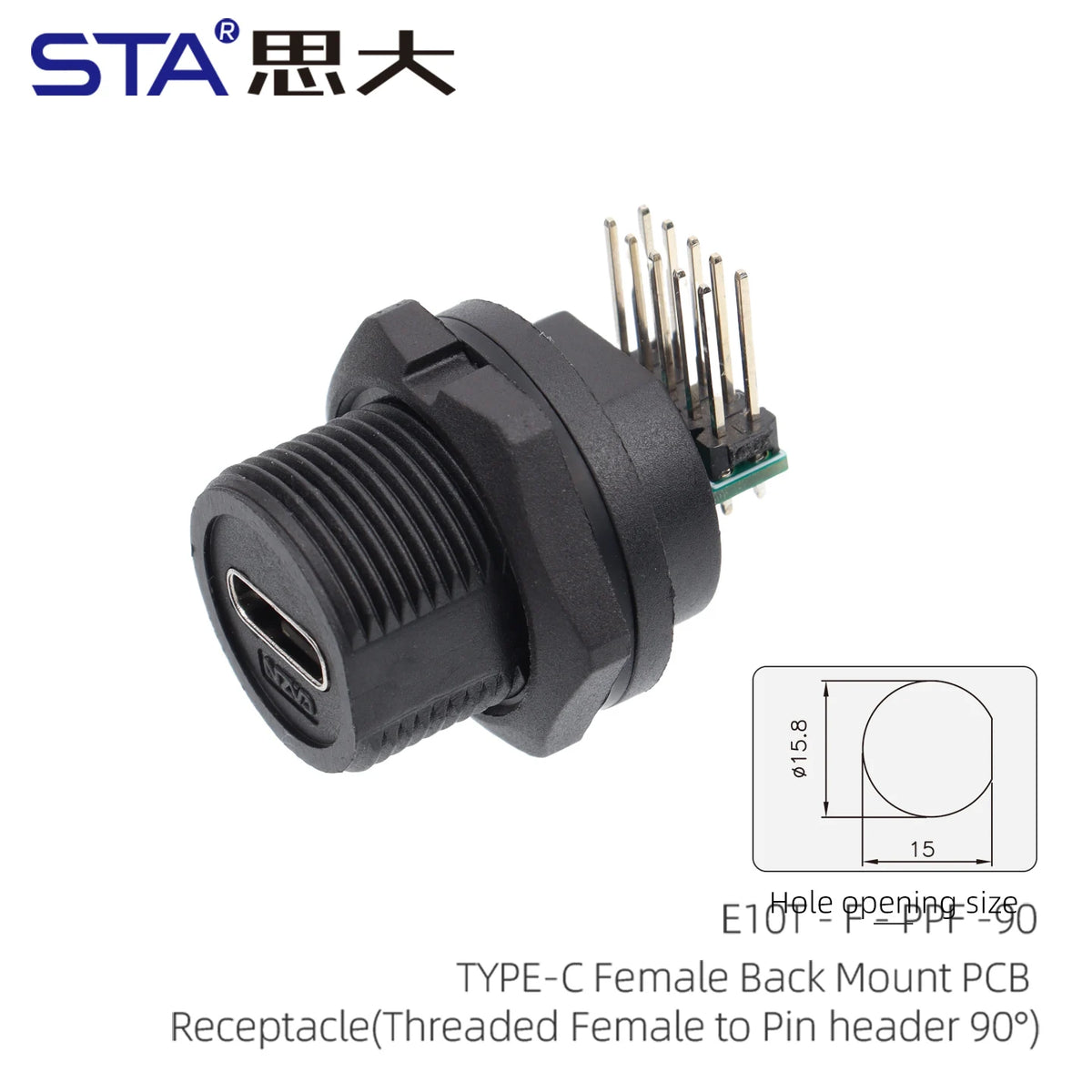

Type-C 3.0/3.1 IP67/IP68 Waterproof Connector Female to Female Adaptor PCB Panel Mount Socket to Male FPC Flat Extension Cable

Type-C 3.0/3.1 IP67/IP68 Waterproof Connector Female to Female Adaptor PCB Panel Mount Socket to Male FPC Flat Extension Cable

$22.84

$22.84 $0.00

Color Type-C 3.1 FPC 0.2m Type-C 3.1 FPC 0.1m Female Pin Head 90 Female Socket 0.2m Female 24pin Female to female Female PCB Female to male

Description

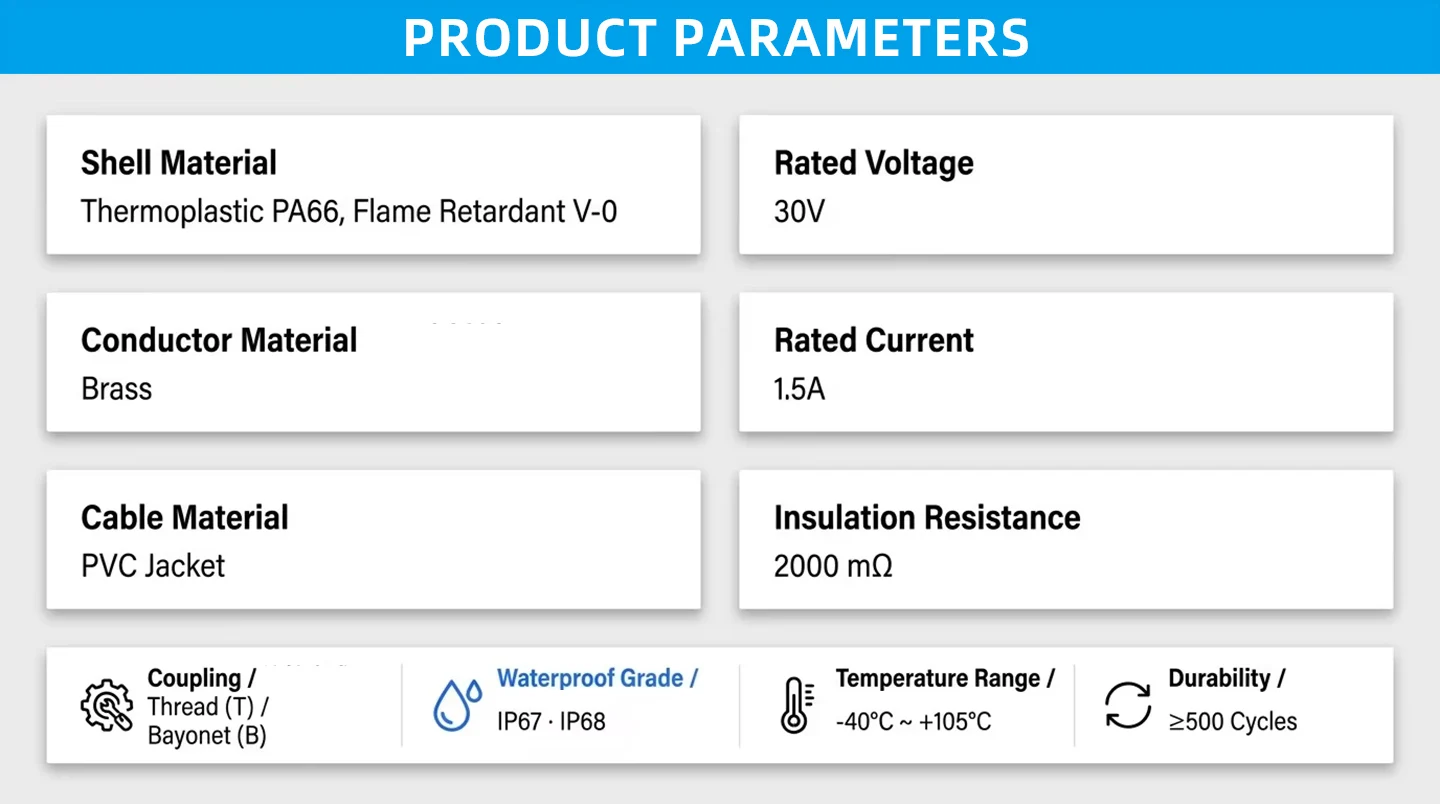

SPECIFICATIONS

Applicable temperature: -40°C~+105°C

Application: Waterproof USB Connector

Brand Name: STA

Contact pin material: Brass

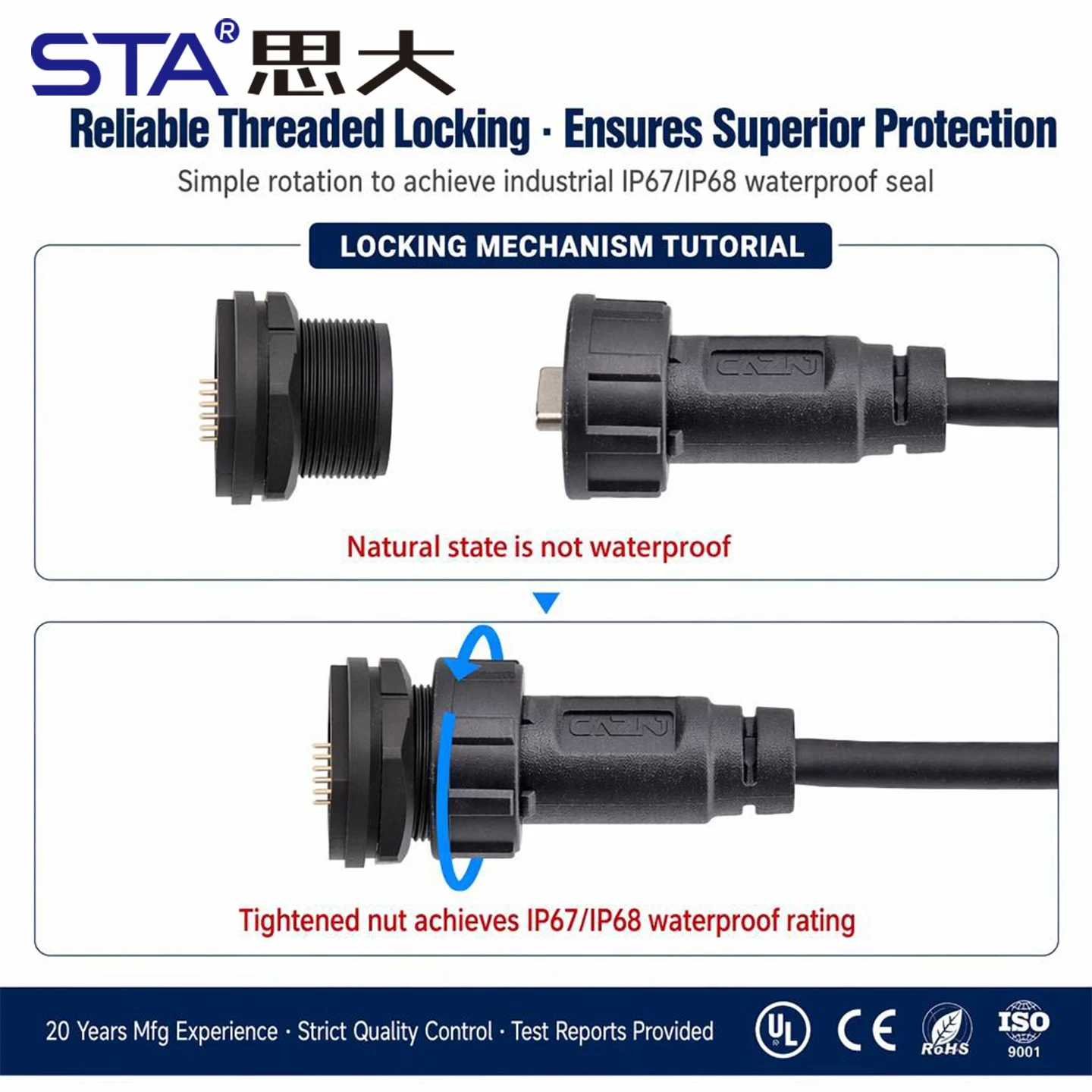

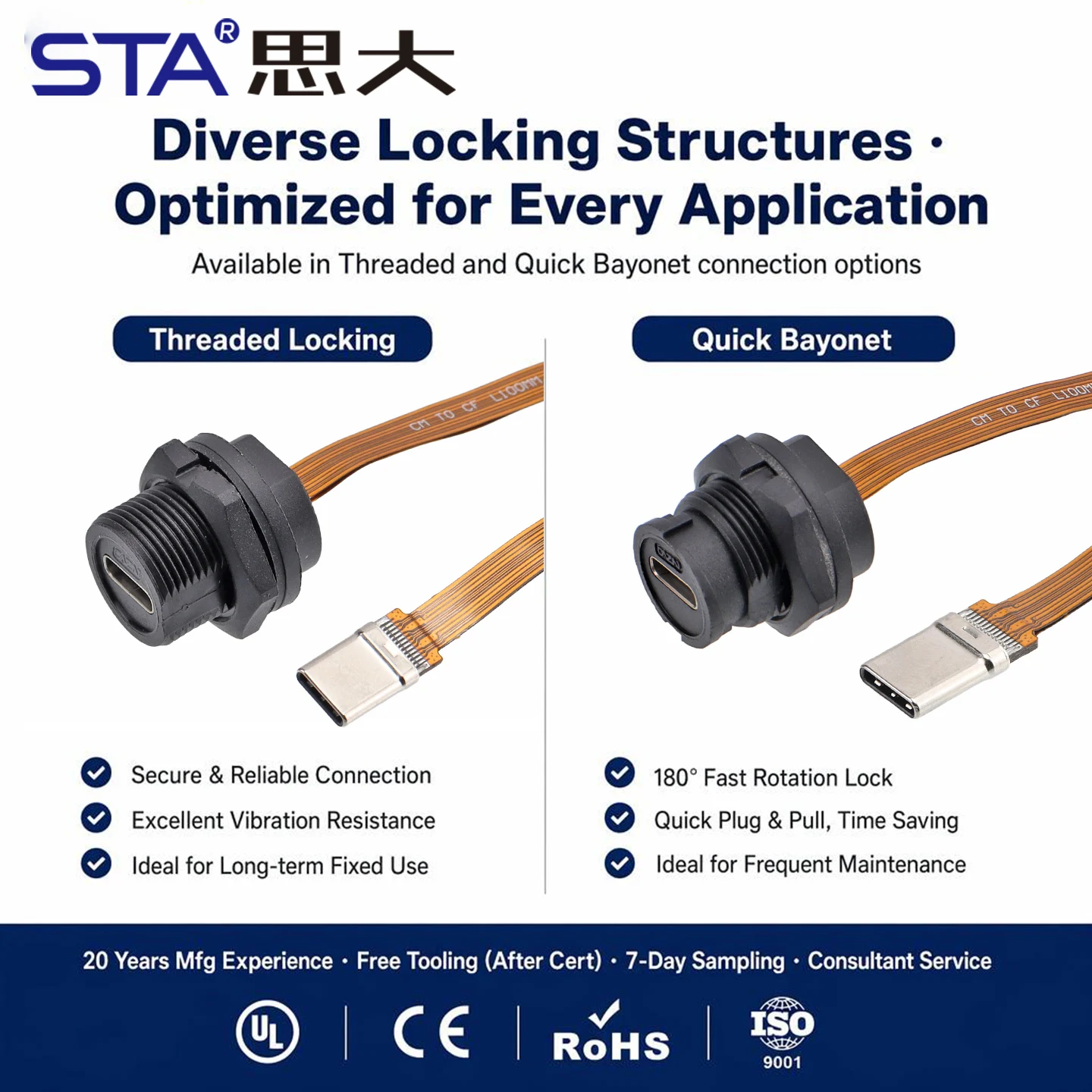

Coupling: Threaded

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Mating cycle: ≥2000~10000cycles

Model Number: Type-c Threaded Socket,Type-c 3.0 3.1Threaded Socket

Origin: Mainland China

Shell Material: PA66

Temperature range: -40°C--+105°C

Termination: Solder

Voltage: 5 V 12 V 20 V 30 V

cable material: PVC jacket

rated current: 1.5A

rated voltage: 30v

waterproof grade: IP67,IP68

About STA:

Shenzhen STA Electronics Co., LTD., was founded in 2009, is now a subsidiary of Zhengcheng Group. We share the sales system and the same price system with our brand factory -CAZN, mainly focusing on domestic and foreign sales business. Our brand factory -CAZN has passed the ISO9001 system certification, the products have obtained CE/ROHS/SGS and some products of UL and other quality certification, products have been widely recognized and praised by customers around the world.

Our main brand is "CAZN/STA/STARF". Our products cover circular connectors, terminal blocks, waterproof connectors, military standard connectors (civilian type), RF connectors, antennas, wire harness processing and mold making, etc. Our products are widely used in different fields such as logistics, electric power control system, rail transportation, automation control, new energy, communication, navigation, etc.

We adhere to the "quality first, customer first, service first"! We have professional R & D team, high-quality staff, modern production equipment, perfect testing laboratory, the production process strictly implement ISO9001, management strictly implement 6S policy, effectively ensure product quality and work of high quality and high efficiency!

Our concept is "professional focus on every product", the purpose is "the highest quality, sincere service", willing to work with you to create brilliant!

FAQ

1.What are the types of industrial connectors?

Industrial connector types include: power (PIN type) / data USB. TYPE C / signal (RJ45 fiber optic) customizable connectors. Which type do you specifically need to use, and I will give you a precise recommendation.

2.What types of connectors does STA provide?

We offer a full range of industrial connectors, including:

M Series Circular Connectors (M5/M8/M12/M16/M23/M40),Waterproof IP67/IP68 Connectors，Aviation Plugs & Industrial Circular Connectors,RF / Coaxial ConnectorsPush-pull Metal Connectors,

Customized OEM/ODM Cable Assembly Solutions.

3.Can you provide samples for testing?

Yes. We provide free or low-cost samples depending on the product model.

Shipping cost may be borne by the customer.

4.What industries do your connectors serve?

Our products are widely used in:Industrial automation & factory machinery,Robotics & smart manufacturing,Rail transportation & heavy equipment,Medical devices & instrumentation,Communication & wireless systems,Smart agriculture & outdoor equipment,New energy & EV equipment.

5.Do your connectors follow international standards?

Yes. Our connectors comply with:IEC / DIN standards,EU circular connector standard,MIL-DTL specifications (for MIL series).

6.How do circular connectors work?

Circular connectors transmit signals, data, or power between devices through multiple conductive contact pins arranged in a circular pattern.

They ensure reliable connection through locking structures (thread, bayonet, push-pull) and environmental sealing to resist dust, water, and vibration.

7.Do you support OEM/ODM customization?

Yes. We offer complete OEM/ODM customization, including:Pin configuration,Cable length & material (PVC/PUR/Shielded),Shell material (metal/plastic),Waterproof rating (IP67/IP68),Shielding & EMC requirements,Special structure design according to customer applications.

8.What certifications do your products have?

CE / RoHS,IP67 / IP68 Waterproof test,EMC shielding test,ISO 9001 factory system certified.
