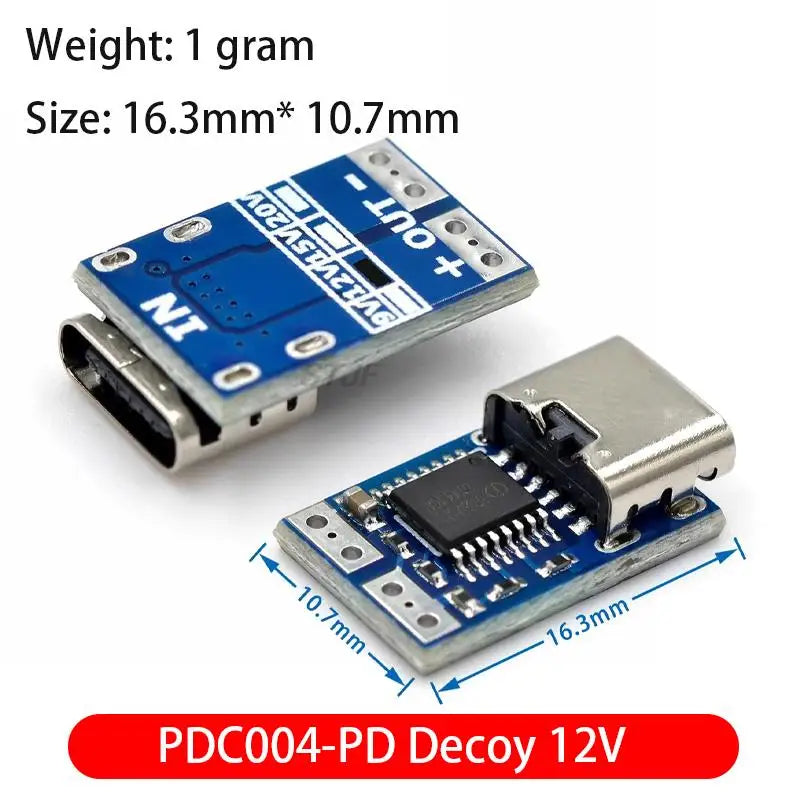

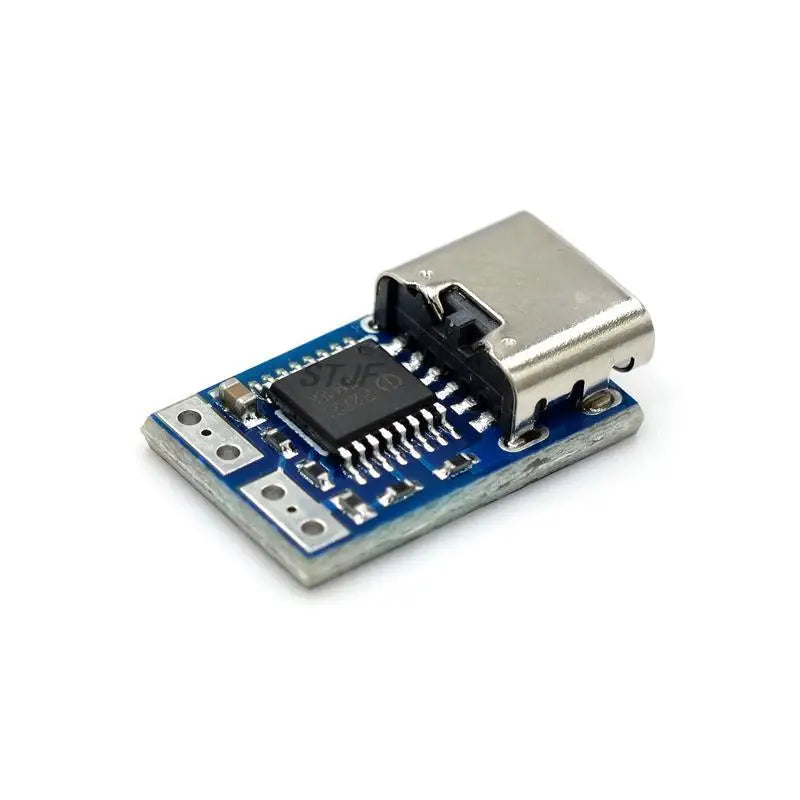

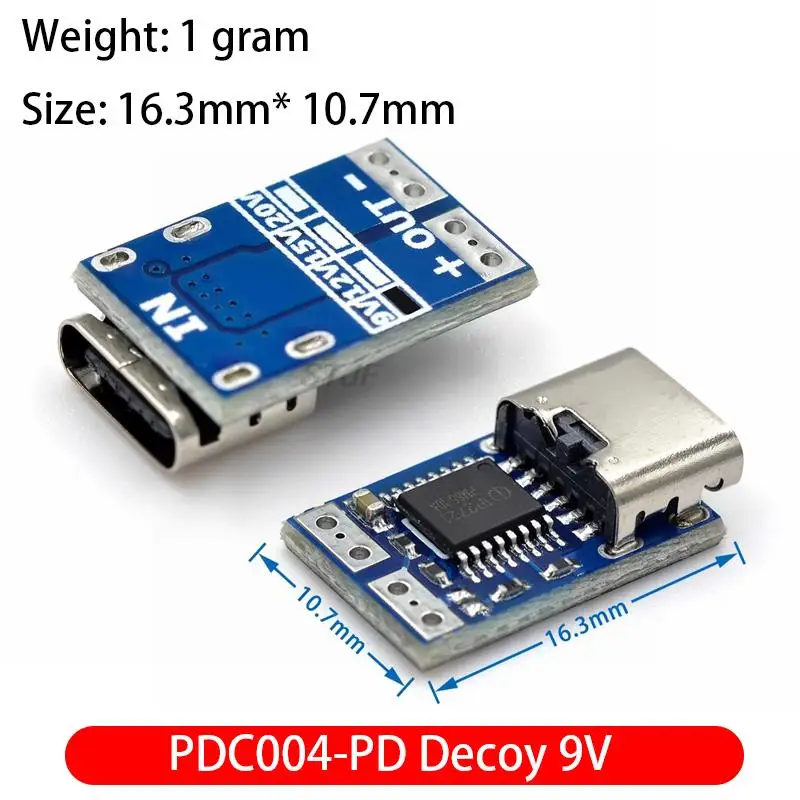

Type-C PD decoy module PD23.0 to DC DC trigger extension cable QC4 charger 9V 12V 15V 20V PDC004-PD

Type-C PD decoy module PD23.0 to DC DC trigger extension cable QC4 charger 9V 12V 15V 20V PDC004-PD

$6.76

$6.76 $0.00

Color PDC004-PD Decoy 15V PDC004-PD Decoy 20V PDC004-PD Decoy 9V PDC004-PD Decoy 12V

Description

SPECIFICATIONS

Application: Computer

Brand Name: STJF

Choice: yes

Condition: New

Dissipation Power: ...

Functions: Electronic Module

High-concerned chemical: none

Operating Temperature: -40℃~+80℃

Origin: Mainland China

Package: DIY Module

Range of application: Switch And Sensor For Arduino STM

Supply Voltage: 9V-12V

Type: Module

semi_Choice: yes

- Product introduction -

PDCO04 adopts hardware PD recognition chip, and its recognition logic is: bait triggers fixed voltage. However, if the voltage to be deflected is not available, it will be applied to the next gear.
For example: for a 15V product PDC004, if your PD power supply is only 12V at most, or if there is no 15V, then the next level is 12V, the bait will apply for the next level 12V. Pd-bait has a strict communication format. It does not trap higher voltages, nor does it increase or decrease the voltage output if there is no voltage. It cannot change the power, voltage and current of the power supply.

PD decoy module PD23.0 to DC DC trigger extension cable QC4 charger 9V 12V 15V 20V

PD decoy module uses 2721 hardware PD chip, can't be upgraded, can't change voltage, can't solve compatibility problem

PDC004 uses a hardware PD identification chip.The identification logic of this identification chip is: tricking to trigger a fixed voltage.However, if the voltage that needs to be deceived is not available, the voltage will be applied to the next file.

For example: 15v product PDC004, your PD power supply is only 12V,Or no 15v next file is 12v,then the scammer will apply to the next 12v.

PD spoofing is a strict communication format, there will be no spoofing of higher voltages, and no voltage will be boosted or stepped down. It does not have the ability to change the power, voltage, and current of the power supply.

Note:
