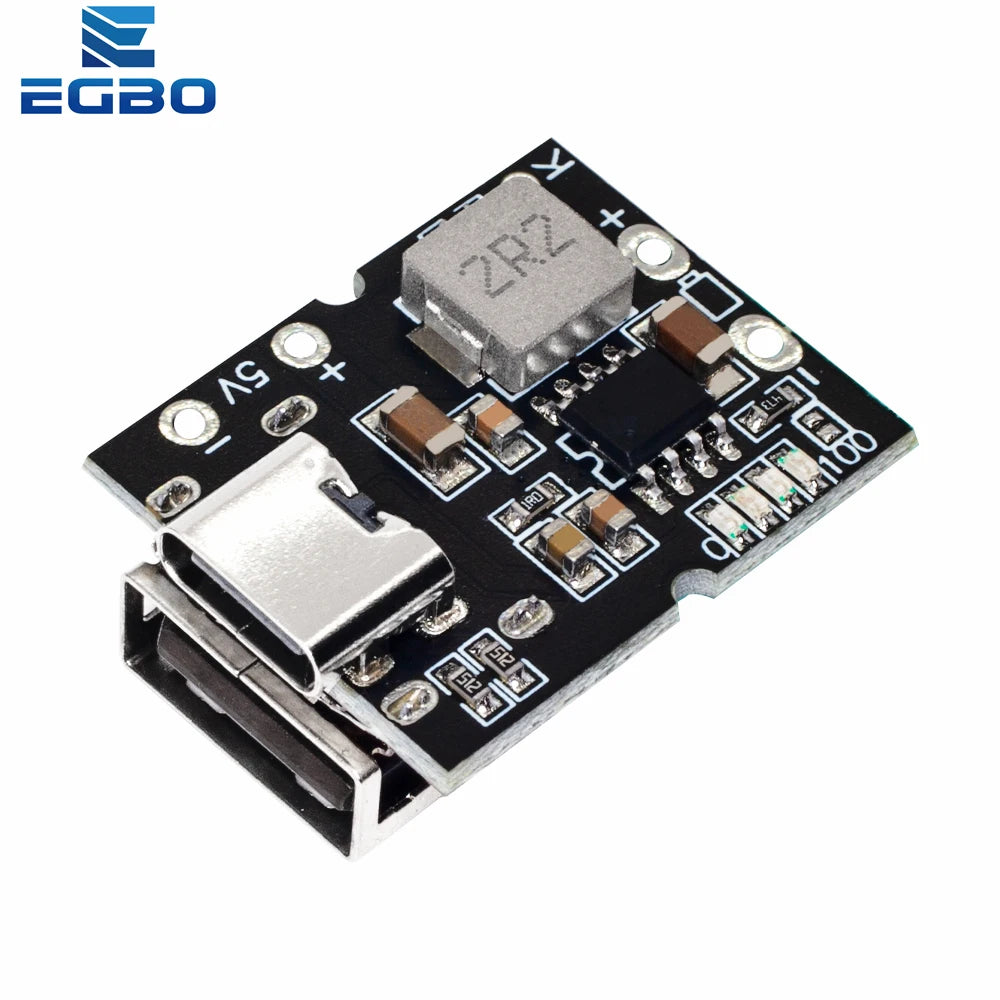

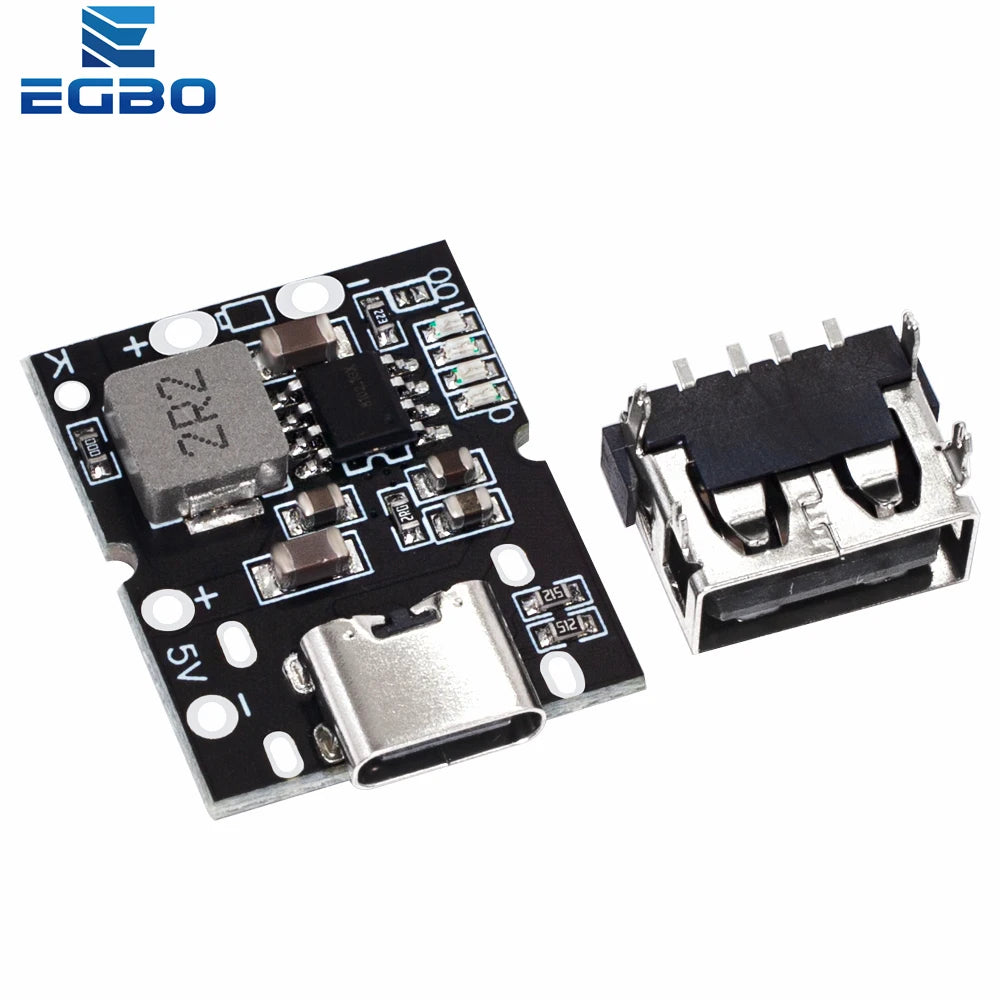

Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB For DIY Charger

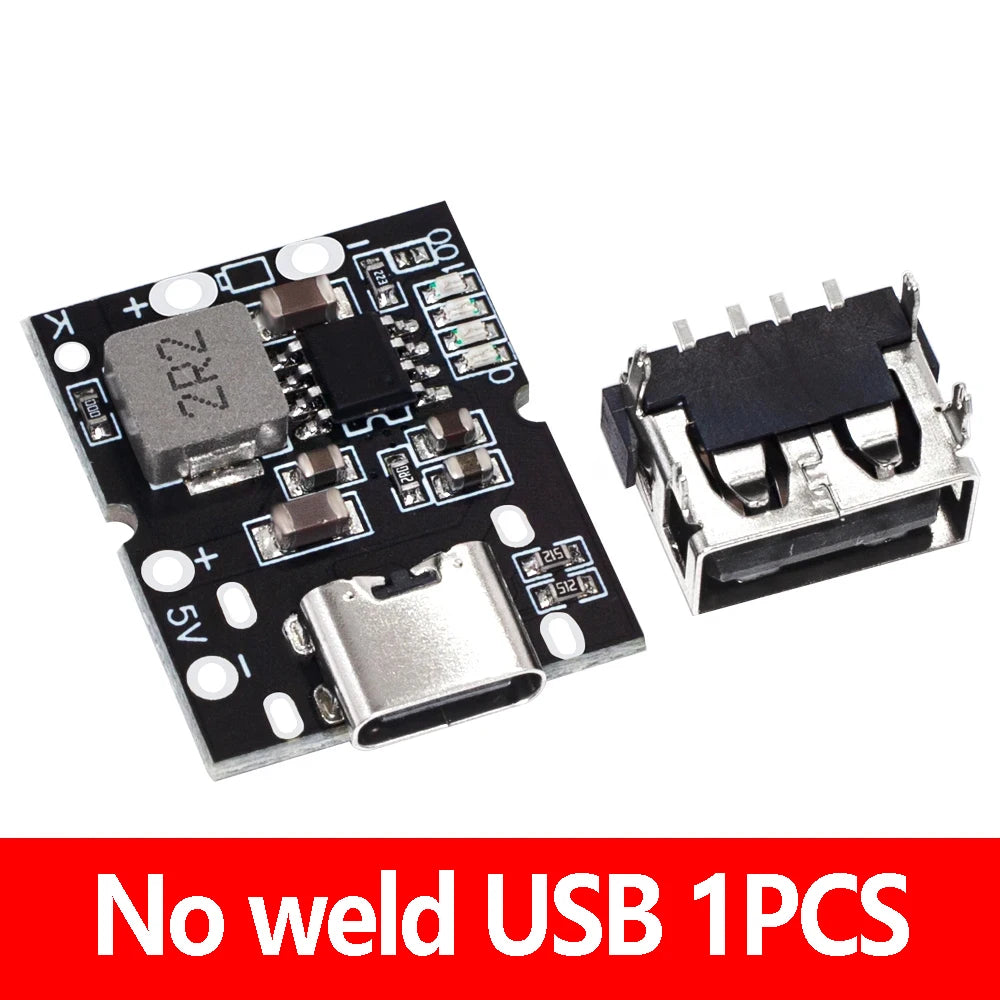

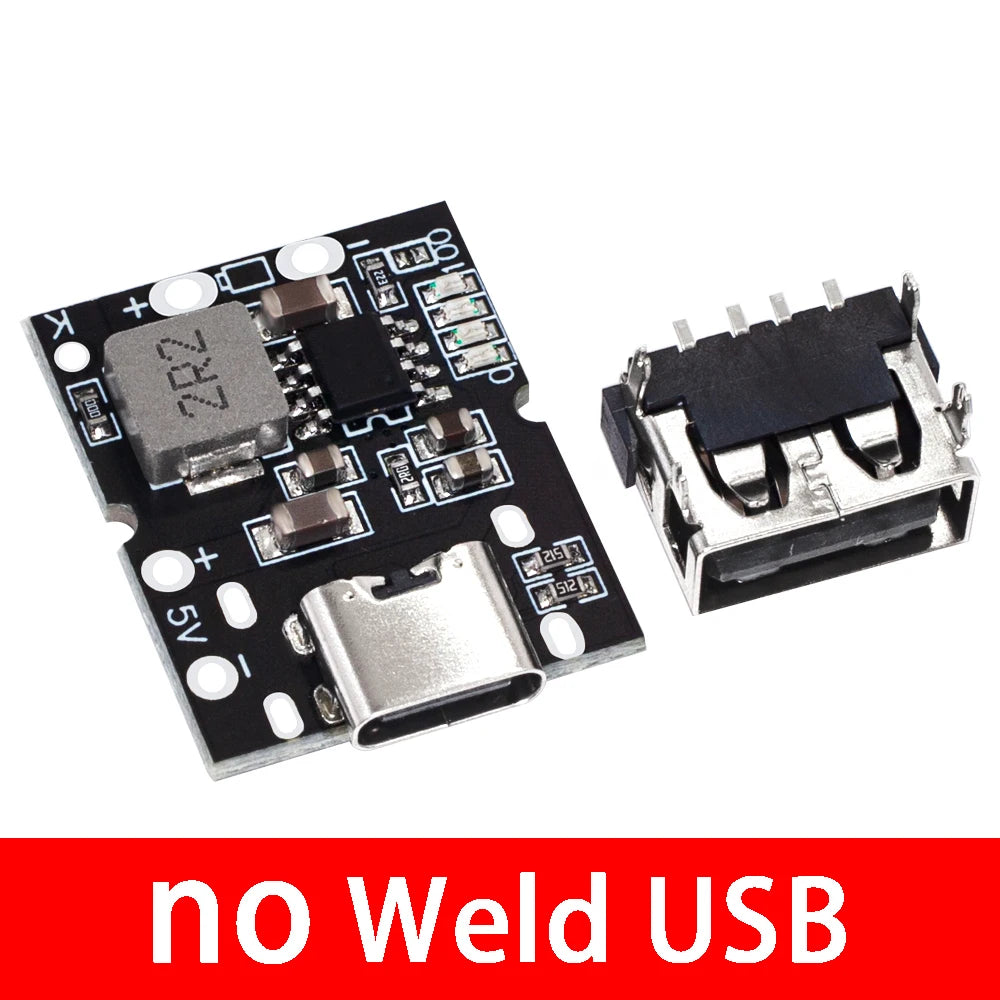

No weld USB 1PCS
$6.60
Sale price
$6.60
Regular price
$0.00
Skip to product information
Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB For DIY Charger
$6.60
Sale price
$6.60
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: EGBO
Choice: yes
Condition: New
Dissipation Power: w
High-concerned chemical: none
Operating Temperature: -40~80
Origin: Mainland China
Package: SMD
Supply Voltage: 5v
Type: Voltage Regulator
is_customized: Yes

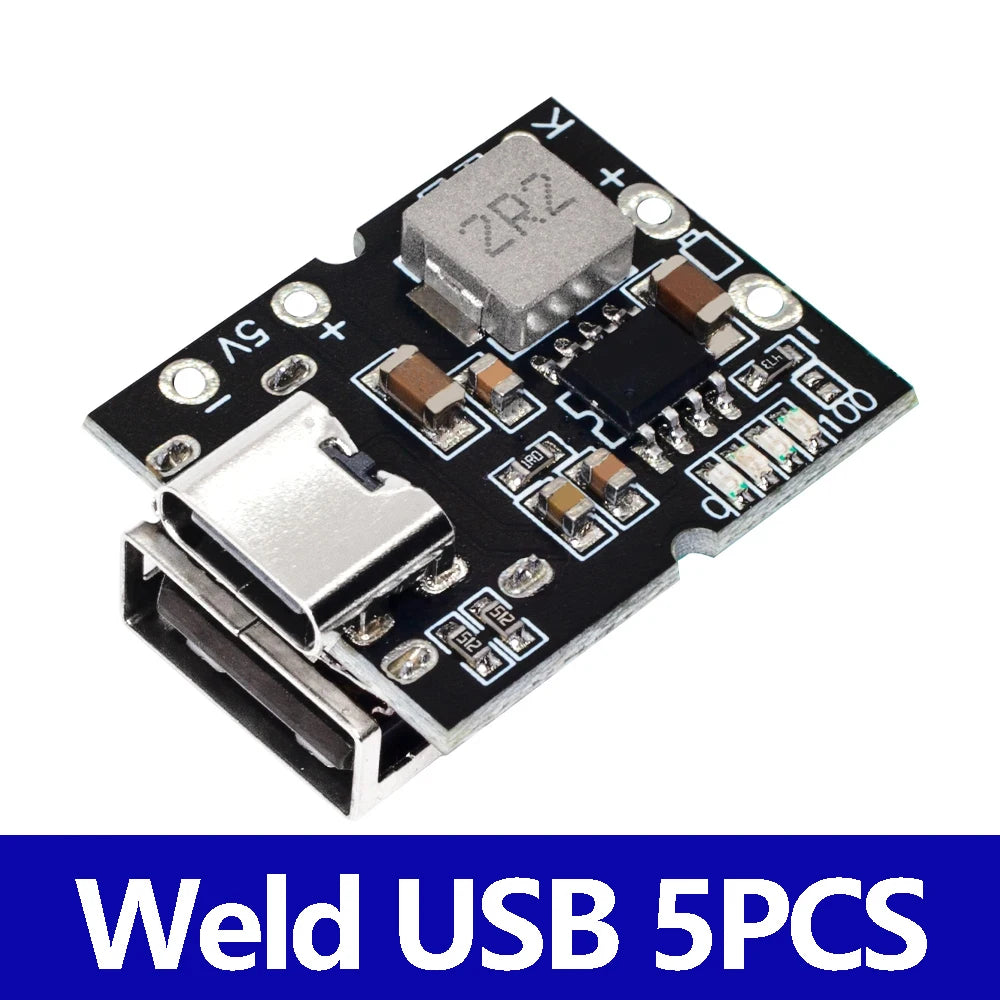

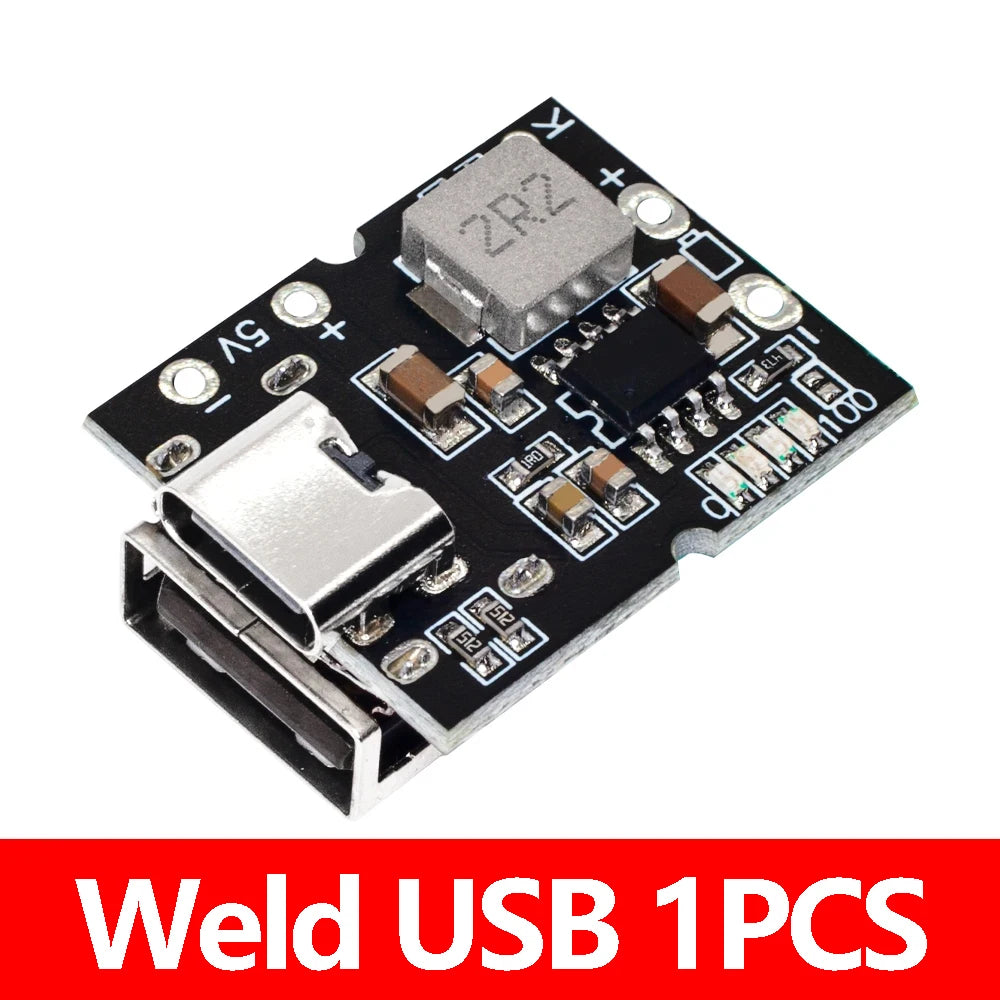

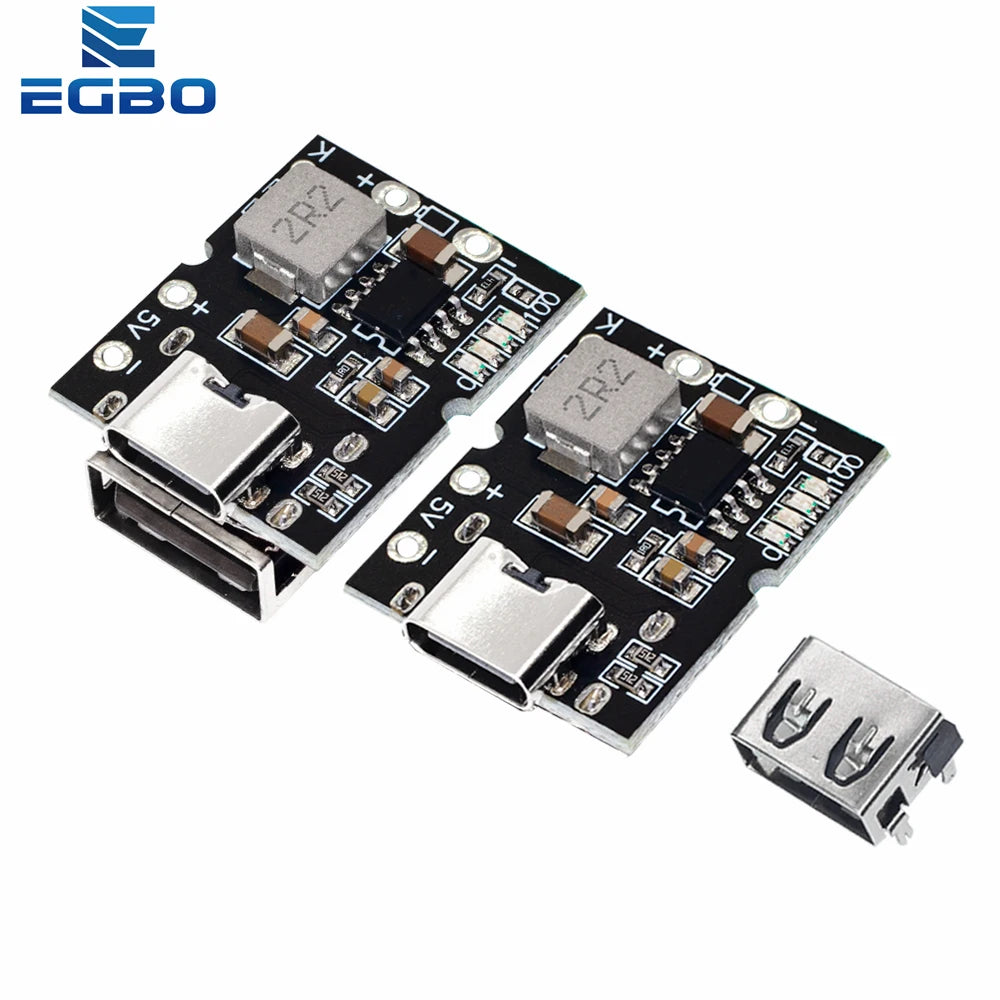

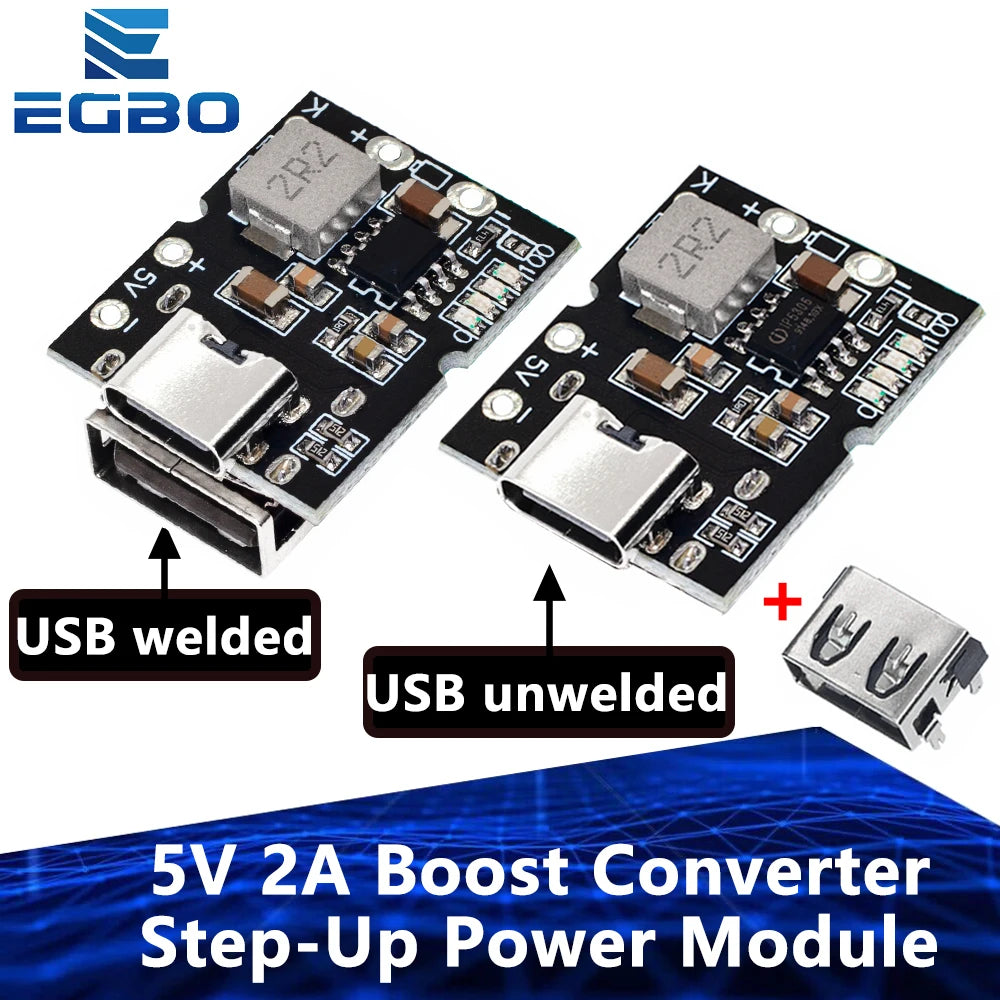

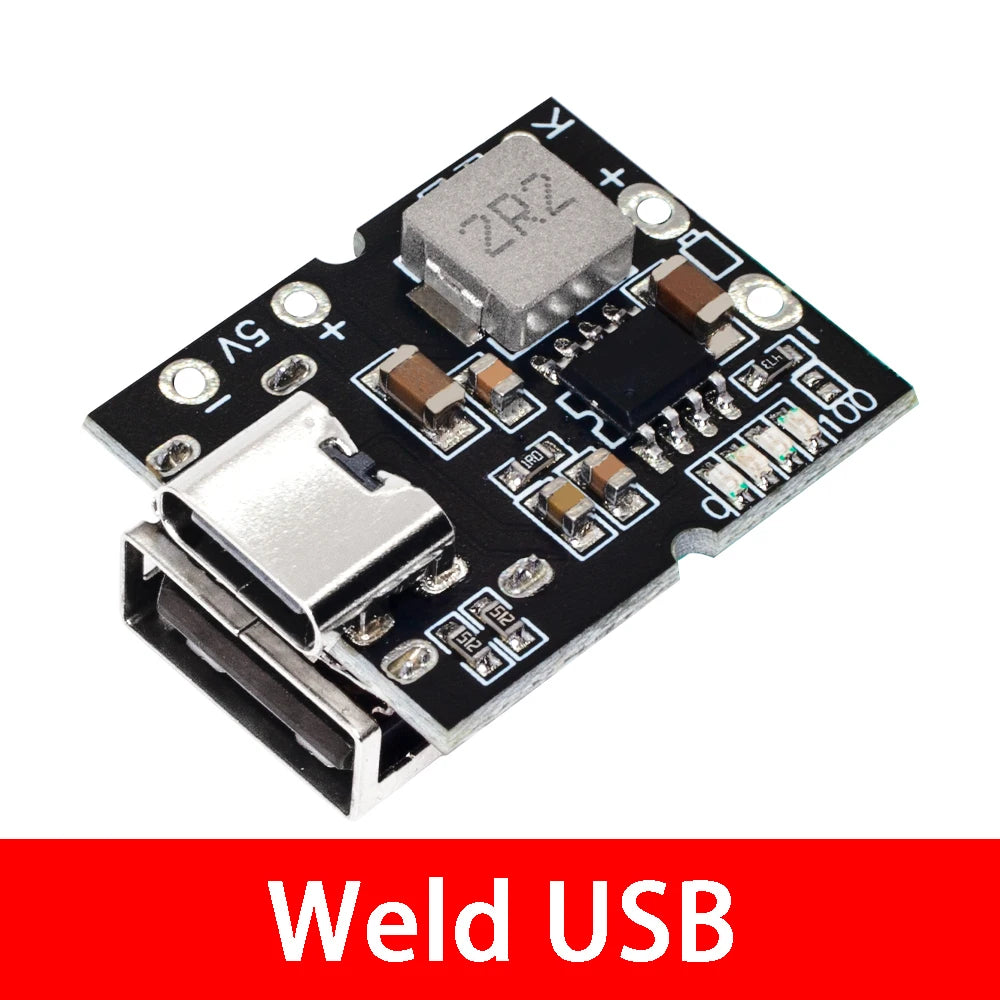

：When the load current is continuously less than 50mA, the output will be turned off. ：Support external buttons, connect the button to point K and the negative output, short press to turn on the power display and turn on the 5V output, two short presses in a row will turn off the power display and turn off the 5V output. ：When the charging current drops to 100mA after reaching the final float voltage, the charging cycle will be automatically terminated. ：When the battery voltage is lower than 2.8V, the battery will be precharged with a current of 180mA. ：The USB-A female socket welding position is provided on the back of the product, and the female socket can be manually installed. ：Support charging and discharging. ：When the battery voltage drops below 4.1V, the charging cycle restarts. Specification: ：Optional specifications: welding version / no welding version ：Input voltage range: 5~5.5V ：Charging cut-off voltage: (4.2V/4.35V) ± 0.5% Charging current: 2.4A ± 5% ：Boost output voltage: 5V~5.15V (wire loss compensation) Boost output voltage ripple: 100mV ：Boost output current: 2A ：Boost conversion efficiency: 92.5% (3.6V input, 5V2A output) ：Battery end quiescent current: <30uA
|
