Type C USBC Mini Micro USB 12V 24V 36V 48V Convert to 5V 3A Car Phone Charger Step Down Buck Converter 12 Volt to 5 Volt
Micro USB Right Bend / DC 12V ( 8-23V)
$25.36
Sale price
$25.36
Regular price
$0.00
Skip to product information
Type C USBC Mini Micro USB 12V 24V 36V 48V Convert to 5V 3A Car Phone Charger Step Down Buck Converter 12 Volt to 5 Volt
$25.36
Sale price
$25.36
Regular price
$0.00
Description
SPECIFICATIONS
Application: 12 to 5v converter
Brand Name: fulree
Certification: CE,FCC,RoHS
Choice: yes
Fit for: 12v to 5v step down
High-concerned chemical: none
Item: 12v to 5v usb converter
Keywords: 12v to 5 volt converter
Model Number: F**J5V3A1S-XXX
Name: convert 12v to 5v
Origin: Mainland China
Output Current: 3A MAX
Output Frequency: 200HZ
Output Power: 1 - 50W
Output Type: SINGLE
Purpose: converter 12v to 5v
Size: 46*27*14MM
Type: DC/DC Converters
Usage: 12v to 5v type c
Weight: 45-55G
Work for: 12v to 5v converter
Work with: 12v to 5v usb
is_customized: Yes
semi_Choice: yes
Specification
Product Name |
12V 24V 36V 48V to 5V 3A 15W DC Converter |
Brand Name |
Fulree |
Model No. |
F**J5V3A1S-XXX |
Module Properties |
non-isolated buck module |
Rectification |
synchronous rectification |
Input (cable length: 12cm) | |
Input Voltage |
DC 12V 24V 36V 48V / DC 12V 24V / DC 12V |
Input Voltage Range |
DC 11-60V / DC 8-35V / DC 8-23V |
Output(cable length: bare wire---13-14cm / USB/Type C---35cm, Micro/Mini USB---50cm) | |
Output Voltage |
DC 5V |
Output Current |
3A Max |
Output Power |
15W Max |
Conversion Efficiency |
>93% |
Voltage regulation |
±3% |
Load regulation |
± 2% |
Ripple (Full load test) |
< 150mV |
No-load current |
<100mA |
Working Temperature |
-40~80℃( If ambient temperature exceeds 40°c, lower power use, or enhance heat dissipation) |
Waterproof Rating |
IP68 |
Protection |
Over-current protection / Over-voltage protection / Overheating protection / Short circuit protection |
Application |
mobile phone, car camera, Electric motors,Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps,industrial equipment and so on. |
Case Material |
ABS Plastic |
Product Size (L x W x H) |
46*27*14mm |
Product Weight |
45-55g/pc |
Warranty |
12 months |
Cooling Way |
Free air convection |
OEM&ODM Service |
Acceptable |

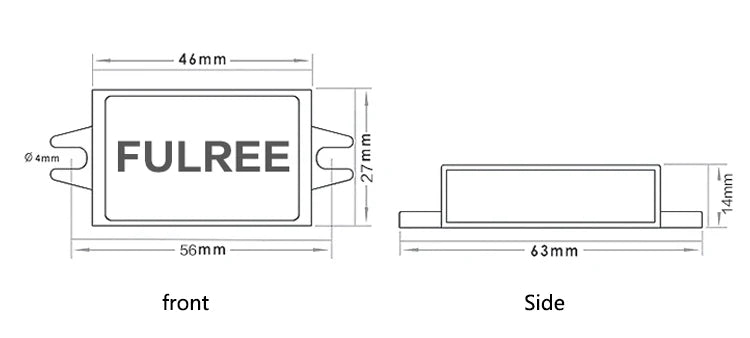

Dimension

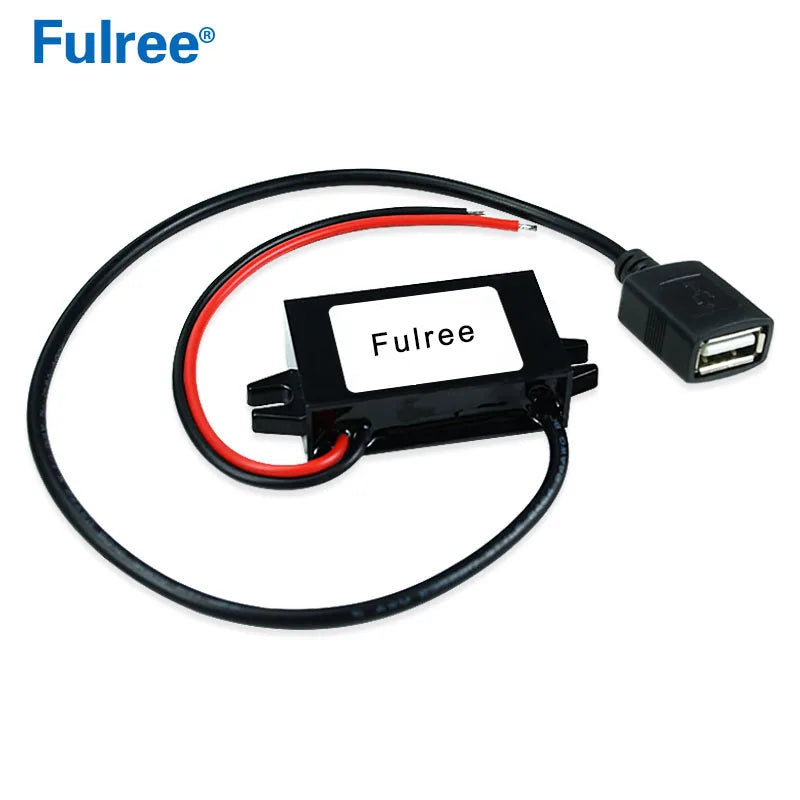

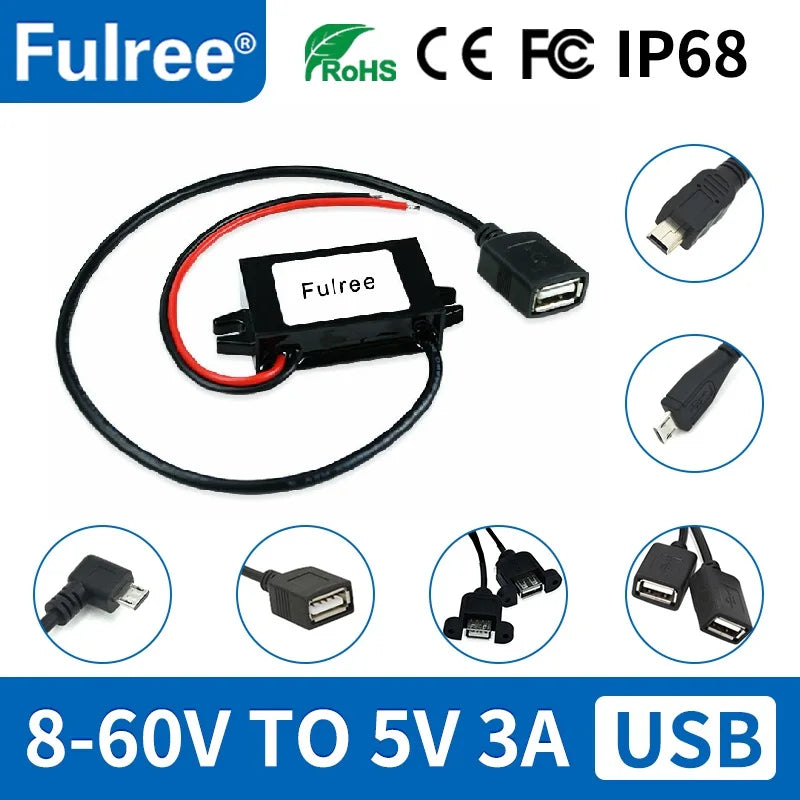

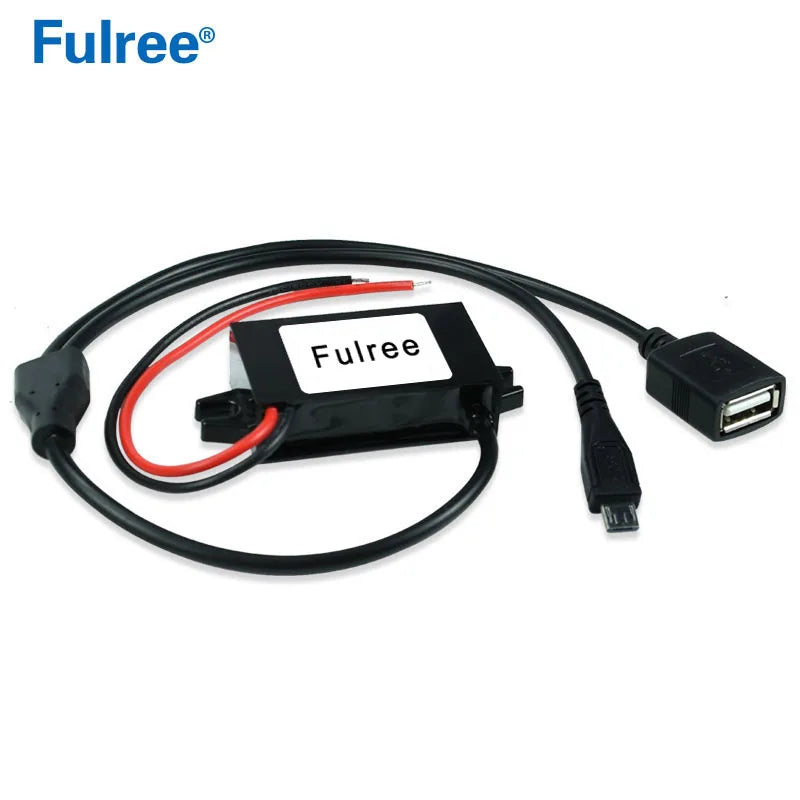

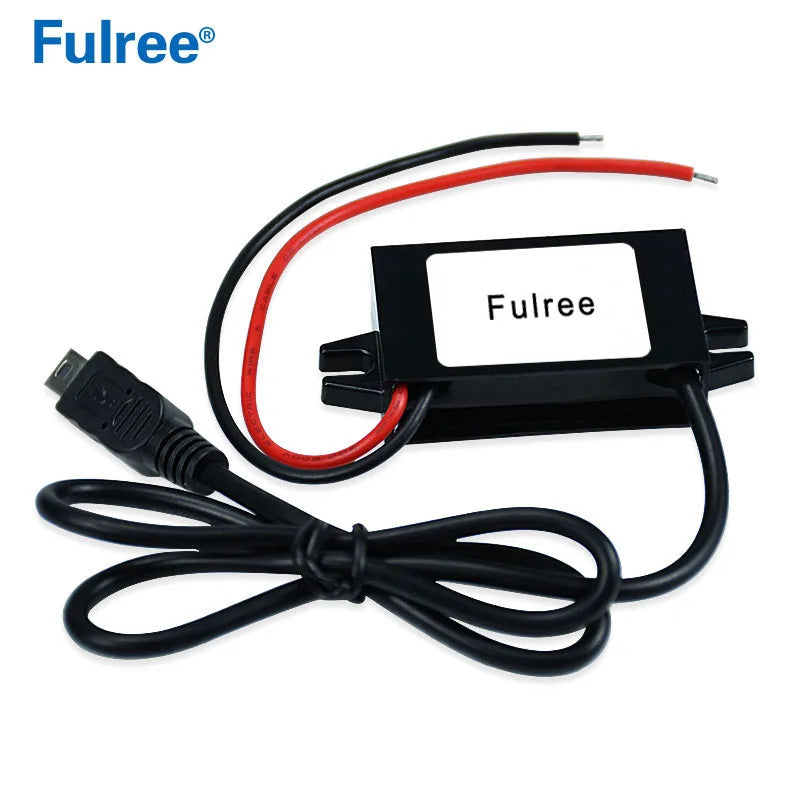

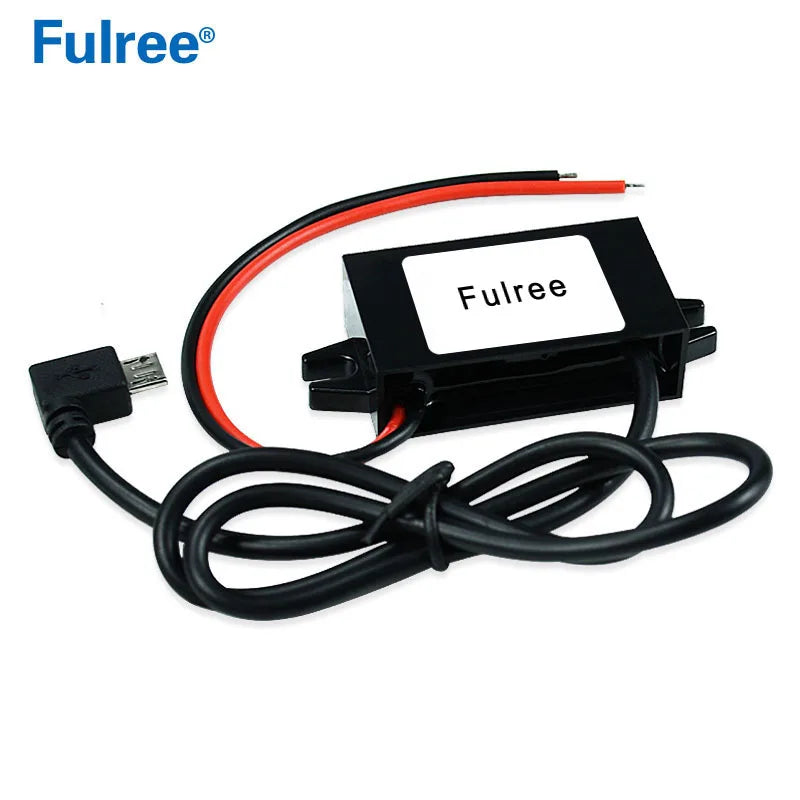

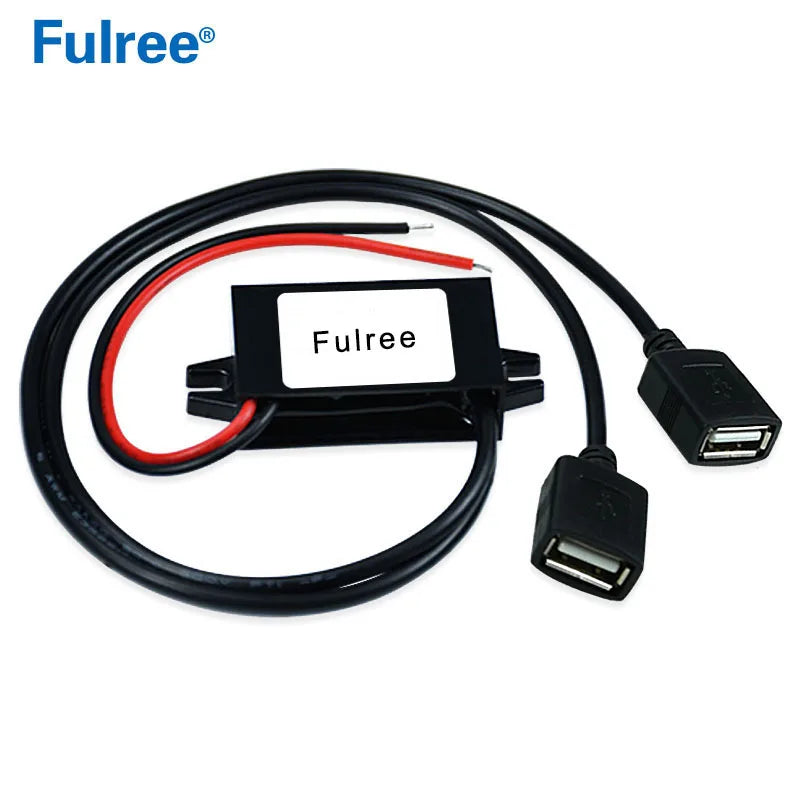

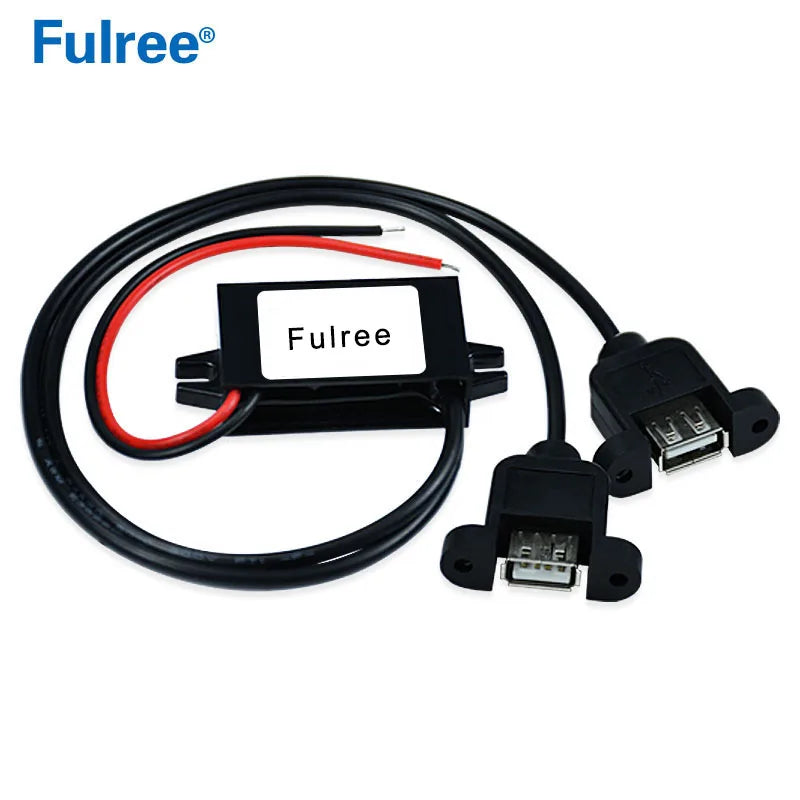

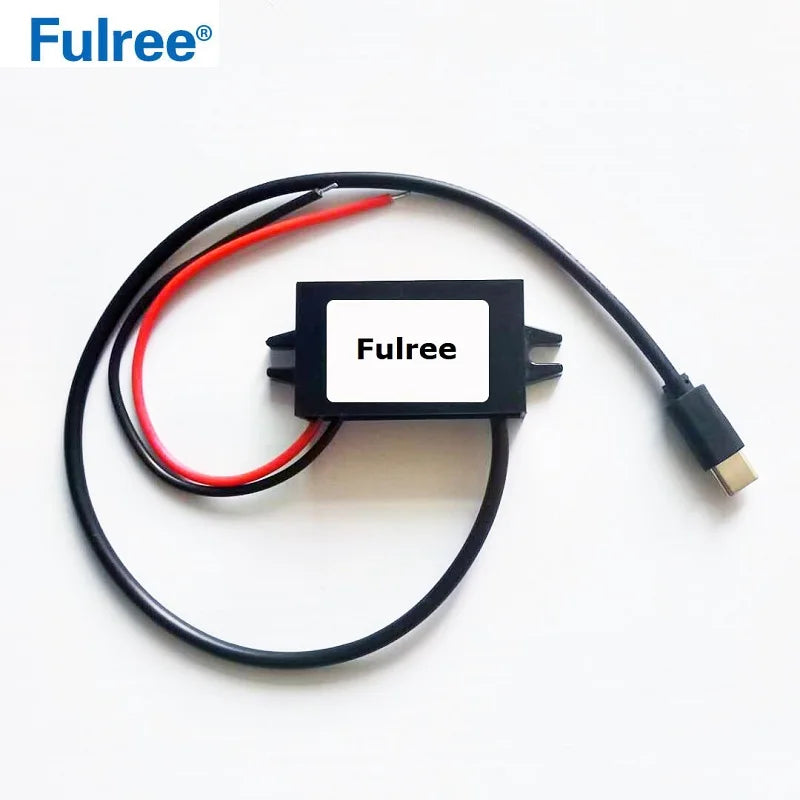

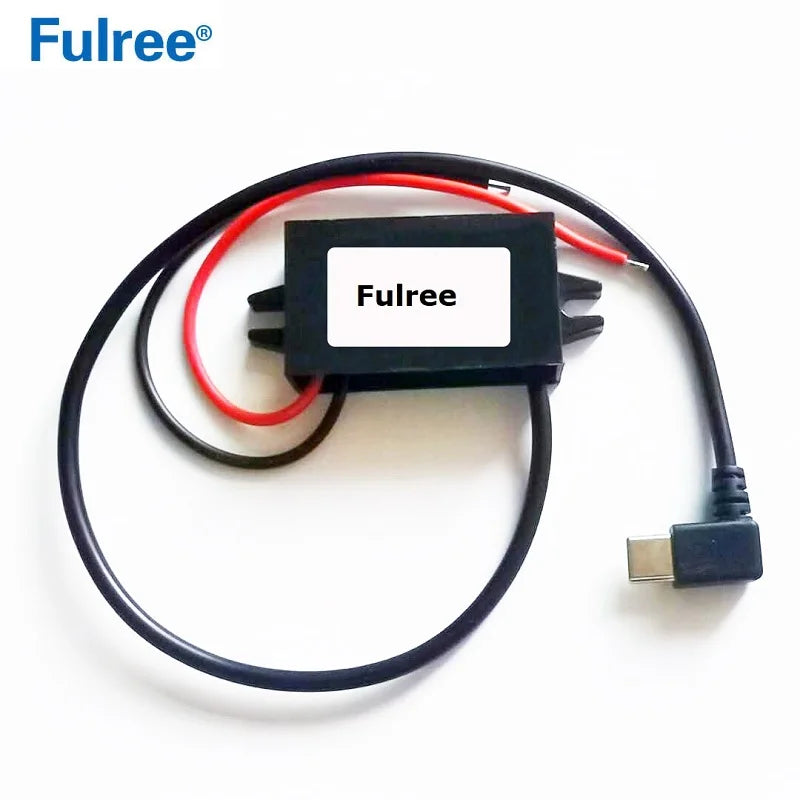

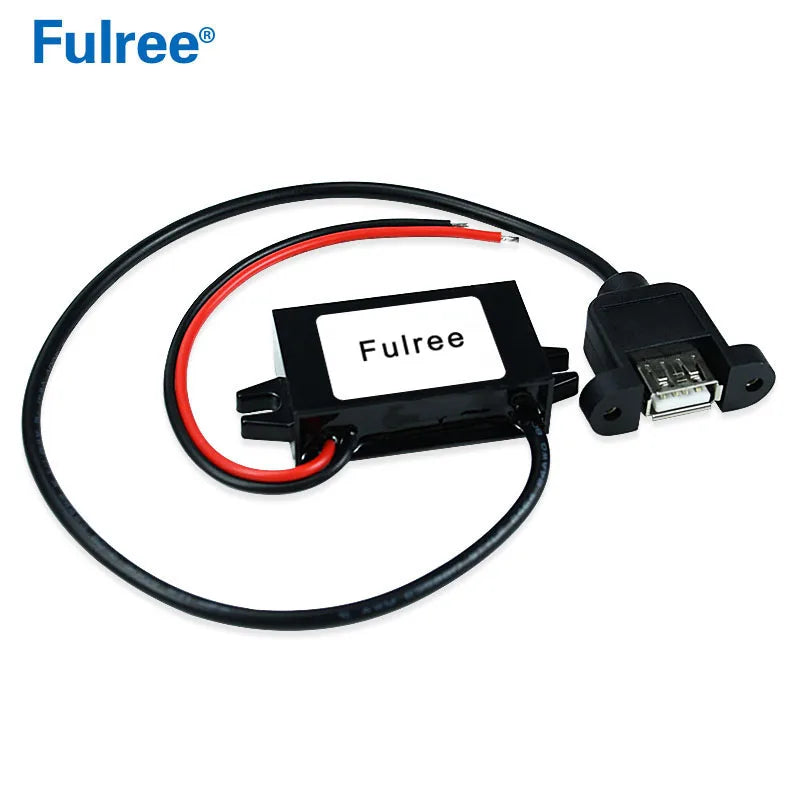

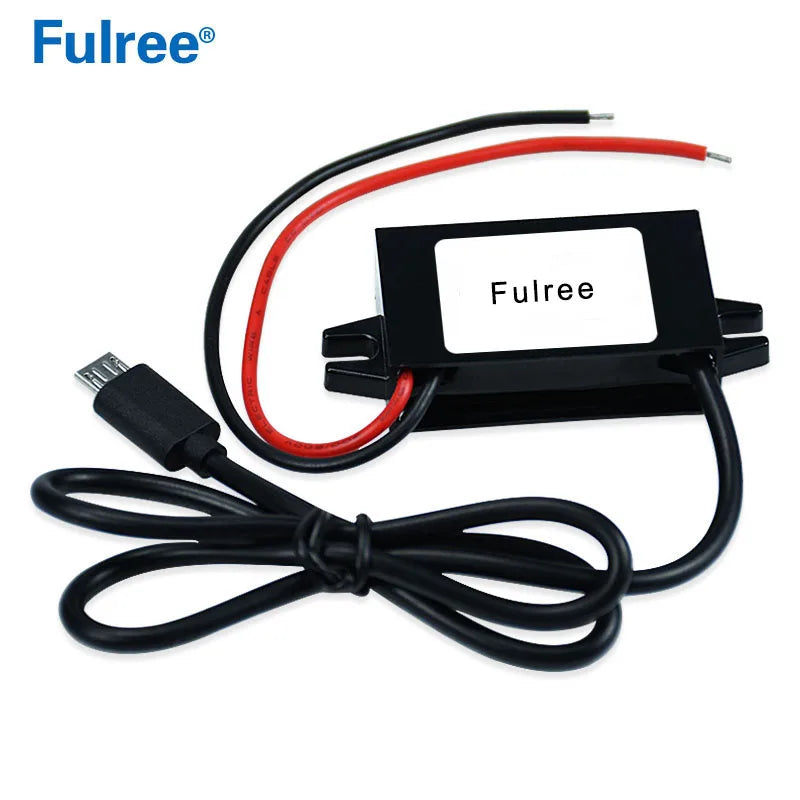

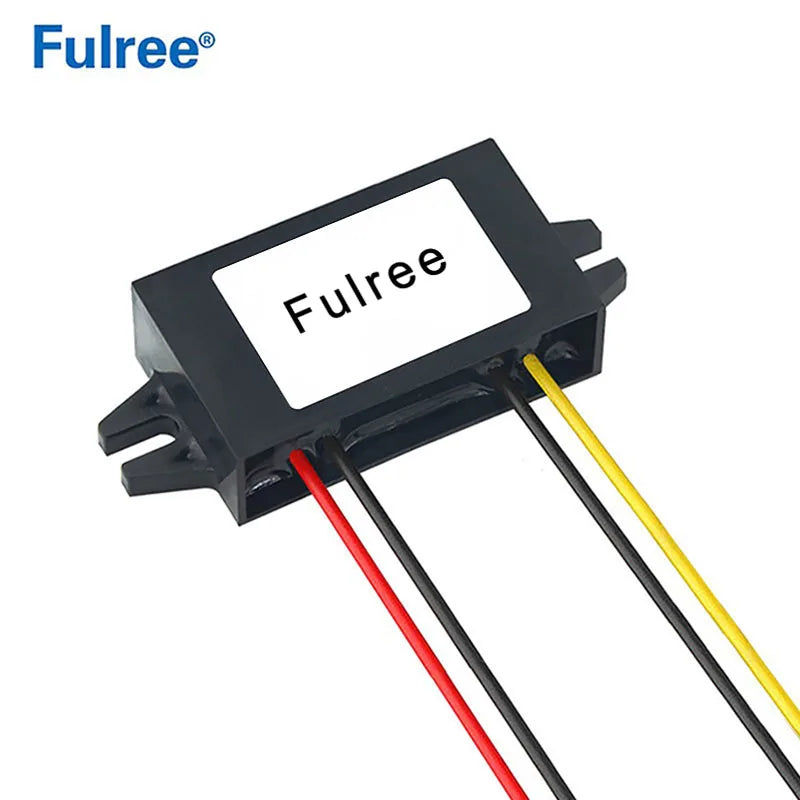

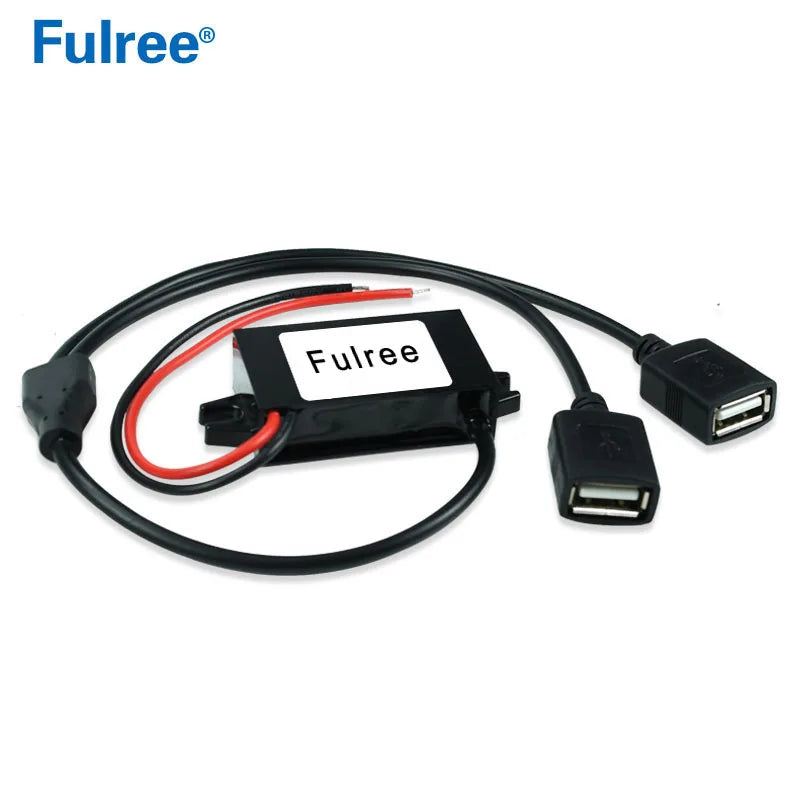

Product Photograph
