SPECIFICATIONS

Brand Name: TAIYEDQ

Certification: NONE

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

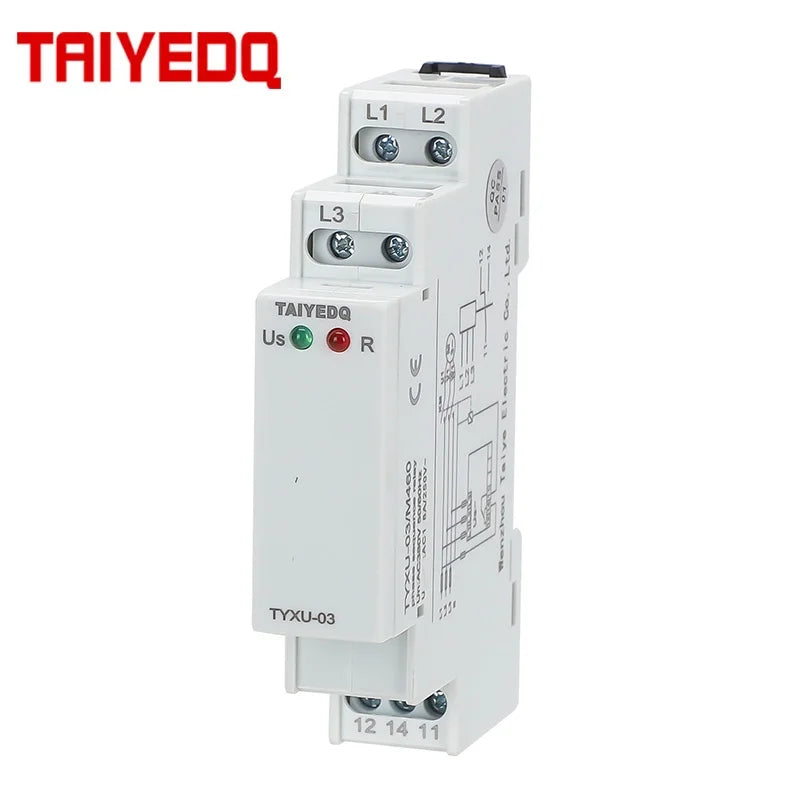

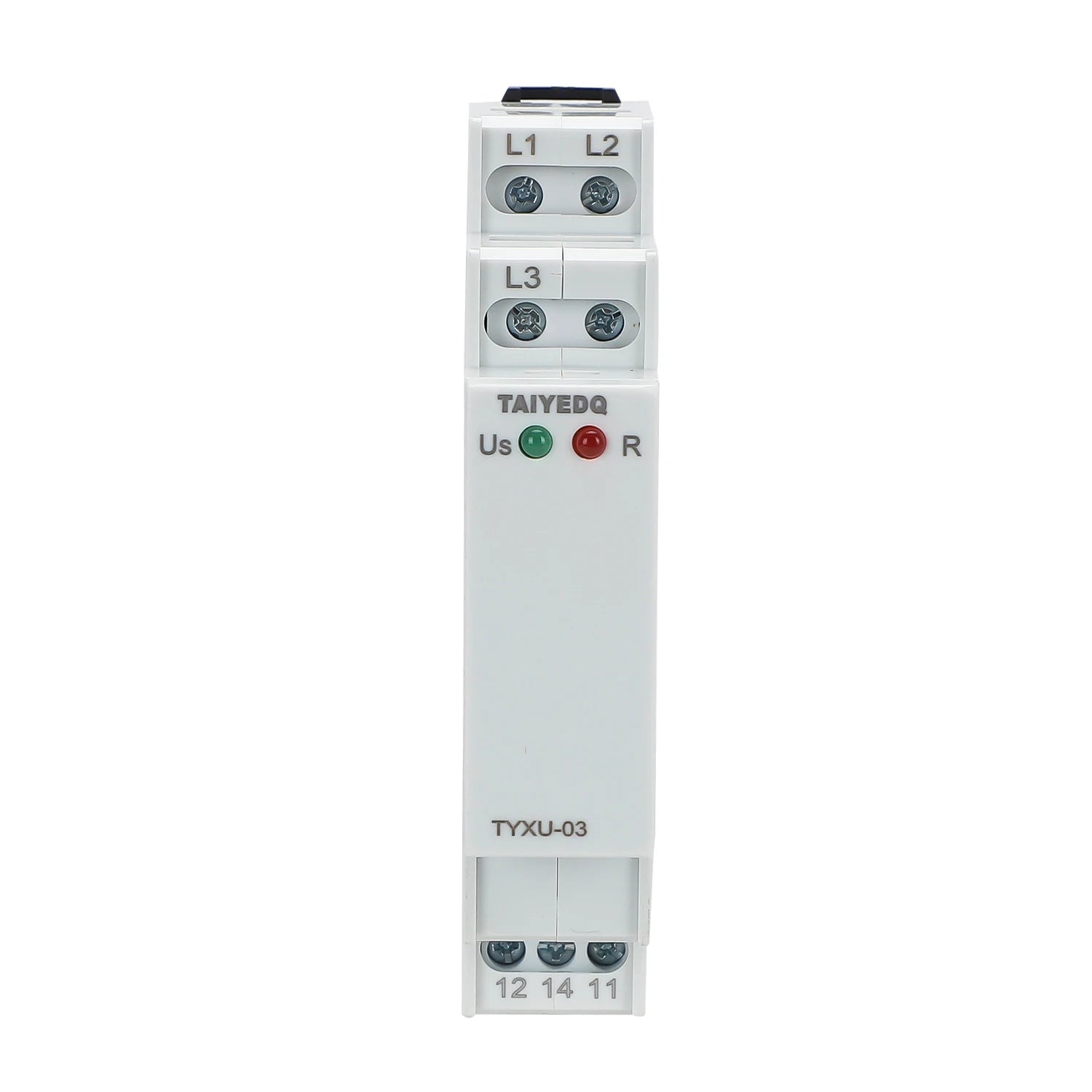

Model Number: TYXU03

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Voltage relay

Use: General Purpose

Voltage: 460v

is_customized: Yes

For mobile device connection control (on-site equipment, agricultural equipment, refrigerated trucks).

Protect equipment from accidents caused by reverse operation.

Normal/emergency power switch.

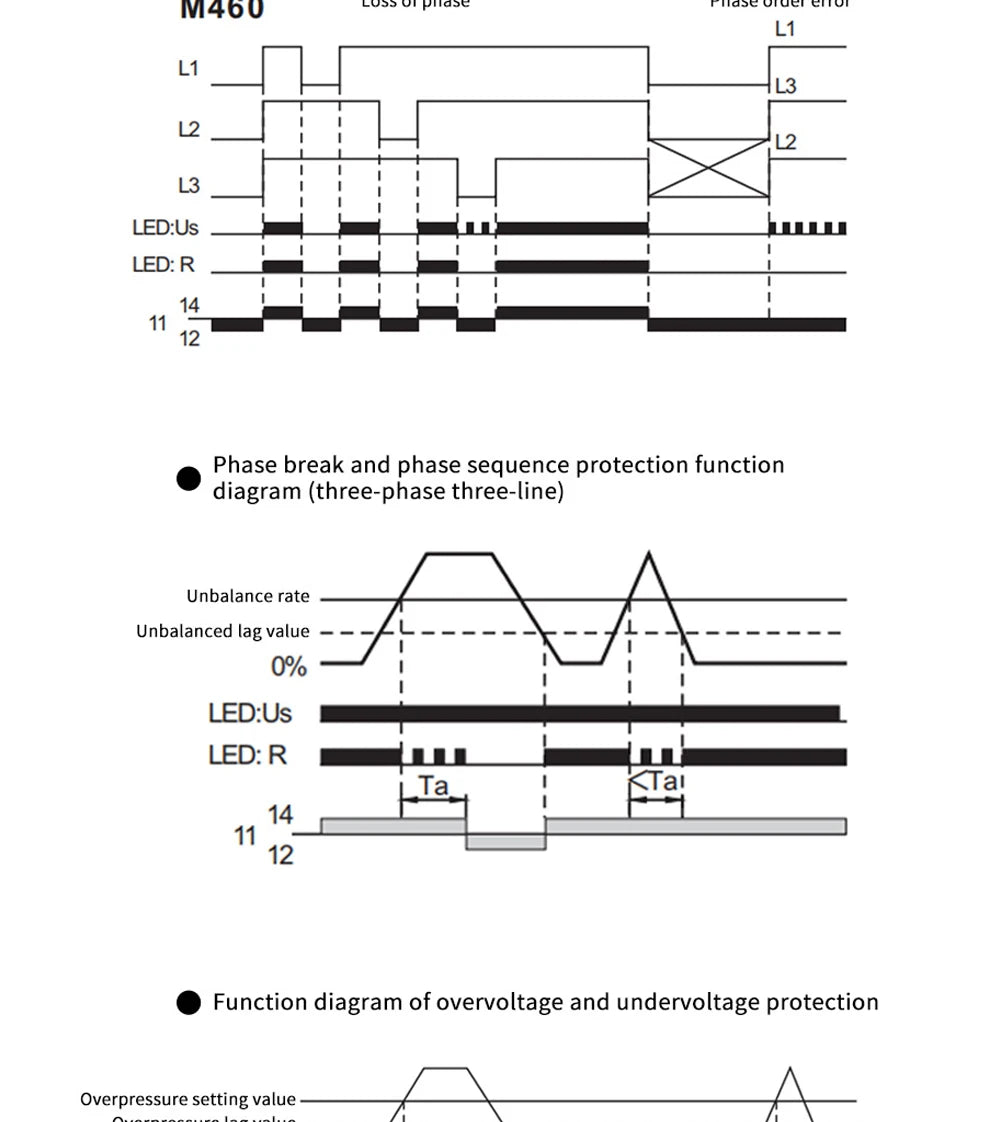

Prevent phase failure of power loads.

Characteristic

Monitor self working voltage (true RMS measurement)

-8 types of rated voltage adjustable, suitable for voltage in various

regions around the world.

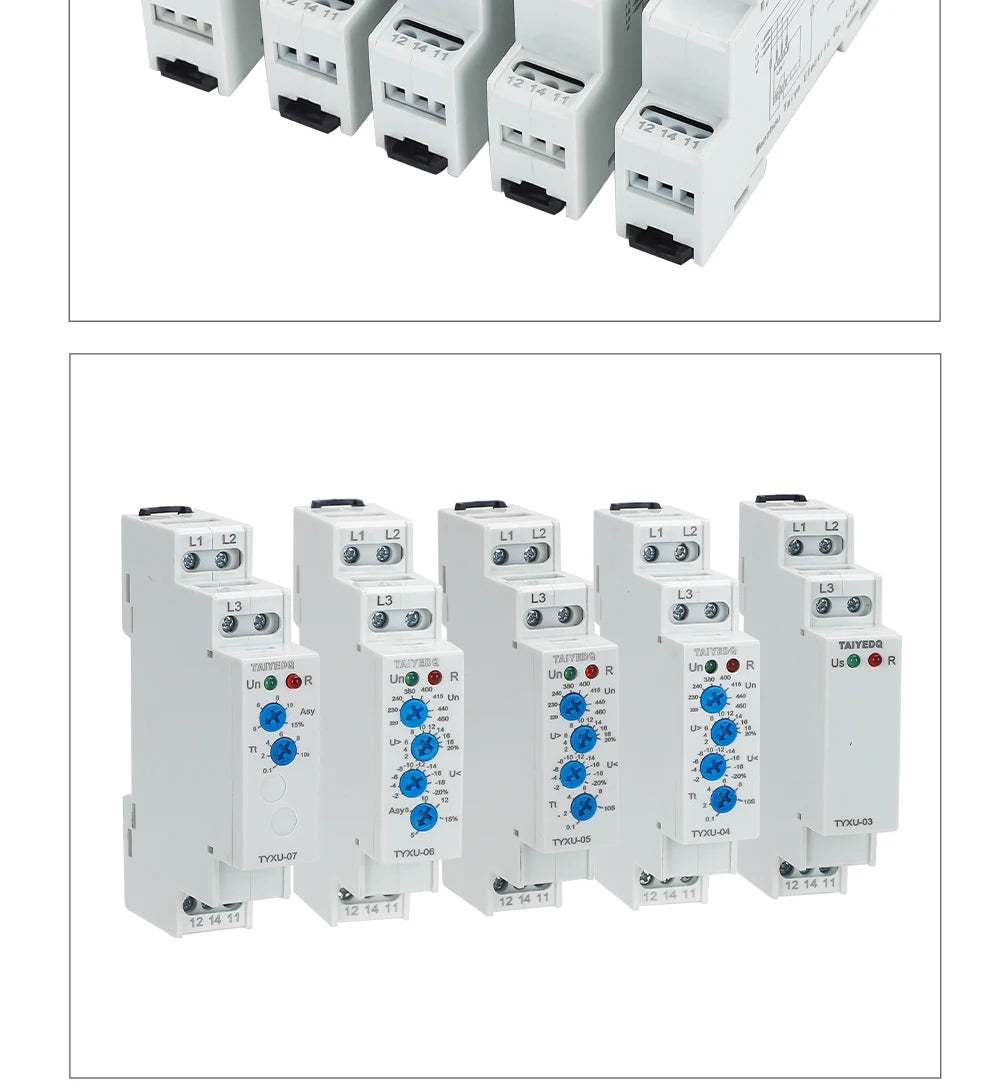

-Available in 3-phase 3-wire and 3-phase 4-wire specifications.

-Voltage measurement accuracy ≤1%.

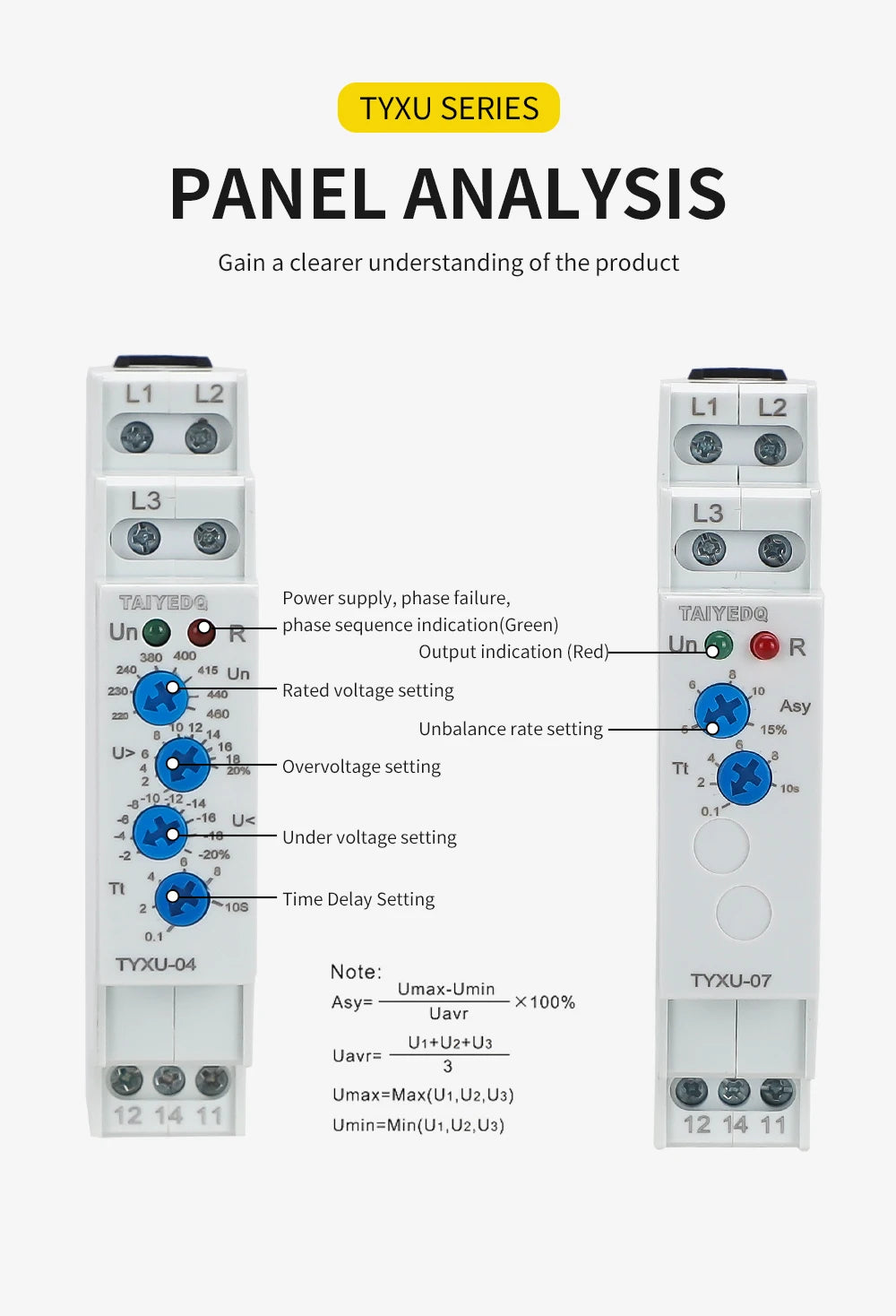

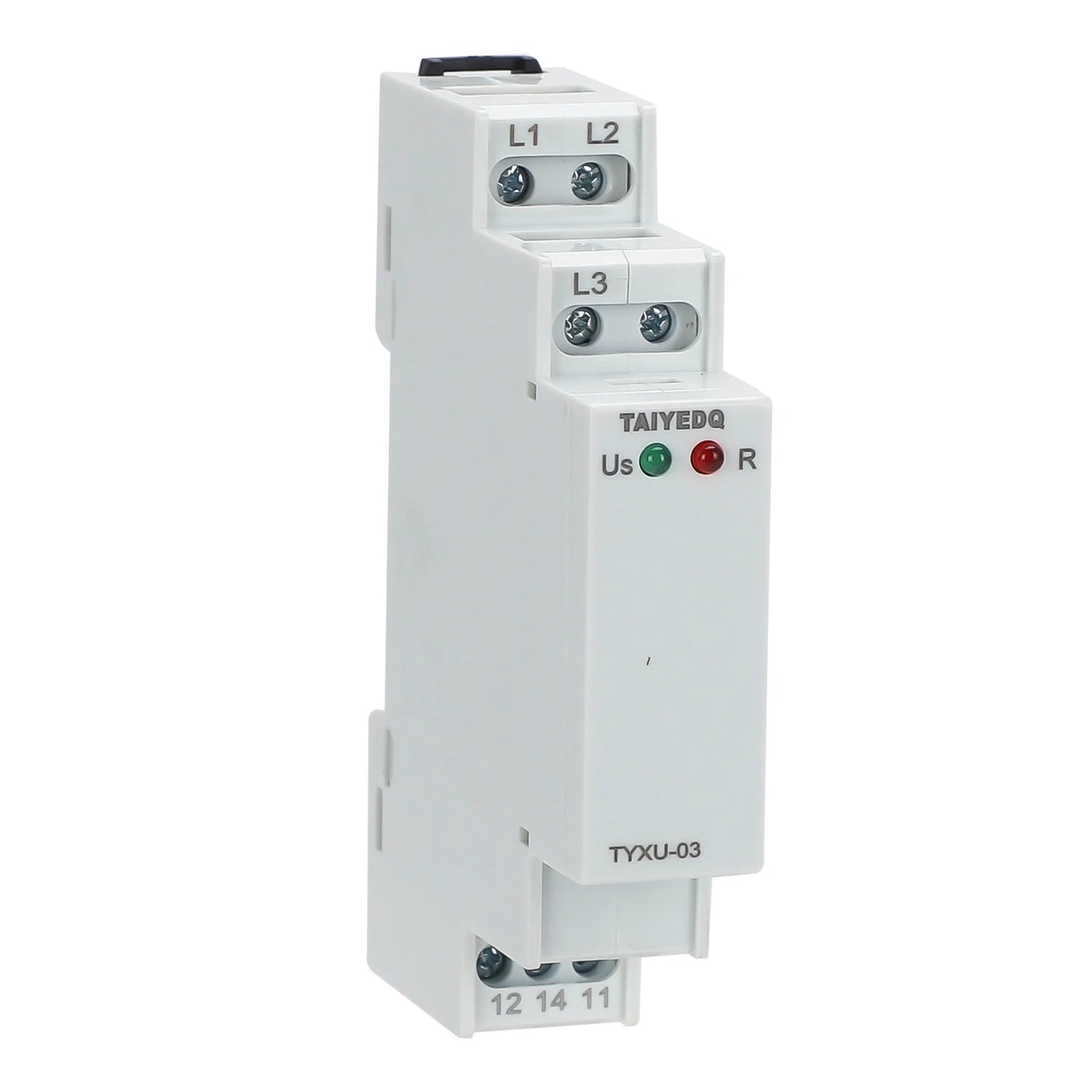

-The working status of the relay is indicated by an LED indicator light.

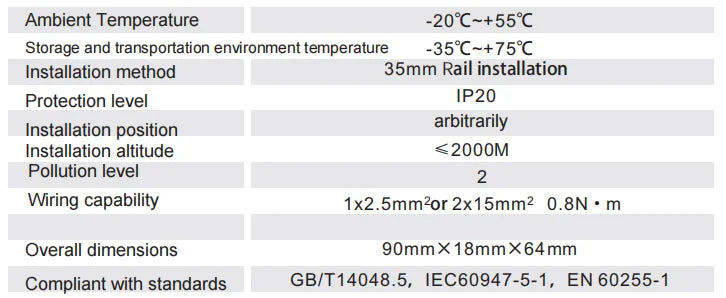

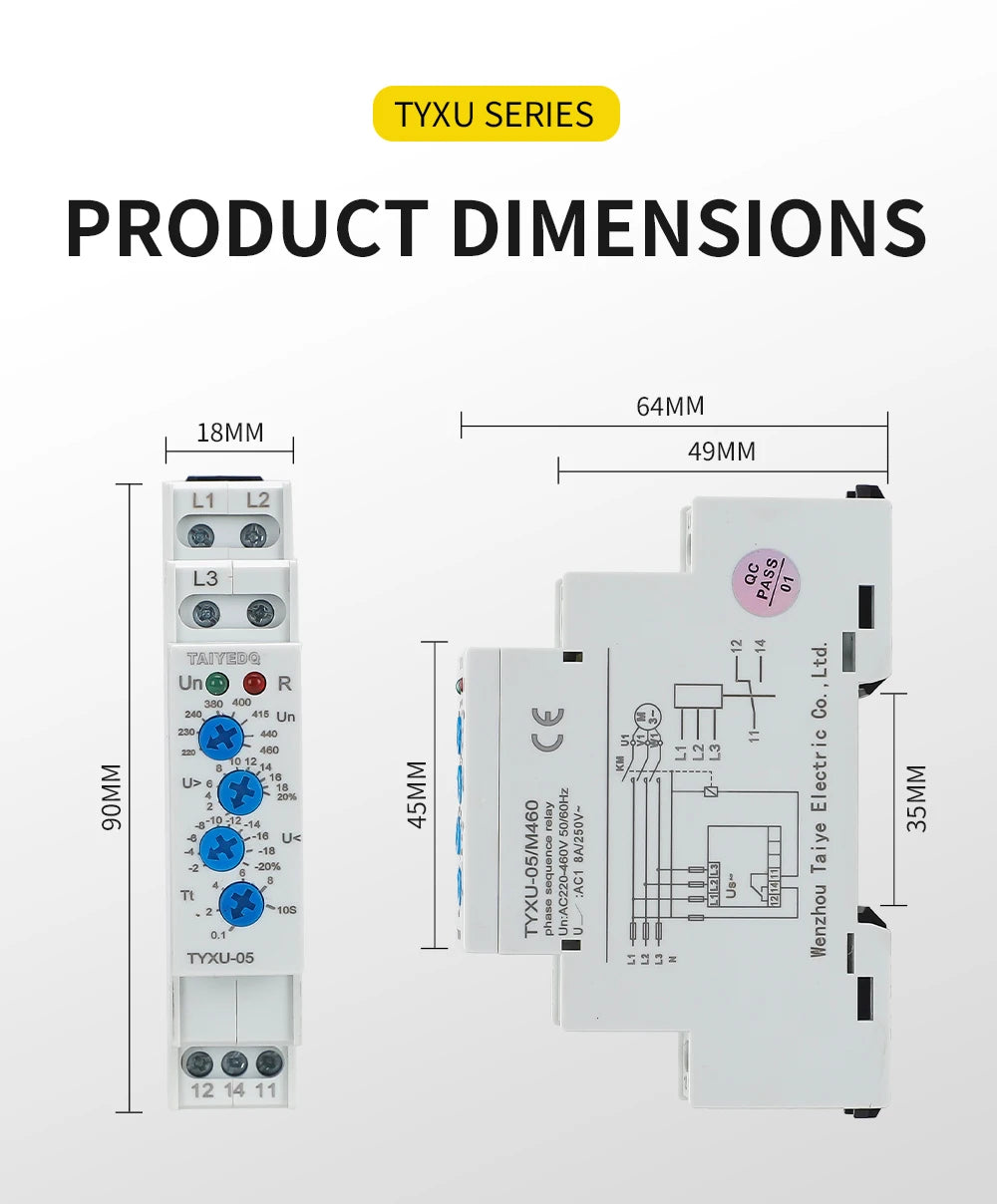

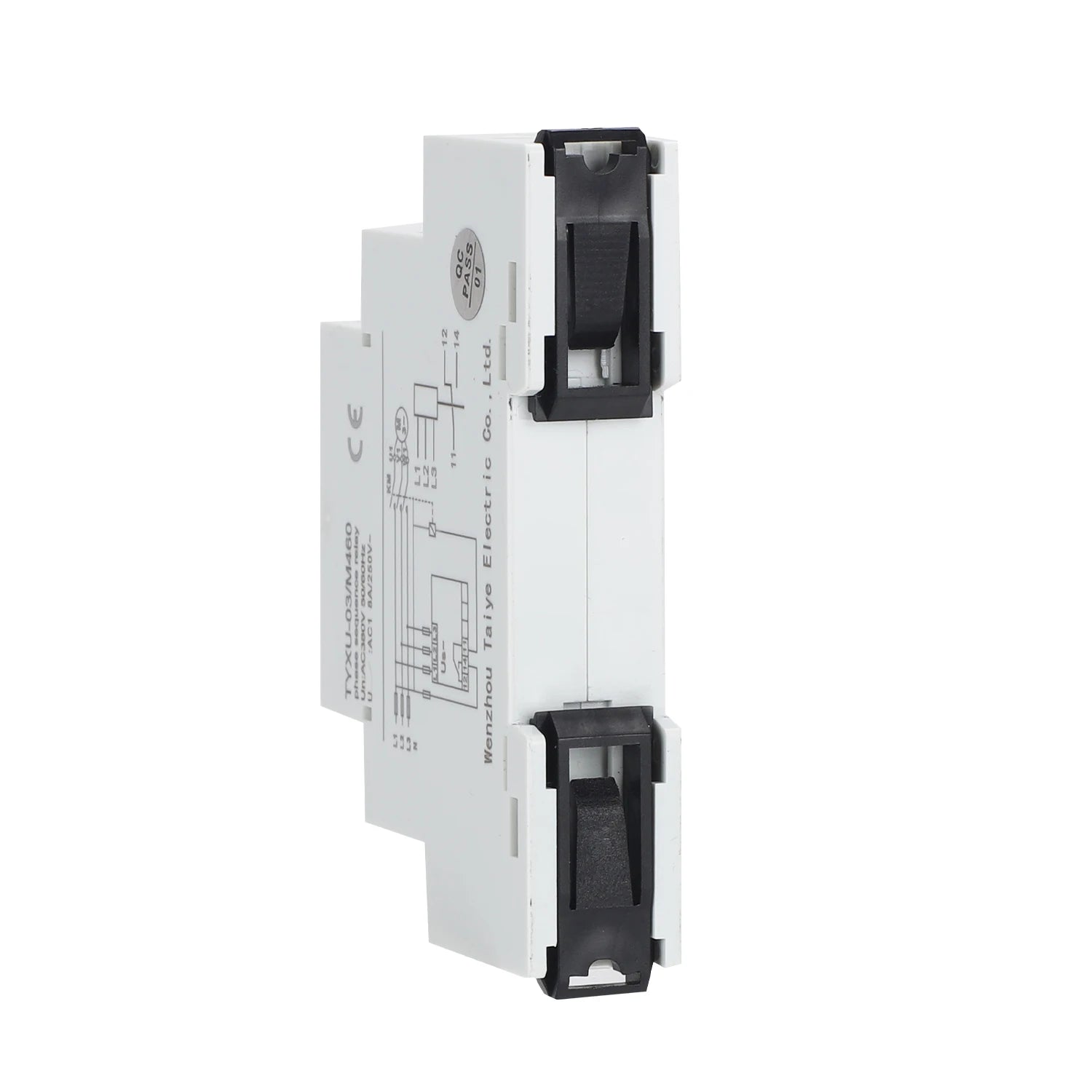

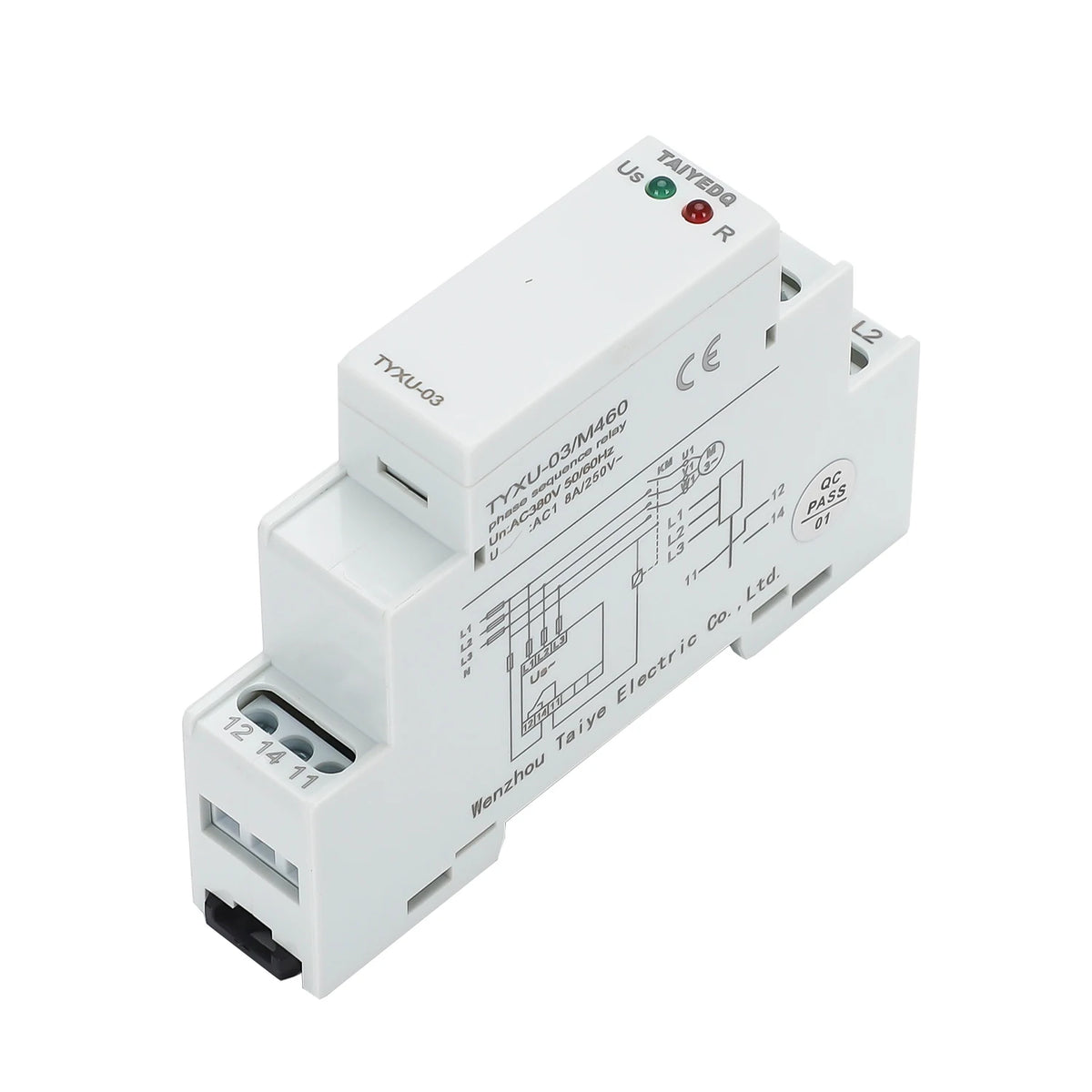

-Ultra small volume, only 18mm wide, 35mm clamp rail installation.
