SPECIFICATIONS

Applicable Object: Other

Brand Name: TAIYEDQ

Certification: NONE

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: TYXU06

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Voltage relay

Use: General Purpose

Voltage: 460v

is_customized: Yes

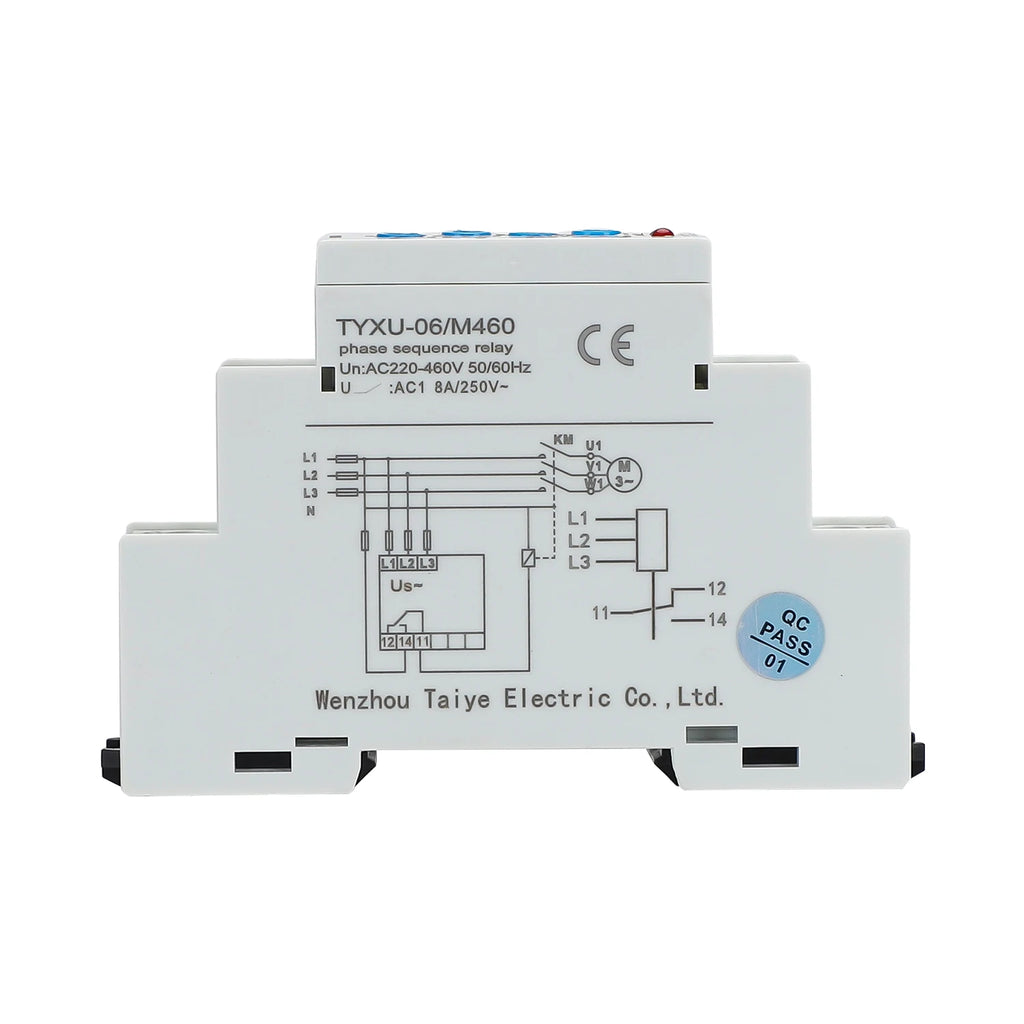

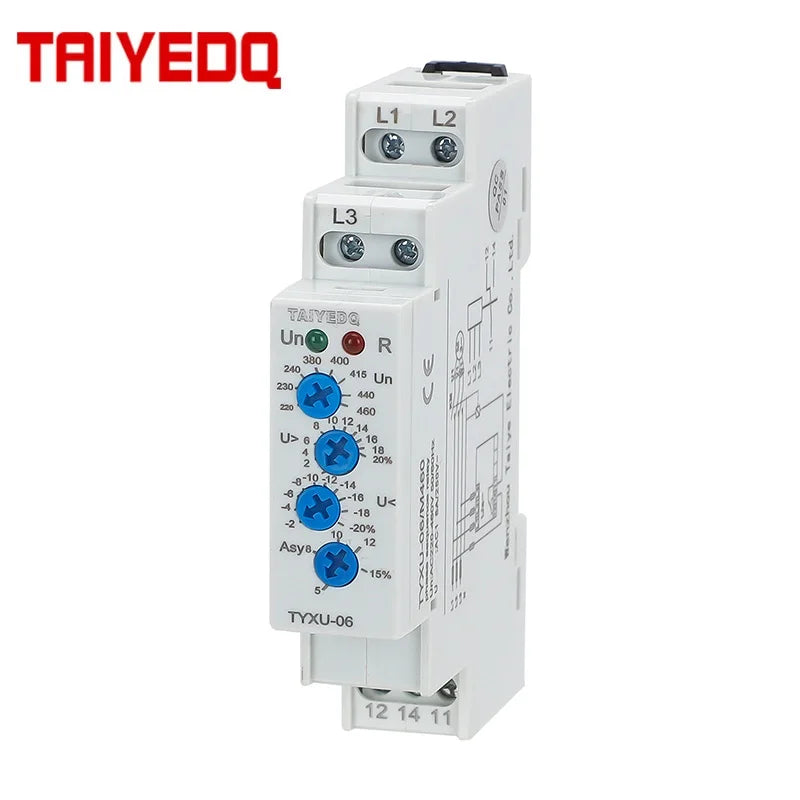

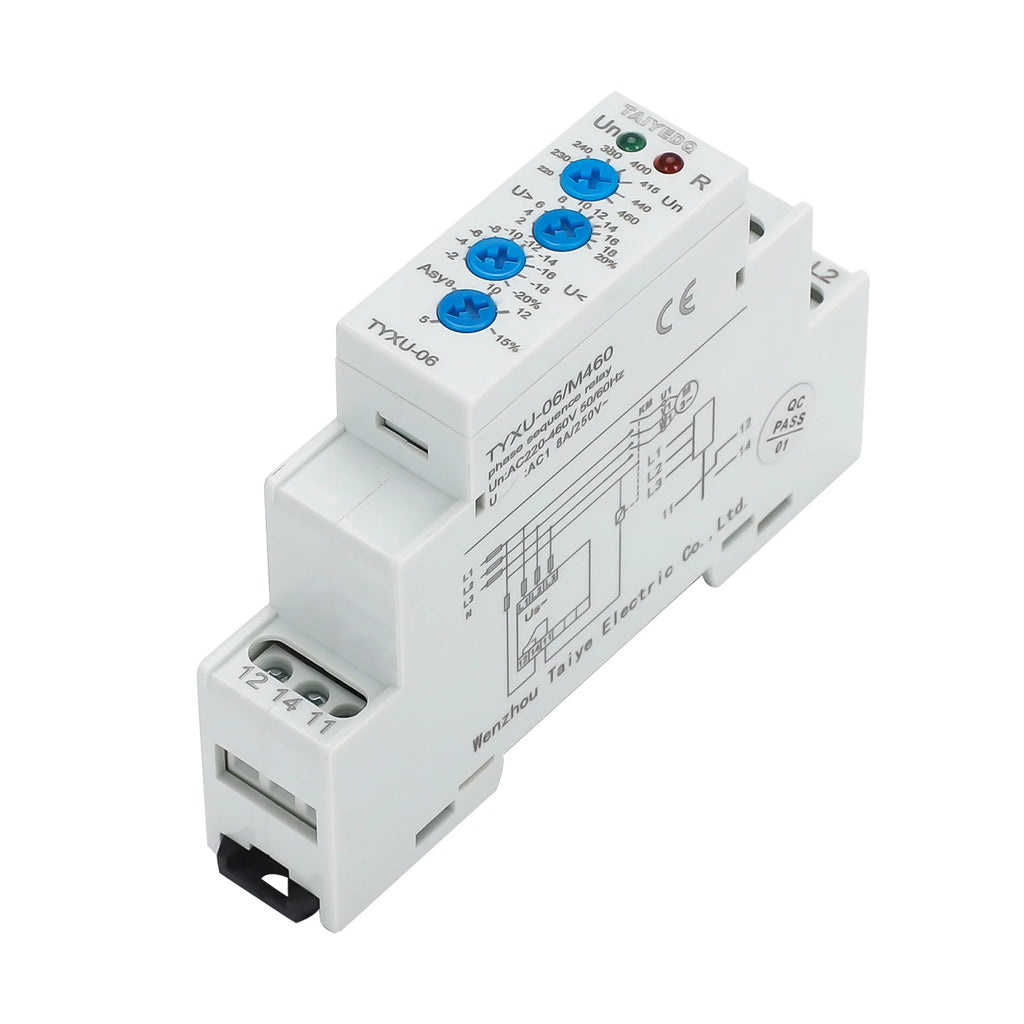

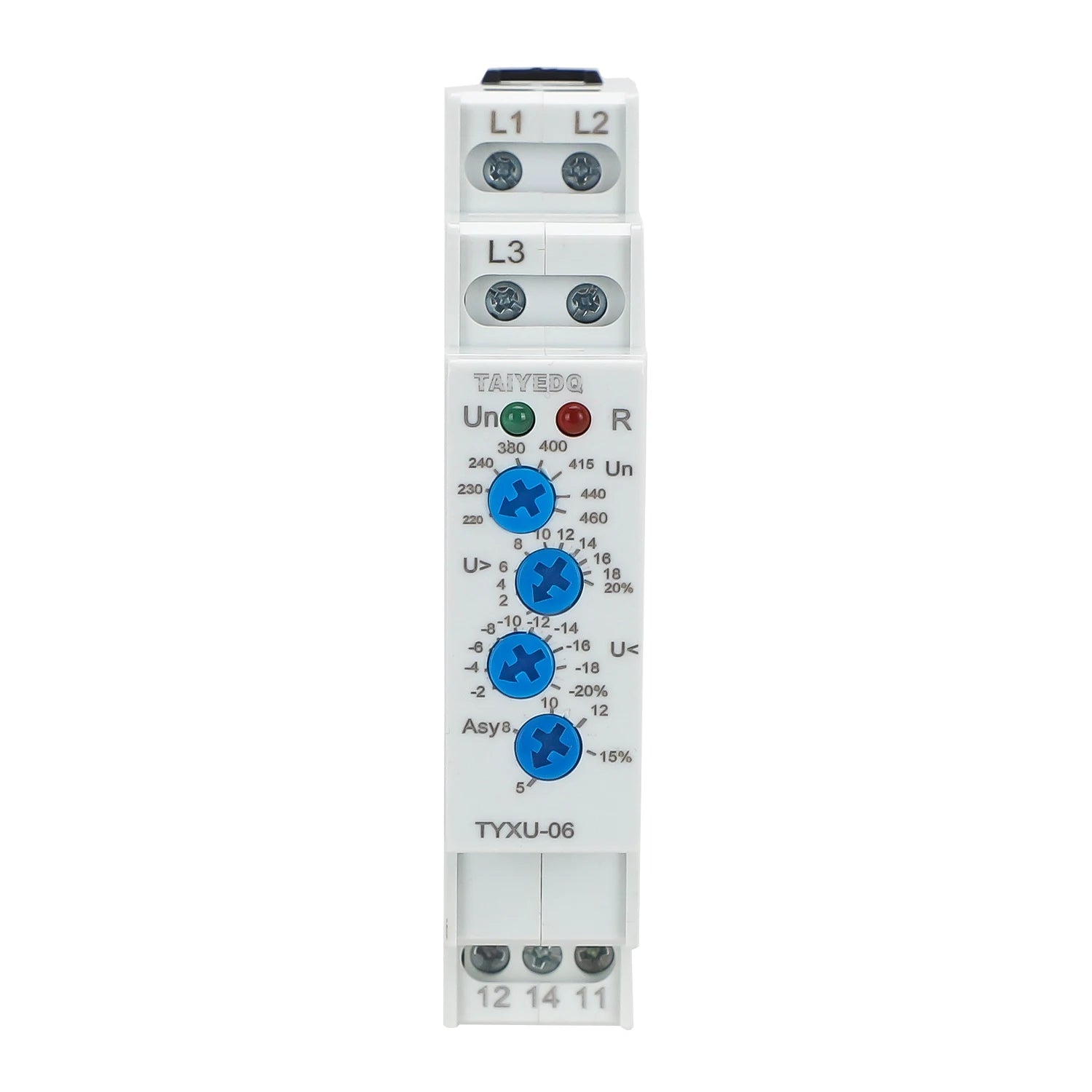

This link is TYXU-06

TYXU-06 M460

TYXU-06D M460

For mobile device connection control (on-site equipment, agricultural equipment, refrigerated trucks).

Protect equipment from accidents caused by reverse operation.

Normal/emergency power switch.

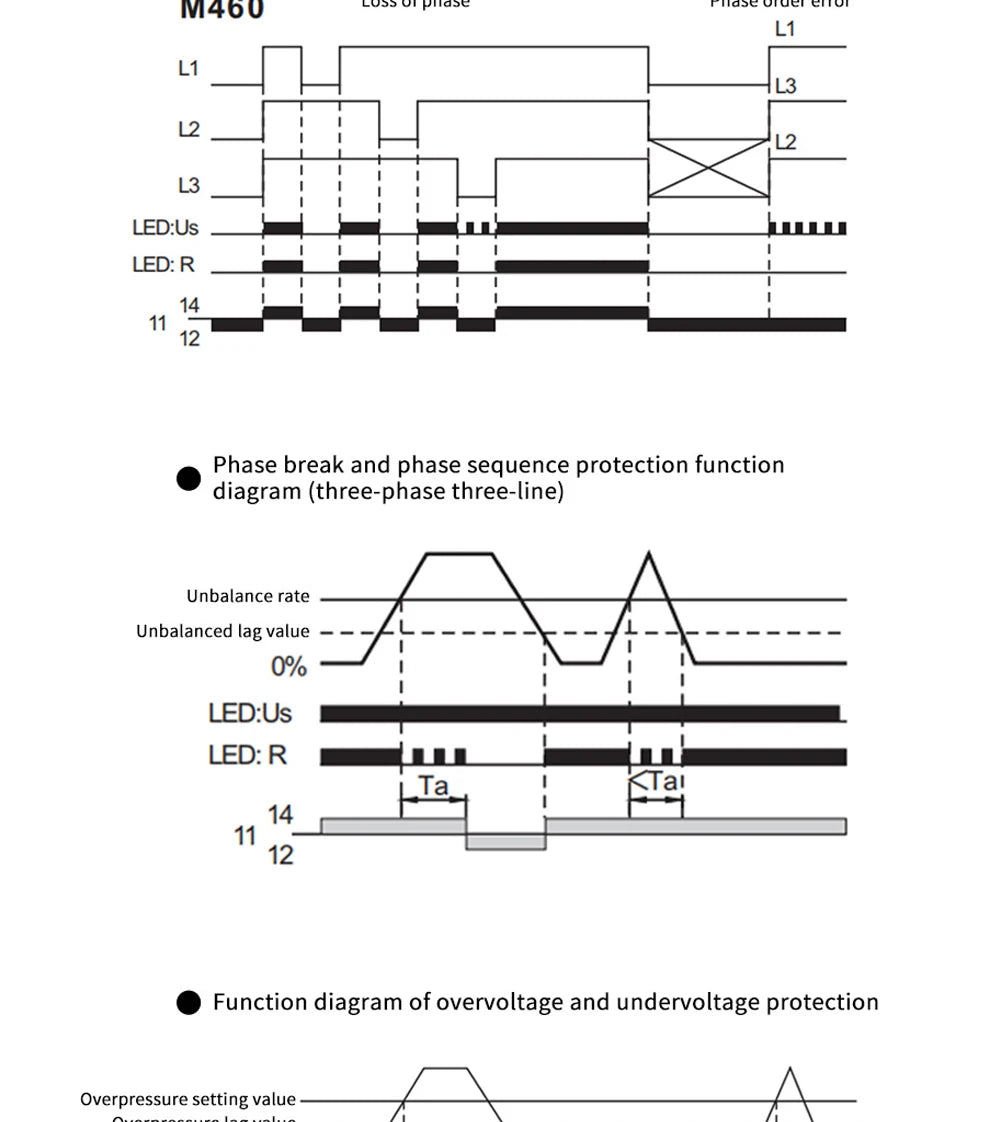

Prevent phase failure of power loads.

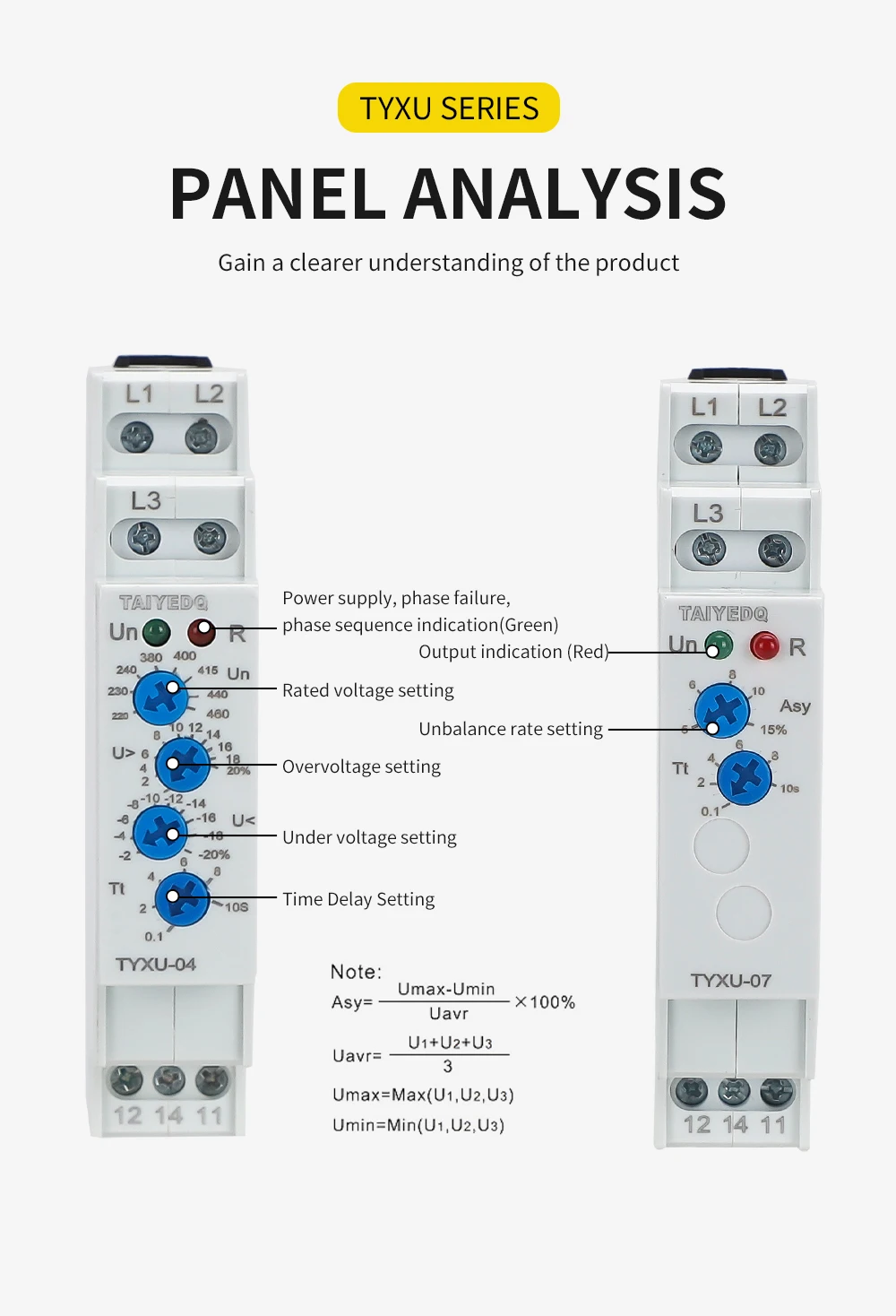

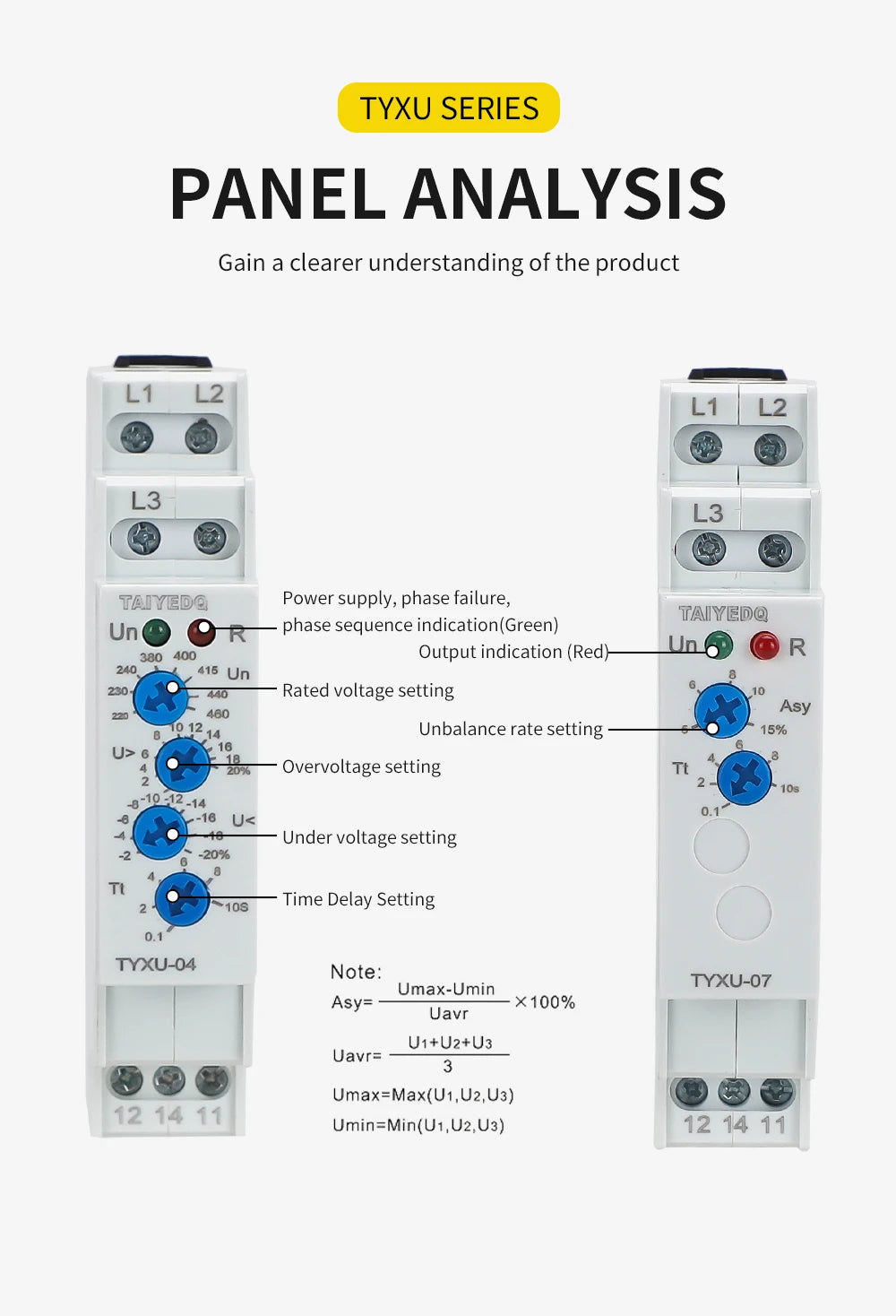

Characteristic

Monitor self working voltage (true RMS measurement)

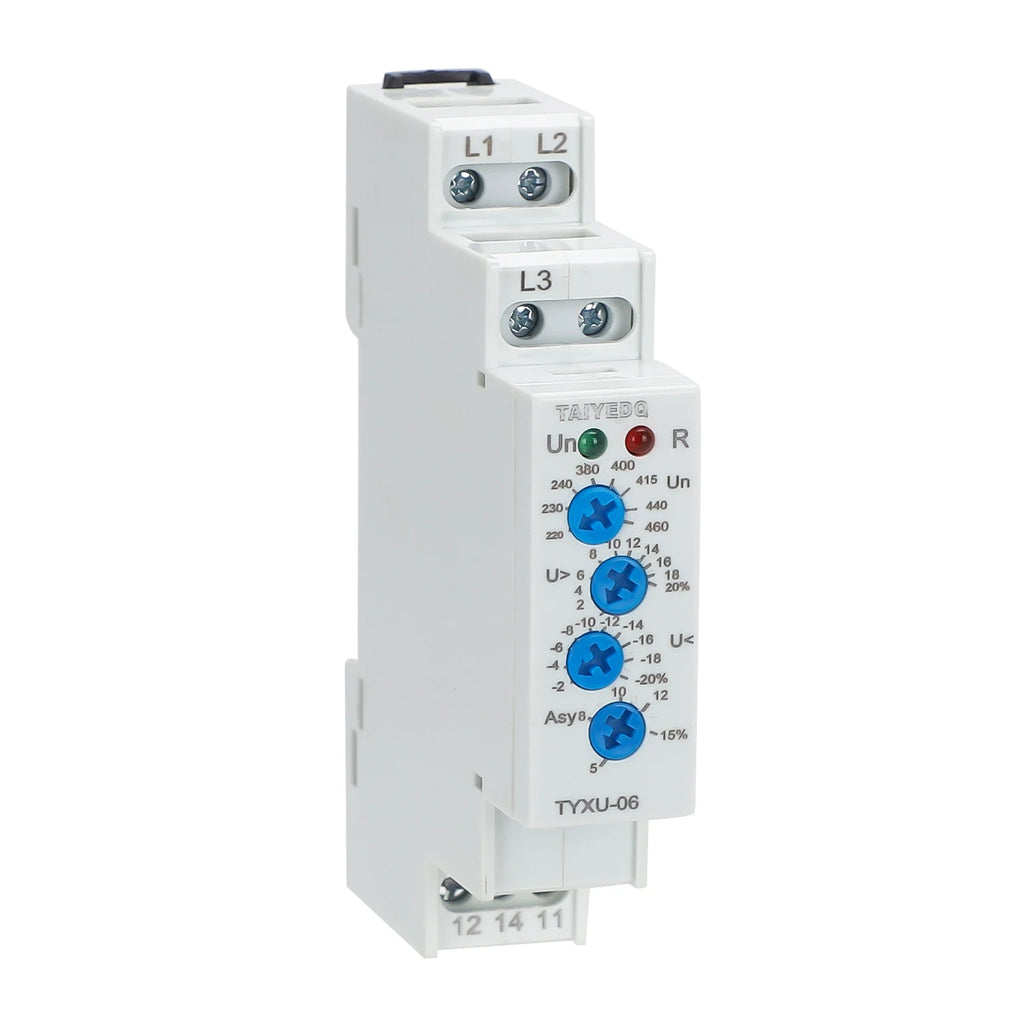

-8 types of rated voltage adjustable, suitable for voltage in various

regions around the world.

-Available in 3-phase 3-wire and 3-phase 4-wire specifications.

-Voltage measurement accuracy ≤1%.

-The working status of the relay is indicated by an LED indicator light.

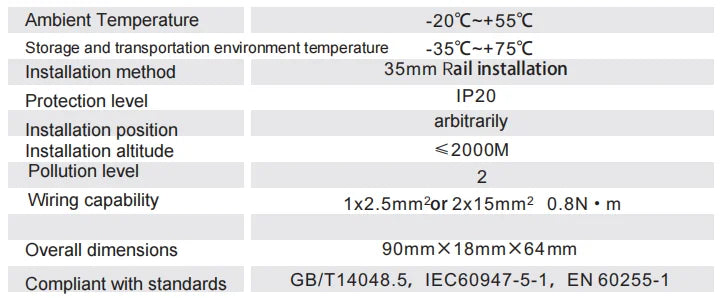

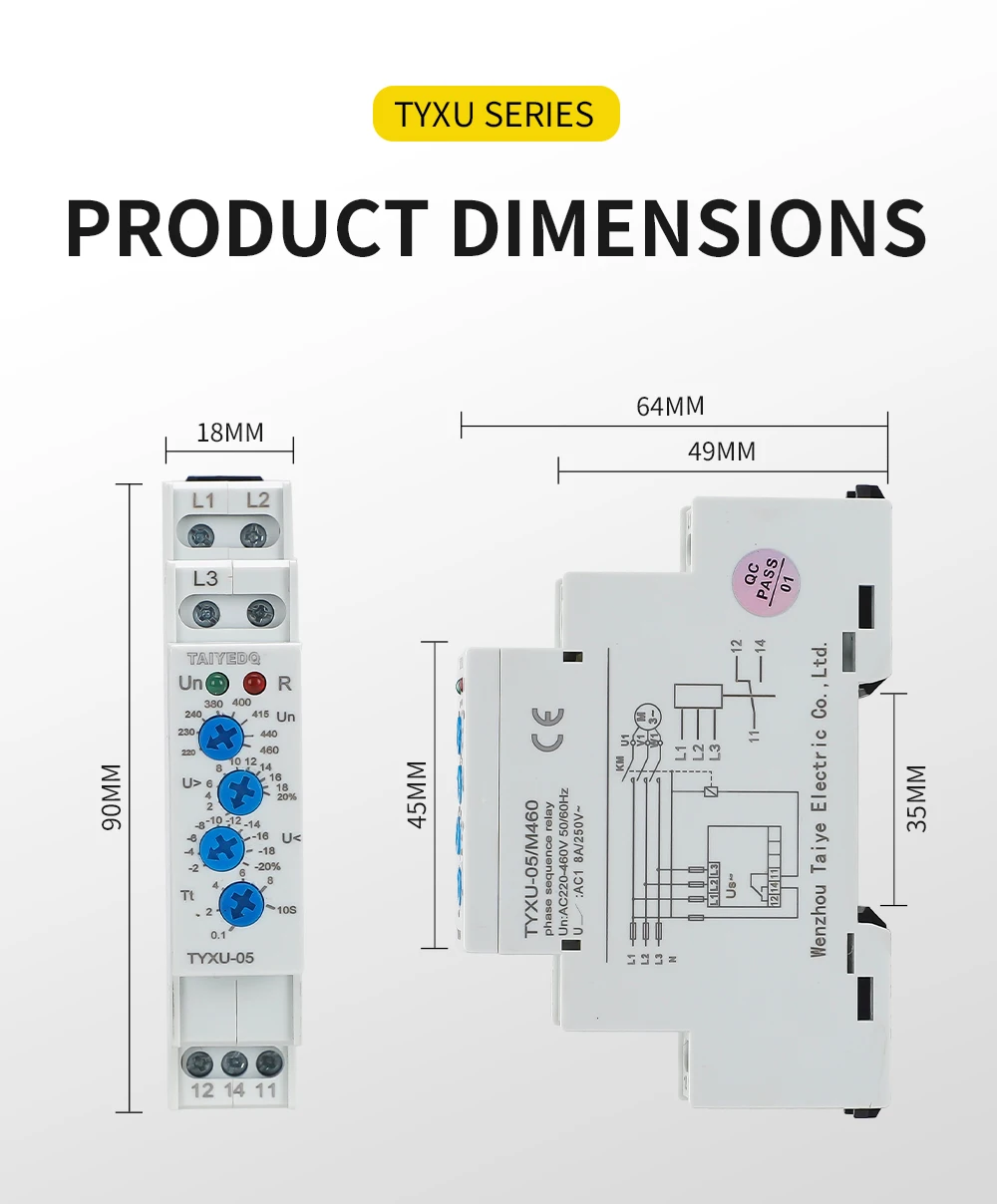

-Ultra small volume, only 18mm wide, 35mm clamp rail installation.
