SPECIFICATIONS

Applicable Object: Other

Brand Name: CNYANNUA

Certification: NONE

Contact Load: Low Power

Current: 8A or 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Frequency: 50/60 Hz

Function: overvoltage, undervoltage, unbalanced phase sequence protection, etc.

High-concerned chemical: none

Model Number: TYXU

Origin: Mainland China

Output Contact: 1SPDT OR 2SPDT

Power Source: Ac,Ac

Protect Feature: Sealed

Theory: Voltage relay

Use: General Purpose

Voltage: 460v,460V

is_customized: Yes

For mobile device connection control (on-site equipment, agricultural equipment, refrigerated trucks).

Protect equipment from accidents caused by reverse operation.

Normal/emergency power switch.

Prevent phase failure of power loads.

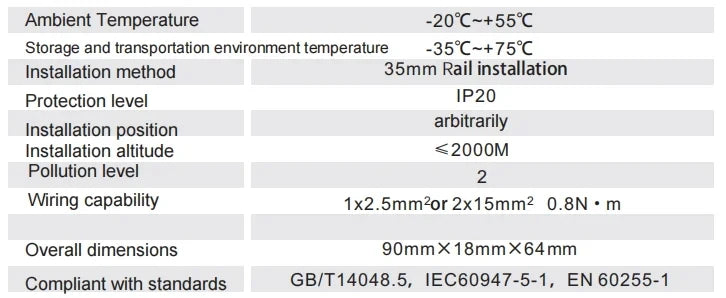

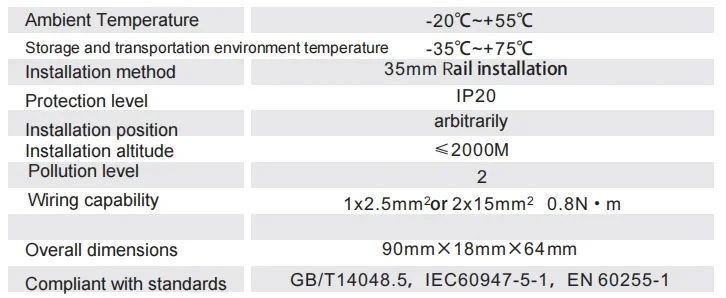

Characteristic

Monitor self working voltage (true RMS measurement)

-8 types of rated voltage adjustable, suitable for voltage in various

regions around the world.

-Available in 3-phase 3-wire and 3-phase 4-wire specifications.

-Voltage measurement accuracy ≤1%.

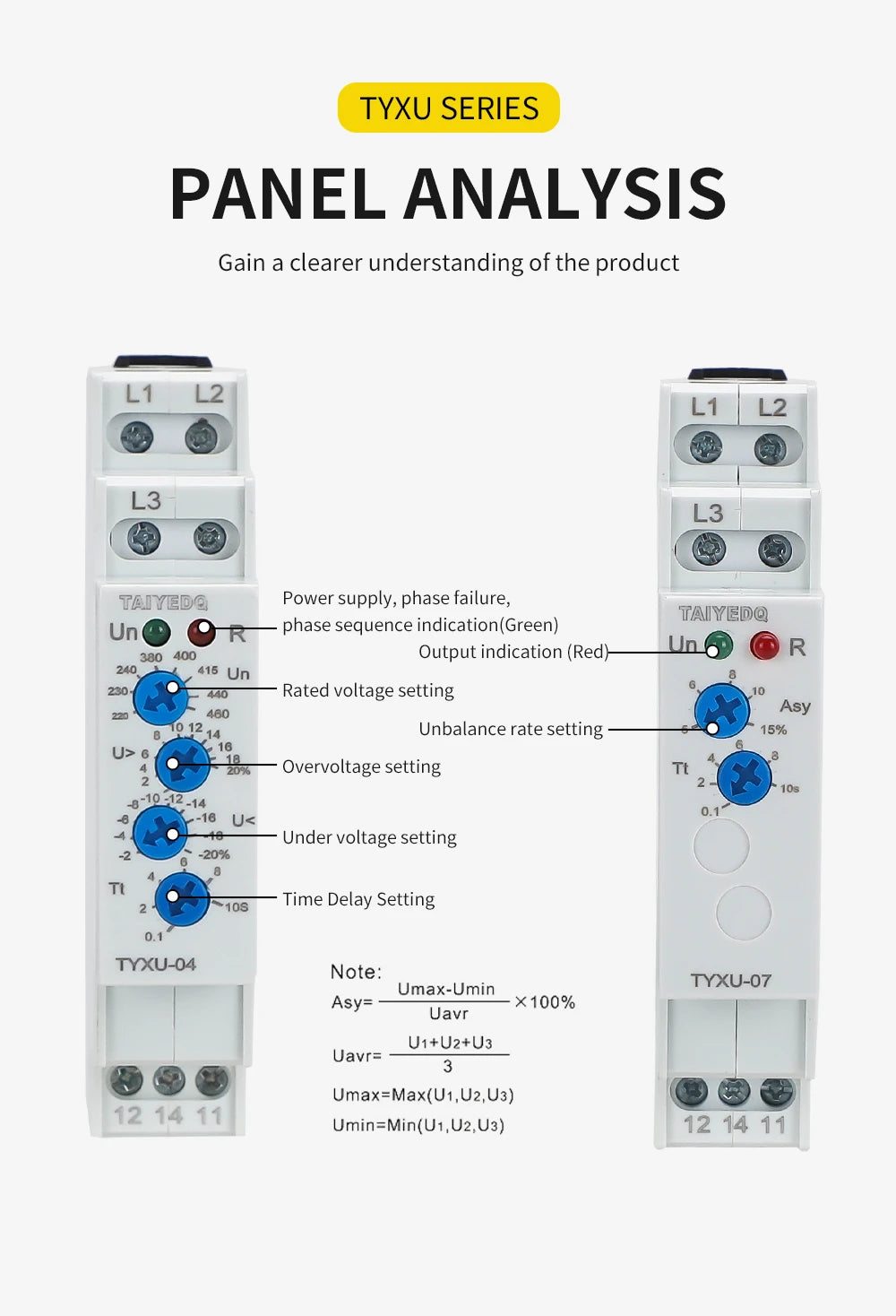

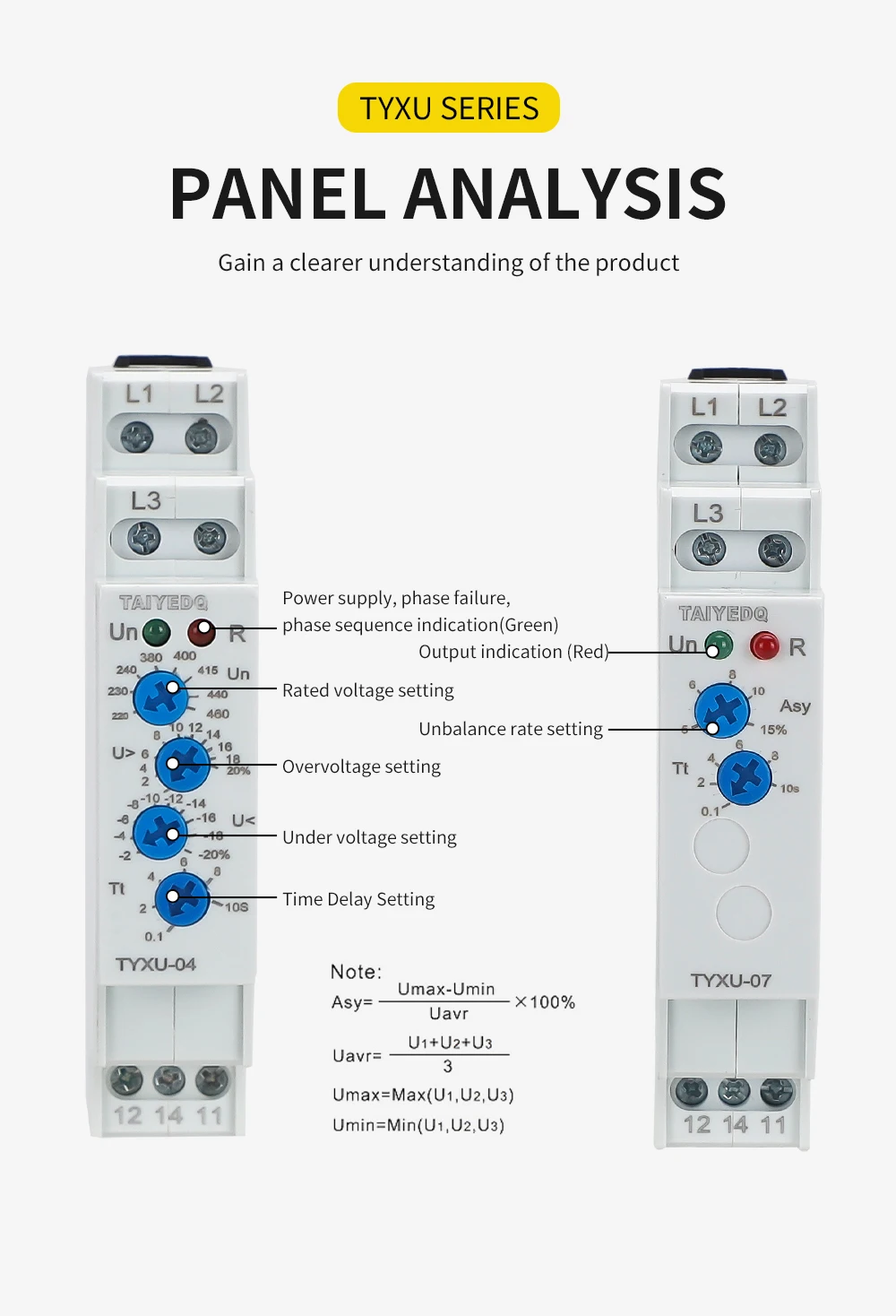

-The working status of the relay is indicated by an LED indicator light.

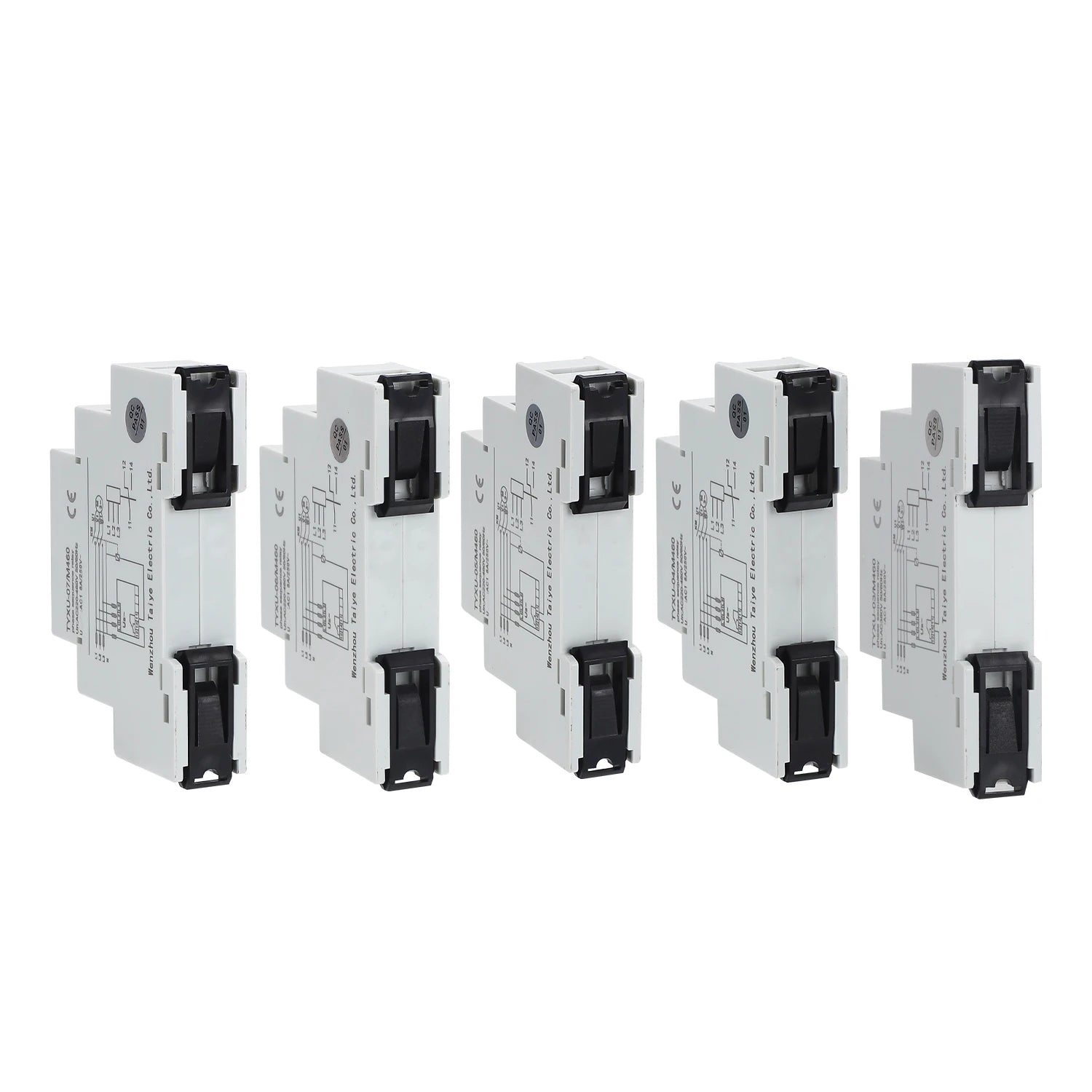

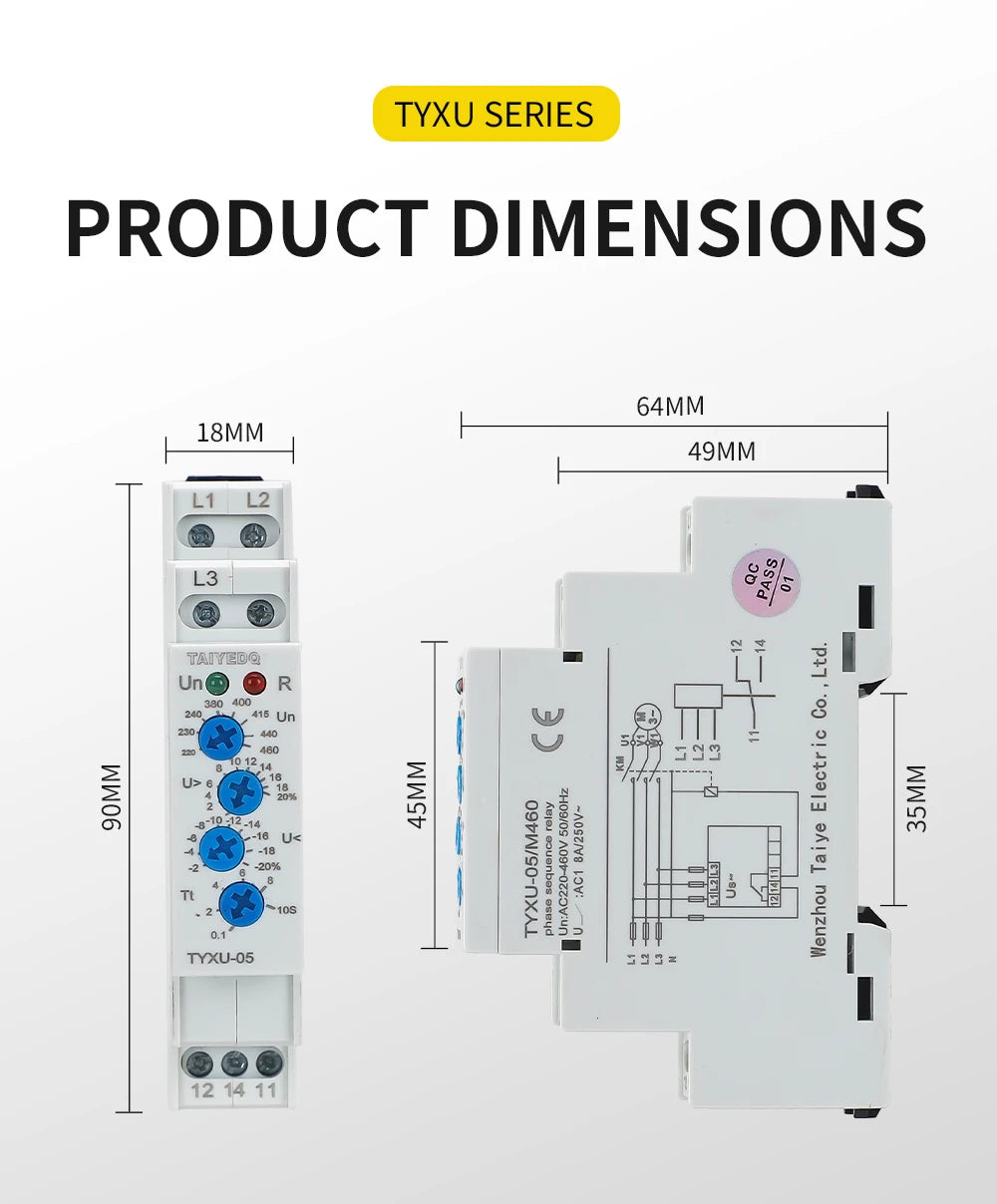

-Ultra small volume, only 18mm wide, 35mm clamp rail installation.

Package Included

You  choose
