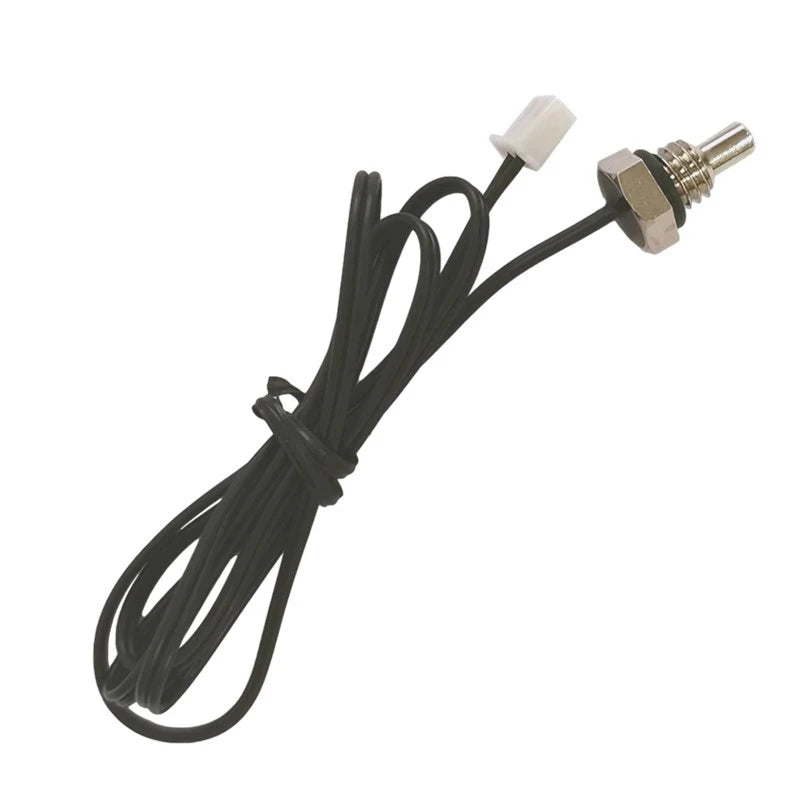

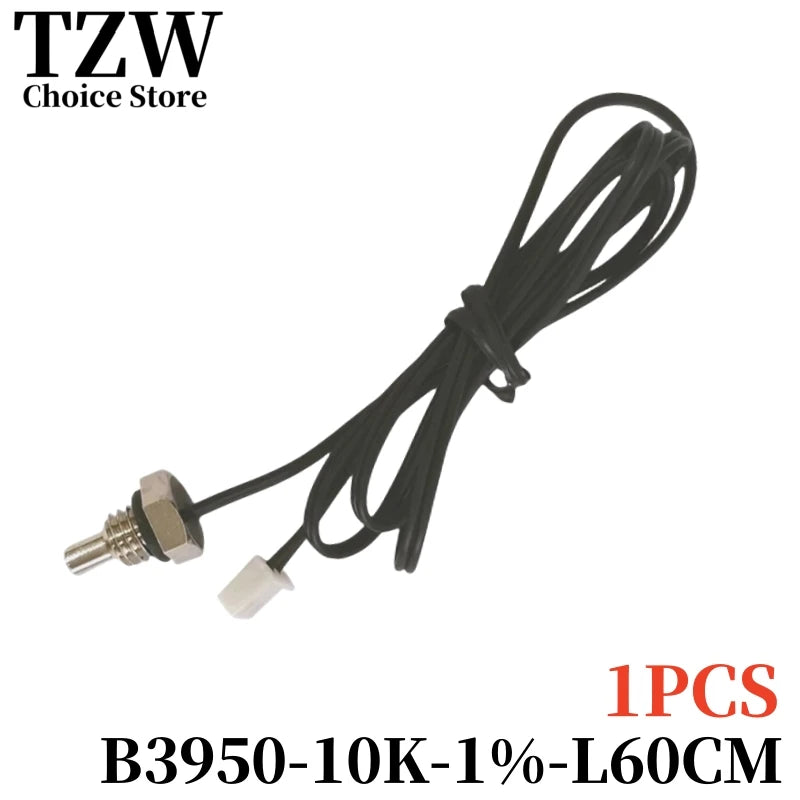

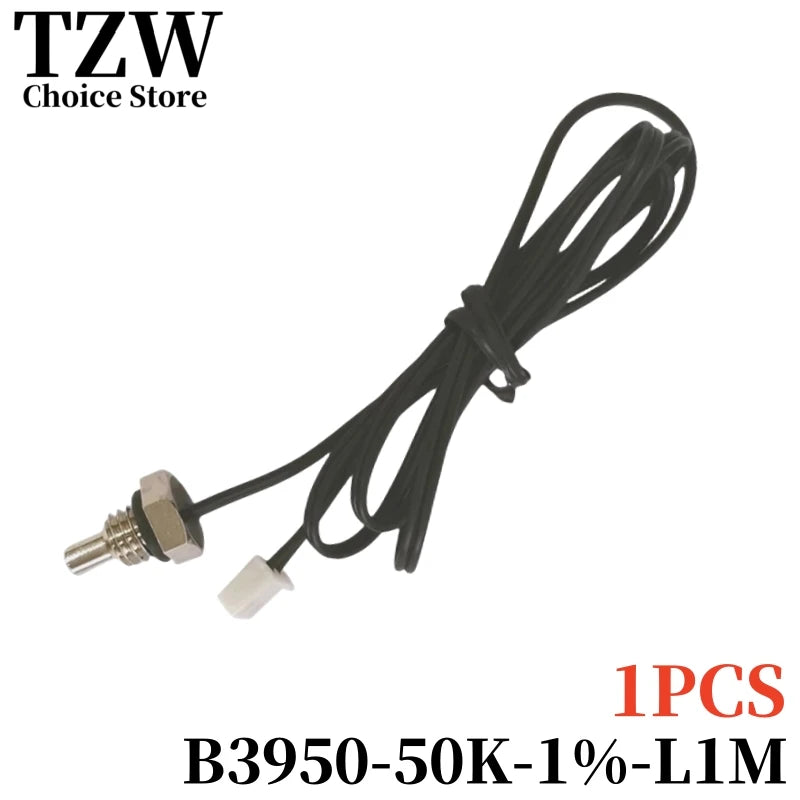

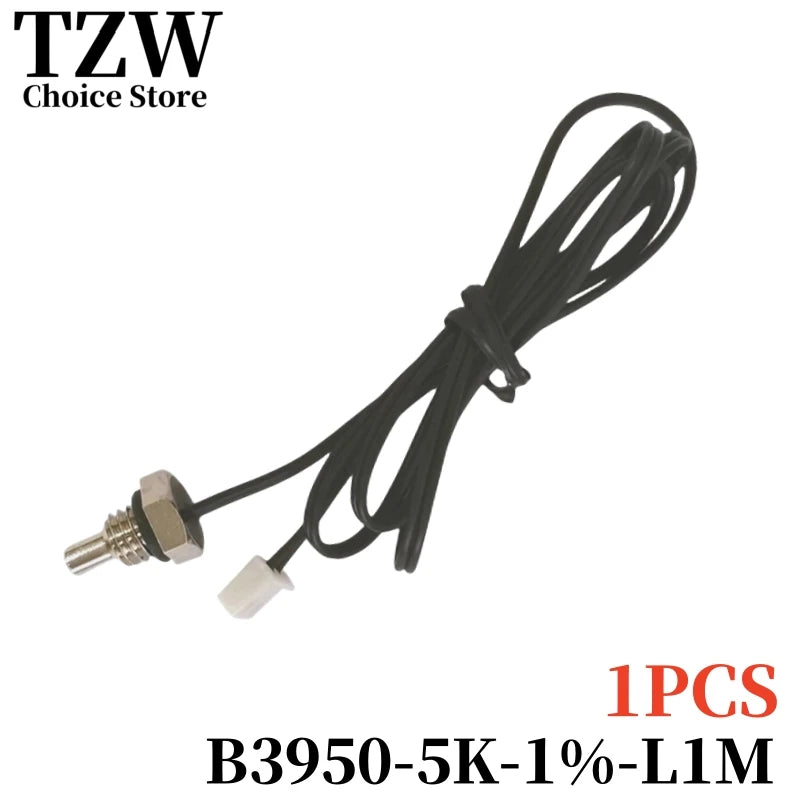

TZW NTC Thermistor Temperature Sensor M8 Hexagonal Thread Probe B3950 1% 5K 10K 15K 20K 50K 100K 60CM 1M 2M

TZW NTC Thermistor Temperature Sensor M8 Hexagonal Thread Probe B3950 1% 5K 10K 15K 20K 50K 100K 60CM 1M 2M

$12.20

$12.20 $0.00

Color 5K-1M 10K-1M 10K-60CM 15K-1M 10K-2M 50K-1M 20K-1M 100K-1M

Description

SPECIFICATIONS

B value: B3950-1%

Brand Name: TENGZHIWEI

Choice: yes

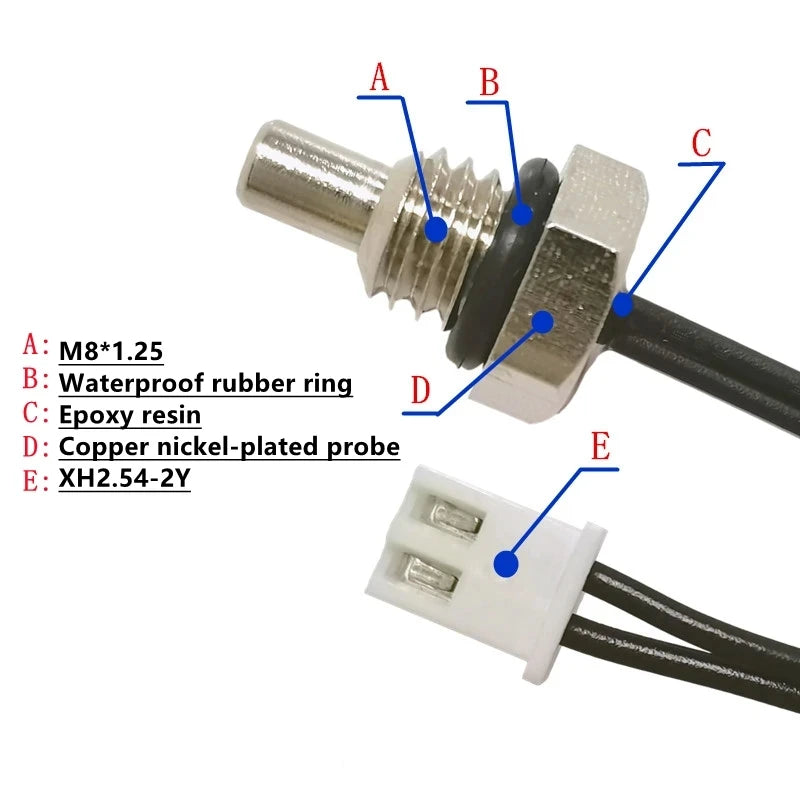

Head material: Nickel-plated copper

High-concerned chemical: none

Lead length: 60CM-1M-2M

Material: Mixture

Origin: Mainland China

Output: Analog Sensor

Packaging material: Epoxy resin

Resistance value: 5K-10K-15K-20K-50K-100K

Theory: Resistance Sensor

Type: Temperature Sensor

Use: Temperature Sensor

Wire rod: 2651 26AWG 105℃ 300V

is_customized: Yes

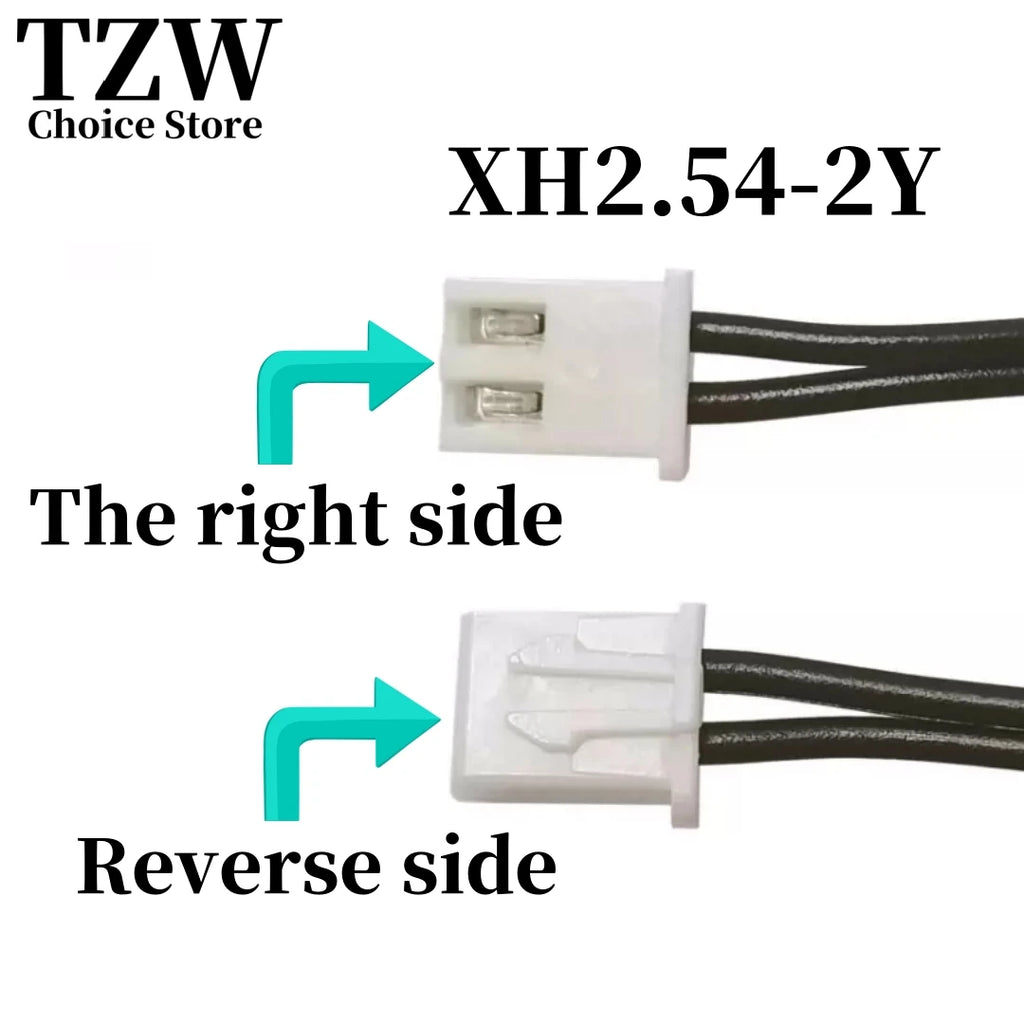

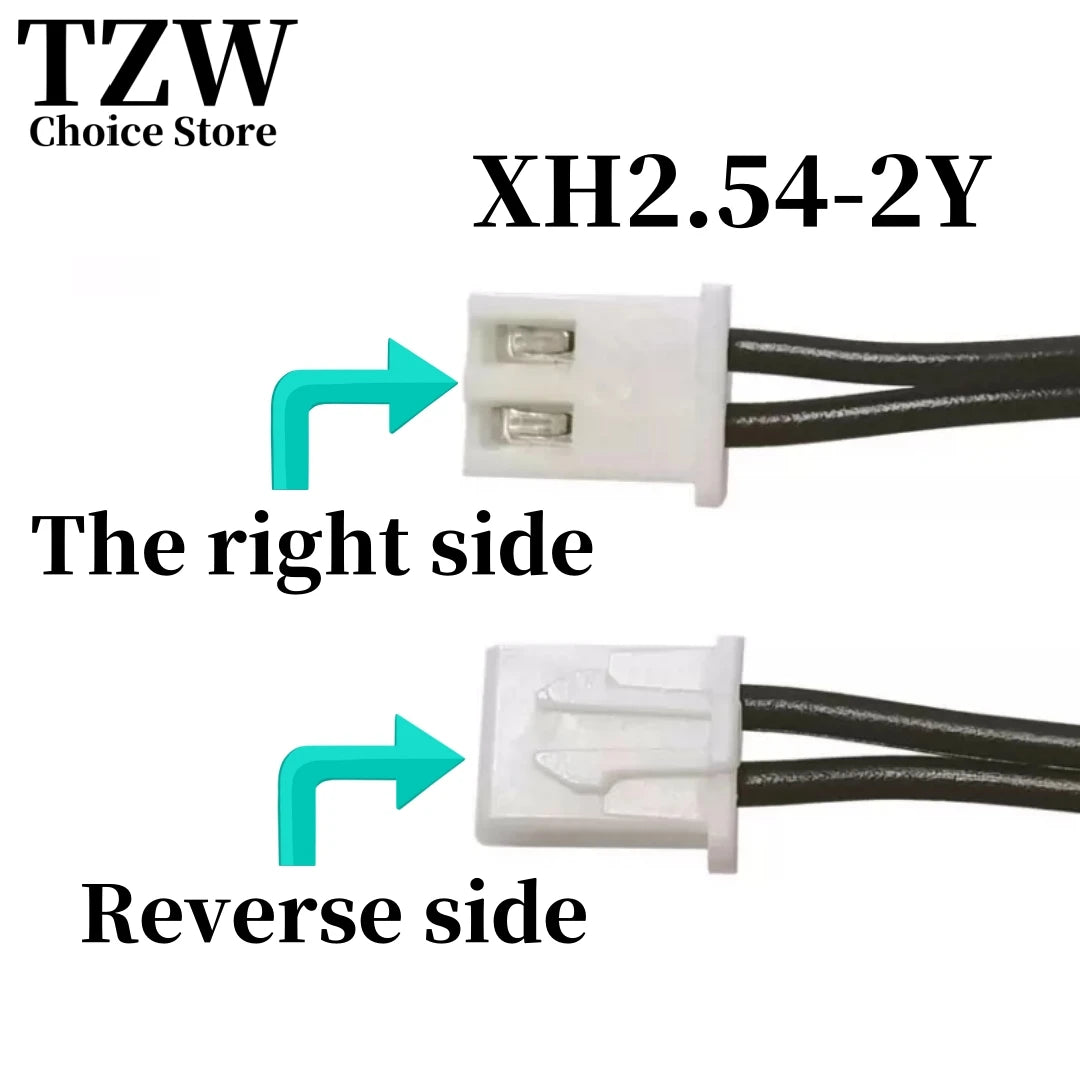

plug: XH2.54-2Y white

We are a company of manufacturing and selling NTC thermistor and temperature sensor. We custom-made a wide range of temperature
sensors to meet customers' different applications. If you are interested in our product or company, please feel free to contact us
for more information. We would be pleased to provide service for you.

The characteristic of our products:
Many kinds of high temperature resistance
Various shapes and mounting methods
More cable options
More connector options

product information

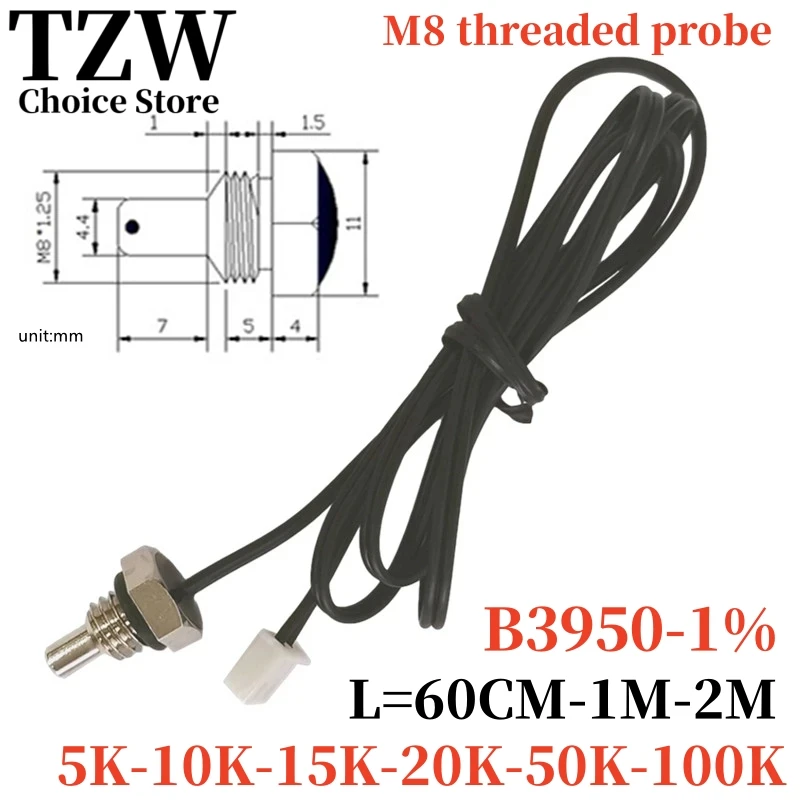

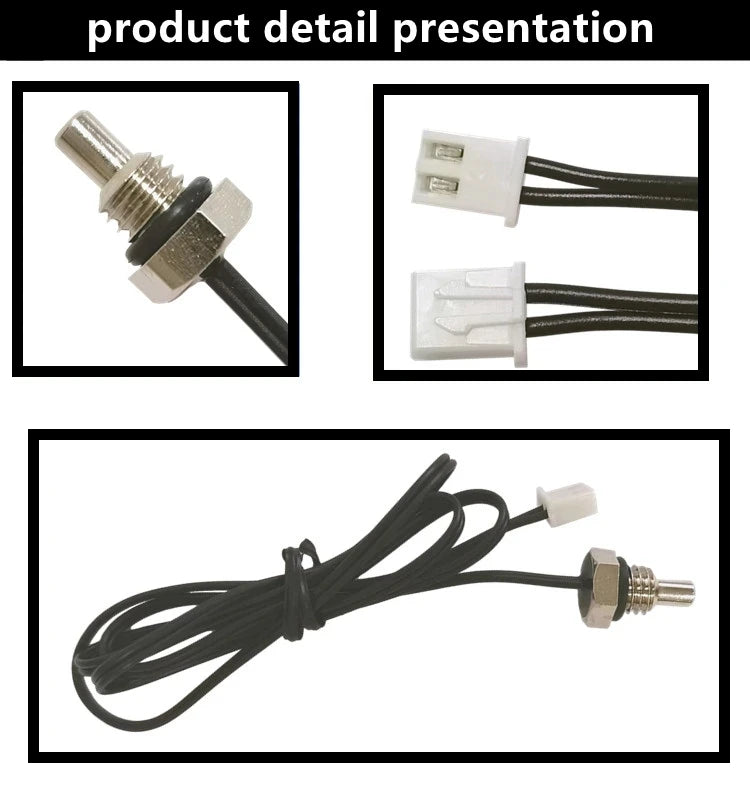

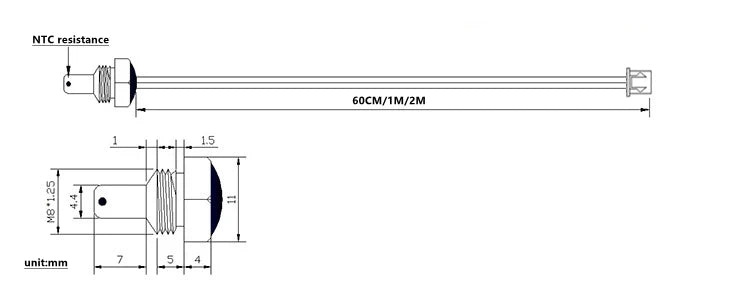

Product Type: M8 thread NTC temperature sensor

Common resistance value of the product: B3950 10K 50K 100K

Operating temperature range: -30~+125℃, stable work for a long time

Thermal time constant: about 10S

Withstand voltage in water: AC1800V*60S without breakdown and flicker

Waterproof rating: IP66 level

Product qualification: meet environmental protection requirements

Using room temperature resistance chip and epoxy resin encapsulation, the resistance value of the product will not shift, shell, and dissolve under high temperature and low impact.

It has heat resistance, cold resistance and very good stability, easy to install quickly, beautiful appearance, strong structure, quick temperature sensitivity, flexible custom size.

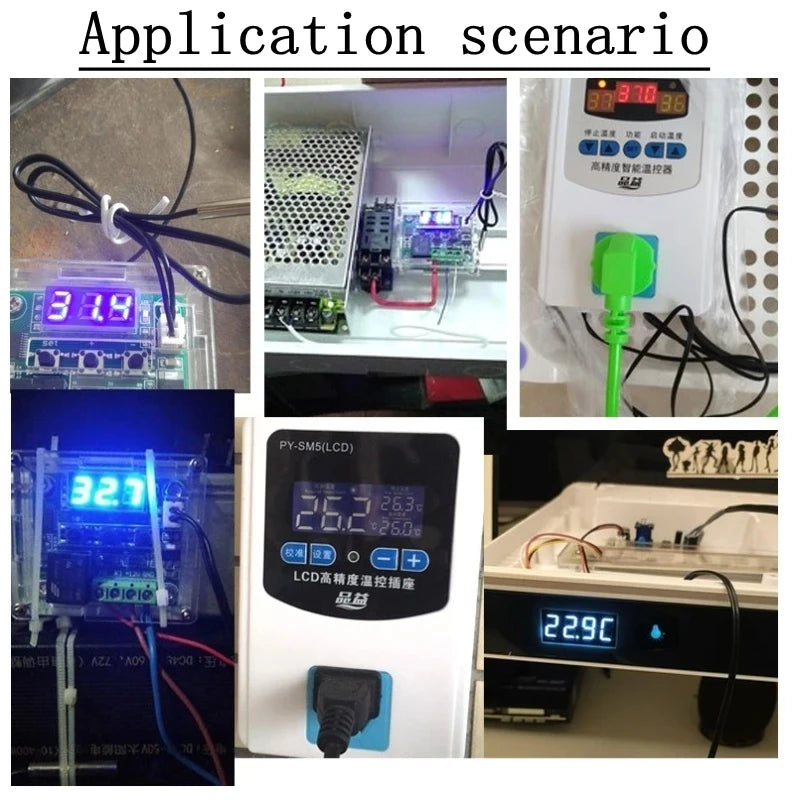

Product application range:

Temperature control instruments, indoor constant temperature, heaters, and other small household appliances and constant temperature temperature measurement, thermostats, breeding industry monitoring, floor heating thermostats, etc.

Product customization instructions:

⑴ The resistance value of the product (the nominal resistance value of the resistance at 25℃, or other)

⑵ Accuracy of the product (1%~5%)

⑶ B value coefficient of the product

⑷ Wire type and length (color, length, temperature resistance requirements)

⑸ Wire tail specifications (immersion tin, socket plug-in, special specifications)

⑹ Probe specifications and materials (nickel-plated copper, copper, stainless steel, ABS plastic shell)

⑺ Operating temperature range

Application area

More for choice

Sensor Spec	NTC 5K, 10K, 20K, 50K, 100K, etc. (5~100KΩ can be customized)
B value	3950K, 3435K, 3470K, 3977K, 3380K, others on request
Operating Temperature	-40~120 C, -40~300 C, or to be advised
Resistance Tolerance	1%, 2%, 3%, 5%

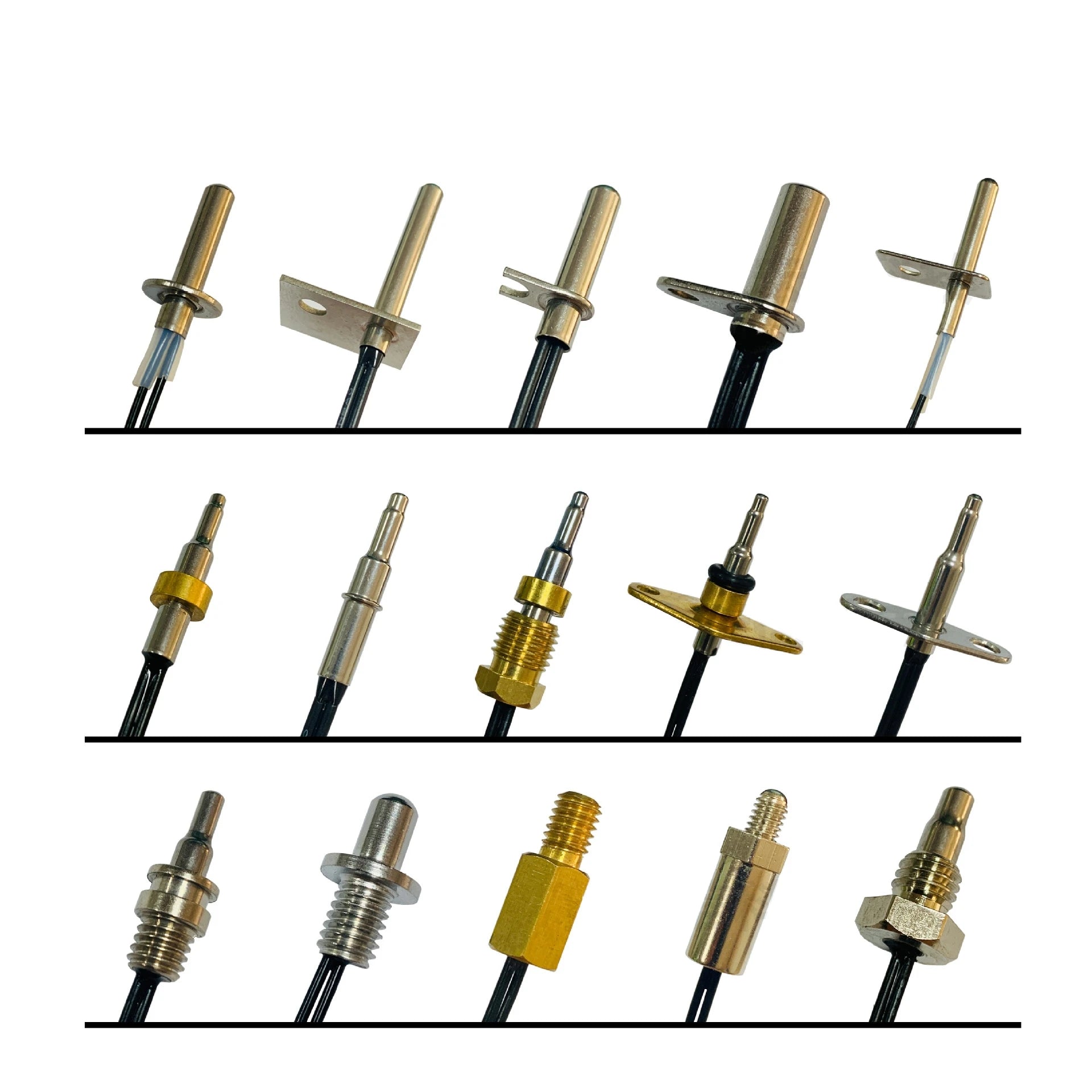

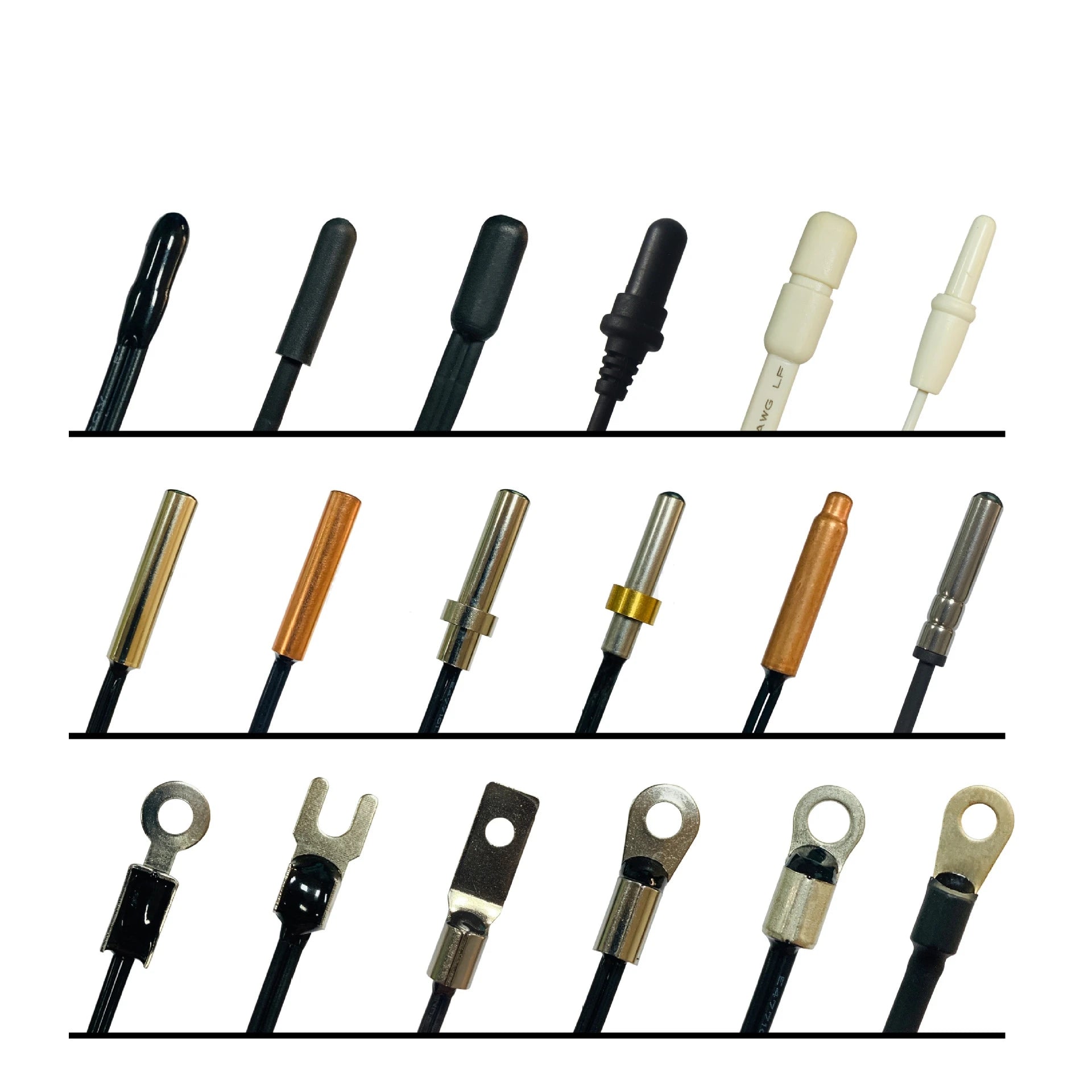

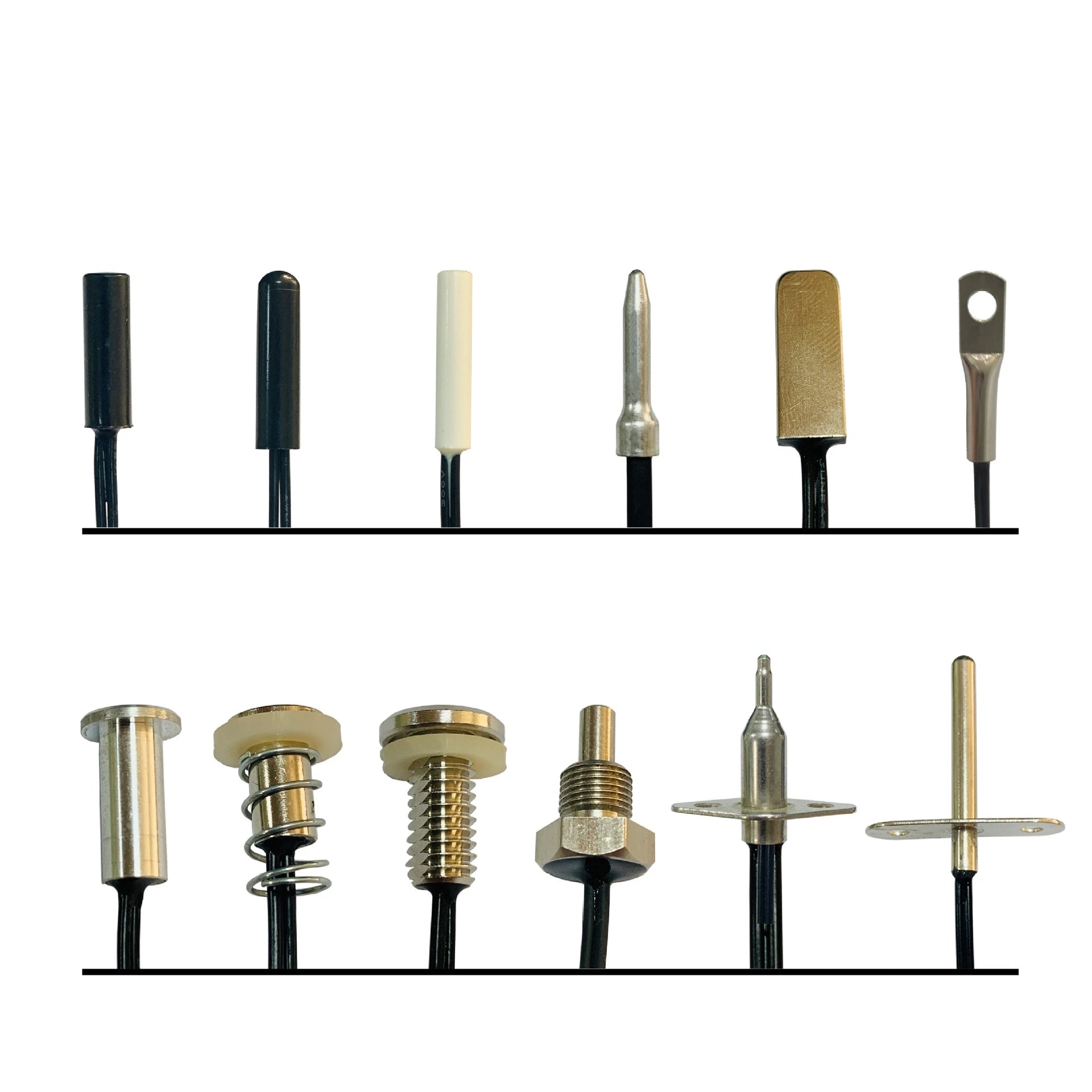

Protection Probe Type	bullet type, cylinder type, surface mounting type, screw type, Epoxy resin seal plastic injection probe, non-encapsulated probe, flange probe, micro-probe, clamp type, various coating configurations and shell materials are available
Housing Material	Nickel plated copper, brass, stainless steel, aluminum, ABS, PVC, PP, TPE, PTFE, PFA, silicone or to be advised
Cable	Teflon cable, PVC cable, Silicone cable, TPE cable, XL-PE cable, or to be advised by customer, Length customized
Connector	TJC3 2.54, SMR, SMP, 5566, 5264, PH, EH, XH, 557, etc.
Special Requirement	Waterproof, dust-proof, anti-corrosion, or others
There are many other type product for your choice, please click images below to browse details.
