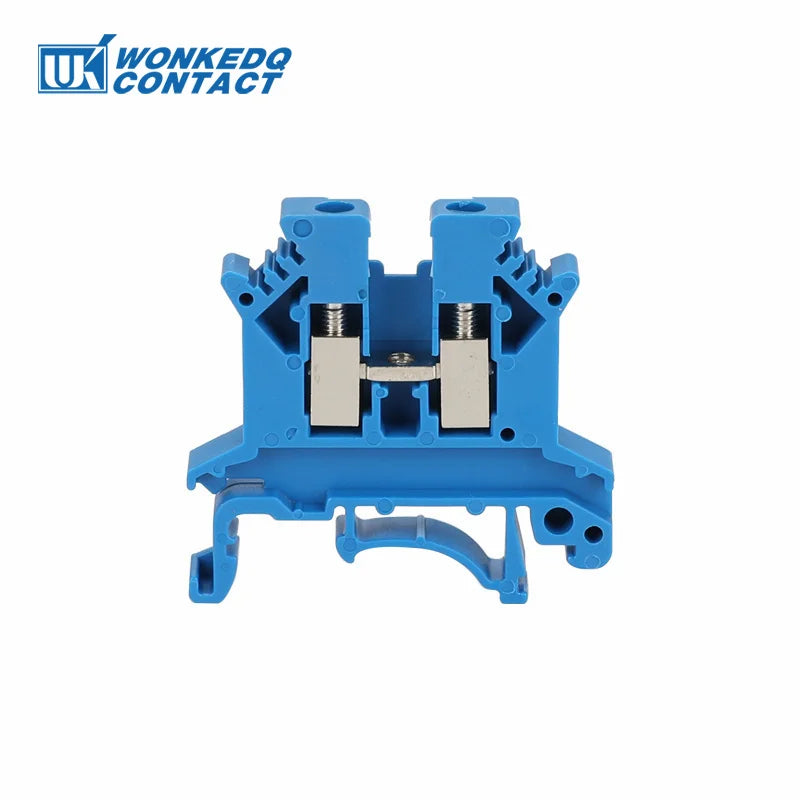

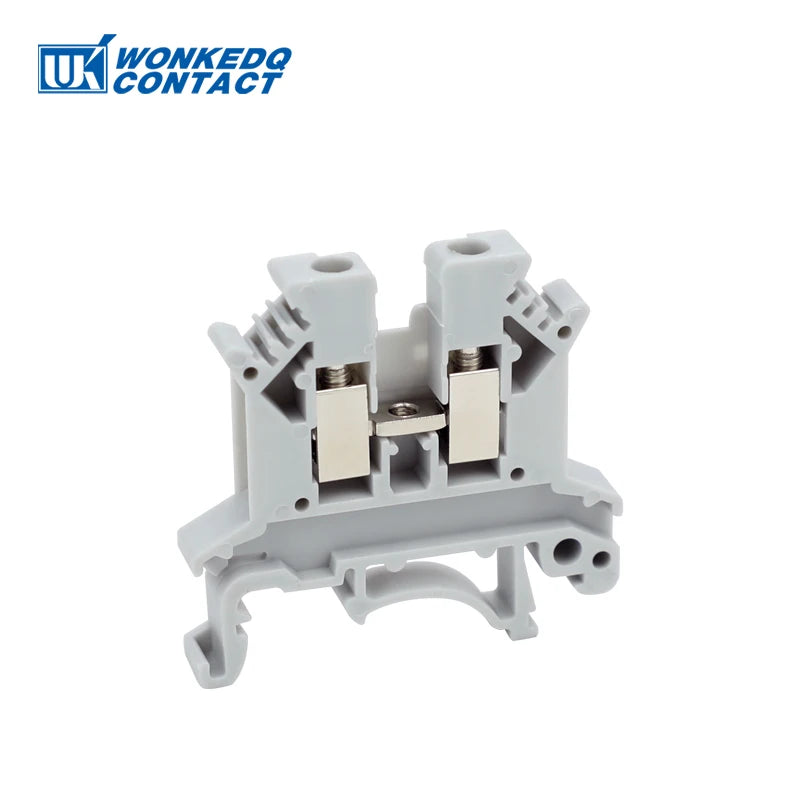

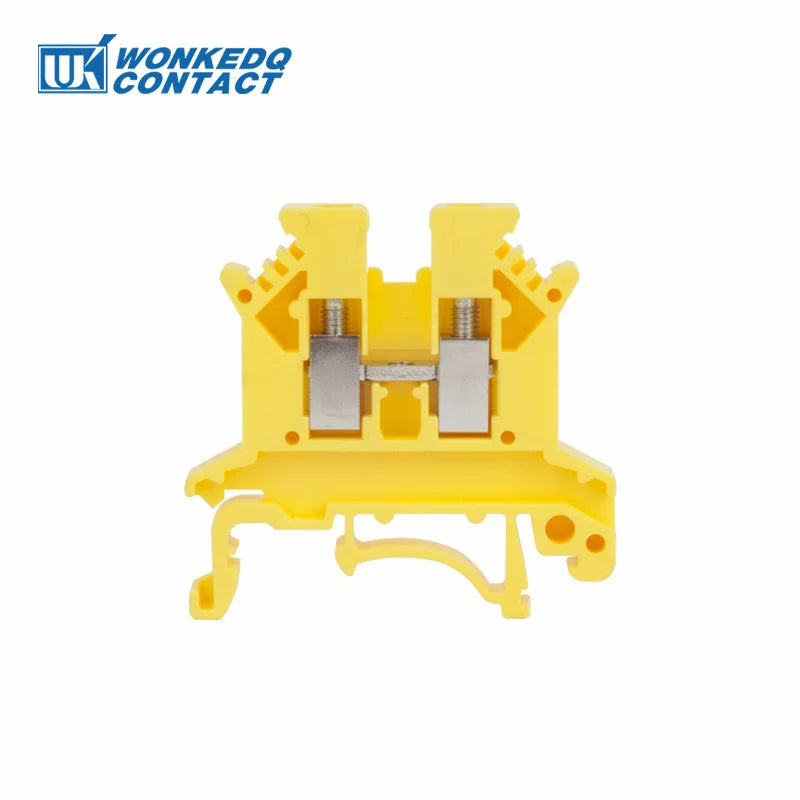

UK2.5B Six Color UK 2.5 mm² Universal Screw Din Rail Terminal Block Feed-through Strip Plug Wire Electrical Connector UK 2.5B
UK2.5B Six Color UK 2.5 mm² Universal Screw Din Rail Terminal Block Feed-through Strip Plug Wire Electrical Connector UK 2.5B
$124.08
$124.08 $0.00
Color
Pins
Description

SPECIFICATIONS

Application: Electrical wire conductor

Brand Name: WONKEDQ

Certification: CE,RoHS

Connection way: Screw

Cross section soft cable: 0.2-2.5mm2

Cross section solid cable: 0.2-4mm2

Current: 32A

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: UK2.5B UK 2.5B

Mounting Type: Din Rail

Origin: Mainland China

Size L/H/W: 42.5/41/6.2

Type: Screw Terminal

Usage: Distribution Panel

Voltage: 800V

is_customized: Yes

DESCRIPTION

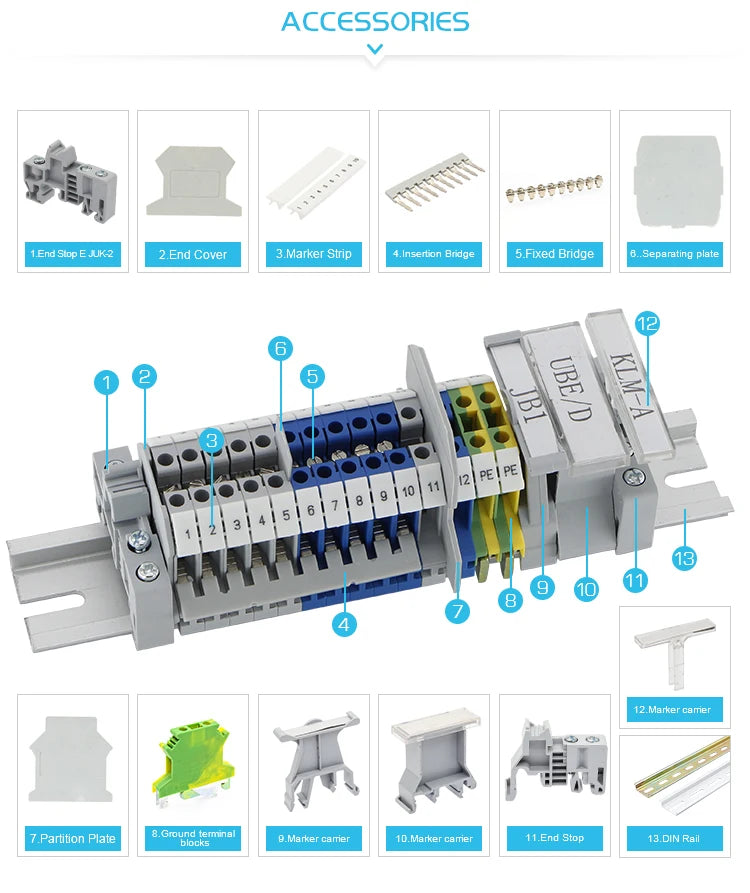

ACCESSORIES ( Click the pictures to the links)

END COVER
D-UK 2.5

FIXED  BRIDGE
FBI 2/3/4/10-6

PLUG-IN BRIDGE
EB10-6

MARKER STRIPS
ZB6

MARKER CARRIER
B1

MARKER CLIPS
KLM-A

DIN RAIL
NS35-S

END STOP
E-UK


Type No.

Size

Pictures


UK3N

800V/32A

0.2-4mm²/0.2-2.5mm²

L42.5/H46.2/W5.2 mm

Buy

UK5N

800V/41A

0.2-6mm²/0.2-4mm²

L42.5/H46.2/W6.2 mm

Buy

UK10N

800V/76A

0.5-16mm²/0.5-10mm²

L42.5/H46.2/W10.2 mm

Buy

DIKD1.5

250V/32A

0.2-4mm²/0.2-2.5mm²

L73/H54.5/W6.2 mm

Buy

UDK-4

690V/32A

0.2-4mm²/0.2-4mm²

L64/H46.2/W6.2 mm

Buy


Type No.

Details

Accessories

UK 2.5B

800V/32A

0.2-4mm²/0.2-2.5mm²

L42.5/H41/W6.2 mm

End cover:
D-UK 2.5

Fixed bridge:
FBI 10-6

Insertion bridge:
EB 10-6

Marker strip:
ZB6

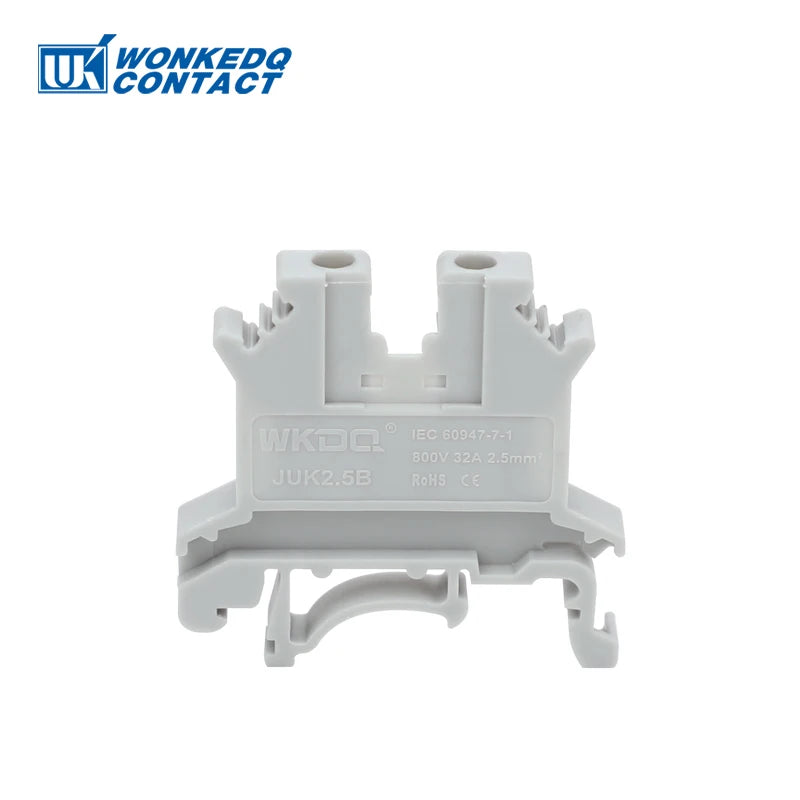

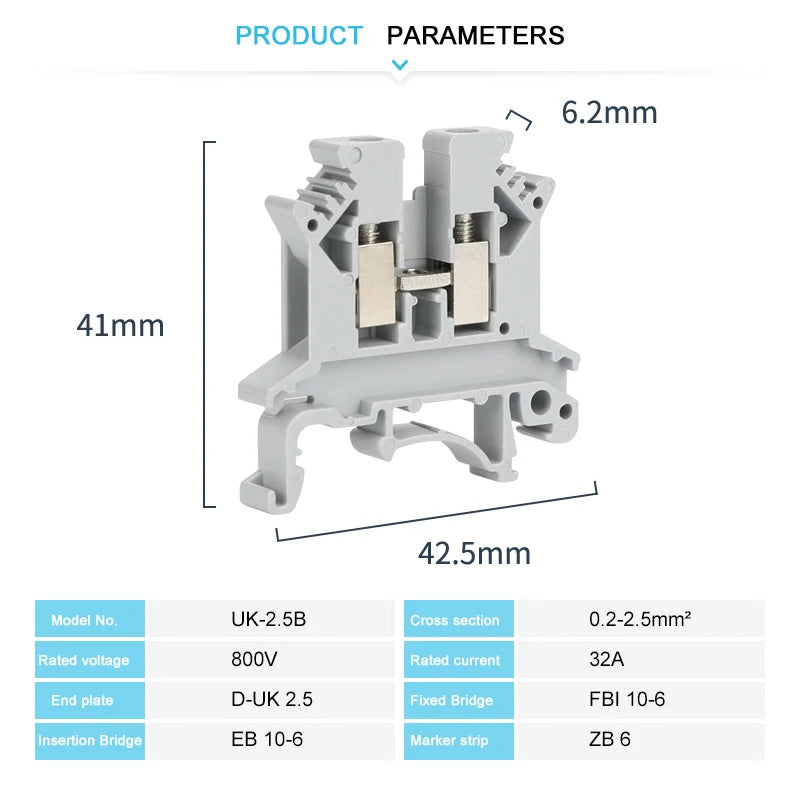

TECHNICAL PARAMETERS

Model Number

UK 2.5B

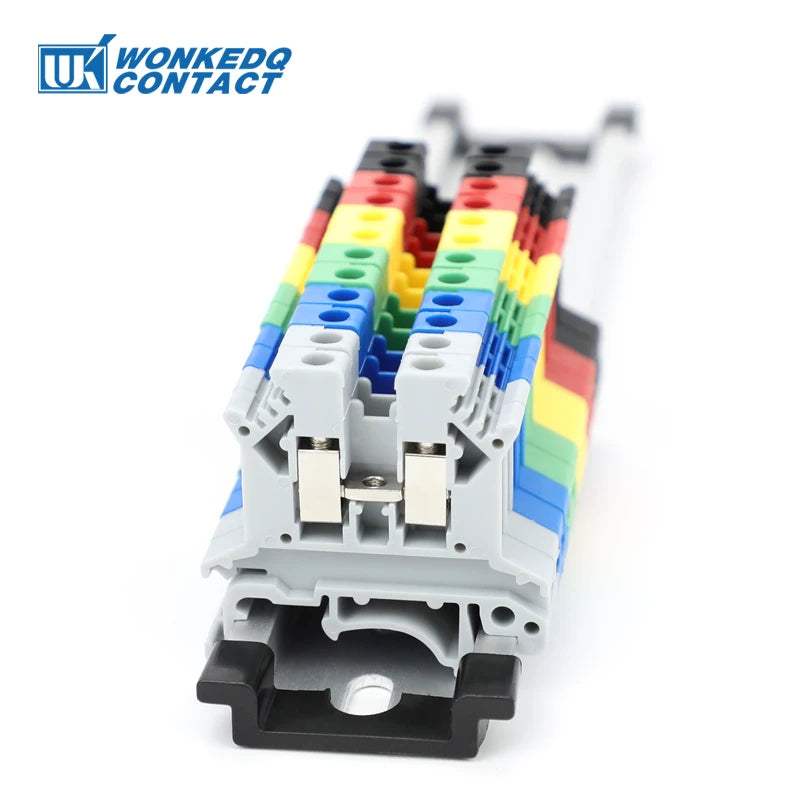

Color

Grey, Blue, other color can be customized

Length/Height/Wide (mm)

L42.5/H41/W6.2 mm

Connection method

Screw connection

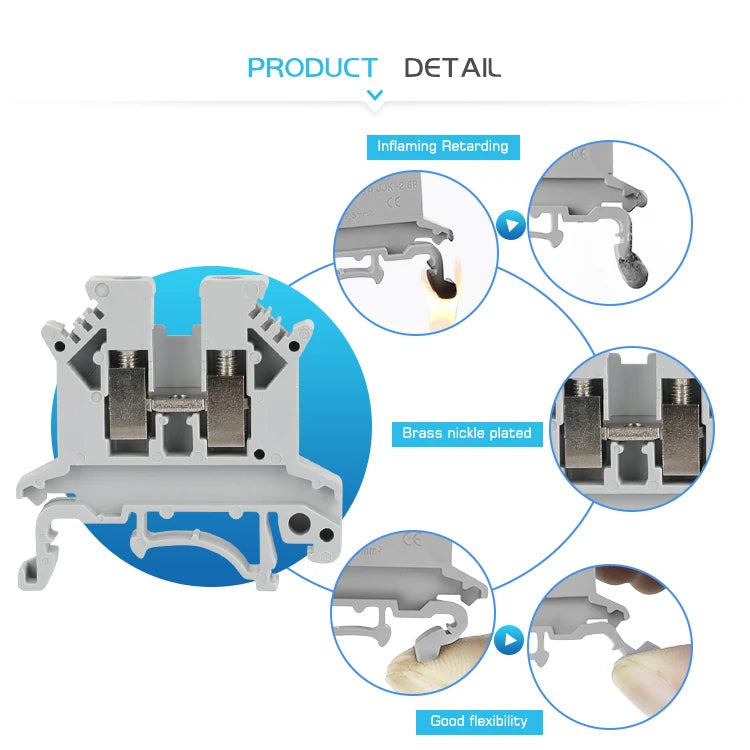

Material

Nylon PA66

Rated Voltage/Current

800V/32A

Cross section, solid/soft Cable

0.2-4mm²/0.2-2.5mm²

Conductor Size

24-12 AWG

Mounting Type

NS 35/7.5

Standard

IEC 60947-7-1

LOGO

Customized logo are supported

Certification

CE/RoHS/CQC/ISO 9001
