UKK 80A-500A High Current DIN Rail Power Distribution Block One Input Multiple Output Electrical Terminal Connector ```

UKK 80A-500A High Current DIN Rail Power Distribution Block One Input Multiple Output Electrical Terminal Connector ```

$46.64

$46.64 $0.00

Color Green Blue Red Yellow

Number of Position 160A 250A 400A 500A 80A 125A

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Model Number: UKK

Number of Contacts: 1 - 10

Origin: Mainland China

Type: Screw

semi_Choice: yes

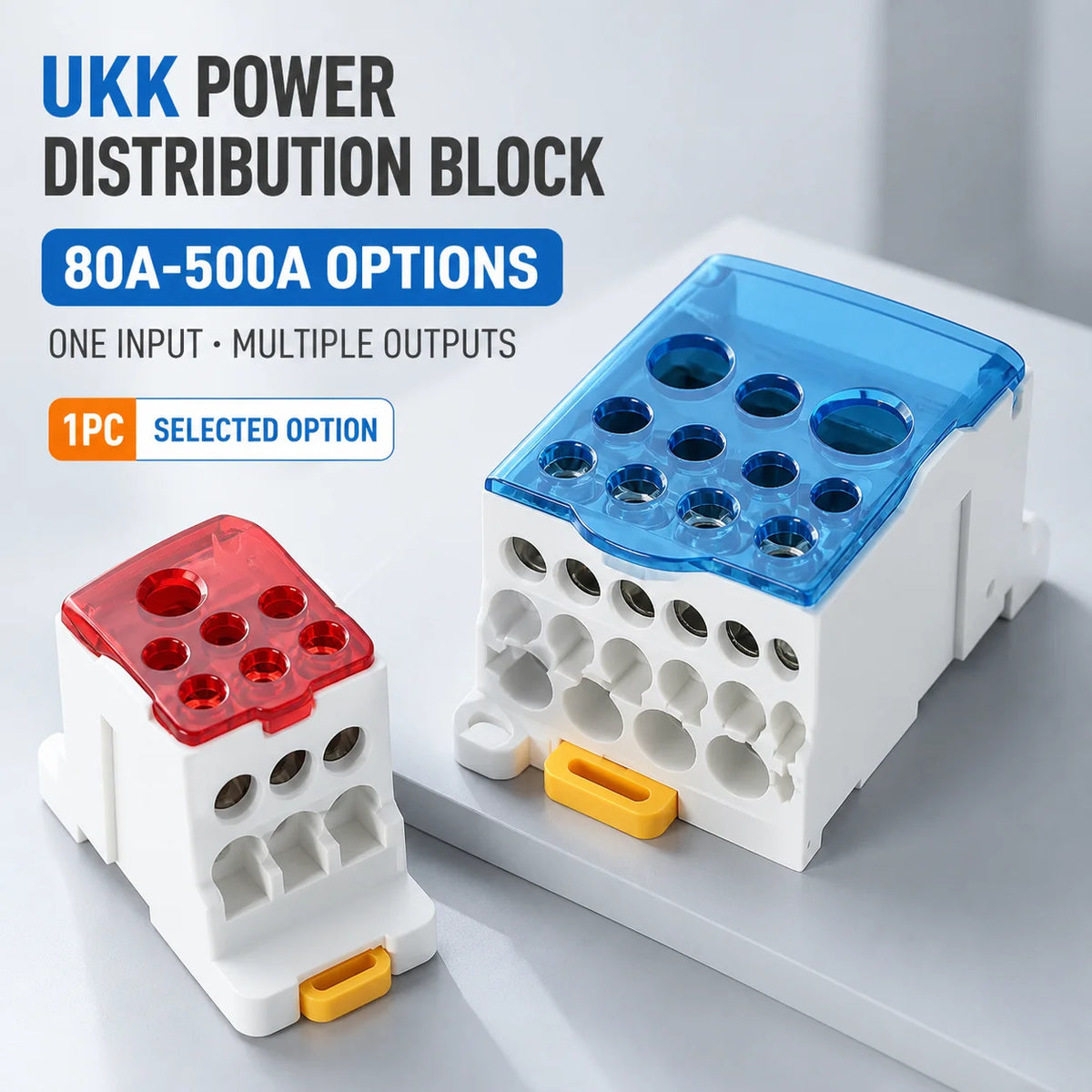

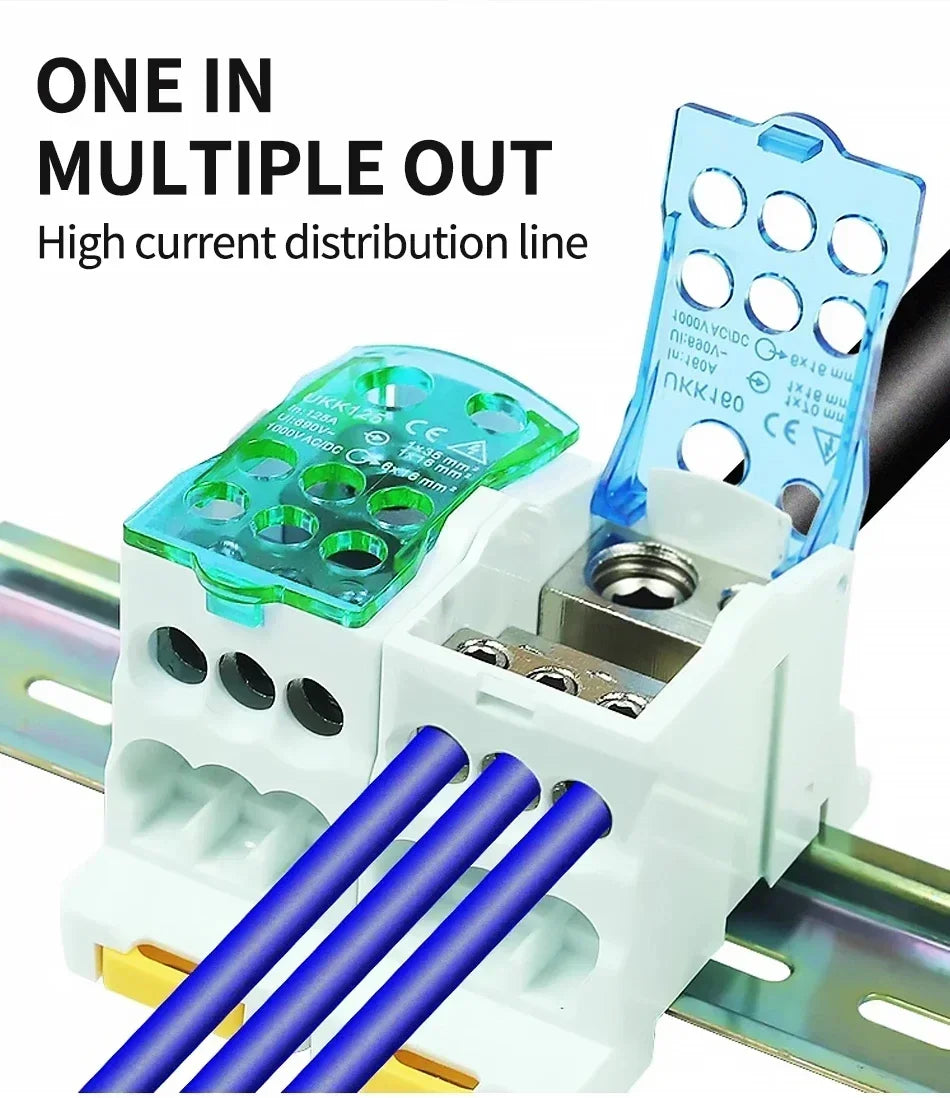

UKK Series High-Current DIN Rail Terminal Block & Power Distribution Box

Optimize your electrical panel wiring with our industrial-grade UKK Series Power Distribution Blocks, as displayed in image image_e49f95.jpg. Engineered for heavy-duty power management, these high-current rail terminals allow a single main power input line to be safely split into multiple circuits. With support for a massive current range from 80A up to 500A, a standard 35mm DIN rail mountable design, and a flame-retardant safety cover, it provides a compact, organized, and reliable solution for industrial control cabins, automation systems, and main switchboards.

### Key Product Advantages:

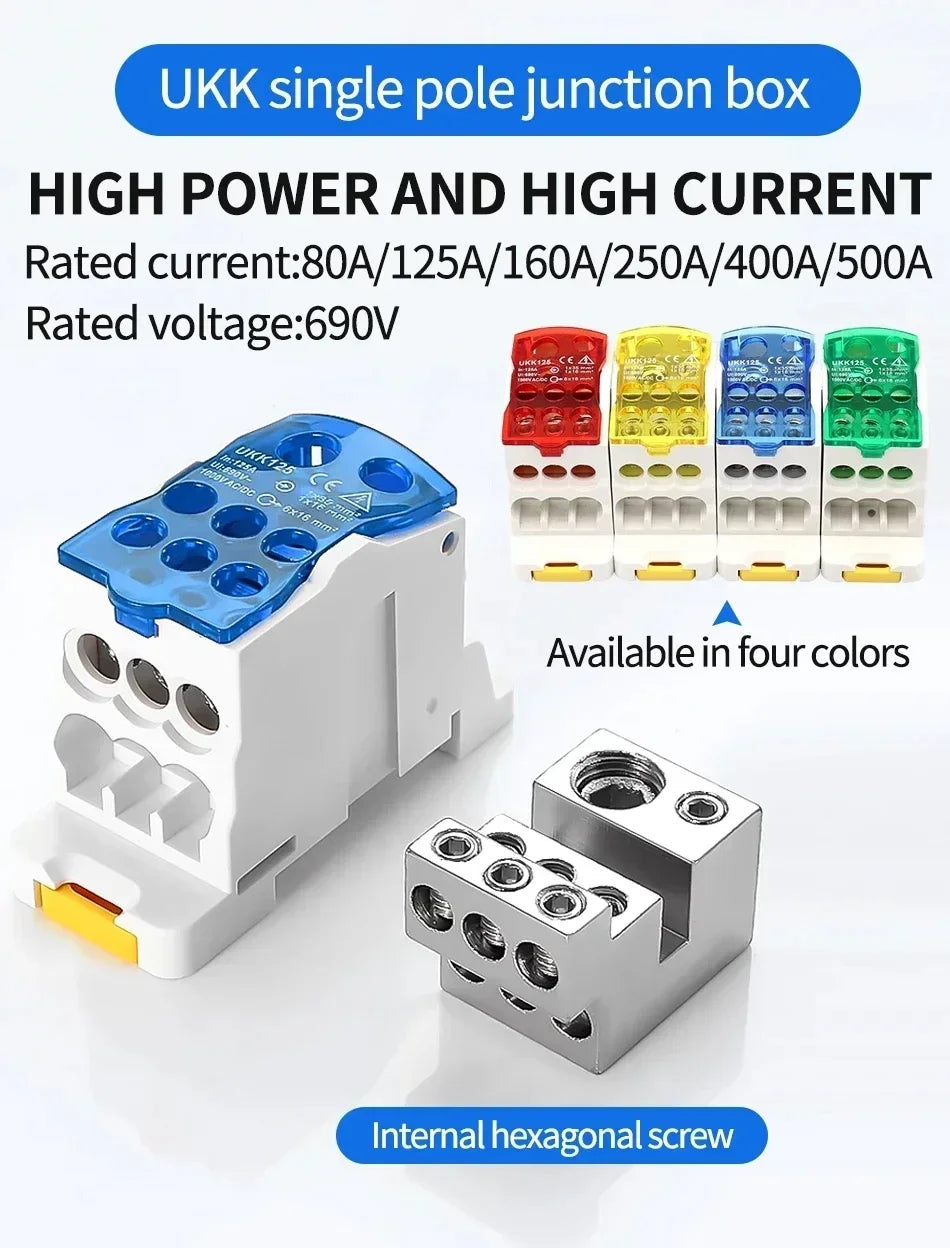

High Current Capacity (80A to 500A): Available in various multi-position heavy-duty sub-blocks ( $80\text{A}, 125\text{A}, 160\text{A}, 250\text{A}, 400\text{A}, 500\text{A}$ ) to perfectly handle complex power distribution demands.

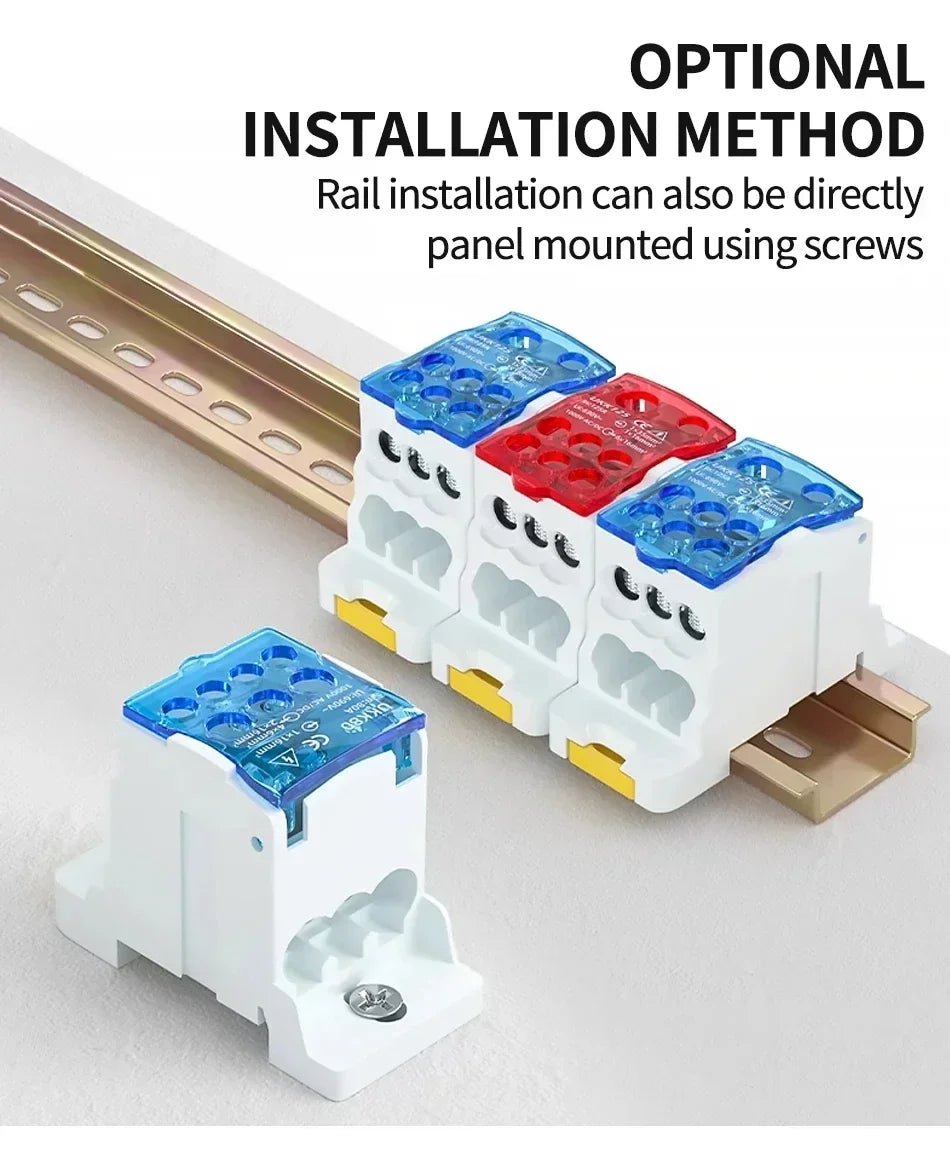

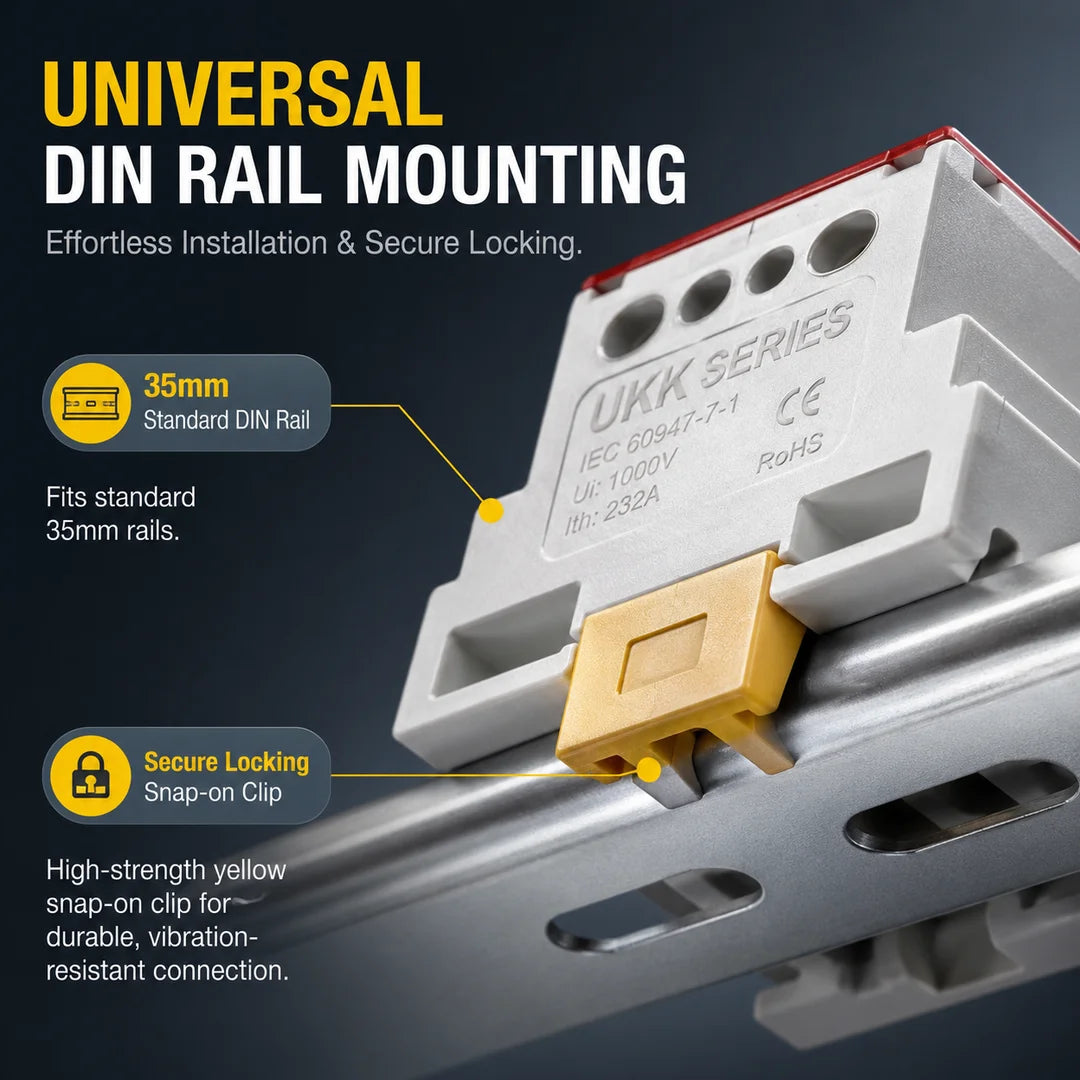

Standard 35mm DIN Rail Mountable: Features a stable, snap-on bottom foot design that locks securely onto standard DIN rails, simplifying assembly, reducing installation time, and saving workspace clutter.
Premium Solid Brass Conductivity: The internal terminal block is forged from high-conductivity solid brass with tinned plating, guaranteeing low resistance, exceptional current stability, and maximum corrosion protection.

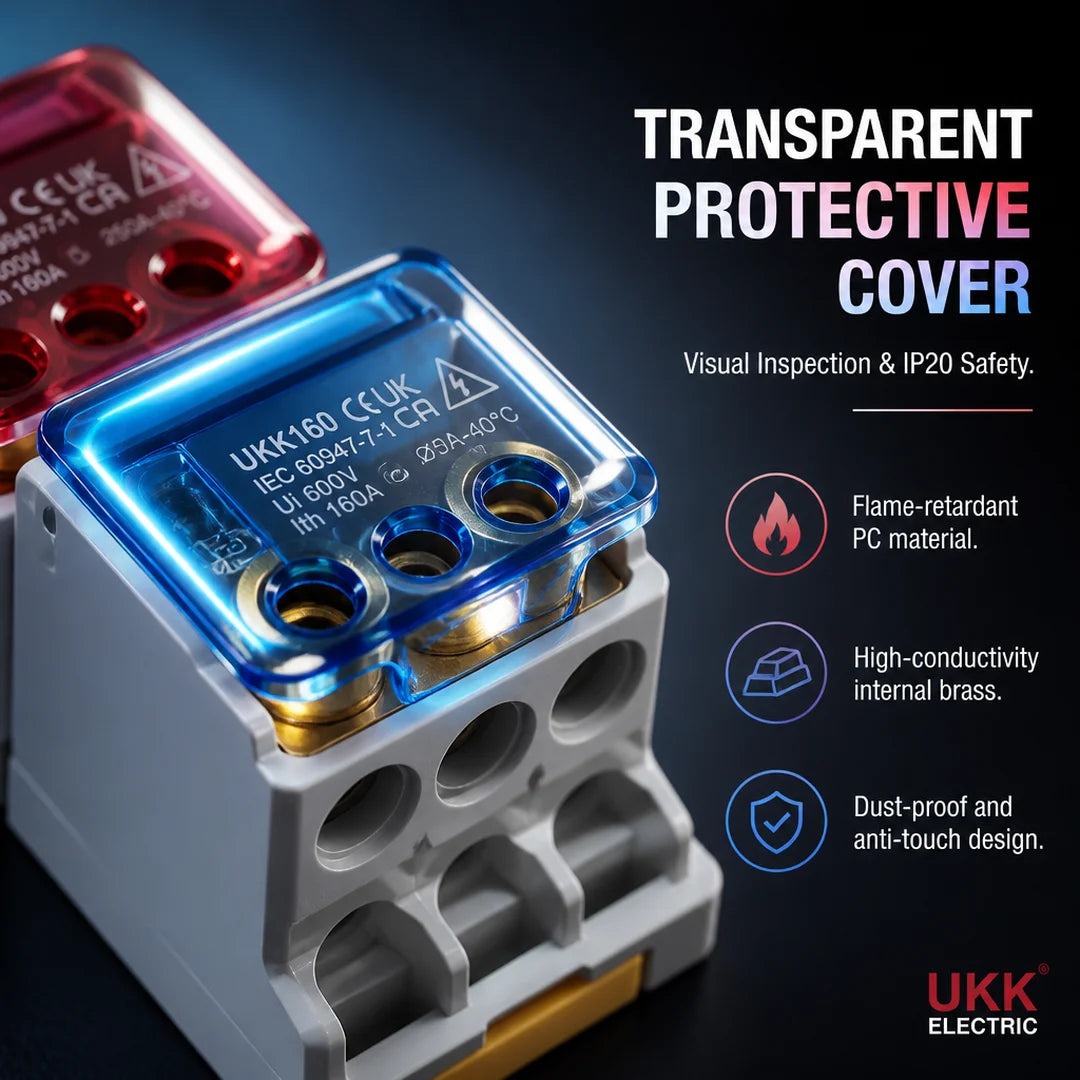

Flame-Retardant Safety Shell: Wrapped in an impact-resistant, high-temperature insulated PA66 nylon casing combined with a visual, hinged tinted dustproof cover for added anti-shock safety.
Efficient Space Saving: Replaces messy traditional terminal strips by nesting multi-wire combinations neatly inside a single modular block casing.

### Technical Specifications:

Product Series: UKK Series Heavy-Duty Junction Block
Mounting Method: 35mm DIN Rail Mount / Base Screw Mounted
Rated Working Voltage: 690V / 1000V AC/DC

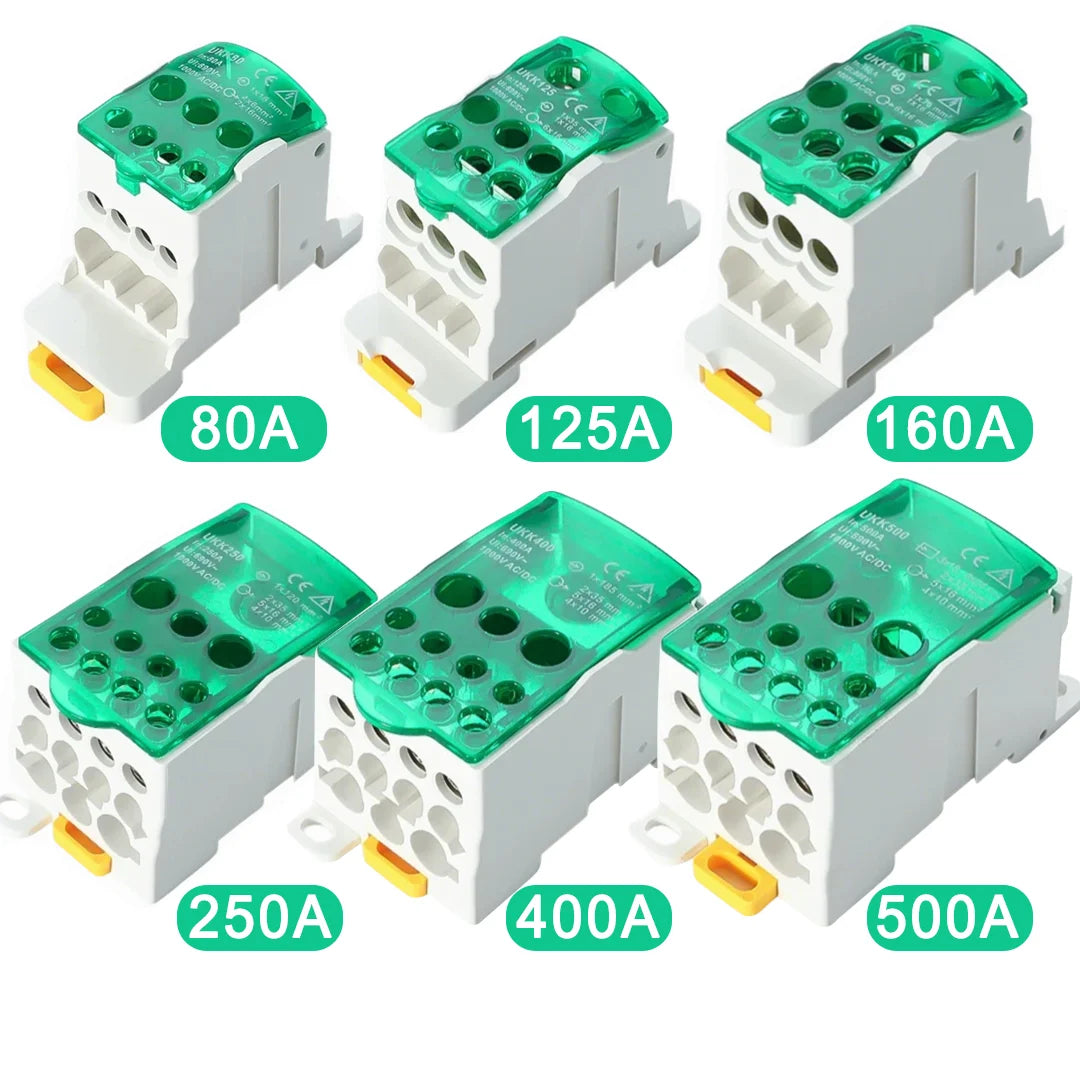

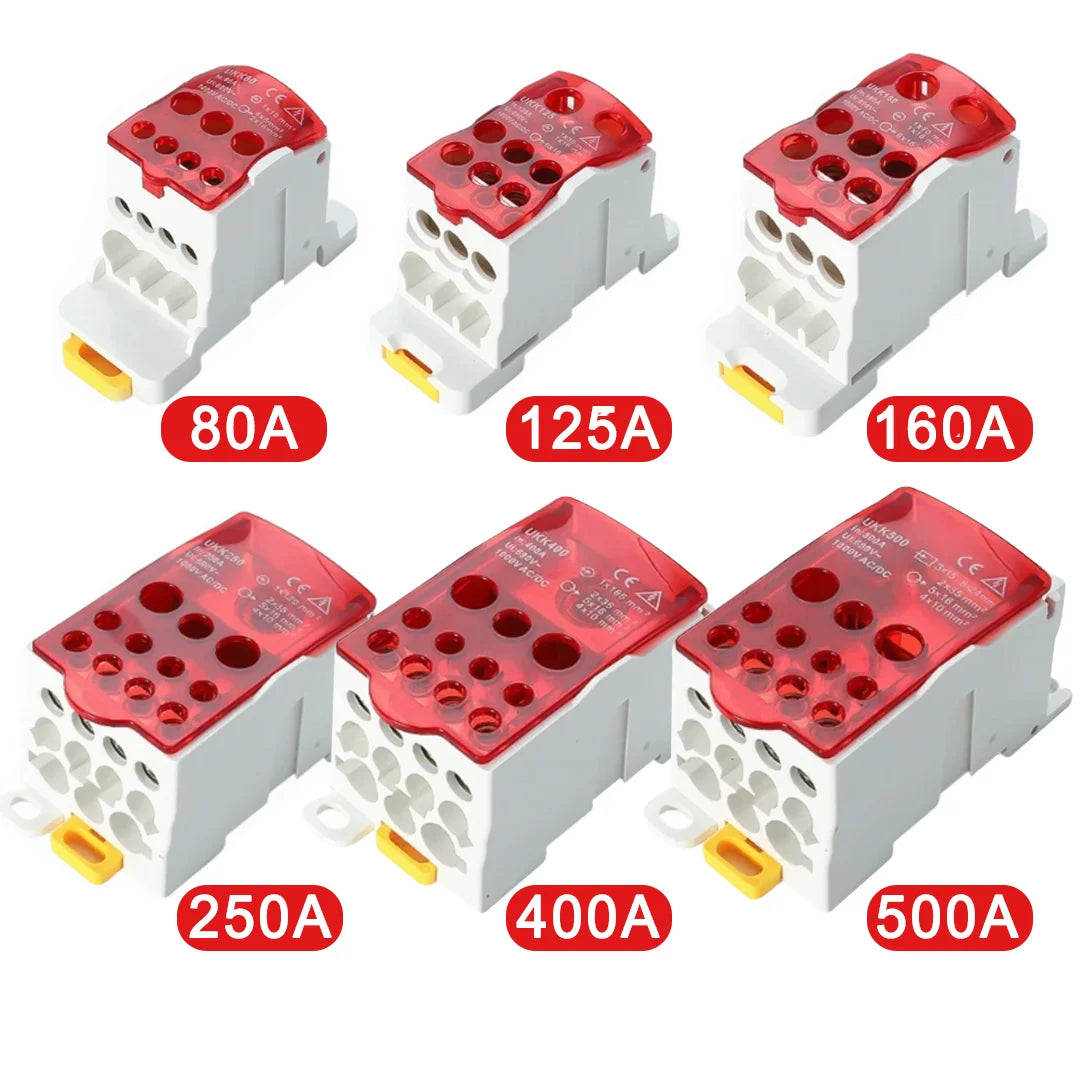

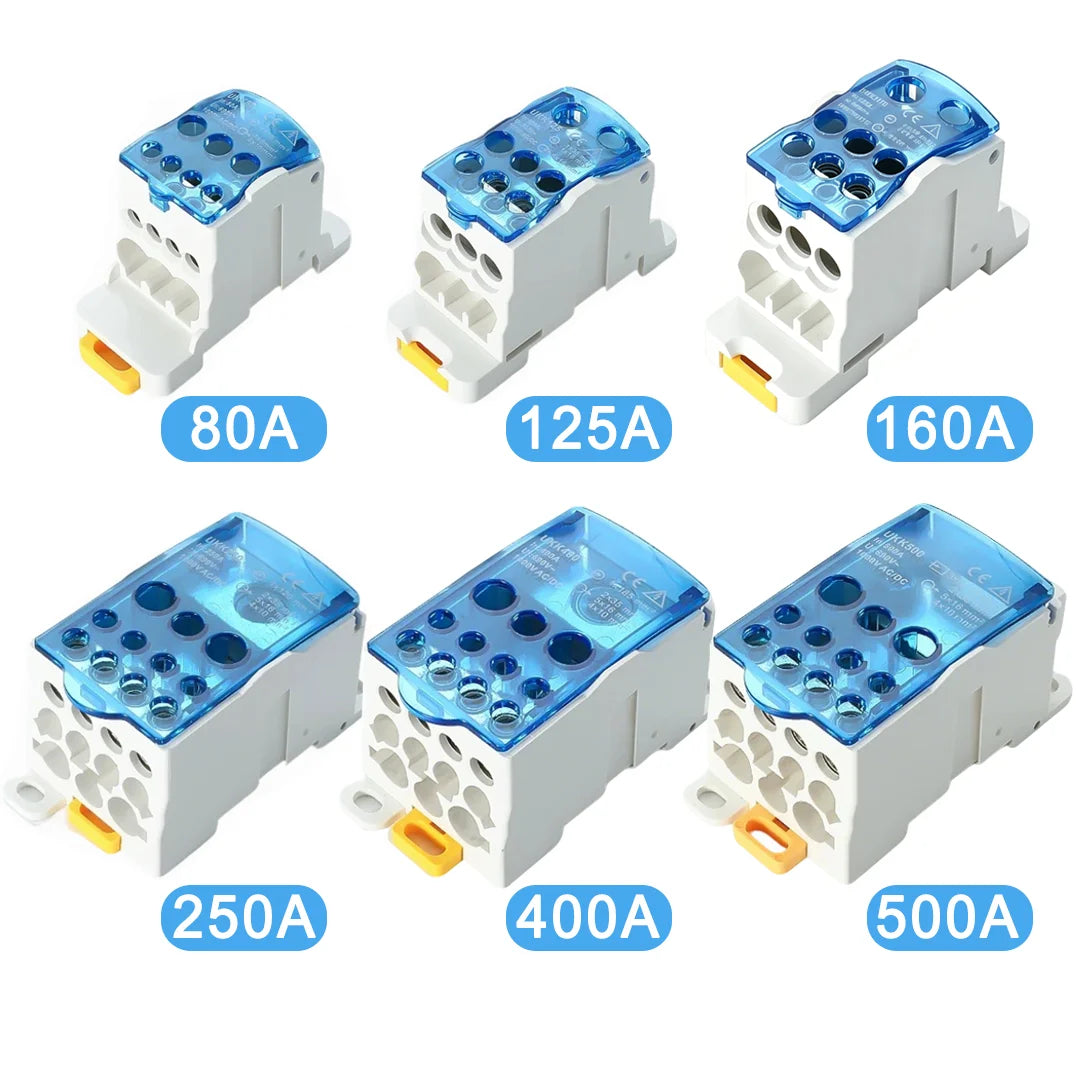

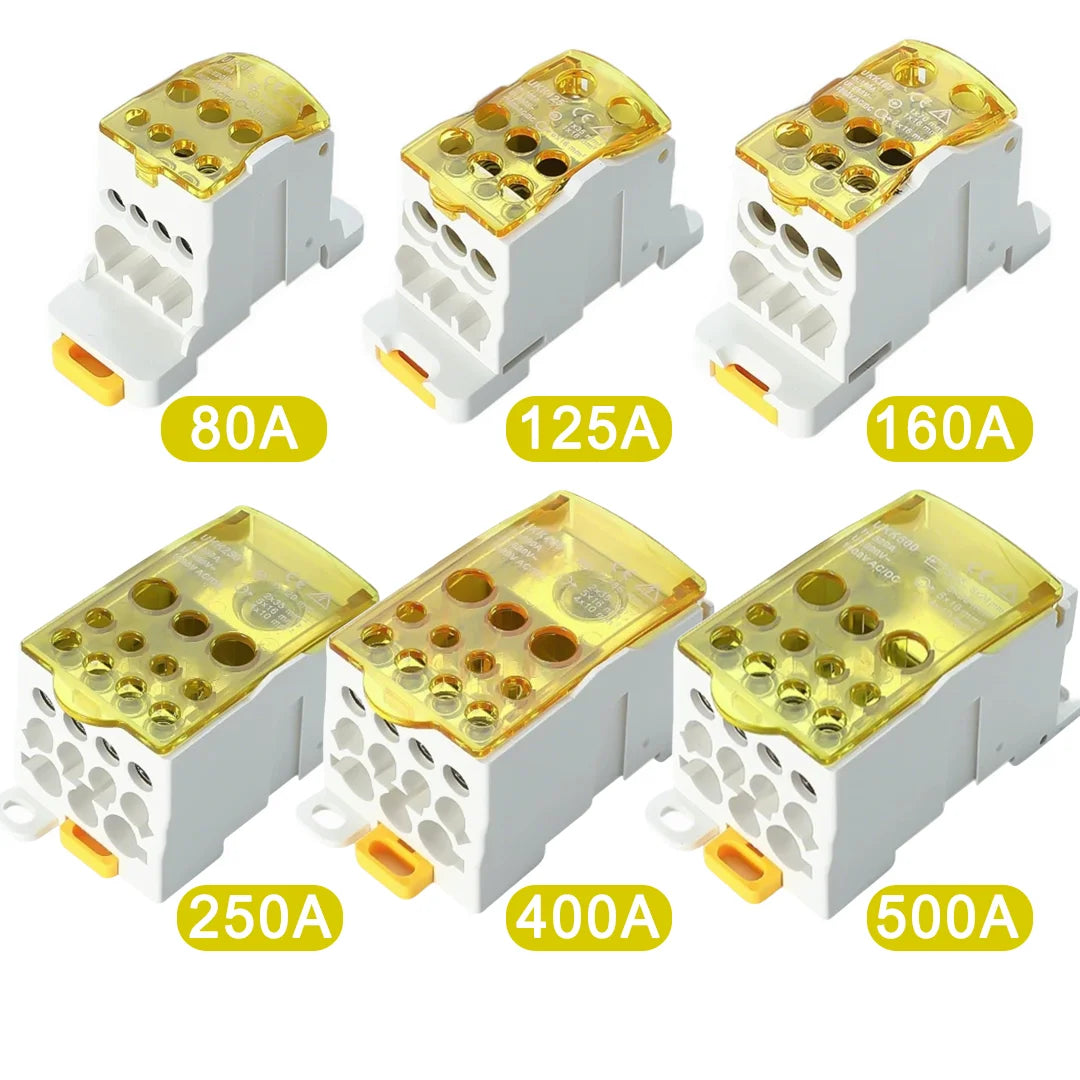

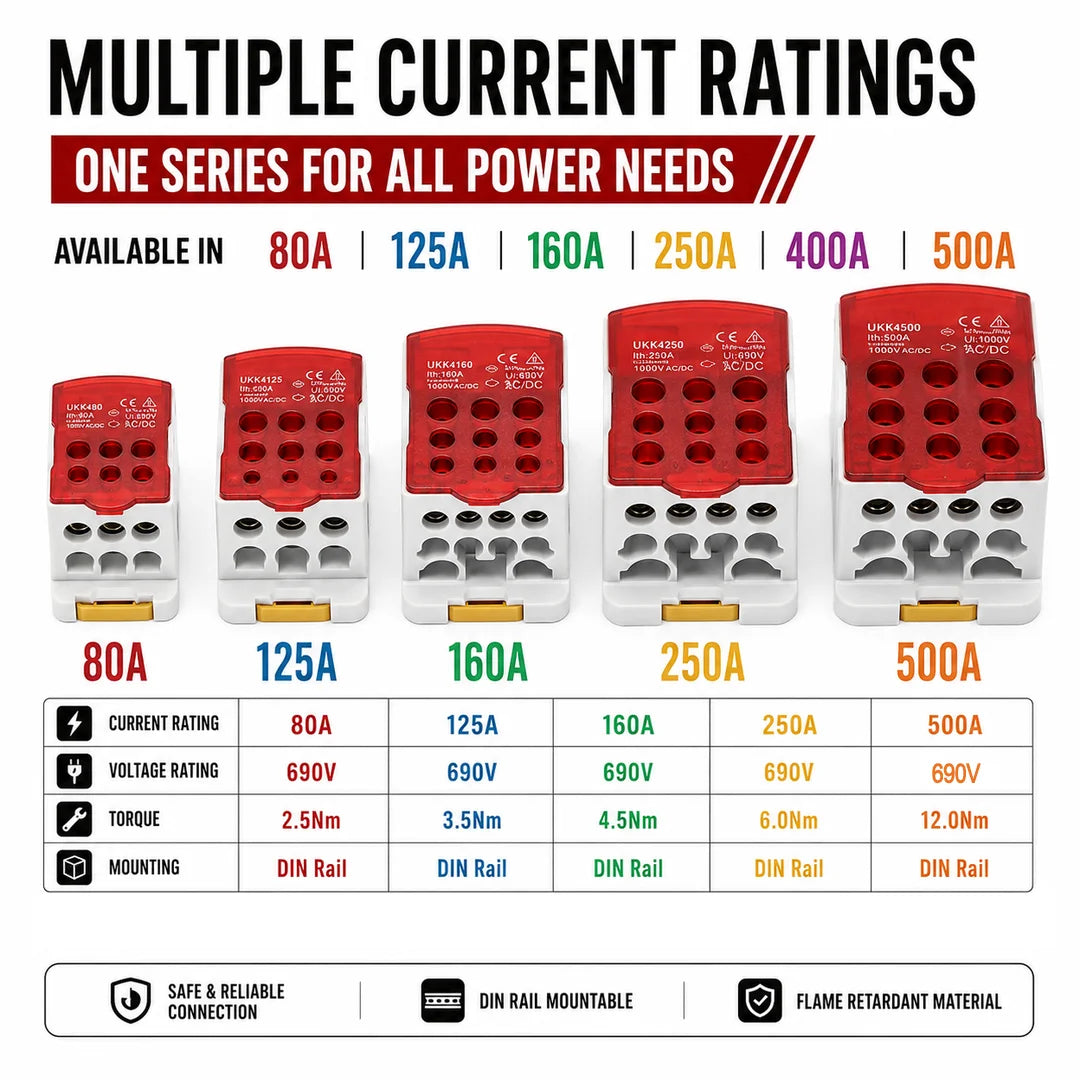

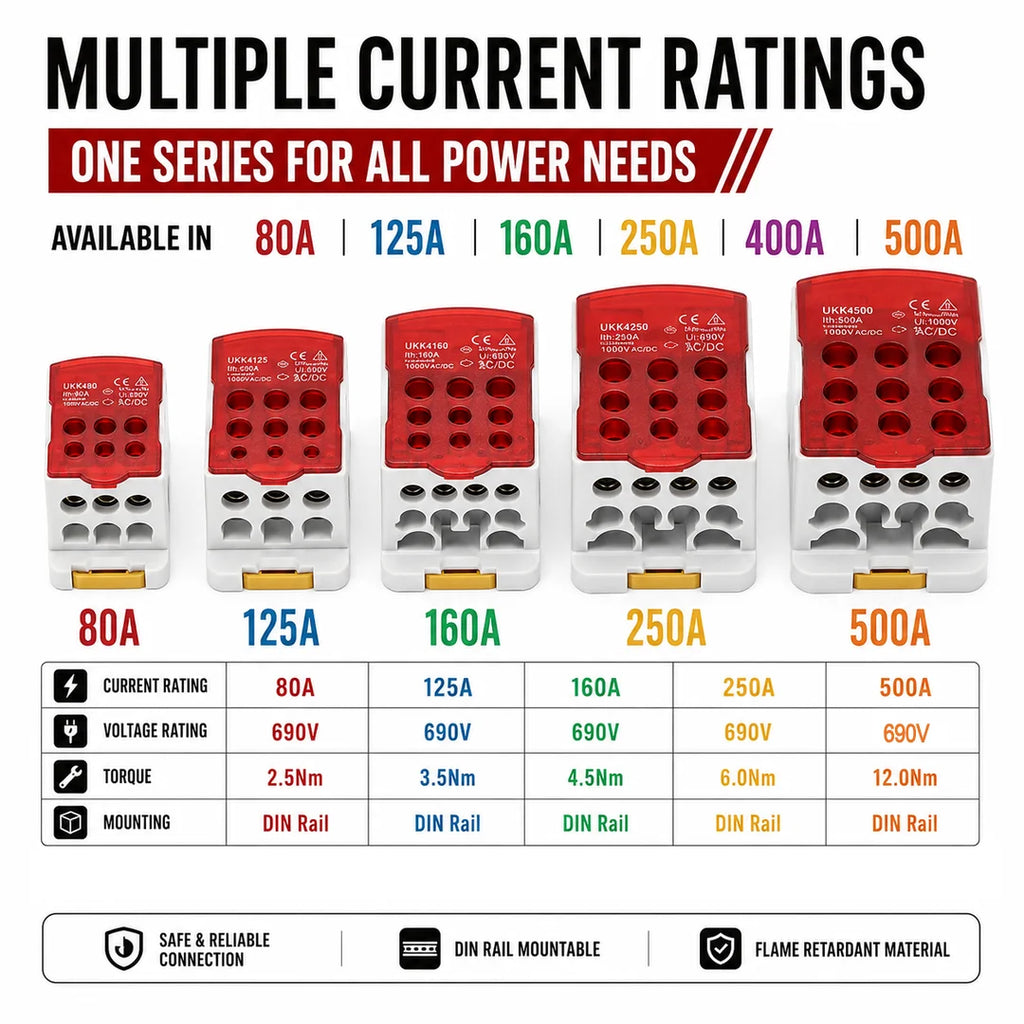

Rated Current Options: 80A / 125A / 160A / 250A / 400A / 500A
Housing Material: High-Quality Flame-Retardant PA66 Nylon Plastic
Conductive Matrix: Solid Tin-Plated Brass Cylinder Claws

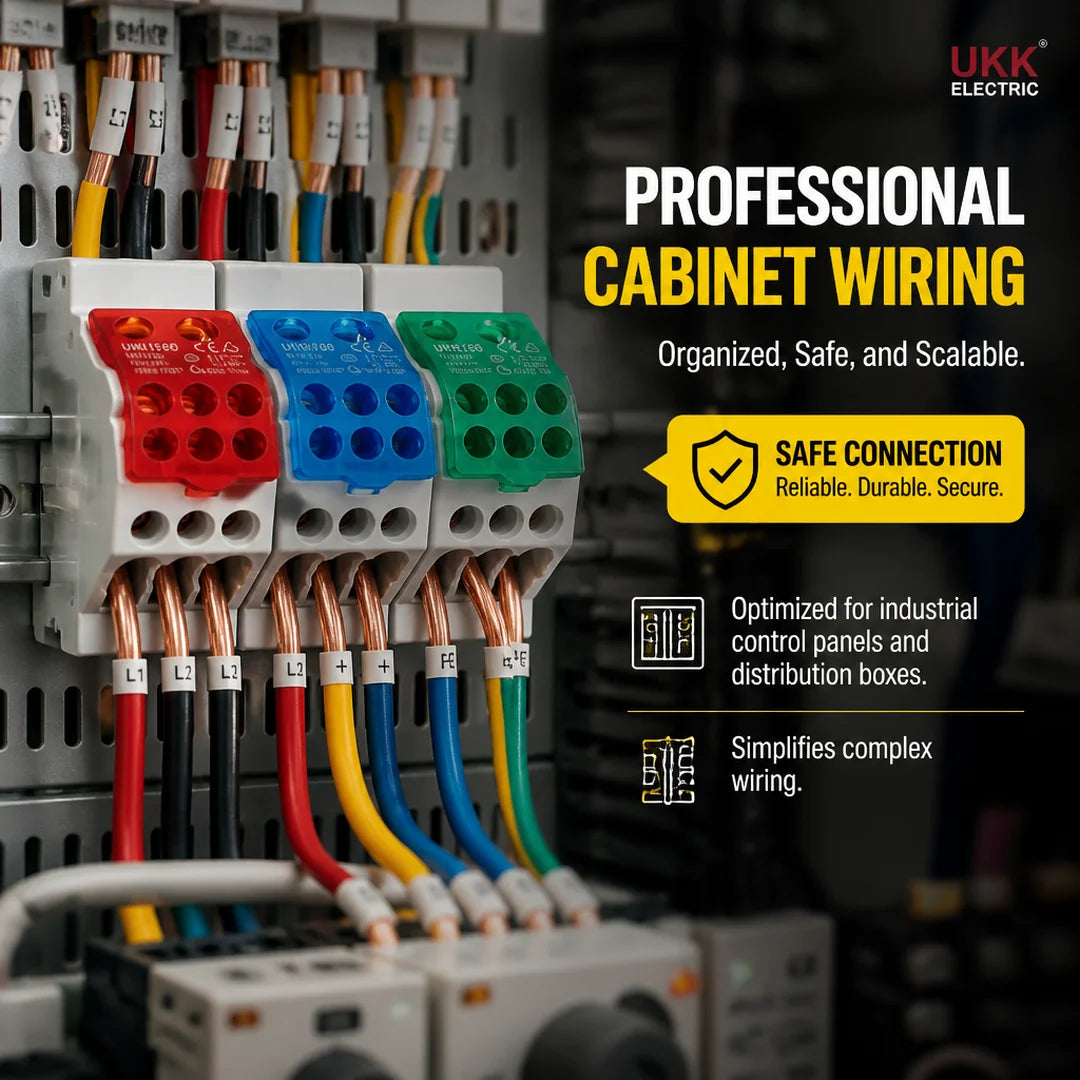

Primary Application: Power Distribution Cabinets, Industrial Machinery Controls, Electrical Switchgears, Automation Networks.

### Configuration Reference Guide:

Model Variant	Max Current	Main Input Ports	Sub Output Branch Ports	Color Styling Cover
UKK 80	80A	1 Port ( $2.5-16\text{mm}^2$ )	6 Ports ( $2.5-16\text{mm}^2$ / $1.5-10\text{mm}^2$ )	Red Visual Rim
UKK 125	125A	1 Port ( $10-35\text{mm}^2$ )	6 Ports ( $2.5-16\text{mm}^2$ / $1.5-10\text{mm}^2$ )	Blue Visual Rim
UKK 160	160A	1 Port ( $10-70\text{mm}^2$ )	6 Ports ( $2.5-16\text{mm}^2$ / $1.5-10\text{mm}^2$ )	Green Visual Rim
UKK 250	250A	1 Port ( $35-120\text{mm}^2$ )	4 Ports ( $2.5-35\text{mm}^2$ / $2.5-16\text{mm}^2$ )	Yellow Visual Rim
UKK 400 / 500	400A/500A	1 Port Heavy Cable	Multiple Multi-Gauge Distribution Outlets	Deep Tinted Red

### Package Content Includes:

1 PC x UKK High-Current Rail Terminal Block (Current Rating and Color based on your option selection)

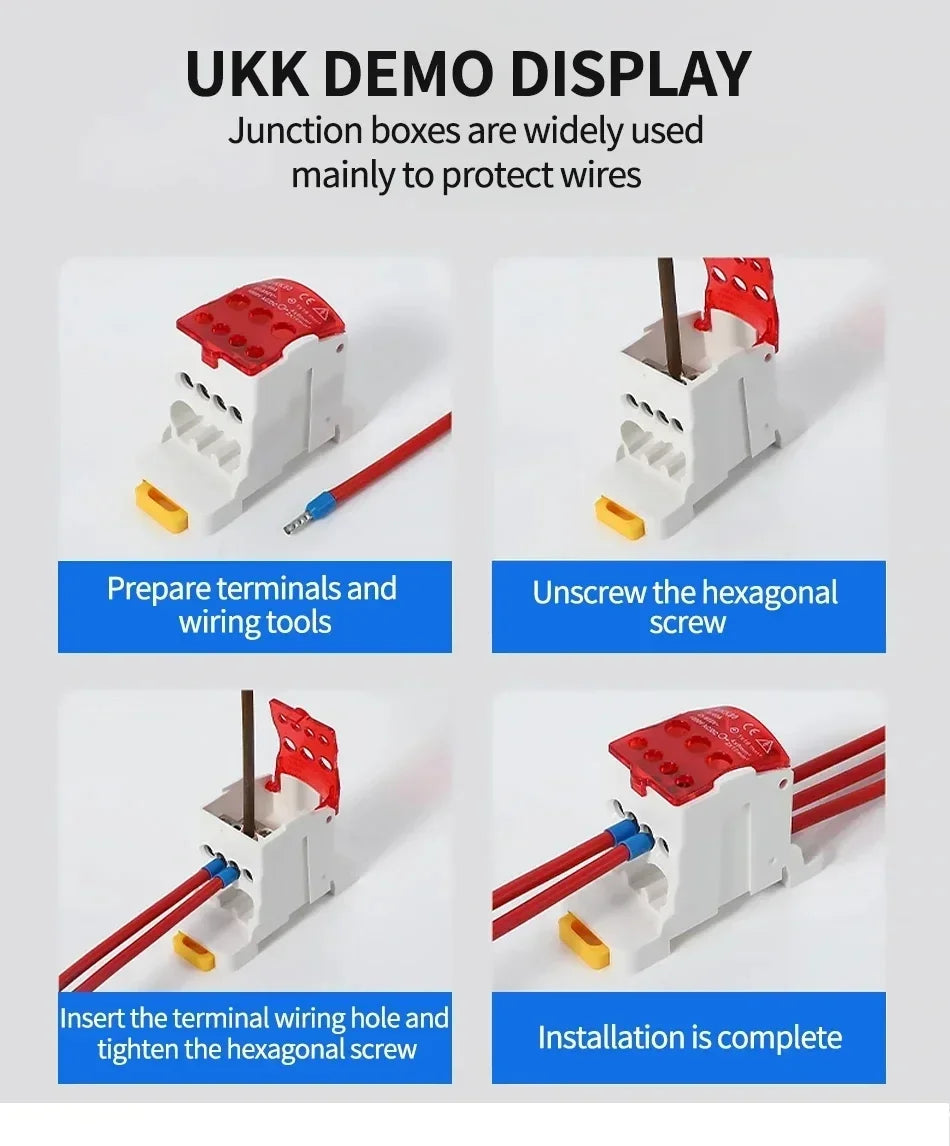

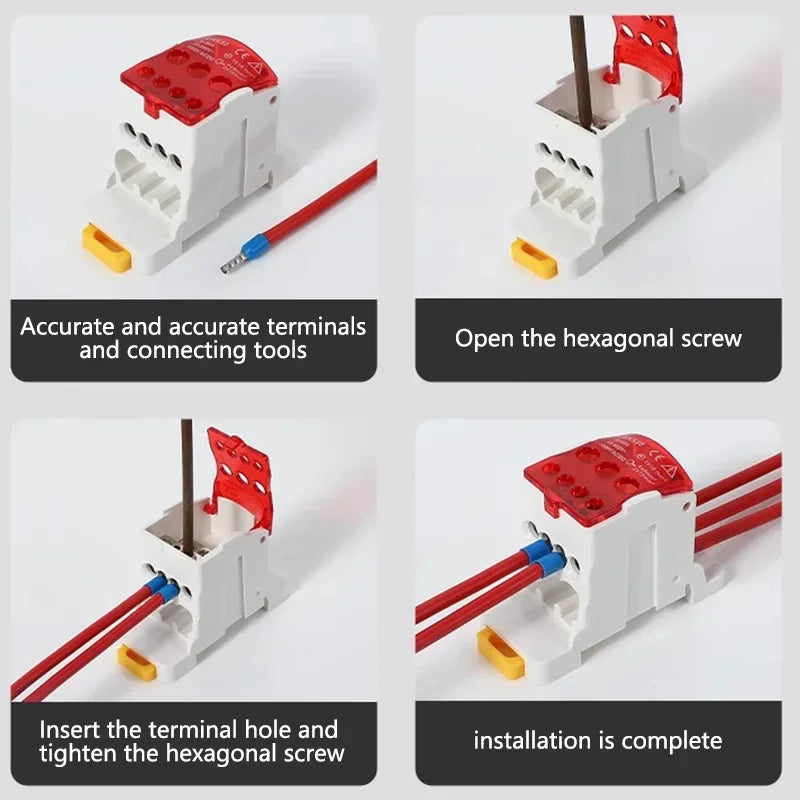

Pro Installation Notice: When connecting heavy power cables, always tighten the hex socket screws to the recommended standard torque value using an Allen key tool to maintain an absolute low-resistance surface seat and prevent loose arching under peak operational loads!
