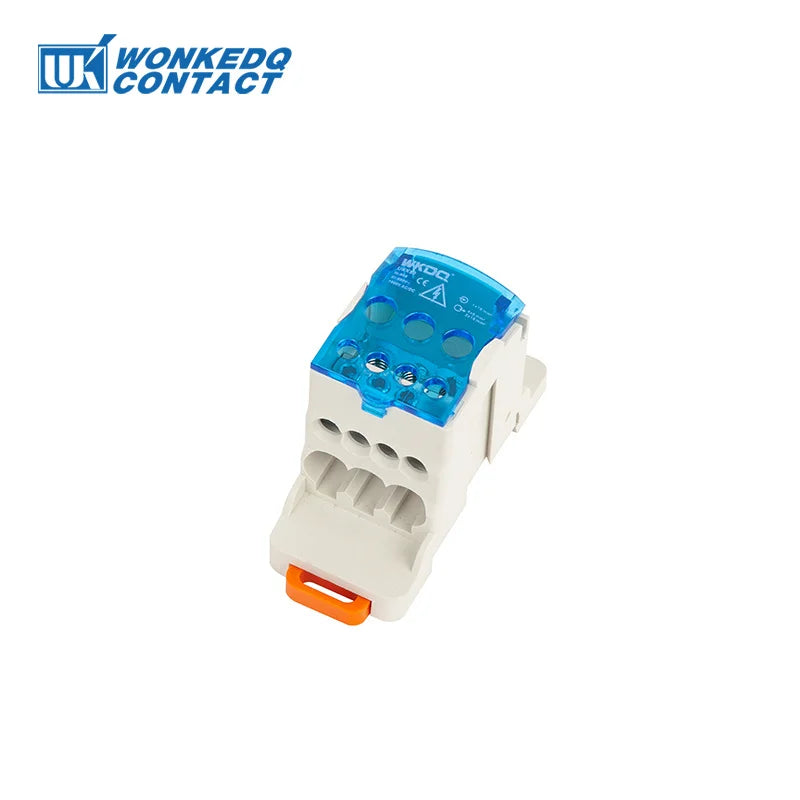

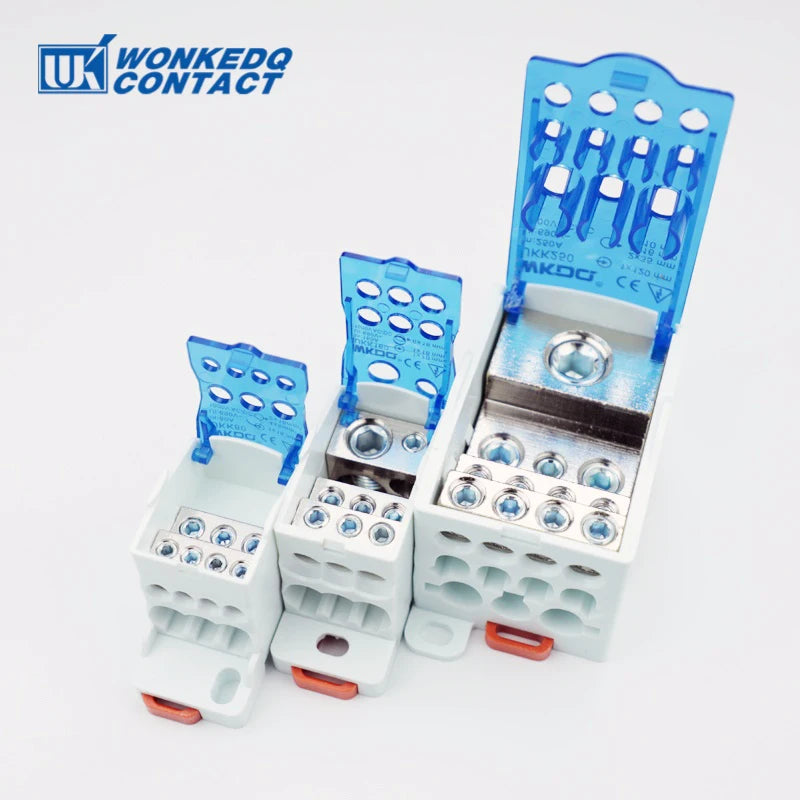

UKK Distribution Box One In Several Out Power Electrical Connector Junction Din Rail Terminal Block UKK80A/125A/160A/250A/400A
UKK80A / Green
$16.40
Sale price
$16.40
Regular price
$0.00
Skip to product information
2. TECHNICAL PARAMETERS
UKK Distribution Box One In Several Out Power Electrical Connector Junction Din Rail Terminal Block UKK80A/125A/160A/250A/400A
$16.40
Sale price
$16.40
Regular price
$0.00
Description
SPECIFICATIONS
Apply: Distribution Cabinet
Brand Name: WONKEDQ
Certification: iso9001,ce,RoHS,CE,CE/RoHS/CQC/ISO 9001
Conductor Size: 6-16mm, 16-35mm, 16-70mm, 10-120mm, 10-185mm, 10-35mm
Connection way: Screw
Does it include a Battery?: No
Does it include wireless functionality?: No
Function: Fire Resistant
High-concerned chemical: none
Material: PC
Model Number: UKK80A UKK125A UKK160A UKK250A UKK400A UKK500A,UKK80 UKK125 UKK160 UKK250 UKK400 UKK500
Number of Contacts: 1-6, 1 - 11
Origin: Mainland China
Rated Current: UKK 80A 125A 160A 250A 400A 500A
Rated Voltage: 690V
Standard: IEC 60947-7-1
Usage: Electrical Wire
1.DESCRIPTION

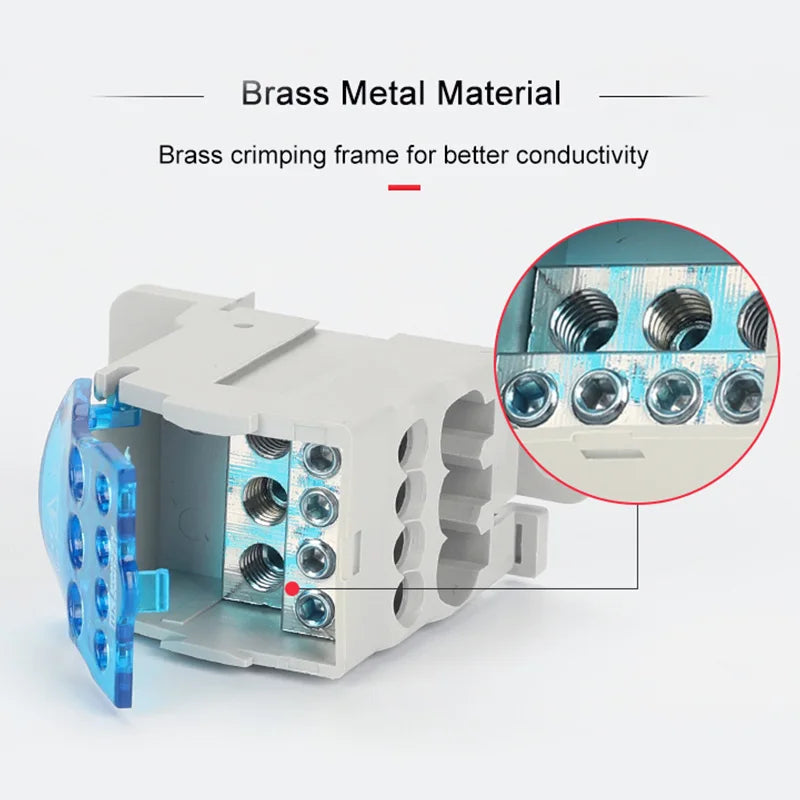

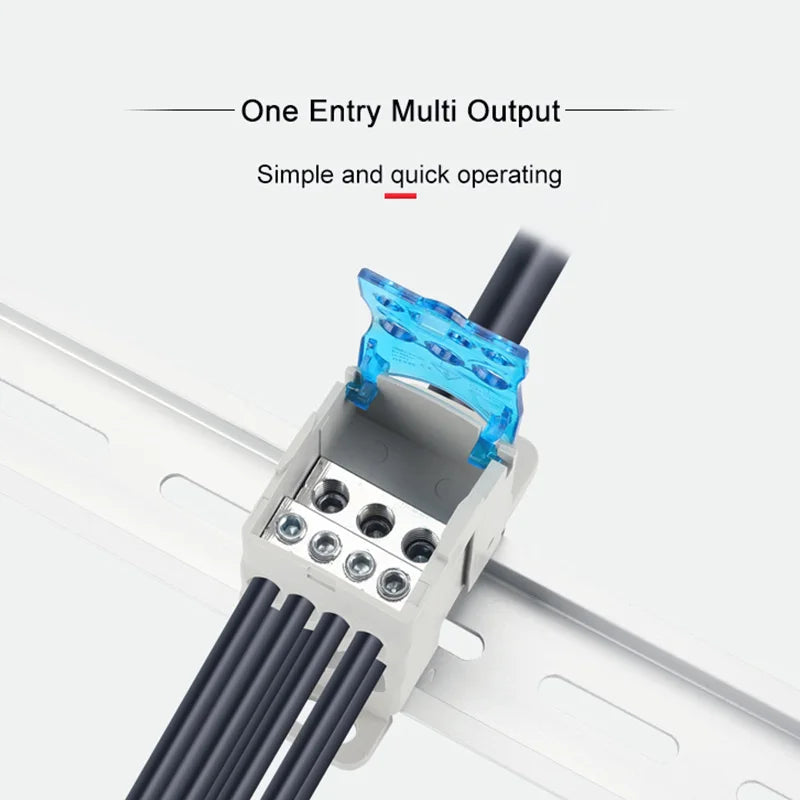

These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.
Compact design.
Simple and Safety Operating

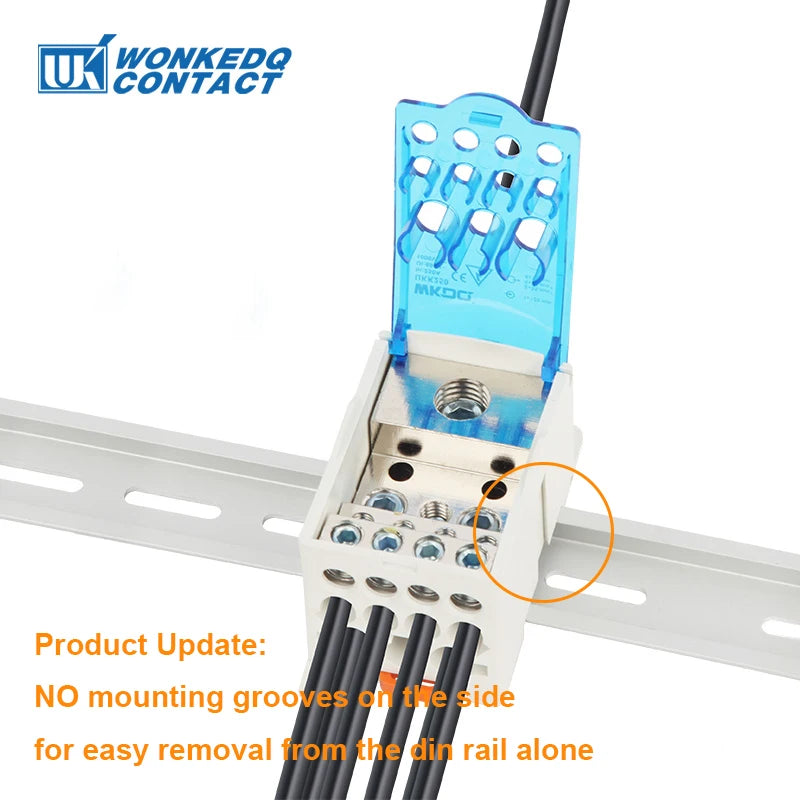

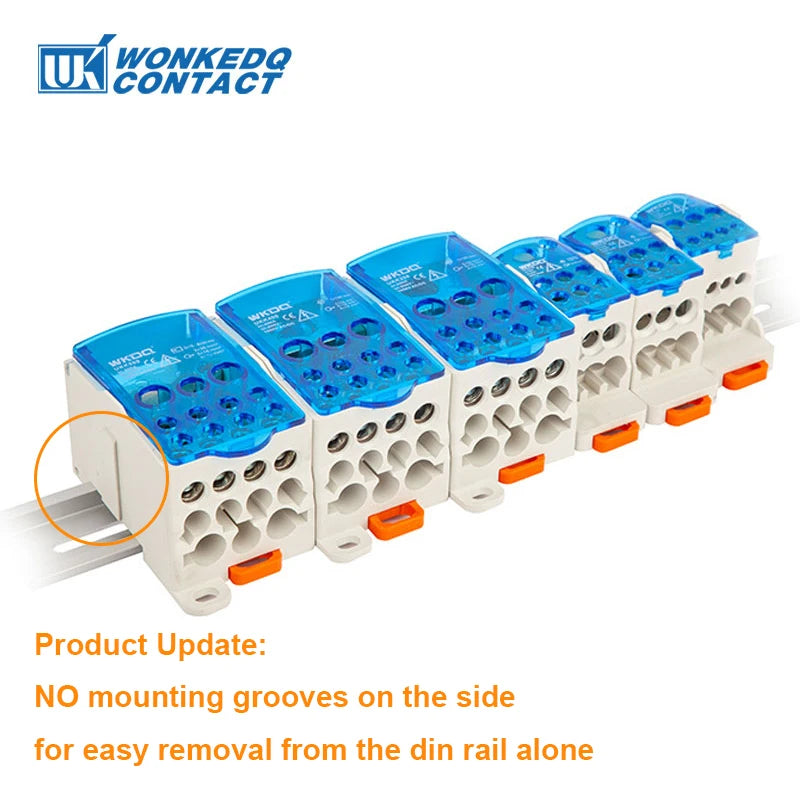

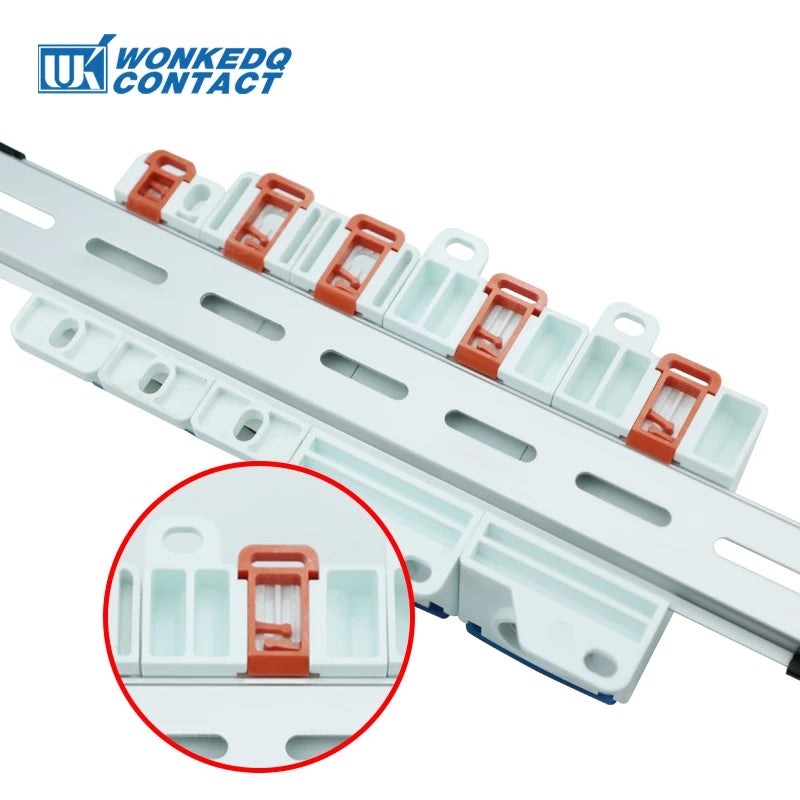

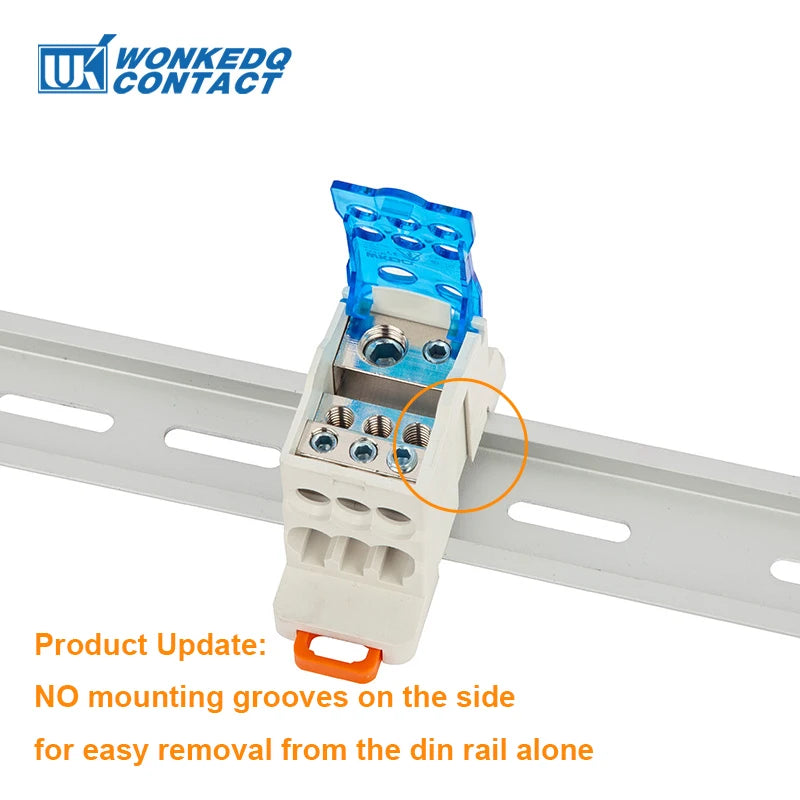

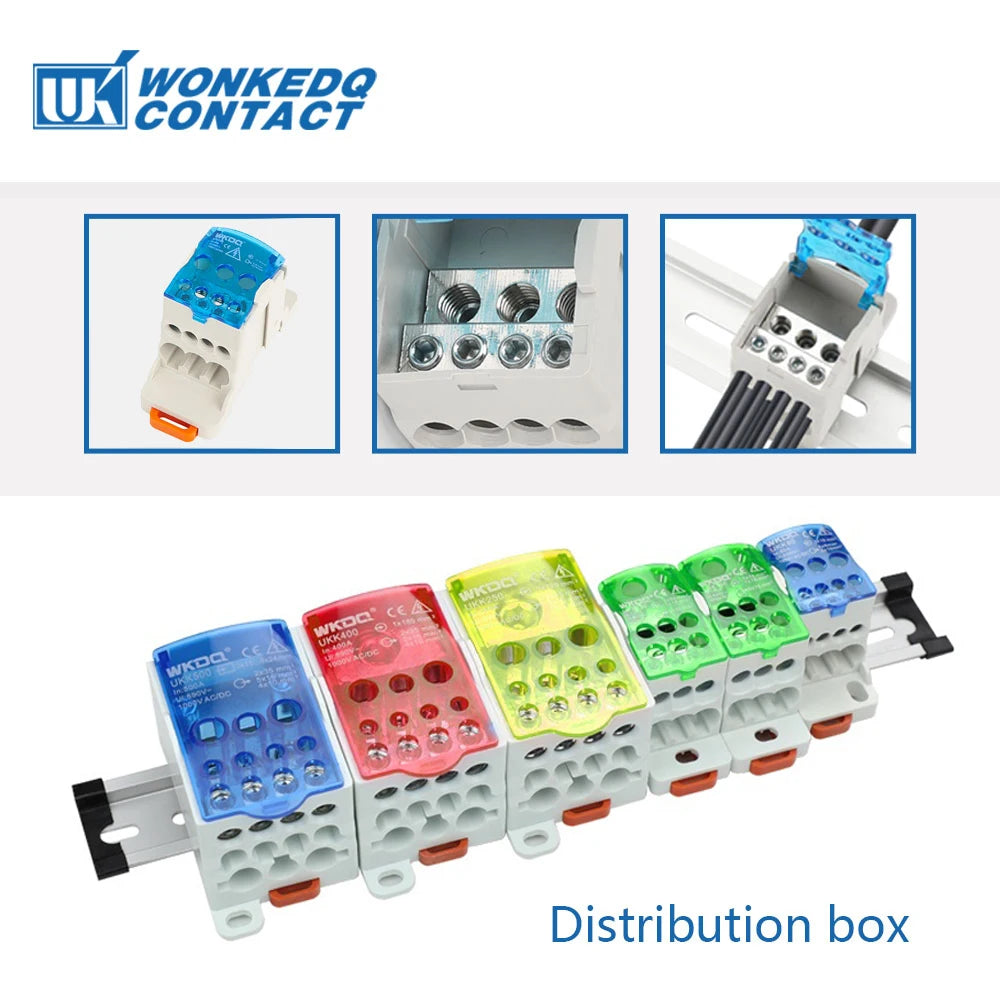

Install on 35mm wide DIN rail or chassis mounting with screws.
With Dust-proof and insulation cover
hinged design with safety removable cover.

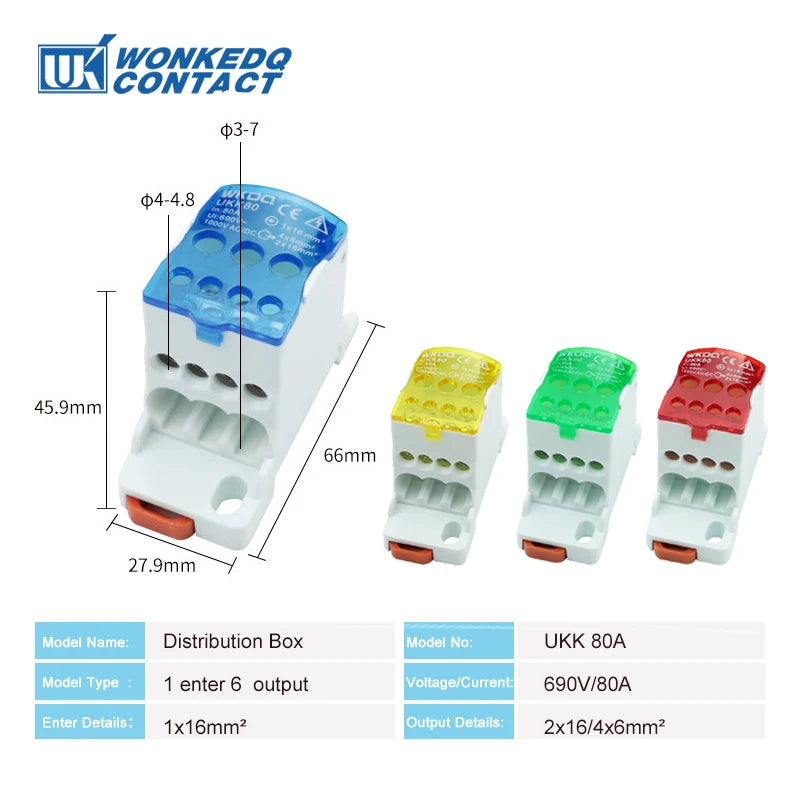

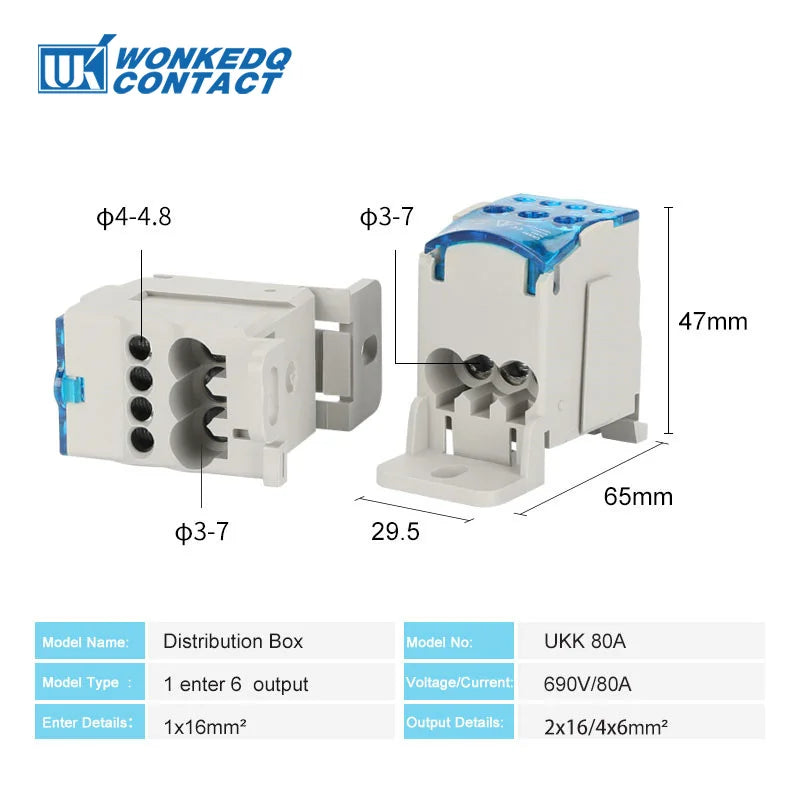

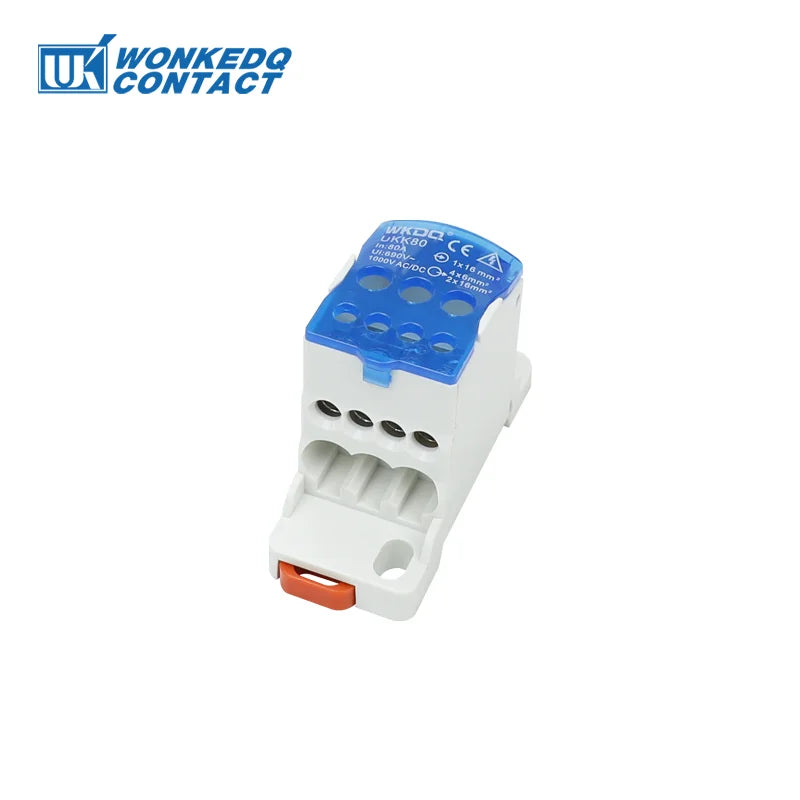

UKK80A |
690V/80A |
Input: 1 x 16mm² |
|
Buy |

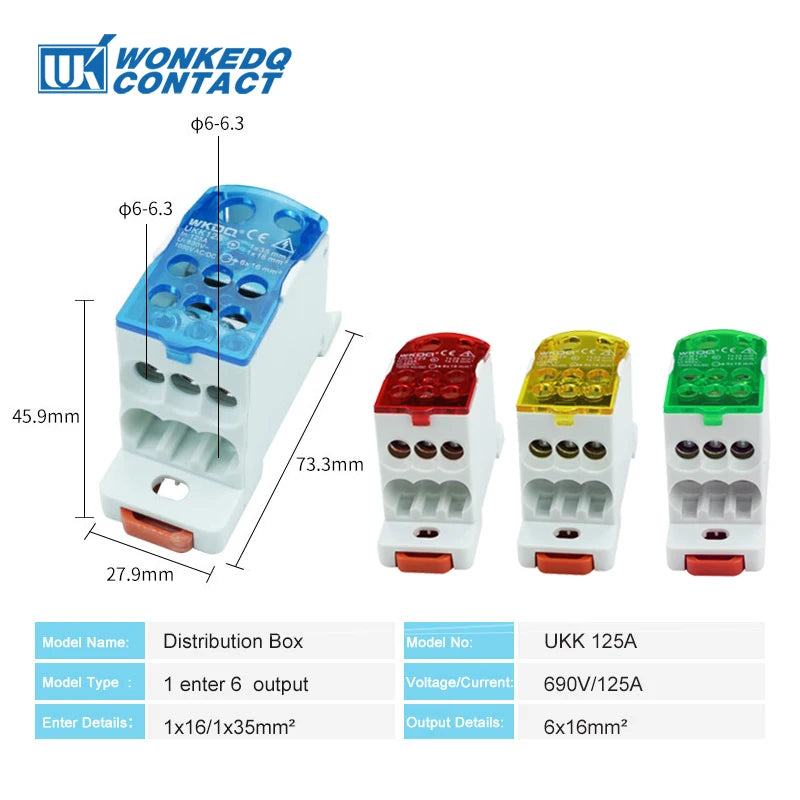

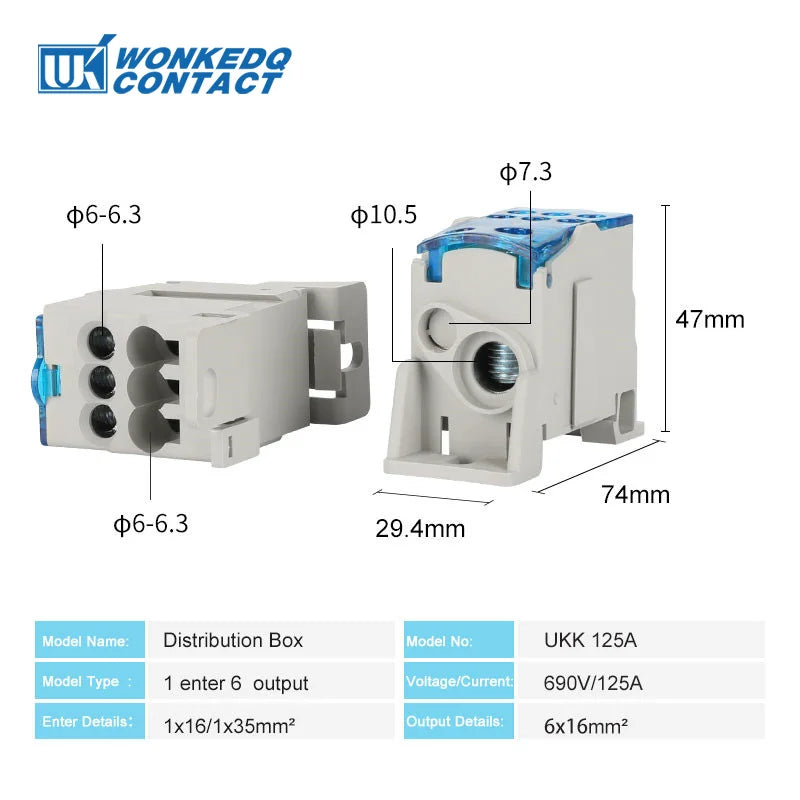

UKK125A |
690V/125A |
Input: 1 x 16mm² |
|
Buy |

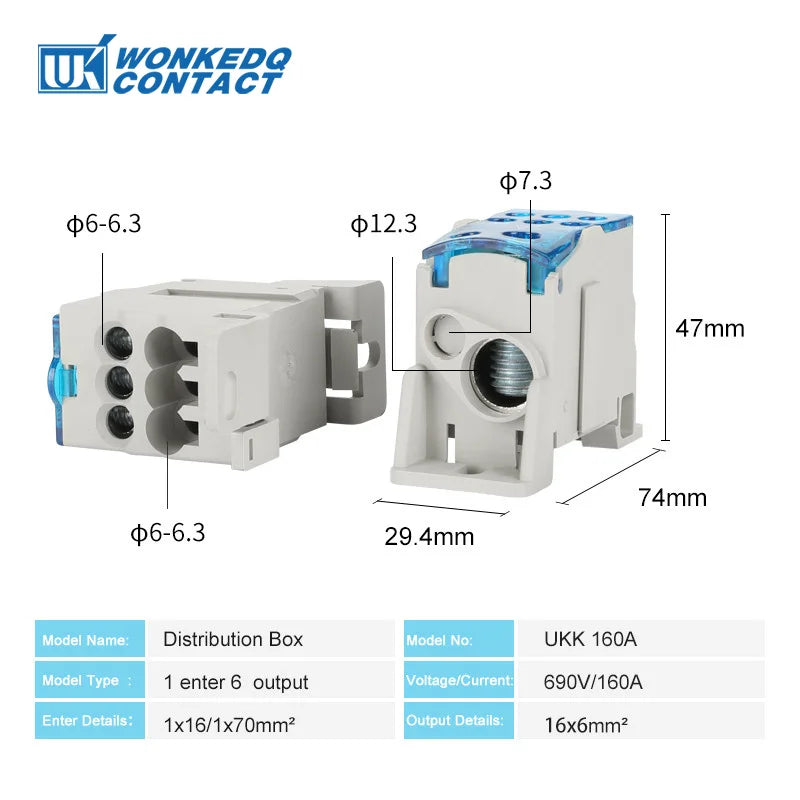

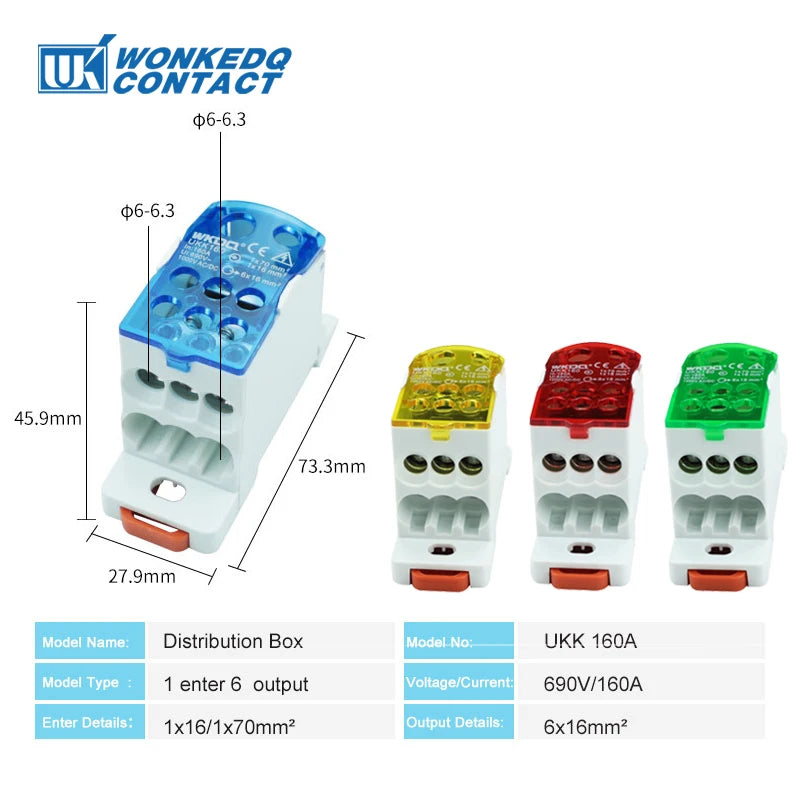

UKK160A |
690V/160A |
Input: 1 x 70mm² 1 x 16mm² |
|
Buy |

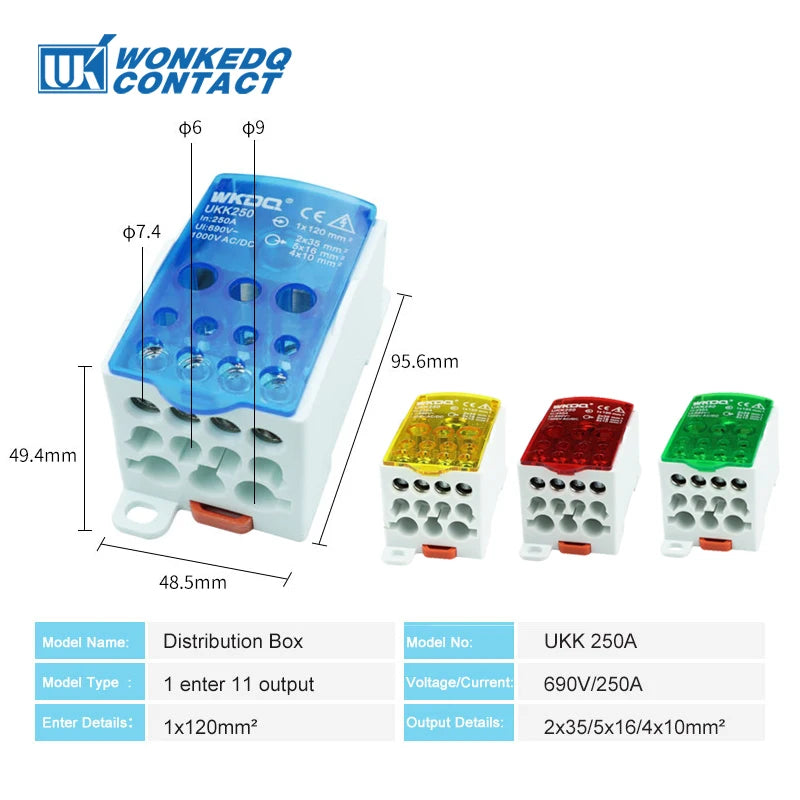

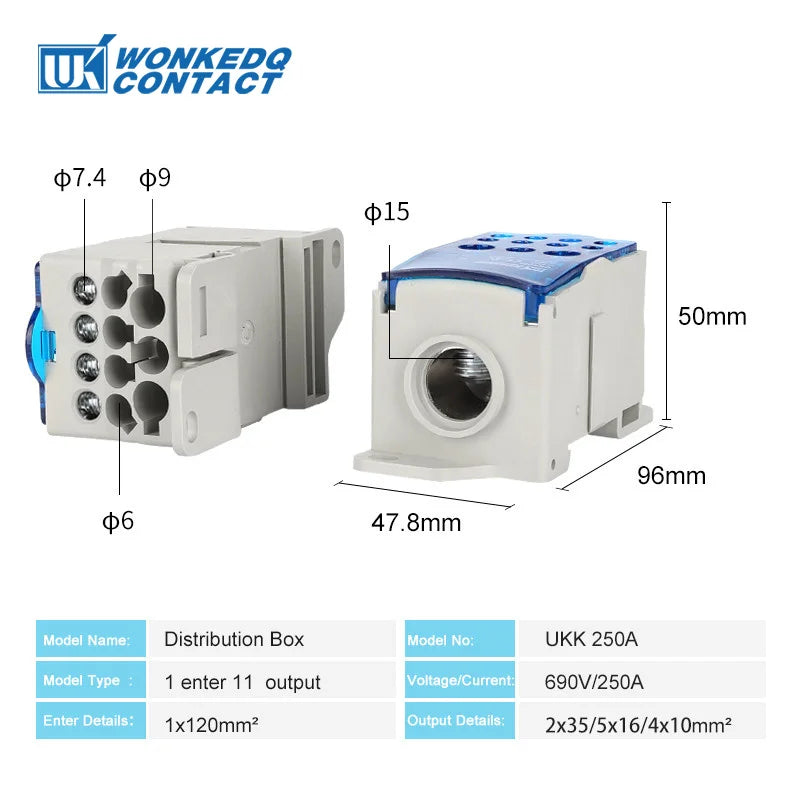

UKK250A |
690V/250A |
Input: 1 x 120mm² Output: 2 x 35mm² 4 x 10mm² |
|
Buy |

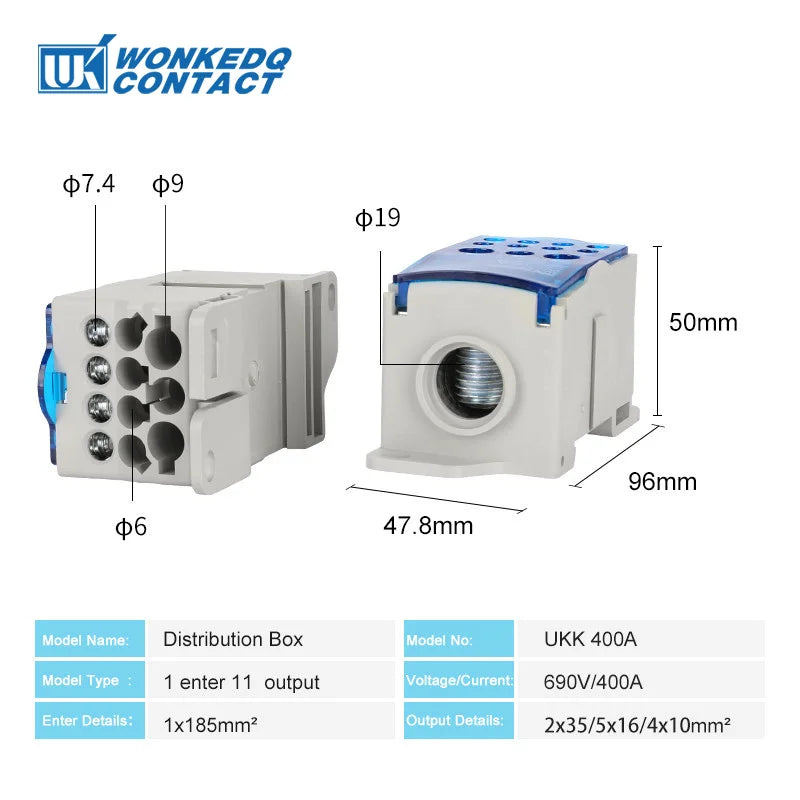

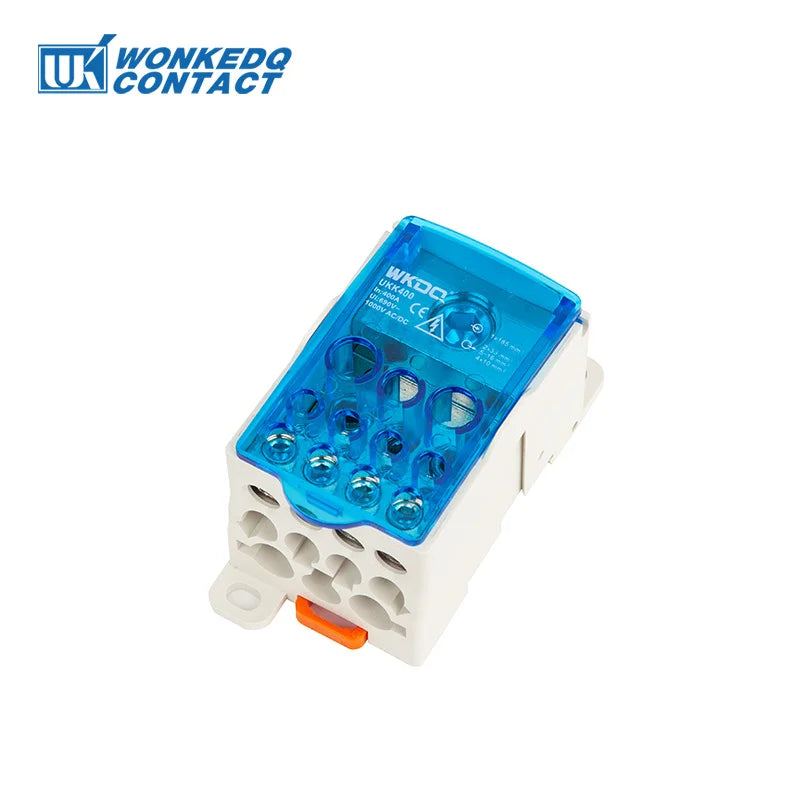

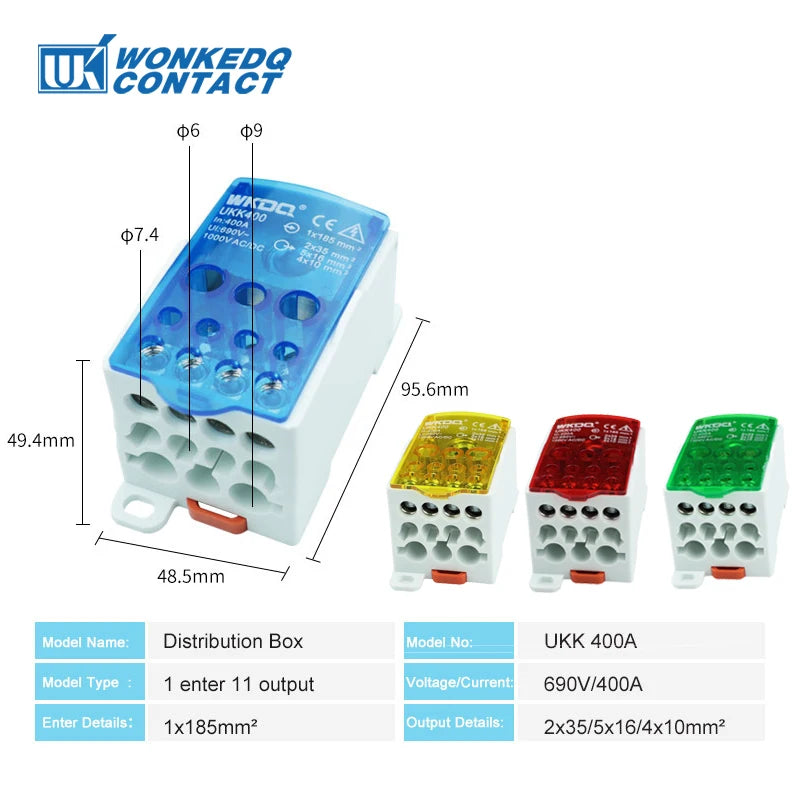

UKK400A |
690V/400A |
Input: 1 x 185mm² 4 x 10mm² 5 x 16mm² |
|
Buy |

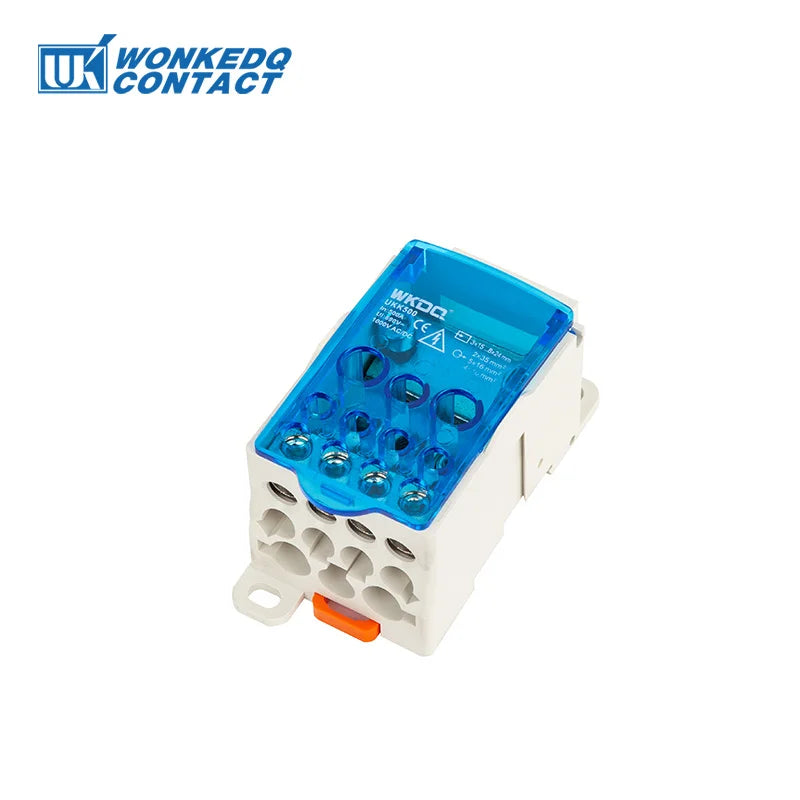

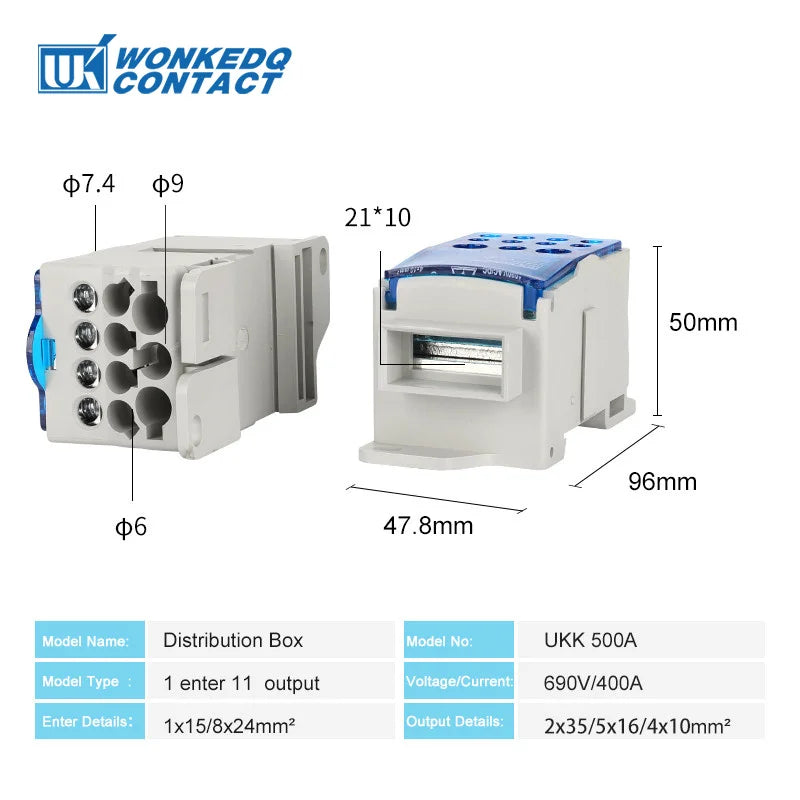

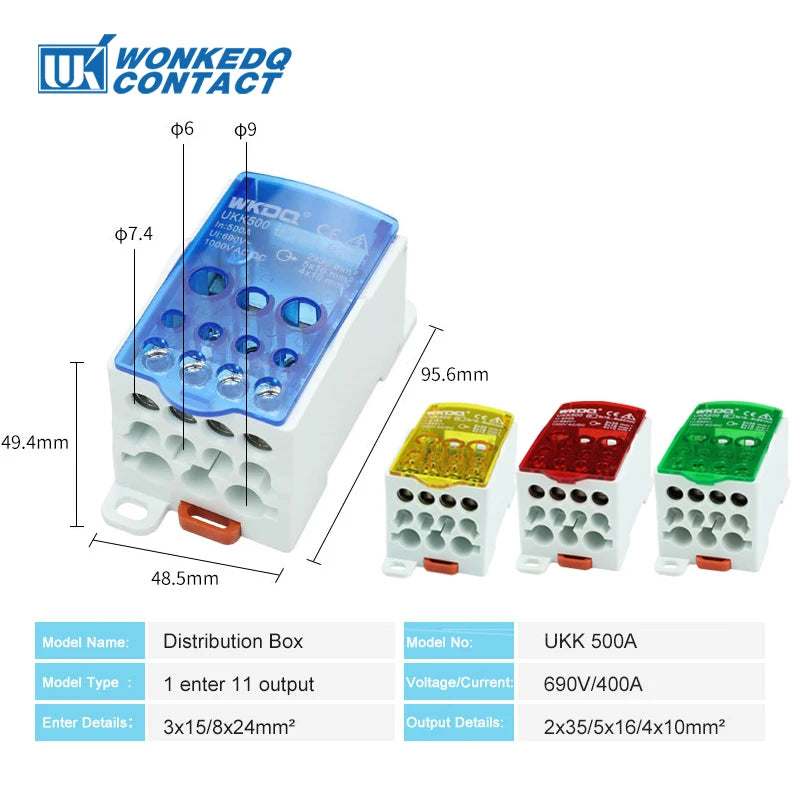

UKK500A |
690V/500A |
Input: 3 x 15mm² 8 x 24mm² |
|
Buy |
WKH207 |
500V/125A |
Hole Qty: 2 x 7 |
|
Buy |
WKH211 |
500V/125A |
Hole Qty: 2 x 11 |
|
Buy |
WKH215 |
500V/125A |
Hole Qty: 2 x 15 |
|
Buy |
WKH407 |
500V/125A |
Hole Qty: 4 x 7 |
|
Buy |
WKH411 |
500V/125A |
Hole Qty: 4 x 11 |
|
Buy |
WKH415 |
500V/125A |
Hole Qty: 4 x 15 |
|
Buy |
