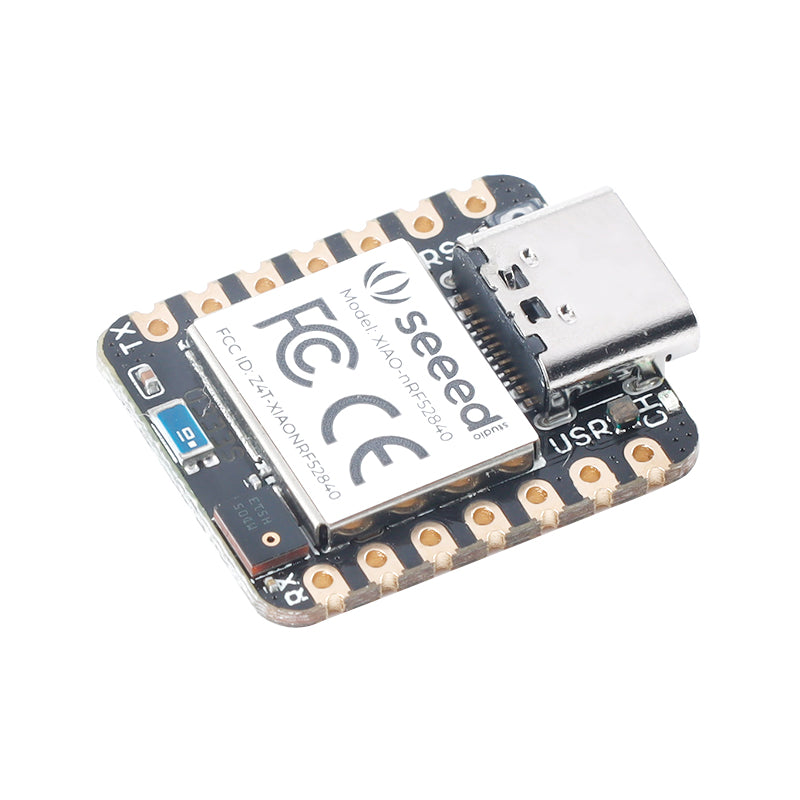

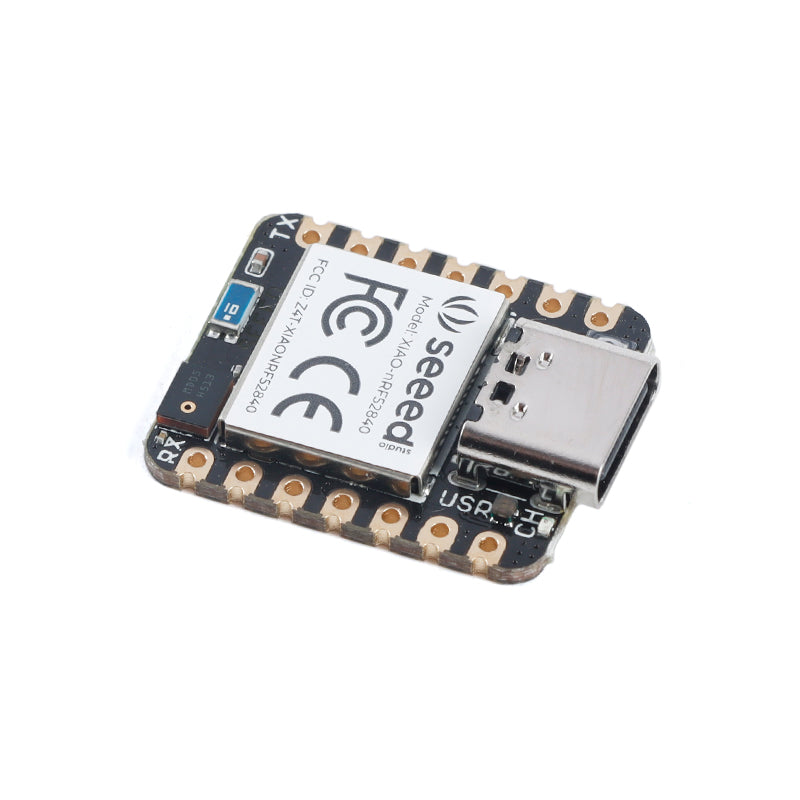

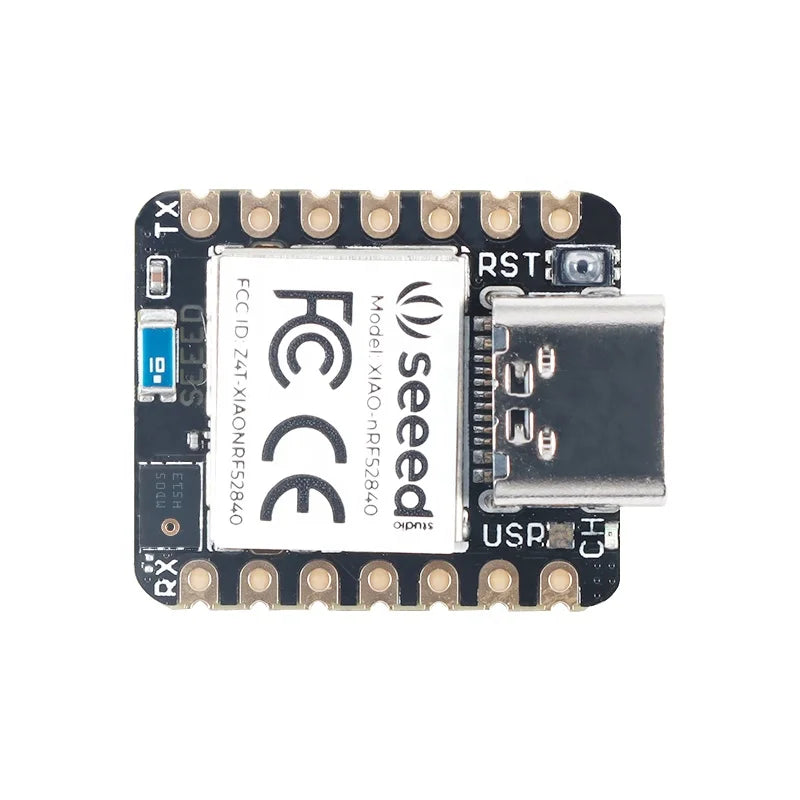

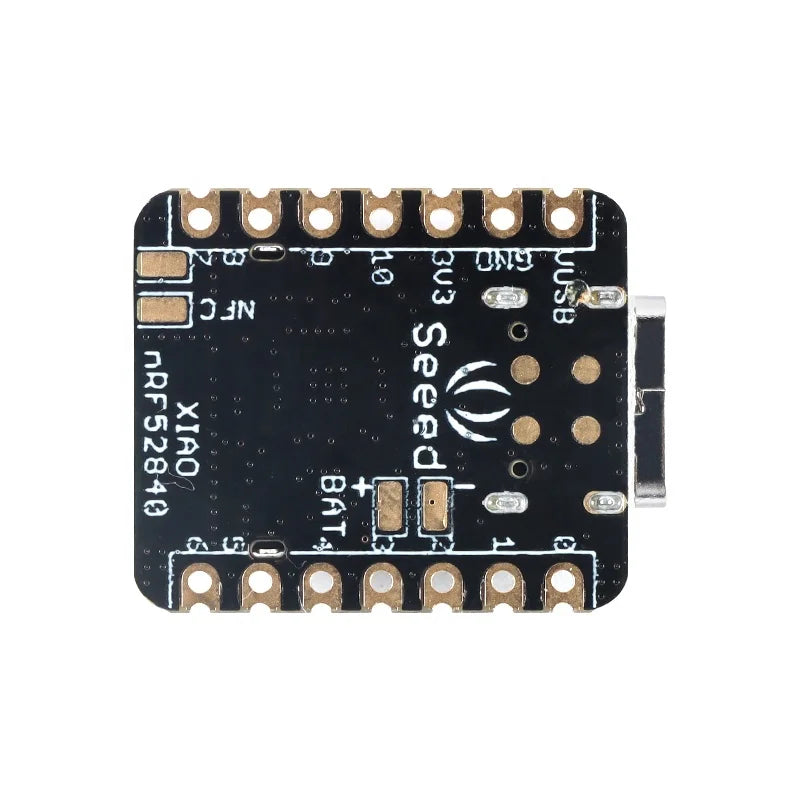

Ultra Low Power Seeeduino XIAO SENSE BLE 5.0 nRF52840 Arm Microcontroller For Arduino Nano UNO

Ultra Low Power Seeeduino XIAO SENSE BLE 5.0 nRF52840 Arm Microcontroller For Arduino Nano UNO

$137.24

$137.24 $0.00

Description

SPECIFICATIONS

Application: Raspberry Pi

Brand Name: NONE

Chipset: nRF52840

Condition: New

Model Number: 84162

Origin: Mainland China

Place of Origin: Guangdong,China

Type: Module,Embedded System Development Boards and Kits

Product Description

Features

* Powerful CPU: Nordic nRF52840,ARM® Cortex™-M4 32-bit processor with FPU operating at 64 MHz
* Wireless capabilities: Bluetooth 5.0,NFC,and ZigBee module with onboard antenna

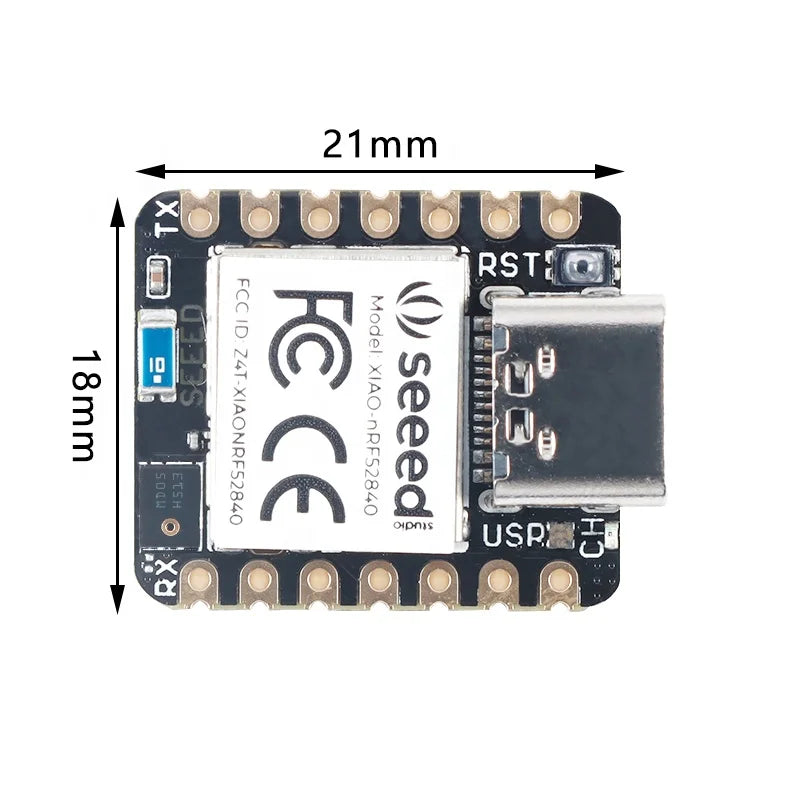

* Ultra-small size: 21 x 17.5mm,Seeed Xiao series classic form-factor for wearable devices
* Ultra-low sleep power: 5 μA,deep sleep model
* Battery charging chip: BQ25101 chip supported lithium battery charge management
* Rich interface: 1x Reset button,Ix UART,1x IIC,1x SPI,1x NFC,1x SWD,11x GPIO,6x ADC,1x Three-in-one LED,1x User LED
* Onboard 2 MB flash
* Onboard PDM microphone and 6-axis IMU (only for XIAO BLE nRF52840 Sense)
* Single-sided components,surface mounting design

Description

As the first wireless product in the Seeed XIAO family,Seeed XIAO BLE has equipped a powerful Nordic nRF52840 MCU which is designed in a Bluetooth 5.0 module,built around 32-bit ARM® Cortex™-M4 CPU with Floating-Point Unit(FPU) operating at 64Mhz. With the capability of wireless connection,it still remains the Seeed XIAO series classic form-factor of small and exquisite which can
be used for wearable devices and Internet of Things projects. Furthermore,it only costs 5 μA in the deep sleep model and it supports battery charge management because of the BQ25101 chip. To better support IoT and TinyML AI projects,there is an advanced version "Seeed XIAO BLE Sense" that carries both 6-axis IMU and PDM microphones.

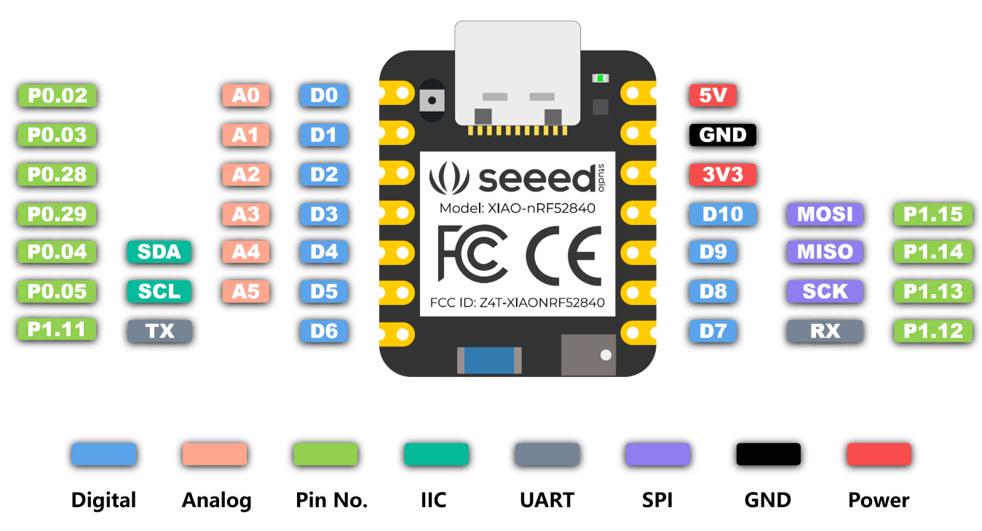

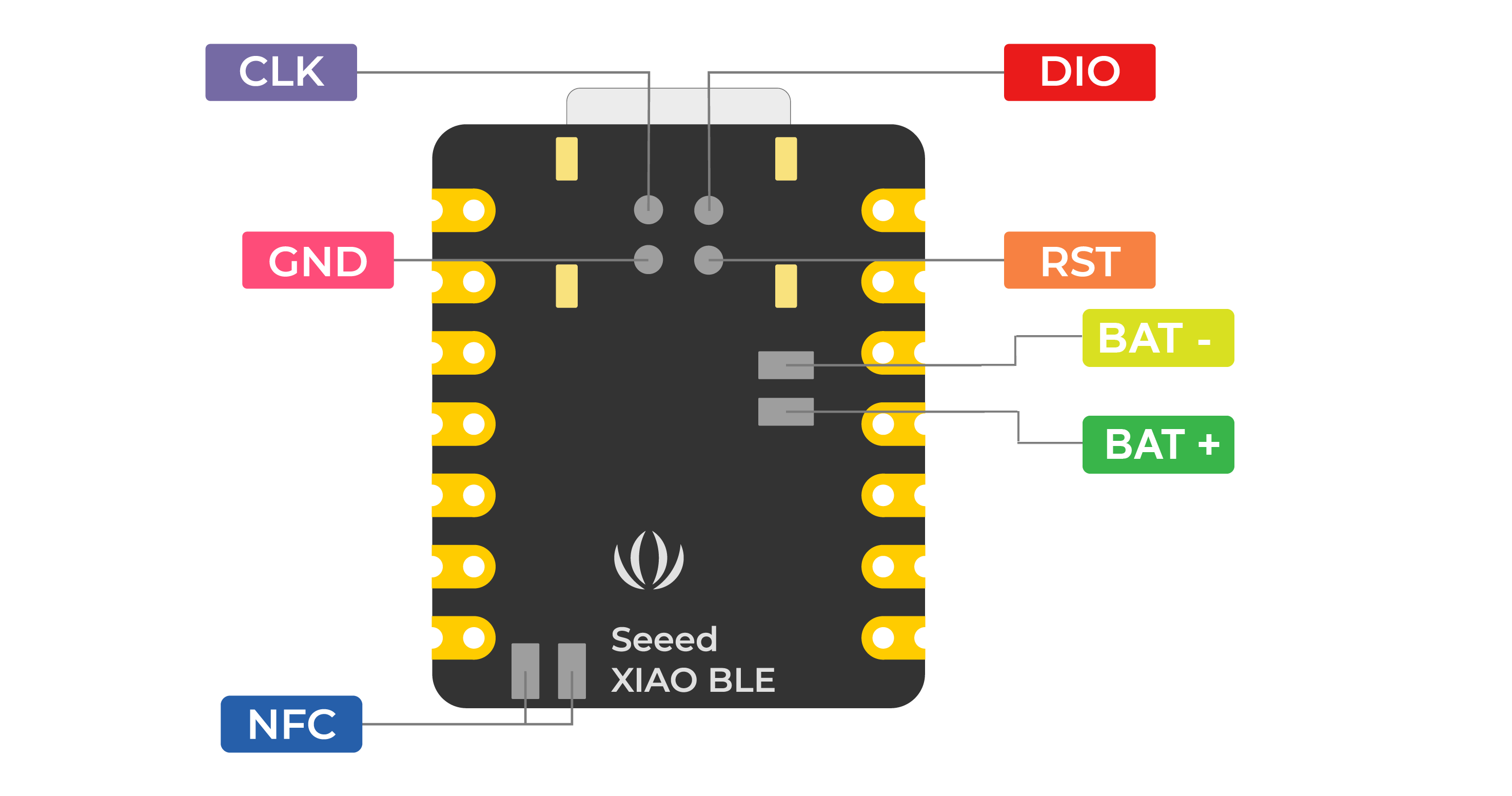

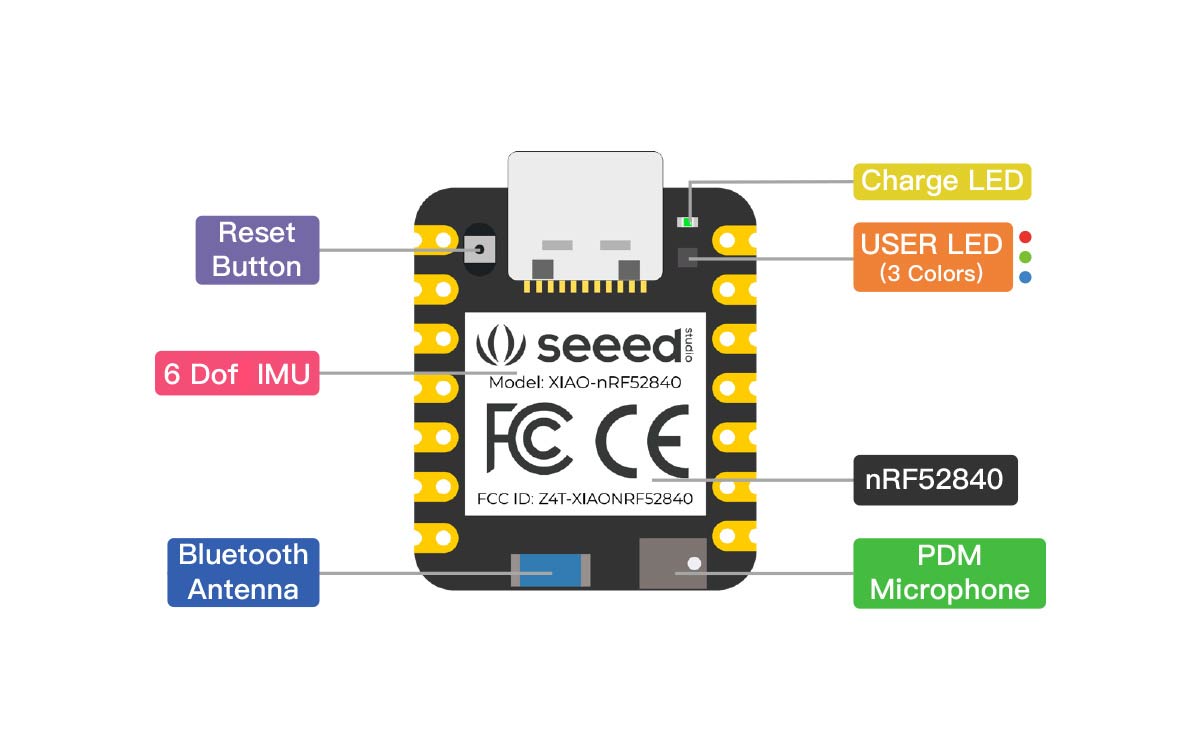

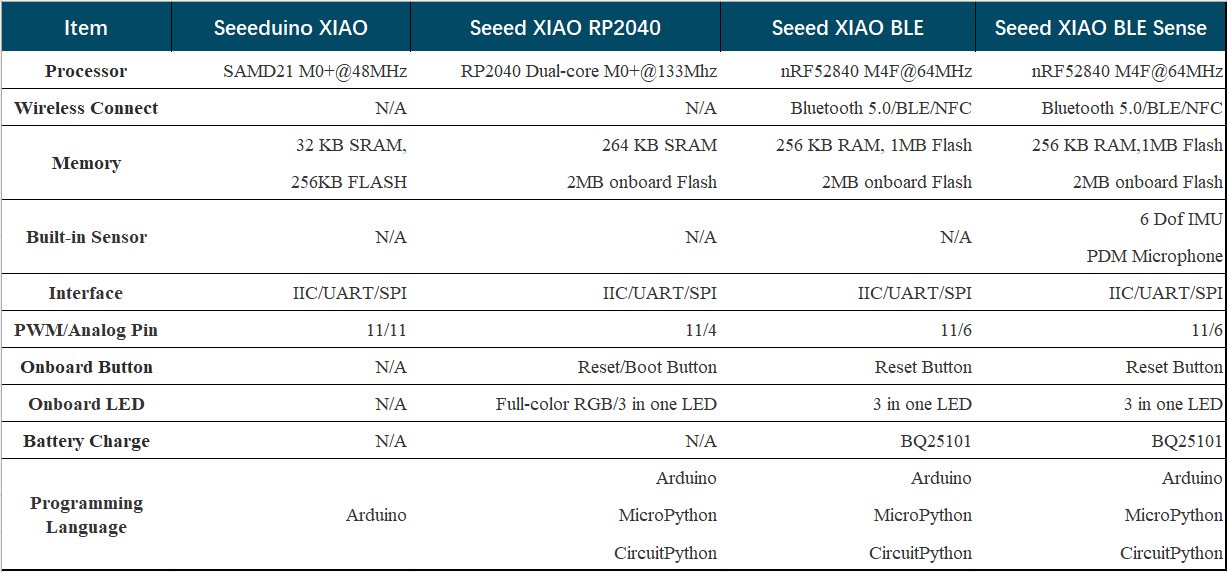

Compare to XIAO RP2040,XIAO BLE has a richer interface. The first thing to note is that the Near Field Communication(NFC) is functional on the board. Secondly,there is a tiny and elegant reset button on one side of the Type-C interface. On the other side,it is designed in a three-in-one LED along with a power LED. There are 11 digital i/o that can be used as PWM pins and 6 analog i/o that can be used as ADC pins. It supports UART,IIC,and SPI all three common serial ports. Same as Seeed XIAO RP2040,
it has an onboard 2 MB flash which means it can also be programmed by Arduino,MicroPython,CircuitPython,or other program languages.

If you are interested in programming embedded machine learning,we have Codecraft graphic programming that can help you quickly
start your own TinyML project. And we have set up a #tinyml channel on our Discord server,please click to join for 24/7 making,
sharing,discussing,and helping each other out. We can do this all day.

Specification

Item	Seeed XIAO BLE - nRF52840	Seeed XIAO BLE Sense - nRF52840
Processor	Nordic nRF52840	The same as XIAO BLE
Processor		The same as XIAO BLE	ARM® Cortex®-M4 with FPU run up to 64 MHz
Wireless	Bluetooth 5.0/NFC/Zigbee	The same as XIAO BLE
On-chip Memory	1 MB flash and 256 kB RAM	The same as XIAO BLE
Onboard Memory	2 MB QSPI flash	The same as XIAO BLE
Interface	1xUART,1xIIC,1xSPI,1xNFC,1xSWD,	The same as XIAO BLE
Interface		The same as XIAO BLE	11xGPIO(PWM),6xADC
Sensors		Onboard PDM digital microphone
Sensors				Onboard 6-axis IMU
Dimensions	21 x 17.5mm	The same as XIAO BLE
Power	Circuit operating voltage: 3.3V@200mA	The same as XIAO BLE
			Charging current: 50mA/100mA
			Input voltage (VIN): 5V
			Standby power consumption: <5μA
