Ultra Narrow 2.7mm WS2812B LED Strip WS2812 2020 160Leds/m individually addressable Samrt RGBIC Light Tape DC5V/12V
DC5V / 2m
$111.47
Sale price
$111.47
Regular price
$0.00
Skip to product information
Ultra Narrow 2.7mm WS2812B LED Strip WS2812 2020 160Leds/m individually addressable Samrt RGBIC Light Tape DC5V/12V
$111.47
Sale price
$111.47
Regular price
$0.00
Description
SPECIFICATIONS
Average Life (hrs): More than 50000hours
Brand Name: Xnbada
Certification: CCC,ce,FCC,ROHS,CE,RoHs
Choice: yes
Color Temp(K): 3000-6500k
High-concerned chemical: none
Is Batteries Included: no
Is Smart Device: Yes
Item Type: Strip
LED Chip Brand: Epistar
LED Chip Model: SMD2020
LEDs Number/M: 160
Luminous Flux: 249-2000
Model Number: WS2812 WS2812B
Nominal Voltage: Other
Occasion: Living room
Origin: Mainland China
Power Consumption (W/m): 5.76W/m
Power Generation: Switch
Power Source: DC
Specifications (light beads / m): 160
Strip type: SMD
Voltage: 5V/12V
Waterproof: No
semi_Choice: yes
Pay Attention：
1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.
2.Since the light strip is super narrow, don't bend it sharply to avoid breaking
3.The DC5V light strip needs a DC5V power supply, if it is greater than DC5.5V, the light strip will be damaged!
The DC12V light strip needs a DC12V power supply, if it is greater than DC12.5V, the light strip will be damaged!
4.When the light strip is in white light, it will gradually change from white light to orange light. This is caused by insufficient voltage. You only need to increase the voltage to solve it.
5.The led strip need a WS2812B data Controller(not include) and led power supply(not include) to light up!
Products Description:

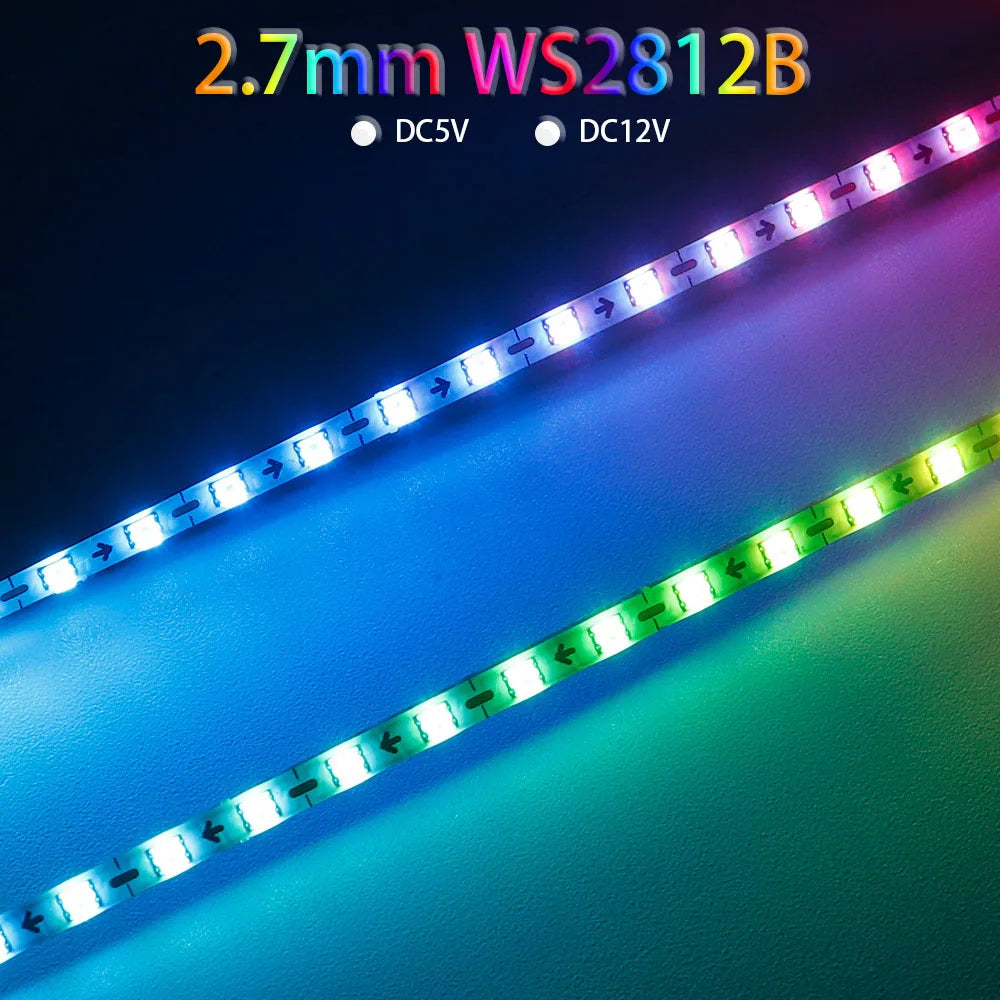

Product Name：Ultra Narrow WS2812 Smart Digital LED Strip

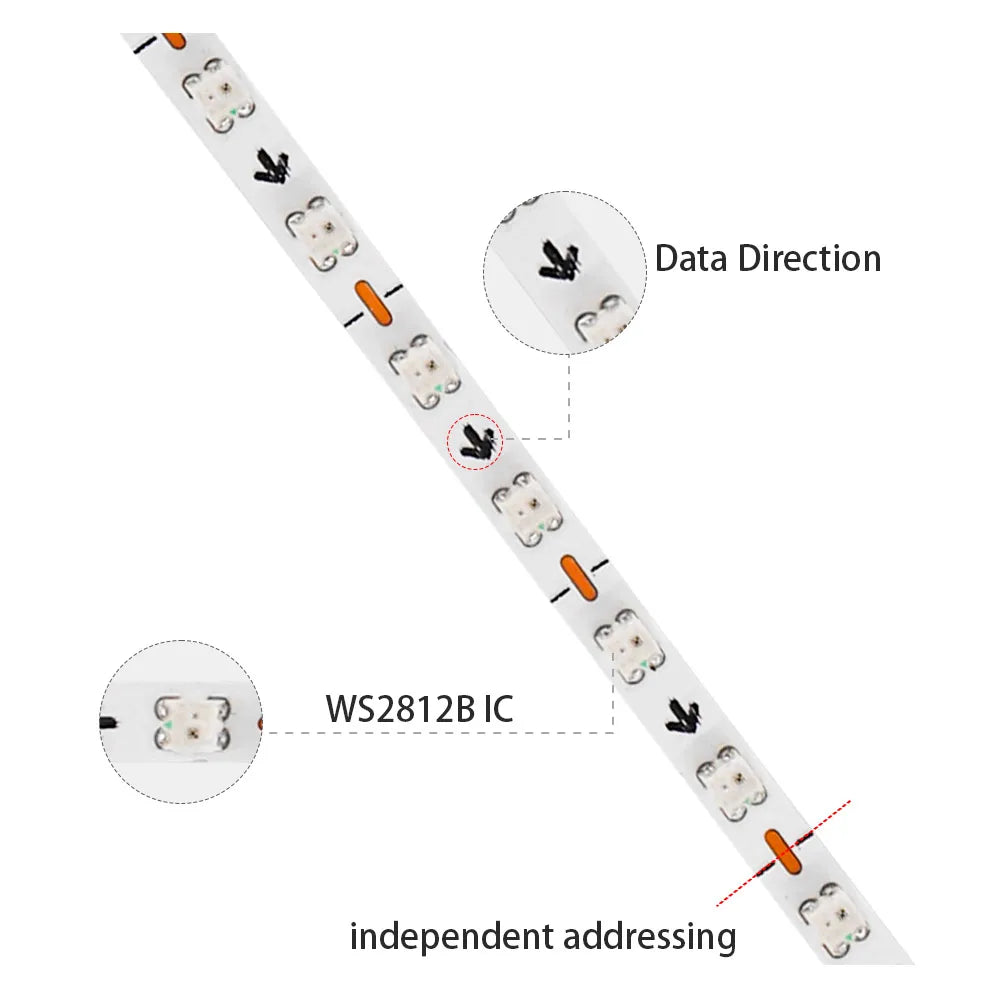

IC Chip：WS2812B
SMD Size: 2020SMD
Voltage ：DC5V/DC12V
Color：Addressable RGB full color
LED Qty：160 LEDs/m

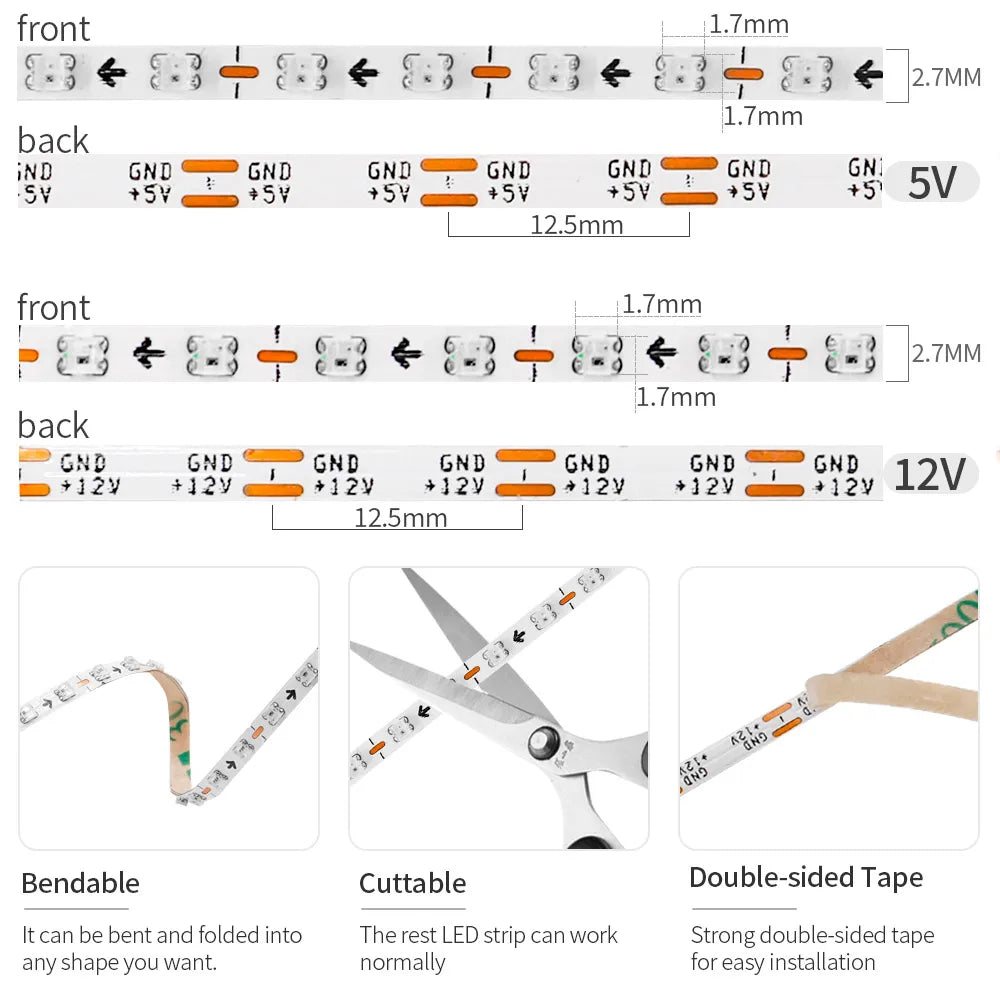

PCB width：2.7mm
Watts：5w/m
Cutted：Per 2 led
PCB color：White
IP rated：IP20;non-waterproof

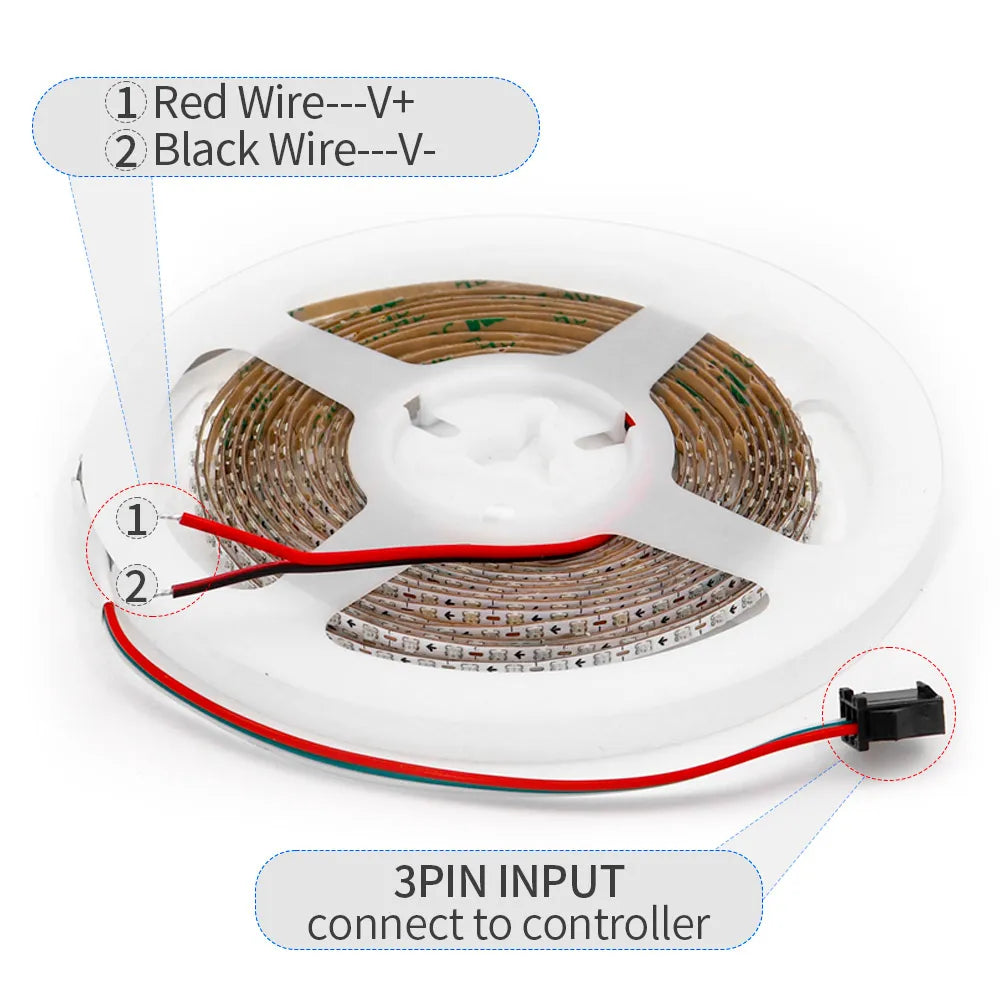

Pins：3 Wires = 5V+(Red wire), DATA(Green wire), GND(White wire)
Length：1m/2m/3m/4m/5m(According to your choice）
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180°
