UNI-T 1000A True RMS Digital Clamp Meter 1000V AC DC Voltmeter Pliers Ammeter UT206B UT207B UT208B Inrush Current LPF ACV Test
UT206B / China Mainland
$391.68
Sale price
$391.68
Regular price
$0.00
Skip to product information
UNI-T 1000A True RMS Digital Clamp Meter 1000V AC DC Voltmeter Pliers Ammeter UT206B UT207B UT208B Inrush Current LPF ACV Test
$391.68
Sale price
$391.68
Regular price
$0.00
Description
SPECIFICATIONS
AC Current: 1000A
AC Voltage: 1000V
Amperometric clamp: Pliers ammeter
Analog Bar: 31(Only UT206B UT207B UT208B)
Battery Included: no
Brand Name: UNI-T
Certification: CE,RoHS
Clamp Meter Display count: 6000
DC Current: 1000A
DC Voltage: 1000V
DIY Supplies: Electrical
Dimensions: 272mm x 81mm x43.5mm
Display Type: Other
High-concerned chemical: none
Jaw opening: 42mm
Measuring Capacitance Range: 60mF
Measuring Current Range: 600A
Measuring Inductance Range: 60mF
Measuring Resistance Range: 60Mohm
Measuring Voltage Range: 1000v
Model Number: UT206B UT207B UT208B
Operating Temperature: -40~100 centigrade
Origin: Mainland China
Safety Grade: CAT III1000V CAT IV 600V
Semi-finishedproduct: No

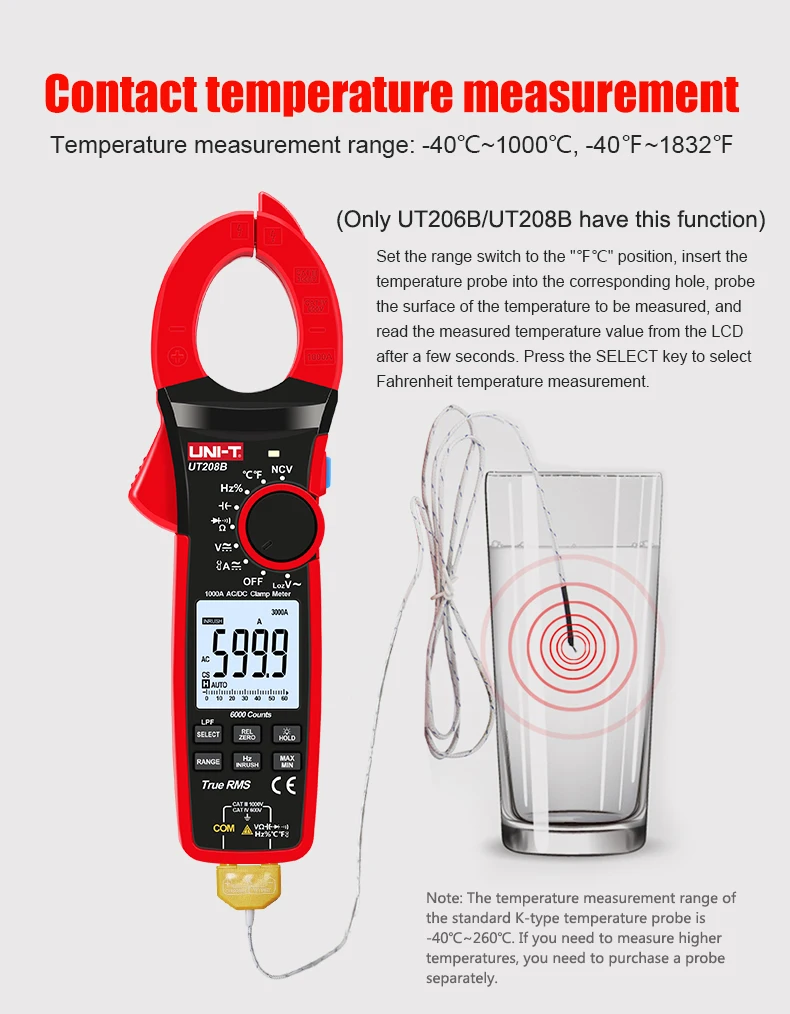

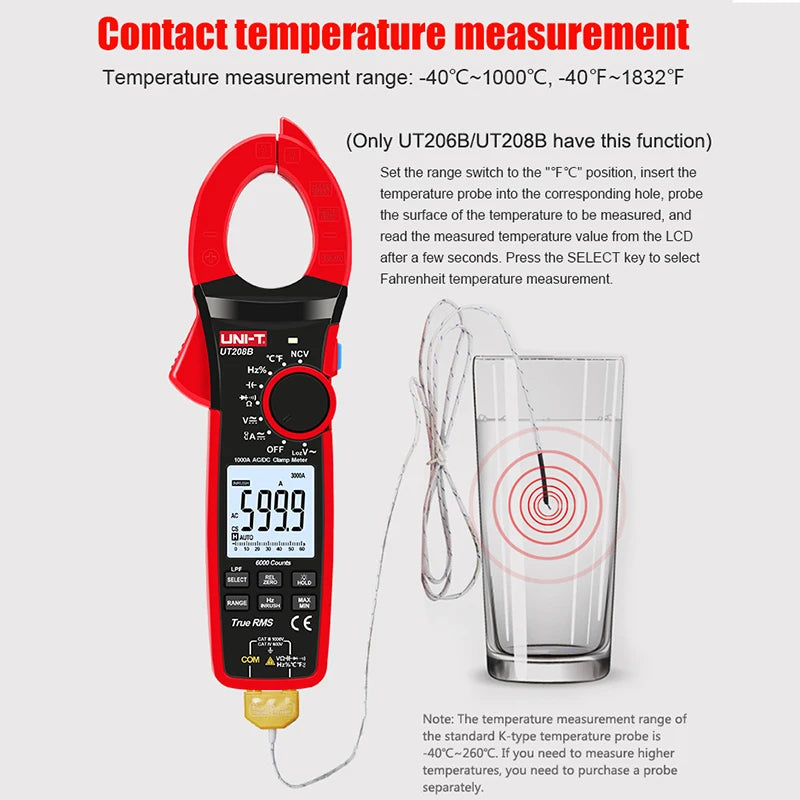

Temperature Measurment: -40-1000 Centigrade(Only UT206B UT208B)
UNI-T Model: UT207B
Weight: 710g
amperimetro clamp: amperemeter

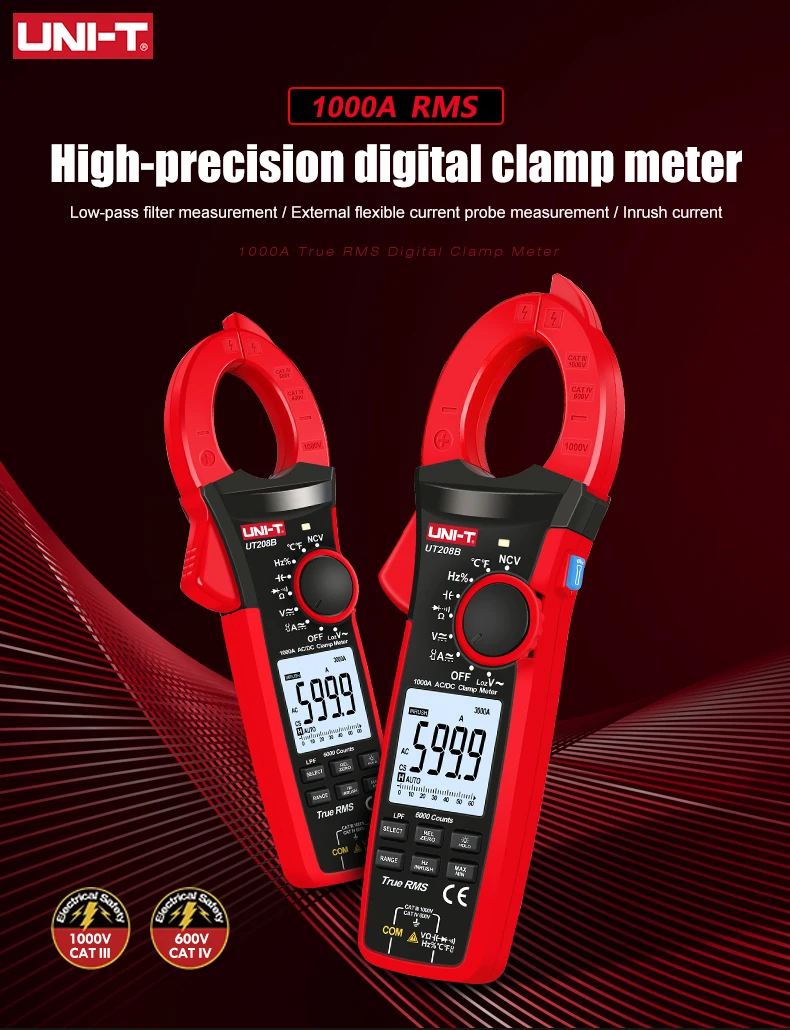

UT206B UT207B UT208B 1000A True RMS Digital Clamp Meter
UT200 series are 6000 count digital clamp meter.With Auto Range ,large LCD,true RMS, auto scale memory, and NCV functions .They conform to CAT III 1000V/CAT IV 600V safety rating and certified by CE/ETL.UT206B,UT207B and UT208B come with LOZ mode for eliminating ghost voltage, LPF ACV function for measuring INV and VFD voltage, inrush current and mode for capturing transient current.UT206B and UT208B also feature high-precision temperature measurement with 0.1 centigrade resolution, and can be equipped with a flexible current probe to extend the AC current measurement range up to 3000A.
Features of UT200 Series 1000A True RMS Digital Clamp Meters:

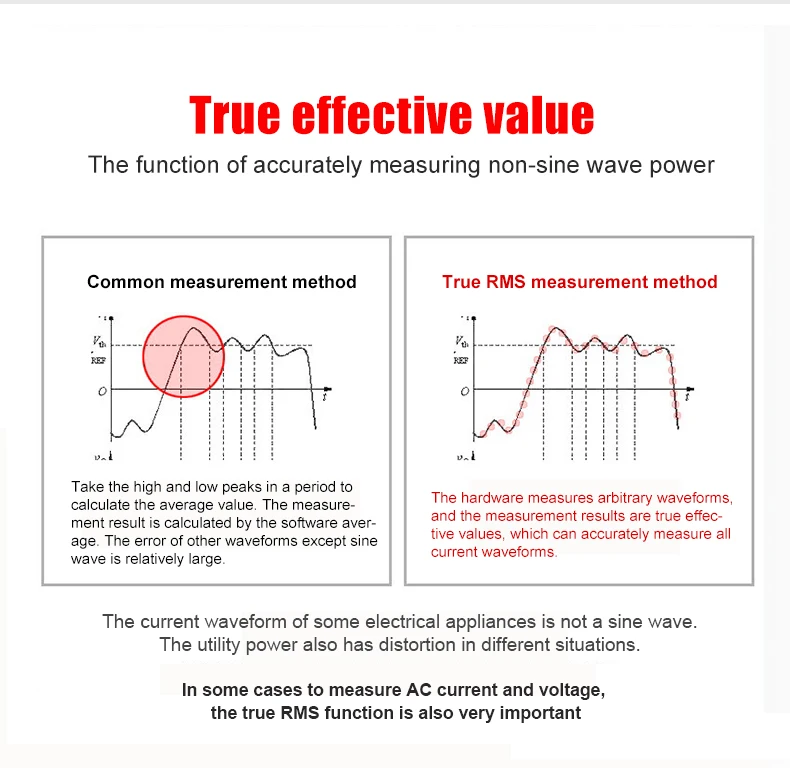

1.True RMS
2.1000A AC/DC Current Measure
3.Flashlight

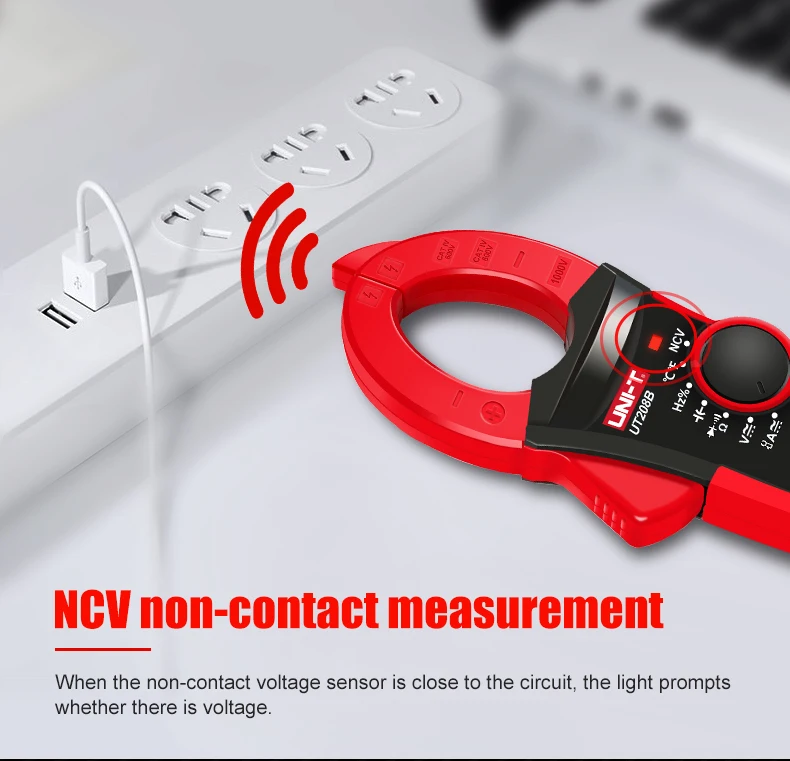

4.NCV(audible/visual alarm)
5.Backlight
6.Data Hold
7.MAX/MIN/relative mode
8.Diode/Continuity Test
9.Inrush Current(UT206B/UT207B/UT208B)
10.LPF ACV(UT206B/UT207B/UT208B)
11.LOZ ACV(UT206B/UT207B/UT208B)
Optional flex clamp (UT-CS09D) up to 3000A (UT206B/UT208B)
Note please ：the flex clamp need to be ordered , not included in standard accessories.
Battery is not included.

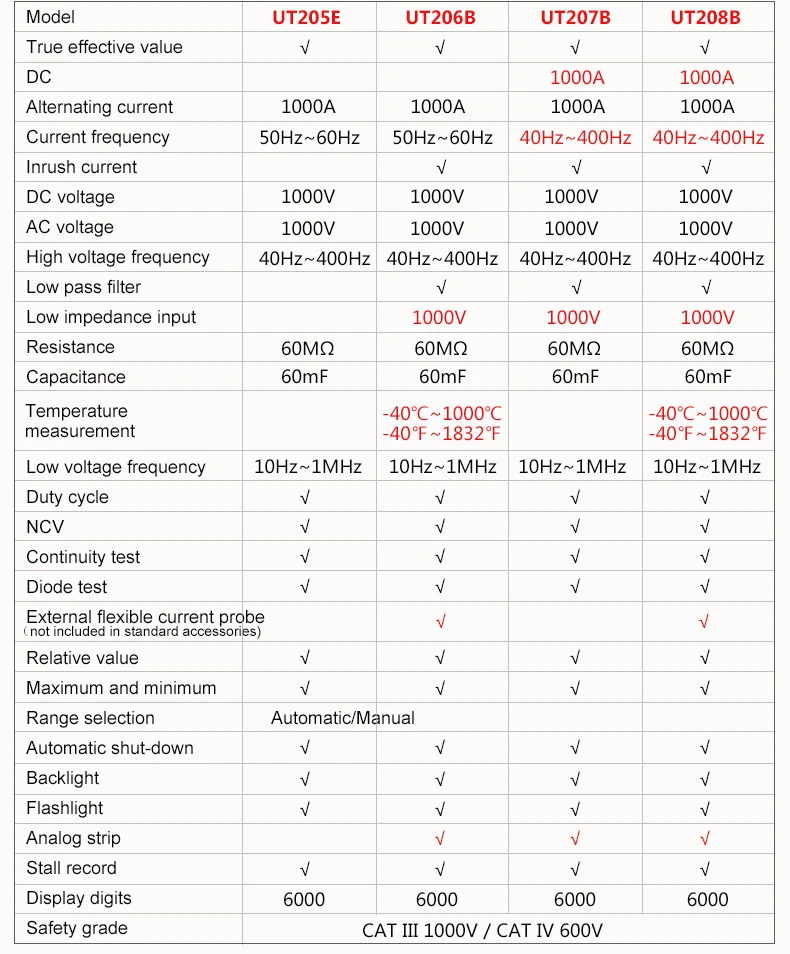

Specifications |
Range |
UT205E |
UT206B |
UT207B |
UT208B |
AC current (A) |
1000A |
±(2%+5) |
±(2%+5) |
±(2%+5) |
±(2%+5) |
DC current (A) |
1000A |
±(2%+5) |
±(2%+5) |
||
AC current frequency response |
50Hz~60Hz |
50Hz~60Hz |
40Hz~400Hz |
40Hz~400Hz |
|
Inrush current (A) |
1000A |
±(10%+10) |
±(10%+10) |
±(10%+10) |
|
AC voltage (V) |
6V |
±(1.2%+3) |
±(1.2%+3) |
±(1.2%+3) |
±(1.2%+3) |
60V/600V/1000V |
±(1%+8) |
±(1%+8) |
±(1%+8) |
±(1%+8) |
|
DC voltage (V) |
600mV |
±(0.8%+3) |
±(0.8%+3) |
±(0.8%+3) |
±(0.8%+3) |
6V/60V |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
|
600V |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
|
1000V |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
|
Low pas filter (LPF ACV) |
600V/1000V |
±(2%+5) |
±(2%+5) |
±(2%+5) |
|
AC voltage frequency response |
40Hz~400Hz |
40Hz~400Hz |
40Hz~400Hz |
40Hz~400Hz |
|
LoZ ACV |
600V/1000V |
±(2%+5) |
±(2%+5) |
±(2%+5) |
|
Resistance (Ω) |
600Ω |
±(1%+3) |
±(1%+3) |
±(1%+3) |
±(1%+3) |
6KΩ/60KΩ/600KΩ |
±(1%+2) |
±(1%+2) |
±(1%+2) |
±(1%+2) |
|
6MΩ/60MΩ |
±(2%+8) |
±(2%+8) |
±(2%+8) |
±(2%+8) |
|
Capacitance (F) |
60nF |
±(4%+25) |
±(4%+25) |
±(4%+25) |
±(4%+25) |
600nF/6μF/60μF/600μF |
±(4%+5) |
±(4%+5) |
±(4%+5) |
±(4%+5) |
|
6mF/60mF |
±(10%+9) |
±(10%+9) |
±(10%+9) |
±(10%+9) |
|
Temperature (℃) |
-40℃~300℃ |
±(1%+20) |
±(1%+20) |
||
300℃~1000℃ |
±(1%+2) |
±(1%+2) |
|||
Low voltage frequency (Hz) |
10Hz~1MHz |
±(0.1%+3) |
±(0.1%+3) |
±(0.1%+3) |
±(0.1%+3) |
Duty cycle (%) |
10%~90% |
±(2.6%+7) |
±(2.6%+7) |
±(2.6%+7) |
±(2.6%+7) |
Features | |||||
Display count |
6000 |
6000 |
6000 |
6000 |
|
Jaw opening |
42mm |
42mm |
42mm |
42mm |
|
Current frequency |
50Hz~60Hz |
50Hz~60Hz |
50Hz~60Hz |
50Hz~60Hz |
|
High voltage frequency |
40Hz~400Hz |
40Hz~400Hz |
40Hz~400Hz |
40Hz~400Hz |
|
Analog bar |
31 |
31 |
31 |
||
Auto power off |
√ |
√ |
√ |
√ |
|
Continuity test |
√ |
√ |
√ |
√ |
|
Auto/Manual range |
√ |
√ |
√ |
√ |
|
Low battery indication |
√ |
√ |
√ |
√ |
|
Diode test |
√ |
√ |
√ |
√ |
|
Relative mode/Data hold |
√ |
√ |
√ |
√ |
|
MAX/MIN |
√ |
√ |
√ |
√ |
|
Function selection |
√ |
√ |
√ |
√ |
|
Flashlight |
√ |
√ |
√ |
√ |
|
Wake-up function |
√ |
√ |
√ |
√ |
|
Auto power off current: ＜50μA |
√ |
√ |
√ |
√ |
|
Flexible current probe (optional) |
Extends to 3000A |
√ |
√ |
||
Zero mode |
√ |
√ |
|||
Input impedance (ACV/DCV) |
≥10MΩ |
√ |
√ |
√ |
√ |
General Characteristics | |||||
Power |
1.5V battery (R03) x 3 (NOT INCLUDED) |
||||
Display |
43mmx 45mm |
||||
Product color |
Red and grey |
||||
Product net weight |
UT205E/UT206B:465g; UT207B/UT208B: 420g |
||||
Product size |
272mmx 81mm x 43.5mm |
||||

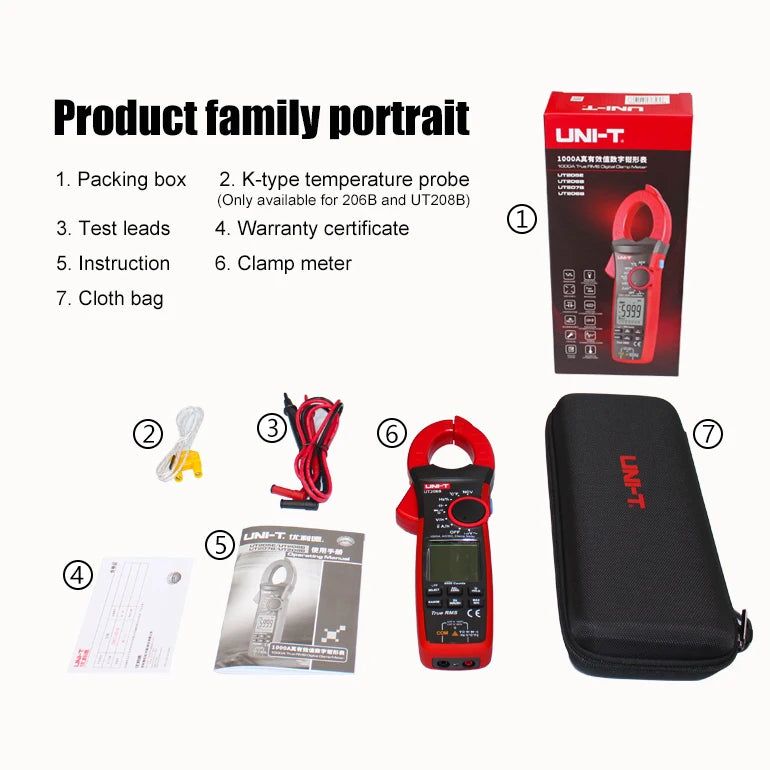

Standard accessories |
Testleads, batteries, point contact temperature probe (UT206B/UT208B) |
||||
Standard individual packing |
Gift box, carrying bag, English manual |
||||
