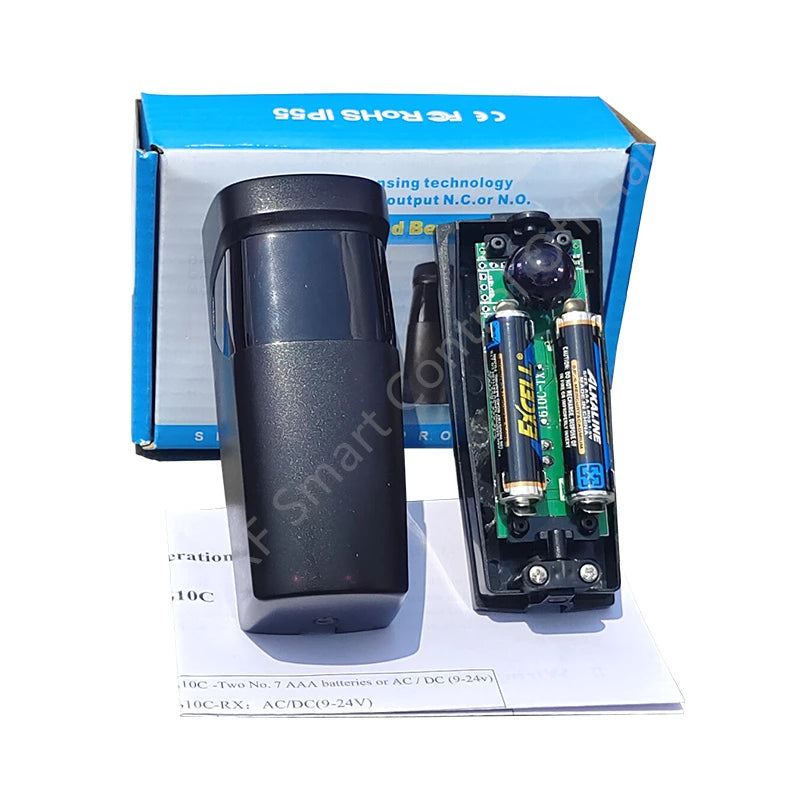

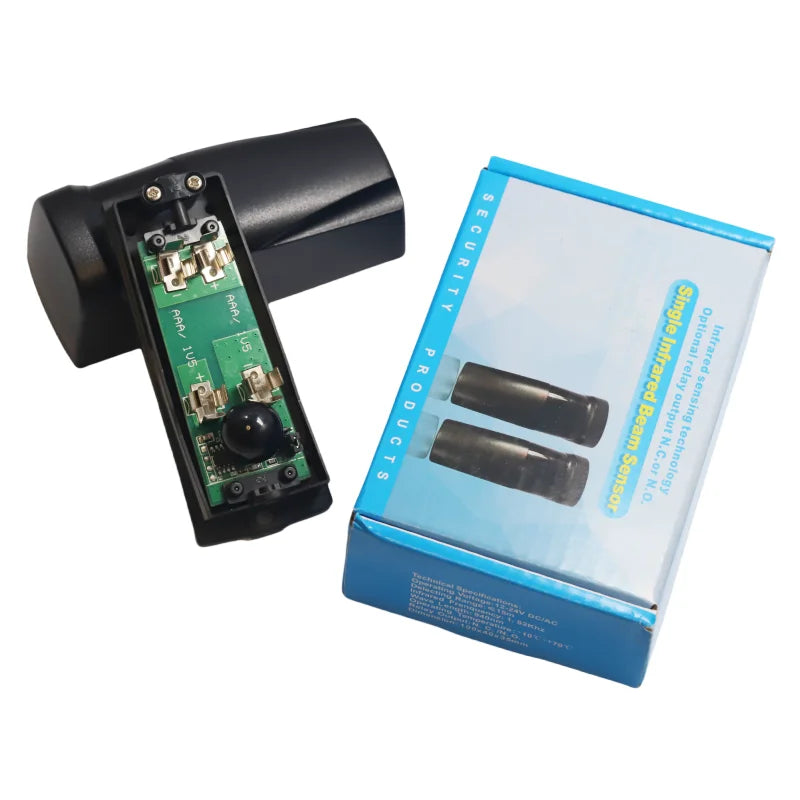

Universal Infrared Photocell Safety Beam, 12V-24V DC/AC Compatible Barrier Sensor for Automatic Doors, Gates, and Home Security

Universal Infrared Photocell Safety Beam, 12V-24V DC/AC Compatible Barrier Sensor for Automatic Doors, Gates, and Home Security

$25.43

$25.43 $0.00

Description

SPECIFICATIONS

Angle of incidence: < ±10°

Battery: Two No. 7 AAA batteries or AC / DC (9-24v)

Brand Name: NONE

Certification: CE,RoHS

Channel: 2

Color: Black

Distance: 10-15m

Form-factor: Cover

Frequency: 433 MHz

High-concerned chemical: none

Infrared emission frequency: 1.92Khz

Maximum load: 1A max 30V

Model Number: IS01

Origin: Mainland China

Package: Yes

Product name: Hot sale NO/NC AC/DC12V-24V wireless AAA battery Photocell Sensor Beam for Automatic Door

Receiver parameter range: ≤20m When the weather is bad, such as heavy rain or fog, the distance will be reduced by 30%

Support APP: No

Technology: Active infrared radiation

Use: Universal

Use environment: -20°C ~ 70°C

Wavelength: 940nm

Wireless Communication: RF

sensitivity: ≥-112dBm

size: 100 X 40 X 35mm

standby time: Standby time >130 days (with Nanfu battery)

static working current: TX ≤300uA RX ≤15mA

working voltage: TX -Two No. 7 AAA batteries or AC / DC (9-24v) RX AC/DC(9-24V)

Hot sale NO/NC AC/DC12V-24V wireless AAA battery Photocell Sensor Beam for Automatic Door

Main Feature:

1.Indoor 15m, Outdoor 10m

2.12-24 VDC/AC

3.waterproof

4.Anti-sunlight

Technical Specification

1.Working voltage: Transmitter : 3V (2PCS AAA battery 1.5V LR03), Receiver : 12-24V DC

2.Working current:Transmitter < 85µA, Receiver < 30mA (24V DC)

3.Photocell wavelength:940nm

4.Angle of emission:≤±5°

5.working time :180 days

6.working distance Direct sunlight: 8-12M

7.Back sunligjt:15-17M

8.working static current TX ≤100uARX ≤15mA

9.working Tempature. :-20℃ - +80℃

10. Internal rotation adjutsted Angle 0-180°

11.Receiving range:> 12m

12.Relay contact loading capacity:1A/30VDC

13.Size:100*40*35mm

Note

Battery not included ,buyers need buy battery by yourself ;

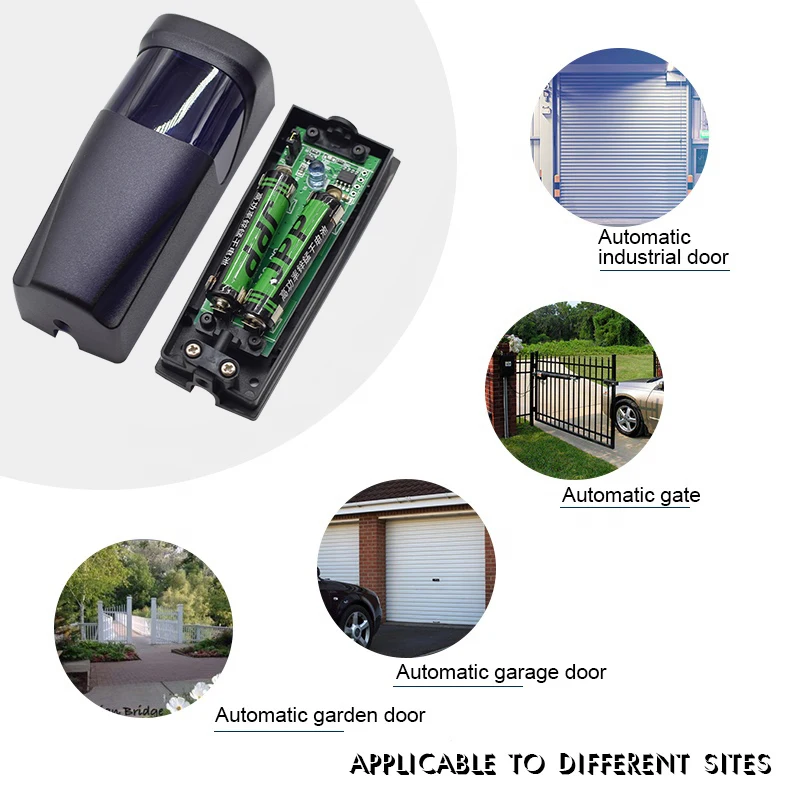

Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.

Narrow infrared beam (I or II) can avoid interruption by external light.

Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-10meters).

The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

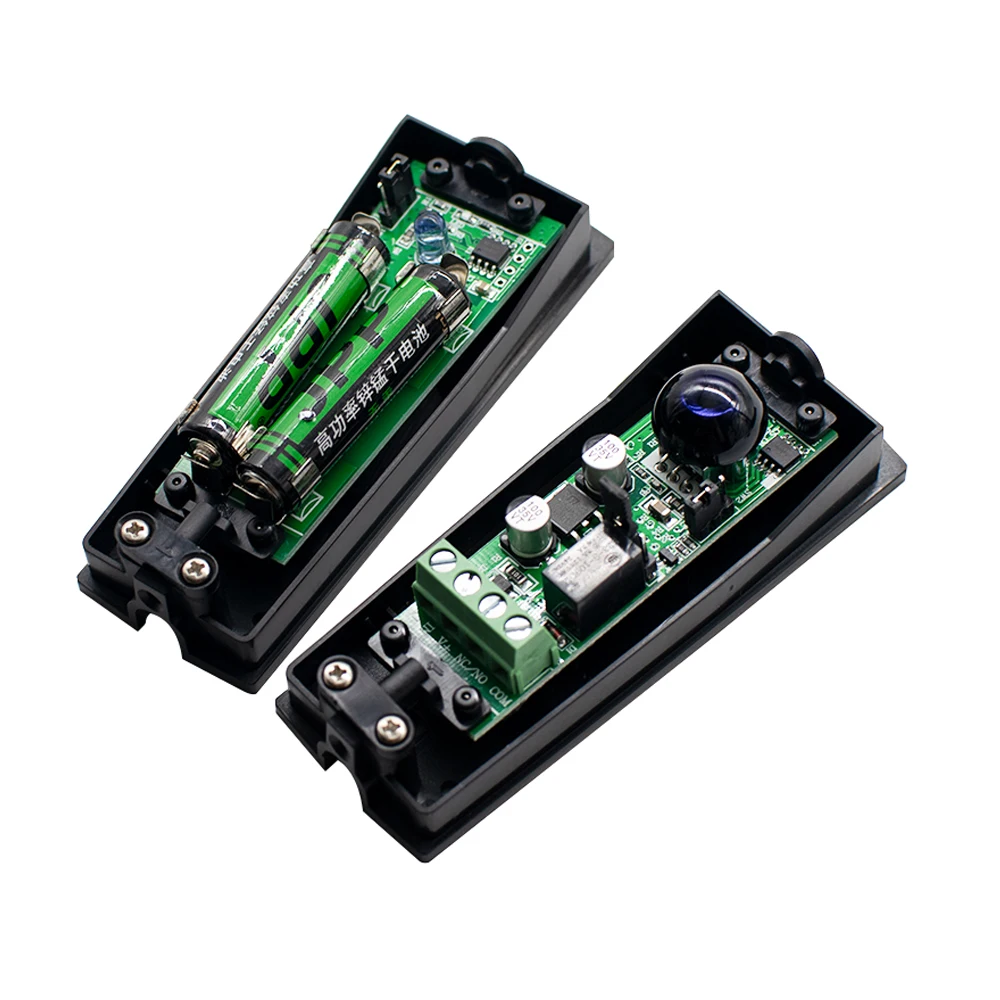

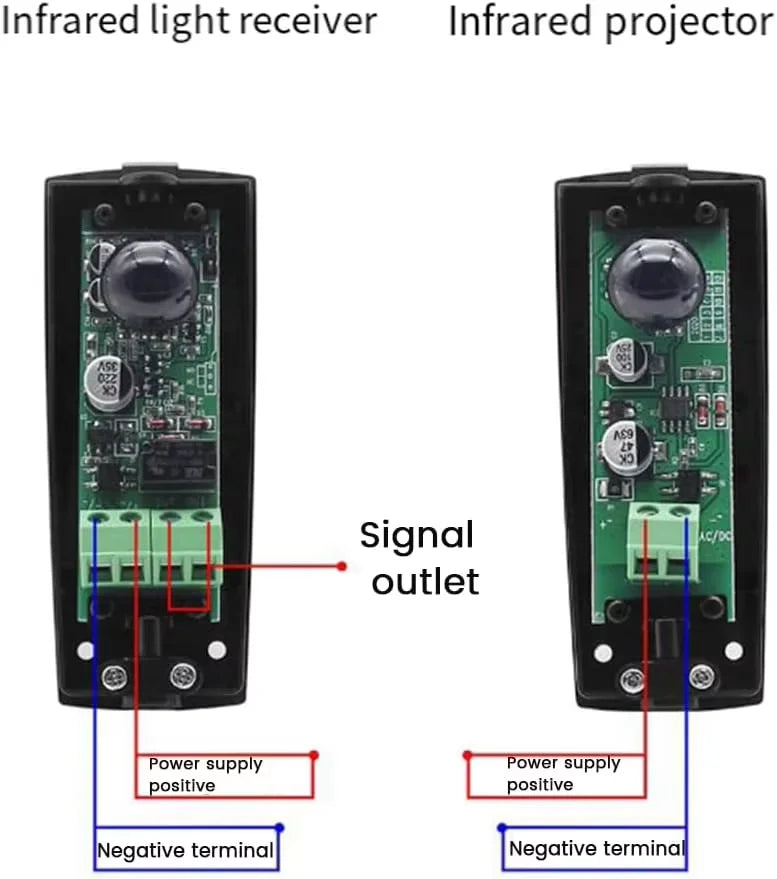

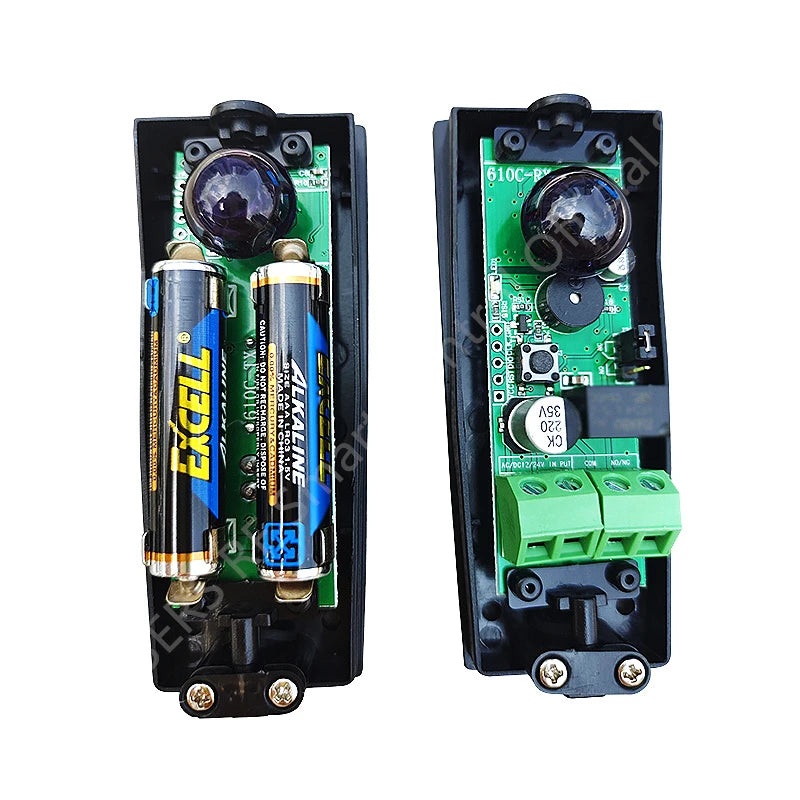

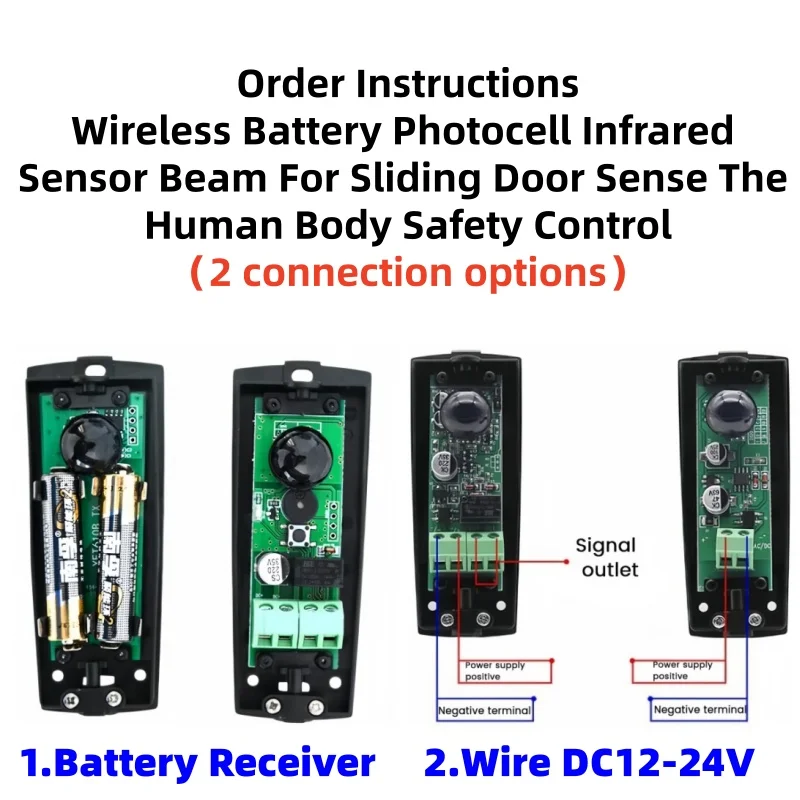

Wire Photo：

Safety Instruction

1.For security, please read the user manual carefully before initial operation;
2.This photocell is without any fuse,so Please make sure the power is off before installation;
3.Only used this system that do not cause any danger life or property during the running failure or its security risks eliminated;
4.Please guarantee the products used in effective working range

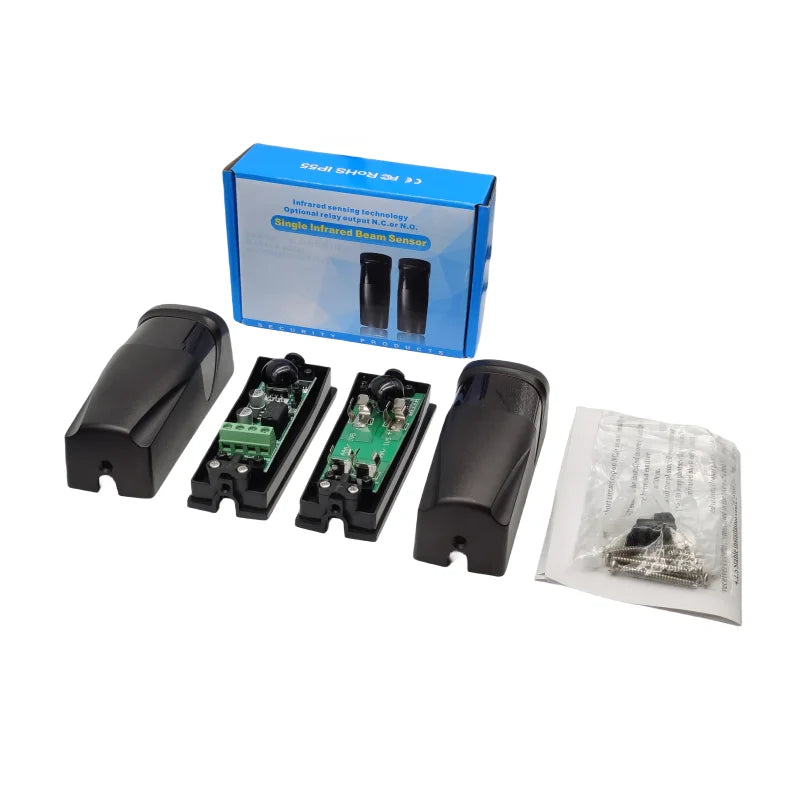

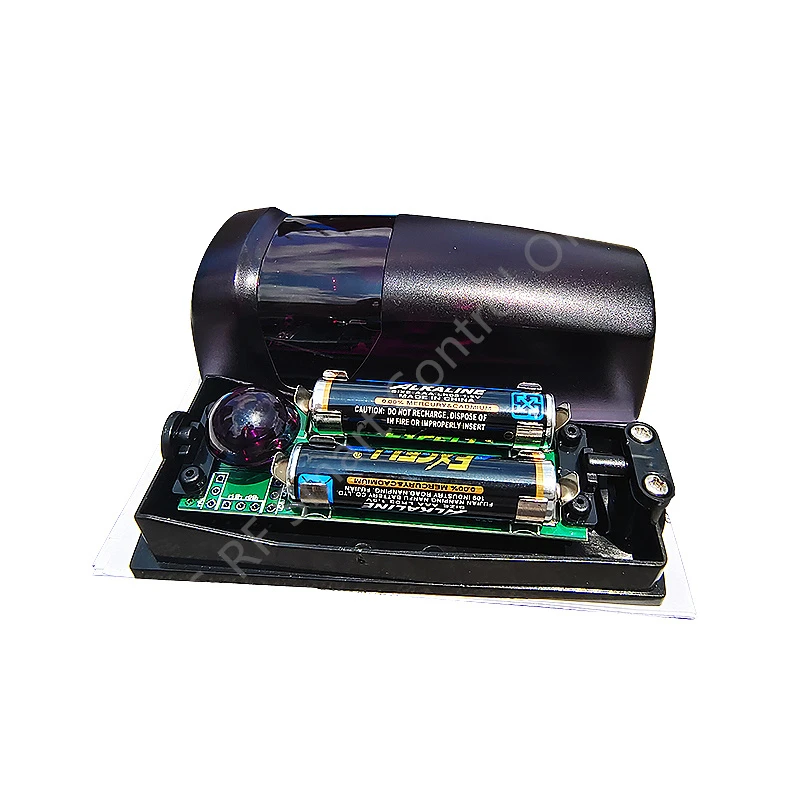

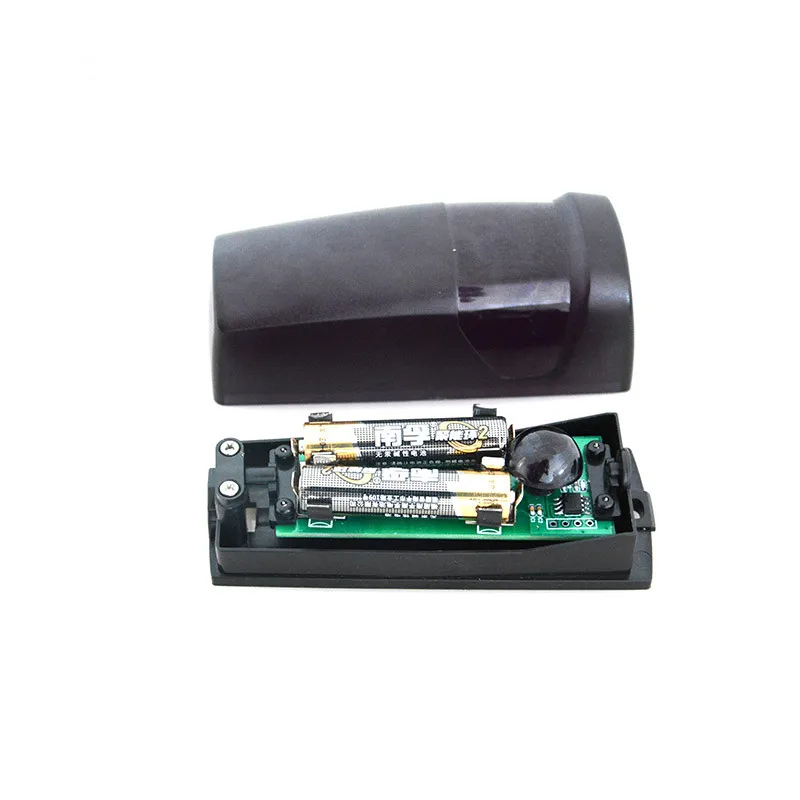

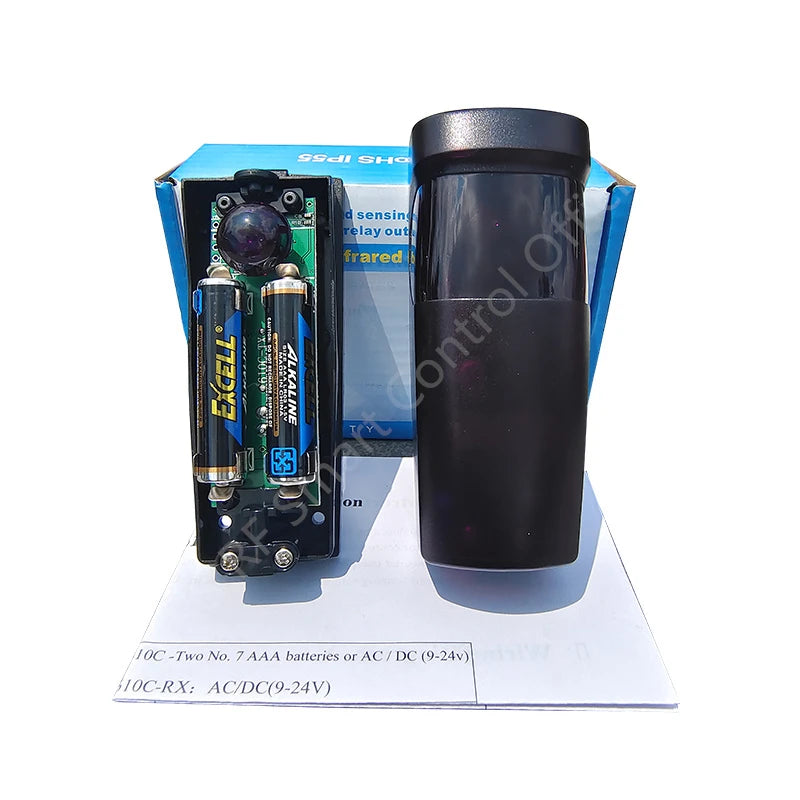

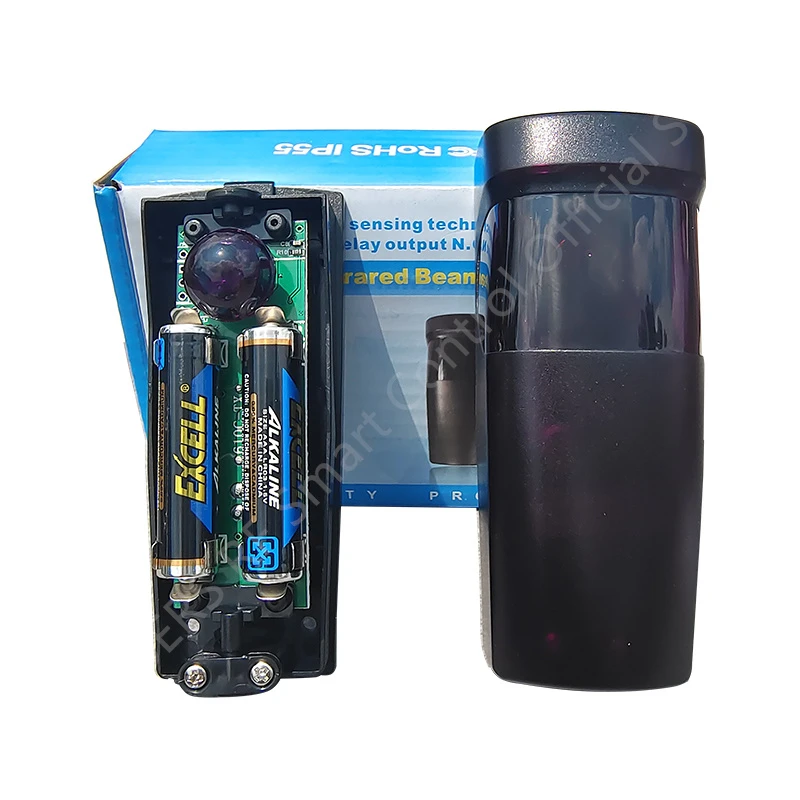

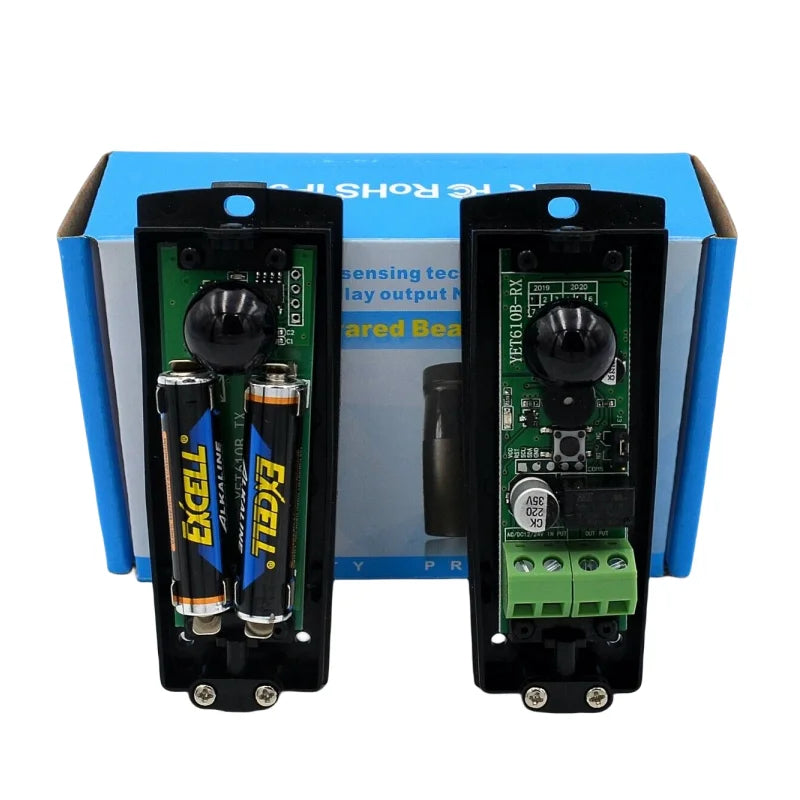

Picture Display

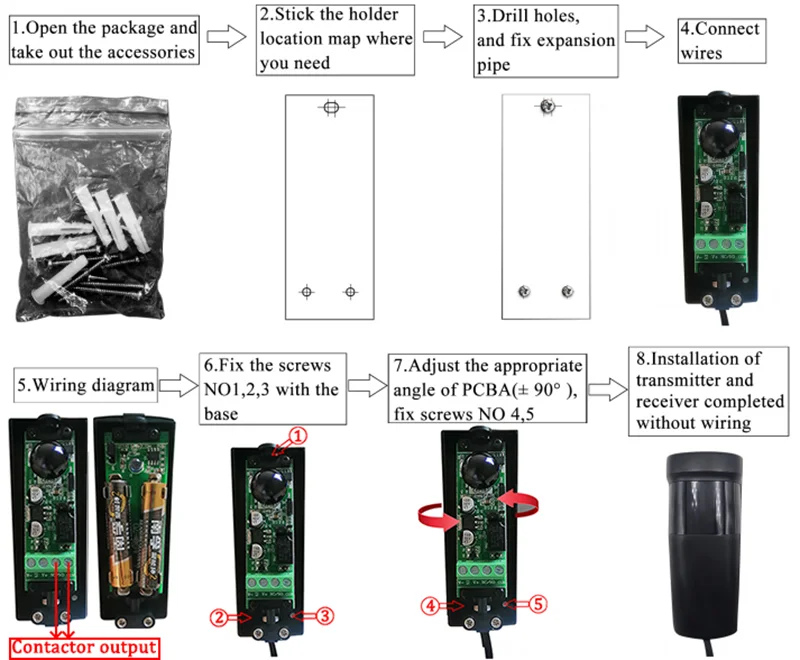

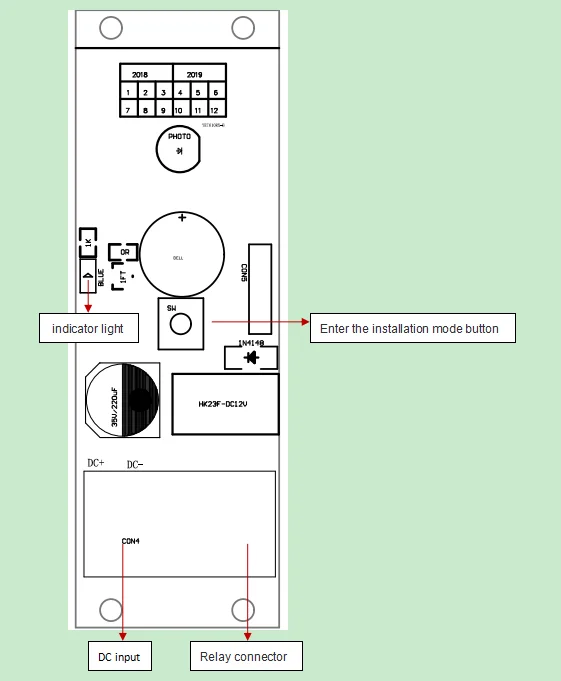

Installation instruction

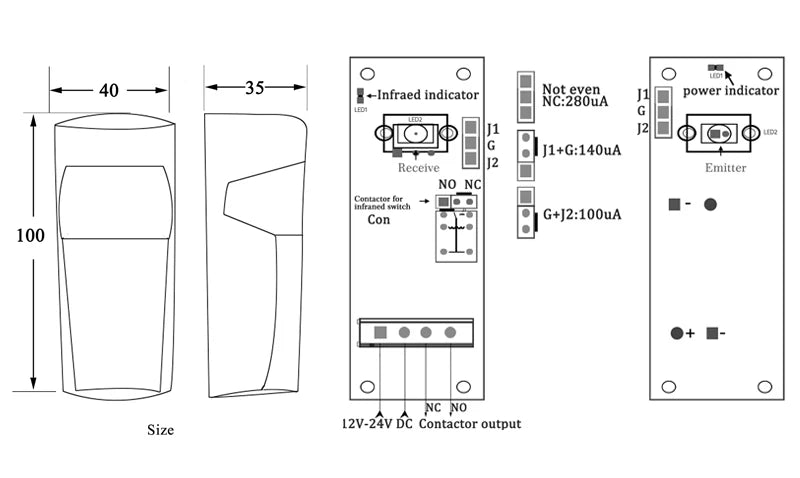

4.1 Receive module J4 in above picture is the option switch for NO and NC of photocell switch.
4.1.1When the short circuit cap on NO,it is normally open.
4.1.2 When the short circuit cap on NC,it is normally closed.
4.2 Installation
4.2.1 The photocell should be installed more than 20cm above the ground (to avoid reflection), and the distance between emitter
and receiver should be more than 50cm.
4.2.2 End user should install the photocell receiver on the back of the direct sunlight or other strong light source(±5-) to keep photocell work well steadily.
4.2.3 Avoid installing other infrared photocell emitters within the effective distance of receiver.
4.2.4 If the end user need to install other photocells in one same straight line , the receivers could be installed in the two ends and the emitters could be back-to-back installed.
4.2.5 Stable installation could avoid the signal of emitter and receiver skewing due to lightly vibrate and the malfunction.
4.2.6 When the product is install in some place with angle , end user could adjust the PCBA to make the installation better.
4.2.7 Connect the power after the inspection, when short circuit cap at NO, After the battery is installed on the LED lamp of the transmitting module, the LED lamp lights up for 0.5 seconds and then goes out, receiver module LED turns on, receiver module contact at off; when make the cap of emitter and receiver in alignment, receiver module LED is off, NC/NO is on ;when something or someone shelter the sensor, receiver module LED will turn on , NC/NO contact is off. When short circuit cap at NC, the state of NO/NO is opposite to the above phenomenon.

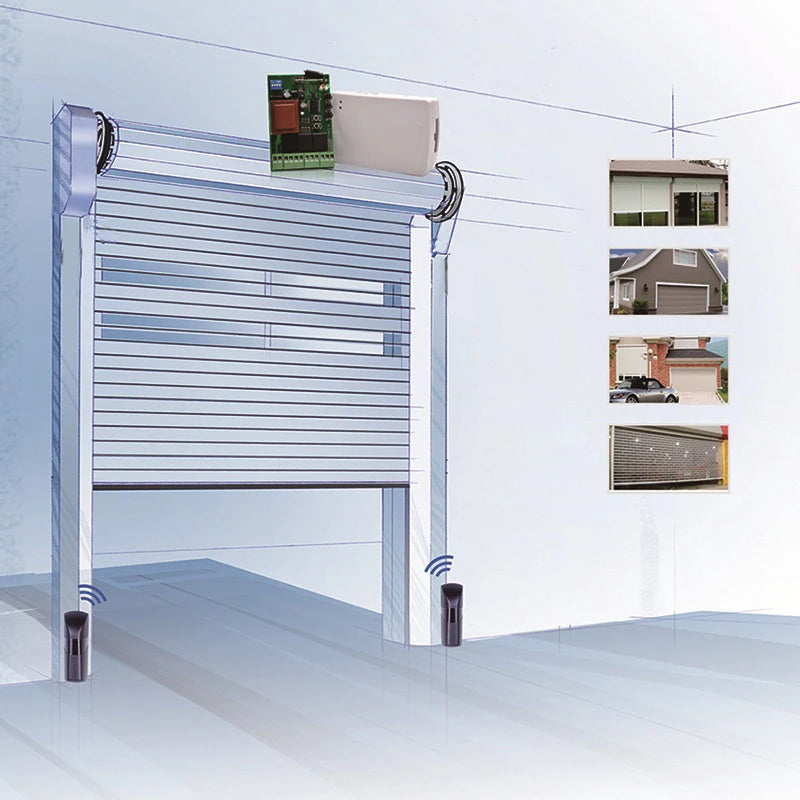

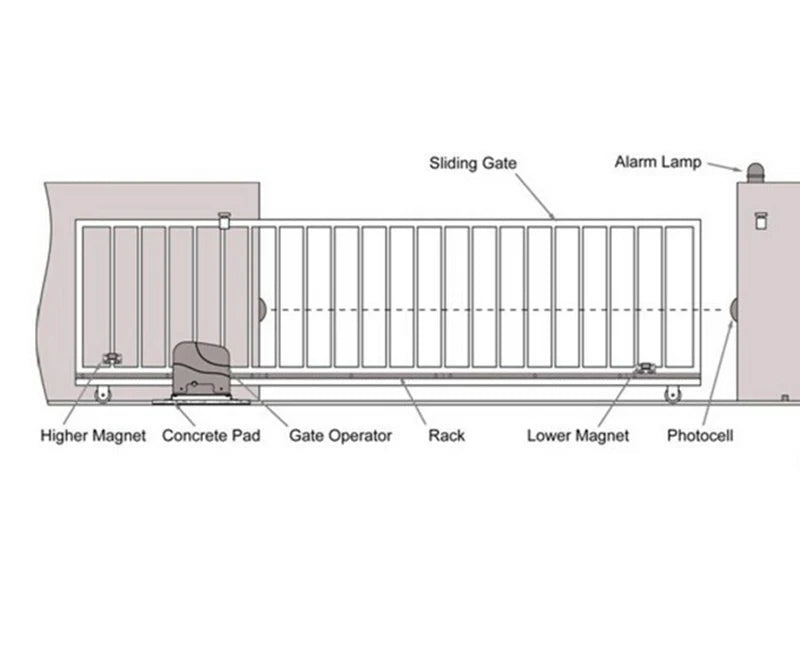

Installation Pictures
